The Fungus Metarhizium sp. BCC 4849 Is an Effective and Safe Mycoinsecticide for the Management of Spider Mites and Other Insect Pests
1National Center for Genetic Engineering and Biotechnology, National Science and Technology Development Agency, Pathum Thani 12120, Thailand; rudsamee.was@biotec.or.th (R.W.); natnapha.pho@ncr.nstda.or.th (N.P.); boonhiang@biotec.or.th (B.P.); duangjai.san@nstda.or.th (D.S.); chutima.son@nstda.or.th (C.S.); sithichoke.tan@nstda.or.th (S.T.); somsak.lik@biotec.or.th (S.L.); supawadee@biotec.or.th (S.I.); chettida.sri@biotec.or.th (C.S.); kewarin.kla@biotec.or.th (K.K.); malineec@biotec.or.th (M.S.); thipmanee.hle@ncr.nstda.or.th (T.H.)
2Thailand Institute of Scientific and Technological Research, Pathum Thani 12120, Thailand; sareeya@tistr.or.th
3School of Bioresources and Technology, King Mongkut’s University of Technology Thonburi, Bangkok 10140, Thailand; morakot@nstda.or.th
*Correspondence: alongkorn@biotec.or.thAbstract
Simple Summary
The spider mite is a destructive pest of various crops during warm and dry conditions in tropical countries, including Thailand. The pest is difficult to control despite synthetic acaricide use. In the field, insect populations gradually develop resistance to synthetic pesticides over long-term use. The use of entomopathogenic fungi is more human- and environmentally friendly. We searched and identified a potential fungal isolate from a culture collection, focusing on the genus Metarhizium. Metarhizium sp. BCC 4849 not only controls the spider mite but also plays a significant role as a natural regulator of other insect pests. Here, we investigated its infection process on the mite, optimized a conidial formulation for extended shelf life, and conducted toxicological assays in animals to assess its biosafety in humans. The fungal genome has been sequenced. The genomic data indicated that oxidoreduction proteins; zinc-, heme-, and iron-binding proteins; and transmembrane transporters are abundant in the genome.
Abstract
Five isolates of Metarhizium sp. were evaluated for their pathogenicity against the spider mite (Tetranychus truncatus Ehara) (Acari: Tetranychidae) and Metarhizium sp. BCC 4849 resulted in the highest mortality (82%) on the 5th day post-inoculation (DPI). Subsequent insect bioassay data indicated similar high virulence against five other insects: African red mites (Eutetranychus africanus Tucker) (Acari: Tetranychidae), bean aphid (Aphis craccivora Koch) (Hemiptera: Aphididae), cassava mealybug (Phenacoccus manihoti Matile-Ferrero) (Hemiptera: Pseudococcidae), sweet potato weevil (Cylas formicarius Fabricius) (Coleoptera: Brentidae), and oriental fruit fly (Bactrocera dorsalis Hendel) (Diptera: Tephritidae), at mortalities of 92–99%, on 3rd–6th DPI, and in laboratory conditions. The pathogenicity assay against E. africanus in hemp plants under greenhouse conditions indicated 85–100% insect mortality on 10th DPI using the fungus alone or in combination with synthetic acaricide. Genome sequencing of Metarhizium sp. BCC 4849 revealed the high abundance of proteins associated with zinc-, heme-, and iron-binding; oxidation-reduction; and transmembrane transport, implicating its versatile mode of interaction with the environment and adaptation to various ion homeostasis. The light and scanning electron microscopy indicated that at 24 h post inoculation (PI), adhesion and appressorial formation occurred, notably near the setae. Most infected mites had stopped moving and started dying by 48–72 h PI. Elongated hyphal bodies and oval blastospores were detected in the legs. At 96–120 h PI or longer, dense mycelia and conidial mass had colonized the interior and exterior of dead mites, primarily at the bottom than the upper part. The shelf-life study also indicated that conidial formulation combined with an oxygen-moisture absorber markedly enhanced the viability and germination after storage at 35 °C for four months. The fungus was tested as safe for humans and animals, according to our toxicological assays.
1. Introduction
Species in the genus Metarhizium are well-known biopesticides for controlling a wide range of insect pests [1]. These pests included phytophagous mites, citrus rust mite, two-spotted spider mite, and bulb mite [2]. The spider mite is an important pest of many crop plants in the greenhouse and the field such as cassava (Manihot esculenta Crantz) (Euphorbiales: Euphorbiaceae), durian (Durio zibethinus Murray) (Malvales: Bombacaceae), pepper (Piper nigrum L.) (Piperales: Piperaceae), tomato (Solanum lycopersicum L.) (Solanales: Solanaceae), potato (Solanum tuberosum L.) (Solanales: Solanaceae), bean (Phaseolus vulgaris L.) (Fabales: Fabaceae), corn (Zea mays L.) (Cyperales: Poaceae), strawberry, Fragaria ananassa (Weston) Dunchesne (Rosales: Rosaceae), and cannabis (Canabis indica L. and C. sativa L.) (Rosales: Cannabaceae) [3]. Marijuana and hemp had an estimated value of USD 35.8 billion each year and a market value of USD 688 million in 2016, respectively, in the USA [4]. Cassava is also an important economic crop in several tropical countries. Tetranychid mites resulted in devastating losses (14–47% in the field) in cassava in the Philippines, Indonesia, and India [5,6]. Widely-used entomopathogenic fungi belong to species Hirsutella thompsonii Fisher (Hypocreales: Ophiocordycipitaceae), Paecilomyces (Isaria) fumosorosea Wize (Hypocreales: Cordycipitaceae) [7] Verticillium (Lecanicillium) lecanii Zimm (Hypocreales: Cordycipitaceae) [8], Beauveria bassiana (Bals.-Criv) Vuill (Hypocreales: Cordycipitaceae), and Metarhizium robertsii (Metschn) Sorokin (Hypocreales: Clavicipitaceae) [9,10]. M. robertsii was one of the first organisms used for management of agricultural pests. The pioneering immunologist Elie Metchnickoff initiated trials of this fungus against the wheat cockchafer Anisoplia austriaca Herbst (Coleoptera: Scarabaeidae) in 1879 [11]. One of the most successful biological control using Metarhizium was an application of two million hectares of sugar cane plantations in Brazil with M. robertsii to control spittlebugs (Clastoptera achatina Germar) (Hemiptera: Clastopteridae) [12].
Infection of Metarhizium sp. on insect hosts consists of several stages [13]. The fungal conidia adhere to the waxy cuticle of the host and germinate [14]. The germ tubes can differentiate into the appressorium, from which penetration occurs through the penetration peg. The fungus can degrade and penetrate the insect cuticle using a combination of cuticle-degrading enzymes and mechanical pressure while overcoming any stresses encountered along the way [15,16]. The fungus then colonizes the insect hemolymph, causing the mycosis of insects. When the host dies, the hyphae extrude the cadaver to the outer environment and form a dense mycelial network and green spores [17]. This event starts a new round of infection [18].
In the field, insect populations gradually develop resistance to synthetic pesticides. Farmers then increase the dose and finally discover that the pesticides are no longer effective. The field population of whitefly (Bemisia tabaci Gennadius) (Hemiptera: Aleyrodidae) developed resistance against pyrethroids, organophosphates, and neonicotinoids after their prolonged use for over 30 years [19]. Resistance against avermectin and pyridaben was detected in the population of the spider mite Tetranychus truncates Ehara (Acari: Tetranychidae) and could be inherited by their progeny [20]. An alternative strategy of chemical control needs to be developed. A more human- and environmentally friendly approach is necessary and will reduce the impacts of chemical accumulation in the environment and health risks associated with pesticide use. Entomopathogenic fungi can play a significant role as natural regulators of the insect and mite populations. They can be applied alone or as a combination with synthetic pesticides/acaricides. The combined use of entomopathogenic fungi with a lower dose of chemical insecticides led to a synergistic additive effect and increased mortality of several insect pests. The lower dosage of the chemicals not only enhanced the efficacy of the entomopathogen but also led to relatively short exposure times on the insects [21,22]. In this study, we screened five Metarhizium sp. isolates against the cassava mite, Tetranychus truncatus Ehara (Acari: Tetranychidae). Metarhizium sp. BCC 4849 had the highest pathogenicity against this mite and five other insect pests. This study documented the infection mechanism under laboratory conditions. In addition, the effect of the fungus alone and in combination with acaricide fenpyroximate against African red mite, in hemp plants (Canabis sativa L.) (Rosales: Canabaceae) under greenhouse conditions, was evaluated. Shelf life of conidial powder formulations at different temperatures was performed. Lastly, biosafety assessments in animals for the human safety evaluation, including acute oral toxicity, acute dermal toxicity, acute dermal irritation, acute eye irritation, and acute pulmonary toxicity/pathogenicity, were tested.
2. Materials and Methods
2.1. Fungal Strains
All the fungal isolates used in this study were obtained from Thailand Bioresource Research Center (TBRC). These included Metarhizium sp. BCC 30,455, BCC 4849, TBRC 4908, TBRC 4912, and M. anisopliae BCC 16,000. Each strain was grown on potato dextrose agar (PDA; Difco, Detroit, MI, USA) in the dark at 25 °C for 12 days. Conidia were scraped from culture media and transferred into 10 mL of sterile water, then suspended in 0.2% tween-80 (Loba Chemie, Mumbai, India). The conidial density was adjusted to 1 × 108 conidia·mL−1 for use as inoculum in insect bioassays.
2.2. Insect-Rearing Culture
Cassava mite (T. truncates) was obtained from the Department of Agricultural Extension, Thailand. The adults were maintained on potted bean plants in a greenhouse and reproduced on surface-sterilized mulberry leaves under laboratory conditions at 25–28 °C, 50–70% relative humidity (RH). Bean aphids (Aphis craccivora Koch) (Hemiptera: Aphididae), cassava mealybugs (Phenacoccus manihoti Matile-Ferrero) (Hemiptera: Pseudococcidae), and sweet potato weevil (Cylas formicarius Fabricius) (Coleoptera: Brentidae) were collected from vegetable, cassava, and sweet potato plantations, respectively, for subsequent bioassays. Oriental fruit flies (Bactrocera dorsalis Hendel) (Diptera: Tephritidae) were provided by the Thailand Institute of Nuclear Technology and reared on a sucrose-yeast extract-containing substrate.
2.3. Microscopy of the Infection Process
For light microscopy, cassava mites (n = 20–30) were inoculated by topical application with 0.2% coconut oil (Bioagricert, Samut Sakhon, Thailand)-mixed conidial suspension of Metarhizium sp. BCC 4849 at 1 × 108 conidia·mL−1 and placed on mulberry leaves. The treatments were transferred to Petri-dishes and kept in a plastic box at 25 °C, 70–80% RH in darkness. Light microscopy was used to observe the infection process of the Metarhizium strain on the insect at 24, 48, 72, 96, and 120 h post-inoculation (PI). Five inoculated mites were observed for distribution and cell types and shape at each time point. The specimens were stained with 2.5 µL lactophenol cotton blue (Sigma-Aldrich, St. Louis, MO, USA) solution (0.5 mg·mL−1 methyl blue), mounted with 5 µL 50% glycerol (KemAus, New South Wales, Australia) on a glass slide, and observed under Nikon ECLIPSE Ti2-E (Nikon, New York, NY, USA).
We also performed scanning electron microscopy (SEM) of the inoculated cassava mites as follows. Adult mites were inoculated as described above and fixed with 5% glutaraldehyde (Sigma-Aldrich, St. Louis, MO, USA). The insects were washed three times with phosphate buffer saline (PBS) (Sigma-Aldrich, St. Louis, MO, USA) (pH 6.98) and post-fixed in 2% osmium tetroxide (Electron Microscopy Sciences, Hatfield, PA, USA) in the same buffer for 16 h. Specimens were dehydrated in a gradient series from 30 to 100% ethanol and dried under CO2 (critical point dryer model CPD K850; Quorum, East Sussex, United Kingdom). Specimens were mounted on a metal stub, sputter-coated with a layer of gold in a coater model Q150RS (Quorum), and documented under FE-SEM model SU5000 (Hitachi, Tokyo, Japan).
2.4. Insect Bioassays
Five isolates in the genus Metarhizium were separately applied on adult cassava mites in a single dose of 1 mL of conidial suspension at 1 × 108 conidia·ml−1 and maintained on mulberry leaves. For all treatments, including an untreated control, mulberry leaves were placed on sterile tissue papers and moisturized with 2 mL of sterile water in 150 mm Petri dishes. Each treatment had 5 replicates (n = 30 for each replicate). The bioassay was repeated twice. Only the Metarhizium isolate with the highest virulence against cassava mites was selected for subsequent insect bioassays.
We performed insect bioassays of Metarhizium sp. BCC 4849 (that had the insect virulence) against four other pests, including bean aphid, cassava mealybug, oriental fruit fly, and sweet potato weevil, under laboratory conditions. Bioassays against the third nymphal stages of bean aphid and cassava mealybug (five replicates; n = 20 each) were conducted as described above with some modifications. Bean and cassava leaves were used for feeding bean aphids and mealybugs, respectively, during the assays. For the bioassay against sweet potato weevil, the larval stage of potato weevil was inoculated by a 30-s dip in 1 mL of conidial suspension at 1 × 108 conidia·mL−1 and then fed with sweet potato pieces. There were three replicates (n = 10 each). Control insects were treated with the same solution without fungal conidia. Mortality data were recorded daily for five days. We also performed a bioassay against adult oriental fruit flies (three replicates; n = 20 each). Adult flies were sedated at −20 °C for 15 min before fungal inoculation. For each replicate, 20 fruit flies were gently mixed with 1 g of Metarhizium sp. BCC 4849-colonized rice grains in a 50-mL tube for 1 min. Control flies were treated similarly with the rice grains without fungal conidia. Treated flies were transferred to plastic cages that had a feeding substrate containing 3.5 g/L yeast extract and 1 g/L sucrose and water and maintained at 25–30 °C, 70–80% relative humidity (RH), and photoperiod of 10:14 h (L:D). Insect mortality was recorded daily. Fly cadavers were placed in a moistened paper to observe mycosis. For the four pests tested, the pathogenicity assays were repeated twice.
2.5. Greenhouse Trials and Application Treatment

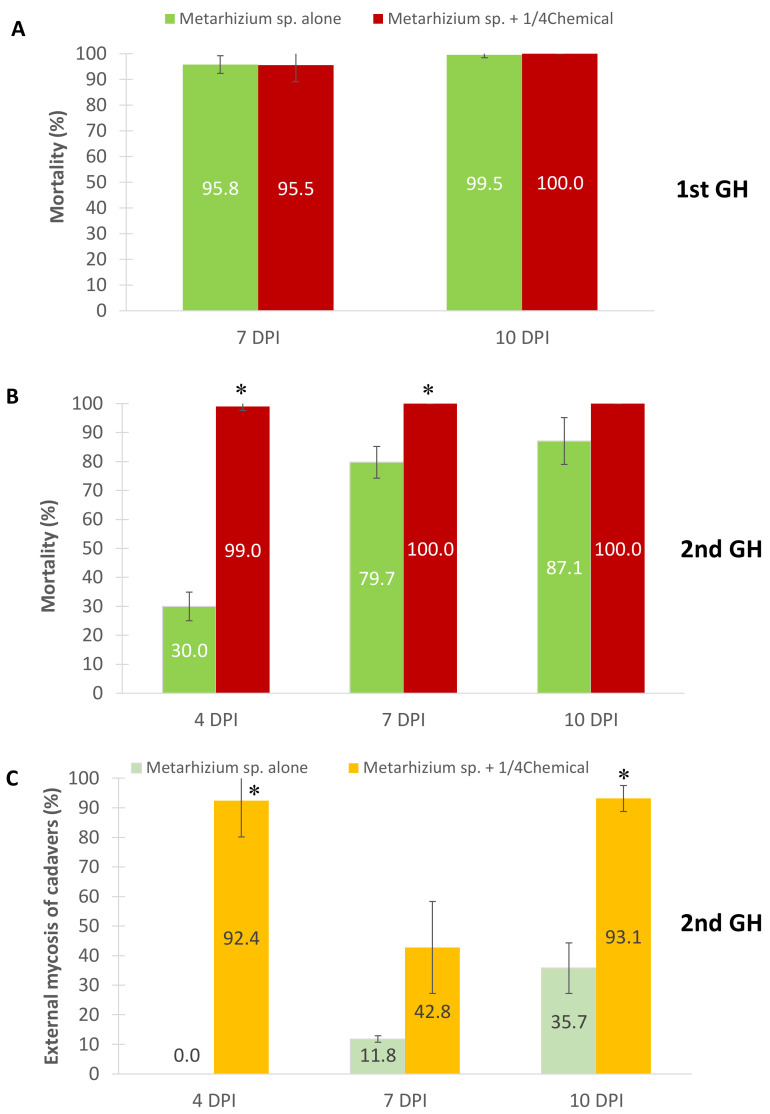

We conducted greenhouse trials of Metarhizium sp. BCC 4849 against African mite, an important pest of hemp. Fifty potted hemp plants, hybrid varieties RPF1, RPF2, RPF3, and RPF4, were naturally infested with African mites. Two trials were conducted at a greenhouse, Thailand Science Park, from 7 to 17 October 2020 and from 11th to 21st February 2021. Mean temperature, RH, and photoperiod in the greenhouse were 29 ± 1 °C, 75%, and 10:14 h (L: D), respectively. Preventing an outbreak of red mites in the greenhouse was a high priority. Consequently, an untreated control was not included in this study. Therefore, we tested two fungal treatments in the greenhouse trials. The fungus Metarhizium sp. BCC 4849 was applied alone or in combination with 0.002% (w/v) acaricide fenpyroximate. The conidial suspension was prepared in 0.025% APSA-80 (Amway, Ada, MI, USA). The fungal treatment was applied three times at a 3-d interval. The E. africanus population was determined one day before application and after the 1st, 2nd, and 3rd application. For the insect determination in each treatment, five leaves were randomly picked at the middle and bottom sections of the hemp plant three days after each application and microscopically checked for the number of live and dead nymphs and adults per leaf under a stereo microscope EZ4 HD (Leica, Wetzlar, Germany). All leaves were placed on moist paper in a 150 × 15 mm Petri dish to observe mycosis.
2.6. Determination of Conidiation in Different Substrates
The conidial suspension was prepared by dislodging from 12-d-old culture and adjusted to a final concentration of 1 × 107 conidia·mL−1. This was used as an inoculum for the determination of conidiation in different culture media. These media included PDA, half-strength PDA, malt extract agar (MEA), oatmeal agar (OMA), and Sabouraud dextrose agar supplemented with 1% yeast extract (SDAY). All the cultures were conducted in 90 × 15 mm Petri dishes by transferring and spreading 100 µL of the conidial suspension and incubating at 25, 28, and 30 °C. After incubation for 7 and 10 days, conidia were harvested by dislodging as described above, in 10 mL of 0.2% tween-80 (Loba Chemie, Mumbai, India) in sterile water. Conidial densities were determined using a hemocytometer. There were two replicates for each treatment, and the experiment was repeated twice.
2.7. Conidial Powder Formulation and Shelf-Life Assay
Metarhizium sp. BCC 4849 conidia were grown in rice, the substrate for large-scale production. Aliquots of 200 g of rice grains in polyethylene bags were sterilized in an autoclave for 20 min at 121 °C. The substrate was inoculated with 1 mL of conidial suspension at 1 × 108 conidia·mL−1 and incubated at 25–28 °C for 14 days. Conidia were then harvested from 200 g of the rice grains by resuspending in 300 mL of 0.2% tween-80 and precipitation by centrifugation at 3857 g for 10 min. After removal of the supernatant, the conidial pellet was resuspended in 30 mL of 0.2% tween-80, mixed with 100 g of sterile kaolin (Chemipan, Bangkok, Thailand), and air-dried in a biosafety cabinet class II NU440–400E (Nuaire, Plymouth, MN, USA) for 3 days to reduce the moisture content to ~5%, optimal for long-term storage. Aliquots of 50 g of conidia powder formulation were transferred to aluminized pouches. A dual-purpose oxygen/moisture-absorbing sachet (RP-3AN, Mitsubishi Gas Chemical Co., Tokyo, Japan) was enclosed in each pouch and sealed by heat. The conidia were incubated at different temperatures—25 and 35 °C. The control included the fungal conidia prepared as above and kept without the oxygen/moisture-absorbing sachet. There were three replicates for each treatment. The experiment was repeated twice. The conidial survival was performed by the determination of colony-forming units at 2, 4, 8, 10, 12, 14, and 16 weeks.
2.8. Toxicological Testing in Animal Models
Acute oral toxicity, acute dermal toxicity, acute dermal irritation/corrosion, and acute eye irritation/corrosion were performed according to Guidelines No. 423, 402, 404, and 405, respectively. All animal models were maintained and tested by Naresuan University Center for Animal Research. In addition, acute pulmonary toxicity/pathogenicity study was performed according to the Microbial Pesticide Test Guidelines of the U.S. EPA (OCSPP) 885.3150. Tier I. (1996) by Jai Research Foundation, India. For acute oral toxicity test, all rats were orally administered with the conidial powder of Metarhizium sp. BCC 4849, as described above, at the doses of 300 and 2000 mg/kg body weight. They were then observed for toxicity signs and symptoms for 14 days after administration. For acute dermal toxicity, Metarhizium sp. BCC 4849 at doses of 200, 1000, and 2000 mg/kg body weight was applied dermally to the shaved area of the dorsal skin of rats. They were observed for toxicity signs and symptoms for 14 days after patch application. For acute dermal and acute eye irritation/corrosion, Metarhizium sp. BCC 4849 was tested on the New Zealand white rabbits to observe the irritation of skin and eye. They were observed for toxicity signs and symptoms, including erythema and edema at 14 and 21 days after patch application into the skin and instillation into the eye. For acute pulmonary toxicity/pathogenicity study of Metarhizium sp. BCC 4849, the rats were given a single pulmonary (nasal instillation) dose of fungal conidia in PBS at 1.5 × 108 CFU/rat. Rats were observed for 21 days with interim sacrifices scheduled on days 0, 3, 7, and 14, and at the terminal sacrifice on day 21.
2.10. Statistical Analyses
All experiments in this study were repeated 2–5 times. There were three replicates in each experiment. Data were analyzed for statistical significance using ANOVA in SPSS package version 11.5 and Student’s t-test (IBM, New York, NY, USA).
3. Results
3.5. Effect of Subculture Media and Temperature on Sporulation

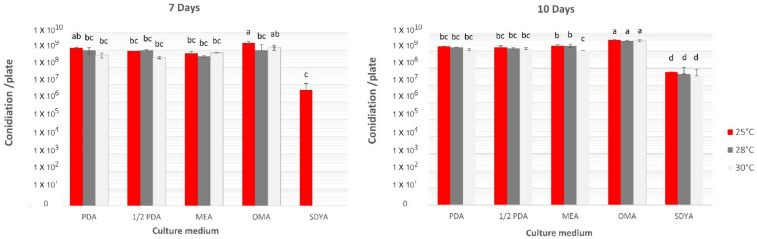

Types of culture media, incubation period, and temperature were determined to optimize conidiation in Metarhizium sp. BCC 4849. The fungus grew and conidiated well in nearly all subculture media to 1.7–4.3 × 109 conidia per petri dish except on SDYA after ten days of incubation at 25 °C. The fungal growth on SDYA was mainly the mycelia and few conidia. The oatmeal agar medium generated the highest conidiation, ranging from 3.9–4.3 × 109 conidia per petri dish on the 10th day of incubation, which was significantly different from the other culture media regardless of temperature (25, 28, or 30 °C (Figure 6)).
3.6. Effect of Moisture-Oxygen Absorber Sachets for Shelf-Life Extension

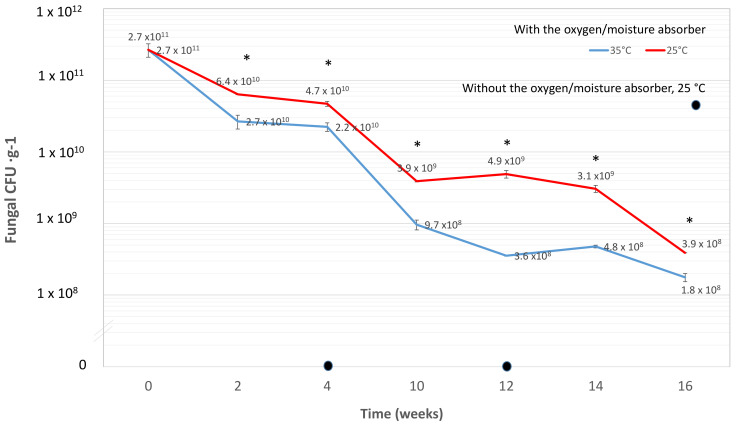

The storage of Metarhizium sp. BCC 4849 with the moisture-oxygen absorber RP-3AN tremendously enhanced the shelf-life compared to that without RP-3AN. The fungal CFUs under the storage without RP-3AN were zero at the 4th, 8th, and 12th weeks (Figure 7). In the first eight weeks of storage with RP-3AN, the fungal survival rates at 35 °C were 42–48% of those at 25 °C (Figure 7). Later, the fungal survival rates at 35 °C at the 12th and 14th week decreased to only 7–16% of those at the cooler temperature of 25 °C (Figure 7). These data indicated that the fungus Metarhizium sp. BCC 4849 was considerably more viable at the cooler temperature of 25 °C than at 35 °C, the temperature commonly found during the daytime in the tropical region. After storage for 16 weeks at 35 °C, the fungal CFUs were slightly fewer at 1.8 × 108 CFU g−1, compared to 3.9 × 108 CFU g−1 at 25 °C. The active packaging treatment attributed to prolonged survival of conidia was compared to those without moisture-oxygen absorbers.
3.7. Toxicological Testing in Animal Models
For the acute oral toxicity test, the rats did not show abnormal signs of toxicity or mortality after oral administration of Metarhizium sp. BCC 4849 at the doses of 300 and 2000 mg/kg body weight. All rats were observed at ½, 1, 2, 3, and 4 h after treatment and once daily for 14 days. Necropsy findings of all rats showed no gross pathological lesions. The oral LD50 of Metarhizium sp. BCC 4849 in rats was 2000 mg/kg body weight (Table 3). For the acute dermal toxicity test, the rats did not show abnormal signs, symptoms, or mortality after patch application of Metarhizium sp. BCC 4849 at doses of 200, 1000, and 2000 mg/kg body weight. After a 14-day observation period, necropsy findings of all rats showed no gross pathological lesions. The dermal LD50 of the fungus in rats was 2000 mg/kg body weight. Acute dermal and acute eye irritation/corrosion were observed in New Zealand white rabbits. The results showed that Metarhizium sp. BCC 4849 did not cause any irritation of the skin and eye. Moreover, the result of acute pulmonary toxicity/pathogenicity study of Metarhizium sp. BCC 4849 showed no mortality and no infectivity and was not pathogenic in rats at a limit dose of 1.05 × 108 CFU/rat. Therefore, the results indicated that Metarhizium sp. BCC 4849 did not cause any toxicity in animal models.
4. Discussion
This study demonstrated that the entomopathogen Metarhizium sp. BCC 4849 is a broad-range pathogen capable of infecting several important agricultural pests. These six targeted pests included the bean aphid, cassava mealybug, sweet potato weevil, oriental fruit fly, cassava mite, and African mite, across the orders Hemiptera, Coleoptera, and Diptera, and superorder Acariformes. Furthermore, our preliminary data indicated that the fungus also colonized and killed tapioca scale (Aonidomytilus albus Cockerell) (Hemiptera: Diaspididae) and tobacco whitefly (Bemisia tabaci Gennadius) (Hemiptera: Aleyrodidae), a critical vector for many plant viral diseases. Mycosed cadavers of these eight targeted insects are shown in Figure 8.
In the infection of cassava mites, the legs were one of the most frequent sites for fungal colonization. It could be because the legs have a relatively higher density of spines or hair-like structures to anchor conidia than the insect body [28]. For M. robertsii ARSEF 2575 growing on the surface of Manduca sexta caterpillars, the conidia are growing along the cuticle and come across hair sockets, which trigger appressorium production. Hair sockets represent a zone of weakness in the cuticle, which the fungus can exploit [29].
For a successful host infection, fungal adhesion and conidial germination occur within 24 h after inoculation. Conidia of several entomopathogenic fungi have the characteristic outer layer. This layer is known as the rodlet later and consists of hydrophobin, the main protein for facilitating the adhesion to the hydrophobic epicuticle [2,30]. The surface properties of aerial conidia from entomopathogenic fungi had the rugose surfaces and were relatively hydrophobic, including those of various strains of B. bassiana and M. anisopliae [31], that of B. bassiana BCC 2660 [32], and that of Metarhizium sp. BCC 4849 in this study. The aerial conidia had varied hydrophobicities that reflected the adaptation of the surface properties to suit their particular habitats and target insects.
Penetration through the cuticle is also vital for fungal infection. The Metarhizium enzyme chymoelastase Pr1 has been implicated in cuticle degradation [33]. The authors also speculated M. anisopliae used up to 78% of protein synthesis to produce this crucial enzyme in the process of penetration. Entomopathogenic fungi also produce chitinases, proteases, and lipases to degrade various layers of the insect cuticle [34].
The fungus Metarhizium sp. BCC 4849 killed the insects 72 h after inoculation, and the mycelial extrusion happened between 96 and 120 h after inoculation in laboratory, similarly to the previous report of M. anisopliae [35]. The mycelial extrusion was present initially in the intersegmental areas and later in other areas, resulting in cuticle degradation along the whole body of the insect. Our study showed a large number of mycelia and conidia in the anal cavity and opisthosoma region. Rapid external hyphal development and conidiation of entomopathogenic fungi were observed on two-spotted spider mites under moist conditions [36]. In another study on B. bassiana and M. anisopliae infection of subterranean termite Heterotermes tenuis using SEM [35], the duration of infection phases ranged between 0 to 144 h PI. The comparative data also showed that penetration, colonization, and conidiogenesis phases were relatively faster for M. anisopliae than B. bassiana, leading to higher mortality of M. anisopliae-inoculated insects.
A limitation in the fungal application for insect/mite control is the lack of a suitable formulation or application strategies for a target host. Combined use of an entomopathogenic fungus with an insecticide/acaricide is an option worth exploring to control the pests. Integrated applications of higher and lower dosages of imidacloprid with M. anisopliae enhanced the mortality of subterranean burrowers [21]. Application of M. anisopliae in combination with one µg imidacloprid/g resulted in mortality of 88% of Cyrtomenus bergi nymphs compared to 40% for the fungal application alone. In a study of interactions between five synthetic insecticides and five fungal strains, a combination of insecticides with B. bassiana and M. robertsii caused higher Rachiplusia nu mortalities than any individual agents alone [37]. In our study, we used a combination of an entomopathogenic fungus with a diluted dose of synthetic acaricide. Our result showed that E. africanus population decreased dramatically after application for 4 days. The mite mortality was nearly 100% in 7 days post application. The lower dose of fenpyroximate enhanced the entomopathogen’s efficacy, leading to the faster mycosis of cadavers.
Alves et al. (2002) [38] proposed a practical requirement for field application is minimal loss of viability after at least three months in storage at 30 °C. However, if a storage of at least twelve months is required, cool storage would be necessary [39]. Among solid and liquid formulation of M. anisopliae stored at 30 °C, the solid formulations such as vermicompost, de-oiled castor cake, and farmyard manure formulations retained shelf-life for 210, 190, and 160 days, respectively, compared to gypsum and talc powder that declined by 110 days under storage [40]. In this work, conidia formulated in kaolin-powder formulation and stored with the moisture-oxygen absorber (RP-3A) retained > 108 CFU g−1 after four months (120 days) of storage at 35 °C. The revolutionary preservation (RP) system contains a technology capable of effectively absorbing moisture, oxygen, and corrosive gases even under dry conditions [41,42]. The RP is comprised of 5–15% unsaturated organic compound, 10–45% calcium oxide, 10–50% mordenite, 5–15% activated carbon, and 10–30% polyethylene [43]. RP-3A sachets used in this study absorb both moisture and oxygen in a 300-mL air volume. This absorber extends conidia’s shelf life by protecting fungal cells against degradation by oxidation and free water [42]. The effectiveness of RP oxygen and moisture absorbers for extending the shelf life of conidia of B. bassiana GHA was demonstrated at a high temperature of 40 °C for six months or at 50 °C for two months [42].
The desired characteristics of a competitive mycopesticide are efficacy comparable to its chemical counterpart, an ability to be used as a component of an IPM program, the stability of the product (long shelf life during transport and storage), low toxicity and ecotoxicity (compared to the chemical pesticide), and simplicity of production and application [44]. Our data indicate that Metarhizium sp. BCC 4849 is a promising mycoinsecticide. Its use combined with a lower dose of fenpyroximate is a potential candidate in IPM programs to control pests with pesticides and acaricides. Our findings on the infection processes add to the existing knowledge of how the fungus infects insect hosts. Nonetheless, this IPM strategy should be determined at a broad field level to verify its efficacy.
Acknowledgments
We are grateful for access to the SEM system at the NSTDA Characterization and Testing Service Center (NCTC), Thailand. We thank Somruetai Jaiyen for help in insect biology and microscopy.
Funding
This research was supported by grants from the Research Development Innovation Management for National Strategic and Network Division (RNS) and BIOTEC, National Science and Technology Development Agency (NSTDA), Thailand.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data presented in this study are available in the manuscript.
Conflicts of Interest
The authors declare no conflict of interest.
| Isolate | Insect Mortality (%) ± s.e.m. |
|---|---|
| BCC 4849 | 82.4 ± 0.1 a |
| BCC 16,000 | 7.9 ± 5.4 c |
| BCC 30,455 | 32.8 ± 18.1 b,c |
| TBRC 4912 | 37.3 ± 16.4 b,c |
| TBRC 4908 | 44.9 ± 20.4 b |
| Control (non-treated) | 11.2 ± 8.6 b,c |
| Target Pest | Inoculation Technique | DPI | Insect Mortality (%) ± s.e.m. |
|---|---|---|---|
| Cassava mite (Tetranychus truncatus) | Topical application | 5 | 82.4 ± 0.1 |
| Bean aphid (Aphis craccivora) | Topical application | 3 | 96.0 ± 5.5 |
| Cassava mealybug (Phenacoccus manihoti) | Topical application | 3 | 92.0 ± 5.7 |
| Sweet potato weevil (Cylas formicarius) | Dipping | 5 | 91.9 ± 7.3 |
| Oriental fruit fly (Bactrocera dorsalis) | Mixing with dry conidia | 6 | 98.9 ± 1.9 |
| Study Type | Study Guideline | Animal | Dose Range/Level | GHS 3 Toxic Classification |
|---|---|---|---|---|
| Acute oral toxicity | OECD GLP 1 423 | Rats | LD50 > 2000 mg/kg | Class 5 (Unclassified) |
| Acute dermal toxicity | OECD GLP 402 | Rats | LD50 > 2000 mg/kg | Class 5 (Unclassified) |
| Acute dermal irritation/Corrosion | OECD GLP 404 | Rabbits | - | Class 5 (Unclassified) |
| Acute eye irritation/Corrosion | OECD GLP 405 | Rabbits | - | Category 2B (mild irritant) |
| Acute pulmonary toxicity/Pathogenecity | U.S. EPA OCSPP 2 885.3150 | Rats | No mortality at 1.05 × 108 CFU |
