Molecular Dynamics in the Ventral Tegmental Area during Chronic Pain-Induced Negative Affect
1Comprehensive Center for Pain and Addiction (CCPA), University of Arizona, Tucson, AZ, 85724, USA
2Department of Pharmacology, College of Medicine, University of Arizona, Tucson, AZ, 85724, USA
3Department of Medicine, Division of Endocrinology, University of Arizona, Tucson, AZ, 85724, USA
4Department of Neuroscience, College of Science, University of Arizona, Tucson, AZ, 85724, USA
5James C. Wyant College of Optical Sciences, University of Arizona, Tucson, AZ, 85724, USA
*To whom correspondence should be addressed: Arthur C. Riegel, Department of Pharmacology, University of Arizona, 1501 N. Campbell Ave, Tucson AZ 85724, United States. Office: 520-626-6491, Email address: Ariegel@arizona.eduAbstract
Chronic pain frequently coexists with negative affect, with about 60% of patients suffering from both. This dual condition complicates treatment and exacerbates both disorders, highlighting the urgent need for innovative therapeutic strategies. Chronic pain negative affect (CPNA) involves complex neurobiological changes, including increased hyperexcitability of the ventral tegmental area (VTA), a critical region involved in reward, mood, and pain processing. To elucidate CPNA’s underlying mechanisms, we employed a multidisciplinary approach using immunohistochemistry, lipidomic analysis, and proteomic screening to investigate VTA molecular alterations in mice subjected to partial sciatic nerve ligation (pSNL) at one and four weeks post-injury. Our results revealed a significant, sex-dependent increase in Kv7.2 channel expression in dopamine neurons, alongside a notable reduction in endocannabinoid 2-arachidonoylglycerol (2-AG) levels, which plays a vital role in mood regulation. This neurochemical shift associated with an increase in negative affect-like behaviors, as determined by the forced swim test. Furthermore, pharmacological intervention utilizing either exogenous 2-AG or retigabine, a Kv7 channel opener, effectively alleviated pain-related negative affect symptoms. Proteomic profiling further uncovered alterations within the CaMKK2 pathway, involving crucial proteins such as PLCγ2, AMPKγ2, and AMPKβ1, and CaMK1α, with changes in abundance and phosphorylation activity that could be reversed with the next-generation CaMK1α antagonist CS640. This research provides the first comprehensive analyses of VTA adaptations linked to CPNA, yielding significant insights into molecular changes impacting VTA neuronal integrity and signaling throughout CPNA progression.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Chronic pain, persistent discomfort lasting three months or longer [1], is a complex phenomenon deeply intertwined with psychological conditions, particularly negative affect. Nearly 60% of chronic pain patients also experience clinically significant negative affect symptoms, highlighting a profound intersection between these debilitating conditions [2, 3]. This bidirectional association—where chronic pain exacerbates negative affect and negative affect heightens pain perception—creates a vicious cycle, complicating treatment and significantly reducing quality of life [2, 4, 5]. Understanding this intricate relationship is crucial for developing effective treatment strategies addressing both chronic pain and comorbid negative affect.
The ventral tegmental area (VTA), a key brain region for motivation and reinforcement, has been identified in recent chronic pain negative affect (CPNA) mechanism investigations [4, 5]. The VTA is pivotal not only in motivational behaviors but also in pain modulation and mood regulation [6]. Alterations in VTA dopaminergic neuron excitability occur under pain and negative affect conditions. However, mixed findings exist regarding VTA hyperexcitability [7–11] or hypoexcitability [11–18]. For instance, a human fMRI study indicated heightened VTA-medial prefrontal cortex (mPFC) connectivity in major depressive disorder (MDD) subjects, suggesting increased activity in pathways where pain may modulate VTA function and influence mood [7]. Preclinical models support these findings, showing VTA hyperactivity in rodents exhibiting negative affect-like behaviors weeks after neuropathic injury [8, 9]. Retigabine, a positive allosteric modulator (PAM) of Kv7/KCNQ channels that mediate the M-current, effectively reduces VTA hyperactivity and improves negative affect-like behaviors in these models [8, 9]. These observations underscore the pivotal role of VTA neuronal excitability changes in developing negative affect within CPNA models. Kv7 channels, comprising four brain-expressed subunits (Kv7.2-Kv7.5), significantly influence neuronal excitability and behavior [19]. However, comprehensive evaluations of all Kv7 subunits’ expression alterations in the VTA within the context of chronic pain and negative affect remain limited.
Recent research explores the intricate relationships among Ca2+/calmodulin-dependent protein kinase kinase 2 (CaMKK2), calcium/calmodulin-dependent protein kinase 1α (CaMK1α), and AMP-activated protein kinase (AMPK) in chronic pain [20–24]. CaMKK2, a critical serine/threonine protein kinase, is involved in calcium signaling, influencing neuronal growth, synaptic plasticity [20], and mood regulation [20, 25]. Mood-stabilizing medications enhance CaMKK2 activity and expression [25]. Activated by calcium and calmodulin, CaMKK2 initiates CaMK1α and AMPK activation, which have opposing morphogenic roles [22, 26–30]. CaMK1α supports synapse formation by phosphorylating postsynaptic density proteins, including NMDA receptors critical for long-term potentiation [20, 21]. Next-generation CaMK1 inhibitors, such as CS640, are potential tools to investigate neuropsychiatric illness [25, 31]. Conversely, AMPK reduces energy metabolism and neuronal activity while enhancing autophagy by phosphorylating microtubule-associated proteins, opposing CaMK1α effects [26]. Thus, CaMKK2 signaling dysregulation in chronic pain and negative affect may influence VTA neuronal morphogenesis and excitability, impacting negative affect development. The interplay between CaMKK2, CaMK1α, AMPK, and Kv7 channels in the VTA may yield insights into the molecular mechanisms underlying persistent pain’s emotional aspects.
The endogenous cannabinoid system, particularly 2-arachidonoylglycerol (2-AG), is an intriguing element in this complex interplay. Acute pain increases 2-AG levels [32–34], yet reduced levels are seen in individuals with negative affect [35–37], suggesting eCB signaling disruption in chronic pain and mood disorders. In non-neuronal cells, 2-AG activates the CaMKK-AMPK pathway to control phosphorylation and actin polymerization [38, 39]. In male hypothalamic neurons, 2-AG synthesis links to increased intracellular calcium and CaMKK-AMPK signaling activation [40]. Other studies identified endocannabinoids, including 2-AG and phytocannabinoids like CBD, as potential PAMs for Kv7 channels [41–43], potentially linking endocannabinoid mechanisms to VTA neuronal excitability modulation. However, how chronic pain alters VTA activity and subsequently develops negative affect symptoms through these mechanisms remains unclear, necessitating further research.
To bridge existing knowledge gaps, we employed a partial sciatic nerve ligation (pSNL) model to induce neuropathic pain in mice, enabling comprehensive exploration of VTA alterations at one and four weeks post-surgery. We investigated molecular alterations using immunohistochemistry (IHC), lipidomic analysis, and proteomic/phosphoproteomic strategies to probe protein and endocannabinoid levels. Behavioral impacts were assessed using von Frey (vF) tests for paw hypersensitivity and the forced swim test (FST) for negative affect-like behaviors. Our proteomic examinations also evaluated early protein changes shortly after pSNL and at the four-week interval, offering insights into how these alterations influence CPNA development and disrupt VTA functioning. This research aimed to illuminate VTA molecular changes in CPNA, unraveling mechanisms intertwining chronic pain and negative affect symptoms, thereby establishing a framework for future investigations.
Methods
For more detailed methods and vendor information, see Supplement Material 1.
Animals
A total of 154 (138 male, 16 female) C57BL/6J mice (Jackson Labs), aged 7-8 weeks, were housed three to five per cage in standard cages with ad libitum access to food and water, under a 12-hour light-dark cycle in a climate-controlled room. All procedures were approved by the University of Arizona Animal Care Use Committee and complied with NIH guidelines for laboratory animal care.
Partial Sciatic Nerve Ligation
All 154 mice underwent surgery [44], with 80 receiving pSNL and 74 undergoing sham operations, following published procedures. Mice were anesthetized and administered gentamicin at a dose of 8 mg/kg (IP).
Mechanical Withdrawal Threshold
Tactile allodynia was evaluated at baseline and on days 5 and 28 post-surgery by measuring the paw withdrawal threshold using calibrated von Frey filaments on the nerve injury side, following published procedures [45]. Tactile allodynia was defined as a significant drop in the withdrawal threshold compared to baseline [45].
Forced Swim Test (FST)
Despair-like behavior was assessed 28 to 35 days post-surgery in male mice by measuring immobility time in a water-filled cylindrical container (25LJC) for up to 5 minutes. Total immobility time throughout the duration of the test was used to evaluate despair-like behavior. One cohort received 2-AG (10 mg/kg, IP), prepared in a 1:1:8 DMSO:Tween 80:saline solution, 32 days post-surgery, and RTG (10 mg/kg, IP), prepared in 0.9% saline, 35 days post-surgery, administered 15 minutes before the FST. Another cohort received two doses of 2-AG (10 mg/kg, IP) 31 days post-surgery, both 15 and 60 minutes before the FST.
Immunohistochemistry (IHC)
VTA samples were processed for IHC similar to published procedures [46]. Samples were placed in primary antibody solutions: anti-KCNQ2 (1:800), anti-KCNQ3 (1:800), anti-KCNQ4 (1:400), anti-KCNQ5 (1:200), anti-CaMK1α (1:500), and anti-tyrosine hydroxylase (TH) (1:800). After primary incubation, tissues underwent PBS washes and were incubated with secondary antibodies: anti-Guinea Pig Cy3 (1:600) and anti-Rabbit AF488 (1:400). DAPI was used for counterstaining, and slides were mounted with Prolong Glass.
Imaging and Analysis
Photomicrographs of tissue samples were taken using an Olympus FluoView FV1200 confocal microscope at 20x magnification. The VTA was identified via coronal section schematic overlays from the mouse brain atlas (Franklin & Paxinos, 3rd Edition, 2007). Analyses were conducted with FIJI/ImageJ software. Quantifiable values for TH+, Kv7+, TH+/Kv7+, CaMK1α+, and TH+/CaMK1α+ were obtained from 2-3 VTA slices contralateral to the surgical site for each mouse.
Quantification of 2-AG and AEA by LC-MS
Pooled VTA samples (n=4−5 bilateral punches/sample) underwent organic solvent extraction for LC-MS analysis following established methodologies. Mixed internal standards were created via serial dilution of d4-AEA and d5-2-AG in acetonitrile. Analysis of 2-AG and AEA was performed using an Agilent 6495C triple quadrupole mass spectrometer linked to a 1 290 Infinity II UPLC system. All samples were run in triplicate.
Label-Free Quantitative Proteomics
Pooled VTA samples (2-3 bilateral punches/sample) from 1 and 4 weeks post-surgery were processed for all proteome-wide experiments following previously published procedures [47–49]. 50 µg of VTA lysate was separated by SDS-PAGE, purified, and prepared for MS analysis as previously described [47, 48]. HPLC-ESI-MS/MS and label-free quantitative proteomics were conducted in accordance with the aforementioned procedures [48]. Unbiased hierarchical clustering analysis (heat map) and principal component analysis (PCA) were conducted using Perseus. Gene ontology (GO) and Reactome pathway enrichment analyses were completed with the DAVID tool. For synapse-specific subcellular localization analysis, SynGO was utilized. Phosphorylation sequence enrichment analysis was performed using the iceLogo generation tool. Volcano plots and scatter plots were created in GraphPad Prism.
Phosphoproteomics
To evaluate differences in protein phosphorylation abundance with pSNL and CS640 treatment, mice were anesthetized and administered a 5 µL intracerebroventricular injection of CS640 (2 µg/µl) or vehicle (1:1:8 DMSO:Tween 80:saline solution). The researchers that administered the CS640 and vehicle were blinded to group assignments. Bilateral VTAs were collected 30 minutes later. 0.2-0.4 mg of VTA protein lysate per sample underwent in-solution tryptic digestion and phosphopeptide enrichment using metal oxide affinity chromatography per the manufacturer’s protocol, similar to as previously described [50, 51]. The dried peptides were resuspended in 20 µl of 0.1% FA (v/v), and peptide concentration was determined with the Pierce Quantitative Colorimetric Peptide Assay Kit (ThermoFisher Scientific). 350 ng of the final sample was then analyzed by mass spectrometry.
Statistical Analysis
Statistical analyses were conducted using GraphPad Prism 10.4.2, employing two- and three-way (mixed-effects (ME) as necessary) ANOVAs, with Tukey’s or Fisher’s LSD post hoc tests for group comparisons and unpaired t-tests where appropriate. All GraphPad Prism statistics are detailed in Supplementary Table 1.
Results

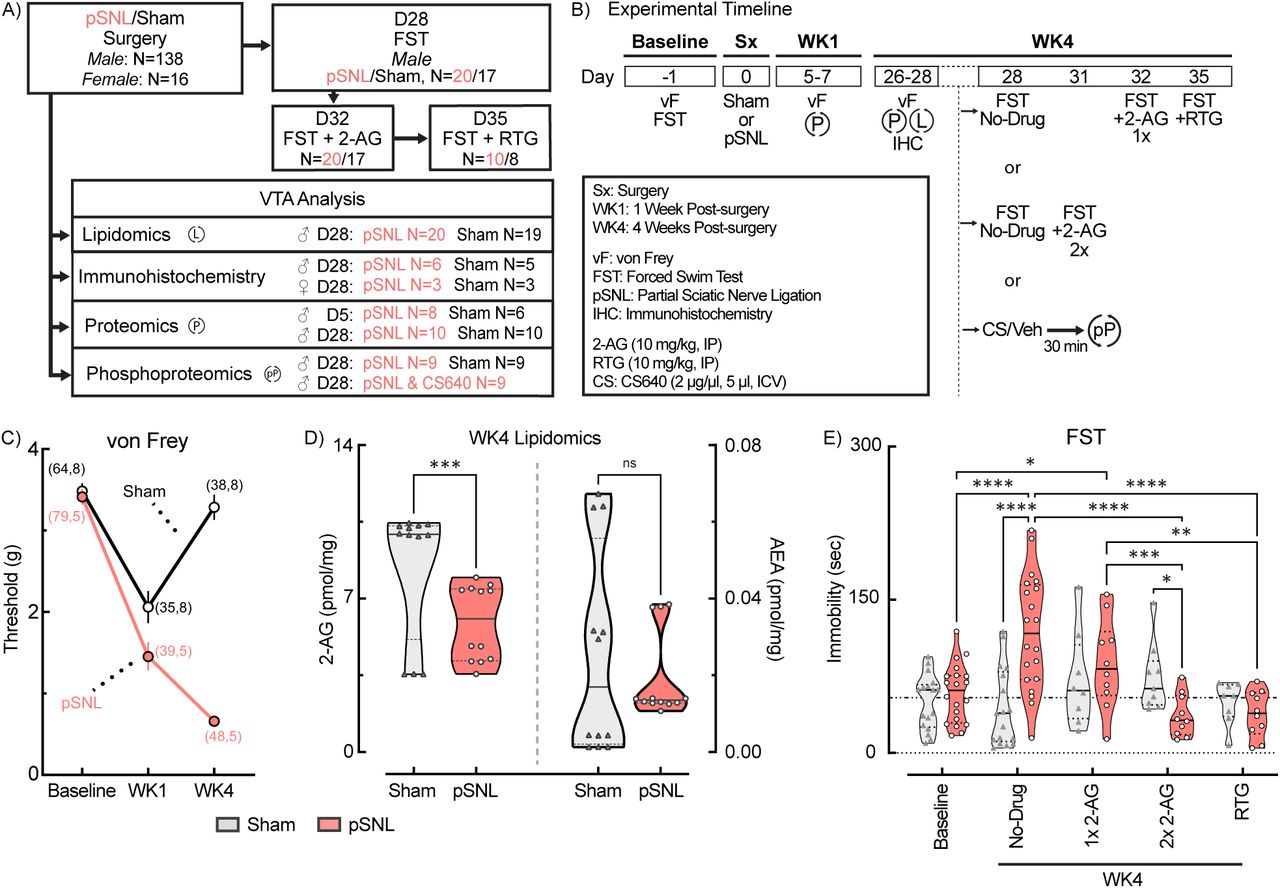

Neuropathic Pain Lowers VTA Levels of 2-AG at Week 4
Neuralgia has been linked to VTA dopaminergic neuron hyperexcitability and negative affect-like behaviors [9, 10]. To assess whether a different neuropathic pain model produces similar effects, we performed pSNL and sham surgeries on mice. Mechanical sensitivity and immobility in the forced swim test (FST) were assessed prior to and four weeks post-surgery (Fig. 1A). VTA tissue was collected for lipidomic profiling, IHC, and proteomic analysis (Fig. 1A,B).
Mechanical paw sensitivity analysis revealed significant main effects of time, surgery type, and their interaction (2W ME ANOVA, all ****p<0.0001) (Fig. 1C; Supplementary Figure 1). pSNL mice exhibited persistent allodynia from WK1 to WK4 (WK1, ****p<0.0001; WK4, ****p<0.0001), while sham mice displayed transient allodynia that resolved by WK4 (WK1, ****p<0.0001; WK4, p=0.3197). Sex had no significant effect (3W ME ANOVA). These results affirm the pSNL model’s effectiveness for producing long-lasting allodynia [44].
While increases in 2-AG immediately following injury may predict future pain progression [32–34], subsequent reductions may indicate heightened risk for negative affect [33]. Our preliminary proteomic analysis at WK1 (Supplementary Figure 2; Supplementary Table 2) showed significant increases in eCB degradation enzymes FAAH (*p=0.0306) and ABHD6 (*p=0.0299) in pSNL mice, non-significant increases in synthetic eCB enzymes MGLL and DAGLA, decreases in KAP3 (*p=0.0292), and no changes in NAPEPLD or KCNQ2/Kv7.2 channels, possibly signaling a mild neuromodulatory imbalance in eCB signaling and glutamate plasticity during early WK1 pSNL [52, 53]. To examine eCB levels at WK4, LC/MS was utilized (Fig. 1D). Pooled bilateral VTA punches from four to five mice per group ensured adequate lipid extraction for eCB analysis. A 2W ANOVA revealed significant effects of surgery, eCB type, and their interaction on eCB concentrations (surgery: *p=0.0164; eCB type: ****p<0.0001; interaction: *p=0.0160). Fisher’s LSD post hoc analysis showed a significant reduction in 2-AG in pSNL mice (****p=0.0006), while anandamide (AEA) remained unchanged (p=0.9931). These findings are consistent with earlier reports that chronic pain alters eCB levels in various brain regions [53, 54].
WK4 pSNL Increases Negative Affect Behavior
Low 2-AG levels have been linked to negative affect [35, 36, 55], and modeling studies suggest Kv7 channels activated by retigabine may also respond to 2-AG [41]. To determine if exogenous 2-AG or retigabine could reduce negative affect-like behaviors, we tested 37 mice in the FST before surgery (Day-1) and again four weeks post-surgery (Fig. 1B). During WK4 testing, immobility was assessed with pretreatments of a single dose of 2-AG (10 mg/kg, IP, 15 min prior), two doses of 2-AG (10 mg/kg, IP, 60 and 15 min prior), or retigabine (10 mg/kg, IP, 15 min prior). A 2W ME ANOVA of immobility demonstrated a significant interaction between surgery and drug treatment (drug: ****p<0.0001; surgery: p=0.3050; interaction: ****p<0.0001) (Fig. 1E). Tukey’s post hoc analysis revealed untreated pSNL mice exhibited increased immobility at WK4 compared to baseline and sham controls (****p<0.0001). Both double-dose 2-AG and retigabine significantly reversed chronic pain-induced negative affect (CPNA) immobility (****p<0.0001), while a single dose of 2-AG was less effective (***p=0.0006), indicating a possible dose-dependent effect. Sham-operated mice’s immobility was unchanged across all time points and treatments (p>0.05). These results expand upon previous retigabine studies [9, 10], supporting the connection between persistent pain sensitivity, reduced VTA 2-AG levels, and negative affect behaviors, with effects mitigated by exogenous 2-AG or retigabine treatment.

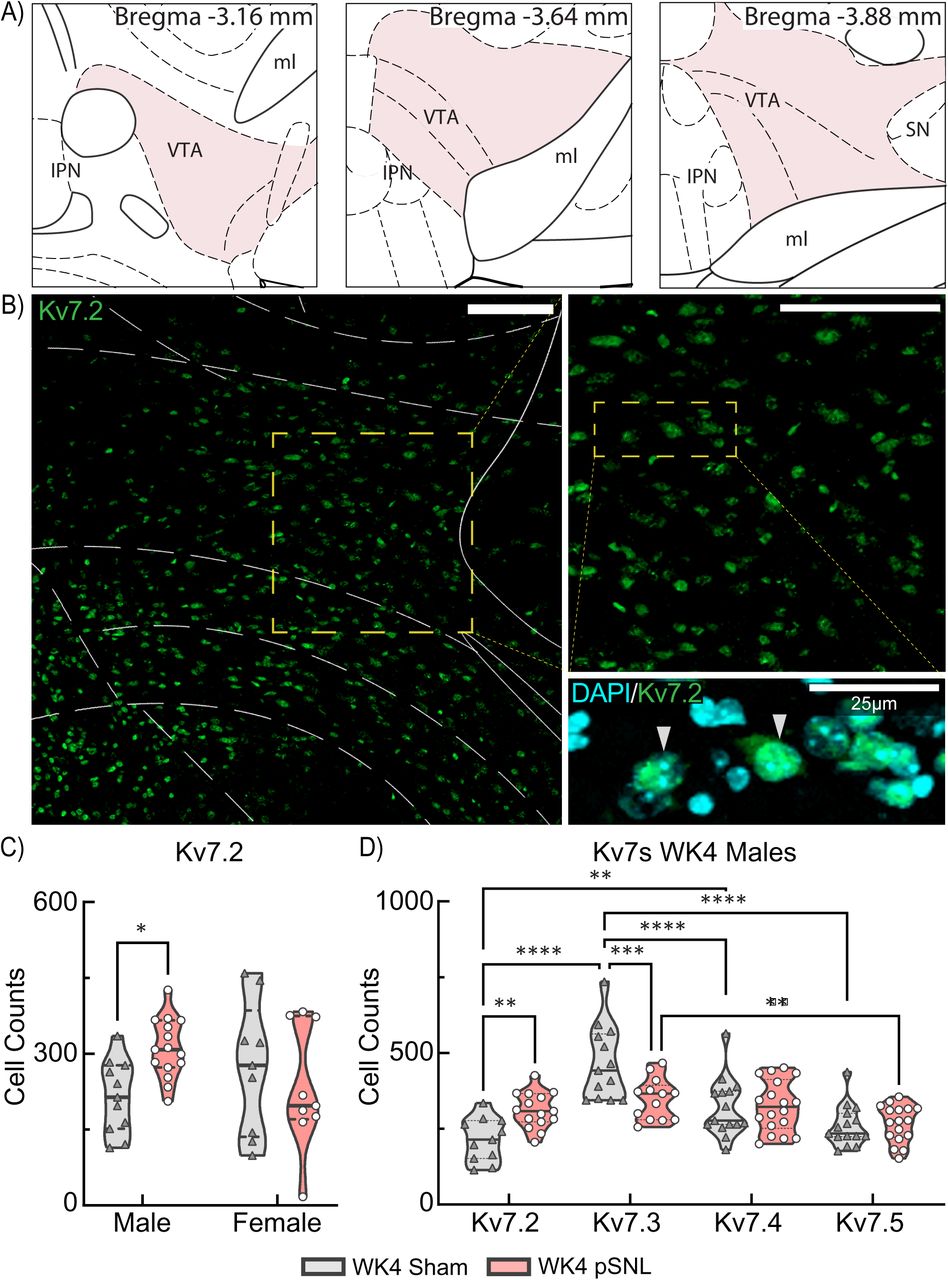

pSNL Alters the VTA Expression of Kv7 Channels
eCB-related protein expression is influenced by eCB levels [56, 57]. Given reduced VTA 2-AG in pSNL mice and evidence that 2-AG may activate Kv7 channels [41], we analyzed Kv7 expression in VTA neurons using IHC. WK4 midbrain sections were stained with a Kv7.2 antibody, and a digital VTA overlay (Bregma: −3.16 mm to −3.88 mm) identified anatomical boundaries (Fig. 2A). Confocal analysis revealed significant cytosolic Kv7.2 expression within the VTA, characterized by staining in cell bodies and proximal basal dendrites (Fig. 2B; Supplementary Figure 3). DAPI staining clarified Kv7.2 cytosolic localization, consistent with previous reports [58].
Further analysis of Kv7.2+ expression in WK4 mice demonstrated a significant sex-by-surgery interaction (*p=0.0248) (Fig. 2C). Fisher’s LSD post hoc analysis indicated a ∼1.5-fold increase in Kv7.2 expression in males (*p=0.0143), while females showed no significant change (p=0.3773), consistent with a sex-specific disparity after pSNL. Since Kv7 channels typically express as heteromeric combinations [59, 60], we utilized Kv7 subunit-specific antibodies for Kv7.3-7.5 and performed IHC in WK4 sham mice to evaluate overall Kv7 expression across VTA cells (Fig. 2D). As females showed no Kv7.2 expression changes, subsequent analysis of Kv7.3-7.5 was exclusive to male mice. As with Kv7.2, Kv7.3-5 displayed cytoplasmic staining patterns (Supplementary Figure 3). A 2W ME ANOVA confirmed a significant main effect of the subunit and subunit-by-surgery interaction (****p<0.0001) (Fig. 2D), indicating pSNL effects were specific to Kv7 subunits. Tukey’s post hoc analysis confirmed increased Kv7.2 (**p=0.0026) and decreased Kv7.3 (***p=0.0006) expression in pSNL mice, with no significant changes in Kv7.4 or Kv7.5 expression. These WK4 changes demonstrate critical pSNL effects in male mice on Kv7.2 and Kv7.3 subunits, primary components of inhibitory M-currents.

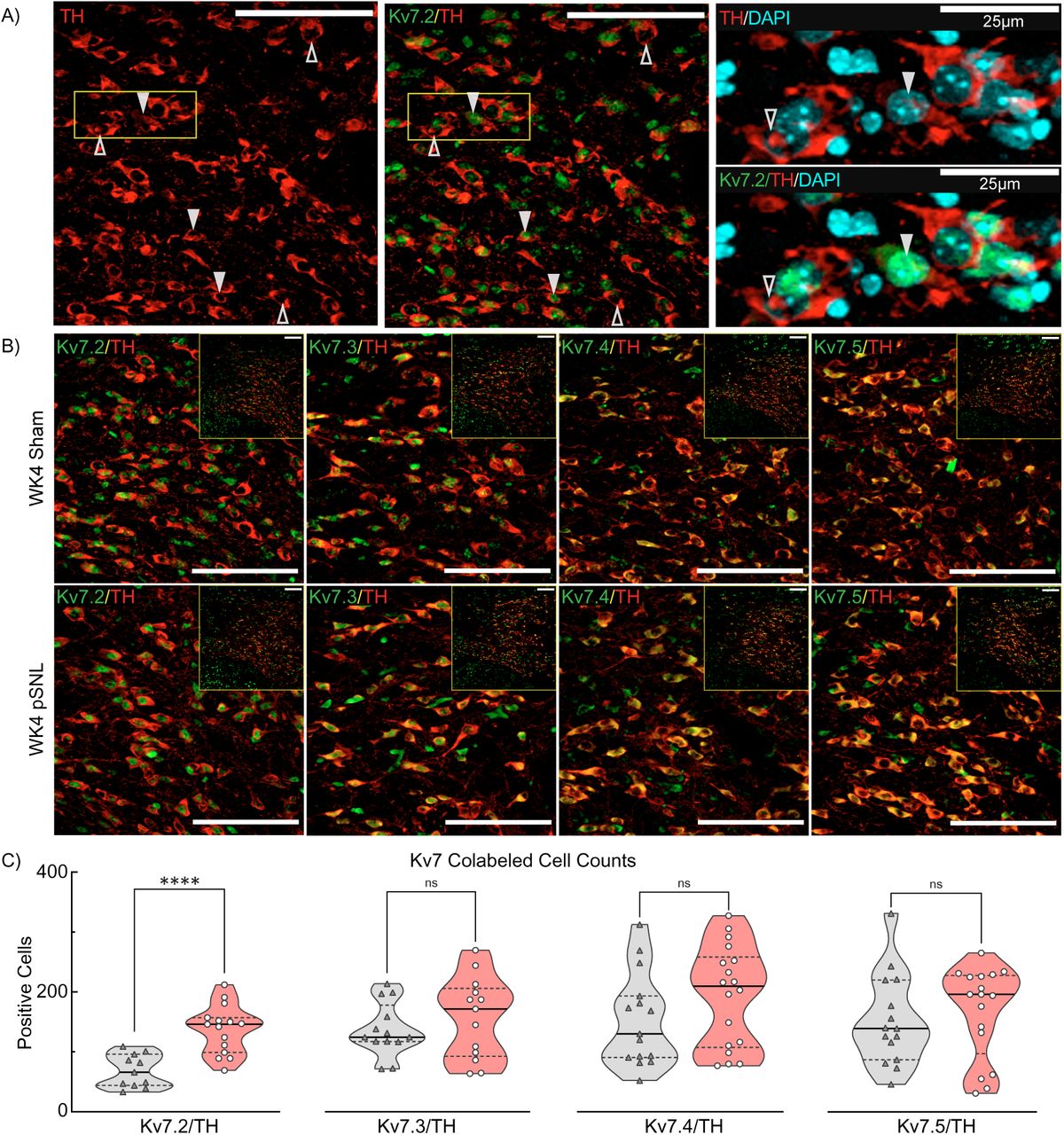

Subunit Selective Changes in Kv7 Channels in VTA Dopamine Neurons
The VTA comprises multiple neuron types [61], raising the question of whether pSNL affected Kv7 subunit expression specifically within dopamine neurons. We employed double-label fluorescence IHC using tyrosine hydroxylase (TH) as a dopamine cell marker on WK4 tissue to assess this. Confocal analysis of co-labeled TH+Kv7.2-7.5 immunoreactive cells revealed strong cytosolic TH fluorescence within VTA neuronal somata in both sham and pSNL mice (Fig 3A,B; Supplementary Figure 3). Photomicrographs confirmed overall high co-expression of TH and Kv7.2-7.5, indicating subpopulations of VTA neurons with varying Kv7 expression (Fig 3B; Supplementary Figure 3). Quantitative analysis of TH expression showed similar numbers of TH+ neurons across both sexes and surgical groups (2W ME ANOVA, no significant differences). Based on observed sex-dependent Kv7.2 changes, we analyzed Kv7.2 co-expression with TH. A 2W ME ANOVA revealed that increased TH+Kv7.2 expression in pSNL mice resulted from a sex-dependent interaction (**p=0.0024). Fisher’s LSD post hoc analysis indicated significant increases in TH+Kv7.2 co-expression exclusively in male pSNL mice (****p=0.0001), while females showed no corresponding increase (p=0.2150), underscoring sex-specific differences in the VTA.
Quantification of co-expressed markers showed a two-fold increase in TH+Kv7.2 co-expression in pSNL mice (p<0.0001) (Fig. 3C). No significant changes were observed for TH with Kv7.3 (p=0.3904), Kv7.4 (p=0.1638), or Kv7.5 expression (p=0.5849) (Fig. 3C). DAPI staining showed no difference in overall VTA cell number (p=0.3397; not shown). Conversely, in sham-operated males, a 1W ANOVA identified significant differences in TH+Kv7 expression based on subunit (**p=0.0042). Specifically, TH+Kv7.2 expression was significantly lower than TH+Kv7.3 (−51.1%*, p=0.0378), TH+Kv7.4 (−55.9%, **p=0.0059), and TH+Kv7.5 (−55.1%, **p=0.0082), suggesting VTA dopamine neurons exhibit low basal Kv7.2 expression and a heightened expression during chronic neuropathic pain. Collectively, these multiple findings indicate that chronic pain and heightened negative affect-like behaviors in male mice are associated with reduced 2-AG and increased Kv7.2 expression specifically in VTA dopamine neurons. Decreased Kv7.3 expression likely occurs in non-dopamine (TH-) neurons, indicating cell type-specific Kv7 subunit adaptations in CPNA.

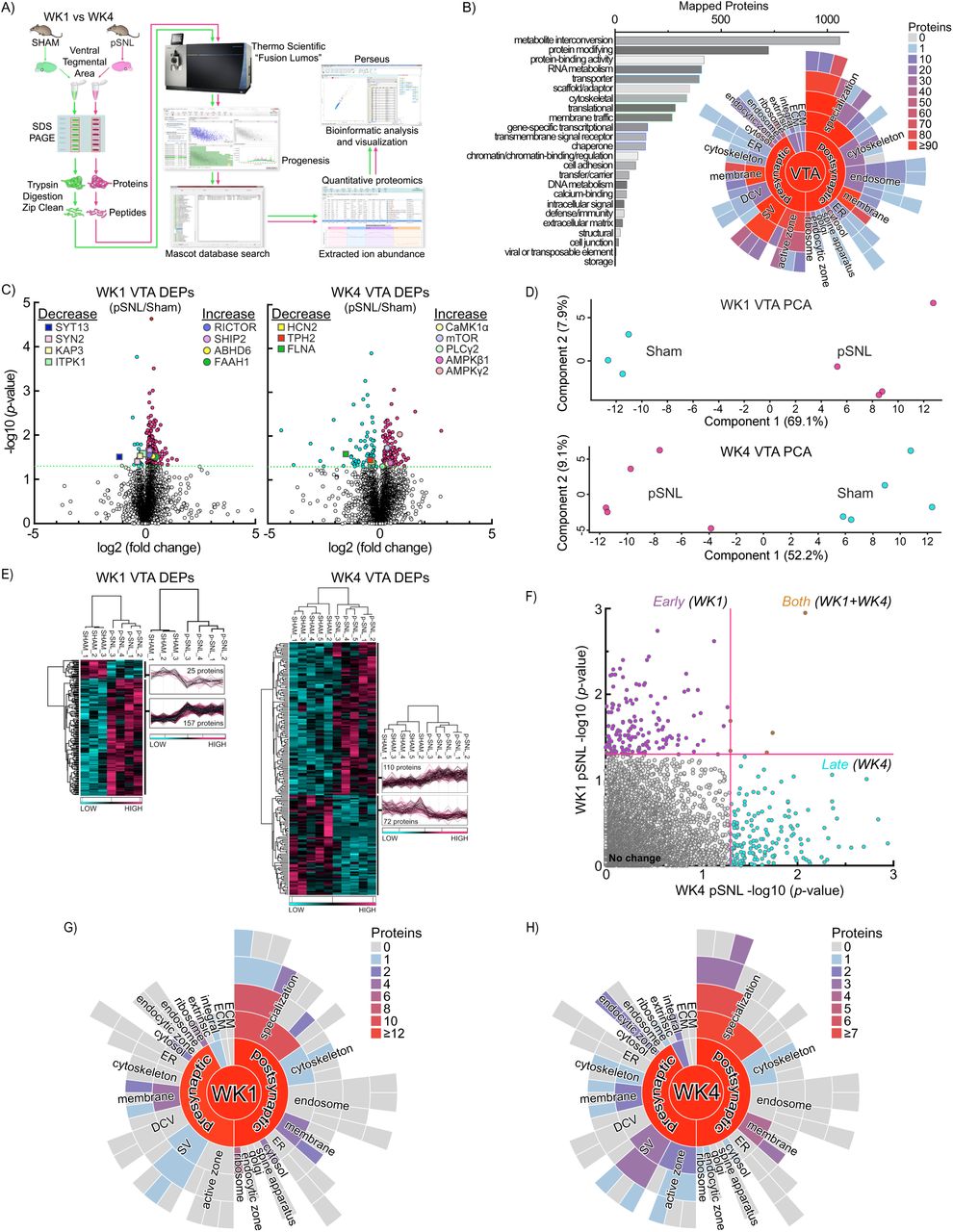

Time-Dependent Changes in VTA Proteomic Landscape
Both 2-AG and Kv7 are crucial participants in common pathways underpinning neuronal development and maturation [62, 63]. To determine if pSNL pain alters interrelated pathway protein abundance in the VTA and to characterize these alterations over time, we conducted an unbiased proteomics screen comparing protein levels in pSNL and sham-operated mice at WK1 and WK4 (Fig. 4A). Pooled bilateral VTA punches from pairs of mice ensured adequate protein yield (WK1 sham, n=3; WK1 pSNL, n=4; WK4 sham, n=5; WK4 pSNL, n=5). Mass spectrometry identified 7 116 distinct proteins within the VTA proteome.
PANTHER analysis categorized 5 251 VTA proteome proteins into functional classes, predominantly metabolite interconversion (1 059), protein-modifying (723), and protein-binding activity (419) (Fig 4B, bar graph). SynGO, a curated knowledgebase of synapse-specific proteins, identified 1 203 proteins corresponding to cellular components (CC), highlighting diverse synaptic localizations within the VTA (Fig 4B, starburst plot).
To track proteomic changes specific to timepoints, we compared protein abundance for pSNL and sham mice at WK1 and WK4 (Fig 4C, left/right), when negative affect-like behavior was apparent (Fig. 1E). We discerned 185 differentially expressed proteins (DEPs) at WK1 and 187 DEPs at WK4 (Fig. 4C; Supplementary Table 2). Both instances showed notable increases in protein abundance associated with pSNL treatments. Key WK4 DEPs included TPH2, PLCγ2, HCN2, mTOR, CaMK1α, AMPKγ2, and AMPKβ1. PCA (Fig. 4D) and hierarchical clustering (Fig. 4E) further validated significant separation between surgery groups with minimal within-group variance (7.9% at WK1, 9.1% at WK4) (Fig 4D). pSNL samples exhibited consistent differences in effective protein abundance relative to sham mice (Fig 4E).
Further comparison of DEPs between timepoints showed minimal overlap, indicating dynamic protein abundance shifts as chronic pain evolved (Fig. 4F). SynGO analysis explored synapse-specific subcellular localization for WK1 and WK4 (Fig. 4G,H). At WK1, 40 DEPs mapped to unique SynGO CC annotations and 27 to Biological Processes (BP) (not shown). At WK4, 30 DEPs mapped to CC annotations and 22 to BP. Both timepoints demonstrated protein abundance variations in presynaptic vesicles, membranes, ribosomes, postsynaptic densities (PSDs), and cytoskeleton proteins. These observations reveal that chronic pain-related proteomic alterations occur within similar synaptic domains but engage distinct proteins over time, aligning with established synaptic remodeling patterns [64, 65]. A substantial subset of WK4-detected proteins (CaMK1α, AMPKβ1, AMPKγ2, etc.) are associated with the CaMKK2 signaling pathway [20, 23, 66], implicated in intracellular calcium signaling alterations during synaptic remodeling [20, 25].
Enrichment in Proteins Related to Dendritic Reorganization and CaMK1α

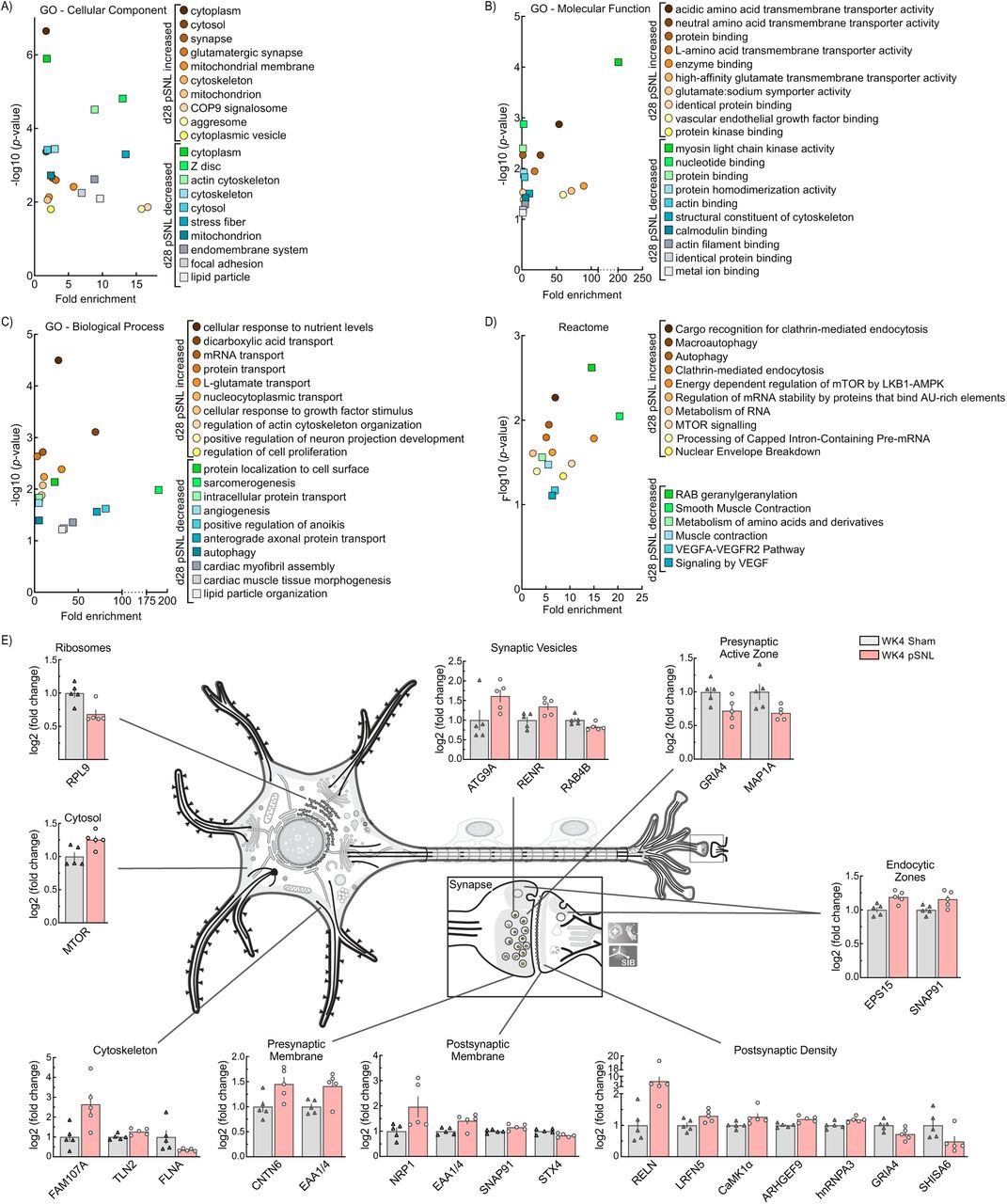

To investigate broader WK4 pSNL implications on VTA signaling, we performed gene ontology (GO) CC, BP, molecular function (MF), and Reactome pathway enrichment analyses of DEPs using DAVID (Fig. 5A,B,C,D). Analysis revealed significant enrichment in various GO CCs, MFs, BPs, and Reactome pathways (Fig. 5A,B,C,D). Notably, many enriched processes and functions relate to dendritic reorganization, including protein kinase binding, calmodulin binding, positive regulation of neuron projection development, and protein localization to the cell surface.
In the comparative proteomic analysis, 15 synapse-specific (SynGO) WK4 DEPs showed increased abundance, while 7 exhibited decreased abundance (Fig. 5E). SynGO WK4 DEPs were localized to the cytosol, endocytic zones, and presynaptic membranes; decreases were primarily in presynaptic active zones and ribosomal structures. PSD, cytoskeleton, synaptic vesicles, and postsynaptic membranes displayed both increases and decreases. These results align with prior studies on dendritic reorganization [67].

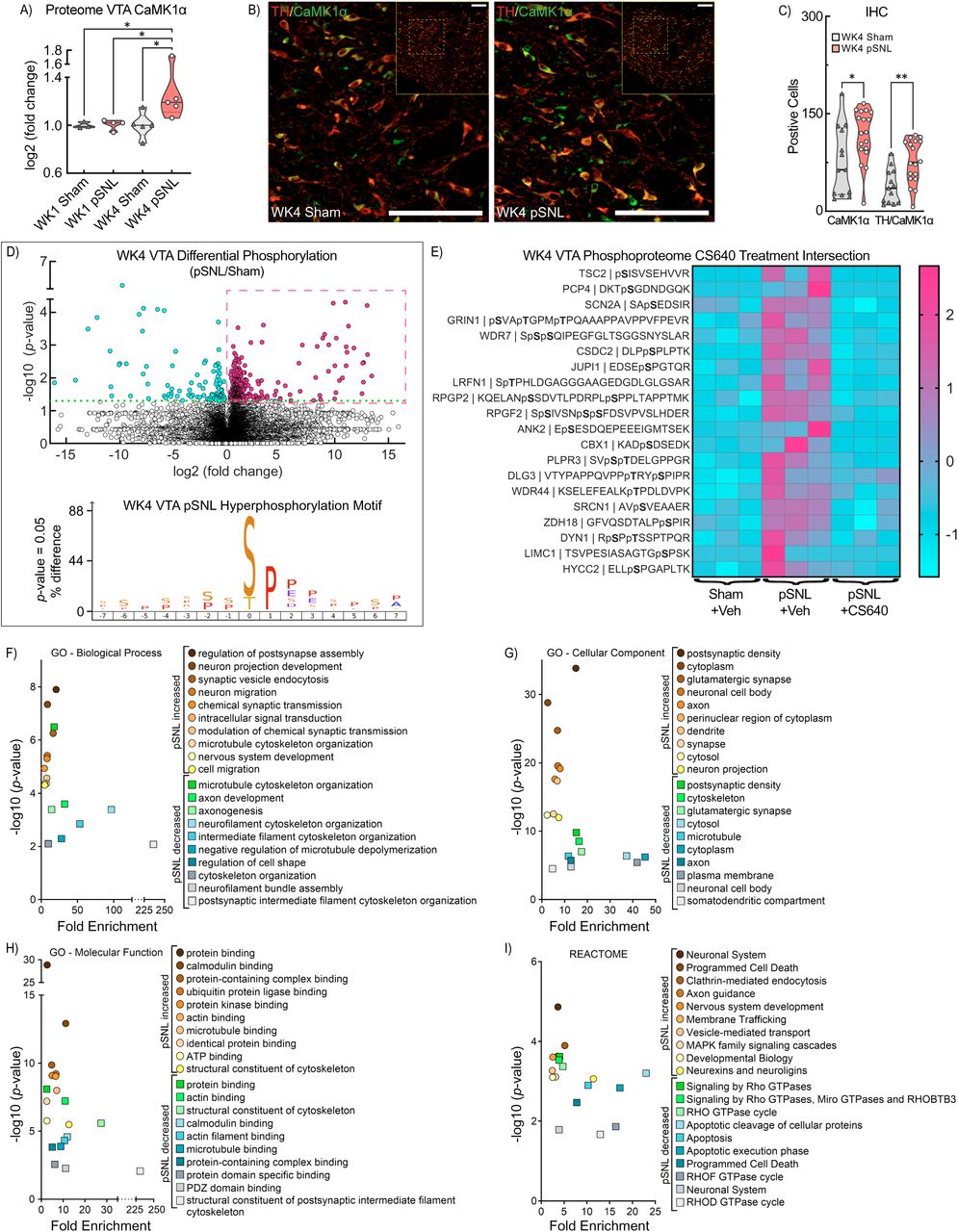

Given CaMKK2’s potential involvement in dendritic reorganization, we specifically examined CaMK1α, a downstream kinase enhancing dendritic complexity via activity-dependent mechanisms [27–29]. Proteomic comparisons indicated significantly increased CaMK1α abundance in WK4 pSNL mice (Fig 6A, *p=0.0488). To validate, we employed IHC co-labeling to assess VTA CaMK1α expression. Utilizing TH (Fig. 6B, red) and CaMK1α (Fig. 6B, green) on VTA slices from WK4 sham and pSNL mice, double-labeling revealed distinct somatodendritic staining patterns with sporadic co-localization. Statistical analyses confirmed significant increases in CaMK1α expression (*p=0.0253) and TH+CaMK1α co-labeling (**p=0.0018) in WK4 pSNL mice (Fig. 6C).
pSNL Changes in the VTA Phosphoproteome
To further evaluate chronic pain’s effect on CaMK1α activity levels, we employed phosphoproteomic analysis. Pooled bilateral tissue punches from three mice per group (WK4 vehicle-treated sham and pSNL) yielded 29 605 phosphopeptide ions associated with 2 676 unique proteins (Fig. 6D, top, volcano plot). Comparing phosphorylation states between vehicle-treated pSNL and sham groups, we identified significant alterations in 577 phosphopeptide ions, with a predominance of hyperphosphorylation in pSNL mice relative to sham controls (Fig. 6D, top, red+blue circles; Supplementary Table 2). These alterations included differential phosphorylation of proteins integral to the CaMKK2 signaling pathway and Kv7.2 modulation, such as CaMKK2, HCN2, ANK2, PCP4, RYR2, and CaMKIIα (Supplementary Table 2) [20, 23, 66, 68–71]. Motif analysis of the hyperphosphorylated sites in pSNL (Fig 6D, top, red box) with iceLogo revealed proline enriched targets (Fig. 6D, bottom). To corroborate these findings with our CaMK1α discovery, we used a next-generation CaMK1 blocker (CS640) and quantified the VTA phosphoproteome of CS640-treated pSNL mice (2 μg/μl, ICV). Among phosphopeptides upregulated in pSNL and downregulated with CS640, we identified 20 proteins across 28 phosphorylation sites (Fig. 6E). GO and Reactome pathway enrichment analyses of the proteins with significantly affected phosphorylation in vehicle-treated pSNL mice noted relevant biological categories, including axonogenesis, regulation of postsynapse assembly, PSDs, calmodulin binding, protein kinase binding, and clathrin-mediated endocytosis (Fig. 6F,G,H,I). These studies indicated the potential for an increased role for CaMK1α, which, alongside other VTA kinases, may contribute to the CPNA phenotype [25]. Collectively, these data link sustained pSNL pain and associated negative affect-like behavior with temporal alterations in 2-AG, Kv7.2 channels, and the VTA proteomic landscape. These changes, characterized by enhanced activity in the VTA CaMKK2-CaMK1α/−AMPK axis, support the notion of 2-AG, Kv7, and dendritic signaling reorganization during CPNA.
Discussion
Chronic Pain Negative Affect (CPNA) is a debilitating comorbidity of chronic pain that complicates patient management and necessitates new therapeutic strategies. Our study advances translational efforts by providing fundamental neurobiological insights and identifying actionable molecular targets with preclinical therapeutic potential. We investigated CPNA mechanisms in the VTA—a critical brain region for reward, mood, and pain processing.
By employing a multidisciplinary approach that combined immunohistochemistry with lipidomic, proteomic, and phosphoproteomic screening in a pSNL mouse model, we generated an unprecedented molecular map of the VTA during CPNA progression. While previous studies have used targeted analyses or omic screening in the VTA [9, 72, 73] and profiled broader brain regions [74–76], our integrated multi-omic strategy offers a uniquely deep and unbiased characterization. We identified specific molecular alterations within VTA dopamine neurons, including sex-dependent Kv7.2 channel upregulation in males and profound changes in 2-AG levels and the CaMKK2-CaMK1α/−AMPK pathways. We then demonstrated the therapeutic actionability of these nodes through preclinical interventions. We hypothesize that these concurrent dysregulations drive a pathological cascade leading to VTA dopamine neuron hyperexcitability and the persistent negative affective states of CPNA, a concept consistent with existing literature [7–11]. Our translational findings show that both exogenous 2-AG and the Kv7 channel opener retigabine effectively alleviated pain-related negative affect, representing a conceptual advance in understanding CPNA pathophysiology.
While robust, our findings in an animal model require future clinical validation. Our investigation at one and four weeks post-injury offers crucial insights into early adaptations, but broader temporal studies may reveal additional dynamics. Furthermore, CPNA involves interconnected neural circuitry beyond the VTA [74–77]. A key unresolved issue is the conflicting reports on VTA dopamine neuron activity in chronic pain. While our findings implicate mechanisms that may underlie the hyperexcitability reported in some studies [7–11], other research indicates that inflammatory pain can decrease VTA dopamine neuron activity, leading to anhedonia [11–18]. These discrepancies may stem from differences in timing, pain models, VTA subpopulations, or behavioral assays, which our study did not resolve. Nevertheless, our results provide several key observations.
Endocannabinoid System (ECS) and 2-AG Dysregulation
One prominent system affected in CPNA is the ECS, particularly the lipid mediator 2-AG. We found significant reductions in VTA 2-AG levels in male pSNL mice, which paralleled negative affect-like behaviors. This aligns with human studies showing reduced plasma 2-AG in negative affect [35–37] and preclinical work demonstrating disrupted 2-AG metabolism in anxiety and other negative affective states [74, 78]. Crucially, our finding that exogenous 2-AG attenuates CPNA symptoms—similarly to retigabine [9, 10]—directly links 2-AG deficiency to symptomology and underscores its therapeutic potential. This is supported by literature showing that targeting 2-AG metabolism via MAGL inhibition has antidepressant/anxiolytic effects in mice [79] and reduces pain in rats [53]. Further evidence includes 2-AG’s protective effects against LPS-induced impairments in vitro [80] and the observation that rTMS therapy increases hippocampal 2-AG in rats [81].
Beyond classical receptor agonism, eCBs can directly modulate ion channels, with 2-AG acting as a positive allosteric modulator of Kv7.2 [41]. Evidence also suggests 2-AG can indirectly alter AMPK via CB1R-CaMKK-AMPK signaling in cardiomyocytes [39]. Other less-reported, CB1-independent actions of 2-AG involve platelets [82] and other non-CB1 proteins and ion channels (i.e., TRPV, N-type VGCC) [83]. Similarly, anandamide (AEA), which was not impacted in our study, also exerts non-canonical actions at targets like TRPV, GPR55, GPR18, and PPARs [84, 85].
While enhancing VTA 2-AG shows therapeutic promise for CPNA, the role of 2-AG in pain is complex. For instance, excessive circulating 2-AG at the time of injury may paradoxically increase chronic pain risk [32]. Furthermore, pain is often comorbid with cognitive impairments involving the ECS [86], and hormonal cycles can influence ECS function and cannabinoid responsiveness [87]. These points highlight the need to distinguish between acute injury responses and chronic pain states, as well as systemic versus brain-region-specific effects and the significant role of sex.
Kv7.2 Channel Dysregulation and Sex-Dependent Effects
The dysregulation of Kv7.2 channels adds another critical layer to VTA dysfunction in CPNA. While neuronal hyperexcitability in pain is associated with decreased Kv7 channel expression in the DRG [88], our data reveal a paradoxical, sex-specific upregulation of Kv7.2 protein, but not Kv7.3, in VTA dopamine neurons of male pSNL mice. This counterintuitive increase suggests that functional modification, rather than expression level, may be the primary driver of dysfunction, contributing to hyperexcitability despite greater protein abundance. The critical role of Kv7.2 in regulating neuronal excitability is underscored by evidence that its removal alone can trigger spreading depression [89]. Moreover, pathogenic loss-of-function variants cause severe neurodevelopmental disorders [62], highlighting the channel’s fundamental importance.
Increased Kv7.2:Kv7.3 ratios can produce less functional homomeric Kv7.2 channels with weaker M-currents [90, 91]. Our observed sex-dependent upregulation points to distinct mechanisms underlying CPNA symptomology in males and females. The C-terminal tails of Kv7 channels, which are critical for trafficking, are targets for kinases, calmodulin, and PIP2 [92, 93]. Multiple kinases phosphorylate Kv7 channels, including CaMKII, PKA, PKC, and MAP kinases [94]. Our finding of increased CaMKK2 phosphorylation supports such kinase-mediated Kv7.2 dysfunction via several plausible pathways: CaMKK activates MAP kinases that regulate Kv7 [94, 95]; PKA directly modulates Kv7.2 [96]; and crosstalk between CaM kinases and PKC decreases Kv7.2 channel activity [95].
CaMKK2-CaMK1α/−AMPK Pathways
Our multi-omic analyses identify the CaMKK2 signaling cascade as a central node in the VTA’s adaptation to CPNA. We observed increased CaMKK2 phosphorylation, which we hypothesize is a maladaptive homeostatic response to pain-induced VTA hyperexcitability, consistent with principles of cellular plasticity under chronic stress [97–99]. Despite inhibitory phosphorylation of CaMKK2 at S495, the absence of S100/S511 phosphosites suggests residual activity, which may sustain some downstream signaling while hyperexcitable neurons compensate by increasing downstream kinase subunits like AMPK and CaMK1α. The increased abundance of AMPKγ2 in CPNA suggests an attempt to compensate for metabolic stress, which could amplify VTA dysregulation. AMPK influences both protein and lipid synthesis and degradation, as well as ion channel trafficking [22, 23, 25, 26, 66].
Similarly, dysregulation of CaMK1α, critical for structural plasticity and spine density [30], may impair the VTA’s ability to adapt to pain stressors, potentially leading to excessive immature synapses and perpetuating hyperexcitability [100]. The interplay between CaMK1α and AMPK, collectively influencing dendritic reorganization and synaptic integrity, appears to be a key mechanism shaping the VTA’s maladaptive response. While direct evidence linking CaMKK2 to endocannabinoid-metabolizing enzymes like MAGL or DAGL is lacking, its regulation of cellular energy and signaling cascades intertwined with lipid metabolism is well-established [20, 22, 23, 38]. It is important here to also note we found that the CaMK1α antagonist CS640 reversed key pSNL-related changes in phosphorylated proteins involved in morphological rearrangement, providing compelling pharmacological evidence for this pathway as an actionable therapeutic target.
Conclusion
This study provides the first comprehensive, multi-omic analyses of molecular adaptations in the VTA linked to CPNA. By identifying critical neurobiological substrates—including dysregulation in Kv7.2 channels, the endocannabinoid system, and the CaMKK2 pathway—and elucidating their interplay, we provide a robust foundation for developing targeted therapies. The sex-dependent nature of our findings underscores the importance of sex as a biological variable in CPNA research.
Future work should focus on how Kv7.2 dysregulation and 2-AG reduction mechanistically contribute to VTA hyperexcitability and negative affect. Investigating the functional consequences of CaMKK2 pathway alterations and their interplay with Kv7.2 and 2-AG is paramount. Long-term translational studies are warranted to assess the sustained therapeutic potential of Kv7.2 modulators, 2-AG enhancers, and CaMK1α antagonists. Finally, rigorous delineation of the specific cannabinoid receptor mechanisms and further investigation into sex-specific signaling differences are crucial next steps to advance innovative and personalized strategies aimed at alleviating the burden of CPNA.
Supporting information
Acknowledgements
This work was funded by grants from the National Institute on Drug Abuse through the University of Arizona Center of Excellence in Addiction Studies (CEAS; P30DA051355), with additional support from the Department of Pharmacology Comprehensive Center for Pain and Addiction (CCPA) in the College of Medicine at the University of Arizona. The University of Arizona Cancer Center Analytical Chemistry Shared Resources (ACSR) is acknowledged for assistance with LC-MS services. The University of Arizona Health Sciences Quantitative Proteomics Laboratory is acknowledged for MS-based proteomic and phosphoproteomic support.
Conflict of Interest
The authors have declared no conflict of interests.
Untitled section
Supplementary Figure 1. pSNL surgery causes long-lasting allodynia. Violin plot depicts individual animal paw withdrawal threshold values in male and female mice from sham and pSNL-exposed groups (interaction F(2,151)=39.46, ****p<0.0001). Both groups exhibited hypersensitivity at WK1 compared to baseline (****p<0.0001) to different extents (**p=0.0030). While pSNL mice continued to show hypersensitivity at WK4 (**p<0001), sham-exposed mice returned to withdrawal thresholds similar to baseline ****p<0.0001). Sample sizes are indicated in parentheses (Sham male, Sham female; pSNL male, pSNL female). Solid lines in violin plots depict median and dashed lines depict quartiles.
Supplementary Figure 2. Early Imbalance in VTA Neuromodulation at WK1 pSNL. Bar graph depicts the relative abundance of various proteins normalized to sham-operated mice (multiple unpaired t-tests). Included are enzymes involved in endocannabinoid (eCB) metabolism (fatty acid amide hydrolase (FAAH) and alpha/beta-hydrolase domain containing 6 (ABHD6)) and eCB synthesis (monoacylglycerol lipase (MGLL) and diacylglycerol lipase alpha (DAGLA)). Also analyzed are proteins important for anandamide production (N-acyl-phosphatidylethanolamine phospholipase D (NAPEPLD), and experience dependent synaptic plasticity (KS6KA5 (MSK1), and KAP3 (Prkar2b)). All data are expressed as mean ± SEM.
Supplementary Figure 3. Cytosolic Expression Patterns of TH+ and Kv7.2-5 Among VTA cells. High magnification confocal photomicrographs of the contralateral VTA region from male mice, divided into sham-operated (left two panels) and pSNL (right panel) groups, at four weeks post-surgery. Images depict co-localization of TH (red), Kv7.2-5 (green, presented in descending order), and nuclear DAPI staining (blue). Magnified images focusing on individual neurons (far right) show only Kv7 and DAPI staining. Images underwent rolling-ball background subtraction, linear contrast adjustment, and resizing for display. Scale bars represent 25 µm and asterisks represent the nucleus.
