Ten-a Affects the Fusion of Central Complex Primordia in Drosophila
Ten-a Affects the Fusion of the Central Complex
State Key Laboratory of Brain and Cognitive Science, Institute of Biophysics, Chinese Academy of Sciences, Beijing, People's Republic of China
University of the Chinese Academy of Sciences, Beijing, People's Republic of China
School of Medicine, Zhejiang University, Hangzhou, Zhejiang, People's Republic of China
Key Laboratory of Mental Health, Chinese Academy of Sciences, Beijing, People's Republic of China
University of Missouri, United States of America
* E-mail: zfgong@gmail.com (ZG); liuli@sun5.ibp.ac.cn (LL)Abstract
The central complex of Drosophila melanogaster plays important functions in various behaviors, such as visual and olfactory memory, visual orientation, sleep, and movement control. However little is known about the genes regulating the development of the central complex. Here we report that a mutant gene affecting central complex morphology, cbd (central brain defect), was mapped to ten-a, a type II trans-membrane protein coding gene. Down-regulation of ten-a in pan-neural cells contributed to abnormal morphology of central complex. Over-expression of ten-a by C767-Gal4 was able to partially restore the abnormal central complex morphology in the cbd mutant. Tracking the development of FB primordia revealed that C767-Gal4 labeled interhemispheric junction that separated fan-shaped body precursors at larval stage withdrew to allow the fusion of the precursors. While the C767-Gal4 labeled structure did not withdraw properly and detached from FB primordia, the two fan-shaped body precursors failed to fuse in the cbd mutant. We propose that the withdrawal of C767-Gal4 labeled structure is related to the formation of the fan-shaped body. Our result revealed the function of ten-a in central brain development, and possible cellular mechanism underlying Drosophila fan-shaped body formation.
Introduction
The central complex is an interconnected neuropil structure across and along the sagittal mid-section of the fly brain and includes the protocerebral bridge (PB), the fan-shaped body (FB), the paired nodule (NO), and the ellipsoid body (EB). It is involved in multi-modal behavioral control, such as locomotion [1]–[3], visual pattern memory [4], [5] and spatial orientation [6], [7]. The development of the central complex can be traced back to the larval stage [8], [9]. Lineage analysis has revealed the neurons that contribute to the central complex [8], [9], [10], but the molecular and cellular mechanism of central complex formation is not fully understood.
In the 1980s, Martin Heisenberg and coworkers generated a series of structural mutants, in which the morphology of adult central brain structures like mushroom bodies and the central complex were destroyed [1], [11], [12]. Among these mutants, mbm (mushroom body miniature), ceb (central brain deranged) and nob (no-bridge) have been identified. mbm was found to be a transcription factor, a nucleic acid-binding zinc finger protein [13], while ceb was reported to encode Neuroglian, a cell adhesion molecule that is crucial for axonal development, synapse formation and female receptivity [14]–[17]. As to nob, it interacted with drl at the interhemispheric junction to affect the formation of protocerebral bridge [18]. Another mutant type is central body defect (cbd), of which the most typical phenotype is that the fan-shaped body and the ellipsoid body are fragmented in the middle, or some fusion of the fan-shaped body and the ellipsoid body. So far, the molecular basis of most structural mutants is unclear.
Ten-a belongs to a large protein family, Teneurin, which contains an N-terminal intracellular domain, a single transmembrane domain, eight EGF-like domains, a 6-blade β-propeller TolB-like domain, and 26 YD repeats [19], [20]. From invertebrates to vertebrates, Teneurins function as signaling molecules at the cell surface as type II transmembrane receptors, while the intracellular domain cleaved from membrane works as a transcription regulator [21]–[23] and carboxyl terminus functions as a bioactive peptide [24]–[27]. The Teneurin family members are thought to be important for establishment and maintenance of neuronal connections, neurite outgrowth and axon guidance [20]. Recent reports showed that two Drosophila Teneurin members, Ten-a and Ten-m, are crucial for proper synaptic matching and the maintenance of neuromuscular junction [28], [29]. Although Teneurin may play a role in mammalian brain function [20], [30], detailed study is still largely lacking.
Here, we report that the Drosophila structural mutant gene cbd, the most typical phenotype of which is the fragmented fan-shaped body and ellipsoid body, is ten-a. The cbd mutation disrupts the formation of the FB, by preventing the merging of the two FB parts. This defect was rescued by over-expression of ten-a in a C767-Gal4 labeled structure which separated the FB parts but later disappeared to allow the merging of the two FB primordia. Our results might reveal the molecular and cellular mechanism of Drosophila central complex development.
Materials and Methods
Fly strains
Flies were cultured on standard cornmeal food at 25°C with a 12 h light : 12 h dark cycle at 60% humidity [31]. Wild-type flies Berlin (WTB) and w1118 were used in our study. The cbd lines were generated by EMS mutagenesis of WTB [32]. The deficiency lines (Df(1)ED7161, Df(1)ED7153, Df(1)KA10, Df(1)RC29, Df(1)ED7147), and flyC31 (y1M{vas-int.Dm}ZH-2Aw*; M{3xP3-RFP.attP}ZH-86Fb) were obtained from the Bloomington Drosophila Stock Center (Indiana University). The ten-a RNAi line (w1118; P{GD3330}v8322) was obtained from the Vienna Drosophila RNAi Center (Vienna, Austria). NP6510 was obtained from Drosophila Genetic Resource Center (Kyoto Institute of Technology, Japan). The ten-a imprecise jump out line ten-a#900 was a gift from Dr. Ron Wides.
DNA Sequencing
To determine whether there was a mutation in genes between 11A5 and 11A7, we sequenced the coding regions of CG1924, CG32655, and ten-a in wild-type flies (WTB) and cbd flies. The genome fragments were PCR amplified using Pfu polymerase (Promega). The gene-specific primers were designed according to the FlyBase Release 5.45 genome sequence (www.flybase.org). The primers for amplification also were used for sequencing for genes ten-a and CG32655. For gene CG1924, besides primer30 for amplifying and sequencing, other sequencing primers (S1, S2) were used.
Primers for ten-a:
Primer1: 5′-GGATCGTGGGCATCGGCGGTG-3′ and 5′-TTTACAAATTAGTTGAC-3′;
Primer2: 5′-GGAAGTTGGGTTCCATAGCA-3′ and 5′-GGCATCTATTTCCAGCCTGA-3′;
Primer3: 5′-CCCAACTGAGCGAGGAAATA-3′ and 5′-ACAATGTGGAGGTTCCAACG-3′;
Primer4: 5′-CAACAGACTGTTAGGCAAGAGA-3′ and 5′-TTGCACGCTTTTTCCCTATC-3′;
Primer5: 5′-GATAGGGATTTCGACGCAGA-3′ and 5′-AAGTGCATCGAGTGCATTATTTA-3′;
Primer6: 5′-TTCGAGTGCATCCCAAAAAT-3′ and 5′-CCCATATTCCGCATCTCCTA-3′;
Primer7: 5′-CCCACCCCCTTTTTGTTAAT-3′ and 5′-TTCTTAGCTGGCCGAAGTGT-3′;
Primer8: 5′-CGGCAGATAAGATGAAACAACA-3′ and 5′-GCCTCGTTGAACTCCTTCAG-3′;
Primer9: 5′-GTGGCATAATGAATGGTGGA-3′ and 5′-CTGCAGCAGGGATACATTCA-3′;
Primer10: 5′- GATACGGCCAAACAGCATCT-3′; and 5′-CGGGATTCCCCGTTATATTC-3′
Primer11: 5′-AAAACCACCAAATGCTGACC-3′ and 5′-AGCTCGTGATTTCCAGTTCC-3′;
Primer12: 5′-TAAATGCGCACAATGGAAAA-3′ and 5′-ACCGCAATGTTGCTGTTGTA-3′;
Primer13: 5′-CAATTCGATTGCGTGTCAAG-3′ and 5′-GAATCCCTGCGCACTAAGAG-3′;
Primer14: 5′-GCAAAAACTCGAACGCAAAT-3′ and 5′-GCAAAAACTCGAACGCAAAT-3′;
Primer15: 5′-ATTTCTCATGCCACCCACTC-3′ and 5′-TGGTAAATGAGGGGCACTTT-3′;
Primer16: 5′-CTGTCACCTGAGACCGATGA-3′ and 5′-ATTGCAGTAATCCGGACAGG-3′;
Primer17: 5′-GGAGTATCCGAGAACCGTCA-3′ and 5′-GGATCTTCATGTCCGAGGTG-3′;
Primer18: 5′-CATGGCCATCACAATCACTG-3′ and 5′-TAGCAGCGAACCTAATCGAA-3′;
Primer19: 5′-TCTAACACGCATTTCCCTCA-3′ and 5′-AAAATCCCACGAAAAACGTC-3′;
Primer20: 5′-CAGGTCAAATAGTGCGAATGC-3′ and 5′-CCCATGGTGACACTTTGATG-3′;
Primer21: 5′-CCCTAGTGATTCATGGCGATA-3′ and 5′-GAAGTCCCATCGGTACTCCA-3′;
Primer22: 5′-CTGCTCCAGACGATCCTACC-3′ and 5′-GCTCTTCTCTGGCATTTTGG-3′;
Primer23: 5′-GCCCAGGACAGGATTGTAAA-3′ and 5′-CGGCAAAGTCCTCTGGATAG-3′;
Primer24: 5′-CGTGTTGCCGAGAGGATTAT-3′ and 5′-GCTGGTCCACTACCCACAGT-3′;
Primer25: 5′-GCAGGACTCGTTCTTCTTCG-3′ and 5′-CTGTTCTTCGGTTTTCACTGC-3′;
Primer26: 5′-CGCAGATCCACCGATCTAAT-3′ and 5′-GTTGCCGTTCAATTGGTTTT-3′;
Primer27: 5′-TTTATGGGAATGGGCGTATC-3′ and 5′-GCATTGAGCTGAGTTCGAGA-3′;
primers for CG32655
Primer28: 5′-GAGCGACTGAGGATTCCCTA-3′ and 5′-TGGGTCTTTCGCTAGTCGTT-3′;
Primer29: 5′- CAGTGCTAGTTCCGTCGTGA-3′ and 5′-TGAAAAGGCTGGCTAGTTGG-3′;
primers for CG1924
Primer30: 5′-CCGGGAAAACTGTTGAAAAA-3′ and 5′-TATGAATGCCCGCTTACTCC-3′;
S1: 5′-TTCAAGTCGGAGAAGCCACT-3′
S2: 5′-ATCATCCGCAATCCCAACTA-3′
Construction of transgenic flies UAS-ten-a
The first strand cDNA of ten-a was synthesized from fly head mRNA using the SuperScript III first-strand synthesis system (Invitrogen). PCR reactions were performed by Pfu polymerase (Promega) with 5′ primer 5′-GCAGTCAGATCTATGACTATGAAATCGATGAAG-3′ and 3′ primer 5′-ATTACTGACGTCGGTACCCTAACAGTCGGCTTCGCG-3′. BglII and KpnI adapters were added to the 5′ and 3′ primers, respectively. The 9042 bp product was inserted into the BglII and KpnI sites of pUASTattB (a gift from Konrad Basler) after the sequence was confirmed. The purified construct was introduced to FlyC31 strains.
Immunohistochemistry
Flies were allowed to lay eggs on standard fly food for 30 min and brain dissection was performed at different time points of development: larvae, 48–72 h, 72–96 h and 96–120 h after egg laying; pupa, 0–2 h and 8–9 h after puparium formation; adult fly, 3∼5 days after eclosion. Immunostaining was performed as described previously [33] with modifications. Briefly, dissection was performed in a dish covered with cold PBS (phosphate-buffered saline, pH 7.4). The samples were fixed in freshly prepared paraformaldehyde (4% in PBS) for 3 h on ice. Brains were then washed in PBT (PBS+0.5% Triton X-100) for 3×15 min, followed incubation for 1 h in PNT (PBT+10% normal goat serum) at room temperature. Subsequently, rat monoclonal antibody to DN-cadherin (DSHB, DN-EX #8, dilution 1∶100) was used to track the development of the central complex in the larval and pupal stage. Nc82 antibody (DSHB; mAb nc82, dilution 1∶100) against Brp protein was the primary antibody used to stain the neuropil in adult flies. Rabbit anti-GFP antibody (Invitrogen Inc, dilution 1∶1000) was used to check the expression pattern of Gal4 lines. After incubating overnight at 4°C in primary antibody, samples were washed in PBT 3×15 min at room temperature, and then incubated overnight in secondary antibody. Goat anti-Rat antibody (TRITC-conjugated, Jackson Laboratories, dilution 1∶200), goat anti-Mouse antibody (TRITC-conjugated, Jackson Laboratories, dilution 1∶200), and goat anti-rabbit antibodies (FITC-conjugated, Invitrogen Inc, dilution 1∶200) were used as secondary antibodies. In the following day, after being rinsed in PBT 3×15 min, brains were mounted in Vectashield Fluorescent Mounting Media (Vector Laboratories, Burlingame) and observed.
Imaging
Mounted brains were scanned with a confocal microscope (Leica TCS SP5). Each brain stack z-resolution was 0.8 µm or 1.0 µm for adult fly brains and 0.5 µm for larval or pupal brains, at pixel resolution of 1024×1024. The images were then processed with ImageJ (National Institutes of Health, rsbweb.nih.gov/ij/).
Statistics
A two-tailed Fisher exact test was used to evaluate the efficiency of rescue experiments, and two sample t-test was carried out for the numbers of F1 neurons or F5 neurons. Statistical significance was assigned, *P<0.05, **P<0.01, ***P<0.001.
Results
cbd is mapped to ten-a
Although most structural mutants generated by Heisenberg and colleagues are still uncharacterized, some of them have been preliminarily mapped [13], [15], [18], [32]. The structural mutant gene cbd, which contributed to the disrupted fan-shaped body and ellipsoid body, was localized to 11A1–A7 on the X chromosome [1], [32]. To further localize cbd, we adopted a traditional method of deficiency mapping using complementation tests (Fig. 1). cbd KS171, a representative cbd mutant, was crossed with a series of deficiency lines around the 11A region and the brain morphology of trans-heterozygous female offspring was checked. Three large deficiencies, Df(1)ED7161, Df(1)ED7153, Df(1)KA10, which respectively remove 10D1-11B14, 11A1-11B1 and 11A1–11A7, failed to restore the deranged central complex in cbd KS171 mutants, confirming that the cbd gene lies within 11A1–11A7 (Fig. 1B–I). Next we used deficiencies with a breakpoint between 11A1 and 11A7 for fine mapping. Both deficiency lines Df(1)RC29 and Df(1)ED7147, that remove 11A1–11A5 and 10D6-11A1 respectively, could complement the cbd KS171 mutation, suggesting that cbd lies outside of 11A1–11A5 and locates in 11A5∼11A7 (Fig. 1J–M). The complementation tests for another two cbd mutants, cbd KS96 and cbd 2254 confirmed that cbd was located in 11A5–11A7 (Fig. 1N–Y).

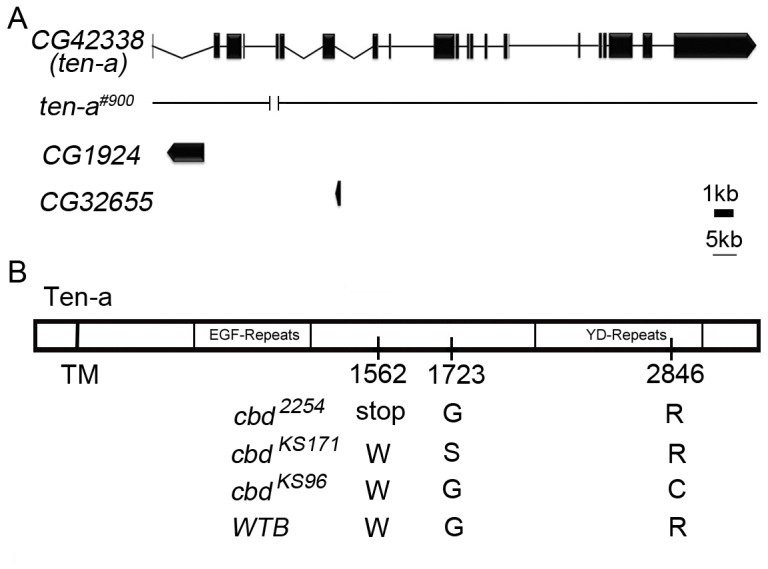

We then checked the annotated genes in 11A5–11A7. According to FlyBase annotation release 5.45, there are three genes in this region: CG1924, CG32655 and CG42338. We sequenced the coding DNA region of these three genes in the three cbd mutant lines cbd KS171, cbd 2254 and cbd KS96, and found no sequence change in CG1924 and CG32655 that could lead to changes in amino acids or splicing sites. Interestingly, we found significant DNA sequence changes in the coding region of CG42338, also named ten-a (Fig. 2A). For convenience of illustration, the mutation points were assigned to the transcript RE, which encodes the largest protein isoform (3378 aa) according to the FlyBase annotation. In cbd 2254, a TGG codon (Tryptophan, 1562) was changed to TGA (a premature stop codon). In cbd KS171, a GGC codon was changed to AGC (Glycine in 1723 changed to Serine). In cbd KS96, the CGT codon was changed to TGT (Arginine 2846 changed to Cysteine) (Fig. 2B, S1). It is worth noting that all three amino acid changes occur in the conserved domains of the Ten-a protein (Fig. S2). Besides these three mutations, there are several amino acid residues that are same in the three cbd lines but different from control flies (WTB), and all are in non-conserved domain of Teneurin (Fig. S3). All of these data strongly hint that cbd is ten-a.
ten-a is required for normal central complex morphology
Since cbd is likely ten-a, we wondered if manipulating ten-a gene expression would affect morphology of the fly central complex, as cbd mutations do. We first made use of the ten-a deficiency line ten-a#900 which was generated by P element imprecise excision in ten-a. In ten-a#900, a 2219 bp region covering two ten-a exons was deleted (Fig. 2A). ten-a#900 is homozygous viable, but the central complex morphology is disrupted (Fig. 3A, B). Complementation tests between ten-a#900 and cbd mutants, cbd KS171, cbd KS96 and cbd 2254 showed that ten-a#900 was unable to complement the cbd mutant based on brain morphology (Fig. 3C–H). Thus, ten-a#900 is another cbd mutant allele. However, the question still remained that there might exist some other common mutation outside of ten-a in these mutant lines that generated the abnormal brain phenotype. We then specifically down-regulated ten-a expression by driving expression of UAS-ten-a RNAi with tub-Gal4. We noticed that morphology of both FB and EB was destroyed comparing with control flies (Fig. 3I–L). We further asked where ten-a functioned to affect fly brain morphology. By driving UAS-ten-a RNAi with pan-neuronal elav-Gal4 and pan-glial repo-Gal4, we found distinct results: down-regulation of ten-a in neurons produced strong brain derangement, while down-regulation of ten-a in glial cells had no effect on fly brain morphology (Fig. 3M–P). It suggests that ten-a is required in neurons for normal central complex morphology.
Over-expression of ten-a restored normal brain morphology in cbd mutant
Next, we undertook fine mapping of the cells in which Ten-a functions to affect the central complex morphology by attempting to rescue the cbd mutant phenotype via over-expressing ten-a with screening various Gal4 lines. During the screening, pan-neuronal Gal4 line, glia-specific Gal4 line, and some region specific Gal4 lines were chosen for rescue experiments. Finally only C767-Gal4, which labeled the EB as well as the median bundle in adult central brain, significantly rescued the cbd mutant phenotype (Fig. 4). Since the phenotype is the cleavage of FB, it is reasonable to postulate that it is the C767-Gal4 labeled structure at midline but not at other regions that affected the FB morphology. Interestingly, the percentage of rescue was a little higher when flies were cultured at a constant temperature of 18°C comparing with flies cultured at a constant temperature of 25°C (Fig. 4I). Thus, Ten-a in C767-Gal4 labeled cells contributed to normal central complex formation.
Defective FB in cbd mutants is caused by the failure of FB merging
We then asked how ten-a mutation led to the deranged central complex morphology. Theoretically, the deranged FB in cbd mutants could result from either abnormal development, or from degeneration of a normal mature FB. We tracked the whole developmental process of the FB in both wild-type and cbd mutants from 2nd instar larva to pupa (Fig. 5), when the FB is supposed to form [8]. We could see several thin commissural axon tracts which was supposed as supraesophageal commissure [34] in 2nd and early 3rd instar larval brains in both wild-type and cbd mutants (Fig. 5A–D), which suggests that ten-a mutation doesn't affect the midline crossing of this structure, at least in these stages. In late 3rd instar larval brains, we found immature FB stained by DN-cadherin anterior to the supraesophageal commissure on the two sides of the midline (Fig. 5E, F). The FB precursors expand and merge at the midline by 8–9 h after pupa formation (APF) in wild-type flies (Fig. 5G, I). In cbd KS171 flies, the similar event happens until 0∼2 h APF. However, in cbd mutants the two strong DN-cadherin labeled precursors were unable to merge at 8∼9 h APF (Fig. 5H, J), even at later time points that we have checked (data not shown). Thus, the broken FB in cbd mutants was likely caused by a developmental defect in FB formation, but not by neuronal degeneration of the formed FB.
C767-Gal4 labeled structure at interhemispheric junction might be required for FB formation
We then asked exactly how ten-a affected the process of FB development. As cbd mutant phenotype can be partially rescued by over-expressing ten-a in C767-Gal4 labeled structure, we supposed that the labeled cells are closely related to the event. The expression pattern of C767-Gal4 in the region of larval FB precursors was tracked during the process of FB formation in both wild-type flies and cbd mutants. At the 2nd instar larval stage, C767-Gal4 labeled universally in the central brain, but was significantly strong in midline regions joining the two hemispheres (Fig. 6A–C). It is worth noting that the two DN-cadherin stained FB patches were separated by a C767-Gal4 labeled structure at interhemispheric junction (Fig. 6G, J, M). Later in the 3rd instar larval stage, the interhemispheric junction was narrowed while the FB precursors expanded and invaded medially. In wild type background, the interhemispheric junction and the FB precursors are still tightly connected as if the withdrawal of C767-Gal4 labeled structure at interhemispheric junction was accompanied with the extending of the DN-cadherin signal (Fig. 6G). By the pupal stage, the C767-Gal4 labeled midline structure further shrank and disappeared completely to allow complete merging of the two FB primordium parts (Fig. 6J, M). Judging from the concurrency between the morphological changes in C767-Gal4 stained structure and DN-cadherin labeled FB primordia, we postulated that the merging of FB primordia was influenced by the C767-Gal4 labeled midline junction.
To confirm this hypothesis, we checked the development of C767-Gal4 labeled cells and FB morphology in cbd KS171 mutant (Fig. 7). In cbd KS171 mutant, the C767-Gal4 labeled midline structure that separated the two FB patches persisted during 0–2 h APF. But the structure is detached from the precursors and failed to guide the merging of FB parts and consequently the formation of a normal FB (Fig. 7). Based on this morphological observation, as well as the rescue results, we concluded that the Ten-a molecule in the C767-Gal4 labeled structure affected merging of FB primordia.
Defective FB in cbd mutants is not caused by abnormal axonal projections
Since the deficiency is not due to the degeneration, we also wondered if the failure in FB part merging in cbd mutants was due to improper generation or specification of FB neurons. We counted the neurons labeled by NP6510-Gal4 and C205-Gal4 in both cbd KS171 mutant and wild type adult flies. The somata of F1 neurons were located anterior to the antennal lobes and the somata of F5 neurons were around the calyxes of mushroom bodies. The numbers of neurons varied even in each hemisphere in the same brain and there was no significant difference between wild type and cbd KS171 flies (Fig. 8A, C, E, G, Fig. S4). We also wondered if the abnormal morphology of FB was caused by abnormal axonal projections of FB neurons. The morphology of F1 neurons labeled by NP6510-Gal4 and F5 neurons labeled by C205-Gal4 were checked in adult cbd mutant flies. As shown in Figure 8, FB in cbd KS171 mutants were fragmented into pieces (Fig. 8D, H), but the projection tracts of both F1 neurons and F5 neurons appeared to be normal in cbd KS171 mutants (Fig. 8B, F). Thus, the mutant FB phenotype in cbd mutants is not caused by abnormalities in neuronal projection. Rather, the FB defect in cbd mutants was caused by abnormalities in growth of the FB midline-crossing arborizations, but terminal arborizations in the non-cleft region could still form in cbd mutants.
Discussion
In this study, we found that the Drosophila central brain morphological mutant cbd is actually ten-a, a member of the teneurin family. Ten-a is required for fusion of the fan-shaped body precursors, before the formation of the complete normal FB. Mutation in ten-a leads to the failure of the two FB precursors to merge and consequently to the deranged fan-shaped body in adult flies.
Aside from the FB morphological defect itself, ten-a mutation might cause other abnormalities that contribute to the morphological defect. For example, Ten-a might affect the projections and contra-lateral crossing of FB neurons resulting from lineages of FBP1 and FBP2, which contribute to two staves of the fan-shaped body [10], consequently led to a cleaved fan-shaped body. Nevertheless, the generation and projection of large field ExFl neurons labeled by NP6510-Gal4 or C205-Gal4 are not affected when ten-a mutated (Fig. 8), which suggested that ten-a mainly produce the morphological defect by exerting its effect on FBP1 and FBP2 neuron arborizations. Actually, based on the morphological observation in cbd KS171 flies and the rescue results, we postulated that the interhemispheric structure C767-Gal4 labeled was related to FB primordial fusion. But it seemed to have no effect on axonal projections and terminal arborization of F1 and F5 neurons.
ten-a knockdown results showed that the neuronal ten-a was required for the central complex formation. Further rescue experiments suggested that neither neurons nor glial cells alone were sufficient for normal central complex formation. After screening, one Gal4 line was found finally. C767-Gal4 could be used to rescue the cbd mutant phenotype significantly. To identify the cell types labeled by C767-Gal4, we used neuron specific marker ELAV or glial cell specific marker REPO to co-stain with C767-Gal4 labeling cells. The results showed that nlsGFP driven by C767-Gal4 was co-localized with both neuronal and glial markers from larval to early pupal stages (Fig. S5). Since previous studies showed some adhesion molecules were expressed both in neurons and glia for mediating the fasciculation of axon bundles, axon guidance or targeting [35], we suggested that the rescue results by C767-Gal4 might just attribute to that the Gal4 expressed both in neurons and glial cells. That is to say, only when ten-a functions in certain neurons and glial cells together, the FB precursors could merge normally. However, we could not identify which neurons and glial cells were required for the partial rescue from current results. To solve this problem, more Gal4 lines which can rescue the cbd mutant phenotype are needed. Then, dependent on the expression patterns of these Gal4 lines, the neurons and glial cells which ten-a functions in may be identified.
If Ten-a functions in C767-Gal4 labeled cells to influence the merging of FB primordia, what is its working partner for the arborization of FB neurons? As a Drosophila homolog of vertebrate Teneurin, Ten-a has been reported to be involved in embryo development, especially in the central nervous system. Ten-a, as well as its homologue Ten-m, was recently found to be required for synaptic matching between olfactory receptor neurons and corresponding projection neurons [28]. Ten-a and Ten-m were also important for establishing the correct connection in the larval neuromuscular junction [29], [36]. In our work, lack of normal Ten-a function led to failure in merging of FB precursors. It is possible to assume that Ten-a itself mediates homophilic interaction between neurons and glial cells to regulate the fusion of the central complex, such as Nrg, which is expressed on both neurons and glial cells and interacts to control axonal sprouting and dendrite branching [37]. Meanwhile, Ten-a may interact with other molecules such as Ten-m, or other membrane proteins that function in heterophilic way at the cell surface. Further molecular and cellular experiments are needed to elaborate this important issue.
Vertebrate Teneurins have been suggested to be related to mental diseases and our discovery of Ten-a function in Drosophila brain development seems to support the hypothesis. Neuroglian (Nrg), whose vertebrate homologue L1-CAM has been implicated in neurological disorders [38], [39], is also required for development of normal brain morphology in Drosophila [40], [41]. Considering that both Nrg and Ten-a are type-II transmembrane proteins with extracellular EGF repeats and also function in glial cells for brain development [40], it is possible that Teneurins in vertebrates also affect brain development, and probably synapse formation, as vertebrate Nrg does.
In summary, our work elucidates the function of ten-a in development of the Drosophila central brain, and the cellular mechanism underlying FB formation.
Supporting Information
Acknowledgements
We are grateful to Martin Heisenberg and Ron Wides for providing the flies, Konrad Basler for providing pUASTattB. We thank Haiyun Gong, Mo Han, and Jianwen Wu for technical assistance. We also thank the Bloomington Drosophila Stock Centers, the Vienna Drosophila RNAi Center, and Drosophila Genetic Resource Center at Kyoto Institute of Technology for fly stocks.
