Containment to outbreak tipping points in COVID-19
Departamento de Ecología y Gestión Ambiental, Centro Universitario Regional Este (CURE), Universidad de la República, Uruguay
Laboratorio de Neurociencias, Instituto de Biología, Facultad de Ciencias, Universidad de la República, Uruguay
Instituto de Matemática y Estadística Rafael Laguardia, Facultad de Ingeniería, Universidad de la República, Uruguay
Center for Basic Research in Psychology (CIBPsi) & Instituto de Fundamentos y Métodos, Facultad de Psicología, Universidad de la República, Uruguay
Departamento de Ecología, Pontificia Universidad Católica de Chile, Santiago, Chile
Center of Applied Ecology and Sustainability (CAPES), Pontificia Universidad Católica de Chile, Santiago, Chile
Laboratorio de Genómica Evolutiva, Dpto. de Biología Celular y Molecular, Instituto de Biología, Facultad de Ciencias, Universidad de la República, Uruguay.
*Correspondence author: MA, HR: Equal authorship mail: matiasarim@gmail.comAbstract
Non-pharmaceutical interventions (NPIs) have been a cornerstone in managing emergent diseases such as COVID-191–4. However, despite their potential to contain or attenuate the epidemic, the effects of NPIs on disease dynamics are not well understood1,5–7. We show that saturation of NPIs with the increase in infected individuals, an expected consequence of limited contact tracing and healthcare capacities, produces a positive feedback in the disease growth rate and a threshold between two alternative states--containment and outbreak8. These alternative states were previously related with the strength of NPIs but not with the infection number2,9–11. Furthermore, the transition between these states involves an abrupt acceleration in disease dynamics, which we report here for several COVID-19 outbreaks around the world. The consequences of a positive feedback in population dynamics at low numbers is a phenomenon widely studied in ecology--the Allee effect. This effect is a determinant of extinction-outbreak states, geographic synchronization, spatial spread, and the effect of exogenous variables, as vaccination12–15. As countries are relaxing containing measures, recognizing an NPI-induced Allee effect may be essential for deploying containment strategies within and among countries16 and acknowledges the need for early warning indicators of approaching epidemic tipping points17.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
MA. thanks CSIC groups-657725. This work was partially supported by CSIC-UdelaR, PEDECIBA and ANII.
Non-pharmaceutical interventions (NPIs) have been applied with unprecedented strength and breadth in managing the COVID-19 world pandemic2–4,7. These interventions involve case isolation, contact tracing, testing and quarantine, reduction in the number of contacts by social distancing, and behavioural changes oriented to reduce transmission—e.g., mask use and spatial distancing2,10,18. As a general rule, both observed dynamics and model projections indicate that the implementation of strong interventions significantly reduced the total number of infections compared with uncontained outbreaks2,3,6,7,19,20. The effectiveness of NPIs may consequently determine two alternative states: one of disease containment (Re<1) and another of disease outbreak (Re>1)2,9–11. However, these two states were observed among regions with similar strengths of NPIs and through time in countries, highlighting the need for a better understanding of the mechanisms guiding the impact of NPIs in COVID-19 dynamics1,4–7.
An intrinsic characteristic of NPIs is that their effectiveness is expected to wane as the number of infected individuals increases10. For example, the larger the number of infections, the lower the probability of performing a complete tracking of all the contacts of an infected individual10. Similarly, the effect of face masks, hygiene measures, and physical distance on the transmission rate is expected to decrease with a higher pathogen load in the environment18. Finally, the healthcare system’s progressive occupation may extend the infectious period, producing more social interactions when looking for medical attention, delays in case isolation, and low availability of protective material21,22.
This saturation of NPIs generates a positive feedback between the number of infected individuals and disease growth rate, which has critical consequences in the disease dynamics, particularly at low numbers. This feedback loop connects the saturation of NPIs with the Allee effect, a central concept in population biology that explains the fate of several populations at low numbers12,13. Indeed, the Allee effect involves a positive feedback between population abundance and population growth rate, which may determine a transition from a negative to a positive growth rate at a given abundance threshold12,13. In disease dynamics, this is interpreted as an epidemic breakpoint, a tipping point below which the outbreak tends to diminish (Re<1), but above which the outbreak grows (Re>1)8. However, this phenomenon is not captured in the many variants of SIR and logistic models widely used for the analysis and forecasting of COVID-19 dynamics2,3,6,7,19,23. Here we aim to fill this gap, formalizing the connection between saturating NPIs and disease dynamics. We show how the saturation of NPIs induce a positive feedback in disease dynamics, from which abrupt transitions in spread rate are expected after a threshold in the number of infected individuals is crossed. Finally, we look for traces of this footprint in actual data from the COVID-19 pandemic.
Allee effect induced by NPIs
In the absence of contact tracing and quarantine, a randomly chosen infected individual will produce an average number of second infections Renq (nq: non quarantine). For the sake of clarity in our model we will use quarantine to encapsulate the concepts of ‘quarantine’ and ‘case isolation’ without losing explanatory power. This value is determined by the number of social links accumulated in the infectious time (Lmax), the probability of disease transmission in each link (blink), and the probability of having a link with a susceptible individual (Psusceptible) thus Renq = Psusceptible·blink·Lmax (Fig. 1A).
Strong enough NPIs will determine a Re <1 controlling the epidemic2,9–11. While face mask use, hygienic measures, and physical distancing reduce blink18, the number of social links Lmax can be reduced through contact tracing and subsequent quarantine10. Individuals detected by the tracing system are contacted and then put on quarantine. However, only a fraction fq of the infected individuals is detected (D = fq·I) by the contact tracing, which is determined by the maximum number of cases (K) that can be processed in a day. Moreover, because of the saturation of tracing systems, as the number of infected individuals increases, the fraction fq decreases—here modeled as fq = K/(I50,D+I), with I50,D being the number of infected cases at which half the maximum detection is reached24.
The saturation of the contact tracing system increases the time lag between infection and detection. This is modeled considering that the tracing system can make a fixed number of calls (Ncalls) each day and that each contact attempt has a probability of success Pfind. Consequently, the expected number of alerts received per individual on a given day is Ncalls/D, and the probability of finding and quarantining him is Pq = 1-(1-Pfind)Ncalls/D. The probability that an individual is contacted and quarantined on day d after the infection onset follows the geometric distribution P(d) = Pq(1-Pq)d-1. We assume that during this period, individuals establish social links with infectious potential25 according to the function L(d) = Lmax·d4/(d4+74) (see Supplementary Methods). Then, the expected number of links generated before quarantine is: L = Σd≥1 P(d)·L(d).
Integrating all of the above, we can express the effective reproduction number Re(I) determined by the second infections generated by both fractions of quarantined fq and non quarantined fnq infected individuals as:

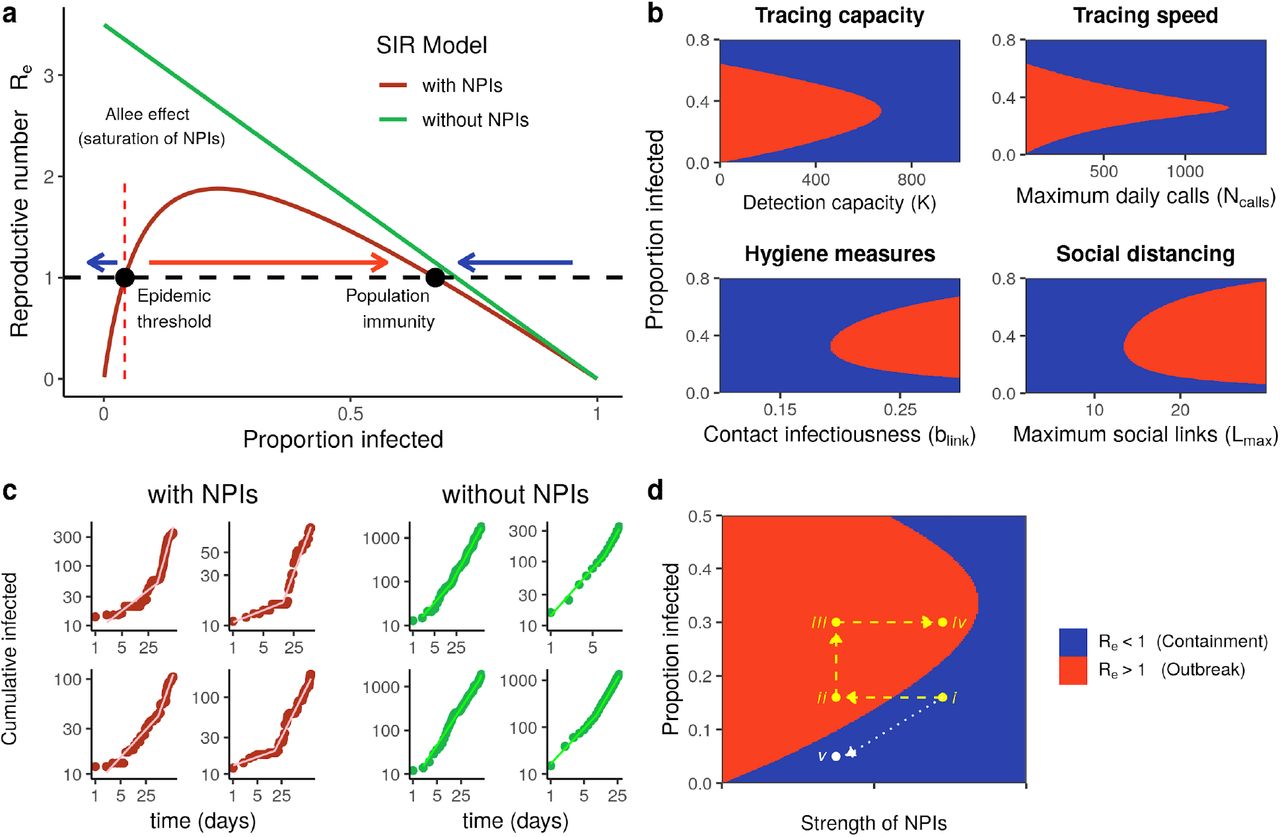

This equation’s plot in Figure 1a shows that NPIs induce a positive relationship between the infected individuals in a population and the epidemic reproduction number. In particular, it is expected that the epidemic does not take-off at low infection numbers (Re(I)<1), requiring a minimum level of infections (I*) to cause an outbreak (Re(I)>1).
The strength of the different components of NPIs—contact tracing capacity and speed, social distance, and transmission barriers— have nonlinear relationships with the outbreak threshold I* (Fig. 1b). Alternative states8,17 of growing and diminishing epidemic was considered elsewhere for COVID-19 but as a response to the strength of NPIs2,9–11. Here, we show that for a fixed level of saturating NPIs, the transition from contention to outbreak (i.e. Re(I)<1⇒ Re(I)>1) may be determined by the number of infected individuals (Fig. 1a, b).
Disease dynamics with NPI induced Allee effect
In a deterministic system with a saturation of NPIs that induces an Allee effect (hereafter NPI-Allee effect), infections are expected to either vanish or take-off. However, at low numbers, pulses of immigration of infected individuals and super spreading events could determine the transition from a negative to a positive disease growth rate if the threshold is exceeded26. In this section, we assess the qualitative consequences of the saturation of NPIs on disease dynamics through a SIR model considering stochasticity and infection pulses with a heavy tailed distribution.
The NPI-Allee effect is introduced in the daily rate of disease transmission through a saturating function βt(I) = βmax·I(t)/(I50.β+I(t)) and also in the average duration of the infection period, γt(I) = γmax·I(t)/(I50.γ+I(t)):
Where Inew(t)∼Poisson(λ(t)) with λ(t) = βt(I)·Ip(t)S(t)/N; the exponent p accounts for the prevalence of subexponential dynamics in Covid-19 related to the effect of NPIs7;Iimp/SSE(t)∼NB(m,s) is a negative binomial distribution27 with parameters m (mean) and size s (dispersion) and refers to the importation of new cases and super spread events (SSE, see Supplementary Methods). Trajectories of this model were simulated to observe the impact of the NPI-Allee effect on the evolution of the cumulative number of infected individuals (Ct). We compared these trajectories to those obtained with the model without NPI saturation, with fixed β = βmax and, γ = γmax (Fig. 1c and Extended Data Figure 1).
The logarithm of the cumulative number of infections grows linearly in time in exponential dynamics13,24. However, as observed in COVID-19, sub-exponential dynamics grow linearly with the logarithm of time7, as described by the relationship log(Ct) = µ·log(t). We use this time scale to visualize our simulations, where the parameter µ describes the disease dynamics. The SIR model without the NPI-Allee effect presents a consistent trend with minor changes fueled by the stochastic effects of imported cases and super spread events (Fig. 1c, Extended Data Figs. 1). On the other hand, when the NPI-Allee effect is considered, we observe a qualitative transition in the dynamics: from a slow rate of case accumulation to a markedly larger one, suggesting that these random events may determine the surpass of a tipping point from containment to outbreak. We fitted a segmented regression to examine the differences in dynamics with and without NPI-Allee effect (Fig. 1c, Extended Data Fig 1). Both simulations present breaking points and may look similar when this point is rapidly reached. In order to further explore their difference, we plotted the relative increment of the slope after the breaking point (µ2/ µ1) as a function of the initial slope(µ1) for both kinds of simulations (Fig. 2a and 2c). Now, it becomes apparent that including saturating NPIs expands the range of observed dynamics, promoting slower rates during the initial phase and, after the tipping point, an accelerated dynamic capturing the loss in effectiveness of the NPIs (Figs. 2a and 2b, Extended Data Fig. 1). Our model results show how NPIs saturation may induce an Allee effect that produces abrupt transitions, with periods of disease containment and periods of rapid growth. In this sense, the role of a heavy-tailed distribution in new infections markedly differs between the two models, because super spread events, and/or imported cases, may cause the infection number to exceed the threshold.
Tipping points in actual COVID-19 data
Guided by the previous results, we looked for the existence of tipping points and acceleration of case accumulation of COVID-19 dynamics in 532 U.S counties and 125 countries. As we focus on the initial dynamics, we consider the time frame starting 14 days after surpassing 10 accumulated cases, and finishing the day with the maximum number of daily infections. Based again on the relationship log(Ct) = µ·log(t), we fitted a segmented regression and contrasted its performance with a linear fit without a breaking point. Almost all of the observed dynamics were better described by a segmented relationship, suggesting that breaking points are a common phenomenon in COVID-19 dynamics (Fig. 2; Extended Data Figs. 2, 3, and 4). Further, the segmented model provides an excellent description of the dynamics of cumulative cases of Covid-19, with an average R2 of 0.99 across U.S. counties and countries (Extended Data Fig. 4).

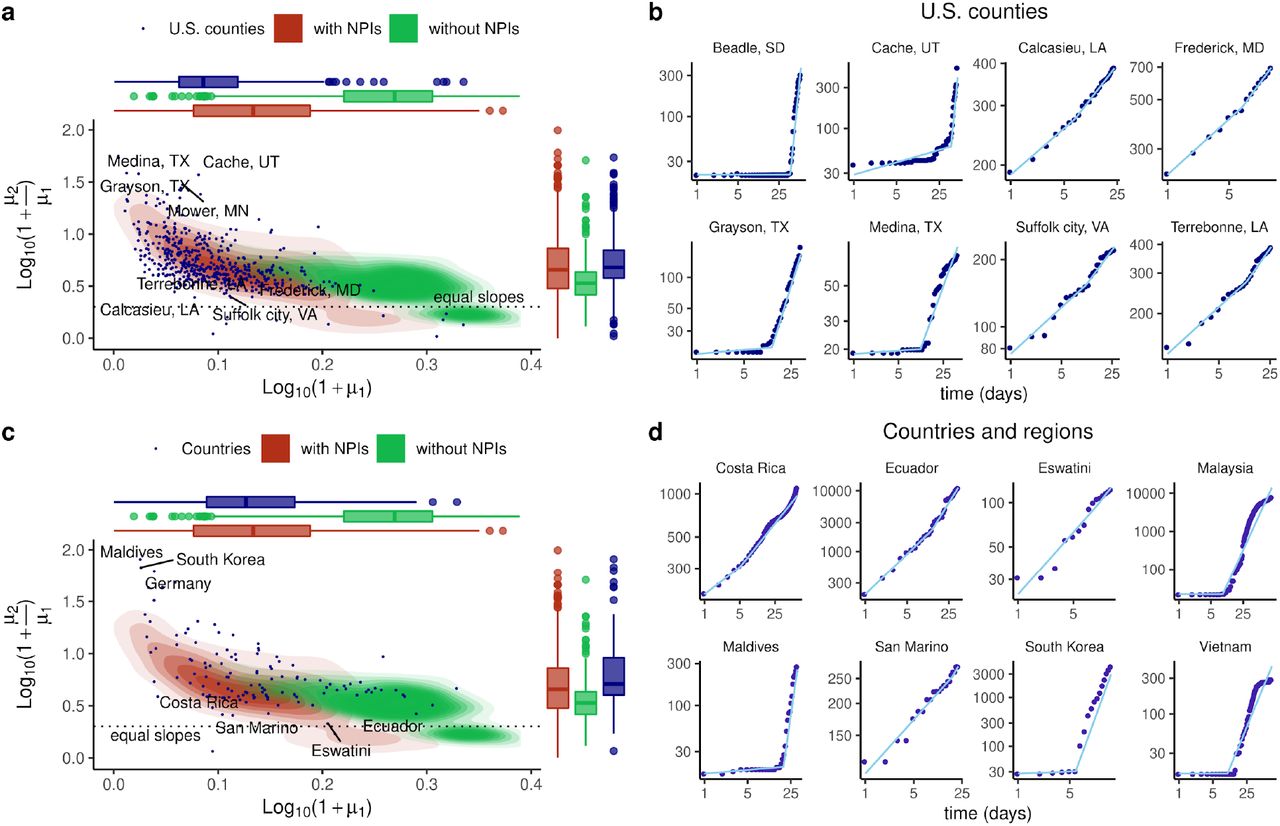

The observed dynamics show several cases with a striking similarity to the NPI-Allee effect simulations, with abrupt transitions from slow to fast growth rate and a delayed tipping point. When we project the US-county data and worldwide country/region data of COVID-19, the results are eloquent (Fig. 2b and 2d and Extended Data Figs. 2 and 3). Indeed, the area covered with actual data is remarkably similar to the simulated cases with NPI-Allee effect. On the other hand, many regions do not show this behaviour, either because the breaking point occurred early in the epidemic spread-e.g., surpassing I* before NPIs were fully implemented--or because the NPIs have not determined the I* threshold in these locations.
Discussion
Amidst an ongoing worldwide outbreak of COVID-19, studies connecting NPIs and disease dynamics are all the more needed1,4–7,16. Our results link NPIs with the substantial knowledge built around the Allee effect and tipping points in ecology12,15,17,26,28, and previous studies that related the saturation of NPIs, reactive individual behaviour, and positive feedbacks with disease dynamics8,21,22,29. The recognition of an NPI-Allee effect and the existence of tipping points contributes to the understanding of several features of disease dynamics12,13,26.
An immediate consequence is the understanding that the timing of NPIs is crucial. Interventions implemented when the disease has had enough time to surpass the correspondent threshold will fail in its containment8,10,22. Similarly, the relaxation of NPIs has to be done in attention to the epidemic threshold for avoiding outbreak resurgence. The idea of relaxing interventions and then returning them to former levels if the number of infected individuals increases may be futile after the tipping point. NPIs may be relaxed cautiously following the decrease in the number of infections with attention to potential tipping points (Fig. 1d), a context where early warning indicators become crucial. These indicators were related to systems resilience and increased trajectory variance17, but more specific indicators for diseases under NPIs management are probably required. For example, in a contained state of the disease, the fraction of reported infections with no epidemiological link (not detected by the tracing system), and the time between individual exposure and quarantine should decrease through time. A systematic increase in these indicators may be an adequate early warning signal that containment could be compromised.
Another important feature is that NPIs could operate as exogenous variables synchronizing disease dynamics along large geographic scales28,30, being more likely to simultaneously control the outbreaks or to enable global resurgence14,15. The success of proposed spatial synchrony of NPIs for controlling COVID-1916 and vaccination strategies may depend on the associated NPI-Allee effect’s strength. More generally, the spatial spread of diseases with NPI-Allee effect may be guided by local surpass of epidemic threshold and neighbor contagion15,26. In diseases around an outbreak tipping point, spatial and temporal mosaic of Re>;1 and Re<1 may arise, determining local outbreaks, and fostering disease persistence. Finally, we showed how the dynamic consequences of super spread events are contingent to its effect on saturating NPIs.
Recognizing the NPIs-induced Allee effect has large consequences for the understanding and management of COVID-19 and other diseases and may significantly expand the theoretical framework for the application of NPIs in ongoing and future epidemics. This knowledge is of particular relevance for explaining the past dynamics of COVID-19 in different regions of the world and, more importantly, as input for guiding NPIs relaxation strategies and preventing new outbreaks.
Data Availability
Data Availability Country and regional COVID-19 daily data and demographic data were obtained from Johns Hopkins University COVID-19 Data Repository31. Code Availability All the code used in this work is available at https://github.com/almadana/alle.covid/.
Data Availability
Country and regional COVID-19 daily data and demographic data were obtained from Johns Hopkins University COVID-19 Data Repository31.
Code Availability
All the code used in this work is available at https://github.com/almadana/alle.covid/.
