Insecticidal activity and biochemical composition of Citrullus colocynthis, Cannabis indica and Artemisia argyi extracts against cabbage aphid (Brevicoryne brassicae L.)
0000 0000 9886 8131grid.412557.0College of Plant Protection, Shenyang Agricultural University, Shenyang, 110866 P.R. China
0000 0000 9886 8131grid.412557.0College of Biosciences and Biotechnology, Shenyang Agricultural University, Shenyang, 110866 P.R. China
0000 0000 8577 8102grid.412298.4Department of Plant Pathology, University of Agriculture, Faisalabad, Sub-Campus Depalpur, Okara, 56300 Pakistan
grid.464523.2Entomological Research Institute, Ayub Agricultural Research Institute, Faisalabad, 38040 Pakistan
Abstract
Plant extracts contain many active compounds, which are tremendously fruitful for plant defence against several insect pests. The prime objectives of the present study were to calculate the extraction yield and to evaluate the leaf extracts of Citrullus colocynthis (L.), Cannabis indica (L.) and Artemisia argyi (L.) against Brevicoryne brassicae and to conduct biochemical analysis by gas chromatography-mass spectrometry (GC-MS). The results suggested that when using ethanol, C. colocynthis produced a high dry yield (12.45%), followed by that of C. indica and A. argyi, which were 12.37% and 10.95%, respectively. The toxicity results showed that A. argyi was toxic to B. brassicae with an LC50 of 3.91 mg mL−1, followed by the toxicity of C. colocynthis and C. indica, exhibiting LC50 values of 6.26 and 10.04 mg mL−1, respectively, which were obtained via a residual assay; with a contact assay, the LC50 values of C. colocynthis, C. indica and A. argyi were 0.22 mg mL−1, 1.96 and 2.87 mg mL−1, respectively. The interaction of plant extracts, concentration and time revealed that the maximum mortality based on a concentration of 20 mg L−1 was 55.50%, the time-based mortality was 55% at 72 h of exposure, and the treatment-based mortality was 44.13% for A. argyi via the residual assay. On the other hand, the maximum concentration-based mortality was 74.44% at 20 mg mL−1, the time-based mortality was 66.38% after 72 h of exposure, and 57.30% treatment-based mortality was afforded by A. argyi via the contact assay. The biochemical analysis presented ten constituents in both the A. argyi and C. colocynthis extracts and twenty in that of C. indica, corresponding to 99.80%, 99.99% and 97% of the total extracts, respectively. Moreover, the detected caryophylleneonides (sesquiterpenes), α-bisabolol and dronabinol (Δ9-THC) from C. indica and erucylamide and octasiloxane hexamethyl from C. colocynthis exhibited insecticidal properties, which might be responsible for aphid mortality. However, A. argyi was evaluated for the first time against B. brassicae. It was concluded that all the plant extracts possessed significant insecticidal properties and could be introduced as botanical insecticides after field evaluations.
Introduction
The cabbage aphid, Brevicoryne brassicae L. (Hemiptera: Aphididae), is a serious pest native to Europe but now found globally1,2, and it causes significant losses to economically important crops, including broccoli, oilseed rape, brussels sprouts, cauliflower, black and white mustard, toria, Chinese cabbage, kale, and other field crops1. It also causes yellowing, stunting, and plant wilting and acts as a vector of several viral diseases in crucifers, including cauliflower mosaic virus and turnip mosaic virus3,4. In the case of severe infestation, plants become covered with aphids, resulting in leaf surfaces roofed with black mould due to honey secretion, which can ultimately cause plant death5–7. Synthetic chemical insecticides are available sources for controlling this destructive pest, which is a key success for modern agricultural practices and enhances crop yield. However, indiscriminate use of synthetic pesticides for crop production and protection poses poisonous effects through contact, inhalation, and dietary exposure and has become a cause of carcinogenesis, fertility problems and mutagenesis in humans8–11.
These circumstances led towards searching for effective and eco-friendly pest control alternatives, especially from natural plant resources12. Many insecticides derived from botanical sources are available and are easily affordable and accessible to the farming community; they are safer for human beings and for the environment with minimal residual effect, and they are target-specific and less toxic to vertebrates, pollinators and fish13–17. Studies have demonstrated the aphicidal activity of Chenopodium ficifolium extracts and its isolated phospholipids, the alkaloids from Corydalis turtschaninovii tubers and Macleaya cordata seeds, the oil from Jatropha curcas and rhamnolipid from Pseudomonas species18–20. Other plant-based products, such as Melia azedarach seed extracts, Lantana camorra leaf and seed extracts and Mentha piperita leaf extracts, possess promising insecticidal properties against B. brassicae21–23.
Therefore, Citrullus colocynthis (Cucurbitaceae), Cannabis indica (Cannabaceae) and Artemisia argyi (Asteraceae) were selected for the present study, as they have been reported as having insecticidal potential against different stored grains and other field crop pests. The selected plants also possess a natural ability to deter insect attack. Among them, Cannabis has been reported as a repellent against vertebrates and invertebrates. It also showed better results when grown as a companion crop with other crops to prevent the infestation of weedy plants, fungi, insects and nematodes, while the extract from the dried leaves and flowers possess repellent and killing potential against the above-mentioned pests. However, pure cannabinoids extracted from this plants have been reported to kill or repel mites, insects, nematodes, fungi and protozoa24. Moreover, phytoconstituents analysis reported major terpenes, such as β-myrecene and β-caryophyllene, and the profusion of cannabidiolic acid (CBDA) and cannabidiol (CBD) from an extract of C. sativa (hemp) inflorescences by GC-MS, GC-FID and HPLC25. In a recent study, the activity of hemp essential oil from inflorescences was explored against Myzus persicae (Hemiptera), Culex quinquefasciatus (Diptera), Spodoptera littoralis (Lepidoptera) and Musca domestica (Diptera) and showed high toxicity against M. domestica and M. persicae, moderate toxicity against the larvae of S. littoralis and sparse toxicity against C. quinquefasciatus26.
Similarly, C. colocynthis has gained the attention of researchers as an alternative botanical insecticide, and the effectiveness of its extracts and isolated compounds has been assayed against economically important insect pest species. This plant showed antifeedant, deterrent and infertility activities against several pests27. The toxicity effects of C. colocynthis fruit, leaf, stem and root extracts were evaluated against Rhopalosiphum padi L. The results revealed the high effectiveness of the stem extract compared to that of the other part extracts against this pest28. Moreover, the identified biocompounds from C. colocynthis fruits, i.e., 7,8-benzoquinoline, were the most efficient against Tetranychus urticae, while quinoline, 2-methylquinoline and 8-hydroxyquinoline were effective against Sitophilus zeamais and Sitophilus oryzae29.
As a medicinal plant, A. argyi, is generally known as Argyi wormwood or Chinese mugwort and is commonly found in China. Different Artemisia species are known for their pharmacological and insecticidal properties. The ethanol extracts from A. argyi possess a strong repellent effect against Drosophila melanogaster, which increased with increasing concentration and extended exposure time30. Furthermore, the bioactivity of isolated compounds from Artemisia judaica essential oil was evaluated against Spodoptera littoralis at the third larval instar, and against plant pathogenic fungi showed prominent insecticidal, antifeedant and antifungal activity. However, the antifeedant activity was concentration-dependent31. The antifungal activity of compounds isolated by GC-MS, such as β-thujone, α-thujone, camphor, verbinol and davanone, showed high inhibition effects against Rhizoctonia solani, Fusarium solani, and Sclerotinia sclerotiorum whereas, exhibited slight effectiveness against Fusarium proliferatum and Fusarium oxysporum32.
Due to issues concerning the use of synthetic pesticides and the increasing resistance in pest species, pests can be managed by introducing botanical insecticides, especially against soft-bodied insects such as aphids. However, to our knowledge, few studies have been conducted regarding the aphicidal activity of the leaf extracts of C. colocynthis, C. indica and A. argyi against B. brassicae. To investigate safe alternatives for the management of this pest, the present study was conducted to evaluate the insecticidal effects of crude ethanol extracts of C. colocynthis, C. indica and A. argyi against the cabbage aphid B. brassicae by residual/leaf dip and contact/aphid dip bioassays under laboratory conditions at the Biopesticides Lab of Shenyang Agricultural University, P.R. China.
Results
Extract yield (dry weight %)
The extract yield obtained by solvent extraction using ethanol showed that in comparison, (P < 0.05), the extract yield afforded by C. colocynthis was 12.45%, followed by that of A. argyi and C. indica (12.37% and 10.95%) respectively. However, the extract yield produced by all the plant samples was not much different. The extract obtained from C. colocynthis and C. indica was sticky and fluidic in consistency with a brownish-black to blackish colour and a shiny in appearance. While, the extract from A. argyi was waxy in consistency with a yellowish-brown colour.
Toxicity of plant extracts on aphids
The mortality of B. brassicae was determined by using crude ethanol extracts from different plants under laboratory conditions by residual and contact assays. All botanical extracts exerted adverse effects against this pest at increasing concentrations and prolonged exposure periods.
Residual/leaf dip bioassay
The mortality data presented in Table S1 in the Supplementary File revealed the insecticidal activity of ethanol extracts from C. colocynthis, C. indica and A. argyi against B. brassicae. The percent mortality of B. brassicae was directly related to the concentration of the plant extracts and the exposure period. The results showed that the maximum mortality was recorded after 72 h of exposure to the A. argyi extract at a concentration of 20 mg mL−1 and caused 88.33 ± 3.87% mortality, while after 48 h of exposure, the mortality was recorded as 60.00 ± 2.27%. The mortality caused by C. indica after a 72 h and 48 h exposure period was 66.67 ± 2.58% and 45.00 ± 4.72%, respectively, which were lower than those of A. argyi. However, the mortality caused by C. colocynthis was higher than that caused by C. indica after a 72 h exposure period (76.67 ± 1.29%) but decreased to 40.00 ± 2.23% after 48 h of exposure at the same concentration. The mortality of B. brassicae by A. argyi (35.00 ± 3.87%) was also higher after 24 h of exposure than that of 24 h of exposure to C. colocynthis and C. indica extracts (23.33 ± 2.58% and 20.00 ± 2.23%, respectively). The control treatment showed no mortality after 24 h and 48 h and negligible mortality (1.67 ± 1.29%) after 72 h, whereas imidacloprid was the positive control and showed the highest (P < 0.05) mortality, i.e., 98.33 ± 2.58, 91.67 ± 2.58 and 86.67 ± 1.29% after 72 h, 48 h and 24 h, respectively.
The results described in Table S2 in the Supplementary File revealed highly significant (P < 0.001) model fitness with (F = 101.057, 9851.888, 59.047, 754.712 and 545.650) intercept, concentration and time. Moreover, the interaction between the mortality (%) of the aphids versus time and concentration exhibited a highly significant (P < 0.001) positive correlation (F = 8.62). The two-way analysis of variance provided information regarding the interaction between mortality (%), treatment and time and highlighted highly significant results (F = 7.25). Interaction/correlation between treatments × concentration × time and the total variance was firmly trait-specific and significantly correlated with mortality (P < 0.001 and with F = 2.75).
However, data for interaction among plant species, concentration and post-treatment time revealed that the maximum mean mortality based on concentration by different treatments/plant species was recorded at 20 mg mL−1, with 50.56 ± 7.92% followed by 43.52 ± 7.52, 35.37 ± 7.02, 28.89 ± 6.12% and 20.19 ± 3.16% at 15, 10, 5 and 2.5 mg mL−1, respectively. The maximum mean mortality interaction based on time was recorded as 55.00 ± 6.79% at 72 h exposure, followed by 36.35 ± 6.02 and 23.89 ± 5.79% at 48 and 24 h, respectively. On the other hand, mortality interaction among treatments was evaluated as high (44.13 ± 7.14%) by A. argyi followed by that of C. indica and C. colocynthis (36.99 ± 6.67% and 34.13 ± 6.53%, respectively). Moreover, the positive control showed a maximum 90.19 ± 2.09% mortality, and the negative control showed a minimum mortality of 0.19 ± 0.18%. Probit analysis showed the LC50 values, slope, chi-square, and fiducial limits at the 95% confidence interval. Although B. brassicae showed sensitivity to the different plant extracts, A. argyi was the most toxic, followed by C. colocynthis and C. indica, and this mortality response is presented in Table 1.Plants Extract Time (h) LC50 (mg mL−1) 95% F.L. Slope ± SE χ2 Lower Upper CCL 24 466 64.1 1.E20 1.34 ± 0.29 0.17 48 68.1 28.3 340.7 0.76 ± 0.25 1.73 72 10.4 7.61 13.53 1.44 ± 0.26 6.52 CIL 24 273 59.4 597.7 0.76 ± 0.31 0.13 48 36.4 18.8 414.0 0.78 ± 0.25 1.08 72 6.26 2.60 10.37 0.75 ± 0.23 0.09 ATL 24 38.6 24.4 114.5 1.31 ± 0.29 1.16 48 13.8 10.1 21.9 1.20 ± 0.25 1.03 72 3.91 2.66 5.07 1.67 ± 0.26 1.80
Contact/aphid dip bioassay
The data presented in Table S3 in the Supplementary File described the mortality (%) of B. brassicae by the contact toxicity method. The results showed that maximum mortality was recorded after 72 h at 20 mg mL−1. However, the highest mortality caused by the crude extract of A. argyi was 93.33 ± 3.14%, followed by that of C. colocynthis and C. indica (83.33 ± 2.57 and 81.67 ± 1.29%, respectively). High mortality after 48 h of exposure to 15 mg mL−1 was also observed in A. argyi (83.33 ± 1.29%), followed by that of C. colocynthis and C. indica, which had the same mortality values of 81.67 ± 3.41% and 81.67 ± 1.67%, respectively. Additionally, the mortality of B. brassicae by the contact assay was also high for exposure to extracts of C. indica even at low concentrations (78.33 ± 2.58%, 71.67 ± 3.41% and 71.67 ± 3.41% at concentrations of 10, 5 and 2.5 mg mL−1, respectively). The same trend of mortality was observed for C. colocynthis and A. argyi. The negative control treatment showed similar results for mortality in all three experiments for each treatment in both bioassay methods, while imidacloprid showed significantly (P < 0.05) high mortality (98.33 ± 1.29%, 96.67 ± 2.58% and 95.00 ± 2.23% after 72 h, 48 h and 24 h, respectively) for leaf dip and contact bioassay, which was also the highest mortality.
The results described in Table S4 in the Supplementary File revealed also highly significant (P < 0.001) model fitness with (F = 44.42, 11152.07, 14.66, 409.34 and 67.44) intercept, concentration and time. However, the interaction between mortality (%) of the aphid versus time and concentration recorded a highly significant (P < 0.001) positive correlation (F = 1.58). The two-way analysis of variance provided information regarding the interaction between mortality (%) versus treatment and time highlighted highly significant results (F = 10.07). The interaction/correlation between treatments × concentration × time and total variance was strongly trait-specific and highlighted significant correlation with mortality (P < 0.001 with F = 1.79). However, data for the interaction among plant species, concentrations and post-treatment time revealed that the maximum mean mortality based on concentration by different treatments/plant species was recorded at 20 mg mL−1, with 74.44 ± 3.74% followed by 70 ± 3.58, 63.33 ± 3.08, 56.48 ± 4.34 and 47.59 ± 4.74% at 15, 10, 5 and 2.5 mg mL−1, respectively. The maximum mean mortality interaction based on time was recorded as 66.83 ± 6.63% after 72 h of exposure, followed by 56.27 ± 6.19% and 51.51 ± 6.82% after 48 and 24 h, respectively. The mortality interaction among treatments was 57.30 ± 6.31% by A. argyi followed by 62.22 ± 7.14% and 55.08 ± 6.62% by C. colocynthis and C. indica, respectively. Moreover, the positive control treatment showed a maximum of 95 ± 1.14% mortality, and a 0.56 ± 0.27% mortality was exhibited by the negative control.
Probit analysis of the data revealed the LC50 values, slope, chi-square, and fiducial limits at the 95% confidence interval for C. colocynthis, C. indica and A. argyi. Mortality response using different plant extracts showed high sensitivity of B. brassicae to A. argyi followed by C. colocynthis and C. indica in the contact assay, which is summarized in Table 2.Plants Extract Time (h) LC50 (mg mL−1) 95% F.L. Slope ± SE χ2 Lower Upper CCL 24 2.88 0.03 4.29 0.59 ± 0.23 0.51 48 2.35 0.62 4.01 1.01 ± 0.26 0.77 72 1.96 0.14 3.88 0.72 ± 0.24 0.80 CIL 24 12.1 8.86 19.3 1.07 ± 0.23 0.06 48 8.03 4.37 13.8 0.79 ± 0.24 0.53 72 2.87 0.10 5.75 0.65 ± 0.25 0.14 ATL 24 5.62 2.31 8.91 0.72 ± 0.22 0.98 48 4.28 1.09 7.13 0.72 ± 0.23 0.38 72 0.22 0.01 1.31 0.58 ± 0.27 0.30
Gas chromatography-mass spectrophotometry (GC-MS) analysis
The presence of biologically active components from the ethanol extracts of C. colocynthis, C. indica and A. argyi were evaluated by conducting GC-MS analysis. The principal active compounds, molecular weight (g mol−1, M.W.), molecular formula (M.F.), retention time (R.T.) and peak area (%) are presented in Tables 3–5. The results of GC-MS analysis of the extracts led to the determination of several biological compounds.Peak. No. RT Compounds Area % M.F. M.W. 1 3.16 Cyclotrisiloxane, hexamethyl- 3.57 C6H18O3Si3 222.46 2 11.9 Triamterene 1.53 C12H11N7 253.26 3 14.6 Palmitic acid, ethyl ester (Hexadecanoic acid) 0.98 C18H36O2 284.47 4 16.3 Octasiloxane,1,1,3,3,5,5,7,7,9,9,11,11,13,13,15,15-hexadecamethyl- 1.25 C16H50O7Si8 579.24 5 16.9 Tetrasiloxane, decamethyl- 1.10 C10H30O3Si4 310.68 6 22.6 Octasiloxane,1,1,3,3,5,5,7,7,9,9,11,11,13,13,15,15-hexadecamethyl 7.06 C16H50O7Si8 579.24 7 24.7 Heptasiloxane, 1,1,3,3,5,5,7,7,9,9,11,11,13,13-tetradecamethyl- 21.3 C14H44O6Si7 505.09 8 25.6 5-Methyl-2-phenylindolizine 17.9 C15H13N 207.27 9 25.8 Erucylamide 22.4 C18H35NO 337.58 10 26.6 4-Nitro-4′-chlorodiphenylsulfoxide 22.9 C12H8ClNO2S 265.71 Peak No RT Compounds Area % M.F. M.W. 1 9.91 Caryophyllene oxide 0.70 C15H24O 220.35 2 10.2 3-Methoxybenzyl alcohol 0.39 CH3O6H4CH2OH 138.16 3 10.7 5H-Naphtho[1,8-bc]thiophen-5-one,3,4-dihydro-2-methyl- 1.20 C12H10OS 202.27 4 10.9 α-Bisabolol 0.66 C15H26O 222.37 5 11.9 2,5-Cyclohexadien-1-one, 2,5-dimethyl-4-[(2,4,5-trimethylphenyl) imino]- 0.41 C17H19NO 253.34 6 16.2 Phytol 1.51 C20H40O 296.30 7 16.8 1,3,4-Trimethoxydibenzofuran 0.29 C15H14O6 290.07 8 17.1 9,12,15-Octadecatrienoic acid, ethyl ester, (Z,Z,Z)- 0.36 C20H34O2 306.49 9 18.1 2,11-Dimethyl-2,3,4,5,6,7-hexahydro-1H-2-benzazonine 1.04 C14H24N 203.32 10 18.9 Acridine 0.47 C13H9N 179.13 11 19.3 Benzenesulfonic acid, 4-nitro- 25.5 C6H5NO5S 213.17 12 19.4 1H-Indene-4-acetic acid, 6-(1,1-dimethylethyl)-2,3-dihydro-1,1-dimethyl- methyl ester 1.20 C18H26O2 274.40 13 20.1 2H-1-Benzopyran-5-ol, 2-methyl-2-(4-methyl-3-penten-1-yl)-7pentyl- (Cannabichromene) 0.53 C21H30O2 314.46 14 20.2 6H-Dibenzo[b,d]pyran-1-ol, 6,6,9-trimethyl-3-propyl- (Cannabivarin) 1.00 C19H22O2 282.38 15 20.9 Resorcinol, 2-p-mentha-1,8-dien-3-yl-5-pentyl-, (−)-(E)- 0.53 C21H30O2 314.47 16 20.9 2H-1-Benzopyran-5-ol, 2-methyl-2-(4-methyl-3-pentenyl)-7pentyl-, (+/−)-(Cannabichromene) 2.00 C21H30O2 314.47 17 21.7 Cyclobarbital 2.19 C12H16N2O3 236.27 18 22.3 Dronabinol 57.3 C21H30O2 314.45 19 23.1 1,3-Benzenediol, 2-(3,7-dimethyl-2,6-octadienyl)-5-pentyl- 0.40 C21H32O2 316.47 20 23.3 Cannabinol 2.29 C21H26O2 310.43 Peak No RT Compounds Area % M.F. M.W. 1 3.49 1,5-Heptadien-4-ol, 3,3,6-trimethyl- 3.46 C10H18O 154.24 2 10.2 1,2-Ethanediol, diformate 1.44 C4H6O4 118.08 3 10.5 Neodecanoic acid 43.6 C10H20O2 172.26 4 10.7 2-Trimethylsilyl-1,3-dithiane 21.6 C17H16S2Si 192.42 5 16.4 N-Isopropyl-3-phenylpropanamide 4.37 C12H17NO 191.27 6 16.8 2-Isopropenyl-2,3-dihydrofuro[3,2-g]chromen-7-one 6.28 C14H12O3 228.25 7 21.7 1-Propanone, 3-(2-hydroxyphenyl)-1,3-diphenyl- 2.00 C21H18O2 302.37 8 22.9 2-Ethylacridine 3.71 C15H13N 207.27 9 23.3 5-Methyl-2-phenylindolizine 2.81 C15H13N 207.27 10 25.7 Cyclotrisiloxane, hexamethyl- 10.5 C6H18O3Si3 222.46
The crude extract of C. colocynthis leaves showed the presence of ten compounds corresponding to 99.99% of the total extract; however, 4-nitro-4′-chlorodiphenylsulfoxide (22.94%), erucylamide (22.38%), heptasiloxane,1,1,3,3,5,5,7,7,9,9,11,11,13,13-tetradecamethyl- (21.33%), 5-methyl-2-phenylindolizine (17.85%), and octasiloxane,1,1,3,3,5,5,7,7,9,9,11,11,13,13,15,15-hexadecamethyl- (7.06%) were the major compounds, and other minor compounds were present in low quantities, with relative peak areas ranging from 0.98–3.57%.
However, the results observed through GC-MS analysis of C. indica revealed the presence of twenty compounds corresponding to 97% of the total extract. Dronabinol (57.29%), benzenesulfonic acid, 4-nitro- (25.54%), cannabinol (2.29%), and cyclobarbital (2.19%) were the main compounds, while sixteen other minor compounds were reported, with relative peak areas ranging from 0.29–2.00%.
The chemical profiling obtained through GC-MS analysis of A. argyi revealed the presence of ten compounds corresponding to 99.80% of the total extract; however, neodecanoic acid (43.60%), 2-trimethylsilyl-1,3-dithiane (21.61%), cyclotrisiloxane, hexamethyl- (10.62%), 2-isopropenyl-2,3-dihydrofuro[3,2-g]chromen-7-one (6.28%), and N-isopropyl-3-phenylpropanamide (4.37%) were the major compounds, and five other minor compounds with lower relative peak areas ranging from 1.44–3.81% were identified.
Discussion
Due to the problems concerning the use of synthetic chemicals for pest management, there is an urgent need to introduce natural products, mainly from plant sources, for use against insect pests, especially B. brassicae, which is becoming problematic in cabbage growing areas of the world. Plant extracts or essential oils are commonly applied for pest control measures because of their effectiveness against different life stages of the pests. However, the selected plants (C. colocynthis, C. indica and A. argyi) are naturally repellent to some extent to insect attack, which indicates that they could be suitable candidates against cabbage aphids, B. brassicae. An investigation was performed to detect the phytochemical constituents of the extracts of the above-mentioned plants, and their insecticidal activity was evaluated by residual and contact toxicity methods because of the feeding style of aphids33.
However, compound extraction from plant parts depends upon the type of plant material and solvent used. High-polarity solvents produced a higher yield than that of low-polarity solvents. In our results, ethanol afforded high extract yields during solvent extraction, which was due to its high polarity. Previously, it was reported that ethanol yielded more than other solvents from leaves of Melastoma malabathricum34. Furthermore, a relatively high extract yield from C. colocynthis and C. sativa using ethanol as an extraction solvent was reported35.
According to our findings, the mortality of B. brassicae using plant extracts increased with increasing concentrations and exposure periods. However, the physical and chemical properties of the essential oils exhibited different persistent levels of insecticidal properties and different action mechanisms36,37. It was reported that extracts of Cassia sophera and Ageratum conyzoides against B. brassicae induced mortality that was equivalent to that of the positive control, the synthetic insecticide emamectin benzoate38. Moreover, a Mentha piperita extract resulted in maximum insecticidal activity against B. brassicae with increased concentration and time exposure39. Similarly, essential oil from Cinnamomum zeylannicum was found to be effective against B. brassicae, exhibiting 8.3 and 7.4 µl mL−1 LC50 values40. The essential oil of another medicinal plant, Elettaria cardamomum, was reported to be effective against this serious pest, exhibiting 79.2 µl mL−1 LC50 value41. There are reports that B. brassicae was sensitive to 1,8 cineole, a chemical compound found in Laurus nobilis, which at LD50 value of 30 µl mL−1 caused 52% mortality42. Additionally, essential oils isolated from natural plants are usually considered as safe for humans and environment which can be a source of new botanical insecticides. Among some of the plant species, Ocimum basilicum, Mentha piperita, Pimpinella anisum, Mentha pulegium and Foeniculum vulgare have shown outstanding effectiveness against aphids species in both contact and fumigation assays and can thus be considered as active materials for developing new botanical agents43. It was also reported that the use of Azadirachta indica oil as a suitable alternative to synthetic chemicals against B. brassicae caused a noticeable reduction in their population44. All these findings are consistent with our results on the mortality of B. brassicae at different concentrations and varying levels of LC50 values.
The results of the studies using the C. colocynthis leaf extract to control B. brassicae are exceptional. However, toxicity of C. colocynthis extracts from leaves and fruits against Aphis craccivora was reported45. Cucurbitacin E glycosides isolated from C. colocynthis extract showed strong insecticidal effects against Aphis craccivora46. Limonene contained by Citrus sinensis was reported to be effective against Myzus persicae at LC50 57.7 µl mL−1, whereas its essential oil at a concentration of 3.3 µl mL−1 caused significant mortality of B. brassicae41. All these results support our findings of using C. colocynthis extract against B. brassicae. However, according to our results from the GC-MS analysis, the chemical composition of C. colocynthis was dominated by four of the ten detected compounds. Among these, erucylamide is a high fatty acid amide that can be used as an insecticide, pigment dispersant, ink and paint additive, fibre softener, and in dyes. Octasiloxane hexamethyl from C. colocynthis also exhibits insecticidal properties.
The insecticidal activity of the essential oil of hemp inflorescences against M. persicae was reported to be highly toxic, with an LC50 of 3.5 mL L−1 and non-toxic to the beneficial organisms26. An important compound, (E)-caryophyllene myrecene, and α-pinene, contained by C. sativa, showed 98.20% mortality at 3.50 µl mL−1 of Aulacorthum solani47, whereas at the same concentration, similar mortality of M. persicae was reported26. Previous studies have reported the concentration and time-dependent mortality of Tetranychus urticae and Aulacorthum solani following the use of hemp essential oil, which supported our findings indicating the effectiveness of the hemp (C. sativa) crude extract against B. brassicae aphids47. However, among the twenty compounds identified in the crude ethanol extract, caryophylleneonides (sesquiterpenes), α-bisabolol and dronabinol (Δ9-THC) possess insecticidal activities, However, caryophyllene oxide identified from Melaleuca styphelioides exhibited strong aphicidal activities against Aphis spiraecola, Aphis gossypii and M. persicae48 while, the other compounds may need to be further explored to determine their biological properties. To date, few studies on the applicability of hemp essential oil against crop pests have been conducted, and the use of hemp essential oil against B. brassicae is very rare in the literature.
Similarly, A. argyi is a famous plant commonly found in China, and many species of the genus Artemisia have long been used in traditional Chinese medicines, including Artemisia argyi, Artemisia capillaris and Artemisia annua49. In the present study, the crude ethanol extract from the leaves of A. argyi was proven to be highly toxic against B. brassicae. Moreover, four compounds from A. argyi, such as camphor, β-pinene, eucalyptol, and β-caryophyllene, showed strong toxic effects against adults of Lasioderma serricorne50. Other studies have showed that sabinene, and β-myrecen contained in Artemisia absinthium, caused significant mortality of M. persicae at 6.9 µl mL−1 concentration51. Similarly, Artemisia seiberi essential oil caused significant mortality of Eriosoma lanigerum at 6.16 µl mL−1 LD50 value52. Another compound, artemisia ketone, showed significant mortality of B. brassicae at 25.0 µl mL−1 concentration53. However, according to our results, reported compounds from A. argyi leaves were evaluated for the first time for their insecticidal potential. The above-described results supported our findings and clearly demonstrated that the A. argyi crude extract exhibited strong and deadly effects against B. brassicae, which justified its great potential for controlling this pest.
In the present study, the toxicity of ethanol extracts of the leaves of C. colocynthis, C. indica, and A. argyi against B. brassicae were investigated under laboratory conditions, revealing their positive toxicity. A. argyi proved to be the most toxic in both bioassay methods and caused maximum mortality, followed by C. colocynthis and C. indica, in a dose-dependent manner. This insecticidal activity might be due to individual efficacy or the synergistic action of biological compounds present in these plants. A literature survey regarding the potential efficacy of A. argyi showed that there are no studies reporting on its use against B. brassicae. Additionally, data on the insecticidal potential of C. colocynthis and C. indica against this serious pest and their GC-MS profiling are limited to a few studies. Thus, the present unique and novel study was conducted for the first time to investigate the insecticidal potential of crude ethanol extracts by residual and contact toxicity methods against B. brassicae, a serious pest of cabbage and other field crops.
Conclusions
The investigations indicated that C. colocynthis, C. indica and A. argyi possess potential botanical agents as an alternative to synthetic pesticides against B. brassicae. It can be concluded that, B. brassicae, is reasonably sensitive to A. argyi followed by C. colocynthis and C. indica as shown in both bioassay methods, even at low concentrations and exposure times. Moreover, in comparison, the contact assay afforded higher mortality than that of the residual assay. Additionally, GC-MS analysis revealed the presence of valuable biologically active compounds responsible for aphid mortality. However, further studies are required on the purification and identification of active components responsible for aphid mortality and their evaluations against other insect pests.
Materials and Methods
Collection of plant material
Aerial parts of the plants tend to contain a wider variety of compounds, and most of the photosynthesis/respiration occurs in the aerial parts. Additionally, most of the secondary metabolites from plants are produced in leaves. For this reason, C. colocynthis (Colocynthis) leaves at the 15–20 leaf stage were collected from Bahawalnagar (29°59′34″N, 73°15′13″E) Punjab, Pakistan from the natural habitat of a desert climate from March to April 2018 and authenticated at the Entomological Research Institute, Faisalabad, Pakistan. This area contains a dry climate with average annual precipitation of 204 mm and a temperature range of 12.7–45 °C. C. indica (wild hemp) and A. argyi (Chinese mugwort) leaves (10–15 leaf stage) were collected from Shenyang (41°11′43″N, 122°25′48″E) Liaoning, China, from a temperate climate zone from May to June 2018. This area receives annual precipitation of 266.6 mm, and the temperature ranges from −28.5 to 36.1 °C. The collected samples were authenticated at the College of Plant Protection, Department of Pesticides Science, Shenyang Agricultural University, Liaoning P.R., China.
Preparation of plant material and extraction
The collected leaves were allowed to dry in the shade at room temperature after removing impurities by rinsing in tap water. Dried leaves were ground into a fine powder using an electric blender, and 99.7% ethanol was used as a solvent for extraction. Approximately 100 g of ground powder was extracted thrice with 400 mL of ethanol each time for 72 h at a constant temperature in an incubator shaker (ZWY-1102C) at 100 rpm. After each extraction, the material was filtered through filter paper (Whatman No. 1) and concentrated to reduce the volume by using a rotary evaporator (Buchi Switzerland R-210). Finally, the concentrated filtrate was subjected to drying in a fume hood at 25 °C for 12 h. The extraction yield was measured for each extract, and the extracts of each plant were combined to obtain a bulk sample and stored in glass-stoppered vials at 4 °C until use.
Collection and breeding of aphids
Aphids, B. brassicae, were collected from a cabbage field (without pesticidal application) in the experimental field area of Shenyang Agricultural University, China. Aphids were reared on cabbage plants in the lab under controlled conditions of 20 ± 5 °C and 45 ± 5% R.H., along with a photoperiod of 16:8 (light: dark).
Serial concentration and agar preparation
Tween-20 was used to minimize variations among the treatments effect of any adjuvant material. Fifty millilitres of Tween was dissolved in 950 mL distilled water by shaking to prepare a 5% solution. Serial concentrations of crude extract, 2.5, 5, 10, 15 and 20 mg mL−1 were prepared in the Tween solution one day before beginning the experiment. To prepare the agar, 10–15 g agar rods were added to one litre of distilled water, boiled for 10 min with continuous stirring, allowed to cool for 10 min and was then added to Petri dishes 90 mm in diameter and 15 mm deep up to a 3–4 mm level.
Bioassay study
Two different modes of exposure, residual and contact assays were conducted for the toxicity evaluation. The experiment was replicated five times for each exposure method as well as concentration, and the mortality response was recorded at the exposure times of 24 h, 48 h and 72 h.
Residual toxicity/leaf dip bioassay

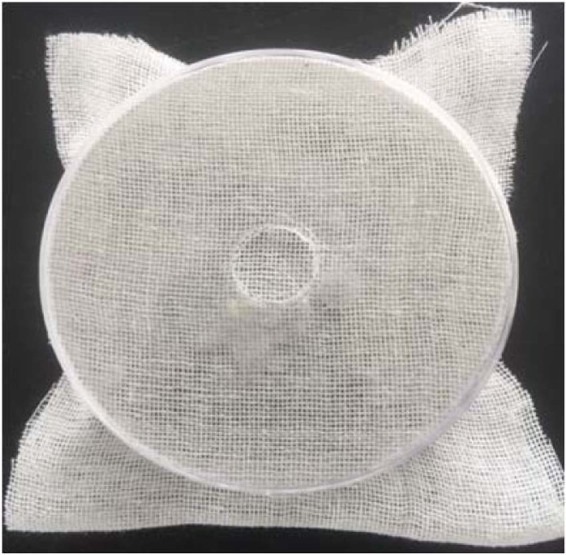

Briefly, cabbage leaf discs 5 cm in diameter were cut with sterilized scissors and dipped for 10 s in the extracts of varying concentration. Then, the leaf discs were left at room temperature for 10 min to dry and put in Petri dishes containing agar. Then, twenty aphids at the second instar were carefully transferred onto the leaf disc contained in the Petri dish by a fine-haired brush, and caution was taken to prevent injury to the aphids during their transfer to the leaf disc. Then, a double layer of muslin cloth was placed on each Petri dish and covered with a manually perforated lid to avoid suffocation and escape of the aphids (Fig. 1). The negative control treatment was prepared using a Tween-20 (5%) solution as described above but without added plant extract. An imidacloprid solution of 20% SL (2.5 mL L−1) was used as a positive control. All Petri dishes were incubated for 72 h at 65% R.H., 25 °C and with a 16:8 (light: dark) photoperiod.
Contact toxicity/aphid dip bioassay

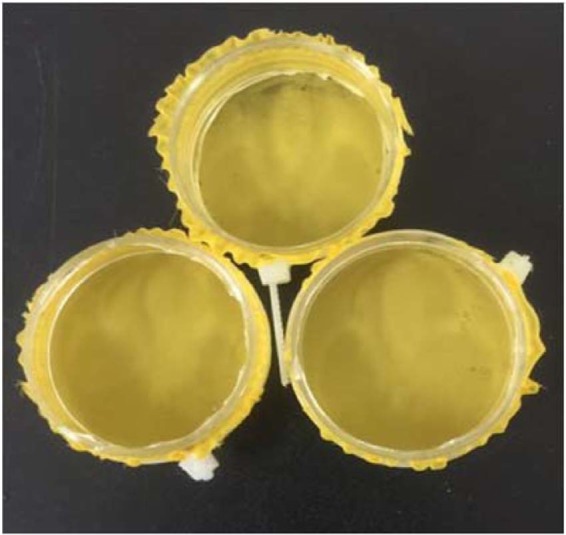

A 30 mm diameter plastic Petri dish was cut from the basal portion, and the remaining ring was used as the container. A nematode strainer (mesh size 300 µm) was used as a holding cell for aphids during dipping into the plant extracts of varying concentration (Fig. 2). Then, twenty aphids at second instar were isolated from the cabbage plants and dipped in the extracts for 10 s. Each group of dipped aphids was then placed on fresh 5 cm diameter cut leaf discs on agar-containing Petri dishes. The negative control treatment was prepared using the Tween-20 (5%) solution as described above but without adding plant extract. An imidacloprid solution of 20% SL (2.5 mL L−1) was used as a positive control. All Petri dishes were incubated for 72 h at 65% R.H., 25 °C and with a 16:8 (light: dark) photoperiod.
Data collection
Mortality data were recorded at the exposure times of 24 h, 48 h and 72 h by microscopic examination. The response of B. brassicae to the crude extracts was observed by needle stimulation, and those individuals who displayed no response were considered dead.
Sample preparation for GC-MS analysis
The solvent-free extract was weighed precisely to 0.005 g and dissolved in 1 ml of HPLC-grade methanol. Then, the sample was added to a centrifuge tube, and graphitized carbon blacks (GCB) was added (0.002 mg/tube) and shaken vigorously for one min on a vortex (Vortex Gennic 2, Model G560E Scientific Industries Inc. U.S. A) to remove coloured components. The colourless sample was centrifuged for 10 min at 24 °C and 12000 rpm (Hitachi Centrifuge CT15RE, Koki Co., Ltd. Japan) to separate the GCB from the sample. The colourless sample was collected by micropipette and transferred to a new centrifuge tube.
Gas chromatography-mass spectrophotometry (GC-MS) analysis
The crude ethanol extracts of C. colocynthis, C. indica and A. argyi were analysed via GC-MS using an Agilent 6890–5973N USA gas chromatograph (GC) equipped with an HP1 TG-5MS polydimethylsiloxane capillary column (30 m × 250 µm × 0.25 µm) interfaced with a Hewlett Packard 5973 mass selective detector. Gas chromatographic parameters were as follows: the temperature was fixed at 110 °C for 2 min initially and increased to 200 °C and 280 °C at increasing rates of 10 °C min−1 and 5 °C min−1, respectively. The inlet temperature was 250 °C; a 10:1 split ratio was used; MS quadrupole temperature, 150 °C; thermal aux temperature, 285 °C; ionization current, 60 µA; MS temperature, 230 °C; MS scan range, m/z 40–450; ionization energy, 70 eV; carrier gas, helium with flow rate, 1.0 mL min−1. Compounds were identified by comparison of the GC-MS mass spectra with those in the literature or in databases at Wiley/NIST.98.154,55. The relative abundance of each compound was assessed based on the raw data peak areas in the spectra with no response factor correction from the FID.
Data analysis
All recorded mortality data were subjected to two-way analysis of variance (ANOVA) for calculating the interaction among plants, concentration and post-treatment time, while the mean difference between treatments was calculated for the significance test by Tukey’s HSD at the P = 0.05 level. All statistical processes were administered by different statistical packages with IBM-SPSS version 25.0 software, while LC50 values, slope, chi-square values and fiducial limits were calculated by the EPA Probit analysis program version 1.5.
