Profiling Cannabinoid Contents and Expression Levels of Corresponding Biosynthetic Genes in Commercial Cannabis (Cannabis sativa L.) Cultivars
Division of Life Sciences, Jeonbuk National University, 567 Baekje-daero, Deokjin-gu, Jeonju 54896, Jeollabuk-do, Korea
School of Pharmacy, Jeonbuk National University, 567 Baekje-daero, Deokjin-gu, Jeonju 54896, Jeollabuk-do, Korea
Department of Plant Medicals, Andong National University, 1375 Gyeongdong-ro, Andong-si 39729, Gyeongsangbuk-do, Korea
LED Agri-Bio Fusion Technology Research Center, Jeonbuk National University Specialized Campus, 79 Gobong-ro, Iksan 54596, Jeollabuk-do, Korea
Abstract
Cannabis (Cannabis sativa L.) is widely cultivated and studied for its psychoactive and medicinal properties. As the major cannabinoids are present in acidic forms in Cannabis plants, non-enzymatic processes, such as decarboxylation, are crucial for their conversion to neutral active cannabinoid forms. Herein, we detected the levels of cannabidivarin (CBDV), cannabidiol (CBD), cannabichromene (CBC), and Δ9-tetrahydrocannabinol (Δ9-THC) in the leaves and vegetative shoots of five commercial Cannabis cultivars using a combination of relatively simple extraction, decarboxylation, and high-performance liquid chromatography analyses. The CBDV, CBC, and Δ9-THC levels were 6.3–114.9, 34.4–187.2, and 57.6–407.4 μg/g, respectively, and the CBD levels were the highest, ranging between 1.2–8.9 μg/g in leaf and vegetative shoot tissues of Cannabis cultivars. Additionally, correlations were observed between cannabinoid accumulation and transcription levels of genes encoding key enzymes for cannabinoid biosynthesis, including CsCBGAS, CsCBDAS, CsCBCAS, and CsTHCAS. These data suggest that the high accumulation of cannabinoids, such as CBC, Δ9-THC, and CBD, might be derived from the transcriptional regulation of CsCBGAS and CsCBDAS in Cannabis plants.
Untitled section
Keywords: Cannabis, high-performance liquid chromatography, cannabichromene, cannabidiol, tetrahydrocannabinol
Article notes
Untitled section
Received 2022 Oct 26; Accepted 2022 Nov 11; Collection date 2022 Nov.
1. Introduction
Cannabis (Cannabis sativa L.), belonging to the family Cannabaceae, is used for various purposes such as industrial [1], ornamental [2], and pharmaceutical applications [3], and has recently attracted considerable interest as source of diverse cannabinoids, terpenes, and phenolic compounds with prominent nutraceutical potential [4]. Among them, the most well-studied pharmacologically active ingredients are cannabinoids, and in Cannabis, 90 cannabinoids have been identified and characterized so far [5,6]. The predominant cannabinoids, including Δ9-tetrahydrocannabinol (Δ9-THC), a psychotropic compound, and cannabidiol (CBD), with neuroprotective properties, are well-studied secondary metabolites produced in Cannabis plants [7,8]. Cannabis plants are of two types: marijuana and hemp. Marijuana may have medicinal properties and has mainly been used recreationally for the psychoactive components of Δ9-THC; hemp does not accumulate Δ9-THC to an appreciable level (<0.3%) and is valued for its medicinal compounds, fibers, and seeds, which comprise more than 25,000 known products used in industrial applications, food, supplements, textiles, paper, technical products, and personal care products [4,9,10,11]. In view of the recent global economy and research, hemp production has expanded to at least 47 countries, with Canada, China, Chile, France, and North Korea being the major producers of hemp [4]. The USA is the largest importer of hemp seeds and fibers from Canada and China [11,12,13].

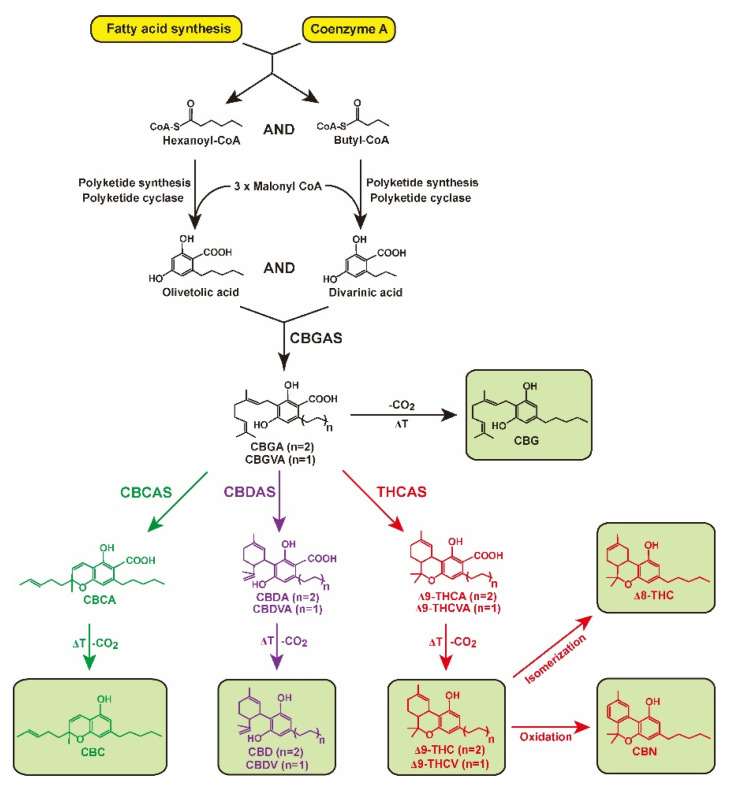

The cannabinoid biosynthesis pathway in Cannabis plants has been well-studied and determined [14]. Cannabinoids are synthesized from fatty acids and isoprenoid precursors (Figure 1). Hexanoyl-CoA and butyl-CoA, derived from fatty acid biosynthesis, are used in the biosynthesis of olivetolic and divarinic acids using polyketide cyclase enzymes, respectively [14,15]. Prenyltransferase, also known as cannabigerolic acid synthase (CBGAS), produces cannabigerolic acid (CBGA) and cannabigerovarinic acid (CBGVA), which are derived from C21 and C19 precursors formed from olivetolic and divarinic acids, respectively [14,15]. The oxidocyclases cannabichromenic acid synthase (CBCAS), cannabidiolic acid synthase (CBDAS), and tetrahydrocannabinolic acid synthase (THCAS) promote oxidative cyclization of the monoterpene moiety, generating cannabichromenic acid (CBCA), cannabidiolic acid (CBDA), cannabidivarinic acid (CBDVA), Δ9-tetrahydrocannabinolic acid (Δ9-THCA), and Δ9-tetrahydrocannabivarinic acid (Δ9-THCVA), respectively [16,17,18,19]. Genetic studies on the most prominent oxidocyclases, CBDAS, CBCAS, and THCAS in Cannabis plants revealed that the three genes encoding these enzymes have a single exon, with THCAS and CBCAS sharing 92% amino acid identity with each other and having 84% and 83% amino acid sequences, respectively, identical to those of CBDAS [16,20,21,22,23].
Cannabinoids are stored in carboxylic acid forms, and neutral cannabinoids do not occur at significant levels in plants; however, acidic cannabinoids can be readily decarboxylated to their corresponding neutral forms of cannabigerol (CBG), cannabichromene (CBC), cannabidivarin (CBDV), CBD, Δ9-tertrahydrocannabivarin (Δ9-THCV), and Δ9-THC by nonenzymatic thermal decarboxylation when exposed to light, heat, or combustion [24]. The different isomers, Δ8-tetrahydrocannabinol (Δ8-THC) and cannabinol (CBN), result in isomerization of the double bond in the alicyclic carbon ring and oxidative degradation of Δ9-THC, respectively [25].
The main challenges faced by many researchers are the limited reliable data on the cannabinoid composition of various Cannabis strains, the production variability of these compounds within the Cannabis plants, the effects of the cultural environment on the quality of cannabinoids production, and the qualitative methods offering an effective way for the separation and quantification of the neutral cannabinoids. The purpose of this study was to develop a time- and cost-saving method for the quantification of important bioactive neutral cannabinoids in several Cannabis cultivars using a simple extraction and decarboxylation method followed by high-performance liquid chromatography (HPLC) analysis. To quantify the content of neutral cannabinoids in Cannabis plants, new heating decarboxylation conditions were adopted using reference mixtures of acidic and neutral cannabinoids, and the decarboxylation of acidic cannabinoids and conversion of their corresponding neutral cannabinoids were estimated. The vegetative shoots and leaves of five commercial Cannabis cultivars were analyzed under quantitative analytical conditions to determine the content of eight neutral cannabinoids. Additionally, the correlation between cannabinoid levels and expression patterns of their biosynthesis-related genes was determined.
2. Results
2.1. New Decarboxylation Conditions of Acidic Cannabinoids for Liquid Chromatography (LC) Analysis
Gas chromatography (GC) and LC assays are the most widely used analytical techniques to analyze cannabinoids in Cannabis [26,27]. Although GC coupled with mass spectrometry has been used as the official quantification and identification method [28,29], acidic cannabinoids cannot be analyzed without decarboxylation or derivation because the GC-heated injector port converts the acidic form to a neutral form by heat-derived decarboxylation. The decarboxylation of Δ9-THCA at an intermediate temperature (225 °C) was maximal but with only 65% conversion to Δ9-THC, and a significant loss in THC was observed at 300 °C [30]. This indicated that GC analysis was unsatisfactory in that particular study.

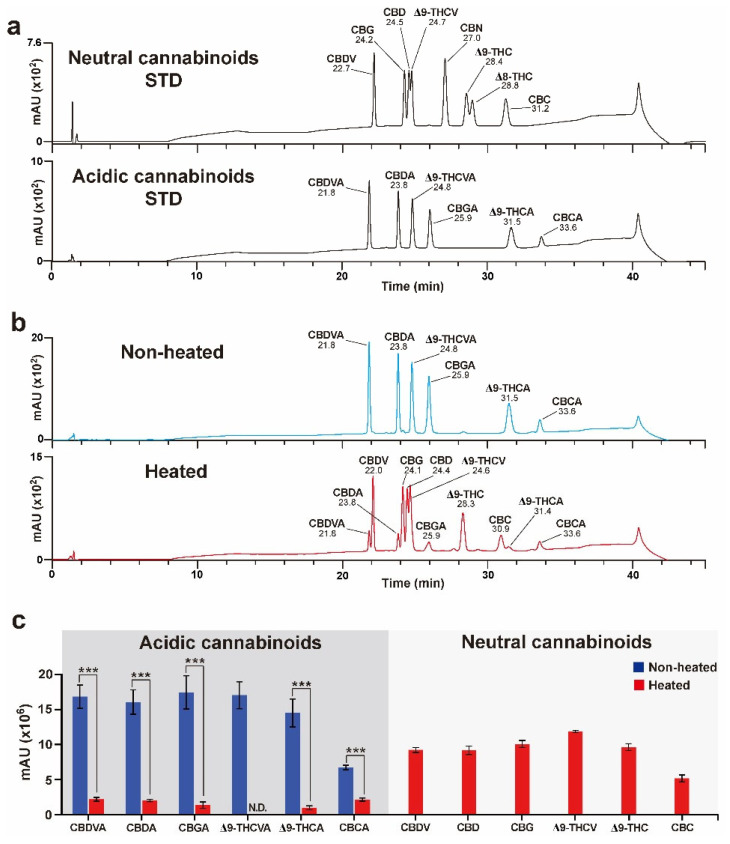

In the present study, LC analysis was used as an alternate chromatography technique to detect both acidic and neutral cannabinoids in Cannabis. To analyze as many neutral cannabinoids as possible, eight neutral cannabinoid (CBDV, CBG, CBD, THCV, CBN, Δ9-THC, Δ8-THC, and CBC) mixtures were used as reference standards (Figure 2a). These neutral cannabinoids are not predominant in Cannabis, and decarboxylation conditions of their corresponding acidic forms were needed prior to the assay. Additionally, the conversion efficiencies of six acidic cannabinoids (CBDVA, CBGA, CBDA, THCVA, Δ9-THCA, and CBCA) to their neutral forms under specific decarboxylation conditions were assessed. A previous study using Δ9-THCA and CBDA showed that the conversion of Δ9-THCA and CBDA to Δ9-THC and CBD, respectively, reached completion with relatively less loss after decarboxylation at 105 °C or 110 °C for 1 h [28,31]. Decarboxylation was conducted at 110 °C for 1 h, and conversion efficiencies were measured using six acidic cannabinoid mixtures as references (Figure 2b). Acidic cannabinoids, including CBDVA, CBDA, CBGA, Δ9-THCVA, Δ9-THCA, and CBCA, were considerably decreased by heat treatment, resulting in conversion to their neural cannabinoid forms, such as CBDV, CBD, CBG, Δ9-THCV, Δ9-THC, and CBC, respectively (Figure 2c).
2.2. Evaluation of New Decarboxylation Conditions Using Cannabis Plant Extracts

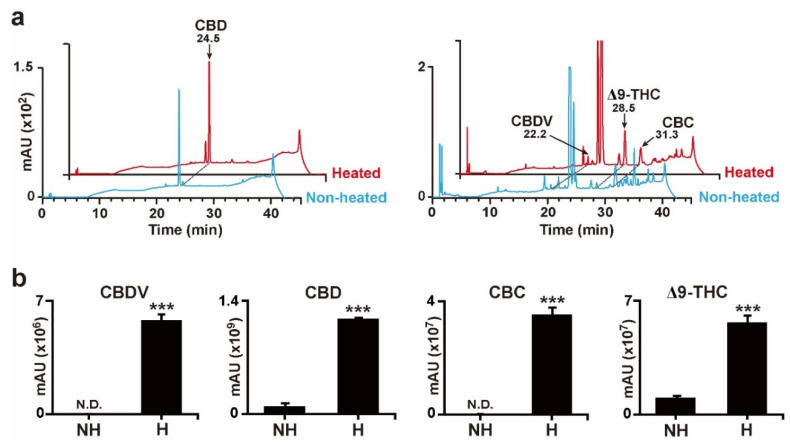

To elucidate the effects of decarboxylation treatment on Cannabis plant extracts, the extracts from Cannabis plants were heated under the same conditions as those used for the decarboxylation of standard acidic cannabinoids (Figure 2b). The levels of CBDV, CBD, CBC, and Δ9-THC, which were almost undetectable before heating, showed significantly increased signals after heat treatment (Figure 3a,b). These results indicated that the heating decarboxylation reaction performed in the present study was appropriate for the subsequent investigation of neutral cannabinoid composition profiles in various Cannabis cultivars.
2.3. Analysis of Cannabinoid Composition and Levels in Different Tissues of Cannabis Cultivars
Considerable literature describes the sites of cannabinoid biosynthesis in Cannabis plants [32,33,34,35]. Cannabinoids and terpenes accumulate in the glandular trichomes of the plants; in particular, female flowers show the highest density of glandular trichomes. Moreover, to maintain proper inbred lines, female plants are cultivated exclusively to prevent fertilization with pollen from other male flower plants because Cannabis is an anemophilous plant that is pollinated by wind [36,37]. However, considerable time and space were needed to maintain the various Cannabis cultivars separately for harvesting whole buds of mature female flowers. In addition, continuous artificial selection through extensive breeding between local landraces and commercial cultivars leads to allelic heterogeneity in Cannabis cultivars, thereby resulting in the production of individual plants showing different phenotypes, although the same Cannabis cultivars have been cultivated [38]. Therefore, the present study was designed to use two tissues at the early vegetative stage of Cannabis to profile the composition of neutral cannabinoids in independent individual plants of five Cannabis cultivars (Figure S1). Vegetative shoots and leaves at the 2-month-old stage after germination were harvested from individual Cannabis plants of each cultivar, abacus 2.0 (AB), early abacus (EA), and cherry abacus (CA) as well as single plants of cherry diesel (CD) and merlot (ME) cultivars (Figure 4a).

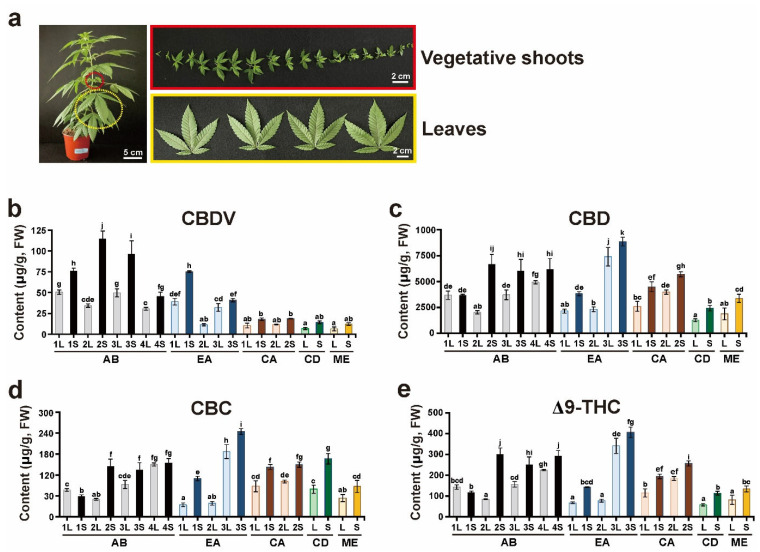

Four cannabinoids, CBDV, CBD, CBC, and Δ9-THC, were detected in 11 individual Cannabis plants germinated from seeds of the five cultivars (Table S1). Among the detected cannabinoids, CBDV content was the lowest, and CBDV concentrations in the vegetative shoots of the AB cultivar showed high amounts (Figure 4b). The concentrations of CBD were the highest in most cultivars in comparison to those of other cannabinoids (Figure 4c). The leaves and vegetative shoots of EA3 showed the highest content of CBD, but the CBD levels of EA1 and 2 were relatively low. Both CBC and Δ9-THC showed similar patterns and levels, and the highest amounts were detected in the leaves and vegetative shoots of EA3 (Figure 4d,e). The levels of CBDV, CBD, CBC, and Δ9-THC in the vegetative shoots were higher than those in the leaves of all cultivars analyzed in this study. The levels of the four cannabinoids were significantly different in individual plants of the same cultivars, AB and EA.

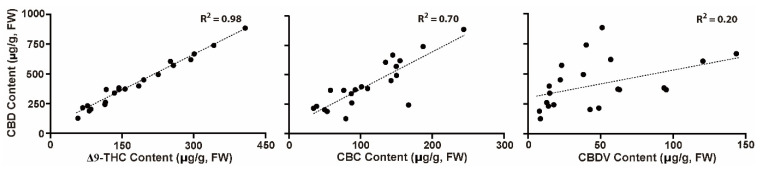

The levels of CBDV, CBD, CBC, and Δ9-THC detected in the 11 individual Cannabis plants were plotted to determine correlations between them (Figure 5). The CBD levels ranged between 1.2–8.9 μg/g, whereas for Δ9-THC, CBC, and CBDV, the ranges were 0.05–0.41 μg/g, 0.067–0.24 μg/g, and 0.006–0.12 μg/g, respectively (Table S1). There were significant positive and slight correlations between CBD and Δ9-THC, CBD and CBC, and CBD and CBDV levels, with R2 values of 0.98, 0.70, and 0.20, respectively. This result suggests that some cultivars prone to biosynthesizing high CBD in their vegetative shoots or leaves may result in increased levels of the biosynthesized Δ9-THC, CBC, and CBDV.
2.4. Expression Profiling of CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS in Cannabis Cultivars

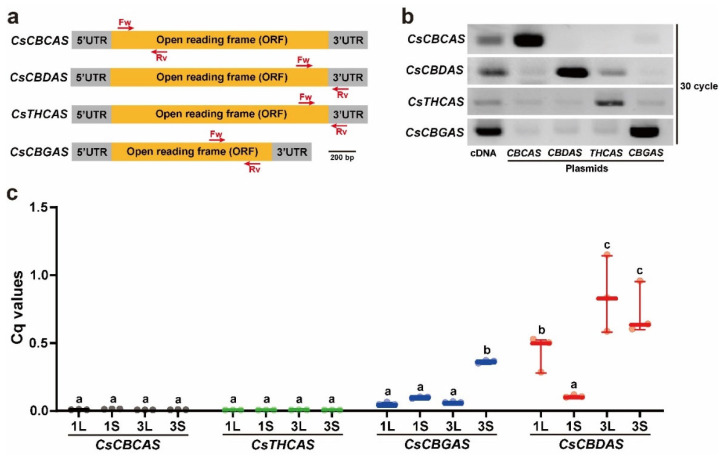

To determine the relationship between cannabinoid accumulation and expression of cannabinoid biosynthesis genes, the transcription levels of four cannabinoid biosynthesis genes, CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS, were analyzed using real-time quantitative (RT-qPCR) analysis. The expression levels were determined in two individual plants, EA1 and EA3, which showed representatively high or low amounts of CBD, CBC, and Δ9-THC (Figure 4 and Table S1). Given the high similarity of the target genes at the nucleotide level, specific primer sets were designed and validated for their specificity (Figure 6a). We first performed RT-PCR and PCR analyses using different templates, including cDNA synthesized from the leaves of Cannabis plants and plasmids containing the open reading frames (ORFs) of CsCBCAS and CsCBGAS or additional 3′-untranslated regions of CsCBDAS and CsTHCAS as positive controls (Figure 6b). The results showed that our designed primer sets specifically amplified the corresponding target genes, although faint bands were detected in the PCR reactions using the CsCBDAS and CsCBGAS primer sets. Next, we conducted RT-qPCR analysis to examine the expression levels of CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS in the leaves and vegetative shoots of two individual plants (EA1 and EA3) (Figure 6c). The transcript levels of CsCBCAS and CsTHCAS were lower than those of CsCBGAS and CsCBDAS in all samples. The highest transcript amounts of CsCBGAS, an enzyme that produces precursors for CBC, Δ9-THC, and CBD, were found in EA3S. The expression levels of CsCBDAS were the highest in the leaves and vegetative shoots of EA3, wherein the highest accumulation of CBD was detected. These results suggested that the high accumulation of cannabinoids, such as CBC, Δ9-THC, and CBD, may be derived from transcriptional regulation of two cannabinoid biosynthetic genes, CsCBGAS and CsCBDAS, in Cannabis plants.
3. Discussion
The most abundant cannabinoid compounds among C21 terpeno-phenolics were Δ9-THCA and CBDA, followed by CBGA and CBCA. Their associated C19 homologs were CBGVA, Δ9-THCVA, and CBDVA (Figure 1) [39]. Four oxidocyclases, CBGAS, CBCAS, CBDAS, and Δ9-THCAS, convert CBGA to CBCA, CBDA, and Δ9-THCA, respectively [16,17]. These acidic cannabinoids are nonenzymatically converted to their corresponding neutral forms, which also occur minimally in Cannabis plants [24]. Although GC and HPLC analytical techniques were applied to determine acidic and neutral cannabinoid concentrations, GC analysis systems, which comprise a heated injection port prior to column separation, are not optimal for acidic forms, as heating results in the conversion of acidic cannabinoids to neutral forms [40]. However, the HPLC system can analyze both acidic and neutral cannabinoids because the process does not involve high temperatures. In the present study, we applied an HPLC analytical system to evaluate the decarboxylation efficiencies of acidic cannabinoids and detect neutral cannabinoids. In previous studies on the decarboxylation of acidic cannabinoids, only three acidic cannabinoids, Δ9-THCA, CBDA, and CBGA, were focused on, and the conversion of their corresponding neutral forms under a range of temperatures and times were confirmed [28,31]. Our study provided additional information about the decarboxylation of acidic cannabinoids, CBDVA, Δ9-THCVA, and CBCA, by analyzing the products of their neutral forms. Most acidic cannabinoids were highly decarboxylated, but the efficiency of the formed corresponding neutral forms was relatively lower than that before decarboxylation (Figure 2c). This might be due to compound loss during the heat treatment; the decrease in the total concentration of acidic cannabinoids (Δ9-THCA, CBDA, and CBGA) and their neutral forms (Δ9-THC, CBD, and CBG) upon decarboxylation at high (110 °C) and low (60 °C) temperatures was reported in previous studies [28,31].
Although novel extraction procedures, such as ultrasound-assisted, microwave-assisted, pressurized liquid, and supercritical fluid extraction, have been applied in the past decade for good recovery of targeted cannabinoid compounds, each technique requires an appropriate solvent type, temperature, pressure, and treatment time [41,42]. Analytical methods, such as simple color tests, thin-layer chromatography, GC, GC–mass spectrometry, LC, LC–mass spectrometry, and their combinations are generally sufficient for the identification of cannabinoids according to the purpose of the analysis [29]. However, the maintenance costs of analytical instruments and cannabinoid management policies in different countries should be considered when selecting analytical methods. In the present study, a combination of relatively simple extraction procedures, decarboxylation procedures, and instruments compared to those used in previous studies [41,42] was applied for the analysis of various neutral cannabinoid compositions in commercially available Cannabis cultivars (Figure 2 and Figure 3). This simple combination could be applicable for the primary screening of medicinal Cannabis cultivars containing targeted cannabinoids. Additionally, optimized extraction and decarboxylation conditions for high solubility, good recovery, and bioactive stability of the desired cannabinoid might be needed.
Four cannabinoids, CBDV, CBD, CBC, and Δ9-THC, were detectable in vegetative shoots and leaves in 11 individual plants of five Cannabis cultivars (Figure 4 and Table S1). Vegetative shoots showed higher levels of cannabinoids than leaves. These results are similar to those of previous studies showing higher levels of cannabinoids in the leaves of the upper nodes [43,44]. The accumulation patterns of the four cannabinoids differed in the same cultivar lines. In particular, the differences in CBDV, CBD, CBC, and Δ9-THC concentrations among the EA cultivar plants (EA1, EA2, and EA3) were the largest. These findings were unexpected and suggest that there is a high possibility of genetic variation, even within seed lots produced from the same cultivar. This notion is supported by reports that continuous artificial selection through extensive breeding between local landraces and commercial cultivars leads to allelic heterogeneity in Cannabis cultivars [38]. A previous study revealed that the transcription levels of CsTHCAS and CsCBDAS reflect the chemical phenotype of Cannabis plants [45]. Additionally, single nucleotide polymorphisms of CBCAS and divergent sequences of CsTHCAS and CsCBDAS were identified in a genotype investigation using 13 Cannabis cultivars [45].
4. Materials and methods
4.1. Plant Materials
Abacus 2.0 (AB), early abacus (EA), cherry abacus (CA), cherry diesel (CD), and merlot (ME) Cannabis (C. sativa L.) seeds were kindly provided by the LED Agri-Bio Fusion Technology Research Center (Jeonbuk National University Specialized Campus, Iksan, Korea). Cannabis seeds were grown in a growth room at 25 °C under long-day conditions (photoperiod, 16 h:8 h, light: dark) at a light intensity of 120 μmol m−2 s−1. True leaves and other tissues of 2-months-old Cannabis plants were used for cannabinoid analysis.
4.2. RNA Expression Analyses
Sequences of CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS were obtained from the Cannabis genome browser (http://genome.ccbr.utoronto.ca/, accessed on 12 October 2020). Primer sequences used in the present study are listed in Table 1. To examine the expression levels of CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS in Cannabis plants, RT-qPCR analysis was conducted. Total RNA was extracted from Cannabis leaves using the RiboEX Total RNA kit (GeneAll, Seoul, Korea). RNA quality was determined using a Nanodrop ND-200 spectrophotometer (Nanodrop Technologies, Wilmington, DE, USA), and only high-quality RNA (A260/A230 > 2.0, and A260/A280 > 1.8) was used for subsequent experiments. Synthesis of cDNA was performed using 5 μg of the total RNA using the ReverTra Ace qPCR RT Master Mix kit (Toyobo, Osaka, Japan) following the manufacturer’s protocol, and RT-qPCR analysis was conducted in 96-well plates using a CFX real-time system (Bio-Rad, Sanra Clara, CA, USA) and a THUNDERBIRD SYBR qPCR mix (Toyobo). In accordance with the best-established RT-qPCR practices, CsEF1a (JP452083) is one of the most stable reference genes in Cannabis [46]. Three independent biological replicates were analyzed. The oligonucleotide sequences used for RNA expression analysis are provided in Table 1. To determine the relative abundance of the transcripts, the data were analyzed using the Bio-Rad CFX Manager software (Bio-Rad).
| Gene Name (ID) | Purpose | Sequence (5′ to 3′) | Direction |
|---|---|---|---|
| CsCBCAS (KJ469378) | Gene cloning | ATGAATTGCTCAACATTCTCCTTTTGG | F |
| TTAATGATGATGCGGTGGAAGAGG | R | ||
| RT-qPCR | TAACAATCCAGCAAATCCAAAATTCA | F | |
| GGAGCAGAGAATACTGGCC | R | ||
| CsCBDAS (KP970860) | Gene cloning | ATGAAGTGCTCAACATTCTCCTTTTG | F |
| TTAATGACGATGCCGTGGAAG | R | ||
| RT-qPCR | AAGTGAAAACCCTGGTTGATCC | F | |
| GAGCATACACAGTACATCCGG | R | ||
| CsTHCAS (KJ469378) | Gene cloning | ATGAATTGCTCAGCATTTTCCTTTTGG | F |
| TTAATGATGATGCGGTGGAAGAGG | R | ||
| RT-qPCR | TTAGGAAAAACTAATCATGCG | F | |
| CAATAAATGTATGTATGGTATAATGATTA | R | ||
| CsCBGAS (BK010648) | Gene cloning | ATGGAGGTCTCATCAGTTTGC | F |
| TTATATAAATACATATACAAAG | R | ||
| RT-qPCR | CCATATCGAGTCATTTGGGCTT | F | |
| GGCAAAAGCAATAGTCATACCC | R | ||
| CsEF1a (JP452083) | RT-qPCR | GCTTTGATACCCCTCCACAA | F |
| AGTATCCGCGAGCTTGACAT | R |
4.3. Plasmid Constructions
The full-length ORFs for CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS were amplified from the total RNA of the Cannabis plants using RT-PCR with gene-specific primer sets (Table 1). The ORFs of the genes were cloned into TA vectors following the protocol in the RBC cloning vector kit (RBC Bioscience, New Taipei City, Taiwan), and the produced plasmids were used for the validation of primer specificity in the RT-qPCR assay.
4.4. Extract Preparation and Decarboxylation Reactions
The collected Cannabis samples were ground to a powder in a mortar with liquid nitrogen. Samples (0.15 g) were homogenized in 1 mL of 100% acetonitrile, sonicated for 1 h, and incubated at 55 °C for 1 h. The supernatants were recovered by centrifugation at 13,000× g for 10 min and then filtered through a 0.45 μm polyvinylidene difluoride membrane (Pall, NY, USA). The extracts were concentrated in a speed vacuum concentrator (Eyela, Tokyo, Japan) for 1 day. Decarboxylation reactions were performed as previously described [31]. For decarboxylation reactions, the individual samples were placed in an oven for 1 h at 110 °C. The decarboxylated extracts were reconstituted in 120 μL acetonitrile prior to injection into the HPLC system.
4.5. Analytical Conditions for HPLC of Cannabinoids
The HPLC system comprised an LC-20AD pump, SPD-20A UV/VIS detector, CBM-20A communications bus module, and an SIL-20AC autosampler (Shimadzu, Kyoto, Japan) combined with a C18 3.9 × 300 mm μ-Bondapak column (Waters, MA, USA). Separation using HPLC was conducted using two mobile phases: A phase containing 0.1% formic acid in water and B phase containing 0.1% formic acid in acetonitrile. The sample was injected at a total volume of 10 μL, and the flow rate of the solvent was maintained at 2 mL/min. The sample was separated using the following gradient elution profile: 25% B for 5 min, increased to 50% B and maintained for 10–15 min, increased to 70% B and maintained for 20–30 min, increased to 100% B, maintained for 33–37 min, and subsequently restored to 25% B and maintained for 10–45 min. Ultraviolet signals were monitored at a fixed wavelength of 225 nm. Acidic (six components: CBCA, CBDA, CBDVA, CBGA, Δ9-THCA, and Δ9-THCVA) and neutral (eight components: CBC, CBD, CBDV, CBG, CBN, Δ8-THC, Δ9-THC, and THCV) cannabinoid mixtures were purchased from Supelco (Sigma-Aldrich, St. Louis, MO, USA).
5. Conclusions
This project was undertaken to quantify the important bioactive neutral cannabinoids in Cannabis plants by HPLC analysis and investigate the correlations between expressions of cannabinoid synthases genes and their corresponding cannabinoids’ accumulation. Simple extraction procedures, decarboxylation procedures, and instruments were applied for the analysis of various neutral cannabinoid compositions in commercial Cannabis cultivars, and specific primers were designed for univocal identification and transcriptional analysis of CsCBCAS, CsCBDAS, CsTHCAS, and CsCBGAS. This study has shown that there is a possibility of genetic variation among the same cultivars, and the high accumulation of cannabinoids may be derived from transcriptional regulation of cannabinoid biosynthetic genes in Cannabis plants.
Further studies with a focus on the polymorphism analysis of cannabinoid biosynthesis-related genes, including CsCBGAS, CsCBCAS, CsCBDAS, and CsTHCAS, in diverse Cannabis cultivars containing different major cannabinoids, including CBDV, CBD, CBC, and Δ9-THC, are therefore suggested to reveal relationships between the biosynthesized cannabinoid levels and genetic variations. Finally, given the preferred Cannabis plant sources for specific medical cannabinoids produced in a limited period of time, the application of the clustered regulatory interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein (Cas) system, a widely adopted genome engineering platform, might be preferable for developing new Cannabis cultivars that enhance or inhibit the biosynthesis of desirable cannabinoids.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11223088/s1, Figure S1: Two-month-old Cannabis plants used in this study. Table S1: The content levels of CBDV, CBD, CBC, and Δ9-THC, cannabinoids detected in prepared in this study.
Data Availability Statement
The data presented in this study are available upon request from the corresponding author.
Conflicts of Interest
The authors declare no conflict of interest.
Funding Statement
This work was supported by the Basic Science Research Program of the National Research Foundation (NRF), funded by the Ministry of Education of the Republic of Korea (Grant No. 2020R1I1A1A01072914 to Y.-C. Kim), the Rural Development Administration (RDA) (PJ01652303 to J.H. Lee), Promotion (No. 1425151434) of Innovation Businesses for Regulation-Free Special Zones funded by the Ministry of SMEs and Startups (MSS, Korea), and the Technology Innovation Program (20012892) funded by the Ministry of Trade, Industry and Energy (MOTIE, Korea).
