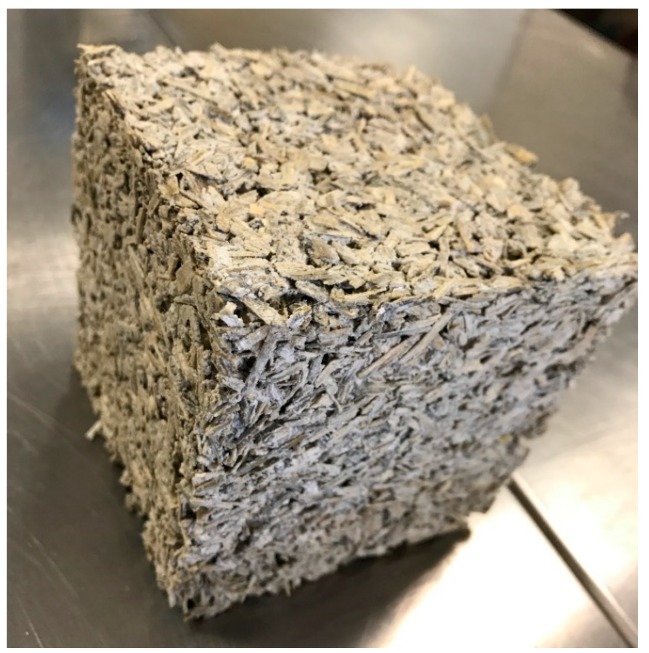

Three different hemp–lime composite mixtures utilizing various binders were studied. Table 1 presents the percentage shares of the components of the tested composites.

Hemp lime composite mixtures study when completed will help define the basic heat conductivity properties of the material, which remain unknown, but which are important for environmentalists and researchers alike. As water plays different roles during the setting and the curing of hemp–lime, and because we needed material with relatively low brittleness and relatively high strength, our experience showed that the chosen in Table 1 water/cement (W/C) ratio was optimal [30,31].

So far, most product information has been supplied by manufacturers who, provide composite performance characteristics, they rather do not specify the detailed composition of the mixtures they use. Thus, comparing the material becomes quite difficult considering the great number of factors affecting the product properties. Some basic factors determining the final properties of the product include the following.

• Hemp shiv type and particle size fractions.
• Type of binder.
• Mixture component proportions.
• Mixing and material application methods.

Despite its ever-growing popularity, the composite properties have not been standardized yet, and that is why it has become necessary to carry out as many tests as possible to establish both the result repeatability and the properties of the product. The objective of our tests consisted of investigating the following properties.

• Bulk density.
• Heat transfer coefficient.
• Fire resistance.

Bulk density is described as a property related to the internal structure of the material; also known as apparent density, it determines the number of properties, such as thermal conductivity, strength, weight, and others. A lime-hemp composite should have a density of 300–500 kg/m³ to assure adequate strength and thermal resistance. Apparent density depends mainly on the materials used but also on the density of the compacted mixture. Six samples of all the composite types were tested following a 28-day long maturation process. All the samples were kept in 15 cm × 15 cm × 15 cm containers. Table 2 presents the results obtained once the samples had been removed from the containers: the obtained average sample size of each composite and its volume.

Each container enclosed the same amount of the mixture. Compared to the volume of the wet mixture found in the containers after it had been maturing for 28 days, Mixture 2 is based on hydrated lime with addition of hydraulic lime demonstrated the least shrinkage and volume reduction. Mixture 1 is made of hydraulic lime and only showed the largest volume shrinkage. Table 3 presents the bulk density of the samples following 28-day long maturation of each of the six prepared samples for three composites and their averaged values.

The bulk density of the tested composites seems to be similar; however, Mixture No 3, which also had some amounts of Portland cement, showed a slightly higher density. The composite based on hydraulic lime with some added hydrated lime presented the lowest apparent density, probably due to the calcium oxide turning into calcium hydroxide and thus increasing its volume.

Note that the literature related to hemp–lime composites discusses a lot of other important properties of the material. The compressive strength is one of the more common tests performed, as we can see by the number of papers by Cazacu et al. [32], Kremensas et al. [33], Brzyski et al. [22,34], or Li et al. [35]. As we can see from the information presented in these papers, the compressive strength results obtained in those researches have different values, which vary up to 20% in some cases depending on the mixture type. Another important factor, besides eco-friendliness, seems to be in favor of the hemp–lime composite is its great acoustics properties. We can find many papers related to this issue mostly dealing with the materials acoustic absorption by Kinnane et al. [36], or by Gle et al. [37]. In the last three years, we can also see that a lot of scientists like Bourebrab et al. [38] or Heidari et al. [6] are dealing with the surface coating of hemp–lime composites to increase their resistance to humidity or life cycle.

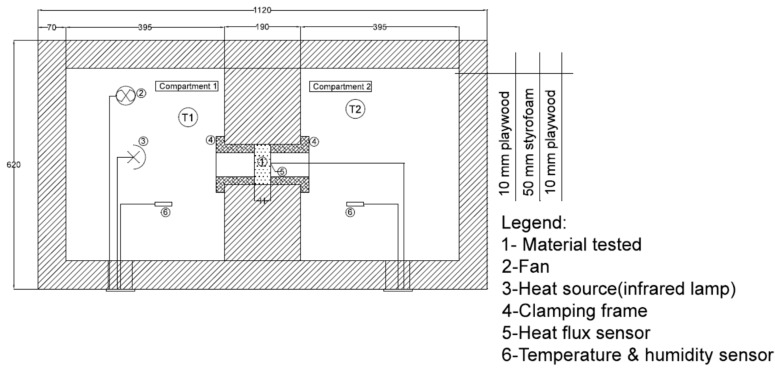

The main goal of the paper was the calculation of the heat conductivity, which is also related to the value of the heat transfer coefficient of a material. The heat transfer coefficient ”λ” expressed as [W/m*K] describes the insulation properties of the material: the lower the value, the better the insulation parameters of the tested material. To obtain experimental data, the mixtures have been tested inside the two-compartment heat box experimental stand shown in Figure 3.

Both the inside and outside walls of the box are made of 1.0 cm thick plywood with a 5.0 cm thick Styrofoam insulation layer inside. The box features two compartments separated by a 19.0 cm thick insulated partition, which houses the sample to be tested. The sample is mounted with a clamping frame designed to reduce heat transfer through leaks in the edges caused by the nonuniform structure of the material. A 250W infrared lamp and a fan in Compartment 1 represent the heat source and provide regular air circulation. The study required a sustained 15–20 °C temperature differential between the two compartments be maintained for 2 h. The special insulation of Compartment 2 made it possible to reach the desired measurement stability. Testing a single sample continued for 2 h allowed the temperature and heat flux density to be stabilized. The materials used for testing of the heat conductivity had been weighed and measured to determine their density. Fire resistance of material means its durability, when exposed to high temperatures or flame, with some visual or structural changes if acceptable. The fire resistance test was designed to investigate hemp–lime composite behavior when exposed directly to an open flame and to analyze any ensuing structural changes by calculating potential mass loss. Testing was also performed on three other composite samples measuring 15 × 15 × 15 cm, with a Kemper gas burner of the manufacturer’s maximum rated flame temperature of 1800 °C. The samples, set at a 10 cm distance away from the flame source, were tested at the room temperature of 22.6 °C for 10 min. The entire procedure was recorded with a TESTO 885-1 infrared camera in order to observe the temperature distribution within the material. Figure 4 shows the measuring station.

The primary energy needed by a home erected based on a single design, but in two different technologies, is compared:

• Traditional brick structure: Porotherm, Styrofoam, and wool;
• Natural materials: mainly hemp–lime composite, wattle and daub, and timber.

To this end, energy profiles of the analyzed materials had been prepared using ArCADia TermoCad software (PRO 7 version, Intersoft, Łódź, Poland). ArCADia-TERMOCAD is computer software available in several versions, it is one of the most popular programs on the Polish market designed for preparing energy performance certificates required for construction, modernization, and lease and sale transactions of buildings or premises, as well as for calculating the demand for heat and cooling of rooms and facilities. In ArCADia-TERMOCAD PRO version it is possible to perform energy audits, overhauls, and energy efficiency audits, e.g., for the purpose of obtaining modernization bonus. It can also be used for BREEAM certified calculations. Thanks to a rich database, the user of the program develop the necessary documents in accordance with the legal requirements applicable in Poland. ArCADia-TERMOCAD program in all versions has a built-in, fully functional graphics editor allowing to model the body of the building. The TERMOCADIA editor enables import of drawings in DWG format and import and export of ArCADia BIM system projects. Its main purpose is to perform building designs according to Building Information Modeling (BIM) technology assumptions. In addition to traditional architectural documentation, the program also performs a digital building model [39]. The homes featured an identical mechanical ventilation system capable of recovering roughly 60% of the heat, the same window frames and doors whose heat transfer coefficients complied with the 2020 design standards.

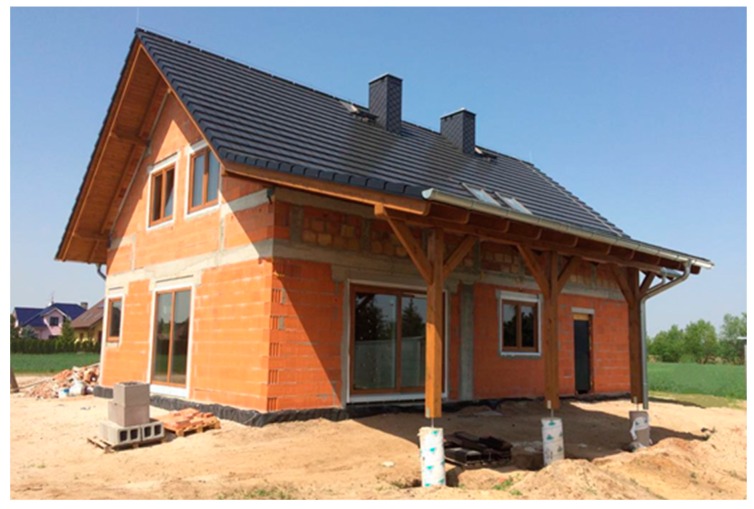

The calculations were performed for a single-family two-story home with a loft and a total floor area of ~220.0 m². Building energy performance certificates were issued based on the brick home design, while for our simulation we used the hemp–lime composite home that had been modified by changing its partition structure, i.e., using hemp–lime composite and other natural materials instead. The partitions were fabricated taking into account designers’ and home contractors’ new technology recommendations and guidelines. For our comparative analysis, we selected a new building made of commonly used construction materials as shown in Figure 5. The external walls of the home were made of 24.0 cm wide Porotherm ceramic blocks insulated with 20.0 cm thick Styrofoam (the picture shows the home without the facade). The home features Teriva ceilings and a timber roof truss with complete formwork that has been insulated with 30.0 cm thick Rockwool and covered with ceramic tiles. The “warm installation” method was used to install the balcony doors and windows. The building is heated with a gas-heated condensing boiler.
