Robust induction of B cell and T cell responses by a third dose of inactivated SARS-CoV-2 vaccine
1Department of Endocrinology, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
2Clinical Trials Unit, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
3Institute of Precision Medicine, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
4Department of Rheumatology and Clinical Immunology, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
5Department of Laboratory Medicine, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
6Department of Medical Affairs, The First Affiliated Hospital of Sun Yat-sen University, Guangzhou 510080, People’s Republic of China
*Co-correspondent authors; email: xiaohp@mail.sysu.edu.cnAbstract
SARS-CoV-2 inactivated vaccines have shown remarkable efficacy in clinical trials, especially in reducing severe illness and casualty. However, the waning of humoral immunity over time has raised concern over the durability of immune memory following vaccination. Thus, we conducted a non-randomized trial among the healthcare professionals (HCWs) to investigate the long-term sustainability of SARS-CoV-2-specific B cells and T cells stimulated by inactivated vaccines and the potential need for a third booster dose. Although neutralizing antibodies elicited by the standard two-dose vaccination schedule dropped from a peak of 29.3 AU/ml to 8.8 AU/ml 5 months after the second vaccination, spike-specific memory B and T cells were still detectable, forming the basis for a quick recall response. As expected, the faded humoral immune response was vigorously elevated to 63.6 AU/ml by 7.2 folds 1 week after the third dose along with abundant spike-specific circulating follicular helper T cells in parallel. Meanwhile, spike-specific CD4+ and CD8+ T cells were also robustly elevated by 5.9 and 2.7 folds respectively. Robust expansion of memory pools by the third dose potentiated greater durability of protective immune responses. Another key finding in this trial was that HCWs with low serological response to 2 doses were not truly “non-responders” but fully equipped with immune memory that could be quickly recalled by a third dose even 5 months after the second vaccination. Collectively, these data provide insights into the generation of long-term immunological memory by the inactivated vaccine, which could be rapidly recalled and further boosted by a third dose.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Clinical Trial
ChiCTR2100042222 and ChiCTR2100048665
Funding Statement
The work is supported by The Talent Program of the First Affiliated Hospital, Sun Yat-sen University (Y70311) and The Hundred Talent Program of Sun Yat-sen Univetsity (Y61229).
Summary of Updates:
Introduction
The coronavirus disease 2019 (COVID-19), caused by the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), continues to spread across the globe currently1, 2. The pandemic has brought profound casualties of human lives and socioeconomic issues. The establishment of herd immunity by vaccination represents the most cost-effective strategy to prevent COVID-19. The rapid spreading of COVID-19 has urged the governments to authorize the emergent use of vaccines against SARS-CoV-23–5.
The presence of neutralizing antibodies (NAbs) against SARS-CoV-2 is an indicator of protective immunity after vaccination or infection6, 7. NAbs capable of blocking the interaction between the spike protein and its receptor angiotensin converting enzyme 2 (ACE2) are particularly important for protection from COVID-198. Therefore, inducing potent NAbs and long-lasting memory B cells are the primary goal of SARS-CoV-2 vaccines. Two doses of mRNA or inactivated vaccines are capable of inducing potent neutralizing antibody responses 3, 9, 10. Our previous study further demonstrated that inactivated vaccines elicited SARS-CoV-2 specific memory B cells11, which are important for a rapid and robust recall of protective responses against viral infection. However, little is known how long can these immune responses sustain. A rapid decline of neutralizing antibodies has been observed among infected healthcare workers (HCWs)12. Neutralizing antibodies also waned overtime after the second dose of BNT162b2 or ChAdOx113, indicating weakened protection for SARS-CoV-2 infection. In addition, the rapid emergence of novel SARS-CoV-2 variants of concern (VOCs) dampens the efficacy of SARS-CoV-2 vaccines, since vaccine-induced antibodies were less effective in neutralizing some emerging VOCs14. Moreover, cross-reactive antibodies against VOCs decayed even faster than antibodies against wild-type strain15.
Besides humoral immune responses, T cells also play a pivotal role in coordinating the adaptive immune responses and as effectors against viral infection. In some cases, patients with inherited or treatment-induced B cell deficiency were able to recover from COVID-1916, 17, suggesting a potential role of cellular responses in fighting against SARS-CoV-2 infection. Induction of CD8+ T cell responses was documented in both SARS-CoV-2 infection and vaccination18, 19. On the other hand, rapid induction of CD4+ T cells is associated with coordinated humoral and cellular response to a SARS-CoV-2 mRNA vaccine20. SARS-CoV-2 specific circulating T follicular helper cells (cTFH) cells, whose counterparts in lymph nodes reinforce B cells and humoral responses21, correlated with neutralizing antibody levels in convalescent COVID-19 patients22, 23.
Nevertheless, T cell responses induced by inactivated vaccines are much less well characterized than humoral immunity. One previous study revealed that the inactivated vaccine could elicit T cells response after 2 doses of vaccination24, but the phenotype and sustainability of antigen-specific CD4+ and CD8+ T cells remained unclear yet.
In this study, we sought to investigate the sustainability of immune memory stimulated by the inactivated vaccine and profile humoral and cellular responses to a third dose among HCWs. Although NAbs declined substantially, SARS-CoV-2-specific memory B, CD4+, and CD8+ T cells persisted in the peripheral blood 5 months after the second vaccination, even in participants who were seronegative after receiving 2 doses of the inactivated vaccines. The third vaccination robustly recalled both humoral and cellular immune responses in all participants.
Materials and methods
Human subjects
In this study, we conducted a non-randomized trial and recruited participants from a prospective cohort at the First Affiliated Hospital of Sun Yat-sen University (FAH-SYSU) in Guangzhou, China. As we described previously11, 63 HCWs received the inactivated SARS-CoV-2 vaccine BBIBP-CorV (BBIBP-CorV, Sinopharm, Beijing) in the morning (9 am – 11 am) or afternoon (3 pm – 5 pm) on day (d) 0 and d28, respectively. Fifty of the 63 HCWs were volunteered to receive a third booster shot of the inactivated vaccine 6 months after the prime vaccination (d180). They were assigned to the morning or afternoon group as to their previous vaccinating time accordingly. Demographic characteristics of the HCWs were summarized in Supplementary Table 1. Blood samples were collected on d180 before the booster dose and d187, d194 and d208 after the booster dose. Convalescent patients who had recovered from SARS-CoV-2 infection were recruited as the positive control (Supplementary Table 2). All studies were approved by the Institutional Review Board of FAH-SYSU and written consent was obtained from all participants. The prospective cohort and the trial were registered to Chinese Clinical Trial Registry (ChiCTR2100042222 and ChiCTR2100048665).
Cell isolation
Blood samples were collected into the heparinized tubes and processed right after sample collection. Peripheral blood mononuclear cells (PBMCs) were isolated using density-gradient centrifugation. Briefly, blood samples were diluted with PBS at 1:1 ratio and loaded on top of Lymphoprep™ (StemCell) in the Falcon tubes. The falcon tubes were then centrifuged at 1500 rpm for 30 mins. The medium layer was collected and washed with PBS twice. PBMCs were cryopreserved in Bambanker (StemCell) immediately.
SARS-CoV-2 neutralizing antibodies measurement
A one-step competitive Chemiluminescent immunoassay was used to detect the concentration of NAbs against SARS-CoV-2 in sera by iFlash 2019-nCoV NAb kit (YHLO Biotech Co, Ltd) as previously reported25. In this assay, receptor binding domain (RBD) of the SARS-CoV-2 was coated on magnetic beads. Acridinium ester-labeled ACE2 was designed to compete with SARS-CoV-2 NAbs in sera for the RBD. NAb titers were calculated by an iFlash3000 Chemiluminescence Immunoassay Analyzer (YHLO Biotech Co, Ltd). Neutralizing activity is determined in arbitrary units (AU) and the cut-off is 10 AU/ml.
Ex vivo ELISpot assay
IFNγ ELISpot assays were performed as described previously26. Briefly, 100 μl of the coating antibody (15 μg/ml, MabTech, #3420-3-250) was added to the well of ELISpot plate (MabTech) and incubated overnight at 4°C. The peptide pool of SARS-CoV-2 spike protein (MabTech, #3630-1) was added to 300,000 PBMCs per test at a final concentration of 2 μg/ml for 24 h. Unstimulated cells were used as negative control while anti-CD3/CD28 dynabeads (Thermo Fisher) stimulated cells were set as the positive control. Plates were incubated with IFNγ detection antibody (1μg/ml, MabTech, #3420-6-250), followed by Avidin-HRP (1μg/ml, Vector, #A-2004-5) and visualized using the ACE substrate. Antigen-specific T cell responses were quantified by subtracting the number of spots in unstimulated cells from the peptide stimulated cells.
SARS-CoV-2-specific B cell ELISpot was performed as previously described27. Briefly, ELISpot plates were coated with 10 ug/ml recombinant RBD protein (Sino Biological, #40592-VNAH-100) and 8 ug/ml spike protein (Sino Biological, #40589-V08B1) overnight at 4°C. To optimize the human IgG B cell ELISpot assay, PBMCs were cultured with a mixture of R848 (1 μg/ml, Tocris, #4536/10) and IL-2 (20 ng/ml, PeproTech, #200-02-10) for 3 days to secrete a detectable amount of antibody28, 29. After pre-stimulation, cells were washed extensively to remove secreted antibodies. 500,000 PBMCs were added to the coated plates and incubated for 18 h at 37°C with 5% CO2. The following day, cells were removed and plates were incubated with Biotin-anti-Human IgG (1μg/ml, Jackson ImmunoResearch, #709-065-098). Plates were then incubated with Avidin-HRP followed by visualization with ACE substrate. ELISpot plates were analyzed using an ELISpot counter (Cellular Technologies Ltd). Results were expressed as spot-forming units (s.f.u.) per 106 PBMCs. Responses were considered positive if the results were at least three times the mean of the negative control wells and >25 s.f.u. per 106 PBMCs. Data were excluded when negative control wells had >30 s.f.u. per 106 PBMCs or positive control wells (anti-CD3/CD28 dynabeads) had no spot.
Activation-induced markers (AIM) T cell assay
PBMCs were cultured in RPMI 1640 supplemented with 10% FBS and 1% penicillin and streptomycin (Thermo Fisher) at 37 °C overnight. The cells were then cultured with or without the peptide pool of SARS-CoV-2 spike protein (2 μg/ml) for 12 h. An equal concentration of DMSO in PBS was used as the negative control. Antigen-specific T cells were measured as a percentage of AIM+ (OX40+CD137+) for CD4+ T or (CD69+CD137+) for CD8+ T cells after stimulation of PBMCs with the peptide pool of spike protein26. After the stimulation, cells were first stained with Zombie Red for dead cell exclusion. Cells were then stained with anti-CD3-Pacific blue, anti-CD4-BV510, anti-CD8-Percp, anti-CD69-Super Bright 436, anti-CD134 (OX40)-BV605 and anti-CD137-(4-1BB)-PE antibodies for antigen-specific T cell analysis. As for phenotype analysis of SARS-CoV-2-specific T cells, cells were further labeled with anti-CCR7-APC/cy7, anti-CD45RA-BV650, anti-CXCR5-BV711 and anti-PD-1-PE/cy7 antibodies. All FACS antibodies were from Biolegend. Stimulation with anti-CD3/CD28 dynabeads was included as positive controls. Any sample with a low response to anti-CD3/CD28 stimulation was excluded as quality control for the samples. Data were acquired by flow cytometry.
Detection of SARS-CoV-2-specific memory B cells
SARS-CoV-2-specific memory B cells were detected as we described previously11. First, biotinylated antigens were multimerized with fluorescence-labeled streptavidin individually. Recombinant spike protein (R&D, #BT10549-050) was mixed with BV510-streptavidin (BioLegend) at 10:1 ratio and BV785-streptavidin (BioLegend) at 18:1 ratio at 4°C for 1h. Recombinant RBD protein (R&D, #BT10500-050) was mixed with BV421-streptavidin (BioLegend) at 20:1 ratio at 4°C for 1h. The antigen probes prepared above were then mixed in 50mM free d-biotin (Macklin) in PBS to ensure minimal cross-reactivity. PBMCs were thawed and let to rest at 37°C with 5% CO2 for 2h and stained with Zombie Red (BioLegend) in PBS at room temperature for 20 min. Cells were then stained with 50 μl of antigen probe cocktail containing 100 ng of spike and 50 ng of RBD at 4°C for 30 min. Cells were washed with PBS and then stained with the following antibody cocktail: anti-CD3-Pacific Blue™, anti-CD19-PE-CY7, anti-CD27-AF700, anti-IgD-FITC, anti-CD38-BV650, anti-IgM-BV605, anti-IgG-AF647, anti-IgA-PE all from BioLegend at 1:100 dilution. Samples were acquired by flow cytometry.
Detection of SARS-CoV-2-specific IFNγ-producing T cells
The detection of spike-reactive T cells was performed as described with modification30. Briefly, overnight-rested PBMCs were cultured with or without the peptide pool of SARS-CoV-2 spike protein (4 μg/ml) in the presence of 3 μg/ml of anti-CD28 monoclonal antibodies for 24 h. Cells were then incubated with Brefeldin A for additional 5 h. Cells were stained with anti-CD3-Pacific blue, anti-CD4-BV510, anti-CD8-Percp antibodies for surface markers. Cells were then washed, fixed with Cytofix/Cytoperm and stained with anti-IFNγ-PE-Cy7 (BioLegend). Dead cells were excluded by Zombie Red staining. Samples were analyzed by flow cytometry. Samples without peptide stimulation were used as the negative control.
Flow cytometry
All flow cytometry samples were analyzed using cryopreserved cells which were thawed and suspended in RPMI 1640 media supplemented with 2% FBS. All samples were analyzed by flow cytometry with CytekTM AURORA. FlowJo (Tree Star, USA) software was used for FACS data analysis. Details of antibodies used in this study are listed in Supplementary Table 3.
ELISA-based antibody-antigen distribution analysis
All SARS-CoV-2 proteins were purchased from Sino Biological (Beijing, China). 200ng/well of SARS-CoV-2 spike (40589-V08B1), spike S1 subunit (40591-V08H), spike NTD (40591-V49H), spike S2 subunit (40590-V08B), RBD (40592-V08H), RBD T478K (40592-V08H91), nucleocapsid (40588-V08B) and envelope (40609-V10E3) were coated on the 96-well ELISA plate overnight at 4 °C, respectively. Plates were washed by PBS supplemented with 0.05% Tween-20 (PBST) three times, followed by blocking with 5% BSA in PBST for 1 h at room temperature. Sera were diluted 20-fold for the first well and 4-fold serial diluted for subsequent wells in 5% BSA in PBST, and incubated at 4°C overnight. Plates were washed 3 times by PBST, and added with HRP-conjugated goat anti-human IgG antibody (2040-05, SouthernBiotech, 1:3000) for 30 min at room temperature. Plates were washed five times with PBST. 3,3′,5,5′-Tetramethylbenzidine (TMB) substrate (P0209, Beyotime) was added for 15 min, and stopped by the stopping buffer (C1058, Solarbio). OD450 was measured by Varioskan Lux Microplate Reader (Thermo Fisher).
Pseudovirus neutralizing assay
For the generation of SARS-CoV-2-Spike (Wuhan-Hu-1) pseudovirus 31, pcDNA3.1-2019-nCoV-Spike and pNL4-3 R⁻E⁻ (gifts from Dr. Lu Lu, Fudan University) were co-transfected to HEK293T with Lipo8000 (C0533, Beyotime) according to the manufacturer’s instruction. For the generation of the B.1.617.2 Delta-variant spike pseudovirus, pCMV3-SARS-CoV-2-Spike (VG40804-UT, Sino Biological), pSPAX2 and pLenti-CMV-Luc-puro were co-transfected to HEK293T. The virus was harvested 72 hours post-transfection and stored at −80°C until use. 2×104 hACE2-293T/well were seeded on the black flat-bottom 96-well plate (655090, Greiner Bio-one) for 16 hours in advance. Sera were diluted 10-fold for the first well and 4-fold serial diluted for subsequent wells in DMEM, then co-incubated with pseudovirus at 37°C for 1 hour. Then the co-incubated samples, together with samples without sera or pseudovirus as controls, were subjected with 10μg/ml polybrene (C0351, Beyotime) to the hACE2-293T for 6-hour absorption, following by replacement of the culture medium for the next 42 hours incubation at 37°C, 5% CO₂. Infected cells were processed to the luciferase assay using the Luciferase Assay System (E4550, Promega). The illuminescence was measured by Varioskan Lux Microplate Reader (Thermo Fisher). The 50% pseudovirus neutralization titer (pNT50) were determined by four-parameter nonlinear regression curve (GraphPad Prism).
Statistical analysis
Statistical analysis was performed using Prism 5.0. Comparisons were assessed using Wilcoxon rank sum test, Student’s t-test, paired Student’s t-test or One-way ANOVA followed by Bonferroni’s multiple comparison post-test as appropriate. P values < 0.05 were considered as statistically significant.
Results
Neutralizing antibody response is enhanced by a third dose of inactivated SARS-CoV-2 vaccine BBIBP-CorV
We have previously conducted a non-randomized trial and recruited HCWs from a prospective cohort, demonstrating the impact of the circadian rhythm on the immune response induced by a primary 2-dose series of the inactivated SARS-CoV-2 vaccine (BBIBP-CorV, Sinopharm, Beijing)11. Fifty HCWs from this cohort were volunteered to participate in the current non-randomized trial to investigate the duration of the primary vaccination regimen and potential benefits of a third dose, given 5 months after the second dose (Fig. 1A). No severe side effects related to vaccination were recorded during the trial (Supplementary Table 1).

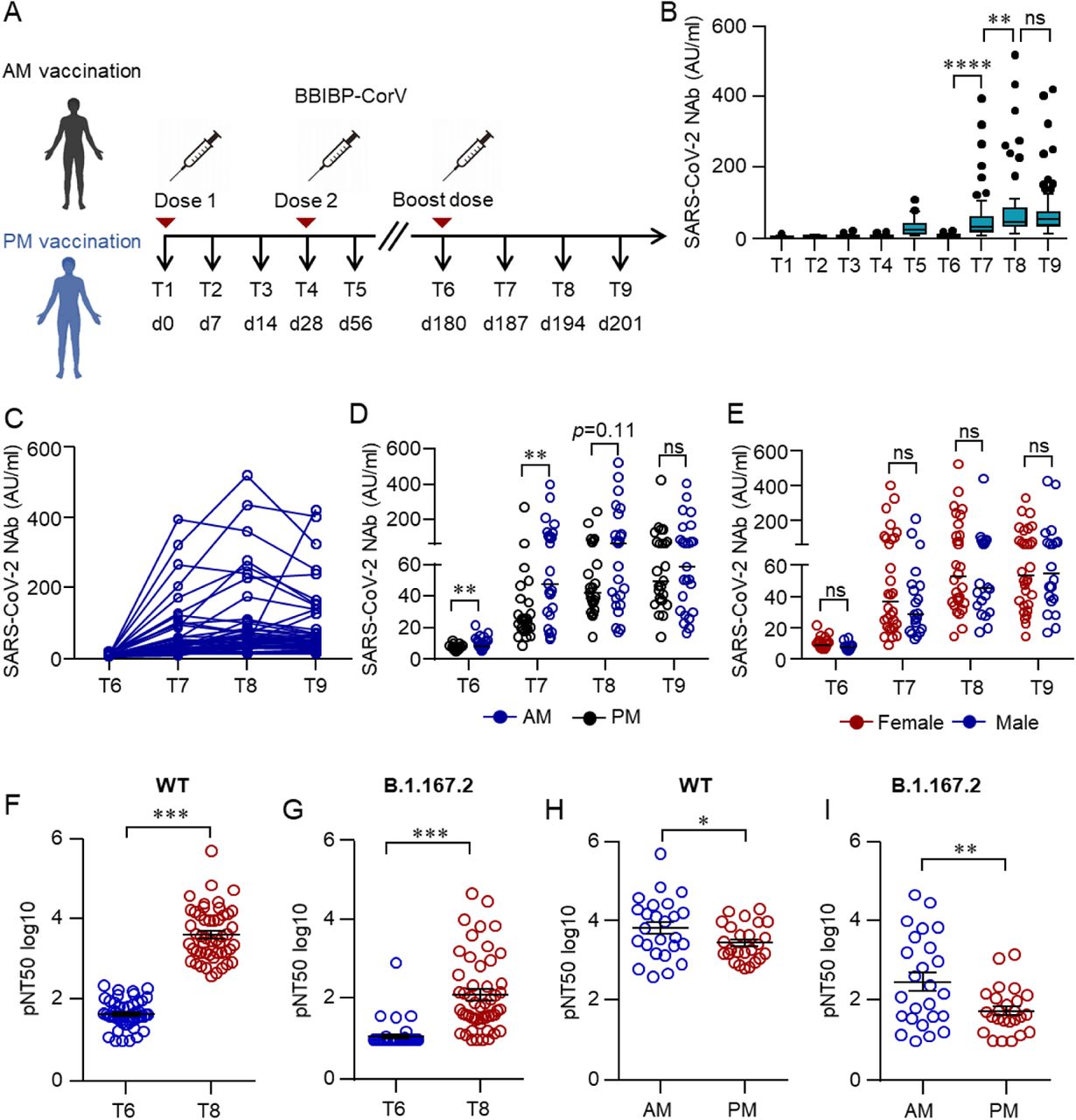

Blood samples were collected from multiple time points before and after each dose and NAbs targeting RBD were measured by Chemiluminescent immunoassay25. The mean serum concentration of NAbs dropped by 70% from d56 (1 month post the second dose) to d180, 5 months after the second dose (Fig. 1B). Intriguingly, NAbs maintained a significantly higher level in the morning vaccination group than that in the afternoon group on d180 (Fig. 1D).
Although serum NAbs in 72% of participates (36/50) dropped below the threshold (10 AU/ml) on d180, serological responses could be rapidly recalled to an unprecedented level within 1 week after the third dose. The mean concentration of NAbs was increased by 7.2 folds from 8.8 AU/ml on d180 to 63.6 AU/ml on d187, peaking at 92.3 AU/ml 2 weeks after the booster (Fig. 1C).
As the primary vaccination series11, the circadian rhythm also governed the outcome of the third dose, albeit only at the early stage. Significantly higher levels of NAbs were observed in the morning group after the third dose on d187 (Fig. 1D). However, the difference between the morning and the afternoon groups gradually diminished over time (Fig. 1D). Moreover, we did not observe any difference in NAbs levels between females and males (Fig. 1E).
Pseudovirus neutralizing assays were next applied to confirm the elevation of serum NAbs against wild type (WT) SARS-CoV-2 and VOCs by the third dose. Consistent with the results of Chemiluminescent immunoassay, the 50% pseudovirus neutralization titer (pNT50) against WT was greatly boosted (Fig. 1F). Encouragingly, the third dose not only elevated the NAbs against WT, but also strengthen a cross-protective immune response. The mean serum pNT50 against B.1.167.2 Delta variant was increased by 10-fold from day180 to day194 (Fig. 1G). In pseudovirus assay, a significantly higher level of NAbs against both WT and B.1.167.2 could still be observed in morning vaccination participants (Fig. 1H and I).
One potential advantage of inactivated vaccines over other vaccine types is that they comprise all viral structural proteins which may induce a broader spectrum of immunity in addition to NAbs against RBD. To profile the antibody spectrum induced by BBIBP-CorV, serum IgG against major SARS-CoV-2 structural proteins and their subdomains, including S1, S2, RBD, NTD of spike protein, nucleocapsid, and small envelope protein, were measured by indirect ELISA before and after the third dose. As expected, BBIBP-CorV successfully elicited antibodies against all structural proteins and subdomains tested (Supplementary Fig. 1). Notably, we found all vaccinees were equipped with a high titer of anti-envelope IgG which has not been reported in a vaccine study elsewhere and was hardly induced even during natural SARS-CoV-2 infection32. Interestingly, the third dose did not elevate antibody responses against all tested structural proteins or subdomains evenly, but profoundly augment the immune response against the S1 domain of spike protein which comprises NTD and RBD subdomains (Supplementary Fig. 1).
SARS-CoV-2 specific memory B cell response is robustly induced by a third dose of inactivated vaccine
The rapid and robust recall of humoral immune responses by the third vaccination indicated that the primary 2-dose vaccination regimen has established a sustained immune memory. We explored the presence of antigen-specific memory B cells before and after the third dose by flow cytometry.
Total B cell populations were first characterized by flow cytometry (Supplementary Fig. 2). Only mild changes in IgD+, IgM+, IgA+ or IgD−CD27− B cells were found before and after the booster, whereas the percentage of total and naïve B cells were not affected (Supplementary Fig. 3), consistent with a good safety profile of the third dose (Supplementary Table. 1).

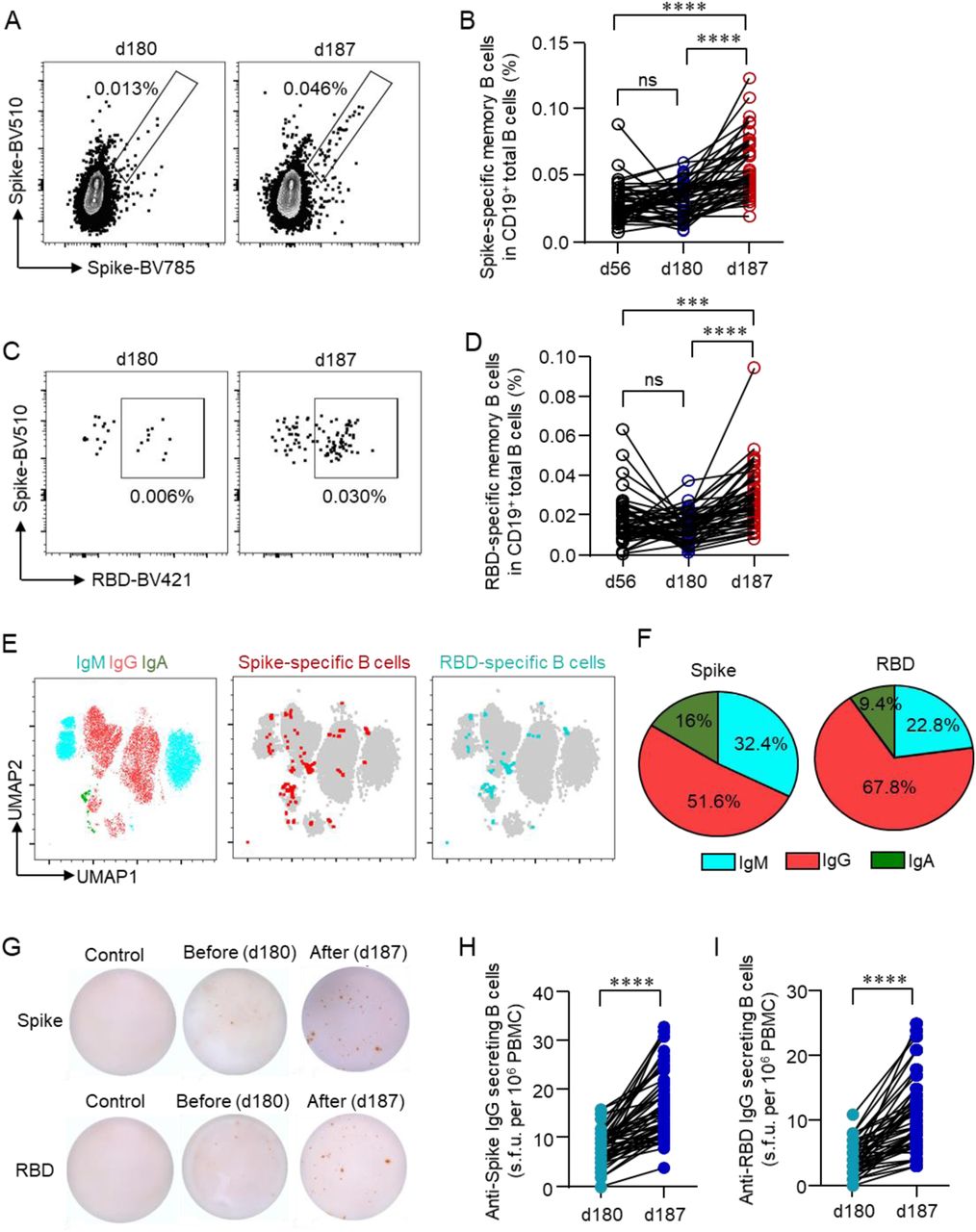

Next, antigen-specific B cell populations were investigated. Spike- and RBD-specific memory B cells could be detected at 4 weeks (d56) and 5 months (d180) after the second dose, revealing that memory B cells persisted despite a decreasing trend over a 5-months time frame between second and third immunization (Fig. 2A and C). The third dose increased the percentages of spike- and RBD-specific memory B cells by 1.7 and 2.0 folds respectively from d180 to d187, resulting in a significantly larger memory pool on d187 than that on d56 (Fig. 2B and D). The majority of these antigen-specific memory B cells could be classified into IgG+ or IgM+ B cells, while a minor population of them was IgA+ B cells (Fig. 2E and F).
The capability of these Spike- or RBD-specific memory B cells in secreting antibodies upon the antigen stimulation was further confirmed by B cell ELISpot. The third dose boosted spike- or RBD-responsive, IgG-secreting B cells from 8 u.f.c/106 PBMCs to 17 u.f.c/106 PBMCs or 4 u.f.c/106 PBMCs to 10.7 u.f.c/106 PBMCs respectively (Fig. 2G-I). These results demonstrated that the primary 2-dose vaccination regimen had equipped vaccinees with long-lasting memory B cells which could be immediately recalled and further expanded by a third dose of the inactivated vaccine.
The cellular immune response is boosted by a third dose of inactivated SARS-CoV-2 vaccine

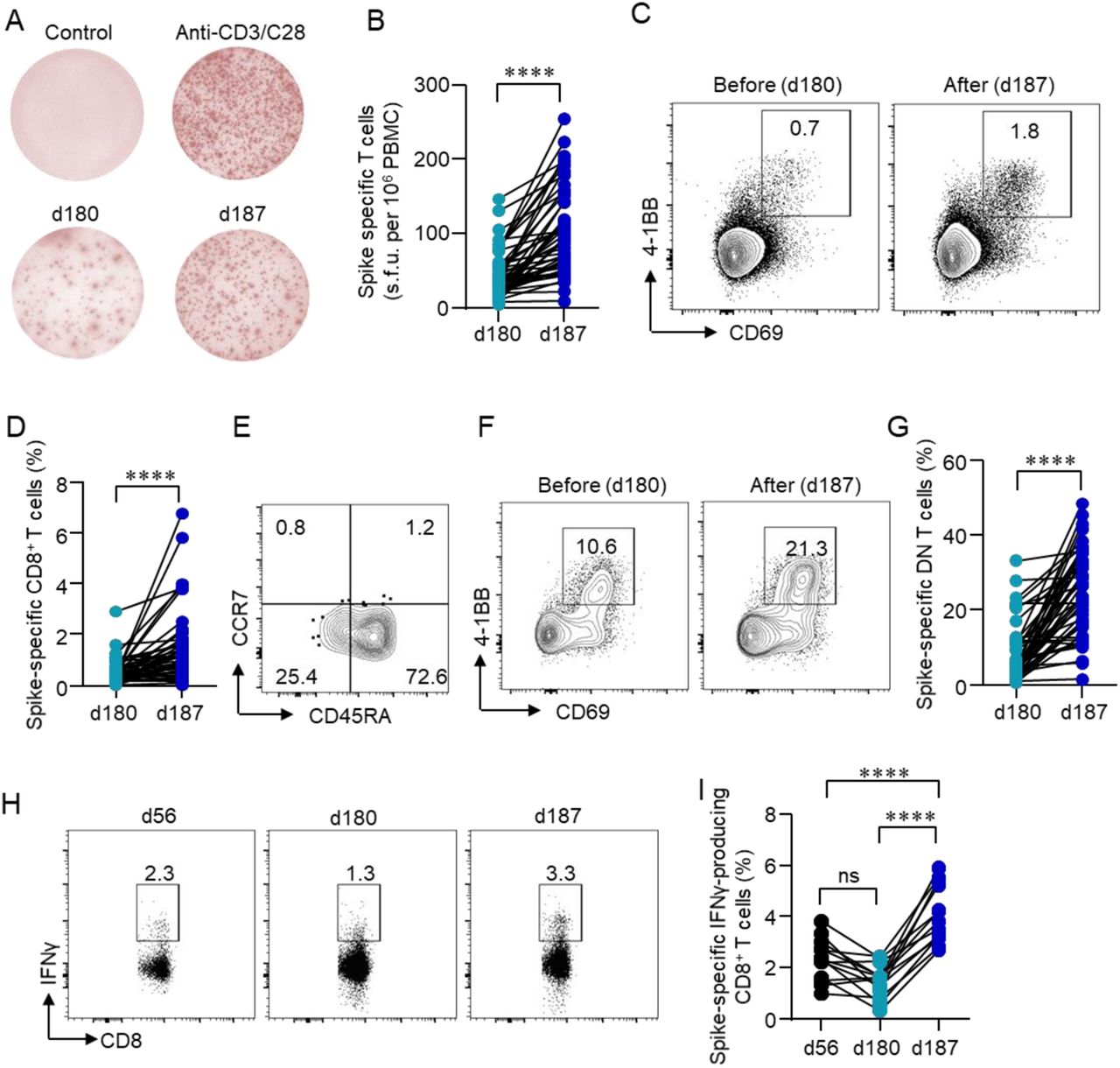

Besides humoral immune responses, the cellular arm of immunity confers another layer of protection, which may particularly crucial when B cell epitopes mutate rapidly and continuously. Therefore, antigen-specific T cells induced by the primary vaccination regimen and the third dose booster were next investigated. Blood samples collected on d180 and d187 were stimulated by the spike peptide pool and IFNγ-secreting cells were quantified by ELISpot. Surprisingly, antigen-responsive IFNγ-secreting T cells were readily detected in all vaccinees even 5 months after the second dose, though a lower amount was found in some participants (Fig. 3A and B). As IgG-secreting B cells, IFNγ-secreting T cell responses were also enhanced by 2.3 folds after the third dose (Fig. 3A and B).
Next, SARS-CoV-2-specific CD8+ were identified by AIM T cell assay, based on the previous observation that antigen-specific CD8+ T cells could be identified by CD69+4-1BB+ after the peptide pool stimulation26. In line with ELISpot, CD8+CD69+4-1BB+ T cells were seen on d180, and further elevated by 2.7 folds following a booster shot (Fig. 3C and D). Subsequent analysis on phenotypic markers revealed that the majority of the SARS-CoV-2-specific CD8+ T cells were CD45RA+CCR7− terminally differentiated effector memory cells (TEMRA), whereas CD45RA−CCR7− effector memory T cells (TEM) accounted for only one-fourth of the total antigen-specific CD8+ T cells (Fig. 3E), similar to that from recovered COVID-19 patients26. The subsets of total CD8+ T cells were not affected (Supplementary Fig. 4 and Fig. 5). The presence of antigen-specific CD8+ T cells was further confirmed by conventional intracellular cytokine staining (ICS) assay, in which PBMCs were stimulated with spike peptide pool and IFNγ expression in CD8+ T cells was measured by flow cytometry. CD8+ IFNγ+ T cells were detected on d56, and decreased over time till the third vaccination, which elevated IFNγ-expressing CD8+ T cells to a greater extent when compared to that on d56 (Fig. 3H and I).

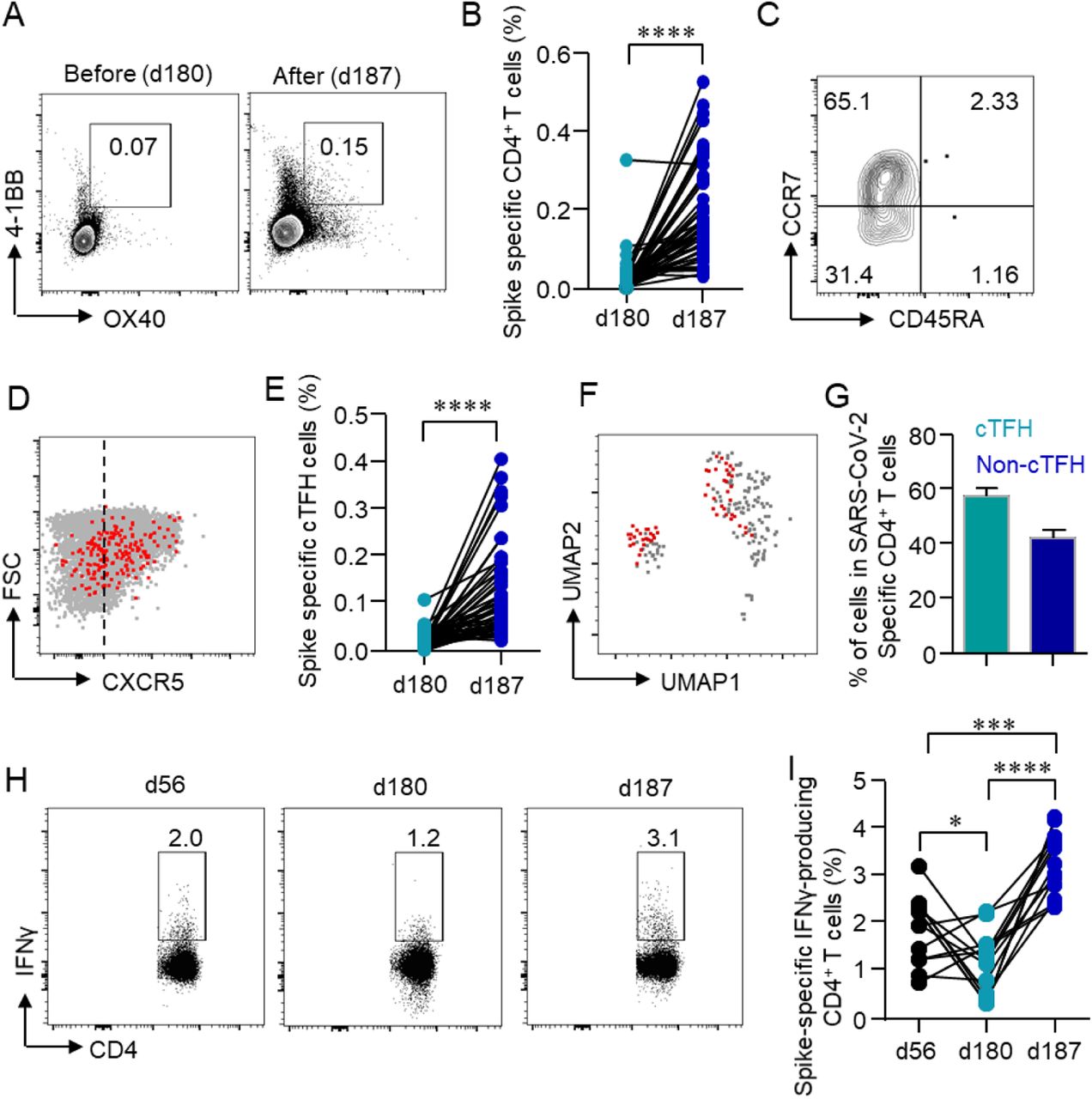

SARS-CoV-2-specific CD4+ T cells were identified by activation markers OX40 and 4-1BB after the peptide stimulation26. CD4+OX40+4-1BB+ T cells were detected at a low level on d180. The third dose induced the expansion of these CD4+ T cells by 5.9 folds within 1 week (Fig. 4A and B). Phenotypic analysis showed that the majority of the SARS-CoV-2-specific CD4+ T cells were CD45RA−CCR7+ TCM and CD45RA−CCR7− TEM, different from that of SARS-CoV-2-specific CD8+ T cells (Fig. 4C). Among SARS-CoV-2-specific CD4+ T cells, 57.7% of the cells were CXCR5+ cTFH cells (Fig. 4D-G). Among total CD4+ T cells, we observed the slightly decreased TN cells, with increased TEM and TCM cells in the peripheral blood (Supplementary Fig. 4 and Fig. 5). Again, SARS-CoV-2-specific CD4+ T cells were confirmed by ICS assay. CD4+ IFNγ+ T cells showed a similar trend as that of CD8+ IFNγ+ T cells. As expected, the drop of antigen-specific CD4+ T cells was reversed by the third dose (Fig. 4H and I).
Besides CD4+ and CD8+ T cells, we also found a unique population, SARS-CoV-2-specific CD3+CD4−CD8− T cells persisted 5 months after the second immunization with inactivated vaccines, which were further elevated by the third vaccination (Fig. 3F and G).

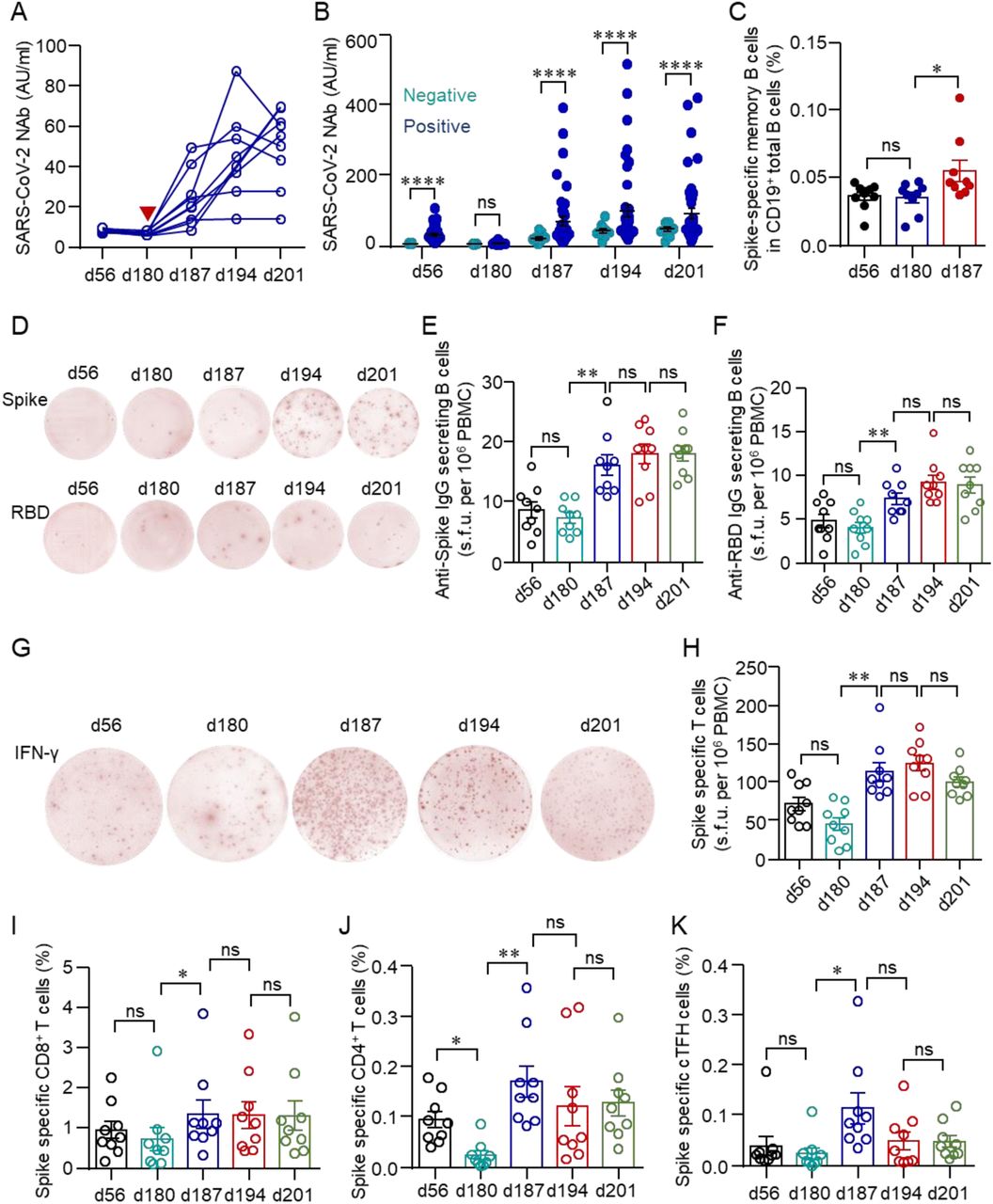

A third dose of inactivated SARS-CoV-2 vaccine boosts immune responses in individuals with negative serologic responses to 2 doses
The weakened or negative serological response has been noted in a small group of vaccinees who had no known immunodeficiency disease or were not in an immune-compromised condition. It is unclear that whether these people are true “non-responders”, and whether a third dose is necessary and beneficial as in immune-compromised patients33, 34. In this study, we found NAbs were below the threshold in 9 participants after the primary 2-dose regimen. Of note, these participants have no known immunodeficiency disease or are not in an immune-compromised condition. The level of NAbs in all of the 9 participants increased rapidly within 1 week and reach the peak 2 weeks after the booster shot (Fig. 5A), though NAbs levels in these 9 participants were still significantly lower than others who were seropositive after the second dose (Fig. 5B).
The rapid recall of humoral responses indicated that the immune memory had been successfully established in these seronegative people after the second dose and persisted for at least 5 months. As expected, SARS-CoV-2-specific memory B cells were indeed detected by labeling antigen-binding BCR in these individuals on d56 and d180. The percentage of SARS-CoV-2-specific memory B cells was quite stable over time between d56 and d180, and increased significantly after the third dose (Fig. 5C). ELISpot was next enrolled to identify functional memory B and T cells. Although no NAbs were detected at any time point before the third dose, spike- or RBD-specific IgG-secreting memory B cells were able to be detected by ELISpot on d56 and maintained at a similar level till d180. The number increased within 1 week after the third dose and persisted thereafter (Fig. 5D and F).
Spike-specific T cells were also able to be detected on d56 and d180 as measured by ELISpot, albeit with a downward trend (Fig. 5G and H). As expected, the third dose was capable of enhancing T cell responses in this population (Fig. 5H). The enhancement on SARS-CoV-2-specific CD4+ and CD8+ T cells by the third dose was further confirmed by measuring AIM+ T cells (OX40+4-1BB+ for CD4+ T cells and CD69+4-1BB+ for CD8+ T cells) by flow cytometry. Both spike-specific CD4+ T cells and CD8+ T cells were successfully expanded (Fig. 5I and J). We also observed the expansion of SARS-CoV-2-specific cTFH cells in these participants (Fig. 5K). Taken together, these results suggested that these participants were not true “no responders”, immune memory had been established but repeated antigen stimulations were needed.
Discussion
In this study, we investigated the duration of B cell and T cell immunity following the primary 2-dose vaccination regimen of the inactivated SARS-CoV-2 vaccine BBIBP-CorV and the potential benefit of a third dose in a non-randomized trial. Data in this study showed that neutralizing antibodies gradually decreased after the second dose during a 5-month observation. SARS-CoV-2-specific B cells and T cells were detected and persisted in the peripheral blood 5 months after the second vaccination. Both humoral and cellular responses were rapidly and robustly elevated by a third dose of inactivated SARS-CoV-2 vaccine. The induction of both SARS-CoV-2-specific memory B cells and T cells by the inactivated vaccine supports durable protection, as has been shown in mRNA vaccines and other settings35, 36. Another key observation in this study was the successful induction of antigen-specific memory B cell and T cell response in HCWs with low serological response to 2 doses of inactivation vaccines.
The NAb titers have been noted to decay following vaccination or SARS-CoV-2 infection37–39. However, HCWs who have recovered from COVID-19 show a substantially lower risk of reinfection with SARS-CoV-240. The number of RBD-specific memory B cells remained relatively stable between 6 and 12 months after SARS-CoV-2 infection and BCR repertoire expanded markedly in these recovered patients after receiving an mRNA vaccine41. Consistently, we found that spike- and RBD-specific memory B cells could still be detected in all COVID-19 convalescent patients up to 13 months after infection (Supplementary Fig. 6). SARS-CoV-2 mRNA vaccines were also capable of inducing sustained immune memory and long-term protecting effects35, 42, 43. Our study, together with these aforementioned studies, suggests that SARS-CoV-2-specific memory B cells may sustain longer than plasma cells. Prediction of vaccine efficacy should not solely rely on NAbs titers. Rather, memory B cells should be taken into account whenever it is possible.
Recently, a third dose of inactivated vaccine CoronaVac elicited a rapid and long-lasting recall antibody response with the capability of neutralizing several VOCs44. The rapid and strong secondary response by the inactivated vaccine represents a characteristic secondary immune response, which demonstrates the establishment of long-term immune memory within these participants. Our data confirm that SARS-CoV-2-specific memory B cells persisted 6 months later the primary vaccination and expanded substantially by a third dose of vaccine. The secondary immune response is one of the most important features of immune memory stimulated by vaccination, which is characterized by a faster and stronger immune response by memory B cells or plasma cells45. Despite the waning of antibodies, the generation of SARS-CoV-2-specific memory B cells could mediate recall response in future infection and provide protective immunity. As has been observed in recovered COVID-19 patients, long-lived bone marrow spike-binding plasma cells are quiescent27, which explains the declining antibodies over time. Nonetheless, further investigation should be conducted on how waning immunity could affect protection against COVID-19.
Our data revealed that long-lasting memory B cells formed a basis for an enormous lift of serum NAbs after the third dose, not only against WT SARS-CoV-2 but also against B.1.617.2 Delta variant. As shown in Supplementary Fig.1, the inactivated vaccine induced a broad spectrum of antibody responses to multiple structural proteins of the virus. Whether the lifted cross-reactive NAbs still targeted to RBD, or other domains of S protein, or even other proteins were involved, is an interesting question meriting further study.
Our study showed that SARS-CoV-2-specific CD4+ and CD8+ T cells in convalescent COVID-19 patients could persist up to 13 months (Supplementary Fig. 7). SARS-CoV-2-specific CD4+ and CD8+ T cells induced by BBIBP-CorV were detected in all the HCWs who received 2 doses of vaccine and last for at least 5 months. In line with previous data from an mRNA vaccine20, SARS-CoV-2-specific CD4+ T cells induced by inactivated vaccine mainly fall into central and effector memory subsets, while the majority of SARS-CoV-2-specific CD8+ T cells were TEMRA cells. Because of the high CCR7 expression, the central memory T cells reside in the secondary lymphoid organs and readily expand upon infection or booster vaccination. Effector memory T cells circulate in between blood and peripheral tissues, providing prompt immune response at the early time point of infection46, 47. For the emergence of VOCs of SARS-CoV-2, there is growing concern over vaccine efficacy. In addition, T cells from COVID-19 convalescents and in recipients of mRNA vaccine could recognize epitopes throughout the SARS-CoV-2 spike protein and the total reactivity against SARS-CoV-2 variants of B.1.1.7, B.1.351, P.1, and CAL.20C lineages were mostly maintained in terms of magnitude and frequency of response48. SARS-CoV-2-specific T cells from convalescent COVID-19 patients or vaccinated individuals targeted the conserved epitopes between prototype and VOCs49, 50. Thus, SARS-CoV-2-specific T cells are less likely to be affected by antibody escapes mutations in VOCs. Moreover, the inactivated virus vaccine comprises all viral structural proteins. This means more epitopes, especially those conserved epitopes in proteins other than spike are engaged as compared to mRNA or recombinant protein vaccines involving only RBD or spike. Ideally, a potent adjuvant rather than aluminum salts should be used to fully realize this advantage.
Another interesting finding of this study was the induction of SARS-CoV-2-specific cTFH cells by the inactivated vaccine. Our previous study has demonstrated the mobilization of cTFH cells after the first dose of inactivated vaccination11. For the relatively late development of humoral response by the inactivated vaccines, early response of cTFH cells could contribute to the early protection of vaccination when antibody level was still low3, 51. cTFH cells have been associated with humoral response in COVID-19 patients or vaccination individuals20, 23. Data in this study further confirmed that the induction of cTFH cells by the inactivated vaccine correlated with humoral response closely.
A third dose of the SARS-CoV-2 vaccine may be particularly in need for the immunocompromised population. Low seroconversion rates to mRNA vaccination have been reported in solid transplant recipients52. The applications of immune suppressants or B cell-targeted therapies could also hamper serological response to vaccination53, 54. Recently, data show that antibody response was enhanced in kidney transplant recipients with minimal serologic response to 2 doses by a third dose of mRNA vaccine33. In this study, we found that a group of healthy individuals was not mounted with detectable NAbs by two doses of vaccination. However, memory B and T cells could be detected 5 months after the second immunization. The third dose of inactivated vaccine could induce an elevated level of NAbs and an extensive expansion of memory cells within 1 week, suggesting that the memory response could also be effectively recalled upon SARS CoV-2 infection. Therefore, these individuals were not true “non-responders” but already equipped with immune memory which may at least confer protection against severe diseases. Nevertheless, it should be noted that further studies are needed to confirm the relevance between these memory responses and protection. Moreover, a third dose is necessary to further secure the protection.
In conclusion, our study revealed sustained memory B and T cell responses after a standard 2-dose vaccination regimen of inactivated vaccines. Immune responses against SARS-CoV-2 were readily recalled and further elevated by a third dose of the inactivated vaccine, which is especially beneficial for individuals facing high exposure risks, such as HCWs, and has been demonstrated to be safe and effective in our study and others33, 55.
Supporting information
Data Availability
All data were included in the current form of manuscript.
Acknowledgment
We thank Prof. Lu Lu at Fudan University for his kind help in pseudovirus assays. The work is supported by The Talent Program of the First Affiliated Hospital, Sun Yat-sen University (Y70311) and The Hundred Talent Program of Sun Yat-sen Univetsity (Y61229).
Conflict interests
The authors have no conflicts of interest to disclose.
