Data integration between clinical research and patient care: a framework for context-depending data sharing and in silico predictions
1Institute for Medical Informatics and Biometry, Faculty of Medicine Carl Gustav Carus, Technische Universität Dresden, Dresden, Germany
2National Center for Tumor Diseases (NCT), Partner Site Dresden, Dresden, Germany
*Corresponding author E-mail: katja.hoffmann@tu-dresden.de (KH)Abstract
Usually, it takes quite some time until new insights from basic or clinical research are ultimately transferred into clinical routine. On the other hand, there are still many hurdles to directly provide and use routine data in the context of basic and clinical research. Specifically, no coherent software solution is available that allows a convenient and immediate bidirectional transfer of data between concrete treatment contexts and research settings.
Here, we present a generic framework that integrates health data (e.g., clinical, molecular) and computational analytics (e.g., model predictions, statistical evaluations, visualizations) into a clinical software solution which simultaneously supports both patient-specific healthcare decisions and research efforts, while also adhering to the requirements for data protection and data quality. Specifically, we emerge from a recently established generic data management concept, for which we designed and implemented a web-based software framework that integrates data analysis, visualization as well as computer simulation and model prediction with audit trail functionality and a regulation-compliant pseudonymization service. Within the front-end application, we established two tailored views: a clinical (i.e., treatment context) perspective focusing on patient-specific data visualization, analysis and outcome prediction, and a research perspective focusing on the exploration of aggregated, but pseudonymized data.
We illustrate the application of our generic framework by two use-cases from the field of haematology/oncology. Our implementation demonstrates the feasibility of an integrated generation and backward propagation of data analysis results and model predictions at an individual patient level into clinical decision-making processes.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
This research was funded by the German Federal Ministry of Education and Research (https://www.bmbf.de/en) in the framework of the ERA-Net ERACoSysMed JTC-2 project “prediCt” (Grant number 031L0136A) to IR. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Introduction
Mathematical models and computational algorithms have already proven useful in analysing data, explaining functional relationships of (patho-)physiological mechanisms, and guiding clinical research. Along this line, also computational applications (“apps”) are increasingly used to support clinical decision-making (1-3). Prominent examples are risk scores, which provide patient-specific risk estimates by integrating relevant clinical parameters based on mathematical/statistical models (4-6). Furthermore, mathematical models and computer simulations for disease progression and treatment response have been developed for several diseases (7-14). As these models are intrinsically based on clinical data, there is an increasing need to provide such data in a structured and secure way. To fully realize the translational potential of both, models and data, it is necessary to establish interfaces that allow the integration of clinical data and corresponding model predictions and provide them in a hospital setting.
In our previous work (15) we focused on how patient-specific model predictions can be provided to clinicians within a particular clinical information system (CIS), while we have not considered the full life cycle of clinical and simulation data. However, due to privacy and security aspects, we need to ask how health data from multiple decentralized data sources can be consistently integrated and made available for computer simulations and analytics in general and how analytic and simulation results, e.g., generated to predict an individual patient’s future behaviour, can be transferred back to the routine clinical practice. Currently, we are missing technically applicable concepts to integrate the results of data analyses as well as computer simulations and mathematical model predictions in a hospital setting to support decision-making at an individual patient level. Therefore, we here describe a generic concept of integrating data analysis as well as computer simulation results and mathematical model predictions for scientific research and to support decision-making at an individual patient level in a common hospital setting. The described implementation goes beyond our previously published framework (15), specifically in terms of centralised and privacy-compliant management of patient-identifying and medical data and thus for simultaneous use in clinical and research settings.
Based on the conceptional works on data integration in scientific research (16), we investigated how quality-control, data protection, and ethical requirements can be guaranteed when integrating medical data in the research and clinical context in parallel. We took advantage of the fact that hospitals implement data management concepts for the efficient and legally compliant provision and use of health data with permanent traceability of all data sources with a clear origin, time stamp and authorship. For this purpose, many hospitals are establishing Research Data Management Systems for data pre-processing, storage and provision, sometimes coupled with an Independent Trusted Third Parties (TTP) to centrally regulate personal identifying data and to manage consents, revocations, and pseudonym assignments. Fig 1 shows an example of a generic configuration of data management components from the primary data sources to the applications in patient-oriented research.

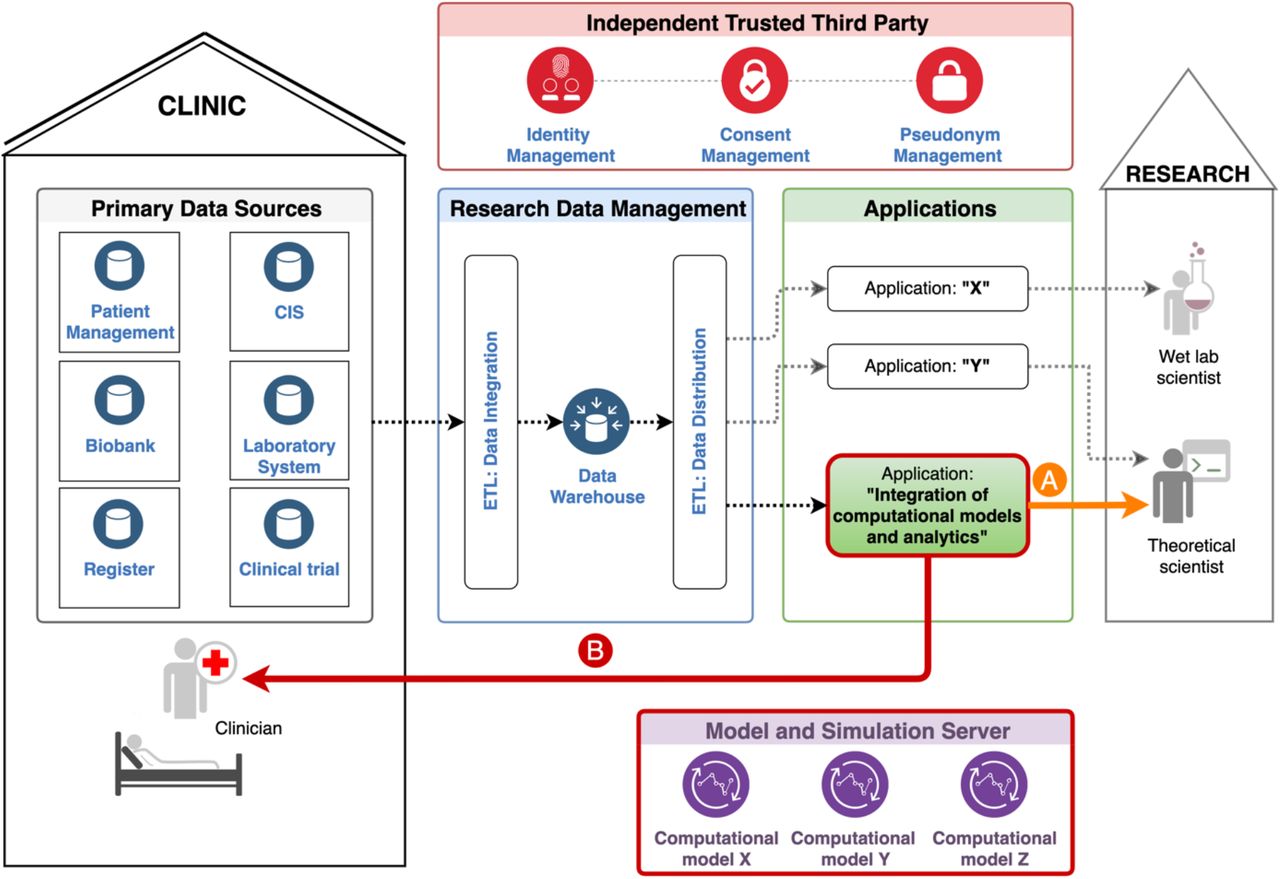

Such a typical configuration comprises the selective extraction of heterogeneous patient data, which are stored in various primary data sources, the transformation into a unique target structure, and the loading into a Data Warehouse (cf. Fig 1 “ETL: Data Integration”). This procedure is often denoted as ETL (Extract-Transform-Load) process. The TTP verifies the existence of informed consent for the usage of the required data and provides application-specific pseudonyms. This ensures that the pseudonymized medical data do not allow any conclusions about a patient’s identity. Eventually, data transfer points (cf. Fig 1 “ETL: Data Distribution”) provide the pseudonymized medical data requested for specific applications, which can be used by authorized researchers (e. g. clinical scientist, data analyst, modeler).
In contrast to other tools and workflows that have been already developed to provide health data for research (e.g. (17), (18)), the main focus of our approach is on the backward propagation of research findings and data analysis results into the clinical process, illustrated as the “B” arm in Fig 1. Specifically, we investigated how patient-specific predictions based on mathematical models and corresponding computer simulations can be integrated directly into the clinical workflows to support actual clinical decision-making for treatment optimizations.
Our work emerges from a previously established demonstrator software (15) that integrates time course data of residual disease levels for CML patients to provide estimates of their future behaviour. While the focus on CML is a particular example application, the demonstrator itself is flexible to integrate other types of data and underlying models. The application is primarily intended to be used by clinicians as a clinical decision support tool, complementary to existing primary data sources to optimize treatment strategies on a patient-specific level (see Fig 1B). In addition, it can also be used by researchers in the context of scientific projects (see Fig 1A). For both use cases, the software application has to fulfil the following criteria:
- Collection, processing, and provision of quality-assured pseudonymized data compliant with Data Protection Laws.
- Provision of mathematical model predictions and data analyses.
- Permanent traceability of all data and computational results with a unique origin, time stamp, and authorship (i.e., audit trail functionality).
- Interactive visualization of medical data and simulation results.
- Assignment of individual clinical data and model predictions and/or analyses to individual patients in clinical practice (reidentification of pseudonymized data).
- User and access control by role-based right management.
In the following, we describe our generic software framework (see Fig 2) that ensures all the specified requirements. We illustrate how algorithmic results (e.g., model predictions, analytic results) can be made available to researchers and clinicians directly in their working environment in an accurate, privacy compliant and transparent way. Finally, we present a newly developed web application (cf. the resulting demonstrator) to exemplify the generic software framework for a particular clinical application from the field of haematology/CML.
Results
Generic overall design and data flows

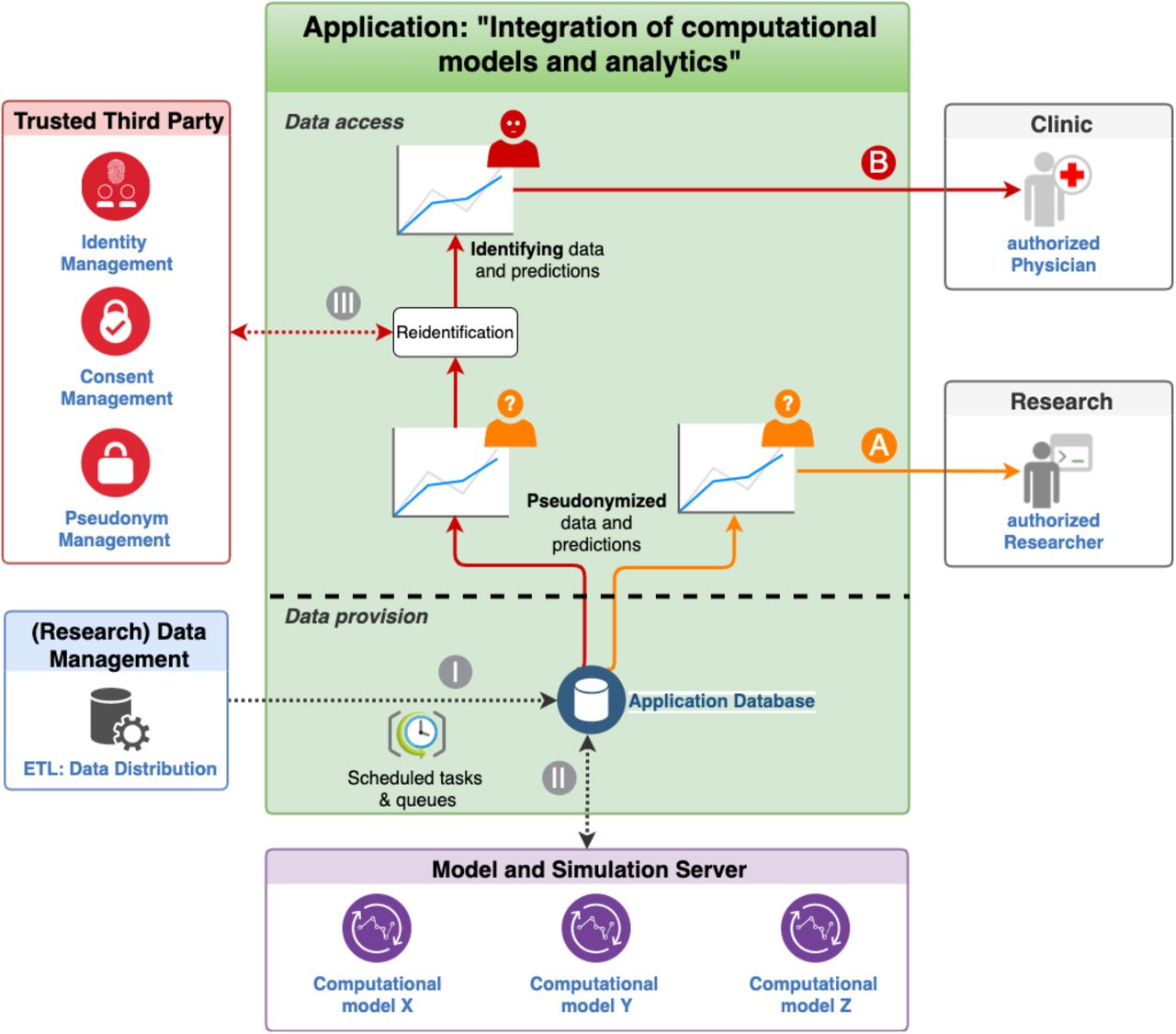

Based on the generic concept of data management in patient-oriented research (c.f. Fig 1), we developed a software framework that demonstrates how mathematical model predictions, and - in a broader context - any algorithmic/computational procedure can be integrated into clinical practice to support decision-making. Most importantly, our solution strictly complies with standards for data security and pseudonymization and allows audit trail compatible reconstruction of all of the provided analysis results/predictions (i.e., full transparency). To demonstrate the functionality of the software framework, we use the newly developed web application (the resulting demonstrator) as a particular computational application. It is complemented by a model and simulation server, a TTP/pseudonymization server, and an interface to the (Research) Data Management of the hospital. Fig 2 shows the overall design of the framework and illustrates the processes of data provision and access, that are described below.
Medical data, as input for data analysis and the calculation of model predictions, are provided by a (Research) Data Management (cf. Figs 1 and 2I). This can be any database or data warehouse storing medical data from (various) primary data sources, or also the primary data source itself (cf. Fig 1). Only a suitable data distribution has to be established. Here, the (Research) Data Management transfers exclusively pseudonymized data. No patient-identifying data is stored in the Application Database. After the provision of new or updated medical data, new computer simulations are scheduled periodically or event-driven. The results are provided by the Model and Simulation Server and transferred to the Application Database (Fig 2II). In this way, we ensure that the Application Database contains up-to-date simulation results/model predictions based on the most recent pseudonymized medical data.
The data access is regulated by a role-based Access and Rights Management to establish different views on the data, e.g., trial-specific roles or department-specific roles. Members of the trial-specific roles can survey a whole spectrum of pseudonymized patients from one or more specific clinical trials, potentially involving different sites (see section Research view). Members of the department-specific role (e.g., haematology) have permission to access to the full data set of his/her patients treated in the particular center (see section Clinic view). In the treatment context, the reidentification of pseudonymized medical and simulation data is performed by the TTP (Fig 2III).
The resulting demonstrator
To demonstrate the generic software framework (cf. Generic overall design and data flows), we:
- integrated a specific implementation of a model and simulation server (termed MAGPIE (19)) to manage and execute computational models.
- equipped MAGPIE with two mathematical models from the field of haematology (chronic myeloid leukemia, CML).
- integrated the MOSAIC TTP server for identity, consent and pseudonym management.
- added fictitious patients to the identity management module (E-PIX) of the MOSAIC TTP server for illustration purposes.
- equipped the consent management module (gICS) of the MOSAIC TTP server with informed consents for various CML trials (Research view) and the data usage within the haematological treatment context (Clinic view).
- generated pseudonyms for each informed consent form using the pseudonym management module (gPAS) of the MOSAIC TTP server.
- designed ETL processes for transferring the medical data into the “Application database” that are needed for the specific analyses and model predictions.
- implemented a role-based user and access management and established roles for the “Clinic view” and “Research view” presentation.
The resulting demonstrator is available at https://tu-dresden.de/med/demoserver. A detailed description of the demo server can be found in the following sections and the demo server walkthrough video (S1 File).
Access control
The demonstrator offers a role-based user and access management and can be adjusted to reflect department-specific roles (e.g., to be accessible for the Haematology Department) and trial-specific roles (to be limited to units involved in a given clinical trial e.g., the “Demonstrator CML Test Trial”). Each role corresponds to a consent implemented in the gICS module of the MOSAIC TTP server. This ensures that only data from patients who gave their written consent to the respective use are finally provided. Depending on the specific role, the user interface menu provides access to patient-specific data within a treatment context (here within the haematological treatment context; see section Clinic view) and/or to pseudonymized data of particular trials (see section Research view). For testing purposes, the resulting demonstrator provides guest accounts with the ability to switch between the department specific and the trial-specific roles.
Clinic view
Depending on the user role and the corresponding consent of the gICS module of the MOSAIC TTP server, the user can search for identifying patient data via a particular search form. For testing and demonstration purposes, the identity management module of the MOSAIC TTP server is equipped with a selection of fictitious patients, inspired by but not identical to patient time courses from the DESTINY trial (NCT01804985, (20)).
Once a particular patient had been identified, the gPAS module of the MOSAIC TTP server provides the pseudonym, which is then used to retrieve the medical data and/or the computer simulation results from the Application Database (re-identification, see Fig 2III).

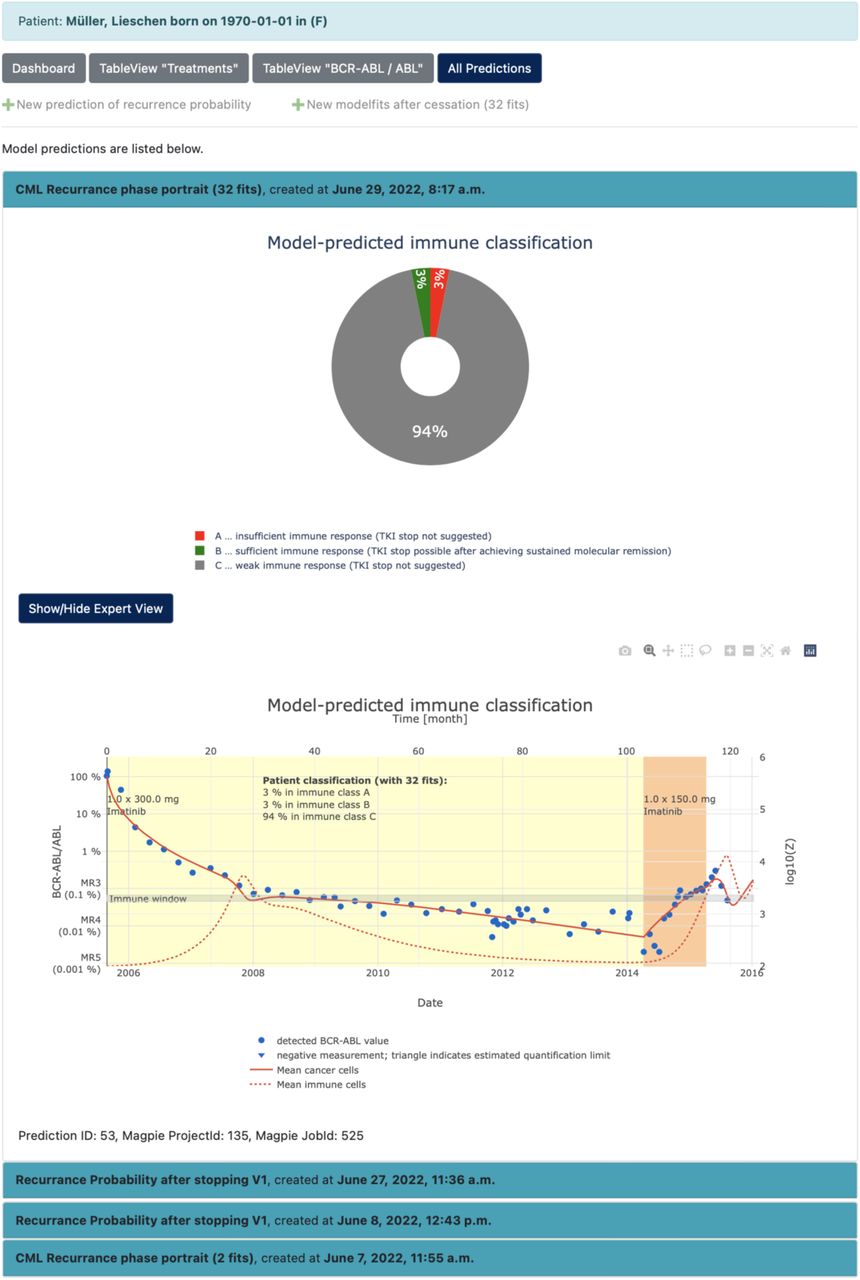

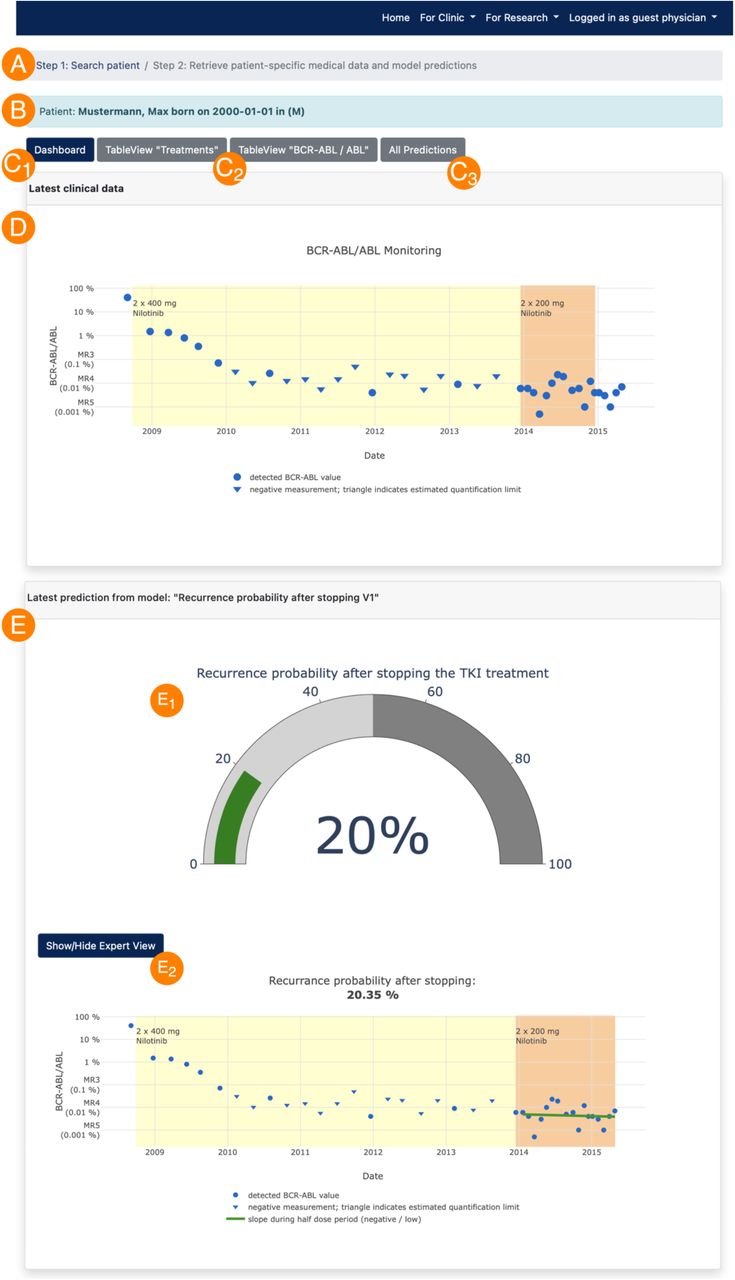

The “Clinic view” (Fig 3) presents the current medical data (D) and the latest model predictions (E) of the requested patient visualized in a dashboard (C1). The prediction of the recurrence probability after stopping the TKI treatment based on the model “Molecular monitoring during dose reduction” (cf. Computational models and analytics of the resulting demonstrator), is presented in a simplified and optionally in an expert view (E1 and E2). The current medical data can be also retrieved and downloaded in form of a table view (Fig 3C2). Finally, the complete history of calculated computer simulation/model prediction can be followed (Figs 3C3 and 4), which allows an audit trail functionality of the computational results. Fig 4 shows a model-predicted immune classification based on the “Estimation of immunological leukaemia control” (cf. Computational models and analytics of the resulting demonstrator). For further details about the computational models see section Materials and Methods and the implementation of the demo server at https://tu-dresden.de/med/demoserver.
Research view

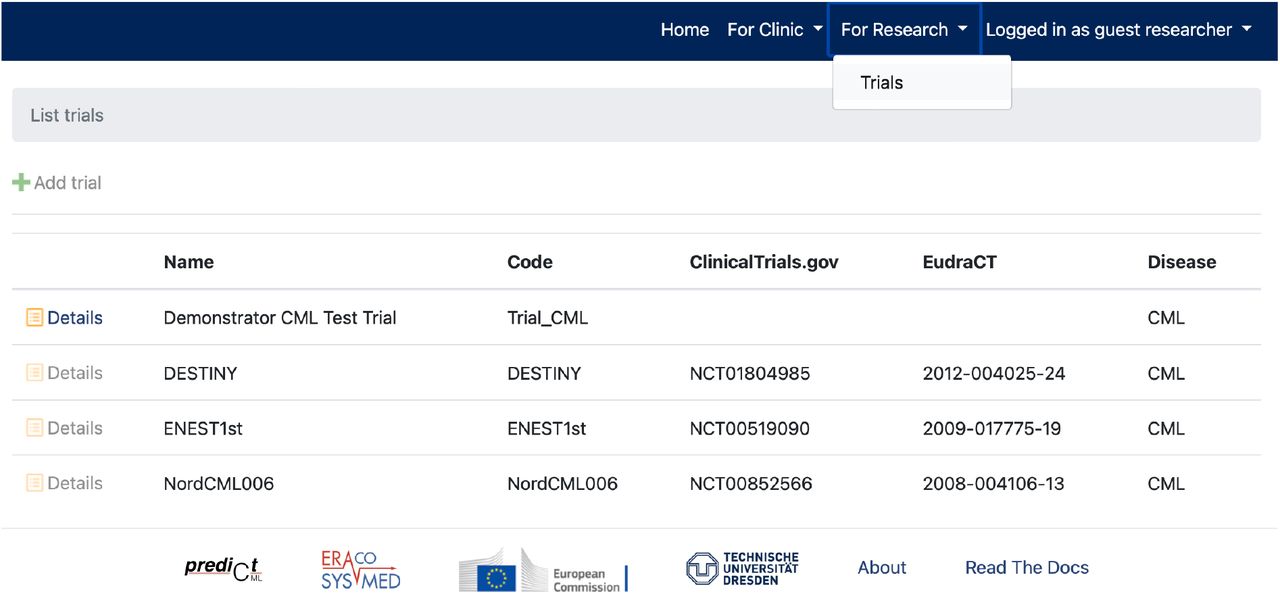

Controlled by the access management, the resulting demonstrator additionally offers the ability to access pseudonymized data (e.g., from clinical trials) and corresponding, aggregated analyses and simulation/model results (see Fig 5). The demo server yields clinical data sets from several trials from the field of haematology, specifically recent CML trails. Depending on the particular permission status, the user can or cannot access the detailed information of a given clinical trial.

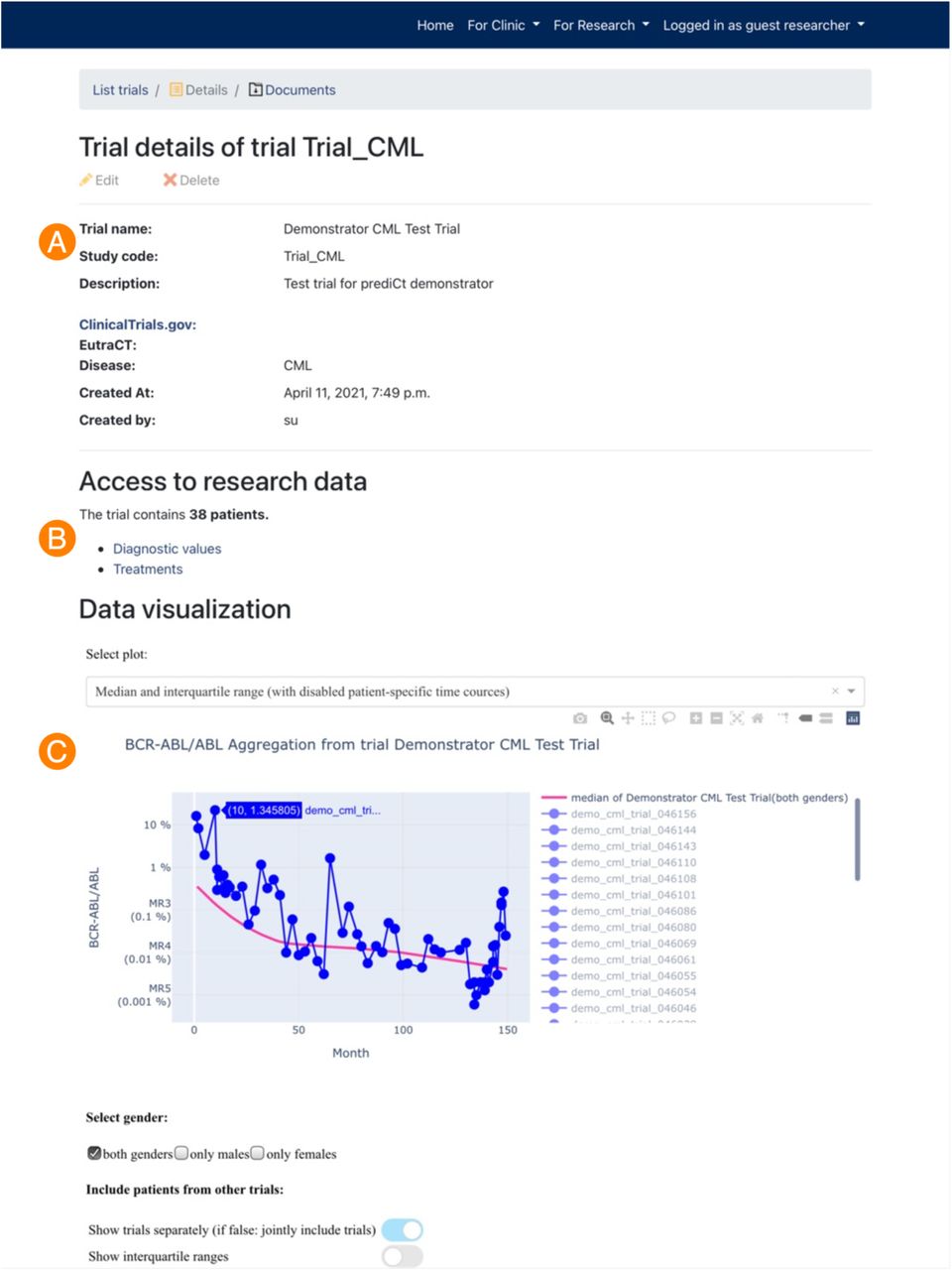

The “Detail View” of a specific clinical trial, here the “Demonstrator CML Test Trial” (see Fig 6), provides general information (A), the ability to access and download the pseudonymized medical data (B) and finally, the summary statistics and graphical illustrations for aggregated data (C). Further information about the analyses is provided in the section Example statistics. We wish to emphasized that the specific data analytics serve as an example to demonstrate the general ability of the framework, which can be flexibly extended or adapted to other further/different computational analytics and graphical representations according to the needs of the physician and/or researcher.
Materials and Methods
Software environment of the demonstrator
We used the high-level Python Web framework Django (21, 22) to build the frontend web application. Django provides robust security features, a user authentication system, and a fully featured admin interface.
The computer simulations (e.g., model predictions) are generated using an instance of the model and simulation server MAGPIE, which is a software framework, designed for publishing and executing computational models. MAGPIE also offers a full reproducibility of the calculated model predictions (i.e., audit trail functionality). For parameterization and execution of computational models and simulations, the “MAGPIE-API-R” package (19) is used. For a detailed description of the MAGPIE framework and implementation, we refer to Baldow et al. 2017 (23).
The Python framework Plotly/Dash (24) is used to build the interactive visualizations of medical and simulation results, which are seamlessly embedded in the frontend application.
For identity, consent, and pseudonym management, which are accomplished by the TTP, the MOSAIC Toolbox (25), consisting of E-PIX (Identity Management Module), gICS (Consent Management Module), gPAS (Pseudonym Management Module) and the TTP dispatcher (TTP Workflow Manager Module) developed within the MOSAIC project (26) are used. The reidentification of pseudonymized data is performed by accessing the TTP Dispatcher (18) using the representational state transfer protocol (REST).
The demonstrator is based on an Apache HTTP Server (27) and uses PostgreSQL (28) as a database backend.
Computational models and analytics of the demonstrator
In the described demonstrator, two mathematical models for predictions on a patient level and a statistical analysis on aggregated data (see below for details) have been implemented for demonstration purposes. The framework itself is not restricted to these two particular models. It allows the deployment of different mathematical models and other algorithms, as long as they are registered in the MAGPIE model database, and feeding generated model predictions into the described workflow. There is no general restriction, neither on the model type nor on the particular implementation/programming language.
Example model 1: Molecular monitoring during dose reduction in CML patients
The DESTINY trial (#NCT01804985) investigated whether a reduction of tyrosine kinase inhibitor (TKI) dose in CML patients prior to treatment stop can lead to better treatment-free remission rates compared to full dose treatment (29). Based on a reanalysis of these molecular response data, we showed that an increasing BCR-ABL level during the dose reduction phase is indicative for CML recurrences after TKI stop and can be used to risk-stratify patients prior to treatment cessation (5). Given the individual molecular monitoring data during dose reduction, the statistical model implemented within the resulting demonstrator calculates the local slope parameter of the BCR-ABL dynamics and provides a prediction of the patient-specific recurrence probability (5).
Example model 2: Estimation of immunological leukaemia control
We also developed a mathematical model of CML-immune interaction (30), which can be fitted to available time course data of TKI-treated CML patients and after therapy stop. We showed that qualitatively different dynamic treatment response patterns can be characterized in the context of a mathematical model by different stable steady states, describing the individual immune response (31). The different steady states can be interpreted as “immune classes”. Specifically, we distinguish between an insufficient immune response (class A) for which a TKI stop does not seem to be appropriate, a sufficient immune response for which one can expect leukaemia control after a TKI stop (class B), and a weak immune response (class C) for which the effectiveness of the immune response cannot be clearly predicted. For a given set of data (as provided within the demonstrator framework), this model can be used to infer patient-specific immune parameters and, therefore, to estimate a probability for his/her assignment to the three immune classes. As the estimated immune parameter are correlated with the patients’ recurrence behaviour after treatment cessation, this classification can be used to support the decision-making with respect to TKI stopping.
Example statistics: Estimating median time courses
To evaluate particular patient-specific disease dynamics e.g., in comparison with an overall response pattern (e.g., across different studies), one can aggregate data from patient groups or trials. As an example, we calculate and visualize the median and interquartile ranges of the quantitative molecular measurements at different time intervals during treatment (see (32)). This feature is based on pseudonymized data and can be used also outside the treatment context (research view) for all data that are accessible for the particular user (cf. access control).
Discussion
We have investigated how data analytics, specifically mathematical model predictions and computer simulation results can be integrated into a clinical routine environment to support clinical decision-making at an individual patient level and, simultaneously, support scientific research at the level of pseudonymized data. In particular, we examined how quality-assured and harmonized health data from multiple decentralized clinical data sources can be provided to multiple users (in different contexts) for analyses processing (e.g., modelling/simulation) and how analytic results (e.g., mathematical model predictions) can be returned for direct application in clinical practice, ensuring data protection and ethical requirements.
As a result, a generic software framework (c.f. Fig 2) was designed that allows for seamless integration of computational applications into a common concept of Data Management in hospitals. Specifically, we demonstrate the integration and use of a particular application, denoted as “Integration of computational models and analytics”. The application can also be regarded as a generic “container” of a variety of different computational sub-application/algorithms.
In our particular example, we integrated two mathematical models, which provide different simulation-based predictions for disease and treatment dynamics in individual patients, in the context of TKI-treated CML. Our approach assumes that the data needed for these particular models are available in a (Research) Data Management System. In our specific examples, these are BCR-ABL/ABL time courses as molecular diagnostic data as well as TKI therapy information. We also assume that a pseudonymization service is established to provide and manage the particular patient-identifying data, application-specific consents and pseudonyms.
Our work continuous earlier efforts to demonstrated how mathematical model predictions and analytics can be integrated into a specific clinical information system (CIS) (15). In contrast to these previous studies, we are now presenting a stand-alone Clinical Decision Support System (CDSS) that is intrinsically connected to a (Research) Data Management System (c.f. Fig 1) to retrieve all required medical data. The novel aspect of our current approach lies in the simultaneous provision and usage of health data in both clinical and research contexts (depending on the particular user context). It is not limited to the outlined molecular time course data but can be used for a wide range of health data (e.g., from various CIS, laboratory systems, biobanks) to be integrated for joined analyses, simulations and visualizations. This simultaneous usage is particularly beneficial for clinician scientists in the treatment context since all relevant medical information is available from various primary data sources within a unified and dedicated framework. Our general concept is also flexible in terms of the computational models to be integrated. Future research should therefore investigate what content and requirements are necessary for a user-friendly CDSS within a medical speciality. Furthermore, usability studies can be used to improve the layout and functionalities.
Another important advancement of the presented framework is the integration of an independent Trusted Third Party/pseudonymization service as a core element of the research data management infrastructure. Like others (17, 18, 33), we illustrate how health care data can be used for scientific research compliant with data protection. However, to our knowledge, this is the first example to illustrate that this service can also be used to provide patient-specific findings in a backwards manner to directly support clinical decision-making. As of now we are only aware of two pseudonymisation services (25, 34) while only one of them (the MOSAIC Tools) offers the necessary functionalities within our framework (i.e. identity, consent and pseudonym management). Advantages of other pseudonymization services should be addressed in future research projects.
In summary, this paper illustrates and describes how data analytic results, particularly in silico predictions, can be seamlessly integrated into workflows for simultaneous use in research and clinical care routines. We believe that the presented software framework is an ideal basis for further, even commercial developments and the transfer into clinical practice. While we extensively discussed the joined provision of both data and models in a clinical context, we did not elaborate on how the model predictions can actually be compared with future treatment outcomes. Such comparison is another step that iteratively contributes to the validation and continuous improvement (possibly automated by artificial intelligence) of the models.
Data Availability
Not applicable. Although the shown clinical data is structurally identical to data from clinical trials, we linked different sets of clinical data to artificially created personal data. The created set of artificial patient data are used to illustrate the framework functionality only.
Acknowledgements
Not yet applicable.
Supporting information
S1 File. Walkthrough video of the resulting demonstrator
