Model-driven design and evolution of non-trivial synthetic syntrophic pairs
1Department of Bioengineering, University of California, San Diego, 9500 Gilman Drive, La Jolla, CA 92093, USA
2Novo Nordisk Foundation Center for Biosustainability, Technical University of Denmark, 2800 Lyngby, Denmark
3Bioinformatics and Systems Biology Program, University of California, San Diego, 9500 Gilman Drive, La Jolla, CA 92093, USA
*Corresponding author E-mail: afeist@ucsd.eduAbstract
Synthetic microbial communities are attractive for applied biotechnology and healthcare applications through their ability to efficiently partition complex metabolic functions. By pairing auxotrophic mutants in co-culture, nascent E. coli communities can be established where strain pairs are metabolically coupled. Intuitive synthetic communities have been demonstrated, but the full space of cross-feeding metabolites has yet to be explored. A novel algorithm, OptAux, was constructed to design 66 multi-knockout E. coli auxotrophic strains that require significant metabolite cross-feeding when paired in co-culture. Three OptAux predicted auxotrophic strains were co-cultured with an L-histidine auxotroph and validated via adaptive laboratory evolution (ALE). Time-course sequencing revealed the genetic changes employed by each strain to achieve higher community fitness and provided insights on mechanisms for sharing and adapting to the syntrophic niche. A community model of metabolism and gene expression was utilized to predict the relative community composition and fundamental characteristics of the evolved communities. This work presents a novel computational method to elucidate metabolic changes that empower community formation and thus guide the optimization of co-cultures for a desired application.
Introduction
Microbial communities are capable of accomplishing many intricate biological feats, due to their ability to partition metabolic functions among community members. For this reason, studying their characteristics has far reaching implications. For example, these microbial consortia have the attractive potential to efficiently accomplish complex tasks that a single engineered microbial strain likely could not. Past applications include applying communities to aid in waste decomposition, fuel cell development, and the creation of biosensors [1]. In the field of metabolic engineering, microbial communities have now been engineered that are capable of enhancing product yield or improving process stability by partitioning catalytic functions among community members [2–8]. Beyond biotechnology applications, studying microbial communities also has important health implications. This includes providing a better understanding of the gut microbiome and how it is affected by diet and other factors [9,10]. For example, metabolic cross-feeding in communities has been shown to have a role in modulating the efficacy of antibiotics treatments [11]. Developing new computational and experimental methods to understand the dynamics of microbial community formation and the inherent characteristics of established communities could therefore have far reaching implications.
Previous efforts have been made to construct synthetic communities and study their interactions and new metabolic capabilities. One such study encouraged synthetic symbiosis between E. coli strains by co-culturing an L-isoleucine auxotroph with a L-leucine auxotroph [12,13]. In doing so, it was found that the community was able to grow in glucose minimal media without amino acid supplementation due to amino acid cross-feeding between the mutant pairs. Mee et al. expanded upon this work by studying all possible binary pairs of 14 amino acid auxotrophs and developing methods to predict the results of combining the auxotrophic strains into 3-member, 13-member, and 14-member communities [14]. On a larger scale, Wintermute et al.co-cultured 46 conditionally lethal Keio collection E. coli single knockouts [15]. This effectively demonstrated that synthetic mutualism was possible in strains beyond amino acid auxotrophs [16]. These studies effectively demonstrate that new communities can be established in a relatively short time (<4 days) by pairing auxotrophic strains.
In addition to demonstrating that synthetic communities can be established, nascent auxotrophic communities can be optimized by adaptive laboratory evolution (ALE) [17]. Expanding upon the experimental work done in Mee et al. [14], Zhang et al. performed ALE on one of the co-culture pairs: a L-lysine auxotroph paired with a L-leucine auxotroph [17]. Separate co-cultures evolved to growth rates 3-fold greater than the parent, which was accomplished by forming different auxotroph strain abundances within the community. These results may have implications on both the set of metabolites being cross-fed as well as the magnitude of metabolite secretion/uptake. The increase in the evolved community growth rate is encouraging from a metabolic engineering point of view because it suggests that these binary systems can be optimized via ALE. Presumably, as an effect of an evolution, the rate of secretion/uptake of the cross-fed metabolite must increase as well to achieve higher community growth. Co-culture pairs composed of different microbial species have also been evolved with similar results [18]. Community optimization by ALE, however, has not been performed on co-cultures designed to require higher fluxes of metabolic cross-feeding than the direct biomass requirement of a particular amino acid, and the genetic mechanisms that lead to improved community fitness have not been assessed.
Established computational methods to study microbial communities often make use of genome-scale metabolic models (M-models) [19,20]. Computational models have been created and simulated using multicompartmental flux balance analysis (FBA) [21–23], dynamic flux balance analysis (dFBA) [17,24], dFBA integrated with spatial diffusion of extracellular metabolites (COMETS) [25], and FBA with game theory [26]. Novel algorithms have also been developed to describe community dynamics, such as OptCom [27], which employs a bilevel linear programming problem by maximizing community biomass as well as maximizing the inner biomass objectives of each individual species [28]. Additional ecological models have been formulated to describe community dynamics [29–31]. Despite the advances made by these approaches, the role of efficient proteome allocations in driving community dynamics has not been studied in detail.
Here, we demonstrate that nascent E. coli communities can be constructed from co-cultures of auxotroph mutants requiring high fluxes of metabolic cross-feeding. We first introduce the OptAux algorithm for designing auxotrophic strains that require high amounts of supplemented metabolites in order to grow (Figure 1A). The OptAux solutions provided a catalog of starting strains from which four auxotrophic mutants were selected to co-culture and optimized via adaptive laboratory evolution (Figure 1B). In optimizing the growth of the nascent co-culture communities, significant metabolic rewiring had to occur to allow the strains to cross-feed the high levels of the necessary metabolites. The genetic changes accompanying this rewiring was assessed by analyzing the genetic changes (mutations and observed genome region duplications). This analysis thus enabled predictions of primary metabolite cross-feeding and community composition.
To study the characteristics of designed and optimized communities, a community model of metabolism and expression (ME-model) was constructed [32–34] (Figure 1C). Such a modeling approach was necessary since previous methods of genome-scale community modeling have focused on studying the metabolic flux throughout community members (using M-models) without consideration of the enzymatic cost of proteins and pathways that drive these metabolic processes. As proteome optimization via niche partitioning and cell specialization is a driving factor of community formation in ecological systems [35–38], it is essential to consider proteomic constraints when studying bacterial communities. To this end, community ME-models were successfully utilized to interpret the nascent communities and were used to suggest approaches to optimize the evolved co-cultures and potentially modulate metabolic crossfeeding.
Results
OptAux Development and Simulation

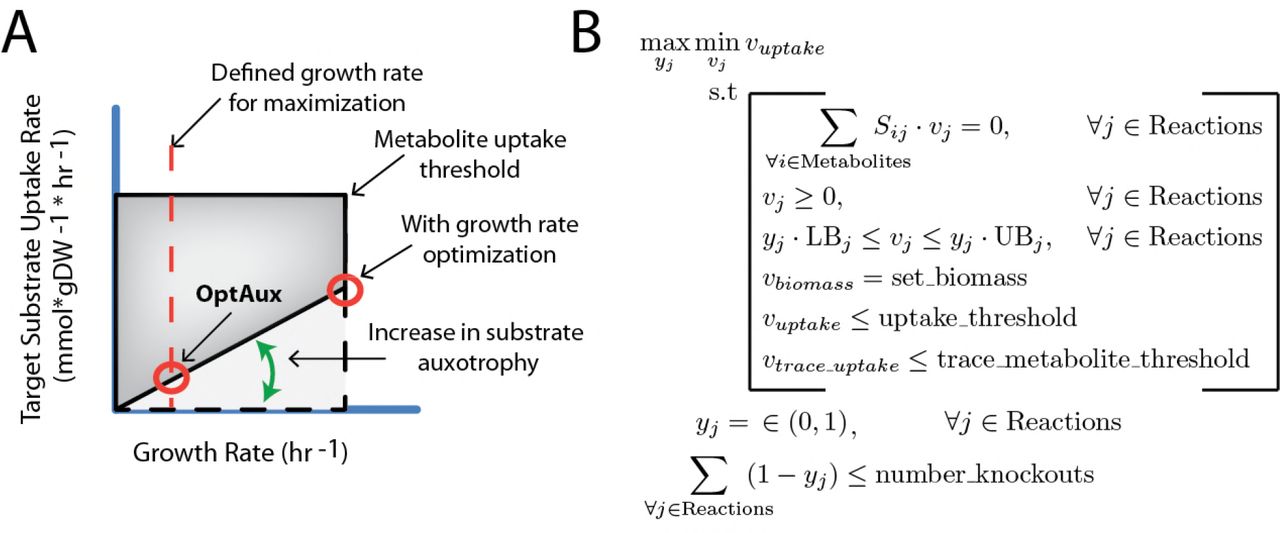

The OptAux algorithm identifies strain designs that are predicted to be auxotrophic for a metabolite of interest. The algorithm was built by modifying an existing concept introduced for the design of metabolite producing strains [39] which was later additionally implemented in a mixed-integer linear programming (MILP) algorithm (RobustKnock [40]). Three key modifications were made to derive OptAux from RobustKnock. First, the inner growth rate optimization was replaced so that OptAux can be run at a predetermined minimum growth rate bound (set_biomass constraint Figure 2B). This ensures that OptAux designs are auxotrophic at all growth rates (Figure 2A). Second, the objective coefficient was reversed in order to allow the algorithm to optimize for metabolite uptake as opposed to secretion. Third, a constraint was added to allow the model to uptake any additional metabolite that can be consumed by the model (trace_metabolite_threshold constraint Figure 2B). For simulations in which this threshold value was set above zero, all possible exchange metabolites included in the model had their lower bound set to the trace_metabolite_threshold value to compete with a target metabolite uptake, allowing the “specificity” of the knockout solution to Be adjusted. Specificity, in this case, refers to whether the mutant strain will be auxotrophic for a given metabolite in the presence of other metabolites. High specificity solutions are auxotrophic for only one metabolite, regardless of whether other metabolites are present. With this implementation, OptAux identified strain designs that require the targeted metabolite at all growth rates with varying metabolite specificity and uptake requirements.
OptAux was utilized on the iJO1366 M-model of E. coli K-12 MG1655 [41] to comprehensively examine auxotrophic strain designs. OptAux was run with 1, 2, and 3 reaction knockouts for 285 metabolite uptake reactions using 4 different trace metabolite thresholds (S1 Data). Of the given solutions, 228 knockout sets were found to be capable of producing 66 unique strain auxotrophies. This set of strain designs presents an expansive look into the auxotrophies possible in the E. coli K-12 MG1655 metabolic network, which could be used to understand the possible niches of E. coli could inhabit in natural or synthetic communities [42].
OptAux Solution Characteristics

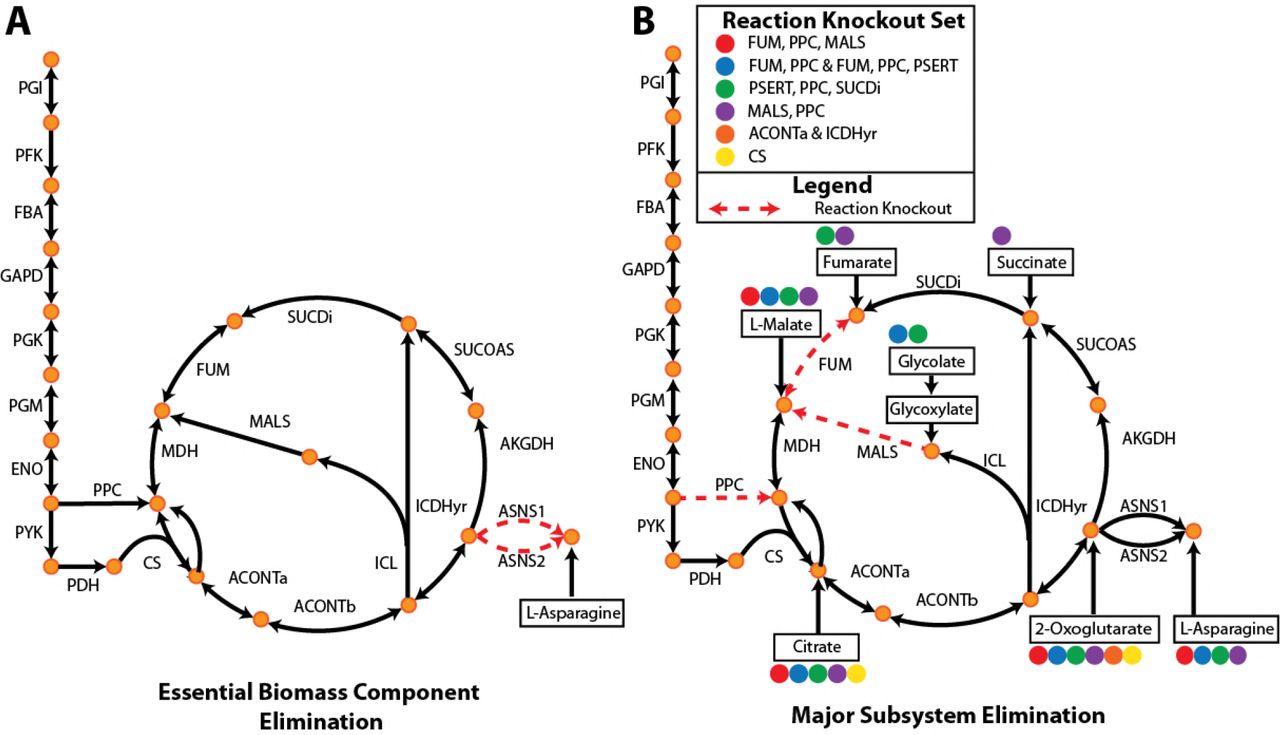

The OptAux strain designs were broken into two major categories based on the number of metabolites which, when supplemented, restore cell growth: 1) Essential Biomass Component Elimination Designs (EBC, Figure 3B) and 2) Major Subsystem Elimination Designs (MSE, Figure 3A). The EBC designs are characterized as auxotrophic strains with high metabolite specificity. They were broken into two subcategories: specific auxotrophs (only one metabolite can restore growth, Figure S2) which consists of 104 (23 unique) knockout sets, and nonspecific auxotrophs (defined as strains in which less than 5 metabolites can restore growth, Figure S2) which consists of 55 (20 unique) knockout sets. The specific and nonspecific EBC designs were preferred at high trace metabolite threshold values. There is significant overlap between OptAux predicted EbC designs, and known E. coli auxotrophic mutants [14,43–54]. A summary of experimentally characterized OptAux designs are presented in Table S1. Of note, there are five designs that were not found to be previously characterized in the scientific literature, and these present novel E. coli auxotrophs.
MSE designs were analyzed as novel auxotrophic strain designs. These were defined as strains in which five or more metabolites could restore growth and consisted of the remaining 69 (23 unique) sets of knockouts. At low trace metabolite thresholds, MSE designs were the preferred OptAux solution. This knockout strategy was often accomplished through knockouts to block metabolic entry points into anabolic subsystems. One such example of an MSE design is given in Figure 3B. Here a three reaction knockout design of the FUM, PPC, and MALS reactions can be rescued by one of the four compounds in the figure (citrate, L-malate, 2-oxoglutarate, or L-asparagine) at an average required uptake flux of 0.4 mmol gDW−1 hr−1 to grow at a rate of 0.1 hr−1. These rates are higher than the fluxes needed to rescue the EbC design in Figure 3A, which requires uptake of 0.024 mmol gDW−1 hr−1 on average to grow at a rate of 0.1 hr−1. Another design was a glutamate synthase (GLUSy) and glutamate dehydrogenase (GLUDy) double knockout which effectively blocks the entry of nitrogen into amino acid biosynthesis by preventing its incorporation into 2-oxoglutarate to produce L-glutamate. This renders the cell unable to produce all amino acids, nucleotides, and several cofactors. In order to grow at a rate of 0.1 hr−1, this strain is computationally predicted to require one of 19 individual metabolites at an average uptake of 0.62 mmol/gDW/hr (Supplemental Data File 2).
MSE designs are of particular interest as they are largely unique, nontrivial, and have often not been studied as E. coli auxotrophies. However, some of the MSE single knockouts have been used for large-scale studies of auxotrophic co-culture short term growth [16]. Since these predicted MSE knockouts disrupt significant biological processes, they produce auxotrophies that require much larger amounts of metabolite supplementation in order to grow, compared to EBC designs (e.g., Figure S3). This makes MSE E. coli mutants attractive from a microbial community perspective because they would require a pronounced rewiring of the metabolic flux of their partner stains in co-culture to secrete the high amount of the auxotrophic metabolite needed for community growth.
Adaptive Laboratory Evolution of Auxotrophic E. coli Co-cultures
To demonstrate how the OptAux algorithm can be leveraged to design strains and co-culture communities, E. coli auxotrophic mutants were validated in the wet lab and evolved in coculture. Three communities were tested, each consisting of pairwise combinations of four OptAux predicted auxotrophs. This included one EBC design, ΔhisD, which was validated as an L-histidine auxotroph, paired with each of three MSE designs, ΔpyrC, ΔgltAΔprpC, and ΔgdhAΔgltB. These three MSE strains had disruptions in pyrimidine synthesis, TCA cycle activity, and nitrogen assimilation into amino acids, respectively (Table S2). The ΔpyrC mutant was computationally predicted to be able to grow when supplemented with one of 20 metabolites in iJO1366, and the ΔgltAΔprpC and ΔgdhAΔgltB mutants were predicted to grow in the presence of 14 and 19 metabolites, respectively (S2 Data, Table S4).

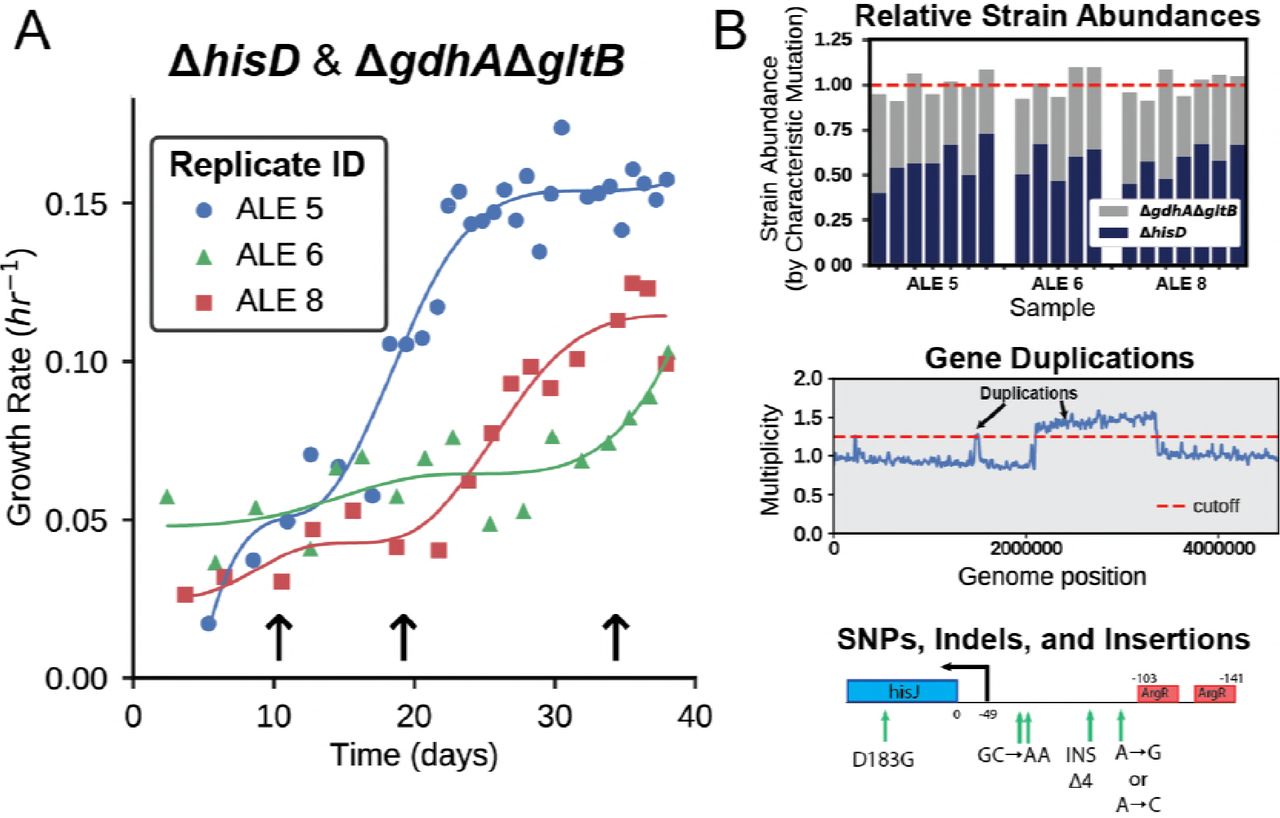

Upon inoculation into the first flask of batch growth, each of the co-culture’s growth rates were low (<0.05 hr−1) suggesting the strains initially showed minimal cooperativity or metabolic crossfeeding (Figure S4). Following approximately 40 days of ALE, all three co-culture combinations had evolved to establish a nascent community, indicated by an increase in the co-culture growth rate. There was diversity in the endpoint batch growth rates among the independently evolved triplicates for each of the ΔhisD & ΔpyrC and the ΔhisD & ΔgdhAΔgltB co-cultures with endpoint growth rates ranging from 0.09-0.15 hr−1 and 0.08-0.15 hr−1, respectively. The four successfully evolved independent replicates for the ΔhisD & ΔgltAΔprpC co-cultures also showed endpoint growth rate diversity ranging from 0.12−0.19 hr−1 (Table 1, Figure 4A). The relatively large range in endpoint growth rates for all co-cultures suggests that a subset of replicates evolved to a less optimal state and could be further improved if given more time to evolve.
To probe the metabolic strategies of the three co-culture pairs, the genomes of the populations were resequenced at several time points over the course of the 40 day evolution (Figure 4A). The resequencing data was used to identify gene region duplications and acquired mutations (Figure 4B) that provided insight into the specific mechanisms employed by the co-cultures to establish cooperation.

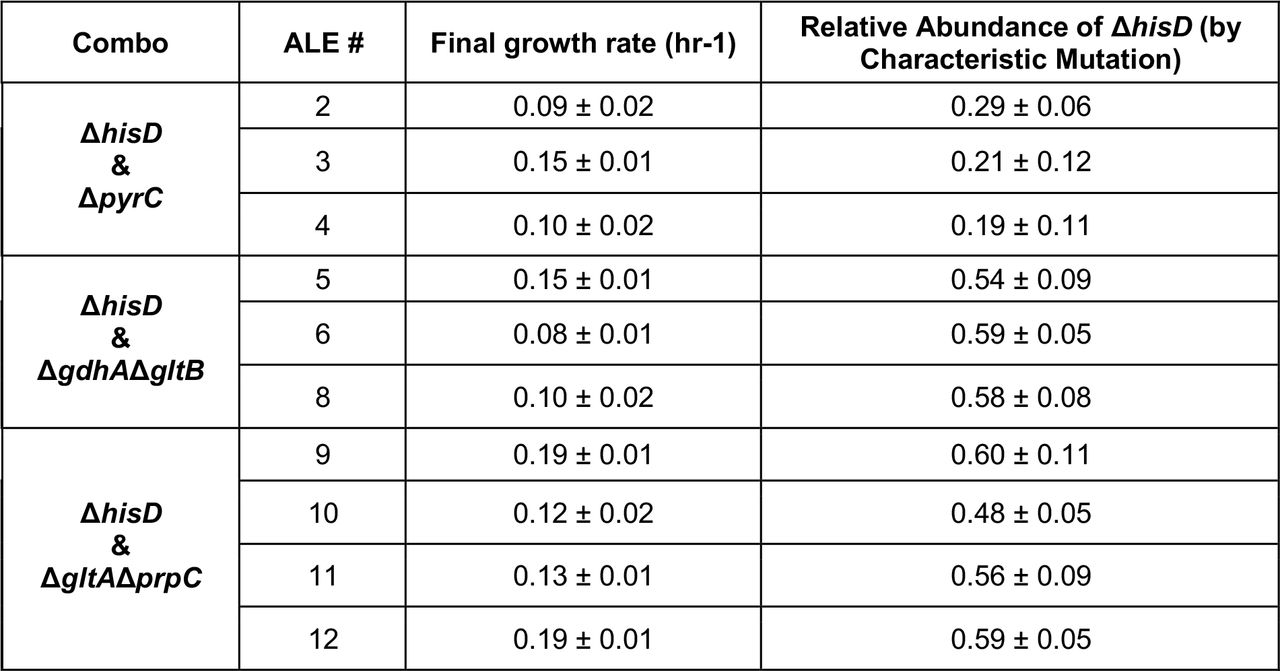

The relative strain abundance of each mutant was also tracked to understand the dynamics of community composition in the synthetic co-culture. Each starting strain contained unique characteristic mutations (Table S3) which could act as a barcode to track the community composition (Figure 4b, Table 1). The breseq mutation identification software [55] was used to calculate the frequency of each of these characteristic mutations within a sequenced co-culture. The relative frequency of the characteristic mutations was used to approximate the fraction of each strain within the co-culture population. This analysis showed that 2 of the 3 co-culture combinations maintained similar relative fractions of the two member strains, whereas one coculture, ΔhisD & ΔpyrC, consistently maintained a relative ΔpyrC abundance of near three quarters of the total population (71-81%, Table 1). Alternatively, the relative abundance of each strain in the populations was predicted by comparing the read coverage of the deleted genes relative to the mean, which showed good agreement with the characteristic mutation-based predictions (Figures S4-5).
Mutations Likely Affecting Metabolite Uptake/Secretion

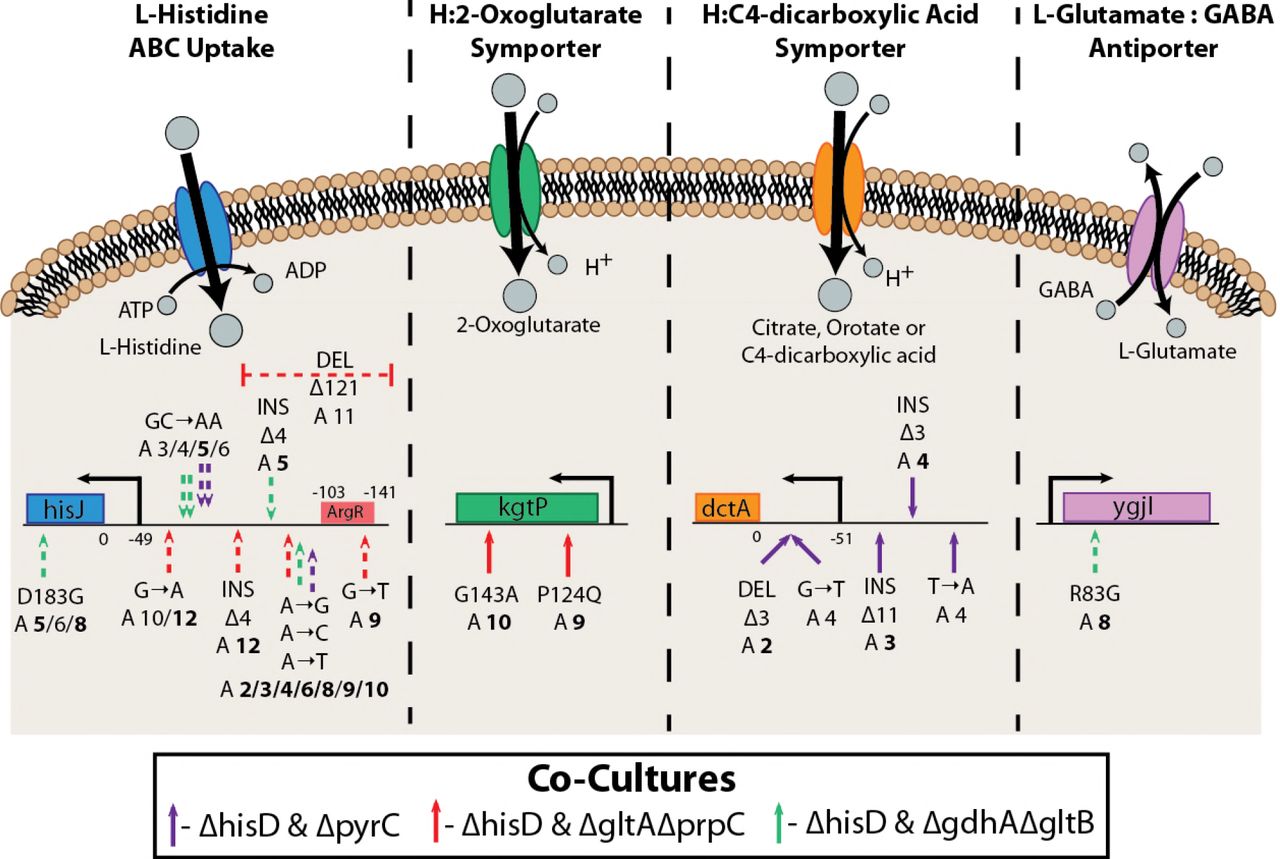

Several evolutionary strategies were observed in the mutations identified across the ten successfully evolved co-culture lineages (Tables S5-7). One ubiquitous strategy across all three co-culture pairs was to acquire mutations within or upstream of inner membrane transporter genes. For instance, numerous mutations were observed in every co-culture lineage in the hisJ ORF or in the 5’UTR of the hisJ operon. This operon contains all four genes (hisJ, hisM, hisP, hisQ) composing the histidine ABC uptake complex, the primary mechanism for histidine uptake in E. coli K-12 MG1655 [56]. Seven mutations were found in the region directly upstream of the transcription start site (Figure 5). Three of the five substitutions were observed in more than one co-culture pairing with a SNP in one position (A->G, A->C or A->T at 86 base pairs upstream of hisJ) appearing to be particularly beneficial as it was identified in every lineage except one (ALE #5). In three ALEs, a mutation was observed within the hisJ ORF that resulted in a substitution of aspartate residue at the 183 position by glycine. Based on the protein structure, this substitution could disrupt two hydrogen bond interactions with bound L-histidine ligand in the periplasm [57]. Further mutations were observed that could affect the binding of the ArgR repressor to the 5’ UTR of the hisJMPQ operon or affect the activity of the ArgR protein itself (Table S5). This included a 121 base pair deletion and a SNP in the binding site of the ArgR repressor in the 5` UTR of hisJ (Figure 5). The mutation in the argR ORF consisted of a frameshift insertion early in the coding sequence and persisted throughout ALE #8, appearing in the ΔhisD endpoint clone (Table S6). ArgR functions to repress L-arginine uptake and biosynthesis as well as the L-histidine ABC uptake complex [58] in response to elevated L-arginine concentrations. All of these mutations could improve L-histidine uptake in the ΔhisD strains either by directly increasing the efficacy of the HisJMPQ ABC uptake system or by preventing ArgR mediated repression of this transporter.

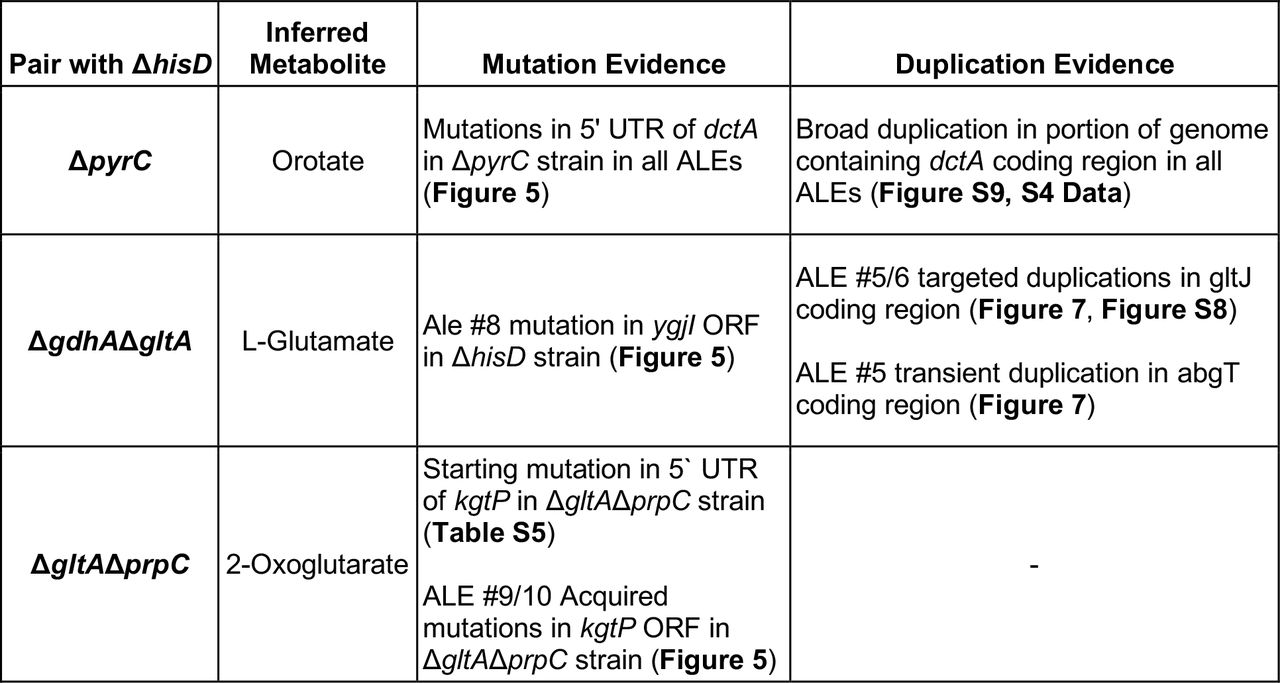

Beyond improving the uptake of L-histidine in the ΔhisD strain, mutations were observed that could improve metabolite uptake in a partnering strain. For instance, in the ΔhisD & ΔgltAΔprpC co-culture, two of the ΔgltAΔprpC strains acquired mutations in the kgtP ORF (a transporter of 2-oxoglutarate [59]) that were present in the endpoint clones. These mutations include a substitution of a L-proline residue with a L-glutamine at the 124 position and a substitution of a glycine residue with an L-alanine at the 143 position. These two substitutions occurred in the fourth transmembrane helix in the protein and a cytoplasmic region [60], respectively, and could act to augment or complement the mutation in the 5’ UTR of the kgtP ORF seen in the starting clone of the ΔgltAΔprpC mutant (Table S5). Both the accumulation of mutations associated with this transporter and the fact that the citrate synthase knockout mutant is computationally predicted to grow in the presence of 2-oxoglutarate suggest that ΔgltAΔprpC could be cross-fed 2-oxoglutarate when in co-culture.
A recurrent mutation was observed in the ΔhisD & ΔpyrC co-culture that could function to better facilitate uptake of a metabolite being cross-fed from the ΔhisD strain to the ΔpyrC strain. The three independently evolved lineages each acquired at least one mutation in the 5’ UTR of dctA, which were confirmed to be in all ΔpyrC endpoint clones (Table S7). The gene product of dctA functions as a proton symporter that can uptake orotate, malate, citrate, and C4-dicarboxylic acids [61] (Figure 5). Further, simulations of a ΔpyrC strain predict that growth is possible with orotate supplementation, but not with any of the other metabolites known to be transported by the dctA gene product. Thus, it was proposed that these mutations could act to increase the activity of this transporter to allow the ΔpyrC strain to more efficiently uptake orotate cross-fed by the ΔhisD strain.
Lastly, one lineage of the ΔhisD & ΔgdhAΔgltB co-culture acquired a SNP in the ygjI coding region; the SNP was present in the ΔhisD endpoint clone and resulted in a substitution of L-arginine for glycine at position 83 of this protein. This position is within a periplasmic region and one residue prior to a transmembrane helix of the protein [62]. The function of this protein has not been experimentally confirmed, but based on sequence similarity, it is predicted to be a GABA:glutamate antiporter [63]. Given that this mutation was seen in the ΔhisD clone, it is possible that this mutation had the effect of increasing the strain’s secretion of 4-aminobutyrate (GABA) or L-glutamate. Such a mutation could improve community fitness by facilitating the cross-feeding of either these metabolites to the ΔgdhAΔgltB strain since it is predicted to be auxotrophic for both metabolites (Table S4).
Mutations Likely Affecting Nitrogen Regulation

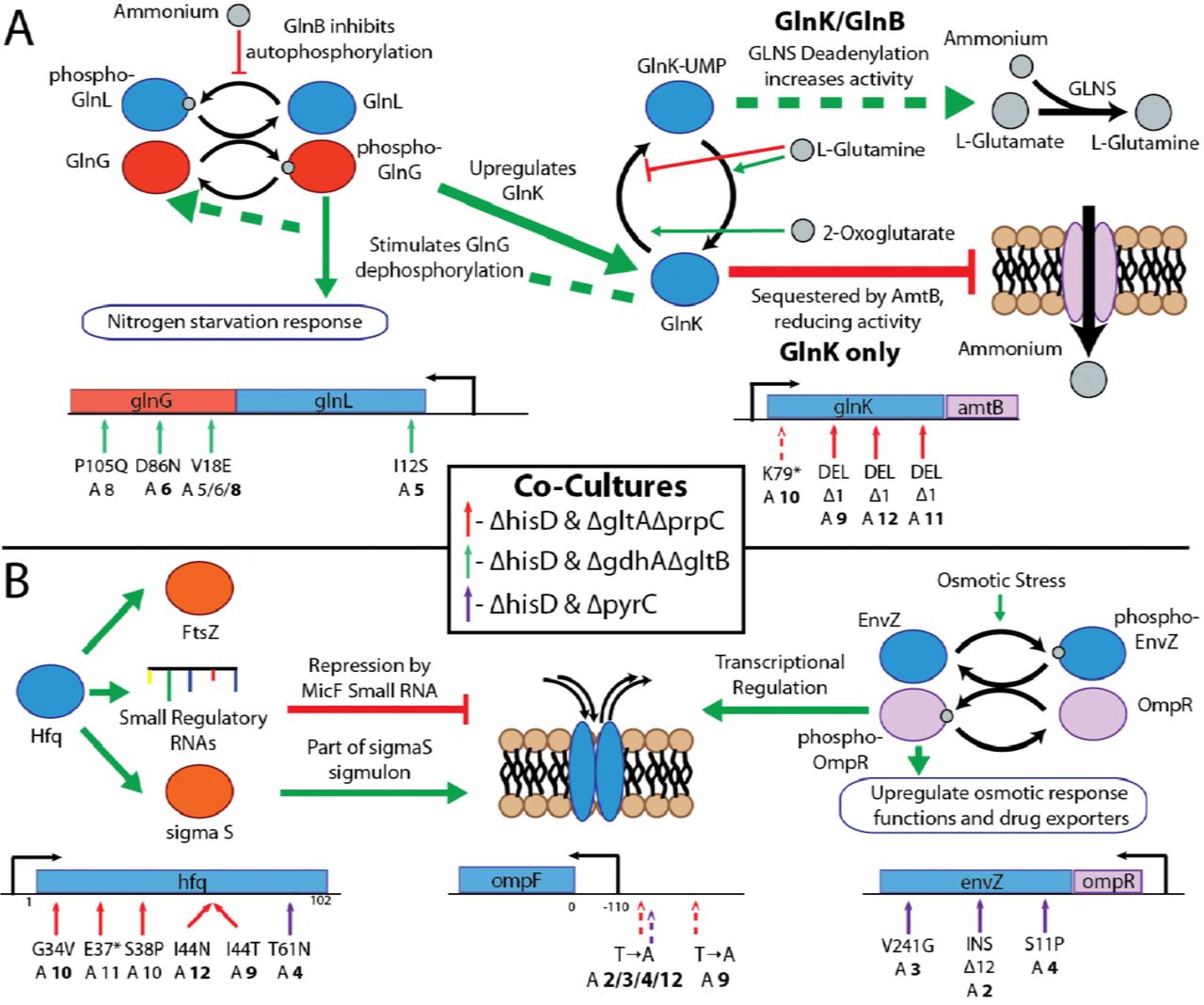

Removing reactions in major biosynthetic pathways likely results in a disruption of the homeostatic concentrations of key sensor metabolites or an activation of nutrient limitation stress responses. Mutations were observed in the evolved co-cultured sets which point to mechanisms to adapt to these pathway disruptions. Examples of this adaptation included three frameshift mutations early in the glnK ORF found in three ΔgltAΔprpC clones from the ΔhisD & ΔgltAΔprpC co-cultures (Figure 6A) and one premature stop codon in the ΔhisD clone of the same co-culture. The frameshift mutations would possibly affect the AmtB nitrogen uptake system as well, as it is located on the operon downstream of GlnK. GlnK is one of two nitrogen regulators with overlapping functions that are uridylated depending on the relative concentrations of 2-oxoglutarate and L-glutamate. In conditions of high relative 2-oxoglutarate concentration relative to L-glutamate, GlnK is uridylated and the E. coli nitrogen limitation response is triggered [64]. Unlike the alternative nitrogen regulator, GlnB, however, when not uridylated GlnK binds to the Amtb nitrogen uptake complex, reducing its activity [65]. The citrate synthase knockout (ΔgltAΔprpC) in particular could see a disruption in the homeostatic concentrations of metabolites immediately downstream of the reaction, including 2-oxoglutarate and L-glutamate. This could impair the ability of the cell to respond to sensors of nitrogen excess or limitation and respond with the proper global regulatory changes. Removing the activity of this GlnK mediated response system would prevent any detrimental cellular responses given that the strains are both grown in excess ammonium. No mutations, however, were observed in the alternative nitrogen regulator, GlnB, throughout any of the evolutions.
Mutations found in the ΔgdhAΔgltb strains imply a change in the activity of the two-component nitrogen regulatory system. This strain in all ΔhisD & ΔgdhAΔgltb lineages acquired mutations in the open reading frame of at least one gene in the two-component nitrogen regulator system, glnG (ntrC) and glnL (ntrb) (Figure 6A) [64]. Amino acid substitutions were observed in position 18, 86, and 105 of glnG corresponding to the response receiver domain of GlnG, likely augmenting its ability interact with GlnL (based on protein families [66]). The endpoint clone of ALE #5 acquired an amino acid substitution of L-isoleucine to L-serine within a PAS domain of GlnL at position 12. This corresponds to the protein domain where regulatory ligands likely bind [67] so this mutation could act to augment its autophosphorylation activity in response to nitrogen. Given the location of these mutations, it can be hypothesized that they functioned to decrease the regulatory activity of the two-component system response to excess nitrogen. For the ΔgdhAΔgltB strain, this could be beneficial to reduce the GlnGL mediated downregulation of nitrogen uptake and assimilation processes.
Mutations were also observed affecting osmotic as well as nonspecific stress responses (Figure 6b). These are summarized in the Supplemental Text.
Genome Duplications Complement Sequence Changes

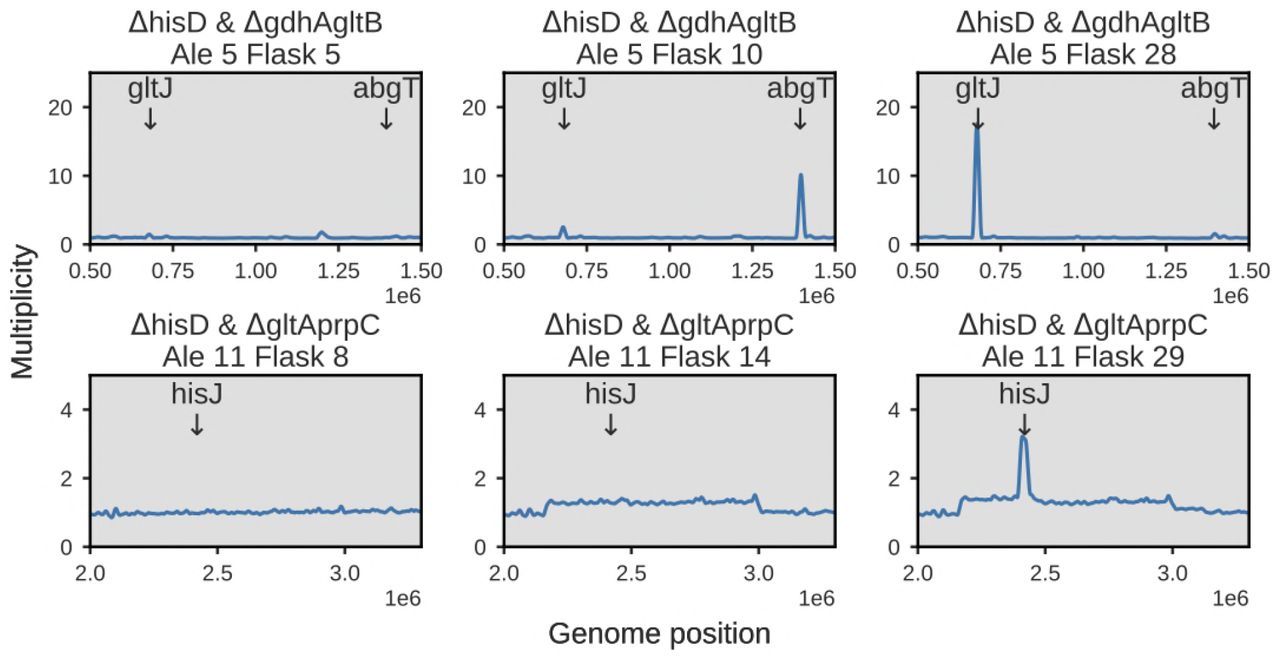

A complementary adaptive strategy for improving co-culture community fitness was to acquire duplications in regions of the genome (Figures S7-9). In some cases, this evolutionary strategy appeared to function to amplify expression of transporters (also observed in [68]) to more efficiently uptake a metabolite that can rescue the strain’s auxotrophy. Alternatively, these duplications could function to increase the likelihood of acquiring mutations in the duplicated region [69,70]. Therefore, the genes contained within the duplicated regions in some cases provided clues to which metabolites were cross-fed within the co-culture. For example, one of the three ΔhisD & ΔgdhAΔgltB lineages displayed clear increases in coverage near positions 674-683 kbp and 1,391-1,402 kbp with multiplicities exceeding 15. The former of these coverage peaks included 9 genes, including the 4 genes composing the GltIJKL L-glutamate/L-aspartate AbC uptake system [71]. The latter peak included 10 genes including the 4 genes in the abgRABT operon, which facilitates the uptake and hydrolysis of p-aminobenzoyl-glutamate into glutamate and 4-aminobenzoate [72]. This suggests that both of these metabolites could be cross-fed to the ΔgdhAΔgltB strain, though the abgRABT duplication was depleted in favor of the gltIJKL duplication over the course of the evolution, suggesting L-glutamate or L-aspartate is the preferred cross-feeding metabolite over p-aminobenzoyl-glutamate (Figure 7).
While the duplications mentioned above presented clear amplifications in targeted operons, some observed duplications consisted of 100,000s of basepairs and 100s of genes. Further, many of the duplications seen in the populations were not observed in the sequenced endpoint clones. Possible explanations for these observations can be found in the Supplemental Text.
Modeling Community Features of Auxotroph Communities

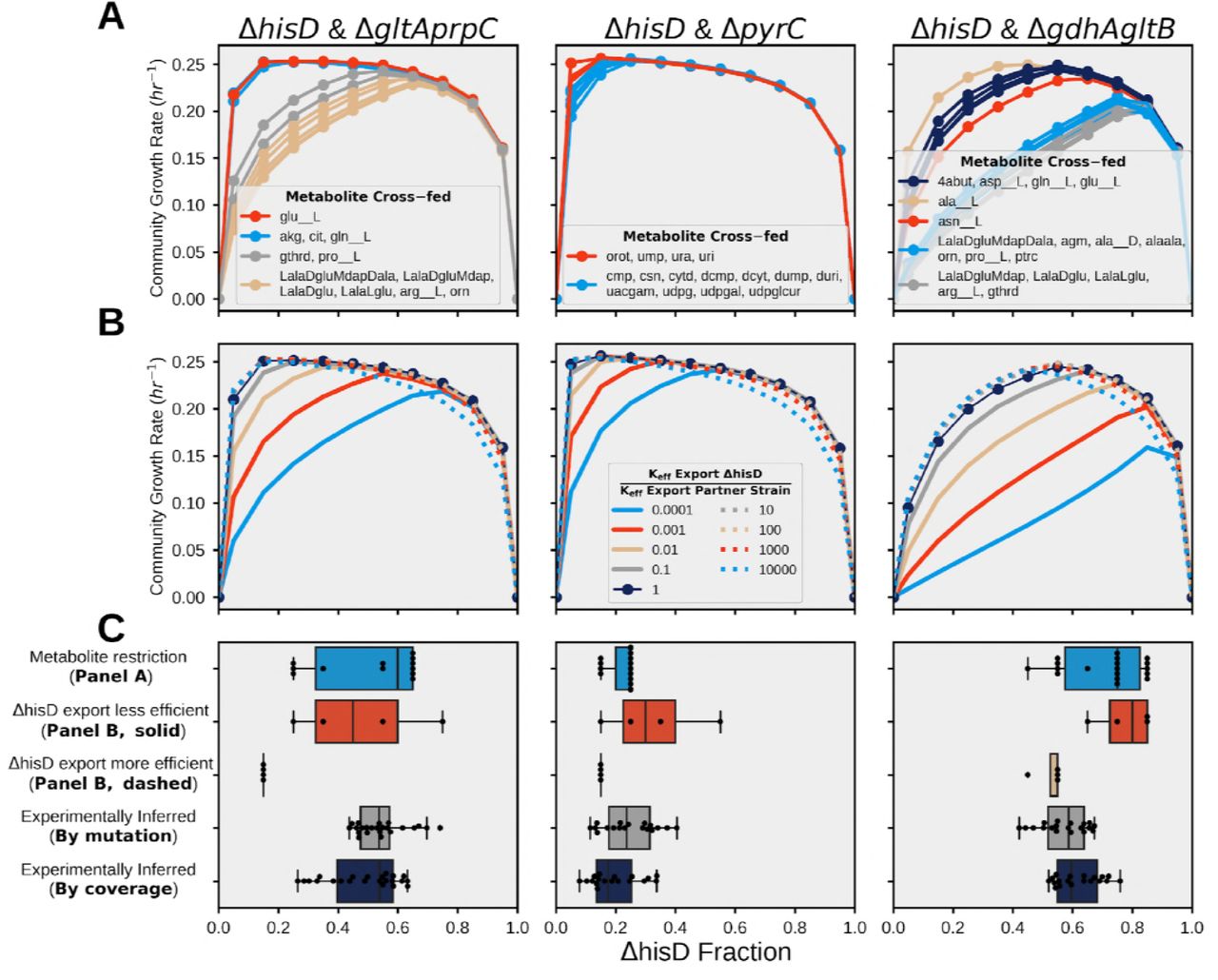

Community ME-models were created for each of the three evolved co-culture sets (Figure S10). The models were constructed based on the assumption that, in order to form a stable community when growing exponentially, the strains in co-culture must be growing, on average, at an equal rate. Mass balance conversion terms could then be used to relate the metabolic flux that a strain contributes to the shared compartment and its fractional abundance (see Methods). This approach offered a means to understand which factors drive the structure of the newly established communities (i.e., the relative abundance of the community members) and, ultimately, how this relates to metabolite cross-feeding.
The community ME-models have the capability of assessing how the community composition could vary depending on the identity of the metabolite that is cross-fed or the enzyme efficiency of the community members. The role of the cross-fed metabolites in defining the structure of the community was assessed using the community ME-models by: 1) allowing metabolic crossfeeding to remain unrestricted and 2) restricting the cross-feeding to only one metabolite. When the metabolite cross-feeding was left unrestricted (i.e., any metabolite restoring growth in either strain was allowed to cross-feed in the simulation, Supplemental Text, Figure S11) computed cross-feeding profiles were complex and prediction of the identity of the cross-fed metabolite did not strongly point to one potential metabolite (Figure S12). However, when turning to the sequencing data, there was general agreement between predicted and experimentally inferred optimal community structure which provided confidence in using the proposed modeling approach (Figure S11).
Alternatively, the second approach to assess the influence of metabolite cross-feeding on community composition involved restricting the simulation to cross-feed only one of the metabolites computationally predicted to restore growth in the MSE strain. In doing so, the identity of the metabolite being cross-fed could be related to the optimal community growth rate and structure. This approach additionally offered a way to narrow the set of optimal or near optimal cross-feeding metabolites that would be predicted to be cross-fed in vivo. The computations predicted that the ΔhisD & ΔpyrC co-culture would have a community composition and growth rate robust to the metabolite being cross-fed with a slightly higher community growth rate if orotate, uracil, uridine monophosphate, or uridine were cross-fed. The optimal composition of the community was predicted to be skewed toward low percentages (~20%) of the ΔhisD strain for all metabolites in this co-culture. The ΔhisD & ΔgltAΔprpC and ΔhisD & ΔgdhAΔgltB co-cultures, on the other hand, were sensitive to the cross-feeding metabolite where the community structure depended on the identity of the cross-feeding metabolite (Figure 8A). For these two co-cultures, the ΔhisD & ΔgltAΔprpC and ΔhisD & ΔgdhAΔgltB pairs were computationally predicted to achieve higher community growth rates when cross-feeding L-glutamate, 2-oxoglutarate, citrate, or L-glutamine and 4-aminobutanoate, L-aspartate, L-glutamine, L-glutamate, L-alanine, or L-asparagine, respectively.
Community ME-models further enable an examination of how each strain’s proteome “efficiency” may affect co-culture characteristics when growing in its community niche. Such an analysis was performed by altering a ME-model parameter for each strain corresponding to how efficiently it can export the metabolite that is cross-feeding its partner strain (see Methods). This parameter can be used as a proxy for cellular proteome investment in wasteful or inefficient processes when synthesizing and exporting a metabolite, which is likely to occur in substantial amounts until the strains further adapt to grow as a community. That is, the cells will not be able to optimally rearrange their proteome and metabolic fluxes to efficiently grow as a community over this short-term evolution. It is possible, however, that some strains in co-culture will be able to reorganize their proteome to secrete the necessary metabolite more or less efficiently than their partner strain (Table 2). The proteome efficiency analysis showed that the community compositions of all three co-cultures were moderately sensitive to this parameter (Figure 8B). Further, the pairs showed a bimodal behavior depending on whether the ΔhisD strain was more or less efficient than its partner (Figure 8B). The community models predicted that if the export processes of the ΔhisD strain require a greater protein investment relative to the default export efficiency parameter, the abundances of the ΔhisD strain will increase in the community. Conversely, if the partner strain requires greater protein investment, the community composition remains stable and unchanged. The optimal predicted community composition for the two analyses shown in Figure 8A and B are summarized in Figure 8C. The figure shows general agreement between the computed optimal community compositions and the experimentally inferred community composition, even after varying key features of the community simulation. This suggests that community ME-models have the potential to be useful tools for understanding the behavior of simple communities.
Discussion
This study has demonstrated a novel workflow to design, optimize, and computationally interpret non-trivial syntrophic co-cultures to better understand the characteristics of simple microbial community formation. The simple communities consisted of two strains of E. coli K-12 MG1655 which required, in order to grow themselves, the growth of their partner strain. To design the communities to possess characteristics more attractive from an engineering perspective, a novel algorithm, termed OptAux, was used. This algorithm was used to design highly auxotrophic strains which, when paired in co-culture, require high levels of metabolic crossfeeding in order for the community to grow. Three co-cultures consisting of OptAux designs were tested in vivo and optimized via adaptive laboratory evolution. By analyzing the genetic changes observed throughout the evolution we could infer the cellular changes underlying improvements in the fitness of the highly metabolically-coupled communities. This work thus provided new insight into cellular mechanisms for establishing syntrophic growth. A community ME-model was developed to computationally interpret the communities and their fundamental properties. Such models are the first to offer a means to study, on the genome-scale, how efficient proteome allocation to metabolic functions in the community members can influence the structure of the nascent microbial communities.
OptAux Can be Used to Design Novel Communities
To facilitate the design of co-culture communities requiring significant metabolic rewiring and cross-feeding, we constructed the OptAux algorithm to find reaction knockouts that will create auxotrophic strains requiring high amounts of metabolites for growth (Figure 2). OptAux returned two kinds of solutions depending on the parameters used, so-called Major Subsystem Elimination (MSE) and Essential biomass Component Elimination (EBC) designs (Figure 3). EBC designs are specific with regard to which metabolites are required for the strain to grow and correspond to auxotrophs that have been validated in previous studies [14,50–54]. OptAux EBC predictions resulted in eight designs that were previously verified experimentally and five predictions of untested auxotrophs (Table S1). Conversely, the MSE designs are computationally predicted to grow when supplemented with a any of variety of different metabolites and represent largely new designs that have not been characterized experimentally, though some of the single gene knockout MSE designs were grown in co-culture in [16]. MSE auxotrophs in co-culture need high levels of cross-feeding in order to grow (0.05 and 0.2 mmol gDW−1 hr−1 on average for an EBC and MSE strain to grow at a rate of 0.1 hr−1, respectively), requiring significant metabolic rewiring in its partner strain (Figure S13).
ALE was Successfully Applied to Increase Fitness of Co-culture
Four OptAux predicted auxotrophic E. coli mutants were constructed in vivo, confirmed as auxotrophs, and grown in co-culture. A growth rate selection pressure was applied on these nascent, poorly growing communities via ALE. Three co-cultures of an ΔhisD EBC strain paired with an MSE strain showed reproducible improvements in growth rate throughout the course of the ALE (Table 1). Under these conditions each of the strains had to rewire its metabolic network to both secrete a metabolite required by its partner strain and efficiently import the metabolite needed to grow itself through mutations that were identified, effectively establishing a new microbial community. By selecting for growth rate, a novel indirect selection pressure was applied on each strain to increase the secretion and uptake of the cross-fed metabolites, thus improving the growth of the co-culture community. This evolution design therefore has potential as a system to self-optimize microbial strains as industrial producers of metabolites of interest.
Throughout the course of adaptive laboratory evolution, the nascent communities improved community fitness by acquiring beneficial mutations (Tables S5-7, Figures S7-9). There was a high degree of parallelism in the identified shared mutations and duplications which appeared in each co-culture pair’s ALE lineages, providing confidence that the acquired mutations and duplications were meaningful and causal in improving community fitness [73]. Consistently, duplications coincided with genome regions containing mutations acquired in endpoint clones. It has been shown that, as a mechanism for evolving new cellular functions, microbes duplicate genome regions to provide the redundancy needed for divergence of function or for acquiring new or altered capabilities [70]. Further, similar gene duplications in nutrient transporters have been shown in yeast to provide fitness benefits in glucose limited environments by increasing the expression of the transporter [68].
Beyond enabling an analysis of how the co-cultures were capable of establishing syntrophy, the sequencing data provided a measure of the structure of the community in terms of relative strain abundance. All auxotrophic mutants contained a unique characteristic starting mutation (Table S3), which was used to track the relative abundance of each member of the co-culture community throughout the evolutions. Community structures appeared to remain remarkably consistent both across ALE replicates of the same strain combinations and over time throughout the ALE lineages (Table 1, Figures S4-5). This finding was corroborated by using the coverage of the gene deletion regions in population resequencing (Figures S5-6). The observation of stable community composition is in line with what has been observed in multi-species microbial soil communities grown in single substrate minimal media [74].
Community ME-modelling Allows for Analyzing Co-culture Composition
Community ME-models were employed to understand how the proteome efficiency of each strain drives community composition. ME-models are uniquely capable of addressing this question because they directly incorporate the proteomic cost of catalyzing a metabolic process, which is particularly necessary in this system as there is an inherent proteome cost of each strain to cross-feed the necessary metabolite in co-culture [75]. Kinetic parameters, which play a role in dictating proteome cost in these community ME-models, were therefore systematically adjusted to understand how each strain’s proteomic “efficiency” affected the simulation characteristics. The simulations predicted that, for all of the three co-cultures, the proteomic efficiency of the ΔhisD would have the largest impact on the relative abundance of each coculture member (Figure 8B). This is an expected finding due to the fact that the ΔhisD strain has the larger cross-feeding burden since it is paired with an MSE strain in each case. Further, when the ΔhisD secretion proteome efficiency was decreased, the community ME-model predicted its optimal abundance in the co-culture would actually increase. Though unintuitive, this prediction is in agreement with a paradox predicted in a previous computational study of community dynamics [76]. In addition to proteome efficiency, the ME-model predicted that the identity of the metabolite being cross-fed has an effect on optimal community composition (Figure 8A). The distributions of possible community compositions based on varying metabolites and proteome efficiency aligned well with two of the three co-cultures (ΔhisD & ΔgdhAΔgltB and ΔhisD & ΔpyrC, Figure 8C). This implies that community ME-modelling potentially offers a means to study how changes in the characteristics of each strain in coculture will affect the optimal community structure and growth behavior.
From an industrial perspective, shifting the community composition could increase the production of a specific metabolite of interest. Therefore, this modeling method offers a way to predict how, for instance, LacZ or other unused (i.e., non beneficial) proteins could be efficiently overexpressed to lower a strain’s proteome efficiency and alter community composition, thus improving the yield of metabolite secretion. Additionally, this modeling method suggests that the identity of the cross-feeding metabolite can bias the optimal community composition to some extent. For instance, for the ΔhisD & ΔgdhAΔgltB co-culture, the ΔhisD relative fraction can vary from 0.45 to 0.85 if L-alanine is cross-fed versus L-arginine. By somehow biasing the crossfeeding toward one metabolite or the other (e.g., exporter knockout), the community composition could potentially be manipulated, thus altering the yield of the cross-fed metabolite.
Conclusions
This work demonstrated a novel approach using both a design algorithm and community modeling to understand how strains adapt to grow in new community niches. The work also provided insight into evolutionary strategies bacteria can use to readjust their metabolism and respond to drastic changes in homeostatic metabolite concentrations while learning to inhabit this new biological niche. Beyond better understanding ecological communities, this workflow could be applied as a tool for developing new platform bacterial strains for producing metabolites of industrial relevance. Lastly, the novel community resource allocation model was successfully used to predict co-culture community characteristics. This modeling tool could be leveraged to predict experimental strategies for optimizing a community to fit the desired application and have broad impacts on human health [77,78].
Materials and Methods
Computational Methods
All constraints based modeling analyses were performed in Python using the COBRApy software package [79] and the iJO1366 metabolic model of E. coli K-12 MG1655 [41]. For aerobic simulations the maximum oxygen uptake rate was constrained to 20 mmol • dDW−1 • hr−1, and the maximum substrate was constrained to 10 mmol • dDW−1 • hr−1. All iJO1366 optimizations and algorithm solutions presented were found using the Gurobi (Gurobi Optimization, Inc., Houston, TX) mixed-integer linear programming (MILP) or linear programming (LP) solver. The community ME-models were solved using the qMINOS solver in quad precision [87,88]. All scripts and data used to create the presented results can be found at www.github.com/coltonlloyd/optaux.
OptAux Algorithm Formulation
The OptAux algorithm was derived based on the ideas from existing MILP algorithms (i.e., RobustKnock [40] and OptKnock [80]). A new algorithm was written as opposed to implementing a “reverse” version of RobustKnock where the algorithm would optimize the uptake of a metabolite at the maximum growth rate. A “reverse” RobustKnock implementation would lead to strain designs that must take up a high amount of the target metabolite when approaching the maximum growth rate (Figure S1A). In order for a strain to be truly auxotrophic for a particular metabolite, however, it must be required at all growth rates (Figure 2A, Figure S1B). To ensure that OptAux designs have this auxotrophic phenotype, the inner problem optimizing for growth rate utilized in RobustKnock was replaced with a set_biomass constraint. This forced the metabolite uptake optimization to occur at a predefined growth rate and was implemented by setting the upper and lower bounds of the biomass objective function to this value:
For the simulations ran in this study (S1 Data), the set_biomass value was set as 1/10 the maximum growth rate for the wild-type simulation in in silico glucose minimal media supplemented with the metabolite whose uptake is being maximized.
An additional constraint was applied to represent additional metabolites present in the media. It was applied by finding all metabolites with exchange reactions with its lower bound set to zero and increases the bound to the trace_metabolite_threshold, shown for exchange reaction i below:
Increasing this threshold ultimately increases the specificity of the OptAux solution in regards to other metabolites that can potentially restore growth. In other words, this effectively models a scenario where, along with the presence of the target metabolite and primary substrate, there are trace amounts of competing energy source and biosynthetic precursor metabolites in the in silico media.
The resulting algorithm is a bilevel MILP Figure 2B) that can be found at www.github.com/coltonlloyd/optaux.
OptAux Simulations
The OptAux algorithm was ran for all carbon containing metabolites with exchange reactions in iJO1366. For each optimization the target metabolite is selected and the maximum uptake of the metabolite is set to 10 mmol/gDW/hr. The model was then reduced by performing flux variability analysis (FVA) on every reaction in the model and setting the upper and lower bounds of each reaction to the FVA results. If FVA computed that no flux could be carried through the reaction, then it was removed from the model. Additionally, reactions were excluded from knockout consideration if they met one of the following criteria: 1) it is a /JO1366 false positive when glucose is the primary carbon substrate [81] 2) it is essential in LB rich media [15] 3) its annotated subsystem is one of the following: Cell Envelope Biosynthesis, Exchange, Inorganic Ion Transport and Metabolism, Lipopolysaccharide Biosynthesis / Recycling, Murein Biosynthesis, Murein Recycling, Transport, Inner Membrane, Transport, Outer Membrane, Transport, Outer Membrane Porin, or tRNA Charging 4) it involves a metabolite with more than 10 carbons 5) it is a spontaneous reaction.
Calculating Strain Abundances from Resequencing Data
The fractional strain abundance of each strain in co-culture were predicted using two features of the resequencing data of each co-culture population sample: 1) the frequency of characteristic mutations of each strain and 2) the relative coverage of the knocked out genes.
Each of the stains used in this study possessed a unique characteristic mutation (Table S3), which could be used as a barcode to track the strain. The breseq population mutation calling pipeline would identify the characteristic mutations of each strain in co-culture and report the frequency that the mutation occurred. This output was used to track their presence. For strains with two characteristic mutations (ΔhisD, ΔgdhAΔgltB) the average of the frequency of each gene was used as a prediction of the relative abundance of that strain. One mutation in particular, an IS element insertion in yqiC which is characteristic of the ΔhisD strain, was not detected in several samples when ΔhisD was in co-culture with ΔpyrC. This is likely due to the low frequency of the ΔhisD strain in that particular population. In those cases, the ΔhisD strain abundance was predicted using only the frequency of the lrhA/alaA intergenic SNP (Figure S5).
The second method used the contig read alignment to compare the coverage of the deleted genes in each strain to the fit mean coverage of the sample. As an example, for a strain paired with the ΔhisD strain, the average coverage of the base pairs in the hisD ORF divided by the fit mean for that sample, would give an approximation of its relative abundance in the population. As with the characteristic mutation approach, if the two genes are knocked out in the strain, the average coverage of the two genes is used to make the approximation (Figure S5).
When reporting the relative abundance predictions, the predicted abundances of each strain was normalized by the sum of the predicted abundances of the two strains in co-culture. This ensured that the abundance predictions summed to one. Predictions made using the two described methods showed general agreement (Figure S6).
Community Modeling
Community ME-models were created using a multicompartment FBA approach, where each of the two mutant strains in co-culture occupy a compartment with an additional shared compartment where each of the strains can exchange metabolites. The relative abundance of each strain was accounted for by adjusting the exchange reaction from a strain’s compartment into the shared compartments. For secretion, this was done by multiplying these exchange reactions as follows: and for uptake: where vsecrete is the secretion flux from strain 1 and has units of mmol • gDWStrain1−1 • hr−1 and XStrain1 is the fractional abundance of strain 1 with units of gDWStrain1 • gDWCommunity. Therefore applying this coefficient to metaboliteShared gives the reaction fluxes from strain 1 (vsecrete) in units of mmol • gDWCommunity−1 • hr−1. For the subsequent uptake of the shared metabolite by strain 2, the fractional abundance of strain 2 is applied giving units of mmol • gDWStrain2−1 • hr−1 (Figure S10).
Using this community modeling approach, the fractional abundance (Xi) of each strain in the coculture was implemented as a parameter that could be varied from 0 to 1, which in turn had on impact on the optimal growth state of the community. Simulations were ran varying XStrain1 (abundance of strain 1) from 0.05 to 0.95 and the community growth rate was optimized. The metabolites that were allowed to be cross-fed in simulation were limited to the set of metabolites that can computationally restore the growth of each auxotroph (Table S4).
For the community simulations, the iJL1678b [32] model of E. coli K-12 MG1655 was used with the uptake of metabolites in the in silico glucose minimal growth media into the shared compartment left unconstrained, as the ME-model is self limiting [33]. The non-growth associated ATP maintenance and the growth associated ATP maintenance were set to the default parameter values in the model. The RNA degradation constraints were removed to prevent high ATP costs at the low community growth rates. Since, the newly formed communities are highly unoptimized and growing slowly, the unmodeled/unused protein fraction parameter was set to 75%. If a metabolite had a reaction to import the metabolite across the inner membrane, but no export reaction, a reaction to transport the metabolite from the cytosol to the periplasm was added to the model. For more on the model parameters, refer to [32] and [33].
To vary the proteomic efficiency (keff) of the export metabolites, first the exchange reaction into the shared compartment for all potential cross-feeding metabolites except the metabolites inferred from the experimental data (Table 2) was constrained to zero. Then the enzymatic efficiency of the outer membrane transport process of only the inferred metabolite was altered in each strain. The outer membrane transport reactions for each inferred metabolite (i.e.,HIStex, GLUtex, AKGtex, and OROTtex for L-histidine, L-glutamate, 2-oxoglutarate, and orotate, respectively) have multiple outer membrane porins capable of facilitating the transport process. To account for this the keff kinetic parameter of each of porin and reaction changed by multiplying the default keff value by the appropriate multiplier. The COBRAme software was used for all ME-model manipulations [32].
Reproducibility
All code and data necessary to reproduce the results can be found on GitHub at https://github.com/coltonlloyd/OptAux.
Experimental Methods
E. Coli Strain Construction
All single gene knockouts used in this work were obtained from the Keio collection, a collection of all single gene knockouts in E. coli K-12 BW25113 [15]. To generate double gene knockout strains, the second knockout genes were identified from the Keio collection as donor strains, and their P1 phage lysates were generated for the transduction into the receiving single KO strains. For instance, the ΔgltA or ΔgltB knockout strain was a donor strain and the ΔprpC or ΔgdhA knockout strain was a receiving strain (Table S2). These four knockout strains were used for the construction of double knockout strains of ΔgltAΔprpC and ΔgdhAΔgltB. Each mutant was confirmed not to grow in glucose M9 minimal media without supplementation of an auxotrophic metabolite predicted by the iJO1366 model.
Adaptive Laboratory Evolution
Cultures were initially inoculated with equal numbers of cells from the two relevant auxotrophs, then serially propagated (100 μL passage volume) in 15 mL (working volume) flasks of M9 minimal medium with 4 g/L glucose, kept at 37°C and well-mixed for full aeration. An automated system passed the cultures to fresh flasks once they had reached an OD600 of 0.3 (Tecan Sunrise plate reader, equivalent to an OD600 of ~1 on a traditional spectrophotometer with a 1 cm path length), a point at which nutrients were still in excess and exponential growth had not started to taper off. Four OD600 measurements were taken from each flask, and the slope of ln(OD600) vs. time determined the culture growth rates.
Resequencing
Co-culture populations samples were collected at multiple points throughout the ALE and sequenced. Additionally, the starting mutant strains and both mutants isolated from the ALE endpoint samples were sequenced. The ΔhisD endpoint clone was unable to be isolated via colony selection for ALE #11. Genomic DNA of the co-culture populations and mutant clones was isolated using the Macherey-Nagel NucleoSpin tissue kit, following the manufacturer’s protocol for use with bacterial cells. The quality of isolated genomic DNA was assessed using Nanodrop UV absorbance ratios. DNA was quantified using the Qubit double-stranded DNA (dsDNA) high-sensitivity assay. Paired-end whole genome DNA sequencing libraries were generated using Illumina’s Kappa kit and run on an Illumina MiSeq platform with a PE600v3 kit. DNA sequencing data from this study will be made available on the Sequence Read Archive database (submission no. SUb3903910).
