Achromobacter genetic adaptation in cystic fibrosis
1Center for Genomic Medicine, Rigshospitalet, Copenhagen, Denmark
2Department of Clinical Microbiology, Rigshospitalet, Copenhagen, Denmark
3Department of Clinical Medicine, Faculty of Health and Medical Sciences, University of Copenhagen, Copenhagen, Denmark
*Correspondence to Migle Gabrielaite, migle.gabrielaite@regionh.dkAbstract
Achromobacter is an emerging pathogen in patients with cystic fibrosis (CF) and Achromobacter caused infections are associated with more severe disease outcomes and high intrinsic antibiotic resistance. While conventional CF pathogens are studied extensively, little is known about the genetic determinants leading to antibiotic resistance and the genetic adaptation in Achromobacter infections.
Here, we analyzed 101 Achromobacter genomes from 51 patients with CF isolated during the course of up to 20 years of infection to identify within-host adaptation, mutational signatures, and genetic variation associated with increased antibiotic resistance.
We found that the same regulatory and inorganic ion transport genes were frequently mutated in persisting clone types within and between Achromobacter species indicating convergent genetic adaptation. Genome-wide association study (GWAS) of six antibiotic resistance phenotypes revealed the enrichment of associated genes involved in inorganic ion transport genes, transcription gene enrichment in β-lactams, and energy production and translation gene enrichment in the trimethoprim/sulfonamide group.
Overall, we provide insights into the pathogenomics of Achromobacter infections in patients with CF airways. Since emerging pathogens are increasingly recognised as an important healthcare issue, our findings on evolution of antibiotic resistance and genetic adaptation can facilitate better understanding of disease progression and how mutational changes have implications for patients with CF.
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Introduction
Achromobacter species is an emerging pathogen causing chronic bacterial infections in patients with CF and is a major cause of morbidity and mortality in these patients. (1,2) Analysis of pathogen genomes, i.e. pathogenomics, have shown that within-host pathogen genetic adaptation plays a role in these infections. (3,4) While conventional CF pathogens, e.g. Pseudomonas aeruginosa and Staphylococcus aureus, are studied extensively, little is known about the extent within- and between-patient genetic adaptation has in Achromobacter infections, particularly A. ruhlandii, A. insuavis and A. xylosoxidans as they mainly cause chronic, long-term infections in patients with CF. (5–7) Furthermore, genetic features could be used for successful resistance profile predictions as conventional methods are both time consuming and occasionally do not reflect the in vivo susceptibility profiles. (8–10) Knowledge of within-host Achromobacter adaptation and genetic factors leading to antibiotic resistance development are key for urgently needed new treatment strategy development and pathogen elimination.
Here, we analyzed 101 previously whole genome sequenced (WGS) Achromobacter isolates from 51 patients to investigate the genetic relatedness and within-host genetic changes of Achromobacter over the course of up to 20 years of infections. First, we aimed to identify the main gene content differences between- and within-Achromobacter isolates. Second, we aimed to identify pace and patterns in genetic changes, and compare it to the other pathogenic bacteria in CF. Finally, we attempted to define the most significant associations between Achromobacter genetic features and antibiotic resistance phenotypes. Ultimately, this work on the main Achromobacter genomic changes acquired during infections in patients with CF, leads to the possibility of genomic-based disease progression prediction, and improved strategies to track and treat persistent airway infections.
Materials and Methods
Bacterial isolates
Our analysis included 101 clinical isolates of Achromobacter that were defined in detail previously by Gabrielaite et al., (2020). (11) The isolates were sampled from 51 patients with CF attending the Copenhagen Cystic Fibrosis Center at Rigshospitalet, Copenhagen, Denmark. Over the timespan of 0–20 years (median 6.5 years), 64 isolates from 25 patients were longitudinally collected (median 2 isolates) and 37 isolates from 29 patients were single isolates. 29, 18 and 52 isolates belonged to A. ruhlandii, A. insuavis and A. xylosoxidans, respectively. Furthermore, single isolates belonging to A. aegrifaciens and a new genogroup were sequenced.
Bacterial genome sequencing and definition of clone type
Genomic DNA was prepared from Achromobacter isolates using a DNeasy Blood and Tissue kit (Qiagen) and sequenced on an Illumina MiSeq platform, generating 250 base paired-end reads. On average, 1,124,551 reads (range of 350,677–2,118,817) for each of the genomic libraries were obtained. Clone types were defined by Pactyper (12) using the default parameters and species’ core genome defined by GenAPI. (13) Lineage was defined as all isolates belonging to the same species and the same clone type.
Bacterial genome assembly
Sequence reads from each isolate were corrected and assembled by SPAdes 3.10.1 (14) using default parameters and k-mer sizes ranging from 21 to 127. Assembled contigs were joined to 216 scaffolds on average (92–506).
Average nucleotide identity calculation
Aggregated pan-genome generation, characterization and visualization
Aggregated pan-genome was created by clustering all pan-genomes from longitudinally collected lineages and de novo assemblies from single-isolate lineages with GenAPI. (13) Every gene in the aggregated pan-genome was then aligned back to the individual pan-genomes/de novo assemblies to determine if the gene is (1) non-present in the lineage, (2) present and variable within the lineage or (3) present and non-variable. A matrix for an aggregated pan-genome was generated for 26 longitudinal lineages and 35 single-isolate lineages, and visualized using R (17) with a pheatmap library. (18)
Bacterial genome alignment and variant calling
Alignments, variant calling and pairwise SNP distance identification for Achromobacter isolates were performed using reference genome (GCF_001051055.1 for A. ruhlandii (AX01 group), GCF_001558755.2 for A. insuavis (AX02 group) and GCF_001457475.1 for A. xylosoxidans (AX03 group)) with BacDist (19) workflow that is based on variant calling with Snippy. (20) Sequence alignments on average included 84% (81.72%–89.58%) of the raw sequencing reads for A. ruhlandii, 87% (75.45%–92.57%) for A. insuavis and 86% (75.95%– 93.61%) for A. xylosoxidans. Low-quality variants or variants shared among all isolates were discarded by BacDist.
Substitution rate estimation
The nucleotide substitution rate (21) estimation was performed for each lineage containing 3 or more isolates sampled at different timepoints (10 lineages in total) by using BEAST 2.6.1. (22) Sequence alignments from BacDist were used as input with the following parameters: (1) sequences were annotated with the sampling date (“dated tips”), (2) HKY substitution model with strict clock parameters, (3) gamma prior for clock rate, (4) prior for population size: 1/X, (5) tree prior: coalescent constant population. MCMC was run for 50,000,000 iterations. Convergence was checked by inspecting an effective sample size and parameter value traces in the Tracer 1.7.1 software. (23) Multiple tests for each sample were performed to ensure reproducibility and convergence. The obtained clock rate (per site per year) was multiplied by the alignment size to obtain a substitution rate per genome per year.
Virulence and antibiotic resistance gene identification
Orthologs of resistance and virulence genes in 61 Achrmobacter lineages were identified with Abricate (24) using VFDB (containing 2,597 genes; retrieved: 2020.09.21) (25) for virulence genes and Resfinder 4 (containing 3,122 genes; retrieved: 2020.09.21) (26) for resistance genes. Gene ortholog was considered present in the corresponding database if the alignment made up minimum 50% of the gene length and its identity was minimum 75%.
Frequently mutated gene definition
Most frequently mutated genes were defined as the top 1% of all mutated genes for the species. If there were more genes mutated with the same frequency as the 1% most frequently mutated genes, these genes were also included in the final analysis. The identified most mutated genes were annotated by EGGNOG-mapper 2.0.1 (27) using DIAMOND and EGGNOG’s bacterial database.
P. aeruginosa orthologs were identified by performing clustering with CD-HIT (28) using word size of 3 and 50% identity thresholds. Joint Achromobacter most frequently mutated genes were identified by clustering with CD-HIT (28) with word size of 3 and 80% identity threshold.
Genome-wide association study with antibiotic resistance phenotypes
DBGWAS 0.5.4 (29) software was used for bacterial genome-wide association analysis using 10 (Amoxicillin-Clavulanate (AMC), Ceftazidime (CAZ), Chloramphenicol (CHL), Colistin (CST), Imipenem (IPM), Meropenem (MEM), Piperacillin-Tazobactam (TZP), Sulfamethizole (SMZ), Tigecycline (TGC) and Trimethoprim-Sulfamethoxazole (SXT)) different antibiotic resistance phenotypes and de novo assembled scaffolds of 92 isolates for which the antibiotic susceptibility profiles were available (Gabrielaite et al., 2020 (11) for detailed information on isolate susceptibility). Core genome SNP-based phylogenetic tree was used to correct for population structure while all available annotations of Achromobacter genes from UniProt database (30) were used for unitig annotation (271,851 genes; retrieved: 2020.04.19). Ten most significant unitigs for each antibiotic test were used for further analysis as the tool authors advise against using a p-value threshold when testing several phenotypes. (29) Achromobacter gene annotations were identified by clustering significant unitig gene sequences with CD-HIT (28) with word size of 3 and 80% identity threshold. Enrichment of COG annotated genes was estimated by comparing the fraction of the associated genes with the fraction in the Achromobacter reference genomes for the 5 most frequently associated gene groups where more than one gene was present in a group.
Results
Achromobacter dataset and incorrect annotations of public genomes

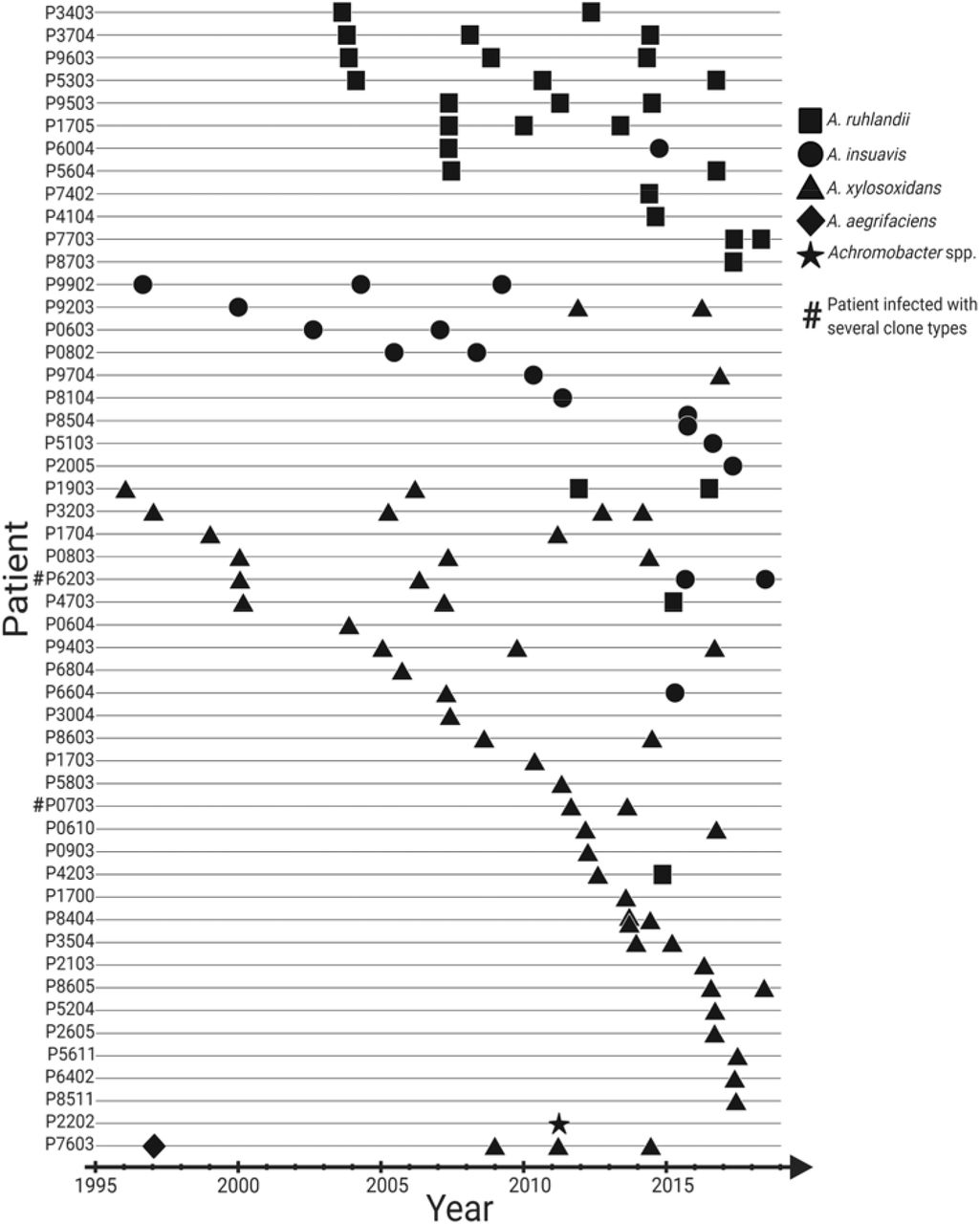

The genomes of 101 Achromobacter isolates from the airways of 51 patients with CF attending the Copenhagen Cystic Fibrosis Center at Rigshospitalet were sequenced to follow the within-host evolution and genetic adaptation of the lineages over the initial 0–20 years of infection (Figure 1). All isolates were previously defined as belonging to 5 different species: A. ruhlandii (N=29), A insuavis (N=18), A. xylosoxidans (N=52), A. aegrifaciens (N=1) and a new genogroup (N=1). The latter two species were excluded from further analysis as the species contained only a single isolate. The remaining 99 Achromobacter genomes were grouped to 61 lineages which were defined as all isolates from one patient belonging to the same species and clone type.

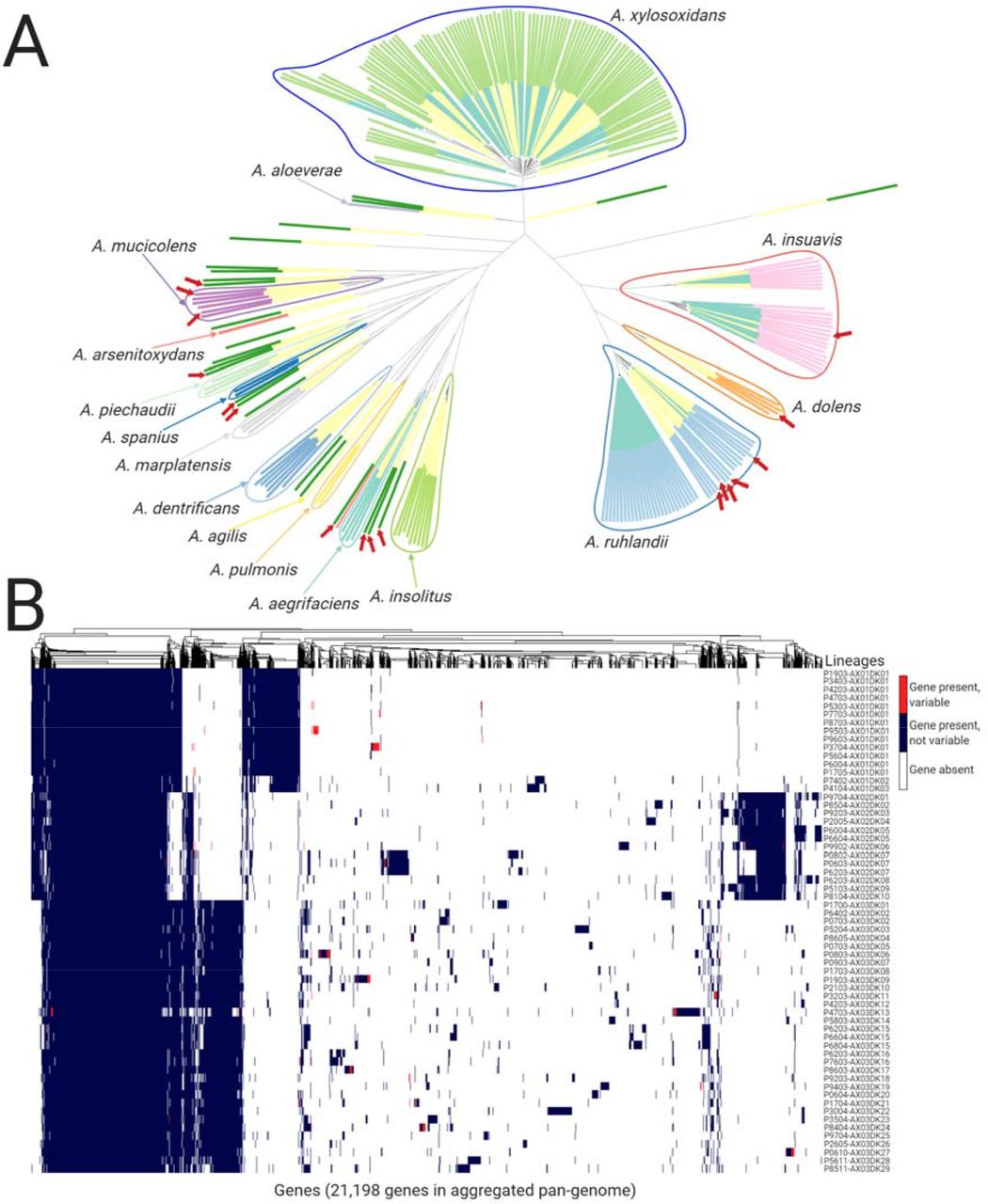

We first performed phylogenetic analysis for all Achromobacter genomes available in the RefSeq database (141 samples, Table S1) together with our clinical Achromobacter genomes. Our sequenced genomes were widely distributed across the genetic variability observed within A. insuavis and A. xylosoxidans group; however, A. ruhlandii isolates, of which the majority (27/29) belonged to Danish epidemic strain (DES), reflected little genetic variability of A. ruhlandii species. Furthermore, our phylogenetic and average nucleotide identity (ANI) analysis revealed that Achromobacter annotations are inconsistent among the RefSeq genomes and require corrections to improve species designation (Figure 2A, suggested corrections in Table S1).
Aggregated pan-genome
Aggregated pan-genome was constructed from pan-genomes of each of the 61 lineages (35 of which were single-isolate lineages). This approach allowed us to account for the nature of the dataset where multiple clonal isolates from the same patient were available. The aggregated Achromobacter pan-genome consisted of 21,198 genes: 2,887 core genes, 18,311 accessory genes of which 6,917 genes were unique to a single lineage.

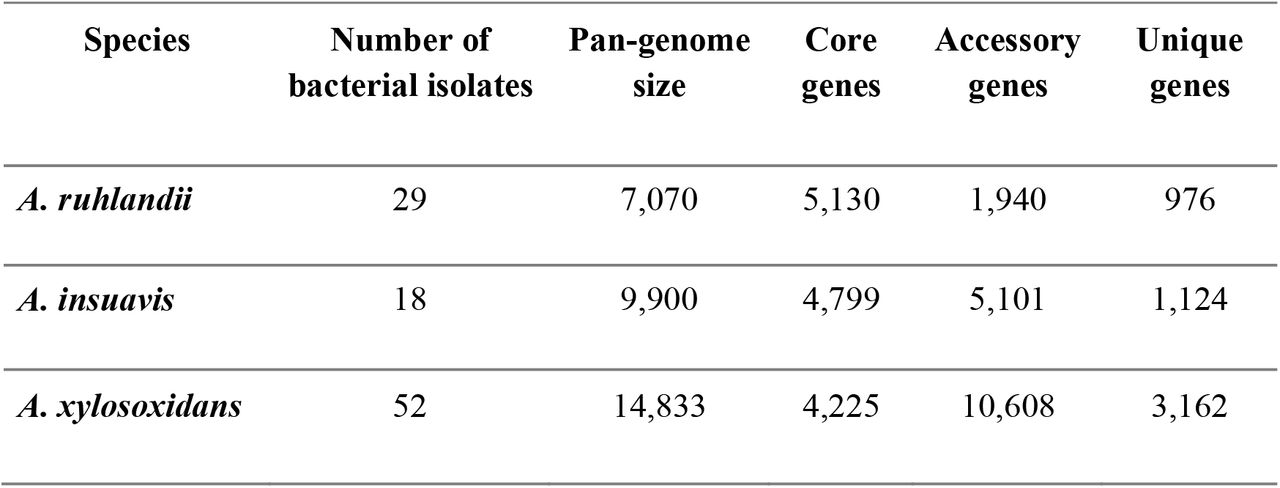

The aggregated pan-genome (Figure 2B) contained Achromobacter species-specific genes (649 for A. ruhlandii, 648 for A. insuavis, and 494 for A. xylosoxidans) present in all isolates of the respective species but not in the isolates from other species. Pan-genomes for each Achromobacter species were defined by using all bacterial isolates available (18–52) for the species. The size of the species’ pan-genomes contained 7,070–14,833 genes, of which 4,225–5,130 were core genes, 1,940–10,608 accessory genes and 976–3,162 isolate-unique genes (Table 1).
Achromobacter substitution rates
Within-patient bacterial substitution rate was estimated for lineages where three or more Achromobacter isolates from different timepoints were available (five lineages for A. ruhlandii, four for A. xylosoxidans, and one for A. insuavis). The estimated substitution rates for A. ruhlandii (DES isolates which are known hypermutators (11,31)) were on average 4.18·10-6 (2.71·10-6–5.39·10-6) SNPs/year/site, 8.77·10-7 (6.17·10-7–1.13·10-6) SNPs/year/site for A. xylosoxidans (0332-AX03DK11 hypermutator lineage (11) with the mutation rate of 2.37·10-6 SNPs/year/site was excluded), and 1.61·10-7
SNPs/year/site for A. insuavis. These substitution rates correspond to an average of 21.5, 2.19 and 0.79 SNPs/year/genome for A. ruhlandii, A. xylosoxidans and A. insuavis, respectively (Figure S1).
Virulence and antibiotic resistance genes carried by Achromobacter genomes

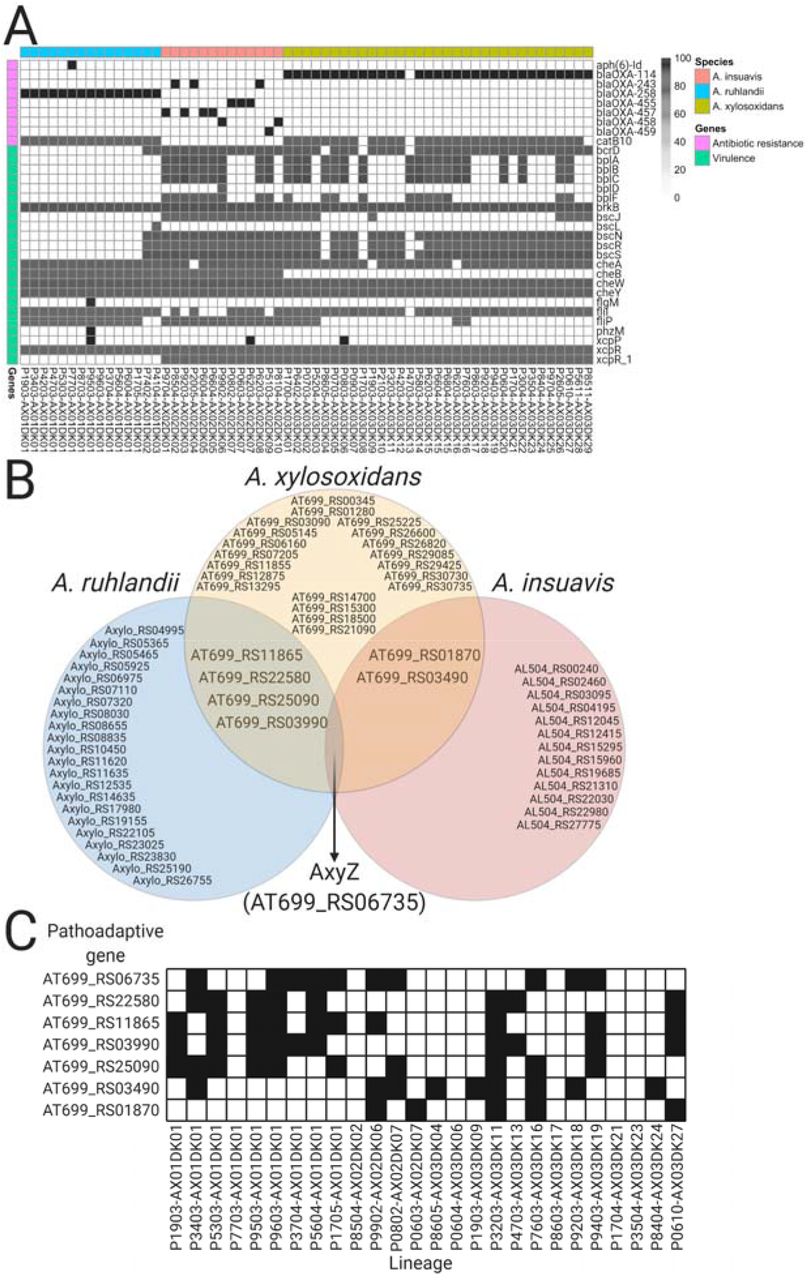

From de novo assembled genomes of the 99 Achromobacter isolates we identified virulence (VFDB database) and antibiotic resistance (Resfinder database) gene orthologs. On average, bacterial isolates carried 2 (0–3) antibiotic resistance gene orthologs and 13 (8–18) virulence gene orthologs. The most frequently carried antibiotic resistance gene was the ortholog of catB10 which codes for chloramphenicol acetyltransferase. Interestingly, the gene was carried by all A. ruhlandii and nearly all (30/33) A. xylosoxidans lineages but none of the A. insuavis lineages (Figure 3A). Furthermore, OXA-type class D β-lactamase blaOXA-258 was observed in all A. ruhlandii isolates and blaOXA-114—in all but one (P7034-AX03DK13) A. xylosoxidans lineages. All 13 A. insuavis isolates carried one of the following blaOXA genes: blaOXA-243, blaOXA-455, blaOXA-457, blaOXA-458 or blaOXA-459. All blaOXA genes carried by A. insuavis had ≥92% nucleotide identity. The latest isolate of DES (P7703-AX01DK01) appears to have acquired a new aph(6)-Id antibiotic resistance gene ortholog encoding for aminoglycoside resistance. (32)
The median number of virulence genes in A. ruhlandii DES genomes was markedly lower (N=8) than other Achromobacter isolates (N=14; p-value=5.98·10-8; Wilcoxon signed-rank test) (Figure 3A). The majority of virulence gene orthologs belonged to the secretion system (N=9), motility (N=7), and endotoxin (N=5) gene orthologs. (25)
Genetic adaptation: Mutations of the same genes across lineages
To explore within-host genetic adaptation in Achromobacter, we first identified the genes which were most frequently mutated within each species. Genes were defined as frequently mutated if they were among the 1% most commonly mutated genes within species. If more than 1% of the genes were mutated with the same frequency, those genes were also included in the analysis. A total of 27, 16, and 28 genes were identified as most frequently mutated for A. ruhlandii, A. insuavis, and A. xylosoxidans, respectively (Figure 3B). The clusters of orthologous groups (COG) functional annotations were performed for all species (Figure 4A; Table S2 for detailed information) with the highest mutation frequency in genes coding for signal transduction (COG T); inorganic ion transport and metabolism (COG P); replication, recombination and repair (COG L); intracellular trafficking, secretion and vesicular transport (COG U); and transcription (COG K).

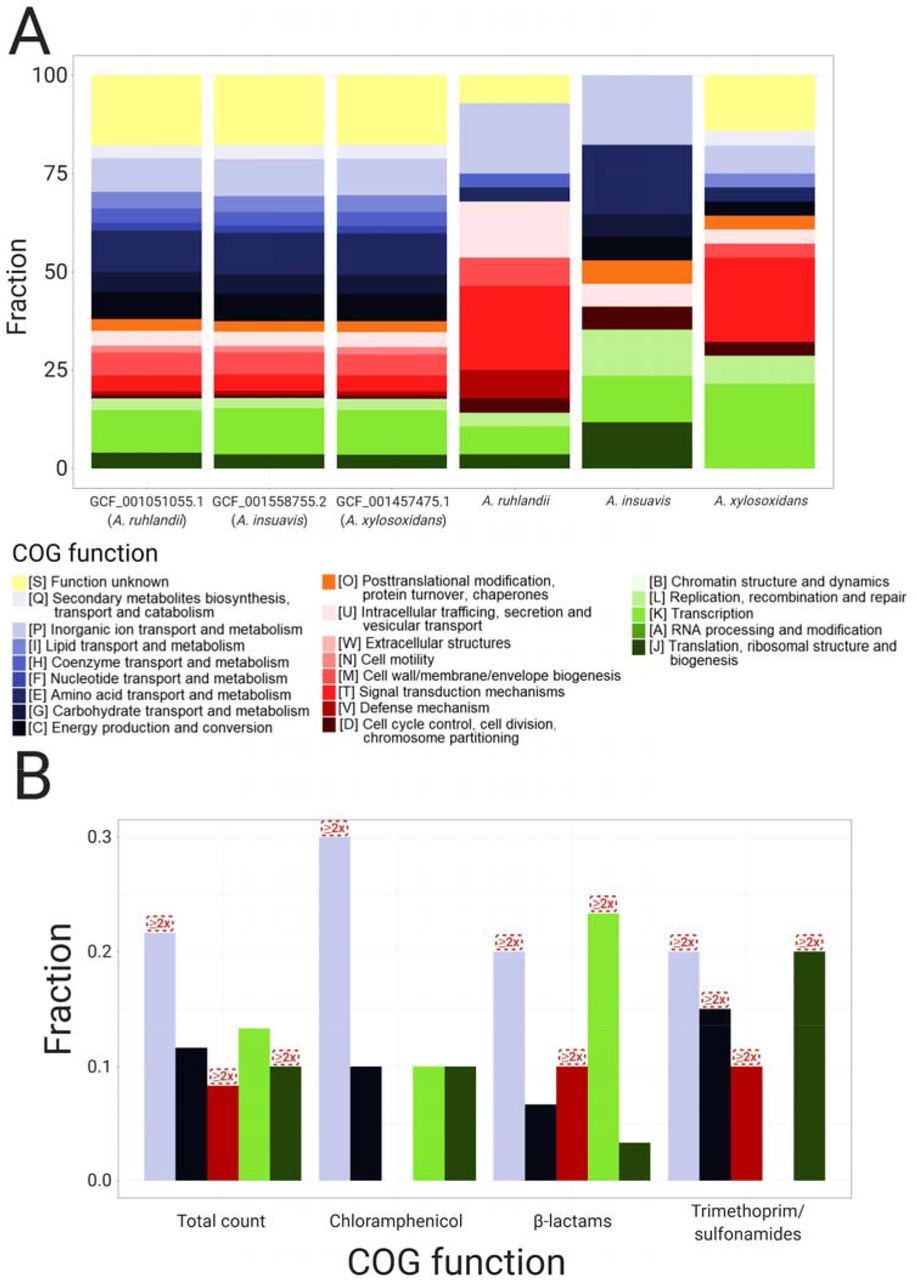

Although knowledge is lacking about many Achromobacter gene functions, bacterial sequence similarity analysis allowed us to identify possible antibiotic resistance and virulence-related genes among the most frequently mutated genes in Achromobacter. After manual literature search 10, 4 and 4 genes were defined as related to antibiotic resistance in A. ruhlandii, A. insuavis and A. xylosoxidans, respectively, whereas 8, 2 and 7 genes were defined as virulence-related genes (Table S2).
Ortholog search of a previously defined list of 52 CF-associated pathoadaptive P. aeruginosa genes revealed three orthologs among the most frequently mutated Achromobacter genes: mexZ (WP_006389199.1), mexB (WP_024068614.1) and gyrA (WP_049072335.1).

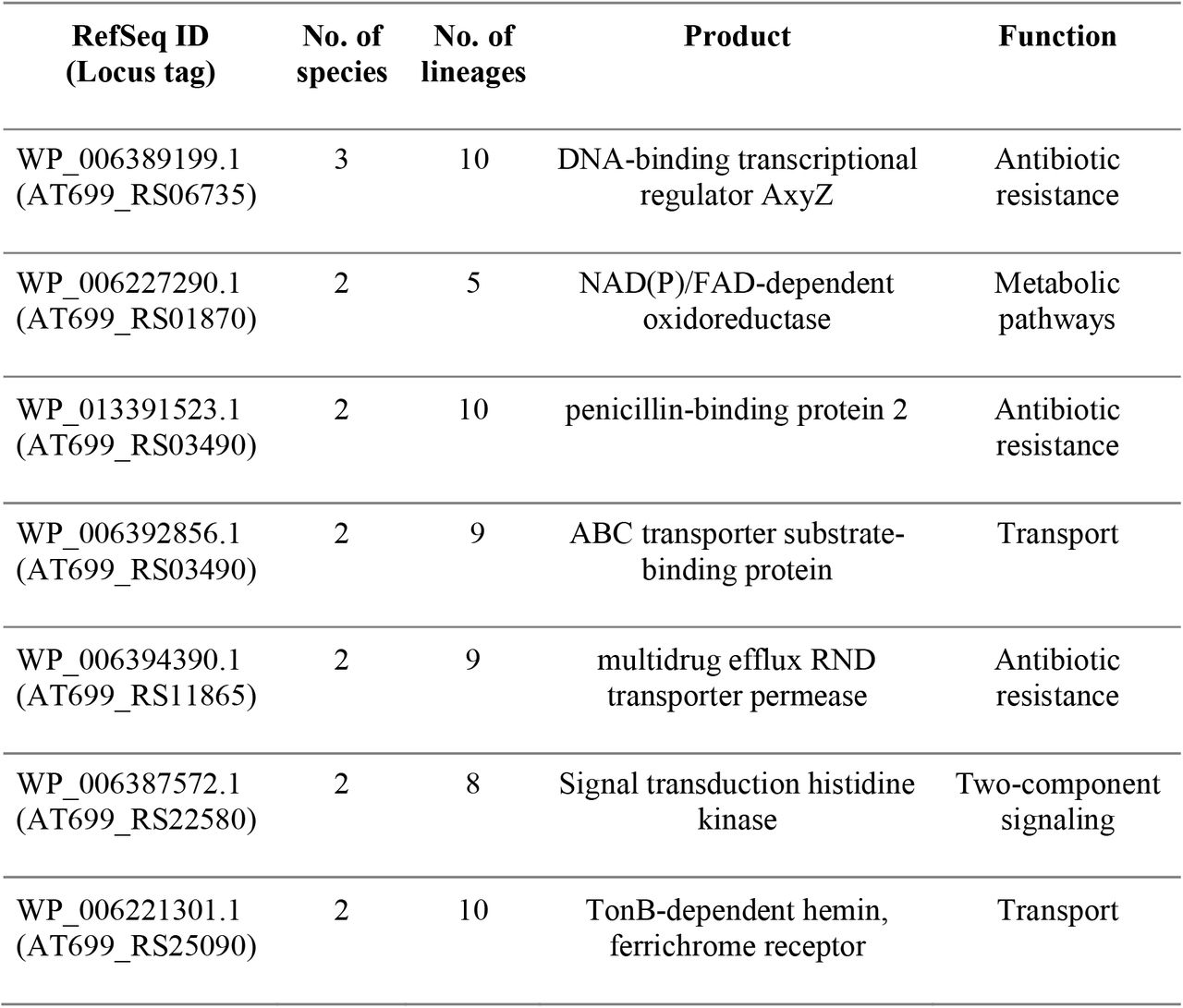

Seven genes were defined as candidate pathoadaptive genes in several Achromobacter species. One gene was frequently mutated in all three species (10 out of 26 lineages) and six genes were observed as most frequently mutated in two of the Achromobacter species (Figure 3C; Table 2). Six lineages did not acquire a single mutation in any of the seven pathoadaptive genes; however, 13 lineages acquired mutations in three or more genes (Figure 3C). Lineages which acquired mutations in three or more pathoadaptive genes acquired significantly less non-synonymous mutations than lineages with less mutated pathoadaptive genes (p-value=4.99·10-2; Fisher’s exact test). Furthermore, lineages only acquired non-synonymous mutations in the seven candidate pathoadaptive genes (Table S3).
The only pathoadaptive gene which was frequently mutated among all three species—axyZ— encodes TetR family transcriptional regulator of the RND-type efflux system and is associated with innate Achromobacter antibiotic resistance. (33,34) Furthermore, we observed higher overall antibiotic tolerance by isolates which acquired mutations in axyZ gene with highest antibiotic resistance increase against piperacillin/tazobactam (p-value=3.28·10-2; Fisher’s exact test) and meropenem (p-value=2.87·10-3; Fisher’s exact test).
The ratio of non-synonymous to synonymous substitutions (dN/dS) was significantly different between the 1% most frequently mutated genes and non-frequently mutated genes in Achromobacter (dN/dS99%=1.21 vs dN/dS1%=2.10; Fisher’s exact test; p=3.4·10-4, respectively).
Finally, we investigated gene loss and acquisition patterns in 26 longitudinally collected Achromobacter lineages. We observed genes to be 2 times more often lost than acquired, and lost/acquired in groups rather than individually; however, no convergent evolution patterns in Achromobacter gene loss/acquisition were identified (detailed analysis in Text S1).
Genome-wide association between Achromobacter genotypes and antibiotic resistance
To test for associations between bacterial genetics and antibiotic resistance phenotypes we performed unitig-based DBGWAS analysis. Out of 21 antibiotics where the resistance was phenotypically tested, only 10 antibiotics had both susceptible and resistant isolates from all three Achromobacter species. Accordingly, we performed the association analysis for these 10 antibiotics (see Materials and Methods for detailed information). Unitigs passed a 5% FDR corrected q-value threshold only for CHL, IPM, MEM, TZP, SMZ and SXT. Ten most significant unitigs were used for the six remainder association test analysis, resulting in 60 genes (50 unique genes) significantly associated with antibiotic resistance phenotypes (Figure 4B; Table S5). The most abundant group of associated unitigs belonged to inorganic ion transport (N=13; 2.4x enriched; COG P) genes. The other four most abundantly associated genes belonged to transcription (N=8; COG K); energy production and conversion (N=7; COG C); translation, ribosomal structure and biogenesis (N=6; COG J), and defense mechanism (N=5; COG V) groups. Furthermore, transcription genes were enriched in the β-lactam (IPM, MEM and TZP) antibiotic group (N=7; 2.1x enriched) while translation, ribosomal structure and biogenesis genes were 5.4x enriched in trimethoprim/sulfonamides (SMZ and SXT) group (N=4). Defense mechanism genes were 9.2x and 9.0x enriched in β-lactam and trimethoprim/sulfonamide groups, respectively while energy production and conversion genes were 2.9x enriched in a trimethoprim/sulfonamide group.
Of 9 antibiotic resistance genes from the ResFinder 4 database which were present in the aggregated pan-genome, none were associated with antibiotic resistance phenotypes in the GWAS analysis. Furthermore, core and accessory genes were equally associated with antibiotic resistance phenotypes (Table S5).
Discussion
Achromobacter is an emerging pathogen causing chronic respiratory tract airway infections in patients with CF; however, the genetic epidemiology of these infections is little understood. We sequenced and analyzed 101 genomes of Achromobacter isolates from 51 patients with CF which is the largest longitudinally collected Achromobacter genome dataset available to-date. This allowed us to investigate the population genomics and within-host adaptation, including genome-wide association analysis with antibiotic resistance phenotypes.
Phylogenetic analysis of our dataset with 141 publicly available Achromobacter genomes from the RefSeq database revealed that our dataset well represented the genetic diversity of A. xylosoxidans and A. insuavis species. However, because of DES overrepresentation, A. ruhlandii isolates did not reflect the species genetic diversity. Furthermore, ANI together with core-genome based phylogenetic analysis revealed that more than 10% of publicly available Achromobacter genomes are supposedly misannotated in the RefSeq database which we anticipated to unravel to ease future research on Achromobacter (Table S1).
From the aggregated pan-genome analysis we showed that core genome sizes were comparable between A. ruhlandii, A. insuavis and A. xylosoxidans which are similar to core genome size identified previously by Li et al. 2013 (35). Nevertheless, the number of accessory and unique genes in species’ pan-genomes varied greatly as a result of the different number of independent genomes for each species. A. ruhlandii isolates mostly belonged to DES, which is spread through patient-to-patient transmission (11,31), therefore, have lower pan-genome plasticity than A. xylosoxidans or A. insuavis.
Unlike many bacterial species, substitution rates for Achromobacter are not known. (36) Our A. ruhlandii dataset only consisted of hypermutator DES lineages which led to a high substitution rate estimate, and our substitution rate estimate for A. insuavis was based on only one longitudinally sampled lineage. A. xylosoxidans (8.77·10-7 SNPs/year per site) substitution rate is comparable to other Gram-negative bacterial species: P. aeruginosa (4.0·10-7 SNPs/year per site) (37), Shigella sonnei (6.0·10-7 SNPs/year per site) (38), Echerichia coli (2.26·10-7 SNPs/year per site) (39). The substitution rate is substantially lower than S. aureus (1.87·10-6 SNPs/year per site) (40) or Klebsiella pneumoniae (1.9·10-6 SNPs/year per site) (41).
While it was previously suggested to use blaOXA genes for Achromobacter species typing (42–44), we showed that in some cases such strategy would not be sufficient for species identification as isolates can carry none of the blaOXA genes. Furthermore, we identified that A. insuavis can carry one out of several highly similar blaOXA genes which might further complicate such species typing approach. We also show that none of the A. insuavis isolates carried catB10 chloramphenicol resistance gene ortholog; however, these identified resistance genes alone were not sufficient to explain the differences in antibiotic resistance phenotype between lineages and species.
Moreover, virulence gene ortholog analysis revealed that Achromobacter carries several virulence factors with markedly less virulence genes in A. ruhlandii DES strain which further supports the adaptive trade-off evolution hypothesis that virulence genes are not required or are selected against in chronic infections. (36) However, several virulence gene orthologs coding for host cell invasion (cheW and cheY) and facilitating evasion of the host immune response (brkB (45)) were observed in all lineages. Furthermore, our findings of secretion system, in particular type III secretion system, gene orthologs as the most prevalent virulence genes in Achromobacter are in line with findings by Jeukens et al. 2017 and Li et al. 2013. (35,46)
Among the candidate pathoadaptive genes (frequently mutated genes), we identified multiple antibiotic resistance genes which were markedly more frequently mutated among A. ruhlandii isolates than A. insuavis or A. xylosoxidans isolates. This phenomenon might signal about the continuous adaptive evolution even in highly antibiotic-resistant strains such as DES. (1) Nonetheless, more antibiotic resistance and virulence genes among frequently mutated genes might be identified if gene annotation of Achromobacter reference genomes improved. Overall, our identified candidate pathoadaptive genes (belonging to signal transduction; inorganic ion transport and metabolism; intracellular trafficking; transcription; and replication gene functional classes) are comparable to the observations in P. aeruginosa infecting patients with CF (47) and other smaller-scale studies on Achromobacter. (46) Furthermore, we highlight that not all Achromobacter lineages seem to undergo the same amount of selective pressure, and we show from the 7 pathoadaptive Achromobacter gene analysis that lineages tended to either have acquired not more than 2 pathoadaptive mutations and be under stronger positive selection or have acquired mutations in more pathoadaptive genes and be under weaker/neutral selection. These findings are comparable to findings from genetic adaptation studies in P. aeruginosa from patients with CF airway. (47) Overall, significantly higher dN/dS ratio in the 27, 16 and 28 most frequently mutated A. ruhlandii, A. insuavis and A. xylosoxidans genes confirms that there is strong selective pressure for changes in these genes during adaptation to the patients with CF airway. Altogether, dN/dS>1 in both frequently and non-frequently mutated genes show that more than the top 1% mutated genes are under selective pressure; nonetheless, a larger dataset is needed to identify more genes without sacrificing analysis accuracy.
AxyZ (mexZ ortholog), which was the only candidate pathoadaptive gene in all three species, is involved in the development of multidrug resistance by regulating AxyXY-OprZ RND-type efflux system, hence is crucial during adaptation to the host environment. (34) AxyZ ortholog mexZ in P. aeruginosa is established among pathoadaptive genes directly associated with increase in antibiotic resistance. (48–50) Furthermore, mutations in axyZ could partially explain the increased tolerance to piperacillin/tazobactam and meropenem.
The observed gene loss and acquisition patterns were comparable to the ones observed in P. aeruginosa; however, unlike in P. aeruginosa, no convergent loss or acquisition of gene clusters was observed. (51)
To further explore the differences in antibiotic susceptibility between Achromobacter isolates, we performed a k-mer based GWAS analysis. Limited number of bacterial isolates and high innate resistance to certain antibiotics restricted our analysis to only six successful GWAS associations which revealed that inorganic ion transport genes contribute to antibiotic resistance development in all six antibiotics. Changes in inorganic ion transport genes (COG P) could have a secondary influence on antibiotic resistance as such changes help overcome the problem of iron deficiency in human airways allowing better intrinsically resistant bacteria survival despite the presence of antibiotics. Similar patterns were previously identified in other bacteria causing chronic infections in patients with CF. (36,52,53) Another possible explanation is that many inorganic ion transport genes are related to efflux pumps and transporter genes which markedly contribute to increase in antibiotic resistance. (54,55) The observed enrichment of transcription genes (COG K) associated with resistance to β-lactams could be explained by changes in transcriptional regulation of intrinsic antibiotic resistance, efflux pump and cell wall protein coding genes. (54,56,57) Enrichment of translation and ribosomal structure genes (COG J), and energy production genes (COG C) in trimethoprim/sulfonamide group might be due to altered metabolism and changes in energy production leading to bacterial persistence and escape of antibiotic effect. (58,59) Ultimately, GWAS is a promising approach for a systematic innately complex bacterial resistance analysis which could be applied to better understand the genetics of antibiotic resistance development.
Our study has several limitations. First, even larger studies are necessary to further characterize and identify the genetic adaptation of Achromobacter during CF airway infections. Second, the lack of genome annotation and overall knowledge about Achromobacter limited the interpretation of putative pathoadaptive genes and genes associated with resistance phenotypes. Finally, a single isolate at a given time point is not sufficient to completely reflect the genetic diversity of the bacterial population (60,61); therefore, some of our findings might be the result of diversification and not the fixation of the adaptive mutations in Achromobacter.
Conclusions
In conclusion, by using the largest dataset to-date of Achromobacter clinical isolates from patients with CF, we used a comprehensive analytical framework for thorough bacterial genomic data analysis. Thus, we identified pathoadaptive and antibiotic resistance genes in Achromobacter causing CF airway infections. Furthermore, we showed that current knowledge about antibiotic resistance gene presence or mutations in those genes cannot sufficiently explain the resistance phenotypes, and GWAS offers a new approach of addressing this problem. The gained knowledge allows us to better understand the requirements for successful Achromobacter adaptation during infection in airways of patients with CF which could help accurately predict antibiotic susceptibility and clinical progression of Achromobacter infections, and further the development of urgently needed optimized treatment strategies.
Supporting information
List of abbreviations
- AMC
- Amoxicillin-Clavulanate
- ANI
- Average nucleotide identity
- CAZ
- Ceftazidime
- CHL
- Chloramphenicol
- COG
- Clusters of Orthologous Groups
- CST
- Colistin
- CF
- Cystic fibrosis
- DES
- Danish epidemic strain
- GWAS
- Genome-wide association study
- IPM
- Imipenem
- MCMC
- Markov chain Monte Carlo
- MEM
- Meropenem
- TZP
- Piperacillin-Tazobactam
- SMZ
- Sulfamethizole
- SNP
- Single nucleotide polymorphism
- TGC
- Tigecycline
- SXT
- Trimethoprim-Sulfamethoxazole
- WGS
- Whole genome sequence
Availability of data and materials
Achromobacter whole genome sequencing data is available at European Nucleotide Archive under study accession number PRJEB39108.
Acknowledgments
Ulla Johansen is thanked for expert technical assistance and Niels Høiby is thanked for collecting the earliest Achromobacter isolates. All figures were partly or completely created using BioRender (https://biorender.com/).
Funding
This work was supported by the Danish Cystic Fibrosis Association (Cystisk Fibrose Foreningen) and the Danish National Research Foundation (grant number 126). HKJ was supported by The Novo Nordisk Foundation as a clinical research stipend (NNF12OC1015920), by Rigshospitalets Rammebevilling 2015-17 (R88-A3537), by Lundbeckfonden (R167-2013-15229), by Novo Nordisk Fonden (NNF15OC0017444), by RegionH Rammebevilling (R144-A5287) by Independent Research Fund Denmark / Medical and Health Sciences (FTP-4183-00051) and by ‘Savværksejer Jeppe Juhl og Hustru Ovita Juhls mindelegat’.
Disclosure declaration
We declare no conflict of interest.
Contributions
R.L.M. and H.K.J conceived the study. R.L.M., H.K.J. and F.C.N supervised the study. M.G. and R.L.M. designed the bioinformatics workflows for the analysis. M.G. conducted the analysis. M.G., and R.L.M. analyzed and interpreted the data. M.G. prepared the manuscript draft and visualizations. R.L.M., H.K.J., and F.C.N reviewed and edited the draft.
Ethics declarations
Use of the stored clinical isolates was approved by the local ethics committee at the Capital Region of Denmark RegionH (registration number H-4-2015-FSP).
Supplementary information
Text S1. Achromobacter gene presence-absence analysis results.
Table S1. Table of publicly available RefSeq Achromobacter sequences with original and new proposed annotations which were based on ANI and core genome SNP-based phylogeny.
Table S2. List of most frequently mutated genes in Achromobacter ruhlandii, Achromobacter insuavis and Achromobacter xylosoxidans with their COG function, corresponding E-value, gene description and gene relatedness to antibiotic resistance or virulence with references defining gene’s relatedness to antibiotic resistance or virulence are provided where relevant.
Table S3. All mutations acquired by lineages in the 7 pathoadaptive genes which were frequently mutated in at least two Achromobacter species. Amino acid coordinates are based on the corresponding species’ reference genome genes.
Table S4. Table of pan-genome, core, accessory and unique genes in Achromobacter lineages. Variable genes are separated by whether they were (1) lost or acquired and (2) variable in a group or individually.
Table S5. The most significant GWAS associations (q-value<0.05) and their annotations.
Figure S1. Substitution rate per year average with 95% confidence intervals for Achromobacter ruhlandii (DES) and Achromobacter xylosoxidans.
Figure S2. COG annotation of the aggregated pan-genome and most frequently lost or acquired genes.
