Decreased melanoma CSF-1 secretion by Cannabigerol treatment reprograms regulatory myeloid cells and reduces tumor progression
I. WYROBNIK ET AL.
ONCOIMMUNOLOGY
The Laboratory of Cancer Biology and Cannabinoid Research, Department of Biology, Technion-Israel Institute of Technology, Haifa, Israel
The Kleifeld Laboratory, Department of Biology, Technion-Israel Institute of Technology, Haifa, Israel
Cannasoul Analytics, Caesarea, Israel
Department of Hematology, Shaare Zedek Medical Center and Faculty of Medicine, The Hebrew University of Jerusalem, Jerusalem, Israel
CONTACT Hila Novak-Kotzer nhila@technion.ac.ilDavid Meiri dmeiri@technion.ac.il The Laboratory of Cancer Biology and Cannabinoid Research, Department of Biology, Technion-Israel Institute of Technology, Technion City Room 401, Haifa 3200003, Israel;ABSTRACT
During solid tumor progression, the tumor microenvironment (TME) evolves into a highly immunosuppressive milieu. Key players in the immunosuppressive environment are regulatory myeloid cells, including myeloid-derived suppressor cells (MDSCs) and tumor-associated macrophages (TAMs), which are recruited and activated via tumor-secreted cytokines such as colony-stimulating factor 1 (CSF-1). Therefore, the depletion of tumor-secreted cytokines is a leading anticancer strategy. Here, we found that CSF-1 secretion by melanoma cells is decreased following treatment with Cannabis extracts. Cannabigerol (CBG) was identified as the bioactive cannabinoid responsible for the effects. Conditioned media from cells treated with pure CBG or the high-CBG extract reduced the expansion and macrophage transition of the monocytic-MDSC subpopulation. Treated MO-MDSCs also expressed lower levels of iNOS, leading to restored CD8+ T-cell activation. Tumor-bearing mice treated with CBG presented reduced tumor progression, lower TAM frequencies and reduced TAM/M1 ratio. A combination of CBG and αPD-L1 was more effective in reducing tumor progression, enhancing survival and increasing the infiltration of activated cytotoxic T-cells than each treatment separately. We show a novel mechanism for CBG in modulating the TME and enhancing immune checkpoint blockade therapy, underlining its promising therapeutic potential for the treatment of a variety of tumors with elevated CSF-1 expression.
Introduction
During solid tumor progression, the tumor microenvironment (TME) frequently evolves into a highly immunosuppressive milieu1,2. Key players in the formation of this anti-inflammatory environment are regulatory myeloid cells, such as tumor-promoting (M2-like) tumor-associated macrophages (TAMs) and myeloid-derived suppressor cells (MDSCs)2,3. Regulatory myeloid cells are recruited, polarized and activated by tumor-secreted cytokines and chemokines, such as colony-stimulating factor 1 (CSF-1, also known as M-CSF), monocyte chemoattractant protein-1 (MCP-1, also known as CCL2) and macrophage inflammatory protein-2 (MIP-2, also known as CXCL2)1,2. For example, CSF-1 is one of the cytokines that prevent MDSCs differentiation into mature myeloid cells4 and under pathological conditions leads to the expression of the M2 transcriptome5. Additionally, blocking the CSF-1 receptor was shown to stop the accumulation of immunosuppressive TAMs6.
The generation and expansion of regulatory myeloid cells are one of the main mechanisms adopted by cancer cells to ensure tumor progression and metastasis formation7. For example, once activated, MDSCs express various immunosuppressive markers, such as inducible nitric oxide synthase (iNOS) and Arginase-1 (Arg-1), leading to reduced CD8+ T-cell proliferation and activation8,9. This is one of the reasons why many patients fail to respond to immune checkpoint blockade therapies10. One promising strategy in targeting regulatory myeloid cells is the depletion of tumor-secreted cytokines to achieve a reduction in their expansion and activation11.
Medical Cannabis and its unique metabolites known as phytocannabinoids are gaining momentum in the field of drug development. They are intensely investigated for their potential anti-cancer functions and the effect of phytocannabinoids on the immune system has been described previously12,13. Phytocannabinoids modulate many processes in the body through their interaction with the endocannabinoid system, a ubiquitous and conserved neuromodulatory signaling system12,13. The endocannabinoid system is involved in the regulation and proper functioning of most physiological systems; thus, phytocannabinoids have a huge potential to influence a variety of physiological processes and exert therapeutic effects in different diseases14,15. The most commonly known phytocannabinoids, (−)-trans-Δ9-tetrahydrocannabinol (THC) and Cannabidiol (CBD), are extensively studied for therapeutic purposes14,16. However, very little is known about the other phytocannabinoids, although they were suggested to exert a variety of effects in pathological conditions17–20.
Most previous studies investigated the direct effect of medical Cannabis on cancer cells, without taking the complexity of the tumor ecosystem into consideration. A few studies focused on the effect of single cannabinoids, mostly THC or CBD, on MDSCs in healthy mice or immune-related diseases21,51. However, it is still not clear how whole Cannabis extracts or minor cannabinoids affect regulatory myeloid cell populations and what role these cannabinoids play in the TME.
In the current study, we aimed to investigate whether medical Cannabis can affect the cytokine secretion pattern of melanoma cells. Melanoma is one of the most immunogenic tumors and therefore it acquires different mechanisms to escape immune surveillance during tumor progression, one of which is the over-production of negative modulators of immune cells22. By altering the secretion of cytokines in the TME and thereby altering the characteristics of regulatory myeloid cells, immune evasion may be reduced and tumor progression may be halted. Here, we show a novel mechanism by which the single cannabinoid, Cannabigerol (CBG), modulates the differentiation and activation of regulatory myeloid cells leading to reduced cancer progression.
Materials and methods
Reagents
Synthetic CBG (Symrise, Germany, Cat# 664714) and synthetic Cannabinol (CBN; Open Book Extracts, Cat# IOB_JACGA_CBN) were diluted in DMSO (Merck Millipore, Cat#101900) to stock solutions.
Cell lines and culture conditions
The murine melanoma cell line B16F10 was generously given to us as a gift from Dr. Yishai Ofran of Shaare Zedek Medical Center in Jerusalem. The human melanoma cell line A375 was purchased from ATCC (Cat# CRL-1619, RRID:CVCL_0132). B16F10 cells were incubated in RPMI (Sigma, Cat# R8758) and A375 in DMEM (Sigma, Cat# D5796), supplemented with 10% FBS (Sigma, Cat# F7524) and 1% Penicillin/Streptavidin (Sartorius, Cat# 03–031-1B) at 37°C with 5% CO2.
Apoptosis assay
Apoptosis was assessed by flow cytometry, measuring cells stained for Annexin V (BioLegend, Cat# 640941, 1:100) and propidium iodide (PI, BioLegend, Cat# 421301, 1:400) with indicated treatments. Stained cells were analyzed by BD FlowJo™ software version x.0.7 (BD Biosciences). Cell death was determined as the percentage of double positive cells.
Cytokine screen
Conditioned media from treated B16F10 cells were collected, and cytokines and chemokines content were measured using the proteome profiler mouse cytokine array kit panel A (R&D Systems; Cat# ARY006) as described in the manufacturer‘s protocol.
Elisa
The media from B16F10 and A375 cell lines, or homogenates from B16F10 tumors, were collected and the protein concentration of MCP-1, MIP-2, CCL5 and CSF-1 were measured by Quantikine Mouse M-CSF ELISA kit (R&D systems, Cat# MMC00) as described in the manufacturer’s protocol.
Immunofluorescence (IF) microscopy
B16F10 cells were treated with either synthetic CBG or Cannabis extract 3704 for 24 h. Then, cells were fixed with 4% PFA (Electron Microscopy Sciences, Cat# 15710) permeabilized, and blocked. Cells were then stained for CSF-1 (Santa Cruz; Clone D-4; Cat# 365779, RRID:AB_10846852, 1:50), washed and stained with the secondary antibody anti-mouse Alexa Fluor 488-secondary antibody (Abcam, Cat# 150077, RRID:AB_2630356, 1:500) and mounted with mounting solution containing DAPI (GBI labs, Cat# K1996619B). Samples were imaged using the Zeiss LSM 710 inverted confocal microscope with 20× (0.8NA) objective lens for statistical analysis and 63×/1.4 Oil objective lens for representative image acquisition. Analysis was conducted using the IMARIS software and results were calculated using the formula: mean AF-488 intensity divided by the number of nuclei.
Mouse tumor model
To induce tumors, B16F10 cells were resuspended to a concentration of 1 × 106 cells in 200 µl sterile PBS and transplanted subcutaneously into the right flank of 8–10-week-old female WT C57BL/6 mice (Envigo Israel, 17.44 g ± 1.14 g) or male NOD-SCID IL2rγ-null (NSG) mice (Technion animal facility, Israel). After either 24 h or 3 d, mice were randomly divided into groups and treated as indicated with either a vehicle of Cannabis extract solvent (18:1:1 ratio of DDW + 0.9% NaCl, Sigma, Cat# S7653; Cremophor® EL, Cat# 238470; Ethanol, Sigma, #Cat 111,727), CAN (100 mg/kg), synthetic CBG (2.5 mg/kg) or 3704 (3.75 mg/kg). Tumor volume was measured from day 10 to the endpoint (day 14–21) using a vernier caliper and calculated according to the formula (length × width2)0.5. Treatment with isotype control (Bio X Cell, Cat# BP0090, 200 µg/mouse) or α-PD-L1 (Bio X Cell, Cat# BE0101, RRID:AB_10949073, 200 µg/mouse) commenced on day 3 and administrated every 4 d. For the survival analysis, mice bearing a tumor that had signs of ulcers or a volume higher than 1,000 mm3 were euthanized.
To prepare single-cell suspensions from the tumors, on day 14 the tumors were excised from the mice and placed in Hanks’ Balanced Salt solution (HBSS, Sigma; Cat# H6648) containing 20 µg/ml DNase I (Sigma, Cat# D5025), 1 mg/ml collagenase D from Clostridium histolyticum (Sigma-Aldrich, Cat# C5138) and 0.1 mg/ml hyaluronidase (Sigma-Aldrich, Cat# 6254). Tumors were mechanically digested using a scalpel and the gentleMACS™ Dissociator (Miltenyi Biotec). After centrifugation, the supernatant was further used for cytokine and chemokine concentration measurements. For the characterization of myeloid cell frequencies in tumors, cells were resuspended in 40% percoll gradient solution (prepared from 100% percoll, Cytiva, #17089101) and then 80% percoll was added on top of the 40% solution without mixing. Cells were isolated from the interphase between the 40% and 80% percoll solutions. Subpopulation frequency was measured by spectral flow cytometry using Cytek® Aurora (Cytek Biosciences), and cell count was measured by Countbright absolute counting beads (Cat# C36950, Invitrogen).
In-vitro Bone Marrow derived-MDSC differentiation (BM-MDSC)
Bone-marrow-derived cells (BMDCs) were isolated from the fibula and tibia bones of healthy female WT C57BL/6 mice (8–12-week-old). Cells were counted, and 1 × 106 cells were seeded in complete RPMI (Sigma, Cat# R8758) containing 10% FBS (Sigma, Cat# F7524), 1% L-Glutamine (Sartorius, Cat# 03–020-1B), 1% Penicillin/Streptavidin (Sartorius, Cat# 03–031-1B), 1% MEM-Eagle (Sartorius, Cat# 01–340-1B), 2.5% HEPES (Sartorius, Cat# 03–025-1B) and 1% sodium pyruvate (Sartorius, Cat# 03–042-1B) and supplemented with 20 ng/ml of GM-CSF and IL-6 (R&D systems, 415-ML and 406-ML). BMDCs were incubated for 4 d and then treated with conditioned media of treated B16F10 cells.
BM-MDSCs CD8+ T-cell co-culture suppression assay
Generated BM-MDSCs were treated with conditioned media for 24 h, then sorted into monocytic (MO)-MDSC and polymorphonucler (PMN)-MDSC subsets. Concurrently, CD8+ T-cells were isolated from the spleens of healthy female WT C57BL/6 mice. To isolate CD8+ T-cells, spleens were mechanically disintegrated and the red blood cells were lysed with the red blood lysis buffer (Biological industries, Cat# 01–888-1B). CD8+ T-cells were isolated using the EasySep Mouse CD8+ T-cell isolation kit (Stemcell Technologies, Cat # 19853) according to the manufacturer’s protocol.
Post-sorted MDSC subpopulations were co-cultured in complete RPMI with CD8+ T-cells that were activated with Dynabeads® (Cat# 11456D; 12.5 µl/1 × 106 cells). After 48 h, the activation beads were removed and cells were incubated with eBioscience Cell Stimulation Cocktail (Invitrogen, Cat# 00-4970-93) for 3 h and then also with BD GolgiStop™ Protein Transport Inhibitor (BD Biosciences, Cat# 51-2092KZ). Intracellular staining of IFN-γ and Granzyme B in CD8+ T-cells was achieved by using the BD Cytofix/Cytoperm™ Kit (BD Biosciences, Cat# 554714) as stated in the manufacturer’s instructions.
Fluorescent activated cell sorting (FACS)
To analyze the two subpopulations of BM-MDSCs, the cells were stained with Ly6C-BV421 and Ly6G-APC and sorted into MO-MDSC or PMN-MDSC using the BD FACSAria III Cell Sorter instrument (BD Biosciences). Directly after sorting, the two separate subpopulations were co-cultured with CD8+ T-cells or lysed and further analyzed via Western blot. A full list of antibodies used for flow cytometry assays can be found in the Supplemental materials.
Preparation of cell lysates and Western Blot
B16F10 cells, and sorted MO-MDSC and PMN-MDSC achieved as described, were lysed in RIPA buffer (Sigma, Cat# R0278) supplemented with Protease/Phosphatase Inhibitor Cocktail (Cell signaling, Cat# 5872S). Total protein concentrations were measured using the detergent-compatible protein assay (Bio-Rad, Cat# 5000113 and 5000114) and equal amounts were used. Primary antibodies used were CSF-1 (Santa Cruz; Clone D-4; Cat# sc -365779, RRID:AB_10846852), iNOS (Abcam, Clone Cat# ab15323, RRID:AB_301857) or GAPDH (Cell Signaling Technology, Clone 14C10, Cat# 3683S, RRID:AB_1642205).
Statistical analysis
The data were analyzed by GraphPad Prism 6 (GraphPad Software Inc.), and the results were presented as mean ± SEM. Comparisons were performed using one- or two-way ANOVA followed by post hoc Tukey’s analysis or a student’s t-test as indicated. A p-value <0.05 was considered statistically significant.
Study approval
All procedures involving animals were conducted in accordance with the standards approved by the Technion Animal Care and Use Ethics Committee and the studies adhered to the Technion Code for Experimentation on Animals.
Results

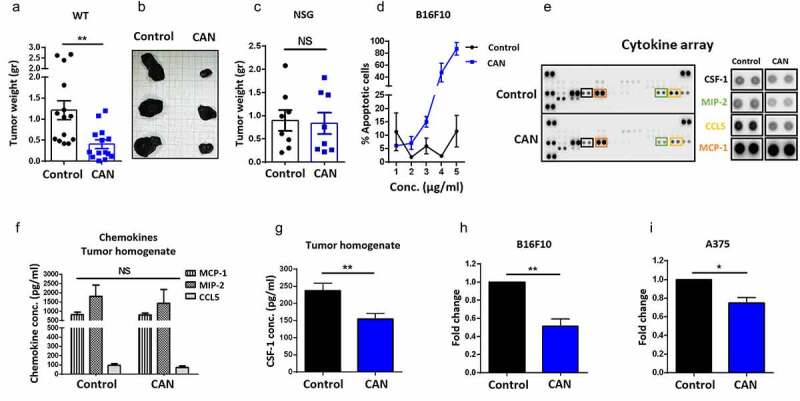

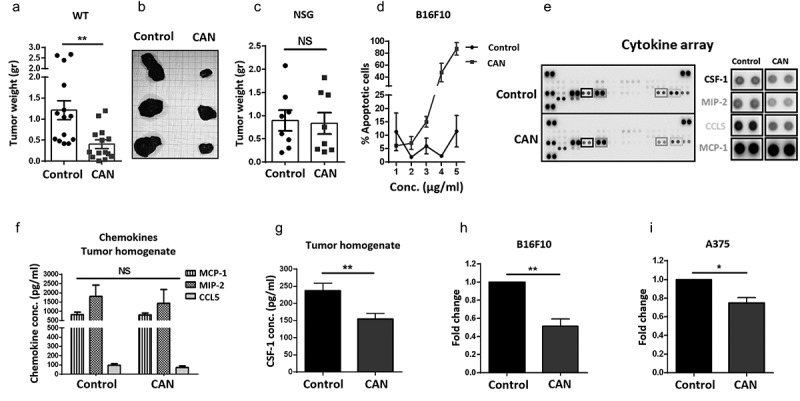

CSF-1 secretion is reduced after treatment with a high-THC Cannabis extract
We have previously shown that Cannabis extracts differ greatly in their phytocannabinoid profile23 and therefore in their anticancer activity12. While some extracts exerted apoptotic effects, others influenced the dormancy state of cancer cells24. Regulatory myeloid cells were found to play key roles in promoting cancer dormancy and progression22. Therefore, in the current study, we focused on the effect of Cannabis and its bioactive metabolites, the phytocannabinoids, on the characteristics of myeloid cells in the TME. First, we chose a Cannabis extract (CAN) that we observed affects B16F10 tumor size in-vivo in wild-type (WT) mice (Figure 1a,b) but not in immunodeficient mice (Figure 1c). The major phytocannabinoids in this whole Cannabis extract were identified using Ultrahigh-performance liquid chromatography with an ultravioletdetector (HPLC/UV) according to the retention time of each specific phytocannabinoid and were found to contain mainly THC (66%) and other phytocannabinoids in lower percentages (0.08%–1.66%) (Supplemental STable 1, Supplemental materials). When the B16F10 cell line was treated with CAN, we decided to focus on a concentration that affects the cells without inducing cell death, so that we could assess differences in cytokine secretion. The cells were treated with increasing concentrations of CAN, and we identified 2 µg/ml as the optimal concentration which does not lead to increased cell death (Figure 1d). Using a cytokine screen array, a reduction in three myeloid-related cytokines and chemokines was detected, namely CSF-1, MIP-2 and C-C Motif Chemokine Ligand 5 (CCL5) (Figure 1e). Changes in MCP-1 secretion were not detected; however, MCP-1 concentrations were tested in further experiments as a positive control (Figure 1e). To validate the change in secretion observed by the B16F10 cell line, the four above indicated cytokines and chemokines were measured in B16F10 tumors from mice that were treated either with a control vehicle or with CAN using an enzyme-linked immunosorbent assay (ELISA). We were able to detect only a reduction in the concentration of CSF-1 in tumors of CAN-treated mice (Figure 1f,g). In-vitro validation of CSF-1 secretion by B16F10 cell line and the human A375 melanoma cells showed the reduced secretion of CSF-1 by CAN-treated cells as well (Figure 1h-i). The optimal concentration of CAN for A375 was assessed in a similar manner to B16F10 and found as 6 µg/ml in-vitro (Supplemental Figure 1a, leftmost columns).

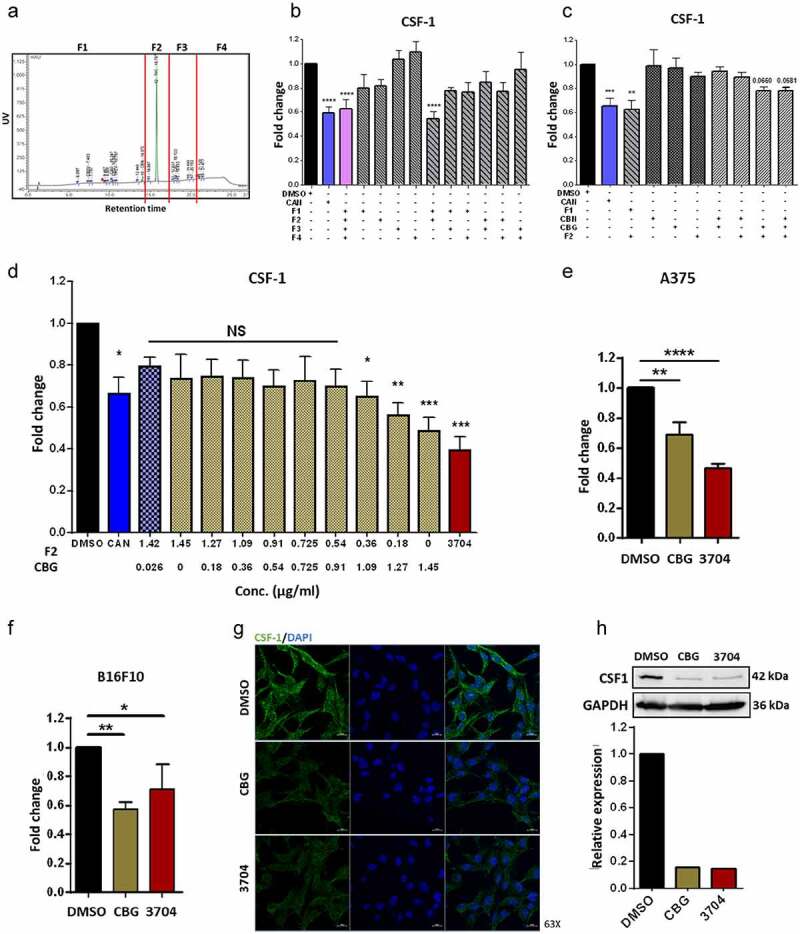

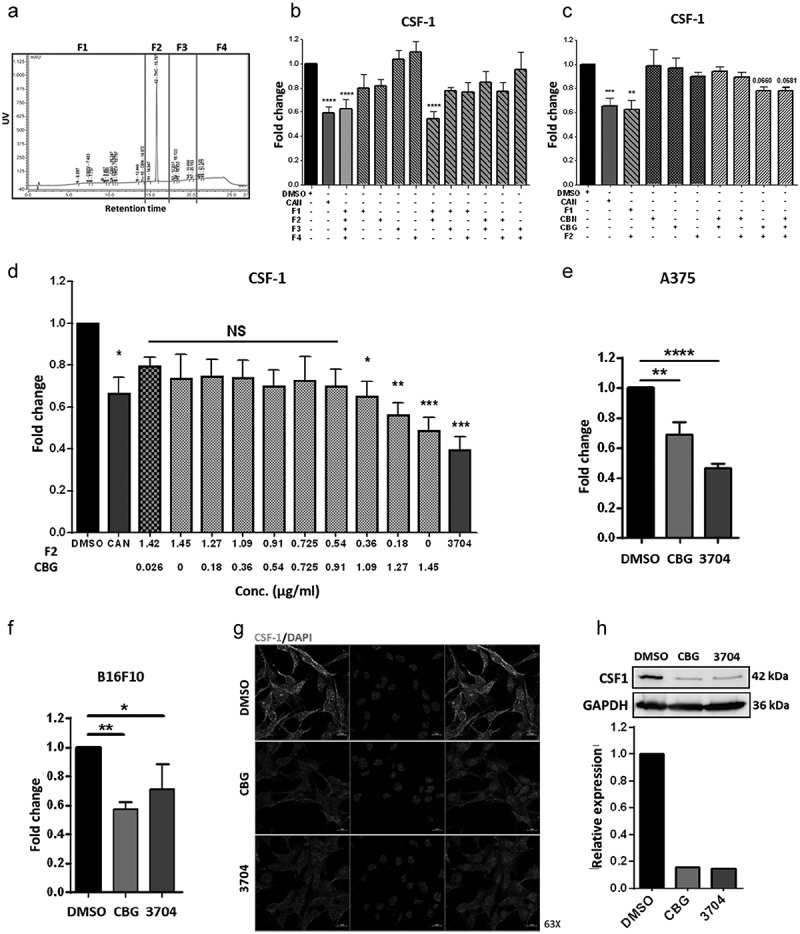

CBG reduces CSF-1 secretion by B16F10 cells
Since we identified the specific reduction of CSF-1 after CAN treatment, we continued investigating the specific phytocannabinoids present in the whole extract that are responsible for the seen effects. For this purpose, CAN extract was fractionated into four fractions F1-F4 (Figure 2a, Supplemental materials). The major phytocannabinoids in each fraction are shown in Supplemental STable 1. Then, B16F10 cells were treated with each fraction separately and all the possible combinations. The concentration of each fraction was normalized according to the concentration of the phytocannabinoid with the highest weight-to-weight percentage in the whole extract. We found that a combination of fractions F1 and F2 mimics the effect of the whole extract (Figure 2b). The phytocannabinoids with the highest weight-to-weight percentage in F1 were CBN and CBG. In F2, the major phytocannabinoid detected was THC and this fraction was almost exclusively composed of THC (93%). This led us to investigate the change in CSF-1 secretion on a single-molecule resolution. Synthetic pure CBN and synthetic pure CBG were tested in combination with F2, used as indicative of pure THC. We used the same concentrations of the cannabinoids as they are present in the whole extract, cells were treated separately or by any other cannabinoid combination (Figure 2c). The addition of synthetic CBN together with CBG and F2 did not further reduce CSF-1 secretion. However, the combination of CBG and F2 was not as efficient as the whole extract or F1 and F2 combined. Therefore, we tested the effect on CSF-1 secretion by different ratios of CBG and F2 (Figure 2d). Strikingly, with increasing concentrations of CBG up to 1.45 µg/ml and decreasing concentrations of F2, CSF-1 secretion was reduced more efficiently. As a positive control, we used a high-CBG chemovar, termed 3704, at the same concentration of 2 µg/ml as was used for CAN. We identified a more significant reduction in CSF-1 secretion compared to the original CAN extract (Figure 2d, rightmost column). These results were verified in the A375 cell line, cells treated with 1.5 µg/ml CBG and 2 µg/ml 3704 showed reduced CSF-1 secretion in this cell line as well (Figure 2e). Further validation was conducted by measuring CSF-1 protein levels in B16F10 cells treated with either 1.5 µg/ml CBG or 2 µg/ml 3704 using confocal microscopy or a Western blot assay (Figure2f-h). The toxicity of all the different treatments at the indicated concentrations was measured, and no increased cell death was identified compared to DMSO (Supplemental Figure 1a-b).

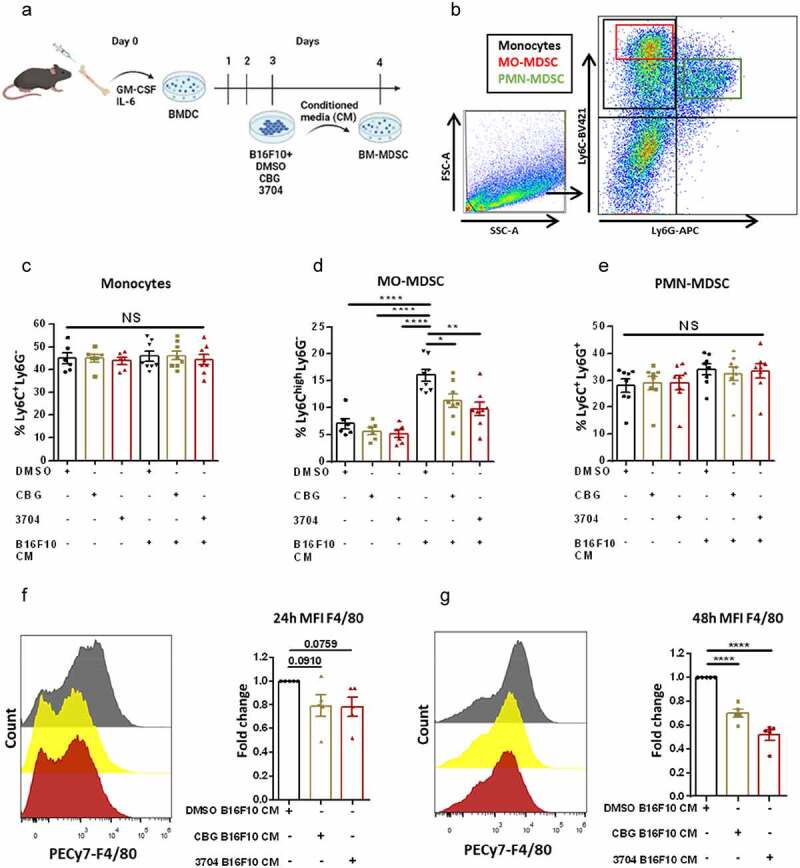

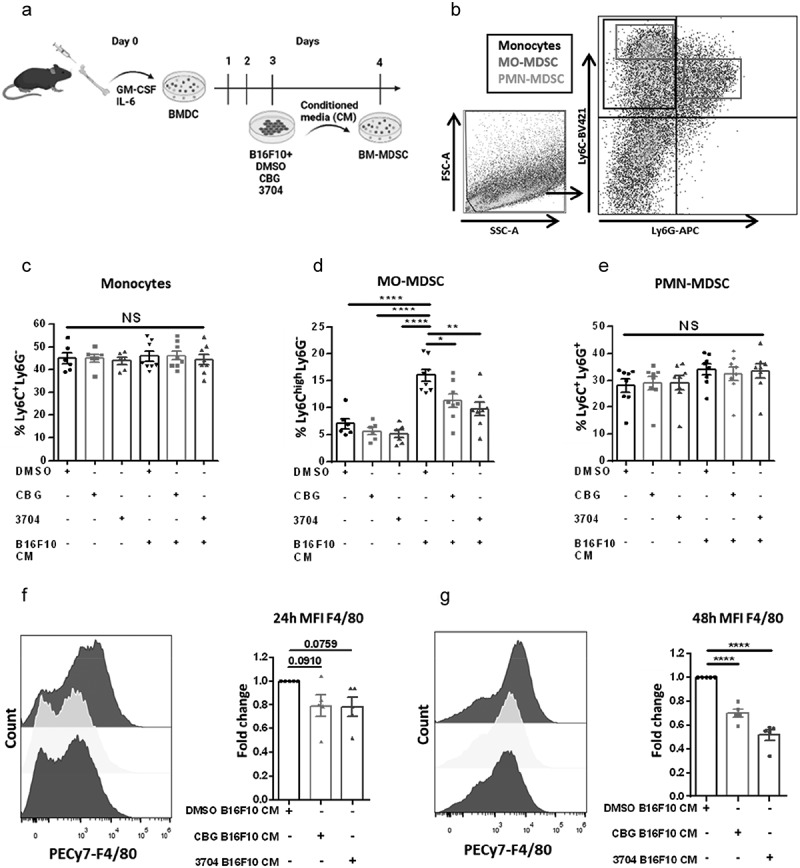

Conditioned media from CBG-treated B16F10 cells reduces MO-MDSC expansion and macrophage transition
Since CSF-1 is a key regulator of differentiation and expansion of the monocyte-macrophage axis4, we investigated how the reduction in CSF-1 secretion by CBG-treated B16F10 might influence the myeloid subpopulation frequency distribution ex-vivo. For this purpose, BM-MDSCs were treated as indicated in Figure 3a, myeloid frequencies were measured using flow cytometry after 24 h or 48 h and the gating strategy is shown in Figure 3b. As a control, we treated BM-MDSCs with control growth media with the same concentrations of DMSO, CBG and 3704 treatments as were added to the B16F10 cells. We found that the overall percentage of monocytes (Ly6C+/Ly6G− cells25) did not change when BM-MDSCs were treated with the different B16F10 CM nor with control growth media (Figure 3c). However, we identified a significant increase in the frequency of the Ly6Chigh/Ly6G− MO-MDSC subpopulation25, when BM-MDSCs were treated with CM from B16F10 (Figure 3d). Moreover, when BM-MDSCs were treated with CM from B16F10 treated with either CBG or 3704, we detected a significant decrease in MO-MDSC percentages compared to B16F10 treated with DMSO (Figure 3d). The effect was specific to the MO-MDSCs as PMN-MDSC frequencies (LyC6+/Ly6G+25) were not affected by any treatment (Figure 3e).
During tumor progression, tumor-secreted CSF-1 mediates the differentiation of monocytes and MO-MDSC into anti-inflammatory macrophages11. Therefore, we investigated whether reduced CSF-1 secretion by CBG-treated B16F10 cells affects the transition of MO-MDSCs to alternatively activated F4/80+ macrophages. We measured the expression of Arg-1 in the double-positive F4/80+ and Ly6C+ cells and ensured that the immunosuppressive phenotype in those cells is conserved when they were treated with B16F10 CM for 48 h (Supplemental Figure 2a). We identified a reduction of F4/80 expression by Ly6C+ cells when CM from B16F10 cells treated with CBG or 3704 was added compared to DMSO. This trend was apparent after 24 h (Figure 3f) and was statistically significant after 48 h (Figure 3g).

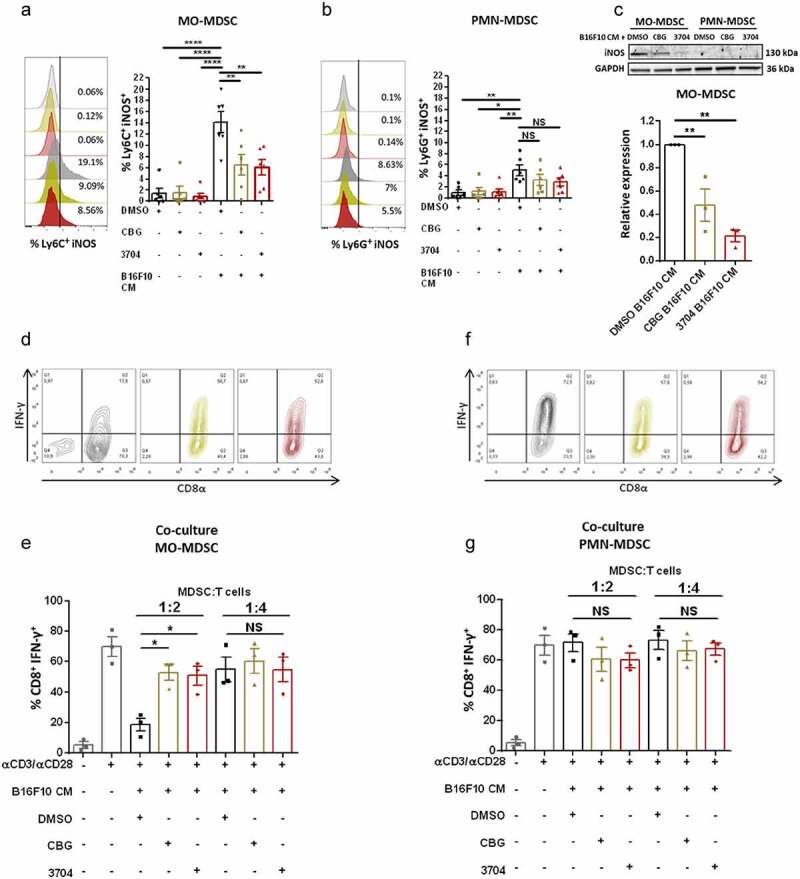

Treated MO-MDSCs express lower levels of iNOS leading to restored CD8+ T-cell activation
Our results showed that reduced CSF-1 secretion by B16F10 cells treated with CBG or 3704 specifically affects the expansion of Ly6Chigh MO-MDSC and reduces the transition to F4/80 expressing macrophages ex-vivo. We hypothesized that the reduced MO-MDSC expansion is associated with decreased immunosuppressive properties as well. To test this, BM-MDSCs were generated and treated as mentioned above. After 24 h, the expression of the immunosuppressive markers Arg-1 and iNOS8,9 by the BM-MDSC subpopulations was assessed using flow cytometry. Arg-1 expression in MO-MDSCs and PMN-MDSCs did not change significantly when cells were treated with CM from B16F10 cells compared to when cells were treated with control growth media (Supplemental Figure 2b,c). In addition, when BM-MDSCs were exposed to CM of CBG- or 3704-treated B16F10, no significant difference was detected in Arg-1 expression compared to CM of DMSO-treated B16F10 cells in neither of the MDSC subpopulations (Supplemental Figure 2c,b). However, the expression of iNOS by BM-MDSCs increased significantly for the subset of MO-MDSCs when the CM of DMSO-treated B16F10 cells was added to the BM-MDSCs (Figure 4a, gray). The addition of CM of CBG- or 3704-treated B16F10 cells significantly decreased iNOS expression in specifically MO-MDSC compared to CM of DMSO treated B16F10 cells (Figure 4a, yellow, red). iNOS expression also increased by PMN-MDSCs when CM of DMSO-treated B16F10 cells was added (Figure 4b, gray), although not to the same extent as the MO-MDSC subset. Additionally, no significant decrease in iNOS expression by PMN-MDSC was detected, when exposed to CM of CBG- or 3704-treated B16F10 cells compared to CM of DMSO-treated B16F10 cells (Figure 4b). To exclude the possibility of direct effects of CBG and 3704 on iNOS expression by MDSCs, BM-MDSCs were generated as described and added medium from untreated B16F10 to the cells together with either DMSO, CBG or 3704. iNOS expression was measured in each subpopulation and no significant differences were detected (Supplemental Figure 3a,b), indicating that the observed effect is mediated through the change in tumor cytokine secretion in the TME.
For further validation, BM-MDSCs were generated and sorted into MO-MDSC and PMN-MDSC subsets; then, iNOS expression was measured in each subpopulation by Western blot (Figure 4c). A reduction of iNOS expression was observed specifically in MO-MDSCs when CM from CBG- or 3704-treated B16F10 cells were added to the BM-MDSCs compared to CM of DMSO-treated B16F10 cells. Here again, PMN-MDSC expressed very low levels of iNOS.
Many studies have shown the involvement of increased iNOS expression by MDSCs in suppressing CD8+ T-cell activation in the TME8. Therefore, we tested the ability of sorted and treated BM-MDSC subpopulations to restore CD8+ activation ex-vivo. For this purpose, we established a co-culture experiment of CD8+ T-cells and MO-MDSCs or PMN-MDSCs. After 48 h of co-incubation, CD8+ T-cells were assessed for intracellular expression of Granzyme B (GrzB) and Interferon-γ (IFN- γ) using flow cytometry (Figure 4d-g). GrzB expression levels were lowered in T-cells co-cultured with MO-MDSCs exposed to the CM of DMSO-treated B16F10 cells (Supplemental Figure 4a). Moreover, a trend of restored GrzB expression was detected when T-cells were co-cultured with MO-MDSCs exposed to CM of CBG- or 3704-treated B16F10 cells (Supplemental Figure 4a). The co-culture of T-cells with PMN-MDSCs exposed to CM of DMSO-treated B16F10 cells did not result in reduced GrzB expression (Supplemental Figure 4b, gray) and a trend of reduced GrzB expression was detected when T-cells were co-cultured with PMN-MDSC exposed to CM of CBG- or 3704-treated B16F10 cells (Supplemental Figure 4b). We found that MO-MDSCs specifically exposed to CM of DMSO-treated B16F10 cells suppressed significantly CD8+ T-cell IFN-γ expression compared to PMN-MDSCs that received the same treatment (Figure 4d-g). Additionally, when CM of CBG- or 3704-treated B16F10 was added to MO-MDSCs, a restoration of CD8+ IFN- γ expression was observed in a dose-dependent manner (Figure 4e). In contrast, CD8+ T-cells co-cultured with PMN-MDSCs showed no significant changes with either of the treatments (Figure 4g).

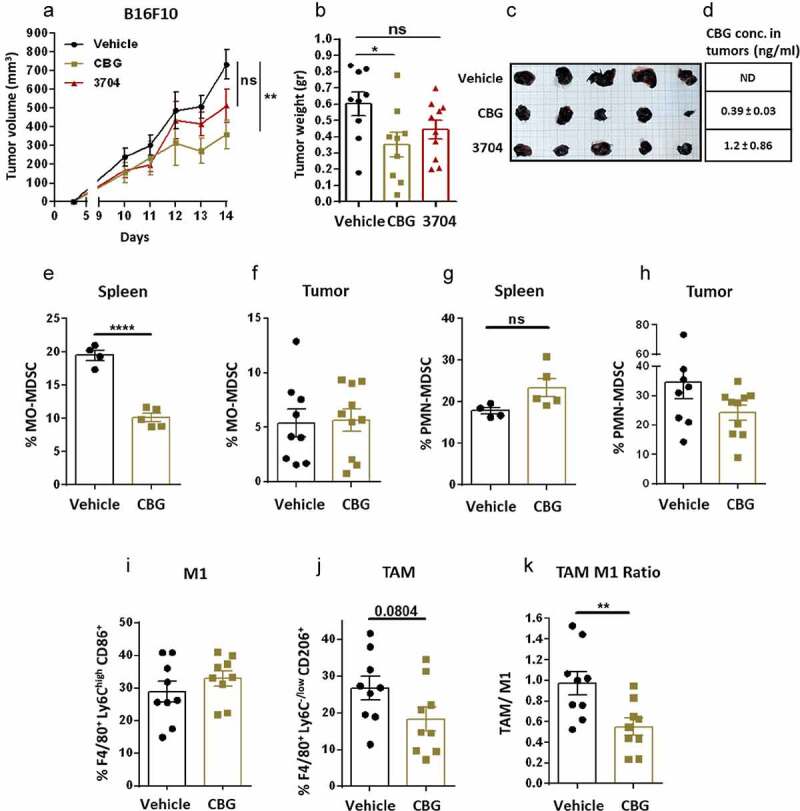

CBG treatment reduces B16F10 tumor progression and TAM frequencies in the tumors
As the next step, we measured B16F10 tumor development in WT mice that were treated with CBG or 3704 and investigated the frequencies of the myeloid cell subpopulations in the tumors. Tumor weight and tumor volume were significantly lower in the CBG-treated group compared to the vehicle-treated group and a similar trend of smaller tumor weight and volume was evident in the 3704-treated group (Figure 5a-c). To confirm the presence of CBG in the tumors, we analyzed its concentration in all tumors by liquid Chromatography with tandem mass spectrometry (LC-MS/MS)18 and found it is present in the treated groups, but not in the control group (Figure 5d). As CBG treatment was the most effective in reducing tumor progression, we focused on investigating myeloid subpopulations in this group. To assess the subpopulations of myeloid cells in the spleens and tumors, single-cell suspensions were prepared from both organs and stained with specific extracellular markers (Figure 5e-k; Supplemental Figure 5b,c). CBG-treated mice had reduced MO-MDSC frequencies in the spleen; however, no change was detected in the tumor (Figure 5e,f). Treatments did not affect the frequencies of the PMN-MDSC subpopulation in the spleen or the tumor (Figure 5g,h), further indicating the specificity of CBG treatment to CSF-1 secretion and by that to the MO-MDSC subpopulation. As continuous CSF-1 secretion by tumor cells into the TME shifts the M1/TAM ratio in favor of the TAMs5, we tested macrophage subpopulation frequencies in the tumor. There was a strong trend of a decreased frequency in TAMs in the CBG-treated group relative to vehicle control (Figure 5j). Further, we analyzed the ratio between the pro-inflammatory M1 macrophages25 and the anti-inflammatory TAMs and found a significant difference of decreased ratio in the CBG-treated group relative to vehicle control, indicative of a reduced shift of pro-inflammatory macrophages toward TAMs and a less immunosuppressive TME (Figure 5k).

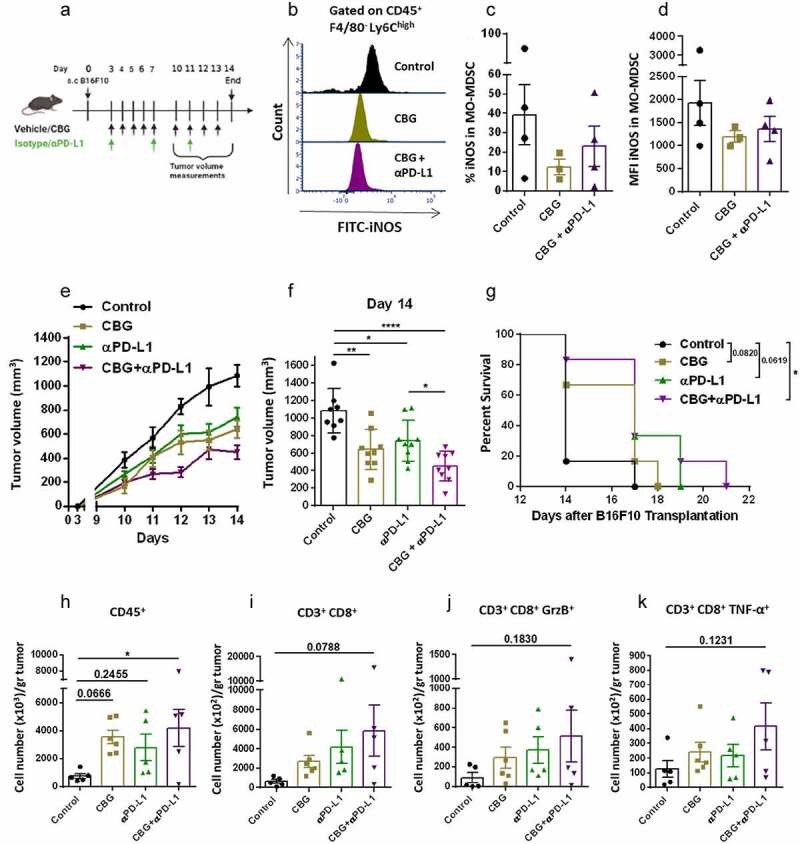

A combination of CBG and αPD-L1 is more effective than each treatment separately
A common immune checkpoint blockade therapy in melanoma is anti-programmed cell death ligand 1 (αPD-L1)26. Recent studies revealed that in many cases it is insufficient to use such therapy alone27,28 as the presence of immunosuppressive myeloid cells reduces its efficacy26,29. Hence, as CBG treatment shifted the TME into a less immunosuppressive milieu, we tested whether a combination of CBG with αPD-L1 can improve its anticancer effects. Mice were treated with either a control or CBG and concurrently administrated αPD-L1 (Figure 6a). The activity of intra-tumoral MO-MDSCs was assessed according to iNOS expression levels (Figure 6b-d). A trend of reduction in iNOS expression was detected in both treatment groups, indicating that these cells are less immunosuppressive in both the treatment groups, the CBG and CBG together with αPD-L1. Further, tumor progression was analyzed by measuring tumor volume from day 10 to day 14 (Figure 6e). Separate treatment with either CBG or αPD-L1 resulted in significantly reduced tumor volumes to a similar extent, approximately 60%-70%. Furthermore, co-treatment with CBG and αPD-L1 led to a significant reduction in tumor volume relative to αPD-L1 by itself and to the control group (Figure 6e,f). All mice in treatment groups had increased overall survival relative to the control, with the combined treatment significantly so. Further, intra-tumoral CD8+ T-cells were stained for GrzB and TNF-α. Leukocyte count per tumor weight was significantly higher in the co-treatment group, and a similar trend was evident in each of the separate treatment groups, indicating a higher infiltration of immune cells to the tumor (Figure 6h). For the cytotoxic T-cells, there was a trend of increased infiltration and activity by all treatments, and this trend was strongest in the co-treatment group (Figure 6i-k).
Discussion
The therapeutic strategy of TME modulation is gaining attention in the field of anticancer treatment. Immune checkpoint blockade therapy has been in use for oncology patients over the last decade, alone or in combination30. Inhibitory antibodies such as αPD-L1 disrupt the negative regulation between cancer cells and T-cells to harness the cytotoxic abilities of the immune system6. However, there are several molecular mechanisms allowing resistance to blockade therapy29. Recent studies revealed that it is insufficient to stimulate the cytotoxic T-cells with immune checkpoint blockade therapy, rather, concurrently targeting immunosuppressive cells8,29. We therefore set out to examine whether Cannabis extracts can immunomodulate the regulatory myeloid cells in the TME and enhance the existing immune-checkpoint blockade therapies.
Many clinical trials attempted modulating immunosuppressive cells by targeted depletion of tumor-secreted cytokines3132,33, and as CSF-1 is a major modulator of regulatory myeloid cells in the TME, targeting the CSF-1 axis has been under extensive investigation. CSF-1 is highly expressed by several tumor types32,33 and is associated with poor prognosis and survival32–35; emphasizing the relevance of targeting this cytokine. Moreover, CSF-1 is specific to the monocyte-macrophage axis, therefore its depletion does not affect other immune cell populations, possibly making it more tolerable11. Our findings provide a new tool for targeting this major tumor-secreted cytokine with highly relevant clinical applications.
We succeeded to purify and identify from the whole extract a single cannabinoid, CBG, able to reduce CSF-1 secretion more efficiently than the psychoactive THC. CBG is a non-psychoactive cannabinoid, which makes it more suitable for medical applications. Only a few studies investigated the pharmacological effects of CBG36 and none tested its effects on the TME. To verify our findings for CBG, we utilized a high-CBG chemovar termed 3704 and found it was as efficient as pure CBG and more efficient than the high-THC chemovar in reducing CSF-1 secretion. Medical Cannabis has been classically divided into three phenotypic chemovar groups according to its content of THC and CBD: Type I which is THC-predominant, Type II in which the two are balanced and Type III which is CBD-predominant3738. Recently, new Cannabis chemovars are being developed, which comprise high amounts of CBG and are now known as Type IV36,38. Importantly, to date, high-CBG chemovars are not commercially available and patients are prescribed medical Cannabis based on the THC:CBD
ratio. In this work, we used for the first time a non-psychoactive Type IV chemovar and proved its supremacy over the highly used psychoactive Type I.
Extensive research over the past years showed that each regulatory myeloid subpopulation is influenced by different cytokines and chemokines39. Moreover, each MDSC subpopulation possesses a different degree of immunosuppressive capabilities40. Studies show that although PMN-MDSCs are more abundant in the TME, MO-MDSCs proffer a stronger immunosuppressive phenotype than PMN-MDSCs40. Moreover, a higher proportion of MO-MDSCs was previously found in peripheral blood from melanoma patients41, emphasizing the importance of targeting the MO-MDSC subpopulation. The successful targeting of MO-MDSC subpopulation and TAMs underlies CBG as a specific therapeutic tool for cancer patients with elevated circulating regulatory myeloid cells.
CBG-treated mice had no significant changes in MDSC frequencies in the tumor. This is possibly due to the fact that at this stage of the tumor progression, the most abundant myeloid subpopulations are differentiated macrophages. We did find, however, reduced MO-MDSCs frequencies in the spleens of treated mice, indicating lower amounts of circulating MO-MDSCs, possibly because less cells are recruited from the bone-marrow and expanded.
Although the connection between the endocannabinoid system and the immune system is well established, only a few studies focused on investigating its involvement in TME modulation. Because of the immunoregulatory properties of cannabinoids, the endocannabinoid system was previously suggested to play a fundamental role in shaping the TME and influencing tumor progression42. One study has shown the endocannabinoid 2-arachidonoylglycerol (2-AG) exhibits direct antitumor effects but also promotes an immunosuppressive microenvironment by increasing the suppressive immune cell population of MDSCs43. Another study focused on the effect of CBD on cytokine secretion in triple-negative breast cancer44. These studies, together with our results, support the potential of cannabinoids in modulating the TME in a variety of cancers. Moreover, we bring support for the utility of minor cannabinoids such as CBG in therapeutic settings.
Medical Cannabis is already being prescribed to cancer patients, primarily as palliative care meant to alleviate pain, relieve nausea and stimulate appetite45. A recent clinical trial tested the effectivity of CBG for sleep issues using 25–50 mg daily and did not report any toxicity side effects for this amount46, which is above the dose of CBG used in our study. Moreover, the average use of medical Cannabis in extract form is 1 gr a day, which is approximately 14 mg/kg/d, far greater than the dose used in this study. We have previously shown medical Cannabis treatment is generally safe for oncology patients47. However, there is a huge variety between different medical Cannabis chemovars in their phytocannabinoid composition. A study that focused on the effect of synthetic THC on T-cell activity found it suppressed anticancer immunity48. In another study by our group, we found Cannabis consumption was associated with worsening the success rate of blockade therapy49,50. It is possible that these patients received medical Cannabis chemovars that were THC-rich, with very little CBG, indicating the pressing need for precision medicine that uses the proper treatment. Our findings have immediate practical implications; current treatment protocols that are already in combination with medical Cannabis as palliative care can select the CBG-rich chemovars in combination with immune checkpoint blockade therapy, making it more effective, and providing patients with antitumor properties in addition to the palliative ones52,53.
Supplementary Material
Acknowledgments
The authors would like to thank Cannasoul Analytics and especially Dr Rotem Perry Feigenbaum for the isolation of the phytocannabinoid compounds; Ohad Guberman for the extraction and sample preparation of the Cannabis extracts; the Flow cytometry unit at the Technion Life Sciences and Engineering Infrastructure Center for the help with data analyses; and Yonathan Nissan at the Pre-Clinical Research Authority for help with the animal care. Diagrams were created with Biorender.
Disclosure statement
D.M. is an active member of the scientific advisory board and co-founder of Cannasoul Analytics.
The rest of the authors have declared that no conflict of interest exists.
Data and materials availability
All data analyzed during this study are included in this published article and its supplementary information files. The datasets generated during the current study are available from the corresponding authors on reasonable request.
Consent for publication
All authors give their consent to publish this manuscript.
Supplementary material
Supplemental data for this article can be accessed online at https://doi.org/10.1080/2162402X.2023.2219164
