Challenges to Cannabis sativa Production from Pathogens and Microbes—The Role of Molecular Diagnostics and Bioinformatics
Department of Biological Sciences, Simon Fraser University, Burnaby, BC V5A 1S6, Canada
Agriculture and Agri-Food Canada, Summerland Research and Development Center, Summerland, BC V5A 1S6, Canada; dieter.kahl@agr.gc.ca (D.K.); ron.reade@agr.gc.ca (R.R.); yu.xiang@agr.gc.ca (Y.X.)
3 Rivers Biotech, Coquitlam, BC V5A 1S6, Canada; jack.m@3riversbiotech.com
Department of Agricultural Biology, Colorado State University, Fort Collins, CO 80523-1177, USA; punya.nachappa@colostate.edu
Abstract
The increased cultivation of Cannabis sativa L. in North America, represented by high Δ9-tetrahydrocannabinol-containing (high-THC) cannabis genotypes and low-THC-containing hemp genotypes, has been impacted by an increasing number of plant pathogens. These include fungi which destroy roots, stems, and leaves, in some cases causing a build-up of populations and mycotoxins in the inflorescences that can negatively impact quality. Viroids and viruses have also increased in prevalence and severity and can reduce plant growth and product quality. Rapid diagnosis of the occurrence and spread of these pathogens is critical. Techniques in the area of molecular diagnostics have been applied to study these pathogens in both cannabis and hemp. These include polymerase chain reaction (PCR)-based technologies, including RT-PCR, multiplex RT-PCR, RT-qPCR, and ddPCR, as well as whole-genome sequencing (NGS) and bioinformatics. In this study, examples of how these technologies have enhanced the rapidity and sensitivity of pathogen diagnosis on cannabis and hemp will be illustrated. These molecular tools have also enabled studies on the diversity and origins of specific pathogens, specifically viruses and viroids, and these will be illustrated. Comparative studies on the genomics and metabolomics of healthy and diseased plants are urgently needed to provide insight into their impact on the quality and composition of cannabis and hemp-derived products. Management of these pathogens will require monitoring of their spread and survival using the appropriate technologies to allow accurate detection, followed by appropriate implementation of disease control measures.
Untitled section
Keywords: bioinformatics, cannabis, hemp, hop latent viroid, molecular diagnostics, plant pathogens
Article notes
Untitled section
Received 2023 Oct 28; Revised 2023 Nov 22; Accepted 2023 Nov 29; Collection date 2024 Jan.
1. Introduction
Microbial plant pathogens, which include fungi, bacteria, phytoplasmas, viruses, and viroids, affect a broad range of plant species worldwide, causing significant losses in the growth and quality of both food and nonfood plants. Effective management of these pathogens requires a timely diagnosis to confirm their involvement in any disease symptoms, which frequently can be problematic where plants fail to show classic visible symptoms, yet show a decline in growth and productivity over time due to underlying infections. Accurate diagnosis in most cases has relied on the utility of molecular diagnostic approaches, most of which are based on the polymerase chain reaction (PCR).
In 2018, the approval of the Farm Bill in the USA that allowed the production of hemp (containing <0.3% THC), and the legalization of cannabis (marijuana) (representing high-THC genotypes) in Canada for medicinal and recreational purposes, sparked interest in expanding the commercial production of these plants, both designated as Cannabis sativa L. and members of the Cannabaceae family. To date, more than 100 pathogens/diseases have been identified to cause problems on these two crops [1,2], the majority of which are fungi and oomycetes, followed by viruses and viroids. In this study, we illustrate how a range of PCR-based diagnostic approaches can be used to identify the pathogens of importance affecting cannabis and hemp in North America. We additionally have applied methods in whole-genome sequencing and bioinformatics to better understand the diversity and impact of specific pathogen groups affecting these plants. The diseases and pathogens which are currently of most significant economic concern for cannabis and hemp producers include fusarium root rot (Fusarium oxysporum), pythium root rot (Pythium myriotylum), powdery mildew (Golovinomyces ambrosiae), botrytis bud rot (Botrytis cinerea), hop latent viroid, and beet curly top virus [1]. These six pathogens were included in this study as examples of how molecular diagnostic approaches can provide rapid identification and can be used to understand pathogen dynamics and spread from an epidemiological perspective. In addition, a more detailed investigation on the distribution and levels of hop latent viroid (HLVd) within cannabis plant tissues was conducted using several different molecular methods, and the results are presented.
The results presented demonstrate how whole-genome sequencing (NGS) approaches applied to cannabis and hemp plants have revealed insights into the virome of these two crops and illustrate the complex group of viruses and a viroid that are present. Additional studies are likely to reveal additional pathogens that belong to this group. The complex of fungal/oomycete pathogens recovered from symptomatic plant tissues has been identified using PCR with a universal set of primers, and the methods are described. Additional diagnostic approaches based on RT-PCR, RT-qPCR, and ddPCR, as well as LAMP assays, have shown how these methods can be used to characterize the incidence and severity of Hop latent viroid (HLVd) affecting cannabis plants. Lastly, this study illustrates the application of molecular diagnostics and bioinformatics to characterize populations of HLVd and Beet curly top virus affecting cannabis and hemp crops.
2. Results
2.1. Detection of Fungal and Oomycete Pathogens on Cannabis
2.1.1. Symptoms and Pathogen Isolation
The symptoms observed on the cannabis plants that were included for analysis are shown in Figure 1. They included stunting and yellowing on vegetative and flowering plants and internal stem discoloration (Figure 1a–c). In some instances, visible growth of the fungal mycelium could be seen on inflorescence tissues (Figure 1d–f). These symptoms were observed on a range of different cannabis genotypes that were cultivated during experiments conducted in 2020–2022. Following surface sterilization and plating onto potato dextrose agar containing 140 mg/L streptomycin sulfate, emerging colonies were purified through subculturing and examined for spore morphology and other features to identify them to genus and species. The appearance of the colonies of the fungi recovered from symptomatic tissues are shown in Figure 1g–l. They confirm the presence of Fusarium, Pythium, and Botrytis species, which was confirmed by molecular analysis.
2.1.2. Molecular Detection by PCR

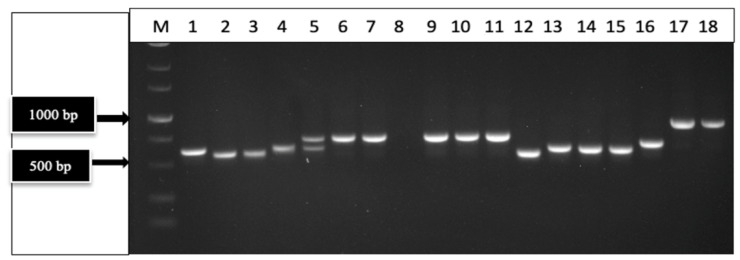

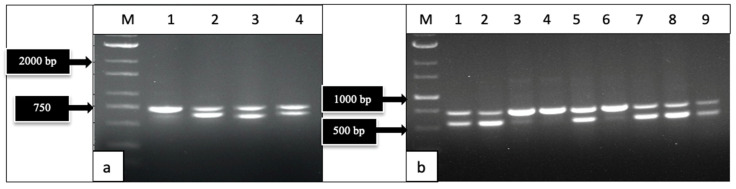

The primers UN-UP18S42 and UN-LO28S576B amplified a region of the internal transcribed region (ITS1-5.8S-ITS2) of ribosomal DNA and produced bands of different molecular weight sizes when the DNA extracted from diseased and healthy leaf and inflorescence tissues was used (Figure 2). Sequencing of these bands confirmed the presence of Golovinomyces ambrosiae (Figure 2a) and Botrytis cinerea (Figure 2b) in the affected tissues, as well as the cannabis DNA sequence. When these primers were used with DNA extracted from pure cultures recovered from symptomatic tissues, a range of band sizes was observed, depending on the culture (Figure 3). Sequencing of these bands and comparison to ITS1-5.8S-ITS2 sequences from the National Center for Biotechnology Information (NCBI) GenBank database using BLAST confirmed the identification of various species using cut-off values >99%. The pathogens identified were Fusarium oxysporum (Figure 1g), F. proliferatum (Figure 1h), Pythium myriotylum (Figure 1i), G. ambrosiae (Figure 1j), B. cinerea (Figure 1k), and F. sporotrichiodes (Figure 1l). Two additional fungi—Trichoderma asperellum and Penicillium olsonii—recovered from diseased root and stem tissues, respectively, were also identified.
2.2. Detection of Viral Pathogens on Cannabis
2.2.1. Symptoms
Leaves displaying symptoms of mosaic, mottling, and line patterns that superficially resembled those caused by viral infections were collected from greenhouse-grown cannabis plants during 2021–2022.
Representative symptoms on leaf samples on several genotypes are shown in Figure 4. These symptoms were consistently observed on vegetative and flowering plants of four genotypes—‘OG Kush’ (OG) (Figure 4a), ‘Headband’ (HB) (Figure 4b), ‘Golden Papaya’ (GP) (Figure 4c), and ‘Motor Breath’ (MB) (Figure 4d). The leaf tissues from these symptomatic plants were subjected to several diagnostic approaches, as described below, to determine if viral pathogens were present. By comparison, leaves with chlorotic sectors and loss of chlorophyll characteristic of somatic mutations are shown in Figure 4e.
2.2.2. PCR with Broad-Spectrum and Specific Primer Sets

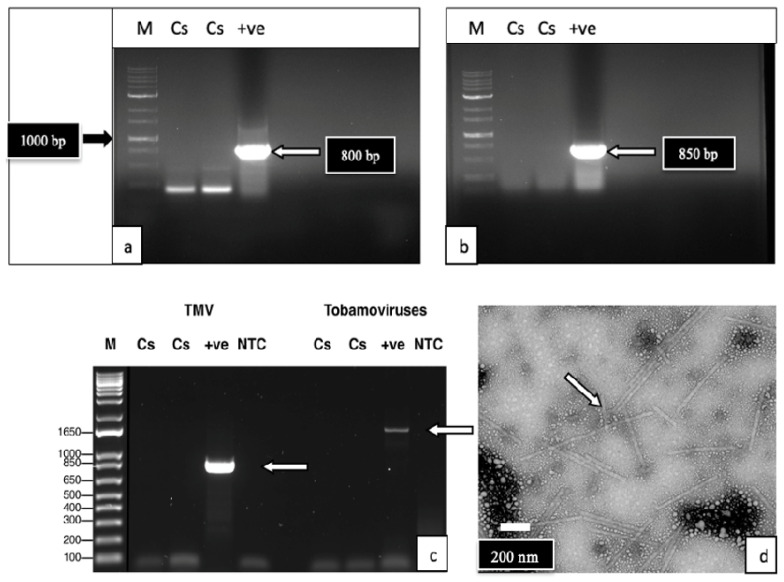

Several broad-spectrum degenerate primer sets were tested following the conditions described in Supplementary Table S1. As well, specific primers designed to detect turnip ringspot virus, alfalfa mosaic virus (AMV), yobacco mosaic virus (TMV), and cucumber mosaic virus (CMV) were utilized. Leaves of cannabis genotypes OG and HB, with symptoms as shown in Figure 4a,b, were included in the analysis. None of the primer sets produced a band in the samples originating from cannabis leaf tissues, while the positive controls of the infected tobacco leaves showed the expected band size for these viruses. The RT-PCR results for TMV and AMV are shown in Figure 5a–c. These results indicate these specific viruses were absent in these leaf cannabis tissues.
2.2.3. Transmission Electron Microscopy (TEM)
Under the TEM, rod-shaped particles of TMV were observed in leaf tissues from infected positive-control tobacco plants (Figure 5d), while cannabis leaf tissues showed an absence of any particles resembling viruses in the samples examined.
2.2.4. Host Range Studies
Following inoculation of nine host plant species using ground leaf extracts originating from cannabis genotypes OG and HB with mosaic and line-pattern symptoms, and monitoring plants for symptoms over a period of 3 weeks, no symptoms were observed on any of the host plants tested (Figure 6).
2.3. High-Throughput Sequencing (HTS)
The HTS analysis was initially conducted on leaf samples originating from the genotypes OG and HB with symptoms of mosaic and line patterns (Figure 4a,b), and was then extended to an additional six cannabis genotypes (PD, Mac-1, PK, BC, CBD, G54-2). Some of these latter genotypes (PD, Mac-1) showed distinct symptoms of stunted and reduced inflorescence growth (Figure 7a,b). These symptoms were also apparent after the inflorescences were trimmed and dried (Figure 7c,d). A comparison of the fresh weights of the inflorescences from healthy (asymptomatic) and symptomatic plants of five genotypes included in the HTS analysis is shown in Figure 7e. The genotypes that were the most significantly affected were PD, Mac-1, and BC, while PK and CBD did not show a significant reduction in the fresh weight of inflorescence tissues or any obvious symptoms. Following Illumina sequencing and assembly, only two confirmed pathogen sequences were detected in the genotypes HB and OG—hop latent viroid (HLVd) and Cannabis sativa mitovirus 1 (CasaMV1). The results are summarized in Table 1. The sequences of HLVd were 100% identical at the nucleotide level to each other and to those in GenBank. The sequences of CasaMV1 were 99.6% identical to the sequences found in GenBank. The sequences from this study have been deposited in GenBank (accession OQ420426 for HLVd from HB and accession OQ420425 for CasaMV1 from HB). When the HTS analysis was conducted on the leaf tissues of six additional genotypes of cannabis (PD, Mac-1, PK, BC, CBD, G54-2), the results were similar, revealing only HLVd and CasaMV1 to be present in all genotypes except for PK.
| Cannabis | Genotype HB | Genotype HB | Genotype OG | Genotype OG |
|---|---|---|---|---|
| Pathogen | HLVd | CasaMV1 | HLVd | CasaMV1 |
| Genome size (kb) | 256 | 2752 | 256 | 2748 |
| Total reads in sample | 10,586 | 402,487 | 24,120 | 101,117 |
| Reads per million | 4248 | 161,500 | 8507 | 35,664 |
| Reads per million per kb | 16,593 | 58,685 | 33,231 | 12,978 |
| Average sequencing depth | 4549 | 19,775 | 10,241 | 4912 |
2.4. Molecular Assays for Viroid and Other Viral Pathogens
2.4.1. RNA Extractions, cDNA Preparation, and RT-PCR
Hop Latent Viroid

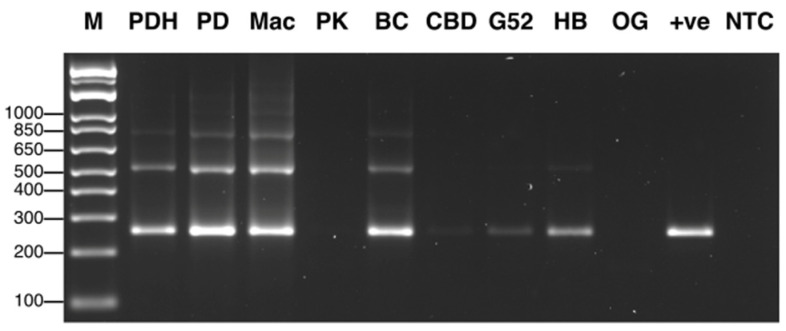

The results from the RNA extractions from the leaf tissues of seven cannabis genotypes, and a check for the RNA quality, showed that all samples yielded satisfactory RNA for conducting RT-PCR (Supplementary Table S2). Extracted RNA from leaf tissues was subjected to cDNA preparation and RT-PCR using primers that were developed in this study (see Table 2. Primers for the HLVd amplified bands of sizes 256 bp and 512 bp from the leaf tissues of plants of genotype PD showed symptoms of stunted growth and reduced inflorescence development (Figure 8). Sequencing results confirmed that both bands represented HLVd. Tissues from genotype PK did not show a band and there were no symptoms on this genotype (Figure 7). When the RT-PCR analysis was conducted on an additional six genotypes of cannabis, HLVd was shown to be present in PD, Mac, BC, and HB (Figure 9). Three of these four genotypes previously displayed symptoms of stunting and had reduced inflorescence growth, as shown in Figure 7. These results suggest that HLVd infection had impacted their growth. The corresponding band size (256 bp) in genotypes G54-2 and CBD was very faint (Figure 9). Genotype CBD did not display any symptoms attributed to HLVd, and its growth was not affected, as shown in Figure 7. The growth of genotype G54-2 was not measured.
| Tissue Type Sampled | Tissue Type Sampled | ||||||
|---|---|---|---|---|---|---|---|
| Cannabis Genotype | Leaf | Petiole | Root | Cannabis Genotype | Leaf | Petiole | Root |
| PD #1 | + | NT | + | BM #1 | − | − | − |
| PD #2 | − | NT | + | BM #2 | + | + | + |
| PD #3 | + | NT | + | BM #3 | − | − | + |
| PD #4 | − | NT | − | BM #4 | − | − | + |
| PK | − | NT | + | BM #5 | + | + | + |
| SC | − | NT | − | BM #6 | − | − | + |
| LM1 | + | + | + | 111 | − | − | − |
| GP #1 | + | + | + | PNW #1 | + | + | + |
| GP #2 | − | − | − | PNW #2 | − | − | + |
| GP #3 | − | − | + | PNW #3 | − | − | + |
| GP #4 | + | − | + | BCP #1 | − | NT | + |
| GP #5 | − | NT | + | BCP #2 | − | NT | + |
| GP #6 | − | NT | − | BCP #3 | + | NT | + |
| GP #7 | − | NT | + | CTQ #1 | − | NT | + |
| G55 | − | NT | + | CTQ #2 | − | NT | + |
| Total positive/total | 5/15 | 2/15 | 11/15 | 4/15 | 3/10 | 13/15 | |
Mitovirus

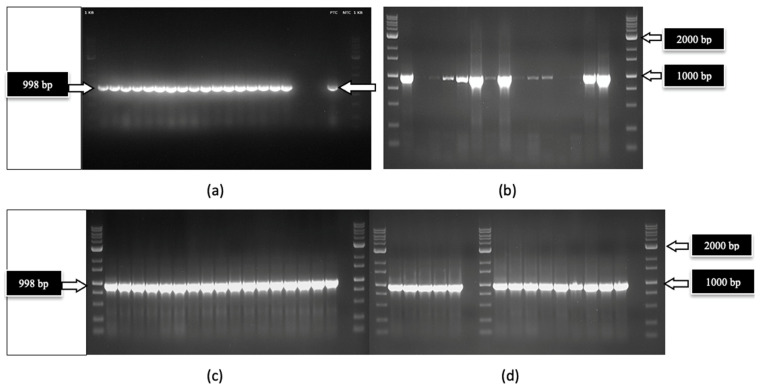

To assess the extent to which CasaMV1 is present in cannabis tissues, leaves from 34 genotypes originating from 20 indoor-grown plants and 14 from outdoor-grown plants were sampled and used for RNA extraction and cDNA synthesis, as described previously. The forward primer: 5′ CGGTAGGATTGCTCAGTCGG 3′ and reverse primer: 5′ CGAACATGCGGTTCATAGGC 3′ were used to amplify a region of the RNA-dependent RNA polymerase enzyme to produce a 998 bp size product. The PCR conditions were the same as those used for HLVd detection (see Section 4). The results (Figure 10) showed that CasaMV1 was present in 18 out of 20 cannabis genotypes grown indoors (Figure 10a) and in 10 out of 14 genotypes grown outdoors (Figure 10b). Sequence analysis indicated the bands were 100% identical to each other. These sequences showed 99.7% sequence homology to Colorado isolate MT878084 and 99.4% to BK010437.1 from Purple Kush. For an additional four cannabis genotypes, samples of roots, petioles, leaves, and flower tissues were assayed for the presence of CasaMV1, and it was found to be present in all the tissue types analyzed (Figure 10c,d).
2.4.2. Sequence Diversity and Molecular Phylogeny of Hop Latent Viroid

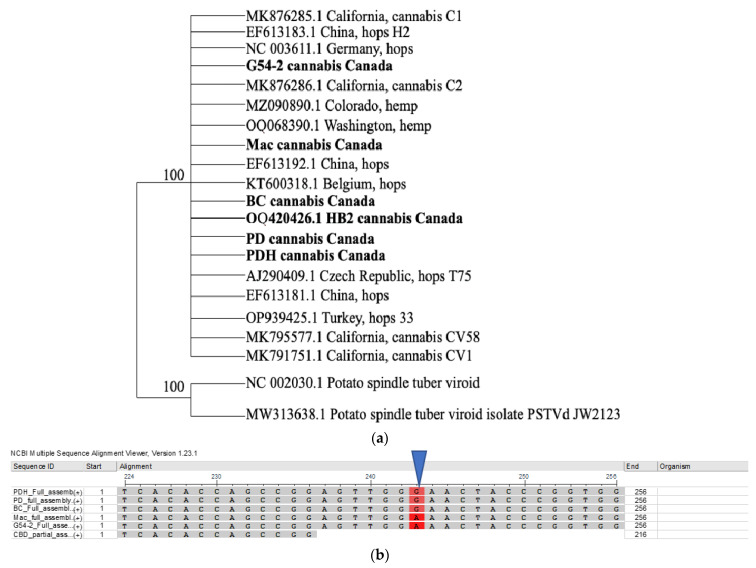

A phylogenetic analysis of HLVd was conducted using seven sequences from hops, two from hemp, as well as four from cannabis (selected from GenBank to represent full-length sequences), and included six from the current study. The analysis showed that no significant sequence diversity was present (Figure 11a). However, one SNP was observed between sequences originating from cannabis genotypes ‘Mac’ and G54-2, where a ‘G’ was ‘A’ (Figure 11b).
2.4.3. Droplet Digital PCR

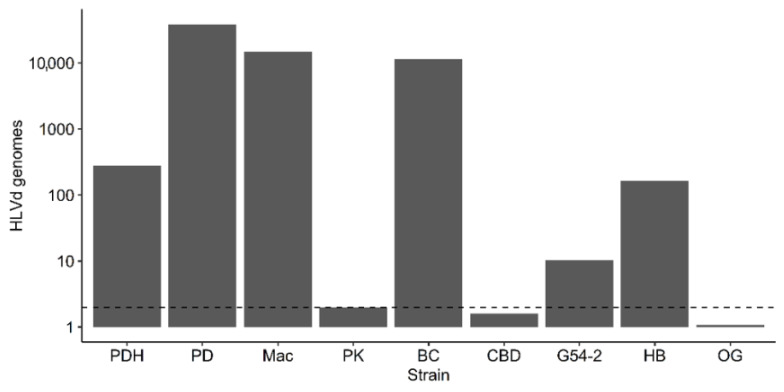

Quantification of HLVd levels (titer) in the leaves of eight cannabis genotypes was conducted using ddPCR. The genotypes PD, Mac, BC, PK, CBD, G54-2, HB, and OG were the same as those used previously for the RT-PCR (Figure 9). The results are shown in Figure 12. The highest titers (>10,000 genomes per reaction) were seen in PD, Mac, and BC, followed by PDH (healthy) and HB, and a low level (10 genomes) was observed in G54-2. Genotypes PK, CBD, and OG had no detectable levels of viroid. The genotypes PD, Mac, and BC also displayed symptoms of HLVd infection, that included stunting and reduced inflorescence growth, and a reduction in inflorescence fresh weight, as shown previously (Figure 7). By comparison, the genotypes PK and CBD showed no symptoms. In comparing these results to those for the same genotypes obtained by RT-PCR, no band was observed in PK and CBD, and a very faint band was seen in G54-2 (Figure 9). The remaining genotypes (PD, Mac, BC) produced a strong band following RT-PCR. Genotype PDH was confirmed to contain HLVd by both RT-PCR and ddPCR despite being asymptomatic. These results show a positive correlation between the results obtained by RT-PCR and ddPCR for all genotypes tested.

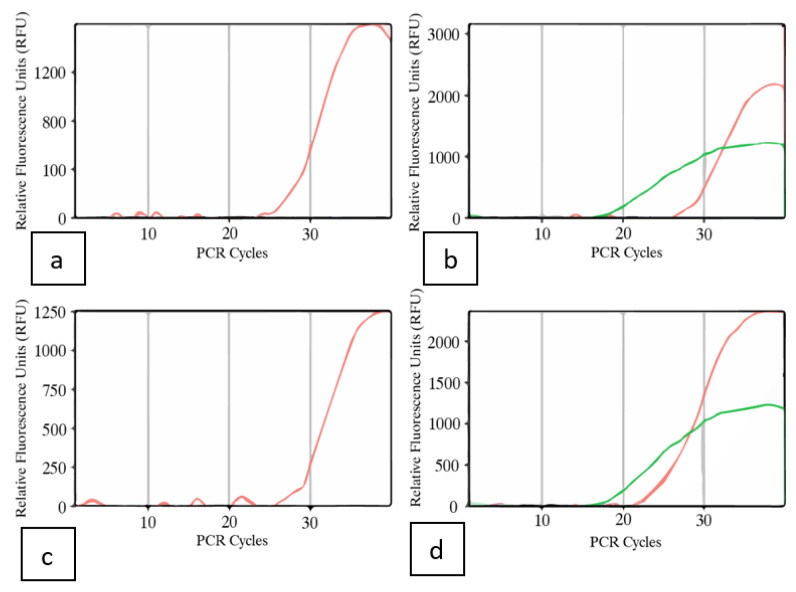

2.4.4. Multiplex Taqman RT-qPCR
Inflorescence tissues from symptomatic plants of genotypes PD and Mac, subjected to the RT-PCR and ddPCR methods above, were also tested using a Taqman RT-qPCR method. In both samples, the CT cycle thresholds were around 18, indicating a high level of viroid titre was present in the inflorescences (Figure 13).
2.4.5. LAMP Assays
The tissues used for this analysis were comprised of 30 leaf, 15 petiole, and 30 root samples taken from 6-week to 10-week-old stock plants representing 11 genotypes of cannabis. These samples were tested by LAMP, and showed that 9 leaf, 5 petiole, and 24 root samples tested positive for HLVd (Table 2). There was no case in which a plant that tested negative in the root tissues was found to be positive in the leaves or petioles. Conversely, many samples that were positive for HLVd in the roots were found to be negative in the leaves or petioles (Table 2). These results show that root samples are the most consistent tissue source for detection of HLVd by LAMP in 6-to-10-week-old plants. All genotypes tested showed the highest frequency of samples to be positive for HLVd from root tissues.
2.5. Monitoring Distribution of HLVd in Various Tissues of Cannabis Plants
2.5.1. Distribution within Stock Plants

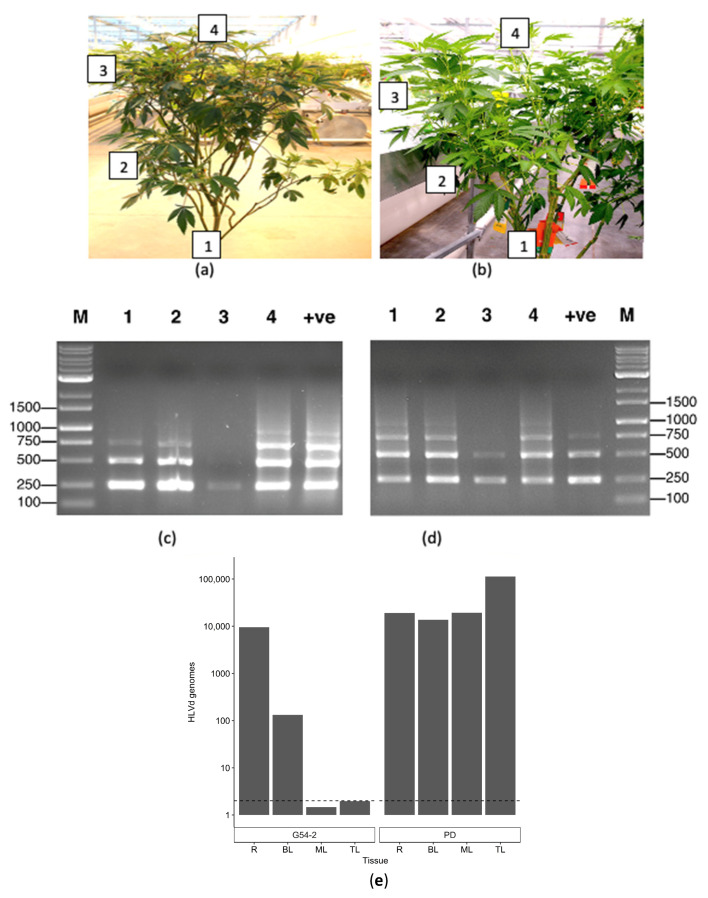

Leaf samples were obtained from various positions within the canopy of individual stock plants, as well as from roots (Figure 14a,b), and subjected to RT-PCR (Figure 14c,d) as well as ddPCR (Figure 14e). The RT-PCR results showed the presence of multiple bands in most samples tested, varying in size from 256 bp, 512 bp, to 768 bp (Figure 14). Sequencing of these bands confirmed they were all HLVd. In genotype G54-2, the viroid was present in the roots, bottom-canopy leaves, and at the top of the plant, but was barely detectable in the middle-canopy leaves (Figure 14c). In genotype PD, the viroid was present in the roots, bottom-canopy leaves, middle-canopy leaves, and in the top-canopy leaves (Figure 14d). Using ddPCR for the same two genotypes, HLVd was detected in the roots and bottom-canopy leaves of genotype G54-2, but not in the middle- or top-canopy leaves. In genotype PD, HLVd was present in the roots, lower-canopy leaves, and middle- and top-canopy leaves at high concentrations (>10,000 genomes) (Figure 14e).

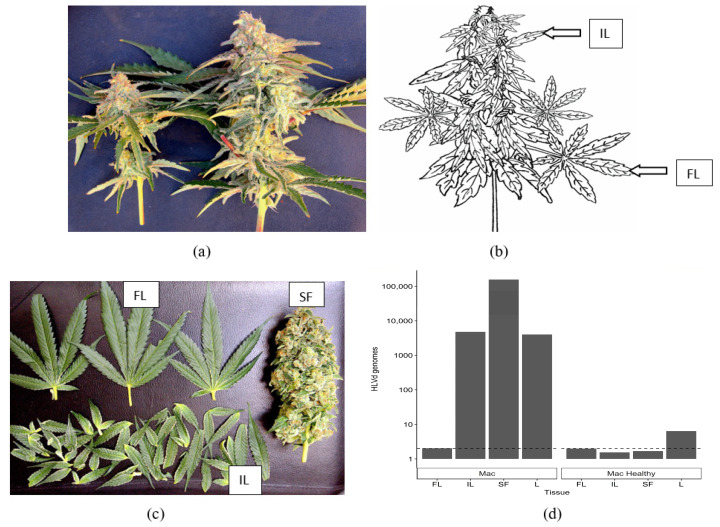

2.5.2. Distribution of HLVd within Inflorescence Tissues
To quantify the distribution of HLVd within cannabis inflorescences, symptomatic ‘Mac-1’ plants were compared with asymptomatic (healthy) plants (Figure 15a). These plants were selected based on the presence/absence of HLVd as confirmed by RT-PCR (see Figure 9). The terminal inflorescence on symptomatic and asymptomatic plants were each removed and brought back to the laboratory (Figure 15a). Using a scalpel, the fan leaves (FL) and inflorescence leaves (IL) were dissected, leaving the central stripped flower (SF) exposed (Figure 15b). A sample of foliage leaves (PL) taken from the bottom canopy of each plant was included for analysis as well. HLVd presence was confirmed using ddPCR in the small inflorescence leaves (IL), the stripped flower (SF), and in the foliage leaves (PL) of symptomatic ‘Mac’, but not in the fan leaves (FL) (Figure 15d). The highest accumulation of HLVd was seen in the stripped flowers, which are made up of clusters of pistils surrounded by the inflorescence leaves (Figure 15b). In the healthy ‘Mac’ plant, none of the inflorescence samples showed HLVd to be present, but a low level was detected in the foliage leaves by ddPCR (Figure 15d).
2.5.3. Distribution of HLVd within Cuttings from Infected Stock Plants

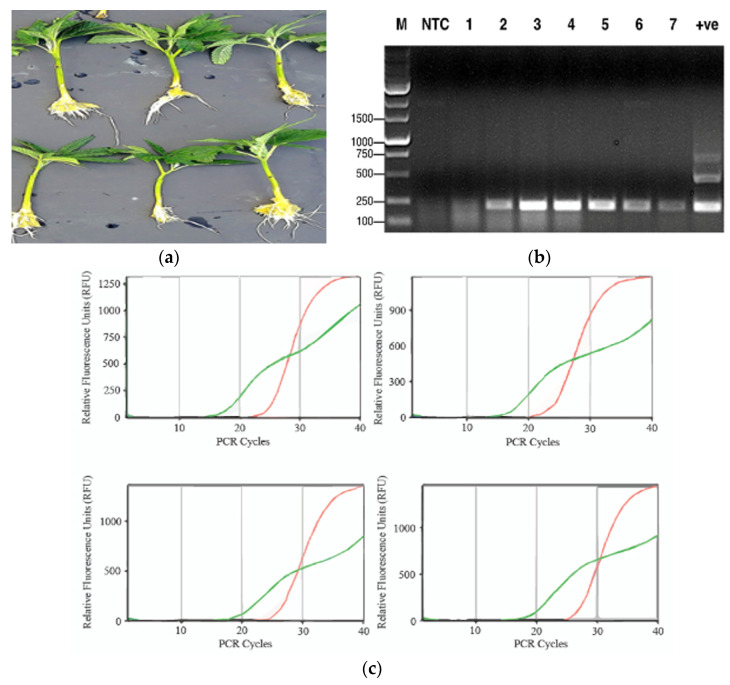

Vegetative cuttings taken directly from a stock plant of genotype ‘Blue Dream’ confirmed to be infected with HLVd were rooted and tested for HLVd using RT-PCR and RT-qPCR after 14 days (Figure 16a). The results consistently showed that all cuttings were infected with the viroid (Figure 16b), as shown by a band of 256 bp size observed in seven infected cuttings (Figure 16b). This was confirmed by RT-qPCR that showed that four out of seven cuttings tested originating from the infected stock plant contained the viroid at a high titre, with CT values of 15–18 (Figure 16c).
2.5.4. Detection of Pathogens in Fresh and Dried Cannabis Inflorescences

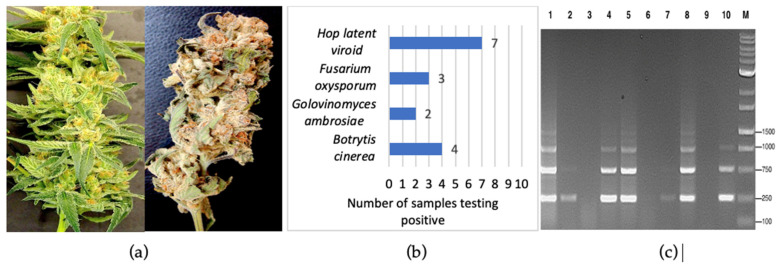

Primers for the ITS1-5.8S-ITS2 region of ribosomal DNA were used to detect fungal pathogens, and primers for HLVd were used on tissue samples obtained from freshly harvested inflorescences and from dried cannabis flowers destined for commercial sale (Figure 17a). Out of 20 samples, 7 were positive for HLVd, 4 samples contained B. cinerea, 3 had F. oxysporum, and 2 had a powdery mildew (Figure 17b). RT-PCR confirmed the presence of HLVd in 7/10 dried flower samples (Figure 17c).
2.5.5. Detection of HLVd and CasaMV1 in Cannabis Seed

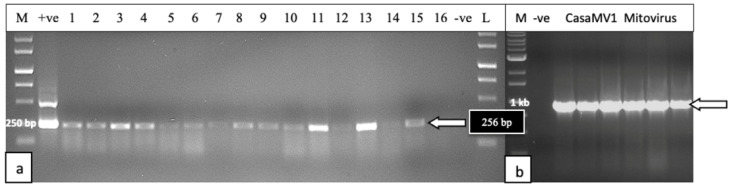

Seeds derived from a cross made between an infected ‘Mac1′ female plant and pollen from a male plant of genotype ‘GPie’ were ground individually, and the extracted RNA was subjected to RT-PCR. The results showed that 14/16 seeds (87.5%) were positive for the presence of HLVd (Figure 18a) and 5/5 seeds tested also contained CasaMV1 (Figure 18b). A sample of 10 seeds from the same batch used in Figure 18 was also subjected to Taqman RT-qPCR using the methods described in Section 4.6. The results are presented in Table 3. They show that viroid levels, as estimated by CT values, differed significantly from one seed and the next, and ranged from 17.1 to 33.66, with a mean of 24.07. The infection rate was 70%, as three out of ten seeds did not contain detectable HLVd (Table 3).
| Seed Sample | CT Cycle Threshold | HLVd Present (+)/Absent (−) |
|---|---|---|
| Seed #1 | − | − |
| Seed #2 | 18.94 | + |
| Seed #3 | 18.56 | + |
| Seed #4 | 18.36 | + |
| Seed #5 | 17.10 | + |
| Seed #6 | − | − |
| Seed #7 | − | − |
| Seed #8 | 28.67 | + |
| Seed #9 | 33.20 | + |
| Seed #10 | 33.66 | + |
2.6. Detection of Beet Curly Top Virus in Cannabis Plants
The symptoms observed on cannabis plants characteristic of infection by BCTV are shown in Figure 19. The uppermost leaves on the plants were curled and twisted and deformed (Figure 19a,b). Similar symptoms were observed on plants in the field (Figure 19c). On some plants, leaf curl symptoms were very severe, causing the plants to appear malformed (Figure 19d–f). RT-PCR with BCTV-specific primers showed the presence of a 1 kb band, confirmed to be the Worland strain in the greenhouse-grown plants (Figure 20).
2.7. Diagnostic Approaches to Detect Viral and Viroid Pathogens Affecting Low-THC-Containing Cannabis sativa L. (hemp)
2.7.1. Next-Generation Sequencing (NGS)
Symptomatic field-grown plants, from which leaves were collected for shotgun metagenomic analysis, are shown in Figure 21. These samples were collected from various locations in Colorado during 2019, 2021, and 2022. Among these samples, four viruses and one viroid were identified in 2019 (Table 4). In general, the number of pathogens recovered varied by sampling location, and ranged from two to five. Cannabis sativa mitovirus (CasaMV1) and beet curly top virus (BCTV) were the most commonly found in each year of sampling. HLVd was only present in certain fields sampled in 2019. Citrus yellow-vein-associated virus (CYVaV) and Tobacco streak virus (TSV) were also only detected in 2019 (Table 5). In samples collected in 2021, the viruses that were found Cannabis cryptic virus (CanCV), Alfalfa mosaic virus (AMV), BCTV, and CasaMV1 (Table 4). In 2022, the viruses detected were CasaMV1, BCTV, CanCV, and Tomato bushy stunt virus (Table 4).
| 2019 | 2021 | 2022 |
|---|---|---|
| Cannabis sativa mitovirus 1 | Cannabis sativa mitovirus 1 | Cannabis sativa mitovirus 1 |
| Beet curly top virus, strains CO, BCTV-Wor | Beet curly top virus, strains CO, BCTV-Wor | Beet curly top virus, strains CO, BCTV-Wor |
| Hop latent viroid | Alfalfa mosaic virus | Tomato bushy stunt virus |
| Tobacco streak virus | Cannabis cryptic virus | Cannabis cryptic virus |
| Citrus yellow-vein-associated virus |
| Molecular Techniques | Pathogen(s) Detected | Detection in Various Tissues |
|---|---|---|
| Universal fungal primers | Fusarium, Pythium, Alternaria, Penicillium, Golovinomyces, Botrytis | Leaves, stem, root, flower (cannabis) |
| Virus-group primers | None | |
| NGS, HLVd-specific primers | Hop latent viroid | Leaves, roots, flower, seeds (cannabis, hemp) |
| NGS, Mitovirus-specific primers | Mitovirus | Leaves (cannabis, hemp) |
| NGS, BCTV-specific primers | Beet curly top virus | Leaves (cannabis, hemp) |
| NGS, CYVaV-specific primers | Citrus yellow-vein-associated virus | Leaves (hemp) |
| NGS, TSV-specific primers | Tobacco streak virus | Leaves (hemp) |
| NGS | Alfalfa mosaic virus | Leaves (hemp) |
| NGS | Tomato bushy stunt virus | Leaves (hemp) |

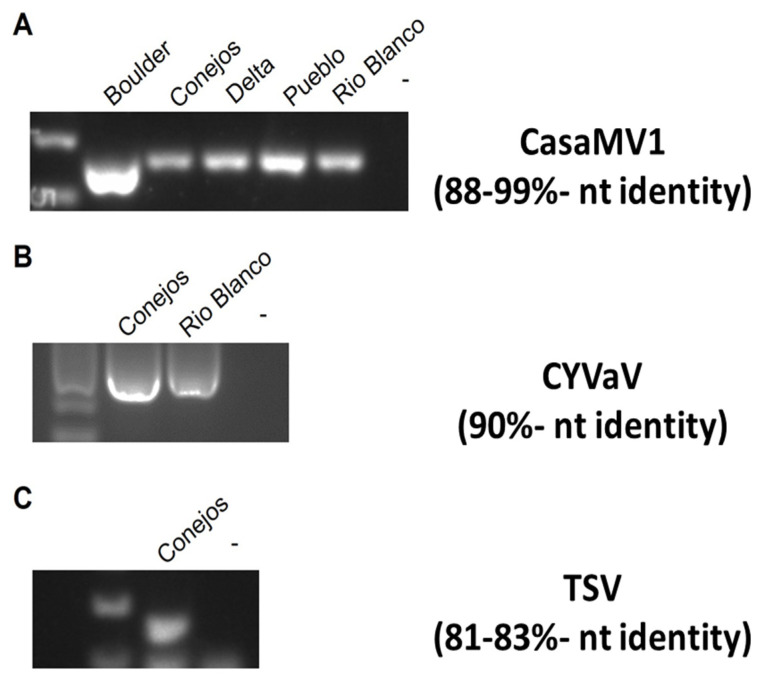

2.7.2. RT-PCR with Specific Primer Sets
The majority of the viruses identified through NGS had a high percentage nucleotide identity (>90%; Table 5). Only three of the viruses, CasaMV1, TSV, and CYVaV, were below this threshold. The presence of these low-percentage nucleotide-identity (<90%) viruses was confirmed in the respective samples with RT-PCR analysis (Figure 22). These results confirmed the presence of each of the three viruses in the hemp samples.
2.7.3. Sequence Diversity and Molecular Phylogeny of Beet Curly Top Virus

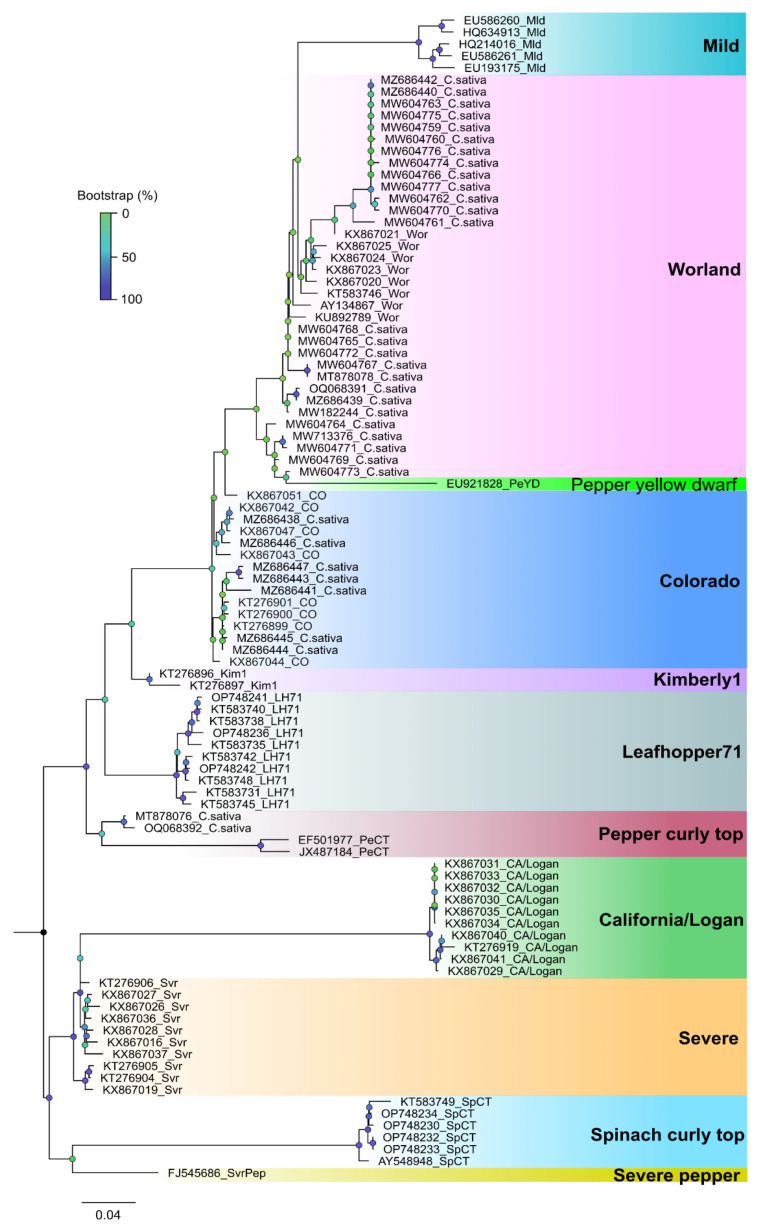

Phylogenetic analysis based on a fragment of the BCTV coat protein (CP) sequences from the 2019 hemp samples had nucleotide identities to one another between 98.99 and 98.24%. Sequences from this study had a 97–99% sequence identity with cannabis BCTV sequences from Colorado (isolate BCTV-Can; MK803280) and Arizona (isolate BCTV-Can-AZ; MW182244). Phylogenetic analysis revealed that sequences of specific strains of BCTV from hemp formed a distinct cluster that separated BCTV-Wor and BCTV-CO sequences (Figure 23). Strains from other locations in Colorado and elsewhere, available in GenBank, are also shown.
2.7.4. Detection of HLVd in Hemp Seeds and on Thrips
A sample of hemp seeds from a commercial supplier (Figure 24a) was shown to contain HLVd on/in the seed tissues following grinding. The RT-PCR analysis showed the expected band size of 256 bp was present in four out of eight seeds tested (Figure 24b). Another batch of seeds from the same sample was germinated, and the developing seedlings were also determined to be infected with HLVd when both the cotyledons and true leaves were sampled (Figure 24c). In addition, a sample containing eight adult thrips, identified as onion thrips (Thrips tabaci) (Figure 24d), observed feeding on the infected plants and causing significant damage (Figure 24e) were also shown to contain the viroid. The viroid was likely located on the mouthparts and on the external surface of the insects (Figure 24b, lane ‘T’). When also assayed by the RT-qPCR method described in this study, the thrips sample was confirmed to be HLVd-positive (CT value of 30.3). Thrips are commonly found within greenhouses in large numbers, and can be detected and quantified using yellow sticky cards placed adjacent to plants (Figure 24f).
3. Discussion
Rapid and accurate identification of pathogens affecting cannabis and hemp crops is essential to implement the most appropriate disease-management practices. Conventional diagnostic methods, that include symptomology, microscopic observations of pathogen presence/morphology, culturing techniques for pathogen recovery, and pathogen identification and proof of pathogenicity, have all been successfully and reliably used for the diagnosis of emerging pathogens of cannabis and hemp [1,2]. These methods are now being augmented with molecular advances in nucleic acid-based diagnosis for the characterization of specific pathogens based on their DNA or RNA sequences. These methods primarily involve the polymerase chain reaction (PCR), DNA barcoding, and next-generation and high-throughput sequencing. These molecular approaches are particularly useful in instances where multiple pathogens may be involved in a disease complex, as is commonly encountered in cannabis and hemp crops [1]. They are also useful where disease symptoms may be confused with environmental stresses or damage caused by insect pests. Lastly, molecular diagnostics are important for confirming pathogen presence in instances where plants remain asymptomatic after infection, or if the pathogen cannot be recovered on culture media. This study describes a range of recently developed molecular diagnostic approaches that can be used to confirm the presence of fungal and oomycete pathogens affecting cannabis, as well as to identify a diverse group of viruses and a viroid that affect cannabis and hemp crops during commercial production, all of which are summarized in Section 4.3.1. By sampling and performing the requisite analyses over several years (2020–2023) on samples representing many different genotypes of each crop from different geographical regions, the methods described were validated in several laboratories.
The most prevalent fungal and oomycete pathogens detected on the roots and stems of cannabis plants were Fusarium and Pythium spp., confirming previous reports of the widespread occurrence of these pathogens in different cannabis growing environments [2,4,5,6,7]. On the leaves and inflorescence tissues, powdery mildew (Golovinomyces ambrosiae) and Botrytis cinerea were shown to be prevalent pathogens on cannabis, as previously reported [8,9,10,11]. The universal eukaryotic primers also confirmed the presence of Trichoderma asperellum originating from root tissues and Penicillium olsonii originating from stem tissues. The former is a biological control agent that is frequently applied during greenhouse cannabis production, while the latter is a naturally occurring endophyte found in cannabis stems [2,12]. Cannabis DNA was also amplified with this primer set, which was differentiated by its different molecular weight fragment size and unique sequence that differentiated it from the respective pathogens. The advantage of a universal primer set is that prior knowledge of which pathogens may be present is not required, overcoming a limitation to the use of species-specific primers for undetermined pathogens in a diseased sample. The primer set also confirmed that three of the four most prevalent pathogens could be detected in commercially dried cannabis flower samples following PCR amplification and sequencing. If routine testing of harvested product needs to be implemented, the universal primer set could confirm the presence of these three pathogens, and potentially others that may be present. An important component of cannabis quality assurance is the determination of total yeast and mold (TYM) levels in the final dried cannabis product that reaches the consumer [13,14,15]. While molecular approaches were not investigated or utilized in the present study to determine how TYM could be assessed, previous whole-genome sequencing [16,17,18] and the use of PCR approaches that targeted specific fungal species considered to be of importance have been described [19]. These types of studies should be extended to provide a view of the microbiome within cannabis inflorescences using next-generation sequencing to identify the fungal species potentially posing the most concern for human health [15].
Cannabis leaf samples of many genotypes, which occasionally displayed mosaic, line patterns, and mottling symptoms, particularly on younger leaves, were tested with primers to broad virus groups and to three specific viruses—tobacco mosaic virus (TMV), cucumber mosaic virus (CMV), and alfalfa mosaic virus (AMV)—as described in Supplementary Table S1. None of these RT-PCR analyses yielded a PCR product that confirmed the presence of these viruses in over 30 leaf samples displaying these symptoms. Furthermore, a host range study, in which leaf extracts from three symptomatic cannabis genotypes were inoculated onto nine plant species, did not result in local lesion development or other symptoms that would indicate the transmission and presence of putative viruses. Transmission electron microscopy, furthermore, showed no virus particles were present in these tissues. Subsequently, whole-genome sequencing approaches were conducted on eight cannabis genotypes displaying these symptoms and which were sampled at different times. The results showed that the majority of the samples (95–100%) contained only hop latent viroid (HLVd) and a previously reported cannabis mitovirus (CasaMV1) [20]. Neither of these pathogens has been demonstrated to cause foliar symptoms resembling those shown in Figure 4. The characteristic symptoms of HLVd infection are stunting and reduced inflorescence growth [21]. Righetti et al. [22] tested leaf samples from hemp plants displaying mosaic and streak patterns using PCR with specific primers to a large group of viruses, and also performed next-generation sequencing, host range transmission studies, and electron microscopy of symptomatic tissues, similar to what was conducted in the present study. They only reported the presence of Cannabis cryptic virus (CanCV) [22,23], which was present in symptomatic and asymptomatic tissues at varying levels. Their results and ours indicate that these symptoms were not caused by any previously described virus group.
In the present study, CasaMV1 was shown to be present in the leaf, petiole, and root tissues of a majority of cannabis plants (>90%) grown indoors, as well as in most cannabis plants grown outdoors. These samples represented a broad range of genotypes. It was also detected in inflorescence and seed samples derived from an infected mother plant. This confirms the previous finding of CasaMV1 reported to be present in tissues derived from the leaves, inflorescences, seeds, seedlings, and roots of C. sativa [20]. There has been no prior research to evaluate the impact of CasaMV1 on cannabis plants, which was also detected in hemp plants in commercial fields [3] and, in the present study, on hemp samples. Mitoviruses are commonly reported to occur in fungi and may cause changes in host physiology, in many cases by altering the mitochondrial structure and function [24]. They have also been shown to be present in a number of plant species, including hemp and hops, without causing any apparent symptoms, and are presumed to be cryptic [20]. In fungi, disruptions in mitochondrial function due to mitoviruses can impact growth and pathogenicity [24]. Alterations in the levels of protein expression have been found in some plants infected by a mitovirus [25]. Further research is needed to determine the significance of the widespread occurrence of CasaMV1 in various tissues of cannabis plants and whether it is indeed cryptic [26] or could be causing mild symptoms.
In cannabis plants grown indoors which are propagated vegetatively for successive generations, the occurrence of coinfections with viruses/viroid presents a challenge in experimentally demonstrating their individual effects. For example, both HLVd and CasaMV1 were found simultaneously in a large number of cannabis genotypes in this study, and were present in both symptomatic as well as in asymptomatic plants. Establishing the roles that each may play in symptom development requires the elimination of one/both of these entities, followed by reinoculation with individual and combined virus/viroid or infectious cDNA clones to observe symptoms and discern if there are any potential interactions between these two coinfecting agents. To date, these types of inoculation experiments have not been performed. Therefore, while the diagnostic assays described in this study provide confirmation of pathogen presence, their causation or involvement in symptom expression remains to be confirmed. In previous experimental inoculations conducted on hemp plants by Keglar and Sparr [27] (summarized by Miotti et al. [28]), it was reported that a number of mechanically transmitted viruses could cause mosaic and mottling symptoms on leaves, including AMV, CMV, potato viruses X and Y, and arabis mosaic virus. None of these viruses were identified in this study on cannabis, while AMV was detected in hemp plants in 2020. In addition, despite widespread conclusions in many nonverifiable sources, such as Internet sites, stating that TMV is an important pathogen causing mosaic symptoms, it has not been demonstrated to infect cannabis or hemp plants to date, and there are no previous reports of its natural occurrence on these hosts.
A possible explanation for the mosaic and mottling symptoms seen on cannabis plants is that they are the result of somatic mutations, which are commonly seen on vegetatively propagated plants [29,30]. A few obvious chimeras were observed on leaves of cannabis plants during this study (Figure 4), some of which bore a striking resemblance to the foliar symptoms putatively attributed to virus infection. Further research is needed to establish whether these symptoms are the result of somatic mutations, which are known to occur in cannabis. Adamek et al. [31] demonstrated the extent of intraplant variation that arises from vegetative propagation from a cannabis stock plant to give rise to genetic mosaicism. Using the deep sequencing of whole genomes, they reported a higher occurrence of variants among shoots obtained from actively growing regions of the plant compared to older shoots at the bottom of the plant. Their results showed that a large number of mutations arise as the cannabis plant grows, and is maintained for a long period of time, and, as a consequence, can potentially impact the functions of important genes [31]. Epigenetic changes in plants and other organisms, caused by DNA methylation and histone modifications, among other mechanisms, have been proposed to be heritable, resulting in these epimutations potentially contributing to phenotypic variation in subsequent generations [32]. In cannabis plants that are extensively propagated through vegetative means, the appearance of these variant phenotypes may be frequent and transgenerational, and may be confused with symptoms of putative infection by viruses such as TMV or CMV.
Distinct symptoms of stunted plant growth, leaf distortion, chlorosis of leaves, and leaf curl have recently been associated with the presence of several viruses confirmed to be present in cannabis and hemp plants. These include Lettuce chlorosis virus (LCV) [33], Beet curly top virus (BCTV) [3,34,35,36,37], and Citrus yellow-vein-associated virus [3,37,38]. Subsequently, diagnostic methods using RT-PCR with specific primers have been developed to detect these viruses [3,33,34,35,36,37,38]. Recent studies have also reported spiroplasma/phytoplasma pathogens affecting hemp, including Spiroplasma citri and Candidatus Phytoplasma trifolii, which were detected using specific PCR primers [39,40]. Cannabis cryptic virus (CCV) has also been reported in cannabis plants, without causing any apparent symptoms [22,23]. This latter virus was not identified in cannabis samples in this study, but was detected in hemp plants sampled during 2020 and 2021. The potential origins of some of these pathogens can be attributed to infected seed/planting material and/or to influxes of insect vectors. The occurrence of BCTV, HLVd, CasaMV1, Tobacco streak virus (TSV), AMV, Citrus yellow-vein-associated virus (CYVaV), and cannabis cryptic virus (CCV) was confirmed on hemp plants through next-generation sequencing. In addition, Tomato bushy stunt virus was detected for the first time in 2023 and has not been reported previously to infect cannabis or hemp. The diversity of viruses present in commercial hemp crops was much greater compared to indoor-grown cannabis, possibly due to the activity of insect vectors, especially leafhoppers, that are prevalent in outdoor production sites and are known to be vectors of some viruses [3]. BCTV exists as phylogenetically different strains and is reported to affect hemp grown in Colorado, Arizona, Nevada, Oregon, Washington, and California [3,34,35,36,37,39,41]. The virus has an extremely wide host range and is considered to be a pathogen that poses a significant threat to this crop [28]. Additional research is likely to identify more viruses and phytoplasmas occurring on both cannabis and hemp, particularly where these crops are grown in close proximity to nonhemp crops that can provide a source of inoculum for spread to cannabis and hemp plants, in addition to the presence of insect vectors that can transmit these pathogens. A multiplex RT-PCR method that is capable of detecting multiple pathogens simultaneously, including BCTV, HLVd, CYVaV, and CasaMV1, would be useful for rapid diagnostic confirmation and is currently being developed in several laboratories. The various PCR-based diagnostic assays described for these pathogens, augmented by whole-genome and high-throughput sequencing approaches, have been instrumental in confirming the presence and distribution of these pathogens.
Within indoor growing environments used for the majority of commercial production of cannabis, fewer viral pathogens have been reported to date compared to hemp. Mechanical transmission and vegetative propagation are likely the key means through which viral/viroid pathogens would spread indoors if present. Many mechanically transmitted viruses can be transmitted by insect vectors in a nonpersistent manner [42]. Therefore, there is the potential for insect pests reported to occur on indoor-grown cannabis plants, such as rice root aphids (Rhopalosiphum rufiabdominalis) and onion thrips (Thrips tabaci), to acquire HLVd during feeding. Diagnostic assays utilizing RT-qPCR and RT-PCR have demonstrated that HLVd can be acquired by root aphids (https://www.einnews.com/pr_news/581016978/3-rivers-biotech-identifies-root-aphids-as-potential-vector-for-hop-latent-viroid-hlvd, accessed on 8 October 2023) and potentially by onion thrips, as was demonstrated in this study. A recent study also demonstrated the acquisition of the viroid by leafhoppers feeding on HLVd-infected plants [43], suggesting potential pathogen transmission by these insect species could occur, although the importance of this mode for pathogen transmission remains unknown. In addition, whether HLVd-infected plants serve as better hosts for colonization and development of thrips, as has been demonstrated for Tomato spotted wilt virus-infected tomato plants and western flower thrips [44], remains to be seen.
The presence of whiteflies (Bemesia tabaci) in indoor cannabis growing environments was reported to result in transmission of crinviruses, such as Lettuce chlorosis virus (LCV) [33] and Cucurbit chlorotic yellows virus (CCYV) [45], both first detected from cannabis farms in Israel. Transmission of viruses by insect pests affecting hemp crops under field conditions has resulted in multiple occurrences of viral pathogens in one field [37], and sometimes coinfections of up to three different pathogens can occur on a single plant [39]. In Nevada, BCTV was found in association with Spiroplasma citri and Candidatus Phytoplasma trifolii on the same and on different plants [39]. In Washington, BCTV, HLVd, and CYVaV were reported to occur in the same field and on the same plant [37]. In Colorado and California, multiple viruses and strains have been shown to be present in hemp fields [3,36]. It remains to be seen if multiple viral complexes are detected on indoor-grown cannabis plants. On outdoor-grown cannabis plants, the potential for multiple virus complex development, similar to what has been observed in hemp fields, should be monitored. The development of PCR-based molecular diagnostic assays has aided in the characterization of these pathogen complexes, since symptomology alone is inadequate to distinguish which viruses may be occurring simultaneously.
A large part of this study was focused on developing molecular methods to detect and quantify HLVd in cannabis plants, due to its potential to cause significant damage and for which little is presently understood about its epidemiology and spread [21,46]. Initially, primers used in RT-PCR assays demonstrated the presence of the viroid in stock plants, in rooted cuttings derived from these stock plants, and in various types of plant tissues. The distribution of the viroid was not always uniform in 3–4-month-old infected stock plants, but root tissues and youngest leaves generally tested positive for the viroid. In addition, the pathogen was detected in the inflorescence tissues of symptomatic flowering plants of several cannabis genotypes by RT-PCR. A comparison of 11 cannabis genotypes, utilizing plants ranging in age from 6 weeks to 10 weeks following the initiation of rooting from cuttings, and assessing presence/absence of HLVd using a LAMP assay, demonstrated that root tissues consistently showed the highest frequency of detection in these plants compared to the leaves and petioles. These results were confirmed by RT-PCR, and also by RT-qPCR and ddPCR, all of which confirmed the presence of HLVd in different tissues of infected cannabis plants, including inflorescences, and demonstrated consistent viroid presence in root tissues. The LAMP (loop-mediated isothermal amplification) technique was developed for the detection of plant pathogens due to its speed, high specificity, sensitivity, efficiency, and isothermal conditions suitable for field conditions [47,48]. LAMP is a one-step amplification assay that amplifies the target DNA or RNA sequence and requires two or three pairs of primers to detect six distinct regions in the target sequence [48]. Additionally, the target gene fragment is usually short, producing a series of DNA fragments that are of different sizes [48,49]. In this study, LAMP was used to demonstrate the presence of HLVd in various tissues of cannabis plants (leaves, petioles, and roots). Some limitations of the LAMP technique include the high risk of cross-contamination, as well as carry-over contamination and off-target amplification, which subsequently can result in false-positives due to the high efficiency of DNA amplification in this method [50,51,52,53].
In a recent study, a combined method utilizing RT-LAMP with RT-qPCR was described for HLVd detection in cannabis plants (LAMP/qPCR) [54]. The results provided comparable results to standard RT-qPCR methods and confirmed HLVd was present in various tissues (roots, petioles, leaves) of plants varying in age from 5 weeks to 10 weeks at high levels. A sampling strategy based on leaf tissues taken from 5–10-week-old plants was recommended to be the most suitable approach for the early detection of HLVd. Our findings using RT-PCR, RT-qPCR, and ddPCR demonstrated that consistent and high levels of HLVd were present in root tissues of 6–10-week-old cannabis plants, as well as in 3–4-month-old stock plants. Leaf tissues sampled from these plants sometimes resulted in negative or low titers of HLVd, depending on the location of the samples. The results obtained from leaf samples also varied according to the genotype of the stock plant tested. The results from ddPCR showed that high levels of viroid genomes (>10,000 copies per reaction) were present in the roots of one genotype; in a second genotype, there were 10,000–100,000 copies in the roots and youngest leaves, indicating it was highly susceptible to infection. There were also significant differences in the levels to which the viroid accumulated in the leaves of flowering plants among eight cannabis genotypes grown adjacent to one another in the same environment, ranging from undetectable to >10,000 genomes, reflecting differences in susceptibility to infection or spread. The earliest detection of HLVd by RT-qPCR was observed in samples of root tissues from 2-week-old rooted cuttings in this study. Selection of the appropriate tissues, time of sampling, and cannabis genotype can influence the accuracy of the detection of HLVd. Currently, several commercial laboratories offering diagnostic services for HLVd testing have identified root tissues as the preferred sampling material based on the earlier, higher, and more consistent accumulation of viroid levels in plants ranging from 2 weeks to 3 months of age (https://tumigenomics.com/hop-latent-viroid-information, accessed on 10 October 2023, https://medicinalgenomics.com/hop-latent-viroid-in-cannabis/, accessed on 10 October 2023, https://3riversbiotech.com/3-rivers-biotech-identifies-root-tissue-from-mature-plants-as-the-most-reliable-to-detect-hop-latent-viroid-hlvd/, accessed on 10 October 2023).

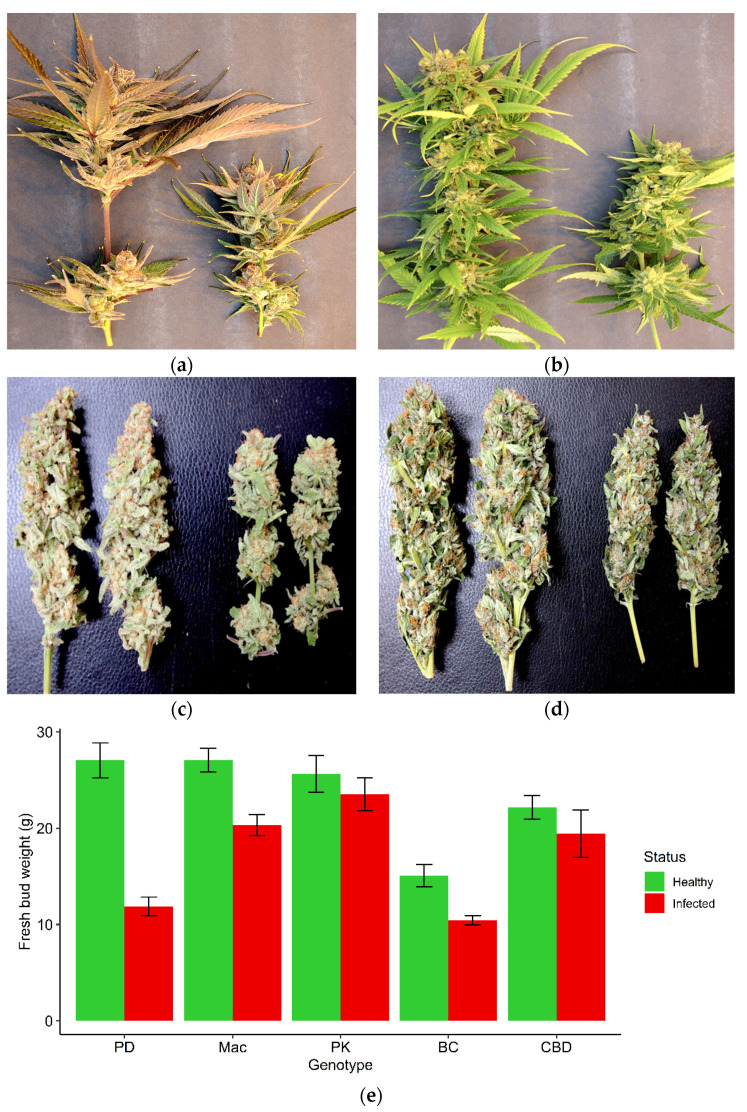

In inflorescence tissues of cannabis genotype ‘Mac-1’, a highly susceptible genotype, HLVd was detected at the highest titer (>150,000 copies) within the central inflorescence tissues that had been stripped of the surrounding inflorescence leaves and the fan leaves. The viroid was also present at high levels (10,000 copies) in the inflorescence leaves, but not in the fan leaves. In adjacent asymptomatic plants, the viroid was absent in inflorescence tissues, but was present at low levels (five copies) in vegetative leaf tissue. When HLVd-infected ‘Mac1′ was used as a female parent and fertilized with pollen from another cannabis genotype, the resulting seeds had a high incidence of HLVd infection (70–87.5%) as determined by RT-PCR and RT-qPCR. The ddPCR method has been previously used for the quantitative assessment of a range of different plant pathogens [55,56,57,58,59,60]. The main principle of ddPCR, as in other PCR-based methods, including quantitative PCR (qPCR), is the specific amplification of a nucleic acid target. The distinctive feature of dPCR is the separation of the reaction mixture into thousands to millions of partitions, which is followed by a real-time or end-point detection in each partitioned reaction. The distribution of target sequences into partitions (droplets) is described by the Poisson distribution, thus allowing the accurate and absolute quantification of the target from the ratio of positive against all partitions at the end of the reaction. This omits the need to use reference materials with known target concentrations and increases the accuracy of quantification at low target concentrations compared to qPCR. The ddPCR has also shown higher resilience to inhibitors in a number of different types of samples. This is the first application of ddPCR to detect a pathogen in cannabis plants and the first demonstration of its use for the quantification of HLVd.
A comparison of the whole-genome sequences of HLVd from hop, hemp, and cannabis plants worldwide using phylogenetic analysis revealed a lack of diversity among the sequences included. Two single-nucleotide polymorphisms (SNPs) detected did not influence the overall alignment of the sequences, and all isolates were placed into one large group. In contrast to HLVd, a related viroid—potato spindle tuber viroid—shows considerably more sequence heterogeneity among isolates from different hosts and regions [61,62]. Continuous monitoring for any potential changes in the genome of HLVd will be needed to detect possible variants that may arise in the near future as the pathogen continues to spread and evolve. In BCTV, the evolution of new strains (biotypes) has been shown to occur in different regions where hemp and other crops are cultivated, and currently up to 11 strains have been identified [41]. In TSV, a variant found to be present in hemp plants had only 80–83% sequence similarity to previous strains infecting other crops [3]. Variation in the CasaMV1 sequences from hemp plants was also observed, with 88–99% nt identity to sequences from C. sativa [3]. The CYVaV sequences had 90% nt identity with CYVaV identified from citrus [3]. Therefore, there is some evidence for the potential evolution of new and genetically diverse virus/viroid strains that can infect and become established in hemp and cannabis crops. Whether the virulence patterns have been altered in these strains has not been established. Similarly, whether commonly encountered and widespread viruses on other crops, such as AMV, CMV, and TMV, will become problematic on cannabis and hemp crops remains to be seen. Continuing bioinformatics studies on populations of viruses and viroids that may be present in cannabis and hemp plants are needed. As well, the impact on host plant growth and development following pathogen infection and reproduction need to be established, preferably in studies involving artificial inoculations. Current reports of virus/viroid presence need to include further investigations into their potential role in causing symptoms.
An extensive review of the potential impact of viruses/viroid on cannabis and hemp (historical and current) has been recently published by Miotti et al. [28]. Some potential aphid-transmissible viruses that can infect cannabis and hemp plants under artificial inoculation conditions, but have not yet become widespread under commercial conditions, include AMV, CMV, and PVY [28,63]. Viruses vectored by thrips which can also pose a threat include Tobacco streak virus and Tomato spotted wilt virus [28]. Many of these emerging viruses are potentially also seed-borne [28]. These observations suggest that cannabis and hemp crops are susceptible to a range of viruses, and that the insect-vectored pathogens appear to have the greatest potential to cause damage under widespread cultivation conditions, with mechanically transmitted pathogens less so. The exception to this is HLVd, which is mechanically transmitted and is presently widespread on cannabis [21]. Therefore, the development of diagnostic assays that can be applied in seed-testing programs will be important for the cannabis and hemp industries moving forward. Such testing programs are currently unavailable in many production areas. In the present study, HLVd presence on cannabis and hemp seeds was confirmed by RT-PCR. Given the high titer of viroid present in cannabis inflorescence tissues (which consist of clusters of pistils) of a susceptible genotype, fertilization of the ovules contained in these infected tissues by pollen originating from a male plant would likely yield a high frequency of seed-borne transmission, which was demonstrated in this study for HLVd. Infection during seed development may cause seed abortion and a reduction in the seed weight of surviving seeds. While it was not determined whether HLVd was present on the seed coat or internally within the seed, it is likely to be both. The viroid was also detected on cannabis seeds that had been stored for more than 2 years (dating back to 2021), suggesting that seed stocks of cannabis should be tested prior to widespread distribution. The viroid levels differed significantly from one seed to the next, even within the same batch of seeds. This variability should be considered in seed-testing protocols or when establishing levels of transmission of the viroid to seedlings, since the resulting levels of the viroid may be variable. Seeds of hemp infected with HLVd gave rise to infected seedlings at a high frequency in the present study, but the symptomology on these plants has not been established. The diagnostic approaches described in this study should aid in the routine screening of plants and seeds for the range of pathogens currently reported to affect cannabis and hemp crops.
A comparison of the prevalence of fungal and oomycete pathogens affecting cannabis and hemp crops to the viruses/viroid disease complex indicates that, while there are new reports of the occurrence of the former group of pathogens on these hosts in different geographic regions, there is no evidence for selection of new pathogen strains that are adapted to cannabis and hemp, i.e., the pathogens are shown to have originated and spread from previous crops or adjacent crops [1]. A similar situation may be taking place with the virus/viroid pathogens, but preliminary evidence may suggest an evolving suite of these pathogens may be found infecting these crops in the future. The applications of the molecular diagnostic and bioinformatics methods described in this study should provide useful information to address the evolving challenges facing cannabis and hemp crops as a result of these evolving multiple and assorted pathogens, which could become a limiting factor to production in certain regions [64].
4. Materials and Methods
4.1. Detection of Fungal and Oomycete Pathogens on Cannabis
4.1.1. Symptoms and Pathogen Isolation
Cannabis plants displaying symptoms that included stunting and yellowing of vegetative and flowering plants and showed internal stem discoloration (Figure 1a–c), as well as visible evidence of fungal growth on the inflorescences (Figure 1d–f), were obtained from indoor production sites and greenhouses in which the cultivation of a range of different genotypes (strains) occurred. To recover fungi and oomycetes from the roots, stems, and inflorescences, tissue pieces measuring 0.5 mm2 were taken from symptomatic plants and surface-sterilized by immersing them in 10% bleach (0.525% NaOCl) for 30 s, followed by 70% EtOH for 30 s, and three rinses in sterile distilled water. The pieces were transferred to potato dextrose agar containing 140 mg/L streptomycin sulfate and incubated at room temperature (22–25 °C) for 5–7 days. Emerging colonies were subcultured onto fresh agar medium. Morphological criteria that included colony features and spore characteristics were used to tentatively assign a genus and species identification to the various colonies that were recovered. These cultures were then used to conduct the molecular analysis, as described below. Symptomatic plant tissues were also used directly for DNA extraction, as described below, and used for PCR. DNA from noninfected cannabis tissues was included as a control.
4.1.2. PCR Analysis
DNA was extracted from 50–100 mg of active growing mycelium or from 50 mg of plant tissues using the QIAGEN DNeasy Plant Mini Kit (Hilden, Germany) (cat. no. 69104). A pair of universal eukaryotic primers that amplified the ribosomal DNA in the internal transcribed region (ITS1-5.8S-ITS2) was used to amplify each sample. The primers (UN-UP18S42 (5′-CGTAACAAGGTTTCCGTAGGTGAAC-3′) and UN-LO28S576B (5′-GTTTCTTTTCCTCCGCTTATTAATATG-3′) [4] were used with the following PCR conditions: initial denaturation at 94 °C for 3 min, 40 cycles of denaturation at 94 °C for 30 s, annealing at 55 °C for 45 s, extension at 72 °C for 2 min, and a final extension at 72 °C for 7 min, followed by a 4 °C hold. PCR bands were cut from the gel, collected using the MinElute Gel Extraction Kit (Valencia, CA, USA) (cat. no. 28604), and 8 uL was sent to Eurofins Genomics (https://www.eurofinsgenomics.com/en/home/, accessed on 1 October 2023) for sequencing. The resulting sequences were compared to ITS1-5.8S-ITS2 sequences from the National Center for Biotechnology Information (NCBI) GenBank database using BLAST [65] to confirm species identity, using cut-off values >99%. Representative sequences were deposited in GenBank.
4.4. Sequence Diversity and Molecular Phylogeny of Hop Latent Viroid
The evolutionary history was inferred by using the maximum likelihood method and Kimura 2-parameter model [71]. The bootstrap consensus tree inferred from 1000 replicates [72] was taken to represent the evolutionary history of the taxa analyzed. Branches corresponding to partitions reproduced in less than 70% bootstrap replicates were collapsed. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches [72]. Initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the maximum composite likelihood (MCL) approach, and then selecting the topology with superior log likelihood value. This analysis involved 21 nucleotide sequences from GenBank. Only full-length sequences were used, and selections were chosen to represent wide geographic regions. All positions with less than 95% site coverage were eliminated, i.e., fewer than 5% alignment gaps, missing data, and ambiguous bases were allowed at any position (partial deletion option). There was a total of 185 positions in the final dataset. Evolutionary analyses were conducted in MEGA11 [73].
4.5. Droplet Digital PCR
Quantitative primer specificity was also tested using the primer sets HLVd quant F1/HLVd quant F2 and Cannabis EF1α F/Cannabis EF1α R (Table 6). Specificity was evaluated using only the cDNA generated (see above) from the RNA of one cannabis genotype (PD). PCR was conducted using 20 µL reactions of QX200™ ddPCR™ EvaGreen Supermix (Bio-rad) with quantitative primers at final concentrations of 150 nM, 3 µL of 10−2 diluted PD cDNA template per reaction, and without generating droplets. The PCRs were conducted across a 5-point thermal gradient ranging from 55.8 °C to 62 °C to determine the ideal annealing temperature. Following PCR, these were electrophoresed, stained, and imaged, as described above. Neither primer set produced nonspecific bands, and both sets performed equally well across the thermal gradient. A temperature of 58 °C was selected for the subsequent ddPCR, as higher temperatures can produce inadequate separation between positive and negative droplets, termed ‘rain’. A total of five cannabis genotypes were tested by ddPCR, and the levels of HLVd present were quantified.
4.6. Multiplex Taqman RT-qPCR
Tissues were obtained from the flowering plants of genotypes PD and Mac showing symptoms, as seen in Figure 7. Approximately 100 mg of fresh inflorescence tissues were placed directly into 750 uL of RNAlater® solution (Thermo Fisher Scientific) in a 2 mL screw-cap tube and placed on ice. The samples were either processed the same day or stored overnight at 4 °C and processed the following day. Total nucleic acids were extracted as described by Mark et al. [74], with slight modifications. The RNAlater® was removed from the 2 mL tube followed by adding 2.3 mm diameter zirconia–silica beads and 1.0 mm diameter glass beads (BioSpec, Bartlesville, OK, USA). The tissue was then macerated using a TissueLyser (Qiagen) at 25 Hz for 1 min. Once homogenized, 1 mL of extraction buffer (2% CTAB, 2% PVP40,000, 25 mM EDTA at a pH of 8, 100 mM Tris-HCl at a pH of 8, and 2.5 mM NaCl) prewarmed at 65 °C was added to each sample and incubated at 65 °C for 10 min. The homogenate was centrifuged at max speed (>16,000× g) for 5 min at 4 °C and the supernatant transferred to a new sterile 1.5 mL Eppendorf tube. An equal volume (750 µL) of chloroform isoamyl alcohol (24:1) was added and centrifuged at max speed (>16,000× g) for 5 min. The supernatant (550 uL) was transferred to a new 1.5 mL Eppendorf tube, and 0.6 volumes of cold isopropanol were added and centrifuged again at max speed (>16,000× g) for 5 min. Isopropanol was decanted and about 650 µL of 70% ethanol was added onto the pellets, centrifuged at max speed (>16,000× g) for 3 min, and air-dried before resuspending into 40 µL of nuclease-free water. RT-qPCR was performed on a Bio-Rad CFX96 instrument using TaqPath™ 1-Step Multiplex Master Mix (No ROX) (Thermo Fisher Scientific). The reagents were brought to room temperature prior to prevent infrequent nonspecific signal increases found when master mixes are prepared on ice. Each 20 μL reaction mixture contained 5 μL of 4 × TaqPath 1-Step Multiplex Master Mix (No ROX; Thermo Fisher Scientific), 1 μL of primer/probes mix, and 4 μL of extracted total nucleic acid. The primers used are shown in Table 7. The final concentrations of primers and probes were 0.3 μM (target primers), 0.05 μM (target probes), 0.15 μM (internal control primer), and 0.05 μM (internal control probe). The cycling program on a Bio-Rad CFX96 instrument was as follows: uracil–DNA glycosylase incubation at 25 °C for 2 min; reverse transcription at 53 °C for 10 min; polymerase activation at 95 °C for 2 min; 40 cycles of PCR at 95 °C for 3 s and 60 °C for 30 s (signal acquisition). The filter combinations were 465–510 (FAM; UBQ P), 540–580 (HEX; HLVd P1), and 610–670 (Cy5; HLVd P2).
| Target | Primer Name | Sequence (5′–3′) | Source |
|---|---|---|---|
| HLVd | HLVd Forward1 | ATACAACTCTTGAGCGCCGA | Hataya et al. [75] |
| HLVd Reverse1 | CCACCGGGTAGTTCCCAACT | Hataya et al. [75] | |
| HLVd Probe 1 | TCTTCGAGCCCTTGCCACCA | This work | |
| HLVd Forward2 | AGTTGCTTCGGCTTCTT | Lu et al. [76] | |
| HLVd Reverse2 | CCATCATACAGGTAAGTCAC | Lu et al. [76] | |
| HLVd Probe 2 | TGCGTGGAACGGCTCCTTCT | This work | |
| Cannabis UBQ | Cannabis UBQ Forward | TACTGCGCCAGCTAACAAAC | Guo [70] |
| Cannabis UBQ Reverse | GCACCCGTCTGACCTGAATC | Guo [70] | |
| Cannabis UBQ Probe | ACAATGCAGCAAATGCTCACTCTACAGCAGTCA | This work |
4.7. LAMP Assays
Tissues were sampled from plants showing symptoms, as illustrated in Figure 4, as well as from asymptomatic plants (showing no visible alteration of growth). Leaves, petioles, and roots were collected from 11 cannabis genotypes for comparison. Plants ranged in age from 6 to 10 weeks after the initiation of cuttings. Approximately 100 mg of fresh tissues were placed directly into 750 uL of RNAlater® solution (Thermo Fisher Scientific) in a 2 mL screw-cap tube and placed on ice. The samples were either processed the same day or stored overnight at 4 °C and processed the following day. Total nucleic acids were extracted as described by Mark et al. [74], with slight modifications. The RNAlater® was removed from the 2 mL tube followed by adding 2.3 mm diameter zirconia–silica beads and 1.0 mm diameter glass beads (BioSpec, Bartlesville, OK, USA). The tissue was then macerated using a TissueLyser (Qiagen, Germantown, MD, USA) at 25 Hz for 1 min. Once homogenized, 1 mL of extraction buffer (2% CTAB, 2% PVP40,000, 25 mM EDTA at a pH of 8, 100 mM Tris-HCl at a pH of 8, and 2.5 mM NaCl) prewarmed at 65 °C was added to each sample and incubated at 65 °C for 10 min. The homogenate was centrifuged at max speed (>16,000× g) for 5 min at 4 °C and the supernatant transferred to a new sterile 1.5 mL Eppendorf tube. An equal volume (750 µL) of chloroform isoamyl alcohol (24:1) was added and centrifuged at max speed (>16,000× g) for 5 min. The supernatant (550 uL) was transferred to a new 1.5 mL Eppendorf tube, and 0.6 volumes of cold isopropanol were added and centrifuged again at max speed (>16,000× g) for 5 min. Isopropanol was decanted, and about 650 µL of 70% ethanol was added onto the pellets, centrifuged at max speed (>16,000× g) for 3 min, and air-dried before resuspending into 40 µL of nuclease-free water. RT-LAMP primer sequences were designed using New England Biolabs® (NEB) LAMP primer design tool and synthesized by Integrated DNA Technologies (Coraville, IA, USA) (Table 8). RT-LAMP reactions were performed using WarmStart® Fluorescent LAMP/RT-LAMP Kit (with UDG) (New England Biolabs, Whitby, ON, Canada; E1708) with standard primer concentrations (0.2 μM F3, 0.2 μM B3, 1.6 μM FIP, 1.6 μM BIP, 0.4 μM Loop F, 0.4 μM Loop B) in 25 μL on 96-well plates at 65 °C for 30 min in a Bio-Rad CFX96 instrument.
| Primer | Sequence (5′–3′) |
|---|---|
| HLVd_LAMP_F3 | CGAGCTTTACCTGCAGAAGT |
| HLVd_LAMP_B3 | TGAAGAAGGAGCCGTTCCA |
| HLVd_LAMP_LF | CCCTTGCCACCATACAGG |
| HLVd_LAMP_LB | CGCGGCGACCTGAAGTT |
| HLVd_LAMP_FIP | TAGGTTTCCCCGGGGATCCCCCCCTCTGGGGAATACACT |
| HLVd_LAMP_BIP | CGGAGATCGAGCGCCAGTTCGCAGGACGCGAACAAGAA |
4.8. Monitoring Distribution of HLVd in Various Plant Tissues
4.8.1. Distribution within Stock Plants
To assess how specific diagnostic assays can be used to monitor the presence of HLVd in different tissues of cannabis plants, RT-PCR with primers HLVd seq F1/HLVd seq R1 were used according to the conditions specified above (Section 4.3.2). Stock (mother) plants of several genotypes that were 3–4 months old were sampled at different positions on the plant—leaves were collected from the top (youngest growth), middle, and bottom (oldest growth), as well as from roots. The plants did not display any obvious symptoms of disease, such as stunting or leaf curl (Figure 14). Each leaf sample (approximately 5 gm fresh weight) was frozen at −80 C until used. The extractions were conducted using the Qiagen RNeasy Plant Mini Kit (cat. #74904) according to the manufacturer’s instructions. The final RNA product was eluted with 52 µL nuclease-free H2O. The QIAGEN OneStep RT-PCR Kit (cat. #210212) was used for reverse transcription and PCR amplification. The reaction mixture contained 14 µL of water, 5 µL of 5x reaction buffer, 1 µL of dNTPs (10 mM), 1.5 µL each of primers HLVd seq F1/HLVd seq R1, 1 µL of RNA template, and 1 µL of enzyme mix, resulting in a total volume of 25 µL. All PCR amplifications were performed in a MyCycler thermocycler (BIORAD) with the following program: 30 min at 50 °C, 15 min at 95 °C, followed by 35 cycles of 30 s at 94 °C, 30 s at 58 °C, 60 s at 72 °C, and final extension at 72 °C for 10 min. The resulting PCR products were run on a 1% TAE agarose gel, and images were captured with E-gel imager (Life Technologies, Carlsbad, CA, USA). Bands of the expected size (ca. 256 and 512 bp) were purified with QIAquick Gel Extraction Kit and sent to Eurofins Genomics (Eurofins MWG Operon LLC 2016, Louisville, KY, USA) for sequencing. The resulting sequences were compared to the corresponding HpLVd sequences from the National Centre for Biotechnology Information (NCBI) GenBank database to confirm identity. In addition, primers HLVd quant F1/HLVd quant F2 were also used to quantify viroid levels in the same tissues, as described in Section 4.5 above.
4.8.2. Distribution within Inflorescence Tissues
Mature inflorescences were obtained at harvest from a plant (approximately 12 weeks of age that had been grown under a photoperiod of 12:12 hr to induce flowering for 8 weeks) of genotype ‘Mac-1’ which was previously confirmed to be infected by HLVd. The leaves surrounding the inflorescence that included large fan leaves and smaller inflorescence leaves (Figure 15) were manually dissected from the inflorescence using a scalpel and used for RNA extraction, followed by RT-PCR and ddPCR to compare the relative viroid concentrations in these tissues relative to that present in the whole inflorescence (Figure 15).
4.8.3. Distribution of HLVd within Cuttings from Infected Stock Plants
Vegetative cuttings were taken directly from a stock plant of genotype ‘Blue Dream’ confirmed to be infected with HLVd and were rooted and tested for HLVd presence using RT-PCR and RT-qPCR after 14 days. The conditions for rooting are described elsewhere [4]. A total of 7 cuttings were subjected to RT-PCR, and 4 of the cuttings were also analyzed by RT-qPCR, and the results were compared.
4.8.4. Presence of Pathogens in Fresh and Dried Cannabis Inflorescences
Following harvest of inflorescences from a number of genotypes of cannabis plants, both fresh and dried flowers were tested for the presence of specific pathogens by PCR with the universal primers for fungal/oomycete pathogens, and by RT-PCR for HLVd. The fresh flowers were tested immediately after they were obtained by removing inflorescence leaves and subjecting them to PCR, as described previously (Section 4.1.2). For dried samples, flowers were subjected to commercial drying conditions (5 days at 20–22 °C and 50–55% relative humidity), after which the tissue samples were obtained and subjected to PCR with HLVd primers, as described in Section 4.3.2. Up to 20 fresh and dried samples were included in the analysis. Resulting bands observed in these analyses following PCR were collected and sent for sequencing to confirm which pathogens were present.
4.8.5. Detection of HLVd and Mitovirus in Cannabis Seed
A cross was made between an infected ‘Mac1′ female plant and pollen from a healthy male plant of genotype ‘GPie’ by collecting pollen and manually transferring to the stigmatic surfaces. The plants were grown in isolation after crossing for 10 weeks, after which seeds that had developed were collected and frozen at −80 C. Individual seeds were ground and the RNA was extracted, as previously described, and subjected to RT-PCR using HLVd primers and CasaMV1 primers.
4.9. Detection of Beet Curly Top Virus
Cannabis plants with symptoms of stunting, extensive curling of young leaves, and twisted and deformed stem growth (Figure 19) were used. DNA from approximately 100 mg of stem tissues from these plants was extracted with a Qiagen DNeasy extraction kit and eluted into 100 uL of elution buffer. The extracted DNA was then diluted 1:10 in TE buffer before PCR. The PCR was carried out in 20 uL reactions using Thermo Fisher DreamTaq according to the manufacturer’s instructions. Primer sequences used are shown in Table 9. The PCR conditions were 94 °C for 5 min followed by 40 cycles of 94 °C for 30 s, 58 °C for 60 s, 72 °C for 90 s, and a final extension of 72 °C for 10 min. The PCR products were run on a 2% TAE agarose gel at 100 V for 30 min before imaging.
| Target | Primer | Name | Sequence (5′–3′) | Source |
|---|---|---|---|---|
| BCTV-Universal | Forward | BCTV2-F | GTGGATCAATTTCCAGACAATTATC | Strausbaugh et al. [77] |
| Reverse | BCTV2-R | CCCATAAGAGCCATATCAAACTTC | ||
| BCTV-Worland | Forward | BMCTVv2825 | TGATCGAGGCATGGTT | Chen et al. [78] |
| Reverse | BGc396 | CAACTGGTCGATACTGCTAG | ||
| BCTV-Severe | Forward | BSCTVv2688 | GCTGGTACTTCGATGTTG | Chen et al. [78] |
| Reverse | BGc396 | CAACTGGTCGATACTGCTAG | ||
| BCTV-Colorado | Forward | BCTVCO-F | TGCGAGGACGCTTCTTGATT | Chiginsky et al. [3] |
| Reverse | BCTVCO-R | GGGCCGACTCTTATTTTCGG |
Acknowledgments
We thank L. Ni, J. Holmes, S. Lung, H. Tso, C. Scott, L. Buirs, and M. Zhou for providing assistance during various aspects of this study. We acknowledge the sequencing work conducted by Mike Rott, Canadian Food Inspection Agency, and Laine Hackenberg, Colorado State University, which confirmed the virome composition in cannabis leaf samples using whole-genome analysis, and Jinlong Han for constructing the BCTV phylogenetic tree. We express gratitude to various cannabis and hemp producers who provided plant tissue samples for analysis in this study.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms25010014/s1.
Data Availability Statement
There were no new data created in this study.
Conflicts of Interest
The authors declare no conflict of interest.
Funding Statement
This research was funded by an Alliance Grant (ALLRP 571270-21) from the Natural Sciences and Engineering Research Council of Canada (NSERC), with industry funding provided by Pure Sunfarms.
Footnotes
Footnote Group
References
Untitled section
References
- 1.Punja Z.K. Emerging diseases of Cannabis sativa and sustainable management. Pest. Manag. Sci. 2021;77:3857–3870. doi: 10.1002/ps.6307.
- 2.Punja Z.K., Collyer D., Scott C., Lung S., Holmes J., Sutton D. Pathogens and molds affecting production and quality of Cannabis sativa L. Front. Plant Sci. 2019;10:1120. doi: 10.3389/fpls.2019.01120.
- 3.Chiginsky J., Langemeier K., MacWilliams J., Albrecht T., Cranshaw W., Fulladolsa A.C., Kapuscinski M., Stenglein M., Nachappa P. First insights into the virus and viroid communities in hemp (Cannabis sativa) Front. Agron. 2021;3:778433. doi: 10.3389/fagro.2021.778433.
- 4.Punja Z.K. Epidemiology of Fusarium oxysporum causing root and crown rot of cannabis (Cannabis sativa L., marijuana) plants in commercial greenhouse production. Can. J. Plant Pathol. 2021;43:216–235. doi: 10.1080/07060661.2020.1788165.
- 5.Punja Z.K. First report of Fusarium proliferatum causing crown and stem rot, and pith necrosis, in cannabis (Cannabis sativa L., marijuana) plants. Can. J. Plant Pathol. 2021;43:236–255. doi: 10.1080/07060661.2020.1793222.
- 6.Punja Z.K., Li N., Roberts A.J. The Fusarium solani species complex infecting cannabis (Cannabis sativa L., marijuana) plants and a first report of Fusarium (Cylindrocarpon) lichenicola causing root and crown rot. Can. J. Plant Pathol. 2021;43:567–581. doi: 10.1080/07060661.2020.1866672.
- 7.Punja Z.K., Scott C., Lung S. Several Pythium species cause crown and root rot on cannabis (Cannabis sativa L., marijuana) plants grown under commercial greenhouse conditions. Can. J. Plant Pathol. 2022;44:66–81. doi: 10.1080/07060661.2021.1954695.
- 8.Scott C., Punja Z.K. Evaluation of disease management approaches for powdery mildew on Cannabis sativa L. (marijuana) plants. Can. J. Plant Pathol. 2021;43:394–412. doi: 10.1080/07060661.2020.1836026.
- 9.Punja Z.K. First report of the powdery mildew pathogen of hops, Podosphaeria macularis, naturally infecting cannabis (Cannabis sativa L., marijuana) plants under field conditions. Can. J. Plant Pathol. 2021;44:235–249. doi: 10.1080/07060661.2021.1960424.
- 10.Punja Z.K., Ni L. The bud rot pathogens infecting cannabis (Cannabis sativa L., marijuana) inflorescences: Symptomology, species identification, pathogenicity and biological control. Can. J. Plant Pathol. 2022;43:827–854. doi: 10.1080/07060661.2021.1936650.
- 11.Mahmoud M., BenRejeb I., Punja Z.K., Buirs L., Jabaji S. Understanding bud rot development, caused by Botrytis cinerea, on cannabis (Cannabis sativa L.) plants grown under greenhouse conditions. Botany. 2023;101:200–231. doi: 10.1139/cjb-2022-0139.
- 12.Punja Z.K., Scott C. Organically grown cannabis (Cannabis sativa L.) plants contain a diverse range of culturable epiphytic and endophytic fungi in inflorescences and stem tissues. Botany. 2023;101:255–269. doi: 10.1139/cjb-2022-0116.
- 13.Punja Z.K. The diverse mycoflora present on dried cannabis (Cannabis sativa L., marijuana) inflorescences in commercial production. Can. J. Plant Pathol. 2021;43:88–100. doi: 10.1080/07060661.2020.1758959.
- 14.Punja Z.K., Ni L., Lung S., Buirs L. Total yeast and mold levels in high-THC-containing cannabis (Cannabis sativa L.) inflorescences are influenced by genotype, environment, and pre- and post-harvest handling practices. Front. Microbiol. 2023;14:1192035. doi: 10.3389/fmicb.2023.1192035.
- 15.Gwinn K.D., Leung M.C.K., Stephens A.B., Punja Z.K. Fungal and mycotoxin contaminants in cannabis and hemp flowers: Implications for consumer health and directions for further research. Front. Microbiol. 2023;14:1278189. doi: 10.3389/fmicb.2023.1278189.
- 16.McKernan K., Spangler J., Helbert Y., Lynch R.C., Devitt-Lee A., Zhang L., Orphe W., Warner J., Foss T., Hudalla C.J., et al. Metagenomic analysis of medicinal cannabis samples; pathogenic bacteria, toxigenic fungi, and beneficial microbes grow in culture-based yeast and mold tests. F1000Research. 2016;5:2471. doi: 10.12688/f1000research.9662.1.
- 17.McKernan K., Spangler J., Zhang L., Tadigotla V., Helbert Y., Foss T., Smith D. Cannabis microbiome sequencing reveals several mycotoxic fungi native to dispensary grade Cannabis flowers. F1000Research. 2016;4:1422. doi: 10.12688/f1000research.7507.2.
- 18.Thompson G.R., III, Tuscano J.M., Dennis M., Singapuri A., Libertini S., Gaudino R., Torres A., Delisle J.P.M., Gillece J.D., Schupp J.M., et al. A microbiome assessment of medical marijuana. Clin. Microbiol. Infect. 2017;23:269–270. doi: 10.1016/j.cmi.2016.12.001.
- 19.McKernan K., Helbert Y., Kane L., Houde N., Zhang L., McLaughlin S. Whole genome sequencing of colonies derived from cannabis flowers and the impact of media selection on benchmarking total yeast and mold detection tools. F1000Research. 2021;10:624. doi: 10.12688/f1000research.53467.2.
- 20.Nibert M.L., Vong M., Fugate K.K., Debat H.J. Evidence for contemporary plant mitoviruses. Virology. 2018;518:14–24. doi: 10.1016/j.virol.2018.02.005.
- 21.Punja Z.K., Wang K., Lung S., Buirs L. Symptomology, prevalence, and impact of Hop latent viroid on greenhouse-grown cannabis (Cannabis sativa L.) plants in Canada. Can. J. Plant Pathol. 2023. in press .
- 22.Righetti L., Paris R., Ratti C., Calassanzio M., Onofri C., Calzolari D., Menzel W., Knierim D., Magagnini G., Pacifico D., et al. Not the one, but the only one: About cannabis cryptic virus in plants showing ‘Hemp streak’ disease symptoms. Eur. J. Plant Pathol. 2018;150:575–588. doi: 10.1007/s10658-017-1301-y.
- 23.Ziegler A., Matoušek J., Steger G., Schubert J. Complete sequence of a cryptic virus from hemp (Cannabis sativa) Arch. Virol. 2012;157:383–385. doi: 10.1007/s00705-011-1168-8.
- 24.Park Y., Chen X., Punja Z.K. Molecular and biological characterization of a mitovirus in Chalara elegans (Thielaviopsis basicola) Phytopathology. 2006;96:468–479. doi: 10.1094/PHYTO-96-0468.
- 25.Di Silvestre D., Passignani G., Rossi R., Ciuffo M., Turina M., Vigani G., Mauri P.L. Presence of a mitovirus is associated with alteration of the mitochondrial proteome, as revealed by protein-protein interaction (PPI) and co-expression network models in Chenopodium quinoa plants. Biology. 2022;11:95. doi: 10.3390/biology11010095.
- 26.Brunstein J. Cannabis mitovirus—What you need to know. An introduction and state of knowledge. [(accessed on 15 October 2023)];Segra Int. 2022 Available online: https://www.segra-intl.com/mitoviruses.
- 27.Kegler H., Spaar D. On the virus susceptibility of varieties of Cannabis sativa L. Arch. Phytopathol. Plant Prot. 1997;30:457–464. doi: 10.1080/03235409709383198.
- 28.Miotti N., Passera A., Ratti C., Dall’Ara M., Casati P. A guide to cannabis virology: From the virome investigation to the development of viral biotechnological tools. Viruses. 2023;15:1532. doi: 10.3390/v15071532.
- 29.D’Amato F. Role of somatic mutations in the evolution of higher plants. Caryologia. 1997;50:1–15. doi: 10.1080/00087114.1997.10797380.
- 30.McKey D., Elias M., Pujol B., Duputié A. The evolutionary ecology of clonally propagated domesticated plants: Tansley review. New Phytol. 2010;186:318–332. doi: 10.1111/j.1469-8137.2010.03210.x.
- 31.Adamek K., Jones A.M.P., Torkamaneh D. Accumulation of somatic mutations leads to genetic mosaicism in cannabis. Plant Genome. 2022;15:184–196. doi: 10.1002/tpg2.20169.
- 32.Fitz-James M., Cavalli G. Molecular mechanisms of transgenerational epigenetic inheritance. Nat. Rev. Genet. 2022;23:325–341. doi: 10.1038/s41576-021-00438-5.
- 33.Hadad L., Luria N., Smith E., Sela N., Lachman O., Dombrovsky A. Lettuce chlorosis virus disease: A new threat to cannabis production. Viruses. 2019;11:802. doi: 10.3390/v11090802.
- 34.Giladi Y., Hadad L., Luria N., Cranshaw W., Lachman O., Dombrovsky A. First report of Beet curly top virus infecting Cannabis sativa in western Colorado. Plant Dis. 2020;104:999. doi: 10.1094/PDIS-08-19-1656-PDN.
- 35.Hu J., Masson R., Dickey L. First report of Beet curly top virus infecting industrial hemp (Cannabis sativa) in Arizona. Plant Dis. 2021;105:1233. doi: 10.1094/PDIS-11-20-2330-PDN.
- 36.Melgarejo T.A., Chen L.-F., Rojas M.R., Schilder A., Gilbertson R.L. Curly top disease of hemp (Cannabis sativa) in California is caused by mild-type strains of Beet curly top virus often in mixed infection. Plant Dis. 2022;106:3022–3026. doi: 10.1094/PDIS-04-22-0856-SC.
- 37.Jarugula S., Wagstaff C., Mitra A., Crowder D.W., Gang D.R., Naidu R.A. First reports of Beet curly top virus, Citrus yellow vein-associated virus, and Hop latent viroid in industrial hemp (Cannabis sativa) in Washington State. Plant Dis. 2023. in press .
- 38.Kwon S.-J., Bodaghi S., Dang T., Gadhave K.R., Ho T., Osman F., Al Rwahnih M., Tzanetakis I.E., Simon A.E., Vidalakis G. Complete nucleotide sequence, genome organization, and comparative genomic analyses of Citrus yellow-vein associated virus (CYVaV) Front. Microbiol. 2021;12:1371. doi: 10.3389/fmicb.2021.683130.
- 39.Schoener L., Wang S. Hemp abnormal growth is attributed to mono-, di-, or tri-infections of Spiroplasma citri, Candidatus Phytoplasma trifolii, and Beet curly top virus. PhytoFrontiers. 2023. in press .
- 40.Rivedal H.M., Temple T., Thomas W.J., Ocamb C.M., Funke C., Skillman V., Jones G., Shrestha G., Achala K.C., Dung J.K.S., et al. First report of Spiroplasma citri associated with disease in field-grown hemp (Cannabis sativa L.) in the United States. Plant Dis. 2023. in press .
- 41.Strausbaugh C.A., Eujayl I.A., Wintermantel W.M. Beet curly top virus strains associated with sugar beet in Idaho, Oregon, and a western U.S. Collection. Plant Dis. 2017;101:1373–1382. doi: 10.1094/PDIS-03-17-0381-RE.
- 42.Ng J.C., Falk B.W. Virus-vector interactions mediating nonpersistent and semipersistent transmission of plant viruses. Annu. Rev. Phytopathol. 2006;44:183–212. doi: 10.1146/annurev.phyto.44.070505.143325.
- 43.McKernan K., Palmer C. Hop latent viroid detection in leafhoppers (Nephotettix cincticeps) feeding on Cannabis sativa sap. [(accessed on 1 October 2023)];Nepetalactone Newsl. 2023 Available online: https://anandamide.substack.com/p/hop-latent-viroid-detection-in-leafhoppers.
- 44.Nachappa P., Challacombe J., Margolies D.C., Nechols J.R., Whitfield A.E., Rotenberg D. Tomato spotted wilt virus benefits its thrips vector by modulating metabolic and plant defense pathways in tomato. Front. Plant Sci. 2020;11:575564. doi: 10.3389/fpls.2020.575564.
- 45.Gezovitch O., Luria N., Lachman O., Sela N., Smith E., Dombrovsky A. Aviv Dombrovsky Cucurbit chlorotic yellows virus, a crinivirus infecting Cannabis sativa plants. Plant Pathol. 2023 doi: 10.1111/ppa.13800.
- 46.Adkar-Purushothama C.R., Sano T., Perreault J.-P. Hop latent viroid: A hidden threat to the cannabis industry. Viruses. 2023;15:681. doi: 10.3390/v15030681.
- 47.Notomi T., Okayama H., Masubuchi H., Yonekawa T., Watanabe K., Amino N., Hase T. Loop-mediated isothermal amplification of DNA. Nucl. Acids Res. 2000;28:e63. doi: 10.1093/nar/28.12.e63.
- 48.Gomez-Gutierrez S.V., Goodwin S.B. Loop-mediated isothermal amplification for detection of plant pathogens in wheat (Triticum aestivum) Front. Plant Sci. 2022;13:857673. doi: 10.3389/fpls.2022.857673.
- 49.Le D.T., Vu N.T. Progress of loop-mediated isothermal amplification technique in molecular diagnosis of plant diseases. Appl. Biol. Chem. 2017;60:169–180. doi: 10.1007/s13765-017-0267-y.
- 50.Hsieh K., Mage P.L., Csordas A.T., Eisenstein M., Soh H.T. Simultaneous elimination of carryover contamination and detection of DNA with uracil-DNA-glycosylase-supplemented loop-mediated isothermal amplification (UDG-LAMP) Chem. Commun. 2014;50:3747–3749. doi: 10.1039/c4cc00540f.
- 51.Kim E.-M., Jeon H.-S., Kim J.-J., Shin Y.-K., Lee Y.-J., Yeo S.-G., Park C.-K. Uracil-DNA glycosylase-treated reverse transcription loop-mediated isothermal amplification for rapid detection of avian influenza virus preventing carry-over contamination. J. Vet. Sci. 2016;17:421–425. doi: 10.4142/jvs.2016.17.3.421.
- 52.Baek Y.H., Um J., Antigua K.J.C., Park J.H., Kim Y., Oh S., Kim Y.I., Choi W.S., Kim S.G., Jeong J.H., et al. Development of a reverse transcription-loop-mediated isothermal amplification as a rapid early-detection method for novel SARS-CoV-2. Emerg. Microbes Infect. 2020;9:998–1007. doi: 10.1080/22221751.2020.1756698.
- 53.Ti V.L.D., Herbst K., Boerner K., Meurer M., Kremer L.P., Kirrmaier D., Freistaedter A., Papagiannidis D., Galmozzi C., Stanifer M.L., et al. A colorimetric RT-LAMP assay and LAMP-sequencing for detecting SARS-CoV-2 RNA in clinical samples. Sci. Transl. Med. 2020;12:eabc7075. doi: 10.1126/scitranslmed.abc7075.
- 54.Fernandez A.M., Marti A., Parungao M., Hollin J., Selimotic B., Farrar G., Seyler T., Anand A., Ahmad R. A novel, precise and high-throughput technology for viroid detection in Cannabis (MFDetectTM) Viruses. 2023;15:1487. doi: 10.3390/v15071487.
- 55.Gutiérrez-Aguirre I., Rački N., Dreo T., Ravnikar M. Droplet digital PCR for absolute quantification of pathogens. In: Lacomme C., editor. Plant Pathology. Techniques and Protocols. Methods in Molecular Biology. Volume 1302. Humana Press; New York, NY, USA: 2015.
- 56.Zhao Y., Xia Q., Yin Y., Wang Z. Comparison of droplet digital PCR and quantitative PCR assays for quantitative detection of Xanthomonas citri subsp. citri. PLoS ONE. 2016;11:e0159004. doi: 10.1371/journal.pone.0159004.
- 57.Dupas E., Legendre B., Olivier V., Poliakoff F., Manceau C., Cunty A. Comparison of real-time PCR and droplet digital PCR for the detection of Xylella fastidiosa in plants. J. Microbiol. Meth. 2019;162:86–95. doi: 10.1016/j.mimet.2019.05.010.
- 58.Ren Z., Chen R., Muhae-Ud-Din G., Fang M., Li T., Yang Y., Chen W., Gao L. Development of real-time PCR and droplet digital PCR based marker for the detection of Tilletia caries inciting common bunt of wheat. Front. Plant Sci. 2022;13:1031611. doi: 10.3389/fpls.2022.1031611.
- 59.Wang D., Liu E., Liu H., Jin X., Niu C., Gao Y., Su X. A droplet digital PCR assay for detection and quantification of Verticillium nonalfalfae and V. albo-atrum. Front. Cell. Infect. Microbiol. 2022;12:1972. doi: 10.3389/fcimb.2022.1110684.
- 60.Amoia S.S., Minafra A., Ligorio A., Cavalieri V., Boscia D., Saponari M., Loconsole G. Detection of Xylella fastidiosa in host plants and insect vectors by droplet digital PCR. Agriculture. 2023;13:716. doi: 10.3390/agriculture13030716.
- 61.Flores R., Hernandez C., Martinez de Alba A.E., Daros J.-A., Di Serio F. Viroids and viroid-host interactions. Annu. Rev. Phytopathol. 2005;43:117–139. doi: 10.1146/annurev.phyto.43.040204.140243.
- 62.Navarro B., Flores R., Di Serio F. Advances in viroid-host interactions. Annu. Rev. Virol. 2021;8:305–325. doi: 10.1146/annurev-virology-091919-092331.
- 63.Pitt W.J., Kairy L., Villa E., Nalam V.J., Nachappa P. Virus infection and host plant suitability affect feeding behaviors of cannabis aphid (Hemiptera: Aphididae), a newly described vector of potato virus Y. Environ. Entomol. 2022;51:322–331. doi: 10.1093/ee/nvac001.
- 64.Rivedale H.M., Funke C.N., Frost K.E. An overview of pathogens associated with biotic stresses in hemp crops in Oregon, 2019 to 2020. Plant Dis. 2022;106:1334–1340. doi: 10.1094/PDIS-11-21-2415-SR.
- 65.Altschul S.F., Gish W., Miller W., Myers E.W., Lipman D.J. Basic local alignment search tool. J. Mol. Biol. 1990;215:403–410. doi: 10.1016/S0022-2836(05)80360-2.
- 66.Hitchborn J.H., Hills G.J. The use of negative staining in the electron microscopic examination of plant viruses in crude extracts. Virology. 1965;27:528–540. doi: 10.1016/0042-6822(65)90178-9.
- 67.Su L., Li Z.N., Bernardy M.G., Wiersma P.A., Cheng Z.H., Xiang Y. The complete nucleotide sequence and genome organization of Pea streak virus (genus Carlavirus) Arch. Virol. 2015;160:2651–2654. doi: 10.1007/s00705-015-2467-2.
- 68.Ye J., Coulouris G., Zaretskaya I., Cutcutache I., Rozen S., Madden T. Primer-BLAST: A tool to design target-specific primers for polymerase chain reaction. BMC Bioinform. 2012;13:134. doi: 10.1186/1471-2105-13-134.
- 69.Eastwell K.C., Nelson M.E. Occurrence of viroids in commercial hop (Humulus lupulus L.) production areas of Washington State. Plant Health Prog. 2007;8:1–9. doi: 10.1094/PHP-2007-1127-01-RS.
- 70.Guo R., Guo H., Zhang Q., Guo M., Xu Y., Zeng M., Yang M. Evaluation of reference genes for RT-qPCR analysis in wild and cultivated Cannabis. Biosci. Biotech. Biochem. 2018;82:1902–1910. doi: 10.1080/09168451.2018.1506253.
- 71.Kimura M. A simple method for estimating evolutionary rate of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980;16:111–120. doi: 10.1007/BF01731581.
- 72.Felsenstein J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution. 1985;39:783–791. doi: 10.2307/2408678.
- 73.Tamura K., Stecher G., Kumar S. MEGA 11: Molecular Evolutionary Genetics Analysis version 11. Mol. Biol. Evol. 2021;38:3022–3027. doi: 10.1093/molbev/msab120.
- 74.Mark D., Sikazwe G., Saggaf M., Tairo F., Ngunguru J., Chiunga E., Lusana J., Kweka E., Maghembe R., Bachwenkizi H. Assessing the effect of sample storage time on viral detection using a rapid and cost-effective CTAB-based extraction method. Res. Sq. 2022:preprint. doi: 10.21203/rs.3.rs-2387388/v1.
- 75.Hataya T., Hikage K., Suda N., Nagata T., Li S., Itoga Y., Tanikoshi T., Shikata E. Detection of hop latent viroid using reverse transcription and polymerase chain reaction (RT-PCR) Ann. Phytopathol. Soc. Jpn. 1992;58:677–684. doi: 10.3186/jjphytopath.58.677.
- 76.Lu W., Zhang Z., Xu P., Liu S., Wang H., Jiang D., Li S. Simultaneous detection of three viroid species infecting hops in China by multiplex RT-PCR. J. Phytopathol. 2012;160:308–310. doi: 10.1111/j.1439-0434.2012.01898.x.
- 77.Strausbaugh C.A., Wintermantel W.M., Gillen A.M., Eujayl I.A. Curly top survey in the Western United States. Phytopathology. 2008;98:1212–1217. doi: 10.1094/PHYTO-98-11-1212.
- 78.Chen L.-F., Brannigan K., Clark R., Gilbertson R.L. Characterization of curtoviruses associated with curly top disease of tomato in California and monitoring for these viruses in beet leafhoppers. Plant. Dis. 2010;94:99–108. doi: 10.1094/PDIS-94-1-0099.
- 79.Mangeot-Peter L., Legay S., Hausman J.-F., Esposito S., Guerriero G. Identification of reference genes for RT-qPCR data normalization in Cannabis sativa stem tissues. Int. J. Mol. Sci. 2016;17:1556. doi: 10.3390/ijms17091556.
- 80.Katoh K., Standley D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013;30:772–780. doi: 10.1093/molbev/mst010.
- 81.Miller M.A., Pfeiffer W., Schwartz T. Creating the CIPRES Science Gateway for inference of large phylogenetic trees; Proceedings of the Gateway Computing Environments Workshop (GCE); New Orleans, LA, USA. 14 November 2010; pp. 1–8.
- 82.Capella-Gutiérrez S., Silla-Martínez J.M., Gabaldón T. TrimAl: A tool for automated alignment trimming in large-scale phylogenetic analyses. Bioinformatics. 2009;25:1972–1973. doi: 10.1093/bioinformatics/btp348.
Associated Data
Supplementary Materials
Data Availability Statement
There were no new data created in this study.
