Spatiotemporal formation of glands in plants is modulated by MYB-like transcription factors
https://ror.org/04kx2sy84grid.256111.00000 0004 1760 2876College of Horticulture, FAFU-UCR Joint Center for Horticultural Biology and Metabolomics, Fujian Agriculture and Forestry University, Fuzhou, China
Abstract
About one third of vascular plants develop glandular trichomes, which produce defensive compounds that repel herbivores and act as a natural biofactory for important pharmaceuticals such as artemisinin and cannabinoids. However, only a few regulators of glandular structures have been characterized so far. Here we have identified two closely-related MYB-like genes that redundantly inhibit the formation of glandular cells in tomatoes, and they are named as GLAND CELL REPRESSOR (GCR) 1 and 2. The GCR genes highly express in the apical cells of tomato trichomes, with expression gradually diminishing as the cells transition into glands. The spatiotemporal expression of GCR genes is coordinated by a two-step inhibition process mediated by SlTOE1B and GCRs. Furthermore, we demonstrate that the GCR genes act by suppressing Leafless (LFS), a gene that promotes gland formation. Intriguingly, homologous GCR genes from tobacco and petunia also inhibit gland formation, suggesting that the GCR-mediated repression mechanism likely represents a conserved regulatory pathway for glands across different plant species.
Web Summary
The spatiotemporal formation of glands in tomato trichomes is regulated by two MYB-like transcription factors, named as GCR1 and 2, whose expression is tightly restricted by SlTOE1B. GCR1 and 2 inhibit gland formation by repressing LFS expression.
Introduction
Plant hairs, also known as trichomes, cover the surface of most terrestrial plants, and are often used as one of the key traits in plant taxonomy. In nature, trichomes exhibit an enormous diversity of morphology and size in different species. Trichomes can be unicellular, such as Arabidopsis trichomes and cotton fibres, but in most other plant species, they are multicellular1–3. In about 30% of all vascular plant species, trichomes form glandular cells at the top where a large amount of specialised metabolites are produced4,5. Many of the gland-produced compounds act to protect plants such as acyl sugars, nicotine and various terpenoids for defensive purposes6–9. Some of them such as artemisinin, cannabinoid and essential oils, are of importance pharmaceutical and industrial value10–12. Insights into the molecular mechanisms behind gland formation may provide strategies for genetic modification of plants with enhanced stress resistance and bio-production of valuable metabolites13.
Our current knowledge of trichome development is largely derived from Arabidopsis trichome, a type of non-glandular unicellular trichome. Important genes that regulate trichome initiation, patterning and branching, as well as the associated and cellular processes have been well characterised using the Arabidopsis trichome system14–18. However, multicellular trichomes in plant species other than Arabidopsis appear to have different regulatory mechanisms, as GL1, the key trichome regulator identified in Arabidopsis, has been shown not to be involved in trichome development in tobacco19. In tomato (Solanum lycopersicum), there are seven different types of trichomes with different morphologies and functions, which are named as type I–VII20. Among these trichomes, type I–V appear to be long with a small single glandular head or without, and are thus named as digital trichomes (DT), whereas type VI and type VII are short and form a multicellular glandular head which are named as peltate trichomes (PT) (Supplementary Fig. 1a). Interestingly, the trait of trichomes appeared to have changed during tomato domestication, as many wild species (S. habrochaites and S. pennellii) form very dense glandular trichome. In contrast, these seven types of trichomes are all be found in modern cultivated tomatoes, but vary in different tissues during development20,21.
A member of HD-ZIP family named Woolly (Wo) is a key regulator of the formation of both glandular and non-glandular trichomes in tomato, and presumably in many other plant species that form multi-cellular trichomes22,23. Wo plays a dose-dependent role in the trichome differentiation in tomato, with high levels of Wo promoting the DT formation through activating MX1 and Wox3B regulatory module, and low Wo levels favoring PT fate by activating Leafless (LFS), an AP2 gene24,25. In addition, many other positive regulators have also been reported, including C2H2 zinc finger proteins Hair and SlHair-2, as well as the other member of HD-Zip IV, Lanata (Ln)26–28. On the other hand, several negative regulators have also been identified. An E3-ligase MTR1 has been shown to decrease Wo protein levels during trichome development23,24. Another member of HD-Zip IV, SlHD8, was found to restrict the trichome length in tomato29. Plant hormone, gibberellin, jasmonic acid and auxin have been reported to positively affect trichome initiation in tomato30–32. However, these factors appear to function mostly at an early stage of trichome development, and generally affect many types of trichomes. It remains unclear how the glandular cells, one of the major structures of plant trichomes, are formed. In this study, we identify two novel repressors of gland formation and elucidate the mechanism underlying the spatiotemporal formation of glandular trichomes in tomato.
Results
MYB-like transcription factors act as key repressors of gland formation
To find regulators associated with gland formation, we screened for transcription factors with significantly higher expression in glandular trichomes than in the leaves or stems with all trichomes removed. S. pennellii mostly forms only type IV glandular trichomes (Supplementary Fig. 1b), making it an ideal system for the transcriptome analysis. Among the glandular trichome-expressed transcription factors derived from the transcriptome of S. pennellii, we identified 22 transcription factors that are also highly expressed in the previous glandular cell transcriptomes of S. lycopersicum LA4024 and S. habrochaites LA177733 ('Methods'; Supplementary Fig. 1c, d; Supplementary Data 1). These identified transcription factors include the previously reported EOT1, HD8 and LFS, which are related to trichome development and metabolism, suggesting the validity of the analyses9,24,29. Using the CRISPR-Cas9 technique, we knocked out all previously uncharacterised genes on this list. Based on the trichome phenotypes of single and double-mutants, we identified two closely related (81% homology) transcription factors (Solyc02g076670 and Solyc03g006150), both of which contain a MYB-like domain with a conserved SHLQMY and EAR motif (Supplementary Fig. 1e, f).

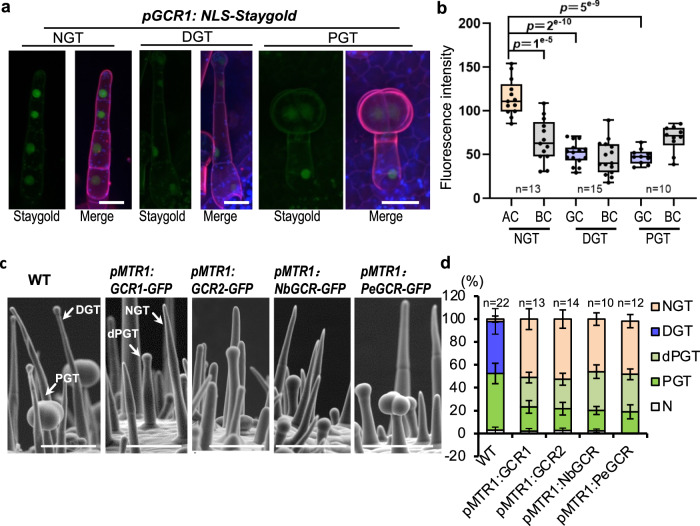

Scanning electron microscopy (SEM) showed that mutations in these two genes dramatically promoted gland formation in tomato trichomes, and we thus named them as GLAND CELL REPRESSOR (GCR) 1 and 2 (Fig. 1a–d). However, the overall plant growth was not affected, suggesting the function of these two MYB-like genes is restricted to glandular trichomes (Supplementary Fig. 2a–d). To quantitatively assess the glandular trichome phenotype, we divided all trichomes into three categories: NGT (non-glandular trichomes including type II, III and V), DGT (digital glandular trichomes including type I and IV) and PGT (peltate glandular trichomes including type VI and VII) (Supplementary Fig. 1a). Our quantification showed that the gcr1 single mutant had about 26% of NGT converted into DGT, whereas the gcr2 single mutant had no significant phenotype. In contrast, the gcr1/2 double mutant had a more dramatic phenotype with 96% of trichomes producing glandular structures (Fig. 1a–e). Furthermore, in WT, glandular cells usually form in the apical region, which represents the determinate differentiation of the trichome. However, gcr1/2 double mutants exhibited an ever-growing trichome phenotype, with glands overproliferating in cells located in the middle part of the trichome (Fig. 1f, g, Supplementary Fig. 3). Interestingly, the short PGT also produced supernumerary glandular heads in the double mutants (Supplementary Fig. 2e), suggesting both transcription factors are gland repressors. The quantification showed that the long digital trichomes (type I/II) of WT had an average length of 3 mm, with 8 cells within a trichome cell file, whereas this type of trichomes reached up to 5 mm and contained about 30 cells within a trichome cell file in cr-gcr1/2 mutants (Supplementary Fig. 4). As a result, trichomes in double mutants became significantly elongated (Fig. 1d–g, Supplementary Fig. 2d).
Consistent with their functions, GCR1 expressed in tomato trichomes, with the expression being stronger in the apical cells of the non-glandular trichomes (NGT) than in the glandular cells of DGT and PGT (Fig. 2a, b, Supplementary Fig. 5). To further know whether the abolished expression of GCR1/2 in apical cells is essential for glandular cell formation, we forced the expression of GCR1/2 in trichome apical cells by the MTR1 promoter. MTR1 promoter was previously reported to be active specifically in all trichomes, usually with a higher activity in apical cells (Supplementary Fig. 6a)24. The ectopic expression of GCR1/2 entirely inhibited gland formation (Fig. 2c, d, Supplementary Fig. 6b–e). Such inhibitory role could also be verified in cultivated tomato Alisa Craig (AC), S. pimpine LA1589 and S. pennellii LA0716 (Supplementary Fig. 7). As most Solanaceae species form glandular trichomes, we tested the function of GCR homologues by forcing the expression of NbGCR and PeGCR cloned from N. benthamiana and Petunia respectively under the MTR1 promoter. The result showed that these GCR genes play a conserved role in inhibiting glandular cell formation (Fig. 2c, d).
SlTOE1B antagonises GCR1/2 in gland formation

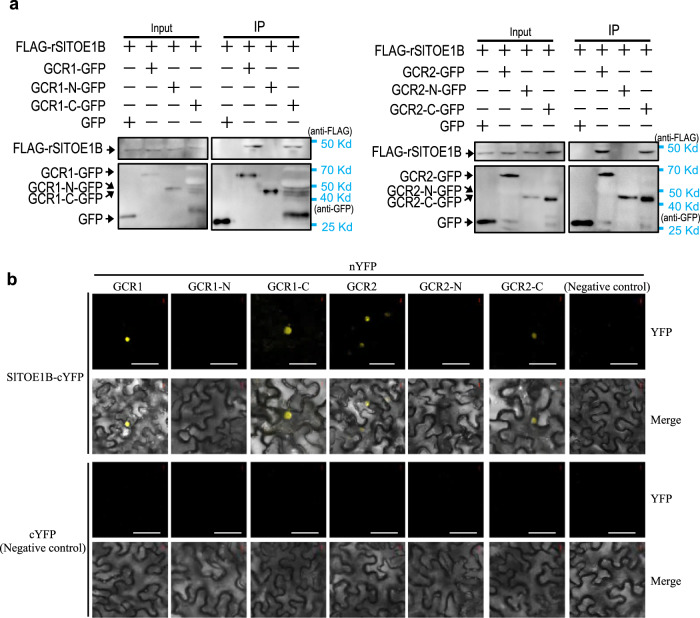

To elucidate the mechanism that by which GCR1/2 inhibits gland formation, we performed a yeast two-hybrid screen for GCR1 interactors in a yeast cDNA library that was constructed with tomato trichomes and shoot apical tissues. An AP2/ERF transcription factor (Solyc04g049800) was highly enriched in the screened clones (Supplementary Fig. 8a, Supplementary Table 1). As the homologue of this gene in Arabidopsis is TOE1, we named it as SlTOE1B (Supplementary Fig. 8b). Yeast two-hybrid, BiFC, pull-down and Co-IP all validated the interaction between GCR1/2 and SlTOE1B in vitro and in vivo, and the C-terminus of GCR1/2 mainly interacted with SlTOE1B (Fig. 3a, b, Supplementary Fig. 8c, d, Supplementary Fig. 9). Visualisation of pSlTOE1B: NLS-Venus revealed that SlTOE1B was highly expressed in the glandular cells of DGT and PGT, and had no expression in non-glandular trichomes (Fig. 4a, b).

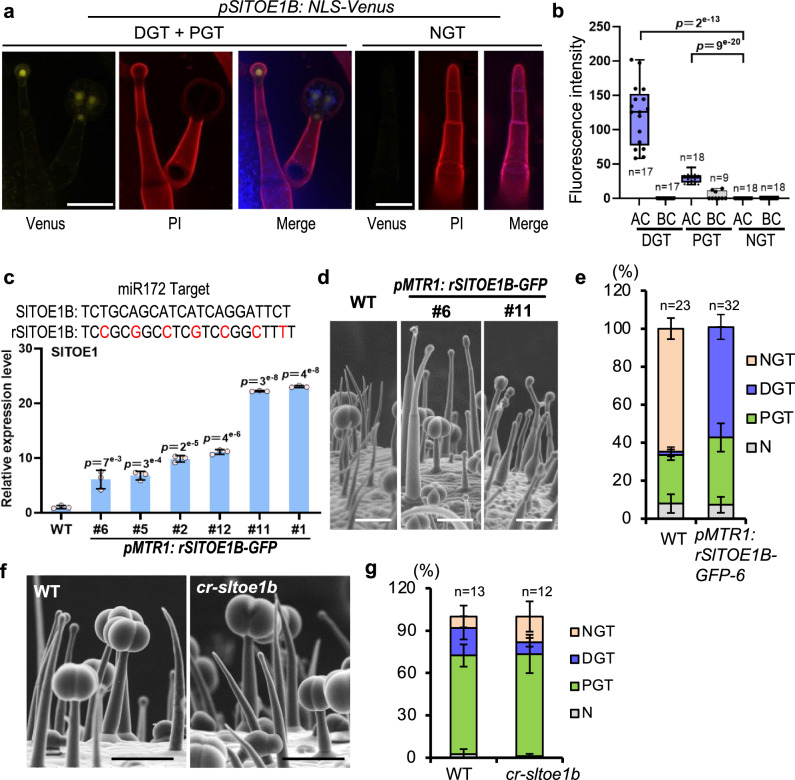

Next, we forced the expression of SlTOE1B using MTR1 promoter. In Arabidopsis, TOE is the target of miR172, and SlTOE1B coding region also carries the target site of miR172. We thus introduced silent mutations to the miR172 target site in SlTOE1B to generate miR172-resistant form of SlTOE1B, which we named as rSlTOE1B (Fig. 4c). Different levels of the rSlTOE1B expression caused distinct degrees of the increase in glandular cells (Fig. 4d, e, Supplementary Fig. 10). When SlTOE1B expression was increased 2-fold, all non-glandular trichomes (types II, III and V) disappeared and were replaced by digital glandular trichomes (type I and IV). When SlTOE1B expression was increased ten-fold, glandular cells of both DGT and PGT increased (Supplementary Fig. 10). To further verify the SlTOE1B function in gland formation, we generated the cr-sltoe1b mutant by CRISPR/Cas9. Consistent with the forced expression result, cr-sltoe1b mutant showed the reduced DGT and increased NGT (Fig. 4f, g, Supplementary Fig. 11a). However, not all glandular trichomes were abolished in cr-sltoe1b mutant, suggesting the existence of functional redundancy. This opposite phenotype to that caused by GCR1/2 expression suggests the potential antagonism between SlTOE1B and GCR1/2.
GCR/SlTOE/TPL2 complex suppress GCR1/2 expression

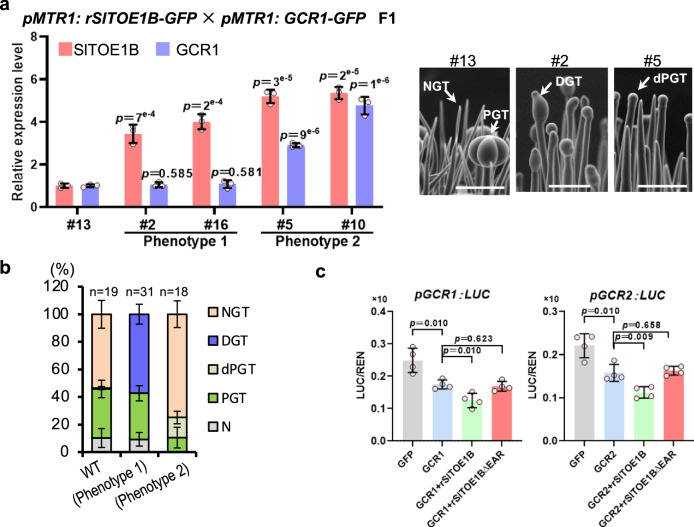

To further dissect the relationship between GCR and SlTOE, we crossed pMTR1: GCR1-GFP and pMTR1:rSlTOE1B-GFP, and the result showed that the expression of pMTR1: GCR1-GFP repressed the gland formation induced by pMTR1: rSlTOE1B-GFP, indicating that GCR1 is genetically epistatic to SlTOE1B (Fig. 5a, b). The trichome phenotype of the gcr1 sltoe1b double mutant was the same as that of cr-gcr1, supporting that GCR1 is indeed epistatic to SlTOE1B (Supplementary Fig. 11b, c). Furthermore, we found that the expression of GCR1/2 was strongly inhibited in pMTR1: rSlTOE1B-GFP, but interestingly was significantly enhanced in cr-gcr1/2 (Supplementary Fig. 12a, b). We therefore speculated that both SlTOE1B and GCR1/2 might be involved in the repression of GCR1/2 expression. To test this, we quantified the endogenous expression levels of GCR1 and GCR2, and our results showed that increased GCR1/2 expression indeed suppressed the endogenous expression of GCR1 and GCR2 (Supplementary Fig. 12c). Furthermore, we employed luciferase reporter assay in tomato protoplasts of both WT and cr-gcr1/2. We found that GCR1/2 was indeed able to inhibit its own expression. In contrast, SlTOE1B was able to enhance GCR1/2 self-inhibition (Fig. 5c, Supplementary Fig. 12d, e). According to the JASPER database (https://jaspar.elixir.no), GCR homologous genes in Arabidopsis (AT2G38300 and AT2G40260) can potentially bind to cis-element containing HHHATTCYHHH or HHWHATTCYHHH. Interestingly, we identified 13 such sequences in the 3 kb upstream of GCR1 and ten in the 3 kb upstream of GCR2. We then conducted Y1H screen to test whether GCR1/2 can bind to these predicted motifs (Supplementary Fig. 13). Next, we performed Y1H to validate that both GCR1 and GCR2 interacted with their own promoters (Fig. 6a). Furthermore, we performed biotin-IP using His-GCR1/2 fusion protein which was purified from Escherichia coli strain BL21 (DE3). We also conducted ChIP-qPCR using p35S:GCR1-GFP transgenic plants. The results of both biotin-IP and ChIP-qPCR were consistent with Y1H (Fig. 6b, c). These results suggest that GCR1/2 could maintain a homoeostasis of its own expression in the early stage of trichome development, while SlTOE1B forms a complex with GCR1/2 to enhance such inhibition to abolish GCR1/2 expression when the apical cells differentiate into glands.
In Arabidopsis, TOE1 acts as a transcriptional repressor by recruiting Topless (TPL) via its EAR motif 34–36. We thus analysed the total of 6 TPL genes that are identified in the tomato genome. In Y2H assay, we detected a strong interaction of SlTOE1B with SlTPL2 and a weak interaction with SlTPL4 (Supplementary Fig. 14a). The SlTOE1B protein contains two AP2 domains, a C-terminal EAR motif (LDLNL) and an N-terminal EAR-LIKE motif (EARL, LDLNN). Further pull-down, Y2H and BiFC revealed that both the EAR and EAR-like motifs of SlTOE1B were involved in the physical interaction between SlTOE1B and SlTPL2 (Supplementary Fig. 14b–e). In luciferase reporter assay, deletion of these EAR motifs abolished the inhibitory effect of SlTOE1B on the transcriptional activity of pGCR1/2 (Fig. 5c). Based on these results, we hypothesise that GCR1/2 recruit SlTOE1B/TPL2 to form a repressive complex to maintain a lower expression level of GCR1/2, which favours the differentiation into glands. In non-glandular cells, where SlTOE1B is not expressed, GCR1/2 self-inhibition is weakened and the high level of GCR1/2 blocks the gland formation.
In modern cultivars tomato, DGT formation occurs mainly at juvenile stages when miR156-SPL/miR172-TOE modules control the developmental transition21. Interestingly, the ectopic expression of miR156B by either the 35S or MTR1 promoter promoted gland formation (Supplementary Fig. 15a–e). In pMTR1:miR156B lines, we found that SlTOE1B expression was dramatically increased, whereas GCR1/2 expression was strongly repressed (Supplementary Fig. 15f). In addition, the cross between pMTR1:GCR1-GFP and 35S:miR156B impaired miR156B-promoted gland formation, suggesting a function of GCR1/2 downstream of miR156 in gland regulation (Supplementary Fig. 16a, b).
GCR1/2 inhibits gland formation via repressing LFS expression

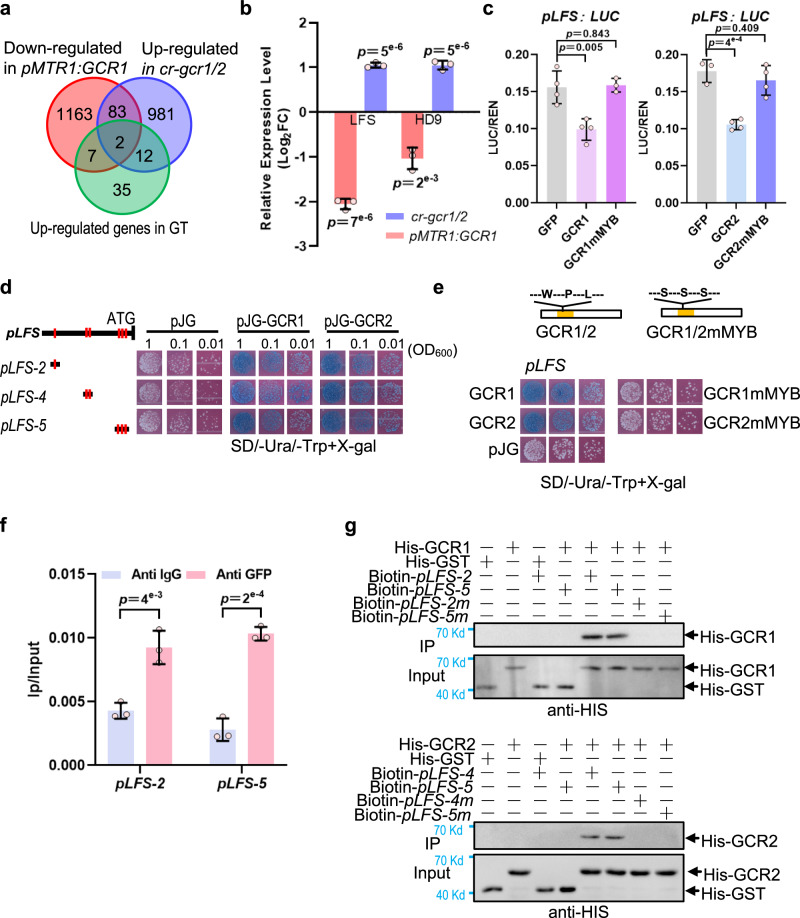

To further identify genes downstream of GCR1/2, we isolated the trichomes of pMTR1:GCR1-GFP and cr-gcr1/2 for RNA-seq. We chose the genes that were down-regulated in pMTR1:GCR1-GFP and up-regulated in cr-gcr1/2. The result was further intersected with the 22 transcription factors mentioned above (Fig. 7a, Supplementary Fig. 1d, Supplementary Data 2). Two transcription factors including HD9 and LFS were obtained via the analyses (Fig. 7a, b). Leafless (LFS) encodes an AP2 transcription factor that has been reported to promote the fate of peltate trichomes in tomato24. As lfs null mutant has strong cotyledon and leaf phenotypes25, we chose a heterozygote (line #1) and a double heterozygote mutant (line #3) for the phenotypic analysis. In line with the previous report, the glands of DGT were almost all lost in cr-lfs mutants (Supplementary Fig. 17a–c). Interestingly, the gland phenotypes varied in cr-lfs mutants, which seemed to be associated with the LFS levels. In some heterozygous lines (#1), only the glands of DGT were inhibited, whereas all glands in both PGT and DGT were suppressed in homozygous lines (#3, Supplementary Fig. 17a–c).
Consistent with the RNA-seq data, qRT-PCR confirmed that LFS expression was inhibited in pMTR1:GCR1-GFP, but enhanced in cr-gcr1/2 (Supplementary Fig. 17d, e). This regulation of LFS by GCR1/2 was also validated by luciferase reporter assay (Fig. 7c). Interestingly, the LFS promoter also contains GCR1/2 preferred binding motifs (Supplementary Fig. 13). Y1H, biotin-IP and ChIP-qPCR showed that GCR1/2 were able to bind directly to the LFS promoter (Fig. 7d–g).

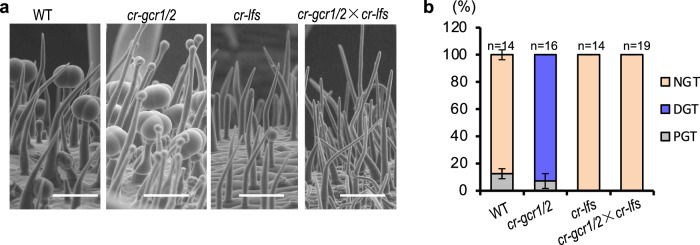

Although GCR1/2 are not typical MYB transcription factors, mutations in the MYB domain, as shown by the cr-gcr1/2-20 line in which a 63 bp deletion in the MYB domain occurred, disrupting their inhibitory role on trichome glands. Consistent with this, mutations of three conserved amino acids within the MYB domain of GCR1/2 abolished their repression of LFS expression in both Y1H and luciferase reporter assays (Fig. 7c–e). Furthermore, we crossed cr-gcr1/2 and cr-lfs and we found no gland formation in gcr1/gcr2/lfs triple mutants (Fig. 8a, b). Taken together, we conclude that GCR1/2 inhibit gland formation by repressing LFS expression.
GCR1/2 represses LFS expression via TPL2

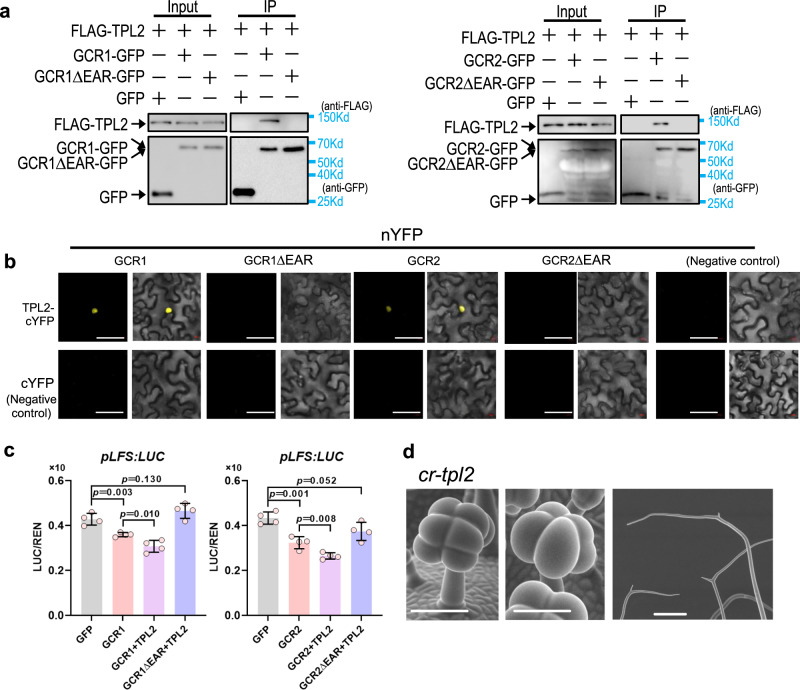

Since GCR1/2 also carry an EAR motif, it is possible that GCR1/2 play an inhibitory role by recruiting TPL. In support of this hypothesis, both GCR1 and GCR2 exhibited a strong interaction with SlTPL2 and a weak interaction with SlTPL4 (Supplementary Fig. 18a). Further pull-down, Co-IP and BiFC experiments confirmed such interactions (Fig. 9a, b, Supplementary Fig. 18b, c). Furthermore, GCR1/2 interacted with TPL only through their C-terminal domain that contains the EAR motif. Once EAR motif was removed, the interaction was attenuated, suggesting that the EAR motif is essential for GCR/TPL interaction (Fig. 9a, b, Supplementary Fig. 18b, c). In cr-gcr1/2 protoplasts, the addition of SlTPL2 substantially enhanced the inhibition of LFS by GCR1/2. In contrast, GCR1/2ΔEAR, in which the EAR motif was deleted, lost the ability to repress LFS expression (Fig. 9c). Tomato tpl2 mutants, generated by CRISPR-Cas9, also displayed the phenotype of increased glands (mostly in PT) and branched trichomes (mostly in DT) (Fig. 9d, Supplementary Fig. 19).

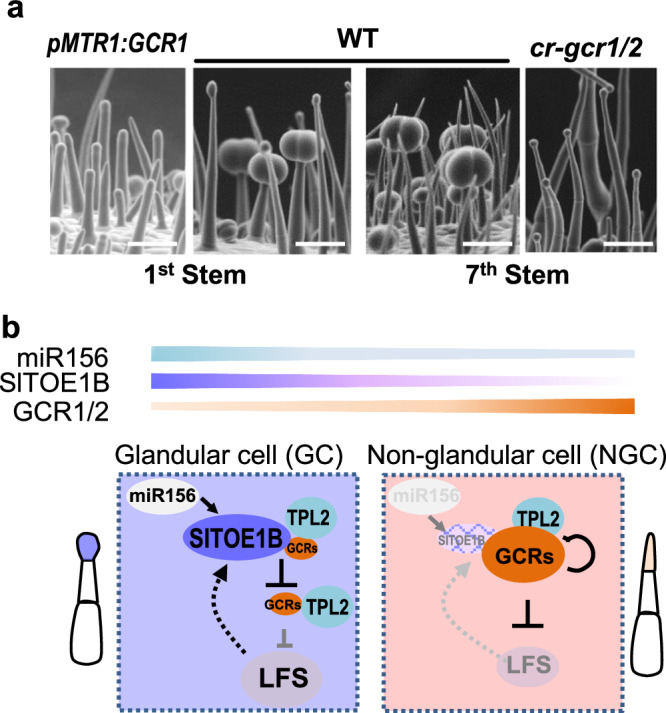

In summary, trichome is an age-dependent feature in tomato. In juvenile plants, trichomes appeared to be all glandular types including DGT and PGT. In contrast, trichomes formed in adult plants include both NGT and PGT, suggesting phase-related signals such as miR156 may be involved in trichome regulation. However, when both GCR1 and two were knocked out, supernumerary glands formed throughout the all developmental stages. In contrast, forced expression of GCR1/2 genes in trichome apical cells inhibited the gland formation (Fig. 10a). In WT, the distribution of glandular and non-glandular trichomes appears to rely on the spatiotemporal expression of GCR1/2. Both genes were highly expressed in apical cells of non-glandular trichomes, but low expression in the apical cells of glandular trichomes. This spatiotemporal expression of GCR1/2 probably results from a combination of self-inhibition and SlTOE1B induced inhibition (this is further discussed in the Discussion section). SlTOE1B expression was initiated at the apical cells when the gland cells start to form, and interaction with SlTOE1B appeared to dramatically enhance GCR self-inhibition. Once the GCR expression was removed, LFS was activated, which leads to the formation of gland heads. The mechanism behind gland formation also highlights the key role of TPL-mediated repression (Fig. 10b).
Discussion
After the initiation in the epidermis, the construction of tomato trichomes is achieved through the spatial arrangement of cell division and cell differentiation37–39. The glands often begin with the specific fate decisions in trichome apical cells. Therefore, the spatiotemporal expression of key regulators is essential for the establishment of such a developmental pattern. Glandular cells are formed in about 20–30% of vascular plants4,5, but in some species, including tomato, both glandular and non-glandular trichomes are formed simultaneously20. This suggests that there must be a specific switch in the apical cells to decide either the glandular fate or the subsequent cell division into a conical structure. Since division starts with the trichome initiation, cell division seems to be a default process, while a gland-promoting factor is spatiotemporally activated in the apical cell. However, our results reveal that the real regulation is much more complex than this assumption, involving the repressor and feedback loops.
In this study, we identified two closely related glandular cell repressors (GCR1/2) that appear to function in a dose-dependent manner and whose levels need to be tightly controlled. Several mechanisms could contribute to the regulation of GCR1/2 levels during trichome development. First, GCR1/2 are capable of self-inhibition, and such repression is presumably mediated by their EAR motifs. EAR-containing transcription factors have been reported to recruit TPL to play a repressive role in the regulation of downstream genes in a wide range of processes including hormone signalling, meristem maintenance, organogenesis and reproduction34–36,40. In these processes, TPL was found to further recruit histone deacetylase HAD to deactivate the downstream transcription34–36,40,41. In tomato, SlERF.F12 can bind to TPL2, which further recruit SlHDA1 and SlHDA3, to form a tripartite complex to suppress the fruit ripening40. Here we found the disruption of SlTPL2 only partially recovered the gland phenotype, suggesting that additional TPL genes may be involved. Secondly, SlTOE1B can physically interact with GCR1/2 to significantly enhance the self-inhibition of GCR1/2. Interestingly, a homologue of SlTOE1B has recently been reported to act as a transcriptional repressor in the inflorescence branching of tomato42. In our study, we found SlTOE1B alone appears to be capable of inhibiting GCR1/2 expression. This inhibition might be important in the glandular cells when GCR1/2 abundance drops to an extremely low level. In this study, we have not found the direct binding site of SlTOE1B in the putative GCR1/2 promoters. In Arabidopsis, AtTOE1 binds to the 3’ UTR of AtGL1, forming a chromatin looping to repress AtGL1 expression43. It is possible that SlTOE1B may be associated with the region outside of the examined GCR1/2 promoters (3000 bp upstream of the genes). Third, based on the spatiotemporal expression pattern of GCR1/2 and SlTOE1B during trichome development, we propose a putative working model: GCR1/2 expression is initiated at the early stage of trichome development, and is gradually increased and restricted in the apical cells of the non-glandular trichomes. Upon differentiation into glandular cells in the apical region, the primed apical cells begin to express SlTOE1B and the expression was gradually enhanced in the apical glandular cells (Supplementary Fig. 22). In this way, the rising GCR1/2 expression needs to be turned down quickly, and the weakly expressed SlTOE1B needs a more efficient way to do this. At this stage, binding of SlTOE1B to GCR1 provides a more efficient way to reverse the rising GCR1 expression. Once this trend is reversed and the GCR1 levels are lower than SlTOE1B levels, SlTOE1B may be able to directly inhibit GCR1 expression and eventually eliminate it from the developing glandular cells. Finally, GCR1/2 and their downstream target, LFS, may form a negative feedback loop that has been shown in many biological systems to maintain the homoeostasis of the signalling or regulation. Dual luciferase reporter assay showed that LFS was able to activate the expression of SlTOE1B (Supplementary Fig. 20), supporting the feedback activation of SlTOE1B by LFS. This complex regulation may provide high plasticity in response to both developmental programmes and environmental stimuli.
After the initiation in the epidermis, the construction of glandular trichomes is achieved through the spatial arrangement of cell division and cell differentiation37–39. Disruption of GCR1/2 produced trichomes with more than three times the number of cells compared to WT. In contrast, forced expression of GCR1/2 in apical cells resulted in defective trichomes with only 1–2 cells, indicating that GCR1/2 also repress cell division in trichomes. In the unicellular Arabidopsis trichome, cell division is not required once the trichome is initiated. Subsequent morphogenesis involves repeated endoreduplication, which requires the function of SIM, a CDK inhibitor18,44. Interestingly, loss-of-function of SIM and its homologous gene in Arabidopsis results in cell division in the unicellular trichomes44,45. However, the morphogenesis of multicellular trichomes relies on the spatially coordinated cell division and endoreduplication. In tomato, gain-of-function of Woolly may cause the increased cell division in the multicellular trichomes22,46. However, further research is needed to understand how GCR1/2 integrates these division-associated factors to regulate cell division in tomato trichomes.
Glandular trichomes are important for plant defence and specialised metabolite production, which have received increasing attention in recent years38,47,48. In some plant species with multicellular trichomes such as tomato and Artemisia, many HD-Zip and MYB transcription factors have been reported to regulate the trichome initiation22,28,49–52. In addition, trichome formation can also be influenced by many factors including hormonal signals, environmental cues, and aging programmes38,53. In Arabidopsis, AtTOE1 is involved in the age signalling and inhibits trichome initiation by repressing GL1 expression. In tomato, SlTOE1B expression driven by MTR1 promoter also caused a reduction of trichome number. Similarly, the number of trichomes was reduced by about 10% in gcr1/2 double mutants. In contrast, trichome number was significantly increased in sltoe1b mutant and MTR1 promoter-driven GCR1/2 expression lines, suggesting a potential role for GCR1/2 and SlTOE1B in the initiation of multicellular trichomes in tomato. The increase in glands and specialised metabolites is accompanied by a decrease in the number of trichomes, which may represent a balance between defence and energy consumption, and may be a survival mechanism acquired by plants during evolution. Interestingly, the level of acyl sugar was dramatically increased (tens of fold) in gcr1/2 double mutant and pMTR1:SlTOE1B lines (Supplementary Fig. 21). Therefore, GCR1/2 could be an important target for gene editing to increase acyl sugars for anti-insect resistance purposes.
Methods
Materials and plant growth conditions
We used Micro-Tom (MT), Alisa Craig (AC) and wild tomato accession S. pimpine LA1589 as wild type (WT) to generate the overexpression and CRISPR/Cas9 transgenic plants of GCR1 and GCR2. All wild type and transgenic plants were cultured in greenhouse with controlled temperature and light (16 h light at 26 °C, 8 h night at 22 °C). Tomato and tobacco plants used for protoplast isolation were grown on the 1/2 MS medium at 26 °C and 16 h light/8 h dark cycles. N. benthamiana used for BiFC assays were cultured in greenhouse with controlled temperature and light (16 h light at 26 °C, 8 h night at 22 °C).
Vector construction and tomato transformation
For expression of GCR1/2 and SlTOE1B driven by MTR1 promoter, about 3 K promoter sequence of MTR1 fused with the full-length coding sequences of GCR1/2, rSlTOE1B and miR156B precursor and cloned into the pHellsgate8 vector (pMTR1: GCR1-GFP, pMTR1: GCR2-GFP, pMTR1: rSlTOE1B-GFP, pMTR1: miR156B). For knockout of GCR1/2 and TPL2 by CRISPR/Cas9, the target sites were designed using the online tool (http://crispr.hzau.edu.cn/CRISPR2/) and inserted into PTX Vector (cr-gcr1, cr-gcr2, cr-tpl2). For expression pattern analysis of GCR1/2, about 3 K promoter sequence was fused with nuclear localisation signal (NLS) and Stadygold and inserted into the pHellsgate8 vector (pGCR1: NLS-Staygold, pGCR2: NLS-Staygold). For expression pattern analysis of SlTOE1B, about 3 K promoter sequence was fusion with NLS-Venus and then cloned into pHellsgate8 vector (pSlTOE1B: NLS-Venus). Primers used for vector construction were listed in Supplementary Table 12. The transgenic plants were constructed by A. tumifaciens C58 mediated stable transformation54. PCR, qRT-PCR and Sanger sequencing were used to identify the positive transgenic plants. For lines with fluorescence proteins, we observe the presence of fluorescence in the plant trichomes through a fluorescence microscope (Leica TCS SP8X DLS).
Phenotype analysis
Light microscopy images of stems, leaves and flowers were captured by the stereomicroscope (DFC550 LEICA). The trichome phenotype of wild type and transgenic plants was observed by scanning electron microscope (SEM, TM3030Plus, HITACHI, JAPAN). To reduce statistical errors, the WT and transgenic plants were grown under the same conditions, and images were captured in the same setting.
Gus staining
To analyse the glandular cell identity of gcr1/2 single and double mutants, we crossed those mutants with pSlAT2: GUS-YFP lines expressing in the glandular cell of DGT55. The leaves were stained in the GUS solution (10 mM EDTA disodium salt, 100 mM NaH2PO4, 0.5 mM K4Fe(CN)6, 0.5 mM K3Fe(CN)6, 0.1% Triton-X100, 0.5 mg/ml X-gluc (Golden Biotechnology, G1281C1, pH 7.0) at 37 °C for overnight. Then the stained tissues were immersed in destaining solution (80% ethyl alcohol and 20% acetic acid) for 30 min to remove chlorophyll and rehydrated with the gradient concentration of alcohol (60%, 40%, 20% and 0%) for 30 min in each gradient solution. All samples were observed under a differential interference microscopy (DIC, Nikon, ECLIPSE Ni-U).
Expression analysis of GCR1 and GCR2
Shoot apical meristem of 9-day-old pGCR1: NLS-Staygold and pGCR2: NLS-Staygold transgenic plants were stained by propidium iodide (PIE) and imaged under a Leica TCS SP8X confocal laser scanning microscope (or a Carl Zeiss LSM880 confocal laser scanning microscope) with z-stack. The same setting and parameter was applied for all images. All images were processed by maximum intensity projection and measured the fluorescence intensity of Staygold using of Leica TCS SP8X DLS software or Zeiss LSM 880 software. No additional processing is done to the Staygold signal.
Yeast-two-hybrid (Y2H)
The Matchmaker GAL4 Two-Hybrid System was used for screening a cDNA library and protein-protein interaction analysis in this study.
For screening the interacting protein of GCR1, we constructed a yeast cDNA library using tomato trichomes and shoot apical tissues of Micro-tom. The full-length coding sequence of GCR1 was cloned into pGBKT7 vector as a bait vector (BD-GCR1). Before screening the library, autonomous activation of BD-GCR1 was detected by culturing the yeast stain AH109 containing the BD-GCR1 and empty pGADT7 vector on the SD/-Ade/-His/-Leu/-Trp (QDO) agar medium. 1 μg BD-GCR1 vectors and 15 μl library vectors were co-transformed into yeast stain AH109 and cultured on SD/-Leu/-Trp (DDO) agar medium. After 3–4 days, the Co-transformed AH109 yeast cells were transferred to QDO agar medium and cultured for 3–4 days to screen positive colonies. Amplifying positive clones by PCR and performing Sanger sequencing. The sequences were then used to identify the corresponding interacting proteins in S. lycopersicum genome.
For protein–protein interacting, the coding sequences of examined protein pairs were inserted into pGBKT7 (bait vector) vector and pGADT7 vector (prey vector) respectively. Pairs of recombinant constructs were Co-transformed into yeast stain AH109 and cultured on DDO medium for 3–4 days. The Co-transformed yeast cells were suspended in sterile ddH2O to 1, 0.1 and 0.01 (OD600), and then cultured on QDO medium for four days. For each combination and each concentration, three replicates were conducted, and one of the replicate was presented in the figure. All of used primers are listed in Supplementary Table 12.
Quantitative RT-PCR (qRT-PCR) experiments
Trichomes was scraped and collected from stem after freezing in liquid nitrogen. Total RNA of trichomes, fresh leaves and stem was extracted with the Eastep® Super Total RNA Extraction Kit (Promega. ls1040). First-strand cDNA was synthesised from 1 μg of total RNA with the HiScript1st Strand cDNA Synthesis Kit (Vazyme Biotech co. Ltd/Cat#R111-01). Quantitative real-time PCR was performed with a CFX384 Real-Time system (BIO-RAD) by using ChamQTM Universal SYBR qPCR Master Mix (Vazyme/Cat# Q711-02). PCR reaction system were as follows: 94 °C for 3 min; 40 cycles of 94 °C for 5 s and 60 °C for 30 s. PCR amplification specificity was verified by a dissociation curve (65 °C to 95 °C). SlActin 2 (Solyc11g005330) was used as reference gene to normalised gene expression. Primers are listed in Supplementary Table 12.
Quantitative RT-PCR of miR156B was detected by an end-point and real-time looped RT-PCR procedure56. First strand cDNA was synthesised from 1 μg of total RNA with miRNA1st Stand cDNA Synthesis Kit (by stem-loop) (Vazyme Biotech co. Ltd MR101-01/02). The U6 gene (Solyc12g056280) was used as reference gene to normalized miR156B expression.
Protoplast isolation and luciferase (LUC) assay
The full-length coding sequences of examined proteins and mutant varieties were inserted into the pGreen II 62-SK vector (effector). The examined promoter sequences were cloned into the pGreen II 0800 vector (reporter). Leaves of tobacco and cr-gcr1/2 were used to isolate protoplast by methods described previously57. Recombinant effectors and reporters were co-transformed into protoplasts at the ratio of 1:7 according to the method described previously23. After culturing overnight at room temperature, the LUC activity was detected using Dual-Luciferase®Reporter Assay System (Promega, Cat#E1910) and CYTATION5 image reader (BioTek). Three to five biological repeats were conducted for each combination. Error bars represent the SD. Statistical analysis is performed using T-test (and nonparametric tests) and significant differences were marked with Asterisks.
Bimolecular fluorescence complementation (BiFC)
The full-length coding sequences of examined protein pairs were infused with C-terminal of yellow fluorescent protein (cYFP) or N-terminal of YFP (nYFP) respectively. Pairs of Agrobacterium strains GV3101 harbouring the recombinant plasmid and p19 were Co-infiltrated into abaxial side of leaves of 4-week-old N. benthamiana plants. We infiltrated one leaf per plant, and three individual plants were included for each combination. The leaves were checked by confocal microscopy 3–4 days post infiltration.
Yeast-one-hybrid (Y1H)
The full-length coding sequences of examined proteins and mutant varieties were inserted into the pJG4-5 vector. The examined promoter sequences and motifs were cloned into the pLaczi vector. Pairs of recombinant constructs were Co-transformed into yeast stain EGY48 and cultured on SD/-Ura/-Trp agar medium for 3–4 days. The Co-transformed yeast cells were suspended in sterile ddH2O to 5, 1 and 0.1 (OD600), and then cultured on SD/-Ura/-Trp+X-gal (TransGen Biotech /GF201-01) medium for three days. Blue clones indicate that there is an interaction between the protein and the DNA sequence, while a white clone indicates no interaction. For each combination and each concentration, three replicates were conducted, and one of the replicate was presented in figures.
GST-pull down
The N-terminal of SlTOE1B and TPL2 were fused with GST (GST-SlTOE1B, GST-TPL2). The N-terminal of GCR1, GCR2, and SlTOE1B were fused with His (His-GCR1, His-GCR2, His-SlTOE1B). The recombinant vectors were transformed into the Escherichia coli strain BL21 (DE3) and the fusion proteins were expressed by inducing with 250 μm/L isopropyl-b-D-thiogalactoside (IPTG). The fusion proteins were purified using GST beads or His beads. The GST protein and GST fusion protein were incubated with GST MAGIC beads in incubating buffer (50 mM HEPES pH 7.5, 50 mM NaCl, 10 mM EDTA, 0.2% (v/v) Triton X-100, 10% (v/v) Glycerol, 2 mM DTT, 1 × protease inhibitor, 1 × PMSF) at 4 °C for 1.5 h. After washing two times with the washing buffer (50 mM HEPES pH 7.5, 150 mM NaCl, 10 mM EDTA, 0.1% (v/v) Triton X-100, 10% (v/v) Glycerol, 1 × PMSF), the samples were incubated with His fusion protein for 2.5 h. Finally, the samples were washed six times and boiled with SDS loading buffer for 8 min. The samples were detected by SDS-PAGE and immuno-blotted using anti-His antibody (1:3000 dilution, Abmart, Cat#M20001S) and anti-GST antibody (1:3000 dilution, Abmart, Cat#M20007S). All primers are listed in Supplementary Table 12.
Biotin labelled DNA-IP Assays
DNA fragments were amplified by PCR using primers labelled with biotin. The streptavidin-agarose beads (Streptavidin Agarose, Cat#SA100-04) were washed three times using PBSI buffer (PBS buffer pH 7.4, 2 mM DTT, 1 × protease inhibitor, 1 × PMSF). Then incubated with 0.4 mg/mL DNA (Salmon sperm) and 1 mg/mL BSA for overnight at 4 °C. The samples were washed three times using PBSI buffer. Three μg labelled DNA fragments incubated with streptavidin-agarose beads for overnight at 4 °C. Finally, the samples were washed three times using PBSI buffer and incubated with 15 µg His-GCR1 and His-GCR2 fusion proteins, respectively, at 4 °C. After incubating for 4 h, the samples were washed six times and suspended in 40 µl 2 × Laemmli sample buffer (4% SDS, 20% Glycerol, 120 mM Tri-HCl pH 6.8) and then detected by SDS-PAGE and immuno-blotted using anti-His antibody (1:3000 dilution). His-GST protein was used as negative controls. All buffers used in this assay were found the previous paper58.
RNA-seq and transcriptome data analysis
Trichomes of S. Pennellii (LA0716) were scraped from the stems after freezing in liquid nitrogen. Stem epidermis removal trichomes was used as control. Three biological replicates for each line were performed. Standard RNA-sequencing libraries and sequencing were conducted by Novogene with the TruSeq Stranded Total RNA Library Prep Kit (Illumina) and an Illumina sequencing system on Hiseq 2500 platform (Illumina). The raw RNA sequencing reads was filtered to remove low-quality sequence, adaptors, duplications and calibrated low-quality bases of overlap range using fastp software. The clean reads were mapped onto the Slycopersicum genome (v3.0) using HISAT2 (v2.2.1) and assembled transcript by using stringtie (v2.1.7). The gene expression level was quantified by TPM (Transcripts Per Kilobase of exonmodel per Million mapped reads). Differentially expressed genes (DEG) were identified by DESeq2 based on a threshold of log2fold change > 1.
The transcriptome sequnencing of trichomes of pMTR1: GCR1-GFP (Micro-Tom), cr-gcr1/2 (Micro-Tom) and Micro-Tom wild-type was conducted as the above method.
Veen diagrams were conducted by Venny 2.1.0 (https://bioinfogp.cnb.csic.es/tools/venny/index.html). Heat-map of DEG was constructed by GraphPad Prism (V8.0).
Acyl sugar measurement
Extraction and analysis of acyl sugars were conducted according to the previous method59. Two leaflets of juvenile stage (for pMTR1: GCR1/2-GFP and cr-lfs) or adult stage (for cr-gcr1/2 and pMTR1: SlTOE1B-GFP) were used to detect the acyl sugars content. Acyl sugars was extracted in1 ml extractant (3:3:2 Acetonitrile: Isopropanol: water, 0.1% formic acid; 2 µg telmisartan (internal standard)) for 2 min. The supernatant was transfer to the LC-MS glass vial.
For analysing acyl sugars extraction, we used an LC-MS system, which is a Waters Acquity UPLC system coupled in tandem to a Waters photodiode array (PDA) detector and a SYNAPT G2-Si HDMS QTOF mass spectrometer (Waters, Manchester, UK). Gradient elution was achieved on a Waters Acquity UPLC HSS T3 column (100 × 2.1 mm, 1.8 µm) with water containing 10 mM ammonium formate PH2.8 (solvent A) and 100% acetonitrile (solvent B) at a flow rate of 0.3 mL/min. The column temperature was maintained at 40 °C. We adopted 21 min gradient elution procedure by reviewing the literature60.
Components eluting between 1 and 14 min from the UPLC-QTOF MS system were processed in Progenesis QI (v2.1, Nonlinear Dynamics, Newcastle upon Tyne, UK) for data analysis. At least six types of acyl sugar were detected based on the previous NMR-elucidated structure of acyl sugar61.
Co-immunoprecipitation (Co-IP) assay
For CoIP assay, the full-length or fragment of target genes were fused with GFP or FLAG. Paired recombinant vectors were Co-transformed into tobacco protoplasts. After culturing overnight at room temperature, protoplasts of tobacco were collected in the protein extraction buffer (50 mM HEPES pH 7.5, 10 mM EDTA, 50 mM NaCl, 10% (v/v) Glycerol, 0.2% (v/v) Triton X-100, 5 mM DTT, 80 μM MG132, 1 × PMSF, and 1 × protease inhibitor cocktail). Protein extract was centrifuged at 13,000× g at 4 °C for 15 min and the super-natants were incubated with GFP-Nanoab-Magnetic (PGM050, LABLEAD Inc. Cat#GNM-50-2000) at 4 °C for 2–3 h. Then, the beads were washed three times with wash buffer (the same as the extraction buffer with 150 mM NaCl). The samples were resolved by SDS-PAGE and immuno-blotted using ProteinFind® Anti-GFP Mouse Monoclonal Antibody (1:1000 dilution, TransGen Biotech, Cat#HT801), ProteinFind® Anti-Flag Antibody (1:1000 dilution, PGM050, LABLEAD Inc. Cat#F1005), and anti-HRP Secondary antibodies (1:3000 dilution).
CHIP-qPCR
ChIP assay was carried out as described previously62. Briefly, 2.5 g young leaves of 3-week-old p35S:GCR1-GFP transgenic plants were harvested and cross-linked in 1% (v/v) formaldehyde on ice in vacuum for 15 min. Nucleus was collected with Honda Buffer and then chromatin was fragmented by sonication on ice to an average DNA length of between 250–500 bp. Immunoprecipitation was done with anti-green fluorescent protein (anti-GFP antibody, Sigma, Cat#G6795) and protein G beads (Invitrogen, Cat#88848). Inputs and Chip samples were digested with Proteinase K at 65 °C overnight and immunoprecipitated DNA was purified by phenol extraction. The immunoprecipitated chromatin was analysed by qPCR. Data are presented as mean ± SD. All primers are listed in Supplementary Table 12.
Phylogenetic analysis
We searched for protein sequences similar to GCR1 in Arabidopsis, tobacco and petunia in Phytozome (https://phytozome-next.jgi.doe.gov/) and Solyc04g049800 in TAIR (https://www.arabidopsis.org/). Phylogenetic trees were constructed by MEGA7 software. Sequence aligned by ClustalW and then phylogenetic analyses were conducted using the Neighbour–Joining (NJ) method.
Accession Numbers
Sequence data from this article can be found in the Phytozome databases under the following accession numbers: GCR1, Sloyc02g076670; GCR2, Solyc03g006150; NbGCR1 (Nb2011), Niben101SCF02336g02011; PeGCR, Peaxi162Scf00940g00110; SlTOE1B, Solyc04g049800; miR156B, AT4G30972; LFS, Solyc05g013540; TPL1, Solyc03g117360; TPL2, Solyc08g076030; TPL3, Solyc01g100050; TPL4, Solyc03g116750; TPL5, Solyc07g008040; TPL6, Solyc08g029050; ACTIN2, Solyc11g005330.
Statistics and reproducibility
All statistical analyses were conducted with GraphPad Prism 9.5 Software. No data were excluded from the analyses. p-values were obtained by unpaired two-sided t-test. Numbers of repetitions and replicates for each experiment were indicated in the legends.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Untitled section
Supplementary information
Source data
Supplementary information
The online version contains supplementary material available at 10.1038/s41467-024-46683-0.
Acknowledgements
The authors thank Dr. Zhenbiao Yang for critical comments. We thank Junqing Wu and Zhongquan Lin for technical assistance. This work was supported by the National Natural Science Foundation of China (32370376) to J. Chang and (32370354) to S. Wu, the Natural Science Foundation of Fujian Province (2023J01274) to J. Chang and Outstanding Youth Programme of Fujian Agriculture and Forestry University (Kxjq20004) to J. Chang.
Peer review
Peer review information
Nature Communications thanks Genji Qin, and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Data availability
The transcriptome data generated in this study have been deposited in NCBI under accession code PRJNA1074340 and PRJNA1074291. All data generated or analysed in this study including figures, Supplementary Figs. and supplementary tables are available. Source data are provided with this paper.
Competing interests
The authors declare no competing interests.
