Electroacupuncture produces analgesic effects via cannabinoid CB1 receptor-mediated GABAergic neuronal inhibition in the rostral ventromedial medulla
https://ror.org/00p991c53grid.33199.310000 0004 0368 7223School of Basic Medicine, Tongji Medical College, Hubei key Laboratory of Drug Target Research and Pharmacodynamic Evaluation, Huazhong University of Science and Technology, Wuhan, 430030 China
https://ror.org/042pgcv68grid.410318.f0000 0004 0632 3409Institute of Acupuncture and Moxibustion, China Academy of Chinese Medical Sciences, Beijing, 100700 China
https://ror.org/04twxam07grid.240145.60000 0001 2291 4776Department of Anesthesiology and Perioperative Medicine, The University of Texas MD Anderson Cancer Center, Houston, TX 77030 USA
https://ror.org/00zzrkp92grid.477029.fDepartment of Clinical Research Institute, Central People’s Hospital of Zhanjiang, Zhanjiang, 524000 China
https://ror.org/02my3bx32grid.257143.60000 0004 1772 1285Clinical College of Chinese Medicine, Hubei University of Chinese Medicine, Wuhan, 430061 China
Abstract
Objective
Electroacupuncture (EA) is commonly used for pain control in clinical practice, yet the precise mechanisms underlying its action are not fully understood. The rostral ventromedial medulla (RVM) plays a crucial role in the modulation of pain. GABAergic neurons in the RVM (GABARVM neurons) facilitate nociceptive transmission by inhibiting off-cells activity. This research examined the role of GABARVM neurons in the analgesic effects of EA.
Methods
Nociceptive behavior was evaluated using inflammatory pain models induced by complete Freund's adjuvant (CFA) and neuropathic pain models induced by chronic constrictive injury (CCI). Also, in situ hybridization, chemogenetics, in vivo mouse calcium imaging, and in vivo electrophysiological recordings were used to determine neuronal activity and neural circuitry.
Results
EA at the “Zusanli” (ST36) on the affected side produced a significant analgesic effect in both CFA and CCI models. CFA treatment and CCI elevated the calcium activity of GABARVM neurons. Also, EA reduced the calcium activity, neuronal firing rates, and c-Fos expression of GABARVM neurons in both pain models. Chemogenetic inhibition of GABARVM neurons increased nociceptive thresholds. Chemogenetic activation of GABARVM neurons caused increased pain sensitivity in control mice and negated the analgesic effects of EA in both pain models. Moreover, reducing cannabinoid CB1 receptors on GABARVM neurons counteracted the analgesic effects of EA in CFA and CCI-induced pain models.
Conclusions
The study indicates that the analgesic effect of EA in inflammatory and neuropathic pain is facilitated by CB1 receptor-mediated inhibition of GABARVM neurons.

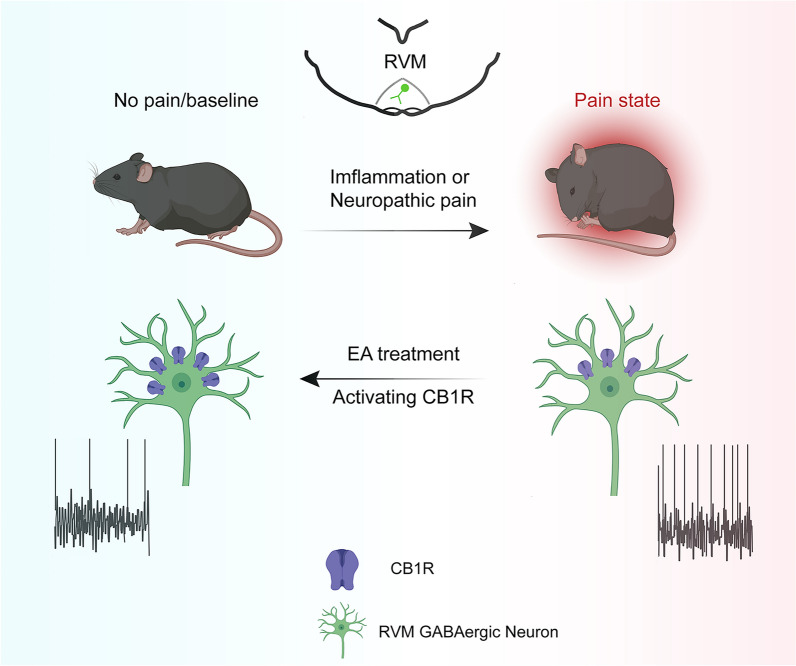

Graphical Abstracts
Supplementary Information
The online version contains supplementary material available at 10.1186/s13020-025-01083-4.
Introduction
Pain is a subjective feeling and response of the body to noxious stimuli [1]. At the initial stage of pain, it usually manifests as acute pain, which is a protective mechanism of the body, reminding people to avoid further harm and prompting the body to repair itself [2]. If acute pain is not treated promptly and effectively, or noxious stimuli persist, the pain may develop into chronic pain [3]. Chronic pain lasts for a long time, and can be caused by many reasons, such as nerve injury and inflammation [4]. In the state of chronic pain, a series of plastic changes will occur in the nervous system, which will affect the quality of life of patients such as mood, sleep, diet and social interaction, further aggravate the psychological burden, and make the pain problem more complicated and difficult to treat [5]. Chronic pain has a significant personal and economic impact, affecting over 30% of the world's population [6–8]. Current medications have limited analgesic effects and often produce various adverse effects [9, 10]. Consequently, identifying safer and more effective pain treatments is urgently needed. Acupuncture, a traditional therapy with a long history of use in China, has been endorsed by the World Health Organization for treating 77 different diseases [11]. Among the various applications of acupuncture, pain management stands out as a major therapeutic benefit [12]. Electroacupuncture (EA), a modified form of acupuncture introduced in the mid-twentieth century, combines traditional acupuncture techniques with a mild electric current to effectively reduce both acute and chronic pain [13, 14]. EA is commonly used for pain control due to its perceived safety, efficacy, and minimal side effects [15]. The exact mechanisms underlying the analgesic effect of EA remain incompletely understood.
The rostral ventromedial medulla (RVM) is a region located in the brainstem, which includes the nucleus raphe magnus (NRM) and the reticular nucleus of the giant cell (NRGc), plays a crucial role in the endogenous pain modulation system [16]. It is involved in both the facilitation and inhibition of pain as part of the descending pain modulation system [17]. [18] The RVM contains various types of neurons, including serotonergic (5-HT), GABAergic, and glutamatergic neurons, which contribute to the complex regulation of pain signals [19]. RVM neurons are also classified into on-cells, off-cells, or neutral cells based on their responses to painful stimuli [20]. These neurons, via myelinated fibers, play a crucial role in pain regulation by projecting to the spinal cord [21].
It's reported that GABA neurons account for a large proportion in RVM brain region, 27.27% of RVM On cells, 47.37% of RVM Off cells, and 42.6% of RVM Neutral cells were GABAergic [22]. GABAergic neurons play an important inhibitory role in the central nervous system, especially in pain regulation [23]. They inhibit the activity of other neurons by releasing γ-aminobutyric acid (GABA), thus maintaining the balance of neural network [24]. Studies have shown that the hyperactivity of GABAergic neurons in the RVM (GABARVM neurons) may lead to increased pain sensitivity, which is closely related to the activity of off-cells [25]. Off-cells are mainly responsible for inhibiting the transmission of pain signals, and activation of GABARVM neurons can effectively reduce the excitability of off-cells through their inhibition effects, thus participating in the facilitation of descending pain [26].
The cannabinoid CB1 receptor (CB1R), known for its role in regulating motor function, pain, and psychoactive actions, is expressed in various brain regions [27]. CB1R is known to be expressed in both presynaptic and postsynaptic synapses [28]. However, it mainly found at presynaptic terminals and is predominantly expressed in GABAergic neurons, with lower levels in glutamatergic neurons [29]. Activating CB1Rs in the RVM can directly reduce neurotransmitter release from GABA neuronal terminals [30, 31]. Additionally, EA can activate CB1Rs, leading to alleviation of painful conditions [29, 32–34]. The role of CB1 receptors on GABARVM neurons in mediating the analgesic effects of EA remains largely uncertain.
This study utilized inflammatory pain models induced by complete Freund's adjuvant (CFA) and neuropathic pain models from chronic constrictive injury (CCI) to evaluate the involvement of CB1Rs and GABARVM neurons in the analgesic effects of EA. Our findings highlight the crucial involvement of CB1Rs and GABAergic neurons in the RVM in mediating the analgesic effects of EA.
Materials and methods
Animals
The Institutional Animal Care and Use Committee (IACUC) at Huazhong University of Science and Technology approved all experimental protocols. Male mice, aged between 8 and 10 weeks and weighing 20 to 30 g, were employed in this research. The study employed Vgat-ires-cre mice (STOCK Slc32a1tm2(cre)Lowl/J) (JAX016962), CB1B flox/flox mice (Shanghai Model Organisms Center, Inc.), and wild-type C57BL/6 J mice (Beijing Vital River Laboratory Animal Technology Co., Ltd.). Animals were allocated to various experimental groups at random. The subjects were housed in cages under a 12-h light/dark cycle with unrestricted access to food and water. The mice were kept in a controlled environment with temperature ranged from 22 °C to 25 °C and humidity maintained at 50% ± 10%. The mice were kept in cages located on the same rack.
Pain models
To induce prolonged inflammatory pain, 25 μL of CFA was administered into the left hind paws of mice under brief isoflurane anesthesia [35]. Control mice received the same volume of saline administered in the same manner.
The CCI-induced neuropathic pain model was implemented according to the established protocol [36]. The mice were anesthetized with 2–3% isoflurane, and the left sciatic nerve was exposed at the mid-thigh. At the branching point, the nerve trunk was lightly tied three times using 4–0 gut sutures. Sham mice experienced the same procedures but without constricting the nerve.
EA treatment
EA on the ST36 acupoint can alleviate inflammatory pain through diverse mechanisms, while the parameters of EA stimulation are not uniform [37]. A recent study found that weak EA stimulation at the ST36 point with 0.5 mA/10 Hz effectively activated the vagal-adrenal axis, leading to the suppression of systemic inflammatory responses [38]. To enhances the understanding of optimal acupoint selection and stimulation intensity for EA analgesic therapy, so we choose EA stimulation at the ST36 point with 0.5 mA/10 Hz for the test. Using homemade clothing (20 cm × 15 cm), the mice were carefully restrained, allowing their legs to protrude through the openings. Two 0.25 mm × 13 mm acupuncture needles (Beijing Zhongyan Taihe Medical Instruments Co., Ltd., China) were inserted 5 mm into the region and connected to an 8-channel stimulus generator (STG4008, Reutlingen, Germany). EA treatment was applied for ipsilateral ST36 (ST36 was situated near the knee joint under the lateral, fibula 3.5 mm below the capitulum) at 0.5 mA intensity and 10 Hz frequency for 30 min daily [38]. During the procedure, the animals remained awake, immobile, and showed no obvious signs of distress. The control group received only restraint manipulations.
Behavior tests
Behavioral assessments, including the measurement of nociceptive thresholds, open field test, conditioned place preference test, and conditioned place aversion test, were carried out as specified in the Supplementary Materials.
Western blot analysis
CB1R protein levels were assessed using Western blotting. Protein lysates were obtained from RVM tissues. For detailed methods, refer to the Supplementary materials.
RNAscope in situ hybridization
The overlap of GABA and c-Fos in the RVM was assessed using the RNAscope multiplex fluorescent reagent kit v2 and specifically designed probes (ACD Bio Inc.). Mice were anesthetized with isoflurane and perfused transcardially with 25 ml PBS and 25 ml 4% paraformaldehyde. Following perfusion, the brain was isolated and post-fixed overnight at 4 °C with the same fixative. Tissues were washed multiple times in PBS, and then cryopreserved with a sucrose gradient. Tissues were embedded in OCT medium (Tissue-Tek), cryosectioned into 14 μm sections, and mounted on charged slides. We used probes directed against mouse fos (catalog 316921) and mouse Slc32a1 (a marker of GABAergic neurons; catalog 319191). In situ hybridization was performed using the RNAscope system (Advanced Cell Diagnostics) following the manufacturer’s instructions with the Multiplex Fluorescent Kit v.2 protocol.
Image acquisition and quantification
Samples were imaged on an Olympus VS-200 laser scanning microscope. Samples for immunohistochemical staining were imaged at 10 × magnification. Neurons and Fos-expressing neurons identified through in situ hybridization were manually counted, with percentages determined for each animal and averaged across the group. We assessed relative marker expression by aggregating cell counts from brain sections of 3 to 4 mice.
Statistical analysis
The investigator performing data analysis was blinded to the group allocation. GraphPad Prism 9.0 was used for the statistical analysis. Group differences were evaluated using the Kruskal–Wallis test, with Dunn's post hoc test applied for data not following a normal distribution. For normally distributed data, analyses included two-tailed unpaired t-tests and one-way or two-way ANOVA, followed by Tukey or Bonferroni post hoc tests. Graphical data are presented as means with standard error of the mean (SEM). A difference is considered statistically significant if the p-value is less than 0.05.
Results

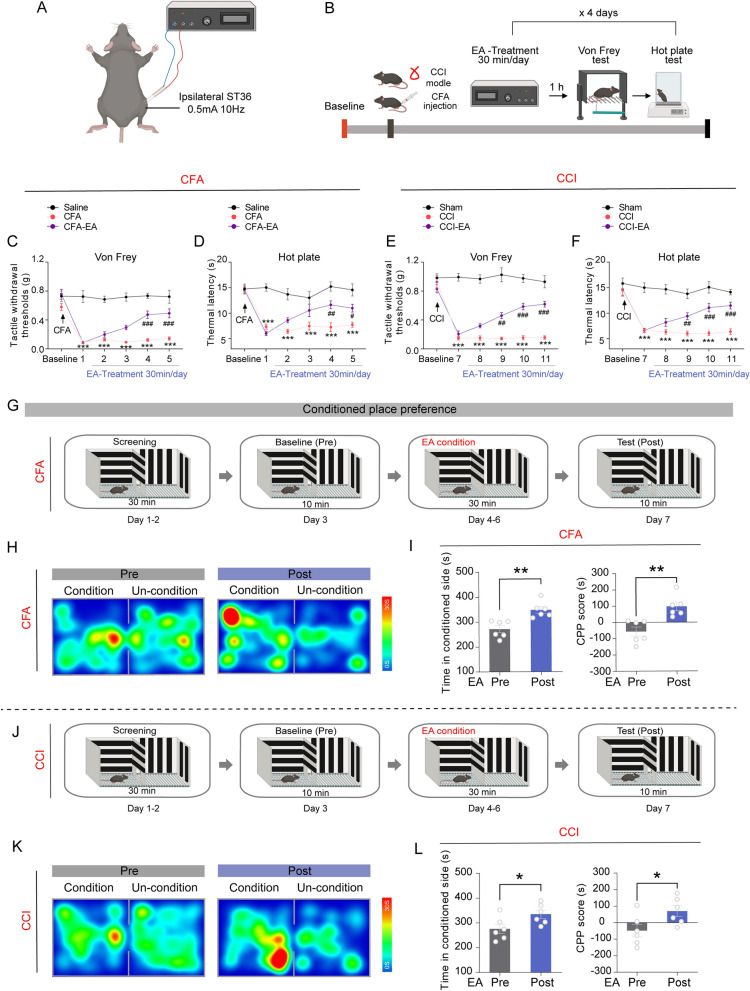

EA produces analgesic effects and relieves the negative emotion caused by pain in CFA- and CCI-treated mice
Tactile allodynia was present in all mice receiving CFA or CCI (Fig. 1). EA was administered at the Zusanli acupoints (ST36, 0.5 mA/10 Hz) for 30 min daily 2 to 5 days after CFA, or 8 to 11 days after CCI (Fig. 1A, B). Behavioral assessment showed that CFA and CCI significantly lowered paw withdrawal thresholds in mice when exposed to von Frey and heat stimuli (Fig. 1C–F, p < 0.001). In addition, the ipsilateral EA has a better analgesic effect than opposite EA, so we used ipsilateral EA treatment in the following study (supplementary Fig. 1). EA elevated tactile withdrawal thresholds and thermal withdrawal latency on days 4–5 in CFA-injected mice and days 9–11 in CCI-exposed mice (Fig. 1C–F, p < 0.05). We performed CPP experiments to assess the impact of EA on negative emotions in mice. The findings indicated that the time spent by CFA- or CCI-treated mice in the chamber matched EA treatment and the CPP score exhibited a significant increase compared to the baseline measurements (Fig. 1G–L, p < 0.05).
Discussion
Pain is a universal health problem in the world, which has a great negative impact on the quality of life of patients [41]. EA, as an advanced treatment method based on traditional acupuncture, is widely used to relieve pain in clinical practice, and has the advantages of safety and wide applicability [42]. However, its specific analgesic mechanism is not completely clear, which limits its wider application and the formulation of optimal treatment scheme. Therefore, it is of great clinical significance to explore the analgesic mechanism of EA. This study is the first to show that EA induces analgesia by inhibiting GABARVM neurons. We found that electrical stimulation of the ST36 acupoint on the affected side significantly alleviated pain hypersensitivity and associated negative emotions caused by tissue inflammation and nerve injury. EA decreased c-Fos expression, neuronal calcium influx, and firing in GABAergic neurons in mouse models of inflammatory and neuropathic pain. Chemogenetic inhibition of GABARVM neurons reduces pain hypersensitivity under control and painful conditions. Chemogenetic activation of GABARVM neurons caused pain hypersensitivity in control mice and inhibited the analgesic effects of EA in both inflammatory and neuropathic pain models. These findings suggest that EA produces its analgesic effects by inhibiting GABARVM neurons. Our study also showed that knockout of CB1Rs on GABARVM neurons antagonized the analgesic and negative emotion relieving effects of EA. Thus, CB1R-mediated inhibition of GABARVM neurons likely contributes to the analgesic action of EA.
Pain is an unpleasant sensory and emotional experience associated with actual or potential tissue damage [43]. Many chronic pain conditions are associated with tissue inflammation (inflammatory pain) or damage to the somatic nervous system (neuropathic pain) [44]. EA therapy, an advanced approach to treating pain based on traditional acupuncture, is used alone or in conjunction with other treatments. EA therapy not only provides effective pain relief but also offers the benefits of versatility and safety compared to traditional drug treatments [45]. Various factors such as acupoints, stimulation frequency, and intensity of EA can influence the pain-relieving effects. EA on the ST36 acupoint can alleviate inflammatory pain through diverse mechanisms, while the parameters of EA stimulation are not uniform [37]. A recent study found that weak EA stimulation at the ST36 point with 0.5 mA/10 Hz effectively activated the vagal-adrenal axis, leading to the suppression of systemic inflammatory responses [38]. Our study demonstrated that weak EA stimulation at the ST36 point on the affected side, using 0.5 mA/10 Hz, significantly alleviated both CFA-induced inflammatory pain and CCI-induced neuropathic pain. This finding enhances the understanding of optimal acupoint selection and stimulation intensity for EA analgesic therapy.
The RVM is a key brain region for the endogenous nociceptive modulation, and GABARVM neurons are involved in downstream nociceptive control through inhibition of the off-cells [26]. GABARVM neurons facilitate mechanical pain by suppressing enkephalinergic/GABAergic interneurons in the dorsal horn [24]. We explored the role of GABARVM neurons in mediating EA's analgesic effects. Interestingly, we found that c-Fos expression and neuronal firing were increased in GABARVM neurons of mice with inflammatory and neuropathic pain. Also, the elevated calcium activity in GABARVM neurons was more pronounced in response to nociceptive stimuli. Activation of GABARVM neurons induced pain hypersensitivity in control mice. Conversely, inhibition of GABARVM neurons reduced pain hypersensitivity under physiological and painful conditions, further corroborating the involvement of GABARVM neurons in the facilitation of nociceptive transmission. EA treatment inhibited c-Fos expression, neuronal calcium activity, and neuronal firing of GABARVM neurons of mice in both pain models. Activation of GABARVM neurons diminished the analgesic effects of EA on both inflammatory and neuropathic pain. Therefore, EA likely produces its analgesic effects by inhibiting GABARVM neurons, offering a new mechanism for acupuncture analgesia.
Pain emotion belongs to the emotional dimension of pain, constituting the emotional and affective experiences induced by pain, including negative emotions such as disgust, fear, anxiety, and depression triggered by noxious or non-noxious stimuli [46]. Patients with chronic pain are three times more likely to experience negative emotions compared to those without pain [47]. Furthermore, negative emotions can exacerbate pain severity, and pain, in turn, intensifies negative emotions, creating a vicious cycle [48]. We found in this study that EA alleviated the negative emotions caused by pain, consistent with previous studies [49, 50]. Various neurotransmitters are involved in the development of pain emotions, which affect neuronal excitability through synaptic transmission, leading to abnormal functioning of the relevant neural circuits and acting as messengers for pain-induced negative emotional messaging [51]. Our study indicates that chemogenetic activation of GABARVM neurons diminishes the mood-enhancing effects of EA, suggesting that targeting GABARVM neurons could represent a novel mechanism by which EA alleviates pain-associated negative emotions.
CB1R is a prominently expressed G protein-coupled receptor in the brain [52] and is abundant in the RVM [53]. CB1Rs contribute to EA-induced analgesia across various brain regions, including the striatum, ACC, PAG, and primary somatosensory cortex (S1) [32]. The role of CB1Rs in the RVM during EA analgesia remains largely unexplored. The CB1R is predominantly located at presynaptic terminals and is preferentially expressed in GABAergic neurons [29]. Moreover, activation of CB1Rs in the RVM directly inhibits neurotransmitter release from GABA neuronal terminals [30, 31]. In the present study, we found that specific knockdown of CB1Rs on the GABARVM neurons antagonized the EA effects on analgesia and alleviation of negative emotions. Thus, EA may produce analgesic effects via inhibition of GABARVM neurons by activating CB1Rs.
Conclusions
Our study indicates that GABAergic neurons in the RVM, especially CB1Rs on GABARVM neurons, significantly contribute to the analgesic effects of EA on inflammatory and neuropathic pain, suggesting a novel mechanism for EA-induced analgesia. This new information advances our mechanistic understanding of the EA analgesia and helps the design of new strategies to improve clinical management of pain.
Supplementary Information
Abbreviations
- EA
- Electroacupuncture
- RVM
- Rostral ventromedial medulla
- CCI
- Chronic constrictive injury
- CB1R
- Cannabinoid Type 1 Receptors
- GABARVM neurons
- GABAergic neurons within the RVM
- NRM
- Nucleus raphe magnus
- NRGc
- Reticular nucleus of the giant cell
- CFA
- Complete Freund's adjuvant
- AAVs
- Adeno-associated viruses
- OD
- Outer diameter
- NA
- Numerical aperture
- CPP
- Conditioned place preference
- CPA
- Conditioned place aversion
Acknowledgements
BioRender (https://www.biorender.com/) and SciDraw (https://scidraw.io/) provide support for schematic drawing included in this manuscript.
Funding
This research was funded by the Key Program of the National Natural Science Foundation of China (grant #82130122) and National Natural Science Foundation of China (grant #82060899).
Data availability
The study's original data can be obtained from the corresponding authors upon reasonable request.
Declarations
Ethics approval and consent to participate
The Institutional Animal Care and Use Committee (IACUC) of Huazhong University of Science and Technology approved all experimental procedures (Approval number: D2024-01-26-05), which adhered to the ethical guidelines of the Helsinki Declaration of 1975, revised in 2008, regarding Human and Animal Rights.
Consent for publication
We declare that the Publisher has the Authors’ permission to publish the relevant contribution.
Competing interests
The authors declare no competing interests.
