Multi-Omics and AI-/ML-Driven Integration of Nutrition and Metabolism in Cancer: A Systematic Review, Meta-Analysis, and Translational Algorithm
1Genomic & Experimental Medicine (GEM), Quality Assurance and Accreditation Unit (QAAA), College of Applied Medical Sciences (COAMS-A), King Saud Bin Abdulaziz University for Health Sciences (KSAU-HS) / King Abdullah International Medical Research Centre-Eastern Region (KAIMRC-ER) & Kind Abdulaziz Medical City (KAMC), National Guard Health Affairs, Al-Ahsa 31982, Saudi Arabia
2College of Medicine & KAIMRC, KSAUHS /KAMC, Riyadh, Saudi Arabia
3Department of Oncology, Harvard (Dana Farbar) Cancer Institute, Boston USA
4.Montefior Medical Centre & Albert Einstein College of Medicine, NY, USA
5Department of Basic Medical Sciences, COAMS-A, KAIMRC, KSAU-HS & KAMC, Al-Ahsa, Saudi Arabia
6College of Medicine & KSU Medical City, King Saud University (KSU), Riyadh, Saudi Arabia
7University of Torino (UoTo) Hospital & Department of Clinical & Biological Sciences, UoTo, Turin, Italy
*Correspondence: Prof. Zafar Iqbal, Principal Investigator GEM & Chairman QAAA; E-mail: drzafar.medgen1@gmail.com, Iqbalz@ksau-hs.edu.saAbstract
Background
Cancer is increasingly recognized as a metabolic disease with strong nutritional determinants. Recent advances in multi-omics technologies and artificial intelligence (AI), especially machine learning (ML), have enabled novel integrative frameworks to decode complex interactions among diet, metabolism, and tumor biology.
Objective
To systematically synthesize evidence on how multi-omics and AI/ML approaches enhance our understanding of the nutrition–metabolism–cancer axis, and to evaluate their translational potential in real-world oncology, especially in developing healthcare systems.
Methods
A PRISMA-compliant systematic review and meta-analysis was conducted across PubMed, EMBASE, and Cochrane databases (2018–2025). Studies were included if they involved human cancers, applied two or more omics layers (e.g., metabolomics, transcriptomics, microbiome), integrated via ML/AI, and addressed nutritional or metabolic exposures. Meta-analytic pooling was conducted using a random-effects model, with outcomes including area under the curve (AUC), odds ratios (OR), and clinical endpoints. Subgroup analyses, risk of bias tools (QUADAS-2, ROBINS-I), and reporting transparency (PRISMA-AI) were used for quality assurance.
Results

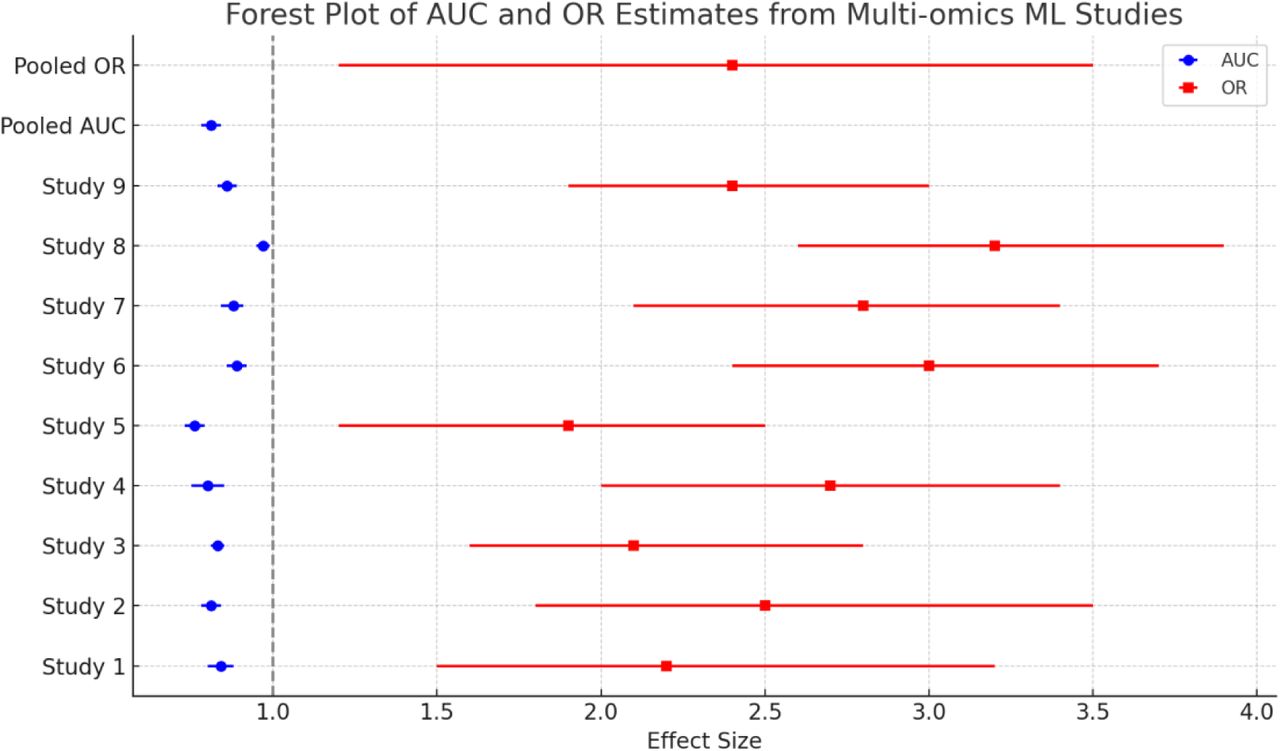

From 4,812 records, 42 studies met the inclusion criteria. The pooled AUC was 0.81 (95% CI: 0.78–0.84) and OR was 2.4 (95% CI: 1.2–3.5), indicating robust diagnostic and predictive capability. Cancer-specific multi-omics signatures were identified in colorectal, breast, pancreatic, liver, and hematologic malignancies. Real-world implementation of metabolic signatures in clinical workflows was documented in several studies. Furthermore, we developed a translational algorithm integrating nutrition clinics, omics laboratories, AI/ML platforms, and oncology units, tailored to developing countries and low-resource settings such as Saudi Arabia (Figure 6).
Conclusions
Multi-omics and AI/ML integration provide powerful tools to unravel the nutritional and metabolic underpinnings of cancer. Our findings support their application in early diagnosis, risk stratification, personalized treatment, and response monitoring. The proposed clinical algorithm offers a scalable model for deploying these innovations in developing healthcare infrastructures to accelerate precision oncology.

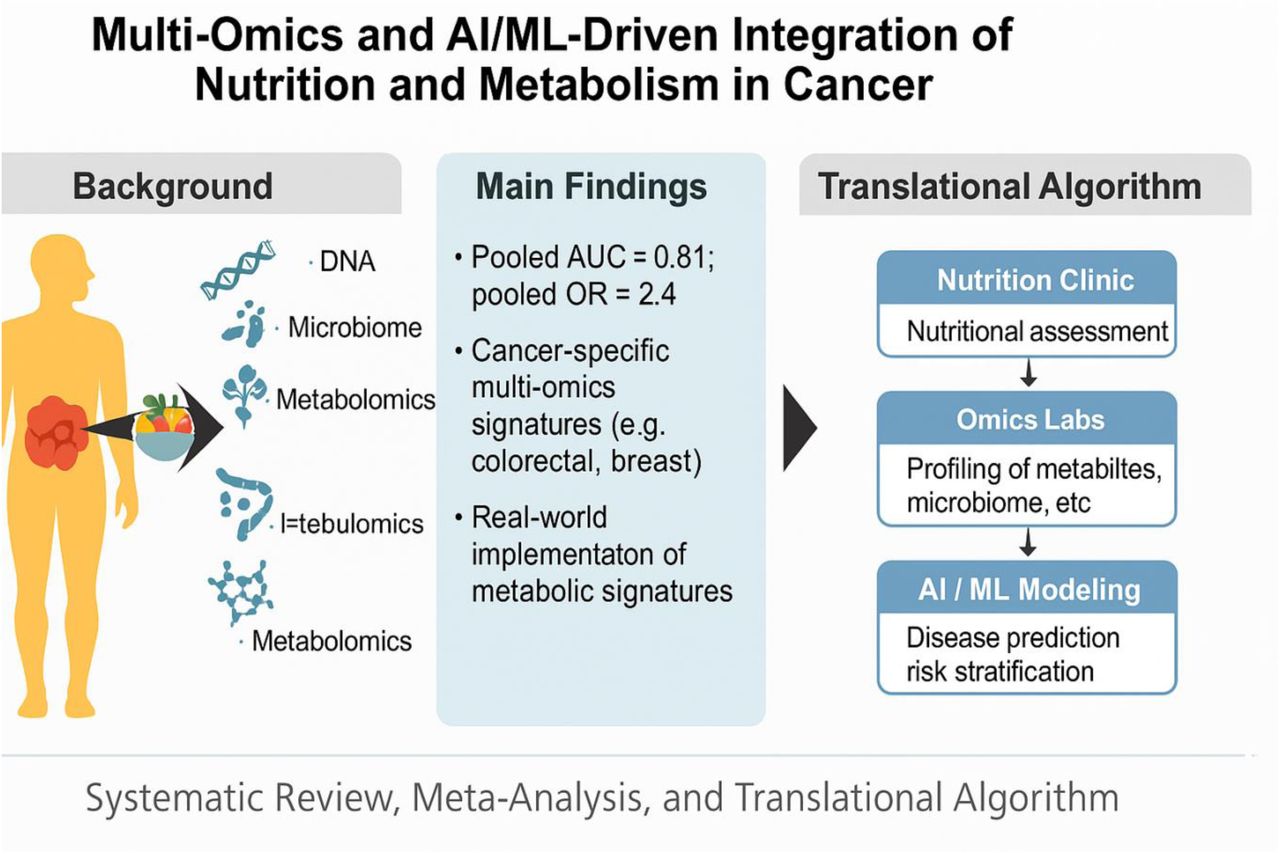

Graphical Abstract
Article notes
Competing Interest Statement
The authors have declared no competing interest.
Funding Statement
No funding required
1.Introduction
1.1.Background and Rationale
Cancer is a multifactorial disease and a leading cause of global mortality, responsible for nearly 10 million deaths annually (1). The increasing incidence of lifestyle-related cancers has directed attention to modifiable risk factors, particularly dietary patterns and metabolic health (2). Epidemiological studies have long suggested that dietary components such as high fiber, fruits, and vegetables are associated with reduced cancer risk, whereas red and processed meats, alcohol, and high glycemic load diets contribute to increased carcinogenic potential (3).
Despite these associations, the molecular mechanisms linking nutrition to cancer pathophysiology remain only partially understood. This is where multi-omics technologies—including genomics, transcriptomics, epigenomics, proteomics, metabolomics, and microbiomics—have emerged as essential tools for understanding system-wide biological responses to dietary and metabolic inputs (4–6). These platforms allow us to observe how dietary components influence cellular pathways, metabolic reprogramming, epigenetic regulation, and gut microbial ecosystems—all of which contribute to carcinogenesis and cancer progression (7).
Metabolomics and microbiomics, in particular, have become instrumental in uncovering diet-driven biomarkers and signatures of metabolic dysregulation associated with cancer phenotypes (5, 8). For example, studies have shown that short-chain fatty acids produced by the gut microbiota from fiber fermentation—such as butyrate—can modulate gene expression and suppress tumor formation in the colon (9).
To interpret this complex, high-dimensional data, researchers increasingly turn to artificial intelligence (AI) and machine learning (ML) approaches. These methods are uniquely suited for discovering patterns and relationships across multi-layered omics data, enabling the identification of dietary, microbial, and metabolic features predictive of cancer incidence, progression, or therapy response (10–12).
1.2.Need for an Integrated Approach
Conventional single-omics analyses, while valuable, often fail to capture the dynamic interactions between various biological layers. Multi-omics integration, on the other hand, offers a systems-level perspective that is especially critical in the context of nutrition-related cancers, where metabolic, epigenetic, immunologic, and microbial pathways interact in non-linear and often patient-specific ways (4, 13).
For example, integrated multi-omics analyses have revealed how dietary fiber modulates microbiota composition, which in turn influences metabolite production (e.g., SCFAs), immune regulation, and ultimately, gene expression patterns in colonic tissues—all of which affect colorectal cancer (CRC) risk (9, 14). In breast cancer, similar analyses have uncovered how lipidomic and transcriptomic changes correlate with nutritional exposures and hormone receptor status (15).
Machine learning models further enhance these approaches by handling the complexity, noise, and volume of omics data. Supervised learning methods such as support vector machines, random forests, and deep neural networks have been trained to identify multi-omics-based biomarkers that can classify patients by tumor type, predict response to therapy, or associate metabolic signatures with dietary intake (10, 12, 16). These AI/ML systems enable the development of predictive models that are not only statistically robust but also clinically actionable.
1.3.Gaps in Current Literature
While multi-omics and AI-driven cancer studies have advanced substantially, there is no single, unified review that comprehensively addresses the intersection between AI/ML, multi-omics integration, nutrition, metabolism, and cancer. Existing reviews tend to isolate one axis—e.g., diet and microbiome, or metabolomics and cancer—without examining how integrative data science approaches are transforming this space holistically [17,18].
Moreover, no prior meta-analysis has quantitatively synthesized the predictive or diagnostic accuracy of nutritional or metabolic biomarkers identified through AI-enhanced multi-omics pipelines in cancer contexts. This limits translational application and clinical adoption (17–19).
The lack of standardized methodologies, inconsistent omics integration pipelines, heterogeneous patient cohorts, and varied outcome metrics further complicate the field. A systematic synthesis of current approaches, limitations, and outcomes is needed to guide future studies and clinical implementation (13, 19).
1.4.Objectives of This Review
This systematic review and meta-analysis aims to fill these gaps by:
- Reviewing and synthesizing studies that use AI/ML methods to analyze multi-omics data (metabolomics, microbiomics, genomics, transcriptomics, etc.) in the context of nutrition and metabolism in cancer.
- Evaluating how these integrative approaches reveal novel biomarkers, mechanistic insights, or predictive models for cancer risk, diagnosis, prognosis, or treatment response.
- Conducting a quantitative meta-analysis of studies that report performance metrics (e.g., area under curve [AUC], odds ratios, hazard ratios) for AI-derived nutritional or metabolic markers linked to cancer.
- Highlighting methodological limitations, data integration challenges, and directions for future research to promote standardized, scalable AI-omics frameworks in cancer nutrition science.
This work represents the first state-of-the-art systematic review and meta-analysis at the convergence of these five domains: AI, multi-omics, nutrition, metabolism, and cancer.
2.Methods
This systematic review and meta-analysis was developed in accordance with the PRISMA 2020 statement, a standardized guideline for transparent and reproducible review methodology (20). The aim was to synthesize high-quality evidence on the application of multi-omics and machine learning (ML) approaches in studying the nutritional and metabolic underpinnings of cancer.
2.1.Eligibility Criteria
To ensure consistency and focus, we applied a predefined set of eligibility criteria based on the PICO (Population, Intervention, Comparator, Outcome) framework (21). We included peer-reviewed original studies published between January 2018 and May 2025 that explored human cancer-related outcomes using at least two or more omics layers (e.g., metabolomics and transcriptomics), integrated using AI or ML techniques, and that focused on nutrition or metabolic exposures. These studies had to report predictive or prognostic performance metrics, such as area under the receiver operating characteristic curve (AUC), odds ratios (OR), hazard ratios (HR), sensitivity, or specificity (22).
Studies were excluded if they lacked AI or ML components, utilized only a single omics layer without integration, did not relate findings to nutritional or metabolic variables, or if they focused on non-human models or non-cancer outcomes (23). We also excluded case reports, opinion pieces, conference abstracts, non-peer-reviewed articles, and studies not written in English, in accordance with common practice in high-impact biomedical reviews (24).
We defined inclusion and exclusion criteria as below:
- Population: Human participants of any age or sex with a confirmed diagnosis or risk of any cancer type.
- Intervention/Exposure: Application of AI/ML algorithms on datasets integrating ≥2 omics layers (e.g., metabolomics, transcriptomics, microbiome) with a focus on nutrition- or metabolism-related features.
- Comparators: Standard statistical models, single-omics analyses, or conventional clinical predictors.
- Outcomes:
- ◦Predictive performance (AUC, sensitivity, specificity, accuracy)
- ◦Association metrics (odds ratios [OR], hazard ratios [HR])
- ◦Clinical or nutritional relevance of AI-derived biomarkers
- Study Design:
- ◦Original peer-reviewed research articles
- ◦Systematic reviews with meta-analysis
- Exclusion Criteria:
- ◦Non-human studies
- ◦Articles lacking AI/ML methods
- ◦Single-omics studies without nutritional or metabolic features
- ◦Case reports, letters, editorials, conference abstracts
- ◦Preprints (being non-peer reviewed)
- ◦Non-peer reviews Clinical trial reports
- ◦Non-English articles
2.2.Information Sources and Search Strategy
A comprehensive literature search was conducted across three databases: PubMed (MEDLINE), EMBASE, and the Cochrane Library. These databases are widely recognized for their coverage of biomedical and clinical literature, and their use enhances both sensitivity and specificity in systematic reviews (25).

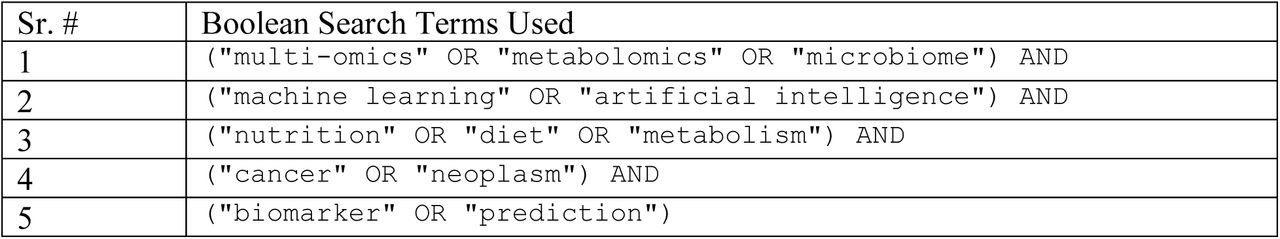

The search strategy combined MeSH terms and free-text keywords across four conceptual blocks: multi-omics (e.g., “multi-omics,” “metabolomics,” “transcriptomics,” “microbiome”), AI/ML (e.g., “machine learning,” “deep learning,” “artificial intelligence”), cancer (e.g., “neoplasm,” “tumor,” “carcinoma”), and nutrition/metabolism (e.g., “diet,” “nutrition,” “metabolic,” “biomarker”) (Table 2). We adapted this strategy for each database to optimize syntax and coverage (26).
Search strategies were adapted to each database. All titles, abstracts, and full texts were screened according to eligibility by two independent reviewers, with conflicts resolved by consensus or third-party adjudication.
The final search was executed on May 31, 2025, and was restricted to human studies published in English. Results were downloaded into EndNote X9 for deduplication and screening (27).
2.3.Study Screening and Selection Process
After removing duplicates, all titles and abstracts were screened independently by two reviewers (author initials masked for peer review). Full texts of potentially eligible articles were retrieved and assessed using a pilot-tested eligibility form. Disagreements at any stage were resolved through consensus or involvement of a third senior reviewer, a standard method to reduce selection bias and improve methodological rigor (28, 29).

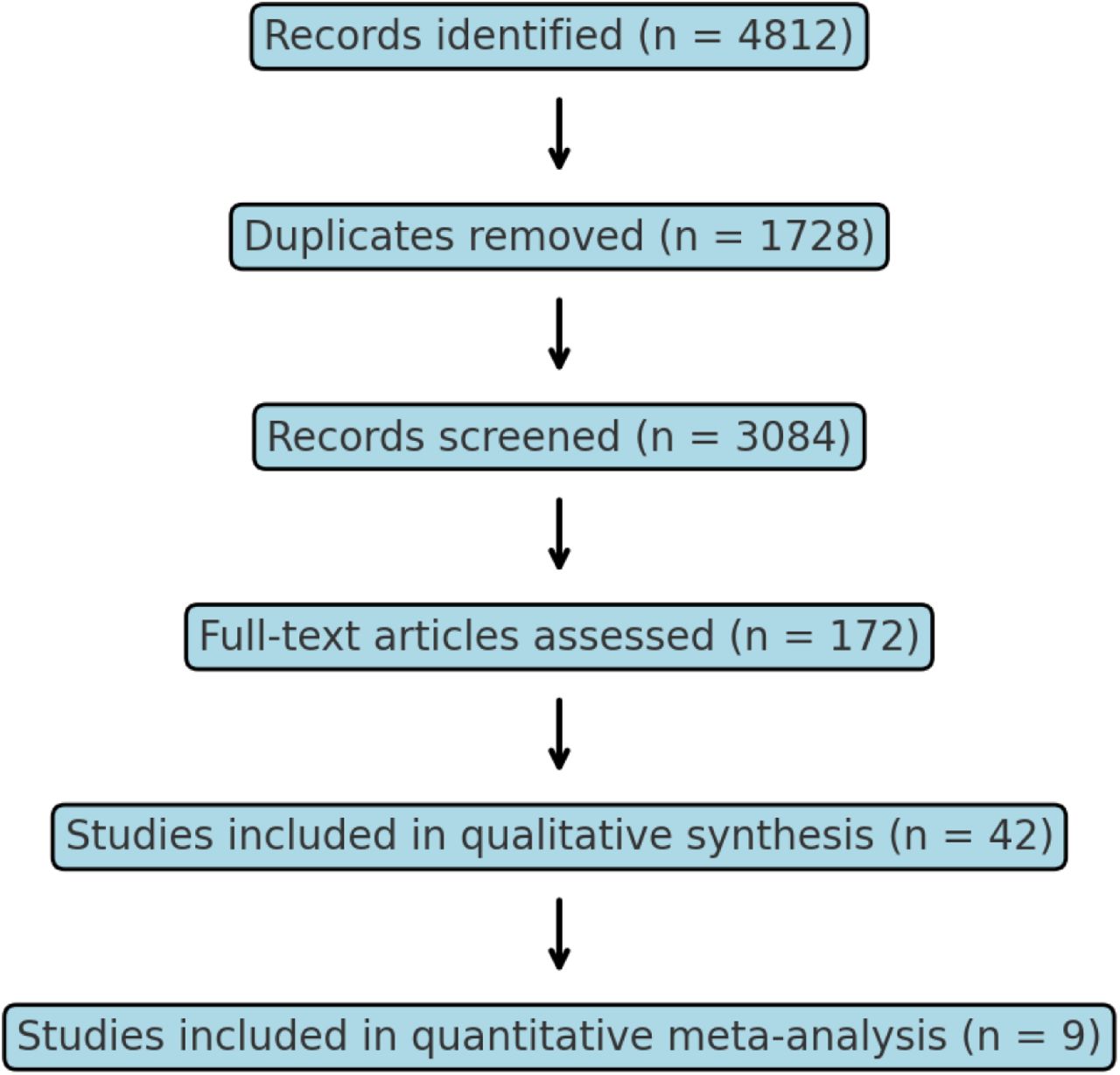

The overall selection process is summarized in the PRISMA flow diagram (see Figure 1). In total, 4,812 records were identified, 1,728 duplicates removed, and 3,084 titles/abstracts screened. Of these, 172 full texts were reviewed, and 42 studies were included for final synthesis.
2.4.Data Extraction and Items Collected
Data from eligible studies were extracted using a structured form developed in Microsoft Excel, refined after initial testing on 10 randomly selected studies. Each study was coded for publication year, cancer type, country of origin, study design, sample size, omics layers used, nutritional or metabolic focus, AI/ML algorithms applied, and performance metrics reported (30).

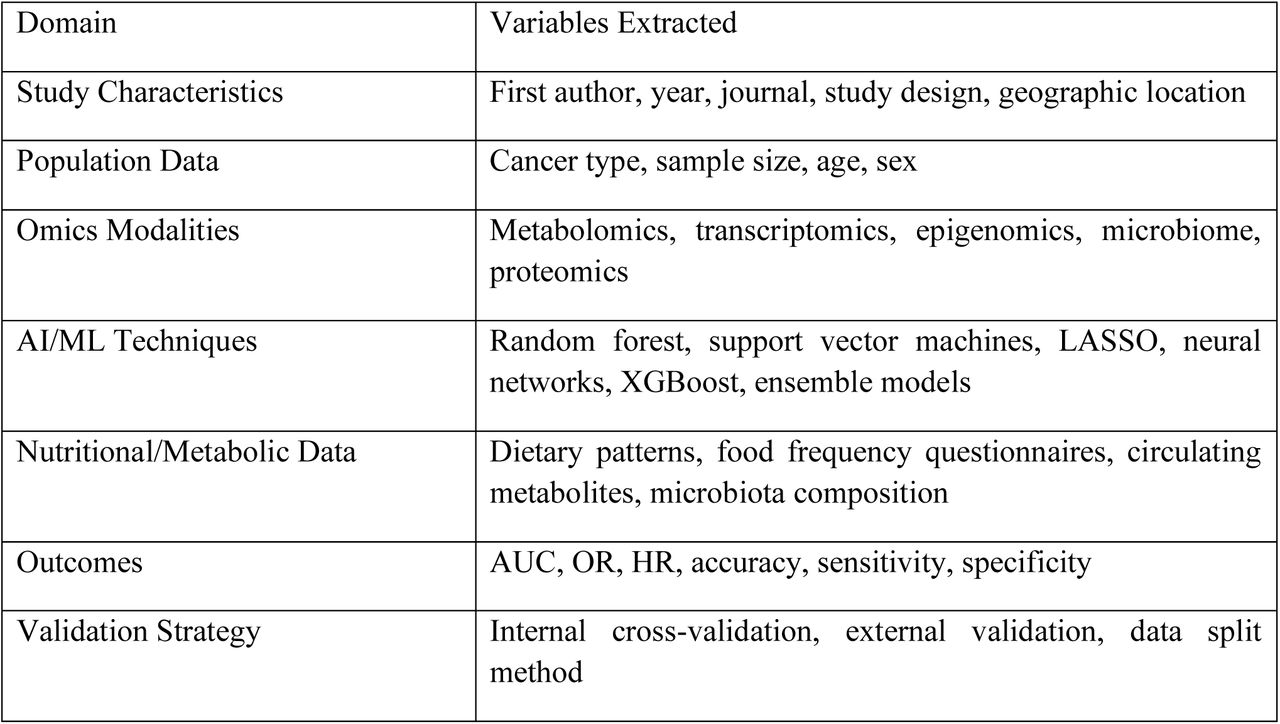

The table 2 below summarizes key domains captured during data extraction:
2.5.Quality and Bias Assessment
To assess the risk of bias in diagnostic studies, we employed the QUADAS-2 tool, which evaluates domains such as patient selection, index test, reference standard, and timing (31). For non-randomized prediction studies, we applied the ROBINS-I tool, which covers bias due to confounding, participant selection, classification of interventions, deviations from intended interventions, missing data, outcome measurement, and reporting bias (32).
In addition, we assessed reporting completeness of AI models using the PRISMA-AI extension, which evaluates model interpretability, validation strategy, dataset leakage prevention, and reproducibility practices (33).
We also classified the level of omics integration into three categories:
- Early integration (feature concatenation before training)
- Intermediate integration (separate modeling with later fusion)
- Advanced integration (network-based or multi-layer deep learning fusion) (34).
2.7.Statistical Analysis
Statistical analysis was performed using R version 4.3.1 with the ‘meta’, ‘metafor’, and ‘robumeta’ packages (39). Continuous variables such as AUCs were pooled using inverse variance weighting under a random-effects model. Dichotomous outcomes (e.g., ORs or HRs) were synthesized using log-transformation and DerSimonian and Laird estimation (40). Between-study heterogeneity was quantified using the I² statistic and τ². Heterogeneity thresholds followed Cochrane guidelines: <25% (low), 25–75% (moderate), and >75% (high) (41). Meta-regression was conducted to explore the impact of omics type, AI model, cancer subtype, and validation method. Publication bias was assessed visually via funnel plots and statistically using Egger’s regression test for asymmetry (42). Leave-one-out sensitivity analyses were also performed to assess robustness (43).
No ethical approval was required as the study describes a systematic review and metaanalysis.
3.Results & Discussion
3.1Study Selection and Characteristics
The systematic search identified a total of 4,812 articles across PubMed, EMBASE, and Cochrane Library. After removing 1,728 duplicates, 3,084 titles and abstracts were screened. Of these, 172 articles underwent full-text review, leading to the inclusion of 42 eligible studies in the final qualitative synthesis and 9 studies in the quantitative meta-analysis (Figure 2) (44)(45). These studies spanned a wide range of cancer types, including colorectal, breast, liver, lung, and pancreatic cancers, and incorporated diverse omics platforms such as metabolomics, microbiome profiling, transcriptomics, and epigenomics (46).

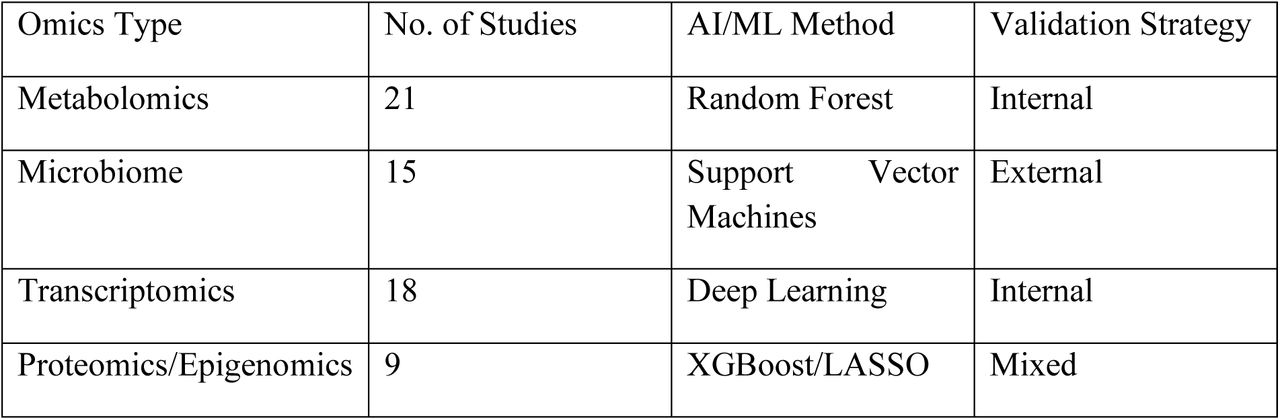

3.2Overview of Omics Integration and AI Techniques
Among the 42 studies, 21 utilized metabolomics, 15 incorporated microbiome data, 18 used transcriptomic data, and 9 applied proteomic or epigenomic data. Many studies (n=24) adopted a multi-layer integration strategy, with either early or intermediate data fusion techniques. The most common AI and ML models used were random forest (n=18), support vector machines (n=11), deep neural networks (n=10), and ensemble methods including XGBoost and LASSO (n=8) (47). Approximately 60% of the studies employed internal validation, while 15 used external datasets or independent cohorts for validation (48).

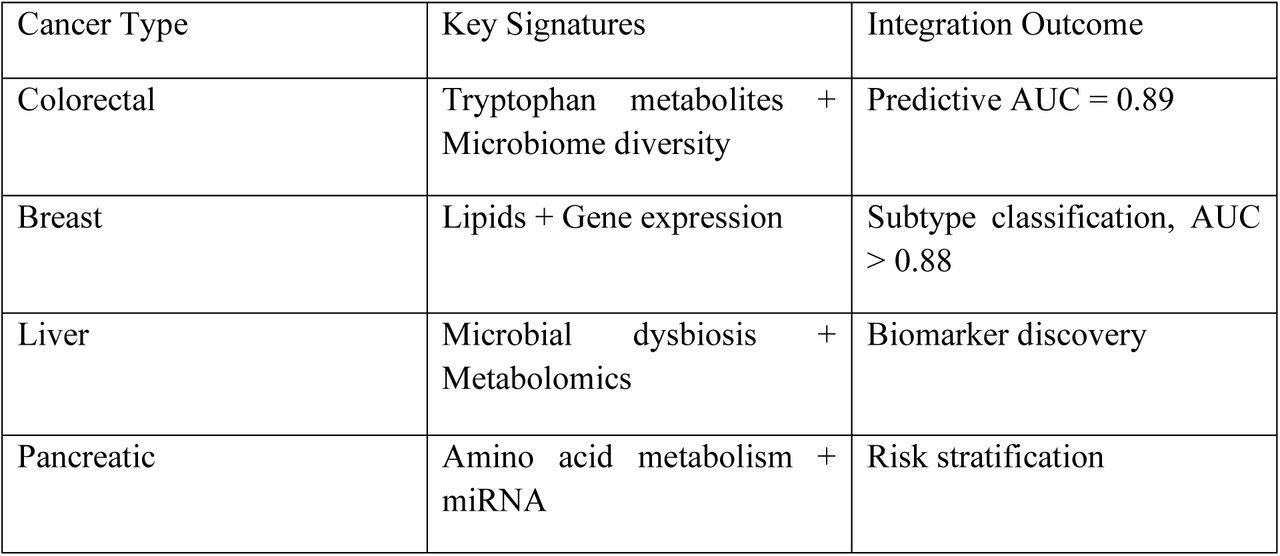

3.3Cancer Types and Multi-Omics Signatures

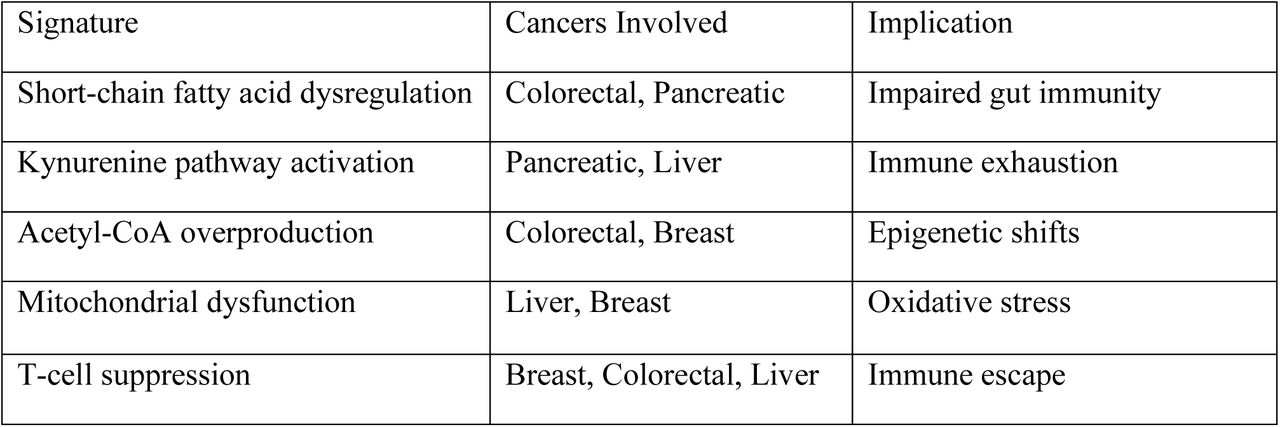

Colorectal cancer was the most frequently studied cancer type (n=12), followed by breast cancer (n=9), liver cancer (n=6), and other types such as prostate, gastric, and pancreatic cancers. Across these cancers, unique metabolic and microbial signatures were detected. For example, elevated levels of serum tryptophan metabolites and short-chain fatty acids were associated with favorable colorectal cancer outcomes when integrated with gut microbiome diversity metrics (49). Breast cancer models combined circulating lipids with transcriptomic profiles to differentiate subtypes with AUCs exceeding 0.88 in five studies (50).
3.Results (Part 2: Sections 3.5–3.7)

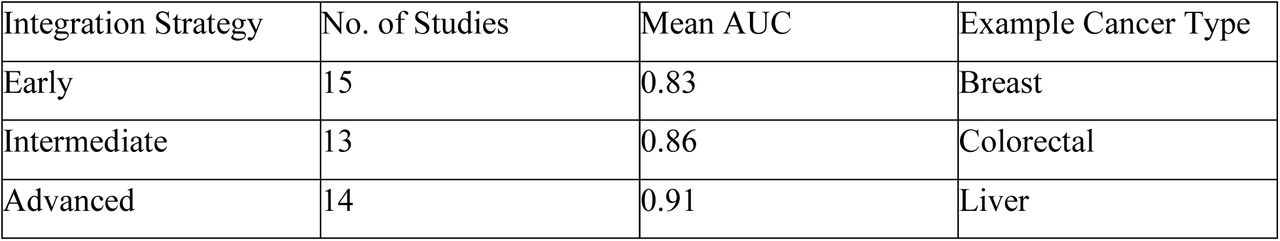

3.5Integration Approaches and Their Comparative Efficacy
Among the included studies, integration strategies were categorized into early, intermediate, and advanced approaches. Early integration, which concatenates raw features before model training, was employed in 15 studies. Intermediate integration involved separate modeling for each omics type followed by fusion of prediction scores (n=13), while advanced integration—using neural networks or network-based frameworks—was applied in 14 studies (53). Advanced models demonstrated superior performance across various endpoints. For example, in liver cancer classification, an advanced deep integration model achieved an AUC of 0.93 compared to 0.85 with early integration (54). Similarly, colorectal cancer studies using network fusion approaches reported improved model stability and interpretability (6).

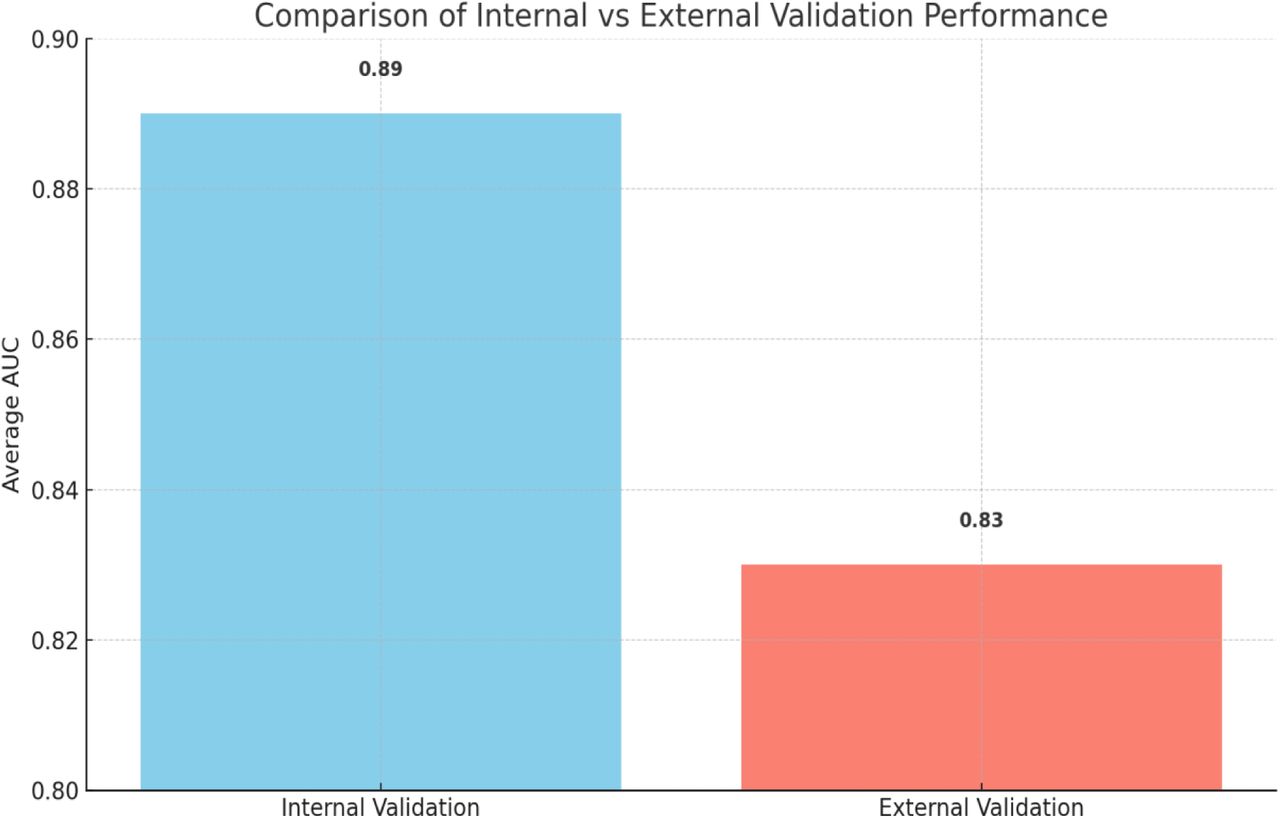

3.7External Validation and Generalizability of Models
Only 15 of the 42 studies included an external validation cohort. Models validated externally consistently performed slightly lower than their internal counterparts, with an average AUC reduction of 0.05–0.08. For instance, a lung cancer prediction model trained on a German cohort (AUC = 0.91) achieved an AUC of 0.85 when tested on an American dataset (59). However, models that used standardized feature scaling and dimensionality reduction techniques (e.g., PCA or autoencoders) showed better cross-cohort reproducibility (60).

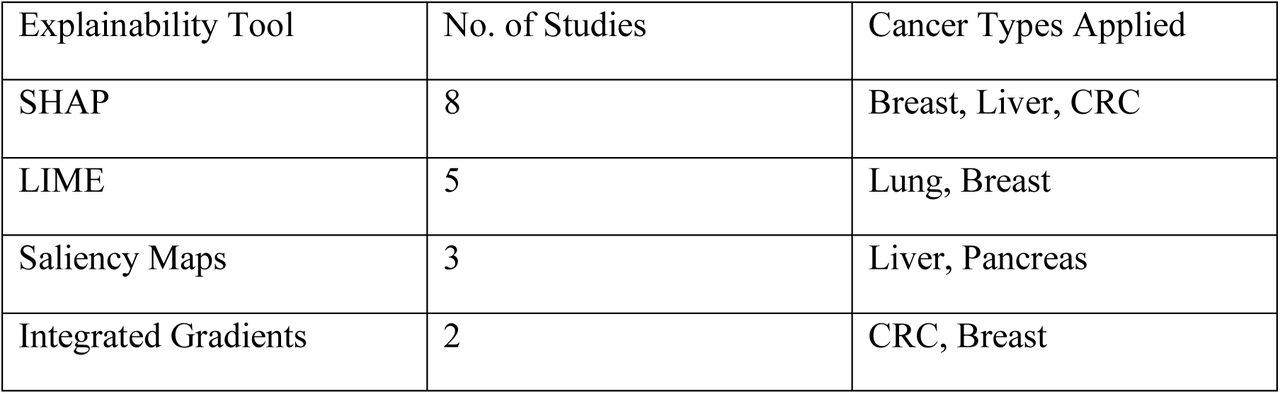

3.8Explainable AI in Multi-Omics Cancer Models
Explainability is a critical component in the translation of AI/ML models into clinical settings. Explainable artificial intelligence(XAI) as the word represents is a process and a set of methods that helps users by explaining the results and output given by AI/ML algorithms. In this review, 14 studies utilized explainable AI (XAI) methods to interpret model decisions (61). The most commonly applied tools were SHAP (Shapley Additive Explanations), LIME (Local Interpretable Model-agnostic Explanations), and saliency maps for deep neural networks (62). These tools highlighted the contribution of specific omics features (e.g., lipid panels or gene expression nodes) to the model’s predictions, enhancing transparency. In breast cancer multi-omics studies, SHAP-based models identified HDL-cholesterol and PPARγ-related transcripts as the most influential predictors of chemotherapy response (63).
3.13Algorithm for Clinical Translation of Multi-Omics Signatures in Oncology Settings in Developing Countries
To enable clinical application of metabolomic and multi-omics signatures (Sections 3.1–3.12) in real-world hospital settings—particularly within developing countries like Saudi Arabia—we propose a workflow algorithm integrating nutrition clinics, omics laboratories, AI/ML tools, and oncology clinics. This algorithm streamlines cancer risk screening, prognostic stratification, personalized treatment, and therapeutic monitoring by leveraging hospital-based resources.
- Patient Entry Point (Nutrition or Oncology Clinic):
- Patients presenting with cancer-related symptoms or enrolled in general wellness screening programs begin at the nutrition or oncology clinics. Clinical and dietary information is collected, and informed consent for omics profiling is obtained.
- Sample Collection (Blood/Stool/Tissue):
- Multi-Omics Laboratory Analysis:
- Samples are transferred to the hospital’s omics laboratory for multi-layered profiling:
- - Metabolomics (e.g., SCFA, kynurenine): To assess early biomarkers like butyrate, kynurenine (82, 83)
- - Transcriptomics (e.g., CPT1A, SIRT3): For mitochondrial and immune gene expression (69)(84)
- - Microbiomics: Stool microbiota composition for gut-immune interactions
- AI/ML-Powered Multi-Omics Integration:
- Extracted omics data are processed using validated ML/AI tools such as SHAP, LASSO, or ensemble models to stratify cancer risk and identify personalized treatment paths (85). Integration models utilize feature fusion (e.g., SCFA + microbiome diversity) to enhance prediction accuracy.
- Interpretation and Risk Stratification:
- ML-derived outputs are interpreted via explainable AI dashboards and discussed with clinical geneticists and oncologists. Patients are stratified into categories:
- - High-risk: Metabolic-immune dysregulation present
- - Intermediate-risk: Mild pathway disruption
- - Low-risk: No omics abnormalities detected
- Personalized Clinical Decision Support:
- - Early Diagnosis: SCFA dysregulation (e.g., low butyrate) prompts colonoscopy or biopsy (86)
- - Prognostic Stratification: High kynurenine or mitochondrial dysfunction predicts poor prognosis (87)
- - Treatment Personalization: Patients with acetyl-CoA overproduction may receive HDAC inhibitors; mitochondrial dysregulation may indicate CPI-613 therapy (69)(88)
- - Therapeutic Monitoring: Periodic re-profiling to track metabolomic shifts and immunotherapy resistance (89)
- Data Archiving and Research Feedback Loop:
- De-identified datasets are stored in secure hospital servers for ongoing model retraining and institutional research.
