Wastewater analysis for new psychoactive substances and cocaine and cannabis in a Northern Ireland Prison
https://ror.org/05wwcw481grid.17236.310000 0001 0728 4630Bournemouth University, Christchurch House C205, Talbot Campus, Fern Barrow, Poole, BH12 5BB UK
https://ror.org/05wwcw481grid.17236.310000 0001 0728 4630Bournemouth University, Christchurch House C239, Talbot Campus, Fern Barrow, Poole, BH12 5BB UK
Abstract
The global drug market has been significantly impacted by the emergence of new psychoactive substances, leading to challenges in creating effective legislative controls and their use within recreational drug consumption. This research explores the prevalence of new psychoactive substances and non-medicinal and medicinal compounds within a prison facility in Northern Ireland. Wastewater samples collected from seven different manholes within the prison were analysed for 37 target compounds including the two most found illicit substances: benzoylecgonine (primary metabolite of cocaine) and cannabis. Using solid phase extraction with Oasis HLB and liquid-chromatography-time-of-flight-mass spectrometry across a gradient of 9 min, our analysis revealed that benzoylecgonine was the sole compound consistently present in all collected samples. Following this finding, our target compound selection was broadened to encompass medicinal compounds and employing qualitative analysis we re-evaluated the samples and discovered the presence of buprenorphine, benzodiazepines, methadone, morphine, and codeine. Finally, the study explored the application of enzymatic beta-glucuronidase hydrolysis to the samples. This final phase yielded significant findings, indicating the presence of codeine and nordiazepam at higher peak intensities, thereby shedding light on the potential implications of this enzymatic process.
Introduction
In recent years, new psychoactive substances (NPS) have established themselves within society as a distinct category of substances. NPS is described as a heterogeneous group of substances associated with several health and social harms on an individual and societal level1. In 2020 alone, 7 tonnes of NPS were seized across Europe and by the end of 2021, 880 NPS were being monitored by the European Monitoring Centre for Drugs and Drug Addiction (EMCDDA)2 Across the globe, numerous legislations (Prisons Act 2021) and practices have been brought into effect to deal with the harms associated with the usage of NPS and to reduce their supply and production2–5. The overall use of NPS within the UK has remained low in comparison to other more traditional illicit substances (i.e., cocaine, cannabis) but the greatest concern is an increase in use and harm within high-risk groups i.e., homelessness, prison, or even high-poverty areas6. The Office of National Statistics published in August 2022, that the number of deaths in 2021 related to drug abuse/poisoning including NPS has increased since 2020 from 4,561 to 4,859 therefore, the number of deaths has nearly doubled in the last 10 years since 2012, up from 2,572 deaths7. 258 deaths in 2021 within that data set were deaths due to NPS specifically, an increase from 137 deaths in 20208,9.
In recent years, wastewater analysis has become a popular tool for determining illicit substances and NPS at a population level, providing insight into society's drug abuse trends10. Wastewater analysis is gaining popularity and can provide useful information. The analysis can be challenging because it involves the analysis of influent wastewater collected before any treatment, to provide a population-wide estimate of human consumption within the captured area. This has previously been successfully conducted in Australia, China, and Europe8–10.
This study aimed to evaluate the potential presence of thirty-seven target compounds, a combination of NPS, non-medicinal and medicinal analytes in the wastewater from sewage manholes located at a Northern Ireland Prison. The study provides a validated LC-ToF–MS method using a data-independent acquisition form of quantification. The results presented in this study can be used to provide avenues for future wastewater studies. Ethical approval for this study was obtained by Bournemouth University Ethics Committee (Ref ID: 25313).
Materials and methodology
Northern Ireland prison
A Northern Ireland Prison sewage system was monitored over a day in 2022. The samples were collected from 7 different sewage manholes. Each manhole corresponds to a particular in-mates ‘house’ on the prison grounds. Samples were labelled 1–7 to maintain anonymity between the in-mate houses. All samples were spot collections using 250 mL polypropylene bottles. The prison is a maximum-security facility with an inmate capacity of 1940 (as of 2020) with approximately 300 inmates per house11. Permission for water sampling at the prison was granted by the Governors and Senior Officers. The analyte selection for this study was based on commercial tender requirements, specific requests by the Prison and recurring submissions to projects such as WEDINOS.
Sample collection
Single 250 mL wastewater samples were collected from 7 different manholes located on the prison grounds. Each manhole was secured before collection. A polypropylene bottle was attached to a sampling rod purchased from Merck (Darmstadt, Germany) the rod was lowered into the manhole and a 250 mL spot sample was collected. The data and time of collection were noted on each bottle. Each manhole corresponds to a particular in-mates ‘house’ on the prison grounds. Samples were labelled 1–7 to maintain anonymity between the in-mate houses. Samples were stored in the freezer for 2 weeks and given 1 day to defrost before analysis. NPS has been shown to be stable in frozen wastewater for at least this period of time12–14. All samples were collected from manholes with free-flowing wastewater all of which are the main pipeline directing away from each inmate housing. During the time of collection, a minimum of 60% of the inmate population was confined to their living quarters.
Analytical materials
All analytes present and the corresponding deuterated internal standards were purchased from either Chiron (Norway) or Merck (Darmstadt, Germany) at concentrations of 1 mg/mL or 100 ug/mL in methanol (MeOH) or acetonitrile (AcN). Dilutions and working standard mixtures with concentrations ranging between 20 and 1000 ng/L were further prepared using HPLC grade MeOH. HPLC grade AcN, MeOH and formic acid were purchased from Rathburn Chemicals (Walkerburn, UK) whereas the ammonium acetate was purchased from Merck (Darmstedt, Germany). Ultrapure water was obtained by purifying tap water in an ELIX Millipore water purifier obtained from Millipore (Darmstedt, Germany). Oasis HLB (500 mg, 6 cc) SPE cartridges were purchased from Waters (New Bedford, MA, USA).
Sample preparation and solid phase extraction
Samples were kept frozen until analysis and given 1 day to defrost in a fridge ranging between 3 and 8 °C.
All samples were subjected to solid-phase extraction (SPE) and the same procedure was used for all investigated analytes. The SPE procedure is an adaptation of the protocol conducted by van Nuijs et al.15. The universal, polymeric reverse-phase SPE cartridges Waters HLB 500 mg, 6 cc (New Bedford, MA, USA) were used for this method. In detail, samples (25 mL) were spiked with 100 µL of a mixed internal standard solution at 50 ng/mL. The SPE cartridges were conditioned with 6 mL methanol and 6 mL deionised water. The samples were then passed through the cartridges under vacuum at a 5 mL/min rate. Cartridges were then washed with 3 mL of deionised water followed by vacuum drying for 5 min. Elution occurred with 4 mL of methanol followed by an additional 4 mL of methanol. The eluents were dried using a sample concentrator attached to a heating block set at 55 °C. Samples were then reconstituted using 100 µL of HPLC grade acetonitrile followed by 100 µL of 5 mM ammonium acetate. All samples were then transferred to a 96-deep well plate for analysis.
Instrumentation and method validation
37 compounds were targeted using an AB Sciex 5600 + liquid chromatography time-of-flight mass spectrometry (LC-ToF–MS) coupled with an electrospray ionisation (ESI) source (Table S1). Chromatographic separation was performed using a YMC-Triart Phenyl 450 bar column (12 nm, 5 µm, 100 × 3 mm) (Crawford Scientific, UK). Separation was carried out on a gradient method over 9 min. 5 mM ammonium acetate 0.2% formic acid (A) and methanol. (B) was used for the mobile phases.
Quantitative analysis was performed using ToF–MS utilising Sequential Window Acquisition of all THeoretical fragment-ion (SWATH) acquisition. The SWATH windows range between 175 m/z for the first window, ending at 505 m/z, all windows were present in positive ionisation mode. Every compound was quantified within the monoisotopic mass corresponding to a particular SWATH window.
Recovery was investigated using a combined methanolic standard with a concentration of 50 ng/mL, spiked into wastewater. Due to the high number of target analytes with multiple physiochemical properties, previous studies suggest the optimum SPE cartridge use is the Oasis HLB16–19. Oasis HLB provided an average recovery of 46% for all 37 compounds.
Linearity consisted of six calibration points at the following concentrations 20, 50, 100, 250, 500 and 1000 ng/L. The calibration curve was used for the quantification of grab wastewater samples from prison manholes. 10 internal standards were selected to cover the whole acquisition method due to the unavailability of internal standards for all 37 compounds, commercially. A 6-point calibration (R2 > 0.99) from 20 ng/L to 1000 ng/L was achieved for all 37 compounds. LOD was calculated between 4 and 20 ng/L for all analytes in spiked wastewater. LOQ was deemed to be the lowest calibrator level at 20 ng/L.
The intra- and inter-day accuracy and precision of the method were assessed using three different concentration levels across the linear range, situated at the lower end (80 ng/L), mid-range (300 ng/L) and top end (800 ng/L) in spiked wastewater. Inter-day and intra-day mean accuracy was calculated between 77 and 100%, the intra-day precision ranged between 8 and 20%, and the inter-day precision ranged between 7 and 30%, all using ANOVA as the statistical tool.
Results and discussion
The results of the measured concentration for each analyte and metabolite for each sample will be discussed in the following sections.
Hydrolysis
Another reason for the limited NPS detection in this study may be the presence of glucuronide analogues formed during metabolism. A small study was designed to determine whether compounds are being missed due to their glucuronide analogues not being broken down without hydrolysis. Three out of the total seven wastewater samples collected were randomly selected for this experiment, and each sample was separated into 5 individual aliquots of 25 mL. Enzymatic β-Glucuronidase BG Turbo was added to each aliquot (550 μL), and the sample was placed in an incubator set at 55 °C. Each sample was spiked with an internal standard as a qualitative check that extraction was successful.
All samples were left in the incubator at 55 °C and removed at a specific time interval (0, 1 h, 2 h, 24 h, and 48 h). Once all samples had time to cool in the fridge, all samples underwent SPE, as mentioned above, and were then analysed on the LC-ToF–MS method. PeakView software was used to qualitatively process the results. Results of the hydrolysis experiment concluded that there is an increase in compound concentration through hydrolysis, meaning that there is a change in concentration due to the breakdown of conjugated compounds.
Using BG Turbo as the enzyme, it was evident that most compounds reached complete hydrolysis at 2 h, the only difference being that buprenorphine hydrolysis was instant. The hydrolysis was measured based on an increase in peak height for all compounds. In total, 6 compounds were investigated, all being the more common medicinal substances prescribed in a prison setting. These compounds are also known to have glucuronide analogues: morphine-glucuronide, codeine-glucuronide, buprenorphine-glucuronide, oxazepam-glucuronide, and nordiazepam-glucuronide.

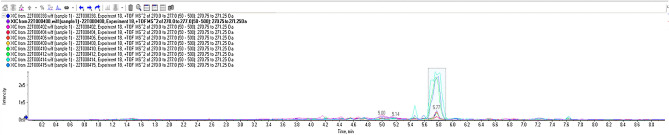

The results of one of the samples analysed (sample 6), showed a 200% increase in codeine between pre- and post-hydrolysis, indicating that the glucuronide analogue was preventing detection for codeine before 2-h hydrolysis. Before hydrolysis, there was no codeine detected in the sample. Nordiazepam was also showing between 173 and 172% increase in peak area from pre- to post-hydrolysis after 2 h. Figure 1 illustrates the peak for nordiazepam in every sample post-2-h hydrolysis.
It is well documented that these methods require hydrolysis when testing in urine but, Bijlsma et al. stated in their study that hydrolysis should not be a requirement with wastewater testing due to in-sewer deconjugation plus the potential removal from filtration and solid phase extraction34–36. But, based on this small study looking at glucuronide analogues of some of the more common medicinal substances, SPE does not optimally remove all analogues. Therefore, additional concentrations of analytes may be missed if hydrolysis is not carried out on wastewater samples if glucuronide analogues are present.
Study limitations
A limitation of this study is the sample collection method. Grab/spot sampling has been successfully used in several wastewater studies37,38, but composite sampling with its ability to collect samples over a specified period (24 h) with intermittent collection points, can provide a more representative sample of an area. Spot collections provide a single snapshot of wastewater composition at a specific point in time. The grab sample may not capture the full range of target analyte concentrations within the wastewater, but it can provide a present or not-present outlook on drug usage within a particular area. Finally, grab sampling may not align with the peak drug usage periods which can lead to an underestimation of drug concentrations. Composite sampling has proven to provide advantages when required for wastewater collection and illustrating drug trends. One of the main disadvantages is the cost involved. Composite auto-samplers can be costly and without funding to purchase or hire an autosampler, grab sampling is a much more affordable approach. A study conducted in the USA discusses the testing of wastewater within a prison setting21. This study explored the use of composite testing where 24-h samples across 2 days were collected to observe all urine pulses potentially containing illicit substances. The study found a quantifiable concentration of methamphetamine every day but did not detect benzoylecgonine (the main metabolite of cocaine) above LOQ21. Another limitation of our study is the number of samples collected, a total of 7 samples were collected on the same day. This doesn’t allow a comparative study of the drug trend within the prison; the results only provide a present or not-present indication. The frequency of sampling was low due to access restrictions to the manholes where the samples were collected, this was because of the prison security arrangements that had to be put in place. This was also hindered by the staff shortages and backlog within the prison system to allow any further testing. Limitations of low sample frequency within a prison setting has also been observed in other similar studies39.
Conclusion
Analysis of wastewater samples performed in the present study did not detect NPS within the Northern Ireland Prison. The study did provide evidence of the presence of cocaine use within the prison. Therefore, it is suggested that there is an illicit use of cocaine within the prisons when there is a strict no illicit/non-medicinal use policy. The negative finding for NPS could be caused by several factors, the NPS substances previously reported to be causing issues within prison settings may have evolved the target analytes are no longer relevant or the concentration of NPS is too low to be considered detectable due to the extensive dilution in water. Even though when a new NPS enters a population area, its uptake and popularity remain low in comparison to its illicit counterparts, the concentration within wastewater will remain very low. Even though no NPS were detected in this study, it is still evident that wastewater testing can be a vital tool for prison settings to utilise to explore any illicit substance abuse that is going undetected. It may be more beneficial for the prisons to adopt a more un-targeted, qualitative approach which in turn will reduce validation and development time but also be flexible to adapt to the ever-changing environment. Finally, if a prison setting requires a more comprehensive overview of the potential drug use among inmates, the adoption of a method that includes a 24-h autosampler will be beneficial and will provide the required data to achieve that objective.
Untitled section
Supplementary Information
Abbreviations
- SWATH
- Sequential window acquisition of all THeoretical fragmentation ion spectra
- MeOH
- Methanol
- NPS
- New psychoactive substances
- EMCDDA
- European monitoring centre for drugs and drug addiction
- LC-ToF–MS
- Liquid chromatography time-of-flight mass spectrometry
- SWGTOX
- Scientific working group for forensic toxicology
- QC
- Quality control
- WWTP
- Wastewater treatment plant
- MDPV
- Methylenedioxypyrovalerone
Supplementary Information
The online version contains supplementary material available at 10.1038/s41598-023-44453-4.
Data availability
The datasets used and/or analysed during the current study are available from the corresponding author upon reasonable request.
