Structural basis for recognition of bacterial cell wall teichoic acid by pseudo-symmetric SH3b-like repeats of a viral peptidoglycan hydrolase†
Institute of Food, Nutrition and Health, ETH Zurich Schmelzbergstrasse 7 8092 Zurich Switzerland yang.shen@hest.ethz.ch
Centro de Investigaciones Biológicas, Margarita Salas, Consejo Superior de Investigaciones Científicas Ramiro de Maeztu 9 28040 Madrid Spain
Centro de Investigación Biomédica en Red-Enfermedades Respiratorias (CIBERES) Avenida de Monforte de Lemos 3-5 28029 Madrid Spain
Laboratory for Biomolecular Modeling, EPFL IBI-SV Station 19 1015 Lausanne Switzerland
Institute of Food, Nutrition and Health, ETH Zurich Schmelzbergstrasse 9 8092 Zurich Switzerland
Structural Biology of Molecular Machines Group, Protein Structure & Function Programme, Novo Nordisk Foundation Center for Protein Research, Faculty of Health and Medical Sciences, University of Copenhagen Blegdamsvej 3B Copenhagen 2200 Denmark
University of Texas Medical Branch, Department of Biochemistry and Molecular Biology, Sealy Center for Structural Biology and Molecular Biophysics 301 University Blvd Galveston TX 77555-0647 USA
Instituto de Química-Física Rocasolano, Consejo Superior de Investigaciones Cientificas Serrano 119 28006 Madrid Spain
Abstract
Endolysins are bacteriophage-encoded peptidoglycan hydrolases targeting the cell wall of host bacteria via their cell wall-binding domains (CBDs). The molecular basis for selective recognition of surface carbohydrate ligands by CBDs remains elusive. Here, we describe, in atomic detail, the interaction between the Listeria phage endolysin domain CBD500 and its cell wall teichoic acid (WTA) ligands. We show that 3′O-acetylated GlcNAc residues integrated into the WTA polymer chain are the key epitope recognized by a CBD binding cavity located at the interface of tandem copies of beta-barrel, pseudo-symmetric SH3b-like repeats. This cavity consists of multiple aromatic residues making extensive interactions with two GlcNAc acetyl groups via hydrogen bonds and van der Waals contacts, while permitting the docking of the diastereomorphic ligands. Our multidisciplinary approach tackled an extremely challenging protein–glycopolymer complex and delineated a previously unknown recognition mechanism by which a phage endolysin specifically recognizes and targets WTA, suggesting an adaptable model for regulation of endolysin specificity.
Toc

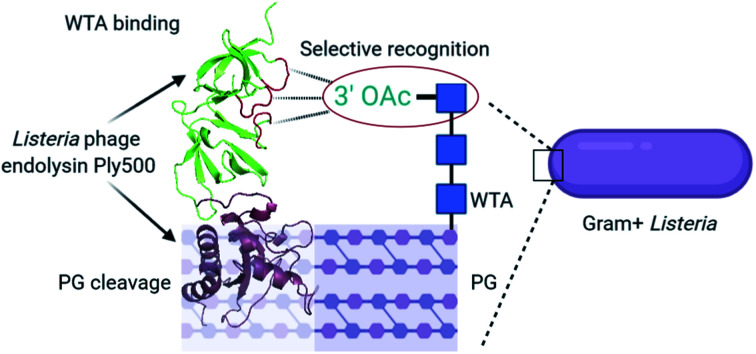

Combining genetic, biochemical and computational approaches, we elucidated the molecular mechanisms underlying the recognition of Listeria wall teichoic acid by bacteriophage-encoded SH3b repeats.
Introduction
Bacteriophage-encoded endolysins are peptidoglycan hydrolases that digest the bacterial cell wall and induce bacterial lysis at the final stage of the phage lytic cycle.1 Although they naturally work from within the infected cells, exogenous application of recombinant enzyme to susceptible bacteria can likewise lead to rapid degradation of their cell wall, termed lysis from-without.2,3 Due to their exceptional specificity and efficacy, phage endolysins are increasingly considered as alternatives to antibiotics for combating multidrug-resistant bacteria.4–6
The vast majority of endolysins from bacteriophages infecting Gram-positive bacteria possess modular architectures, encompassed in at least one enzymatically-active domain (EAD) and one cell wall-binding domain (CBD).7 The N-terminal EAD is responsible for cleaving a particular peptidoglycan (PG) bond, and the C-terminal CBD usually holds an independent regulatory function and determines the lytic spectrum upon targeting specific cell-wall elements distributed in a genus-, species- or strain-specific manner. The binding ligands for CBDs are usually of peptidoglycan or carbohydrate nature.8–10 Given their binding specificity, endolysins and in particular the CBDs constitute highly attractive scaffolds for antibacterial protein engineering.11,12
Listeria phage A500 encodes the endolysin Ply500, which comprises l-alanoyl-d-glutamate endopeptidase activity against Listeria spp. serovars 4, 5, and 6.10 Notably, Ply500 is able to rapidly lyse all serovar 4b strains, which are responsible for the vast majority of listeriosis outbreaks,13,14 rendering Ply500 an appealing anti-Listeria agent to use in food safety applications.15–17 Ply500 displays a modular architecture comprising largely independent CBD and EAD moieties connected via a short and flexible linker peptide (Fig. 1a).18 Although both modules seem to be required for full activity of this endolysin on its natural murein substrate,10,18 the isolated C-terminal domain (termed CBD500) binds live bacteria cells,10,19 as well as to purified wall teichoic acid (WTA)20 with high affinity.
In Listeria, WTA polymers account for up to 60% of the dry weight of the cell-wall, and are covalently bound to N-acetylmuramic acid (MurNAc) of the PG by a phosphodiester bond through a conserved linkage unit.21 The WTA chains extend beyond the PG layer, comprising 20 to 40 repeating units that are highly variable due to further glycosidic substitutions or modifications.22 Depending on their backbone units, two types of WTA exist (Fig. 1b): type I WTAs possess poly-[5)-Rbo-1-P-(O→]n chains of ribitol phosphate (Rbo-P) units, while type II WTAs feature repeating units of GlcNAc-Rbo-P, following the pattern [4)-GlcNAc-(β1 → 2/4)-Rbo-1-P-(O→]n. WTAs represent the O-antigen determinants in Listeria spp., and confer serovar diversity along with some H-antigens.23 We previously demonstrated that fluorescently labelled CBDs with distinct recognition and binding pattern could differentiate Listeria cells down to the serovar level.24,25 In particular, CBD500 was shown to specifically decorate Listeria strains carrying type II WTAs equipped with 3′O-acetylated GlcNAc, while tolerating further hexose substitution of the integrated GlcNAc moiety (Fig. 1b).20 Yet, the underlying recognition mechanism remains elusive with respect to polymer length, GlcNAc/ribitol connectivity, inherent flexibility and microheterogeneity (due to non-uniform, variable decoration of the repeating units). Thus, the attainment of an atomic-scale model required the combination of multiplex ligand- and receptor-based methods.
We used a state-of-the-art multidisciplinary approach to elucidate the mechanism underpinning the recognition of Listeria WTAs by CBD500 from both the ligand and protein perspectives. Employing X-ray crystallography, we solved the structure of CBD500 to 1.6 Å resolution, which comprises two copies of beta-barrel SH3b-like repeats held together by means of swapped beta-strands. Saturation Transfer Difference (STD) NMR26 studies of CBD500 in complex with full length WTAs derived from a selected panel of Listeria strains and mutants, highlighted the prerequisite of GlcNAc 3′O-acetylation for interaction with CBD500. “Blind” molecular docking on the solved structure suggested three putative binding pockets whose involvement in binding was furtherly assessed by site-directed mutagenesis and functionality assays. STD NMR-driven molecular dynamics simulations and isothermal titration calorimetry (ITC) aided to model the interaction, which is driven by hydrogen bond networks and van der Waals contacts. For the first time, we provide the atomic evidence that swapped SH3b-like repeats found in a Listeria phage endolysin permit the selective recognition of carbohydrate ligands,10,27 instead of PG-related peptides.28–30 This pioneering study fosters the existing knowledge on WTA recognition by endolysins and provides evidence on the diversification of the SH3b domain folding and binding site.
Results
Ply500 targets Listeria WTAs by recognizing O-acetylated GlcNAc residues

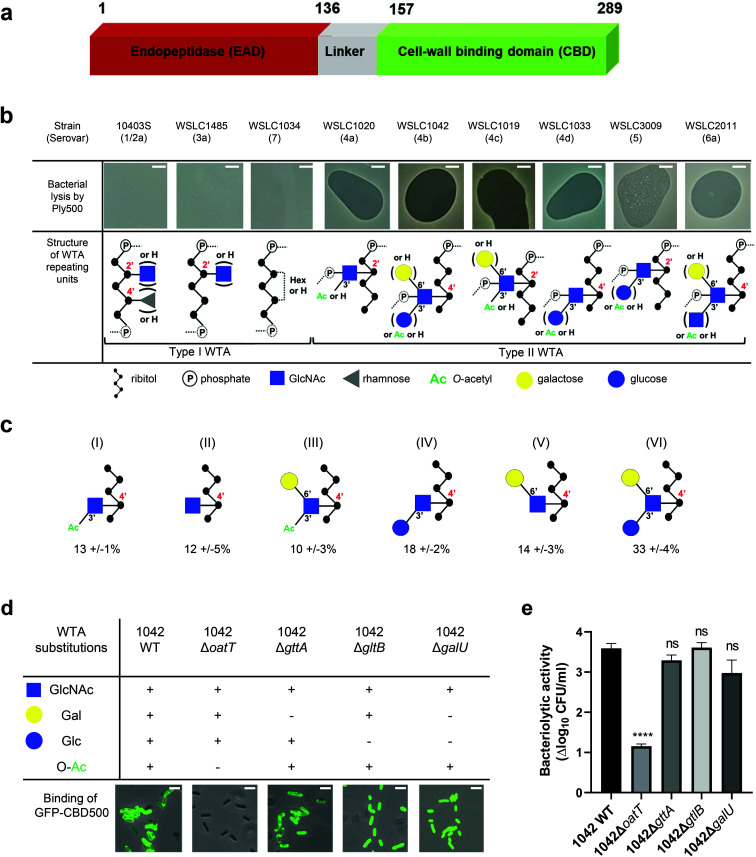

Spot-on-lawn assays confirmed previous findings that Ply500 specifically targets bacterial cell walls displaying type II WTAs (Fig. 1b), all of which feature O-acetylated GlcNAc integrated in the polymeric ribitol chain.10,20 To dissect the role of each respective modification of WTA in CBD500 binding, a series of WTA gene deletion mutants31 derived from the L. monocytogenes serovar 4b strain WSLC 1042 were employed. In the WT strain, WTA1042 features an unequal ratio of six monomer variants, determined by UPLC-MS analysis (Fig. 1c). Knock-out of oatT resulted in loss of WTA O-acetylation (ESI Fig. 1a†) and CBD500 binding, whereas deletion of gttA (led to a loss of Gal decoration) did not change the binding (Fig. 1d). Interestingly, loss of Glc in both galU and gltB knock-outs led to slightly enhanced binding, possibly owing to the higher degree of O-acetylation found in their WTAs (ESI Fig. 1b†). Consistent with the loss of CBD500 binding, 1042ΔoatT mutant cells were found to be significantly less sensitive to Ply500-mediated lysis as opposed to other WTA mutants (Fig. 1e).
Next, we sought to validate bacterial binding using CBD500 alone and extracted WTA polymers. As such, we immobilized CBD500 onto a surface plasmon resonance (SPR) chip, and used wild type and mutant WTA as the analytes. The SPR analysis revealed that the association of WTA with CBD500 is abolished for WTA lacking the O-acetylation (ESI Fig. 1c†). Likewise, binding of CBD500 to Listeria ivanovii WSLC 3009 (SV 5) was also prevented upon loss of GlcNAc 3′O-acetylation (ESI Fig. 1d and e†). In summary, these results indicate that CBD500 specifically recognizes O-acetylated WTA as its ligand.

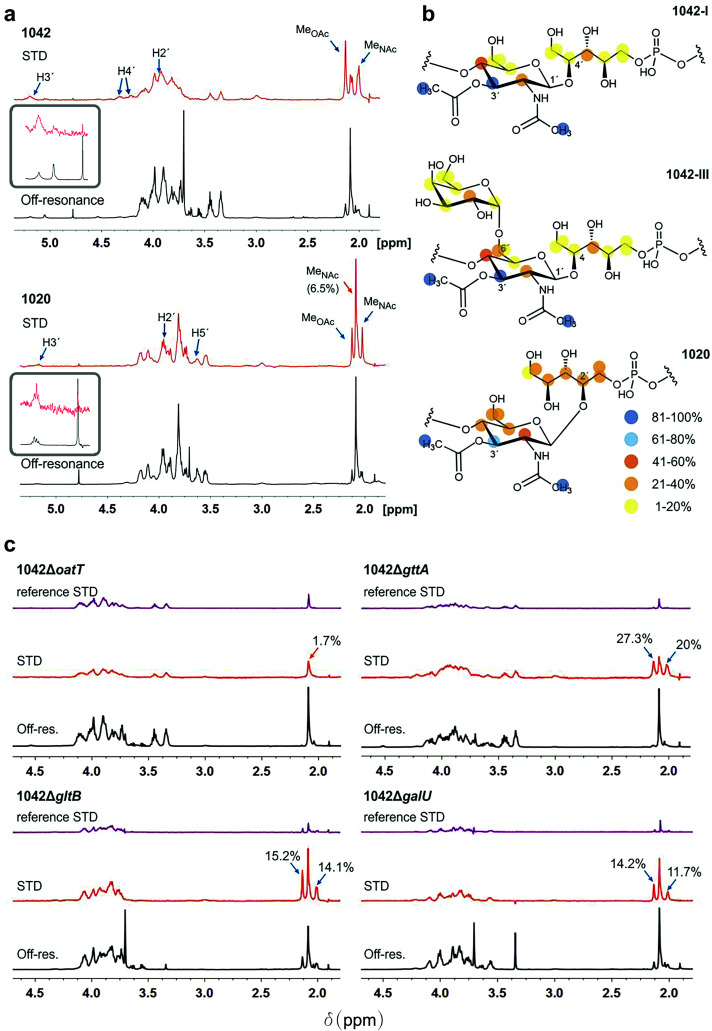

Identification of the carbohydrate epitope recognized by CBD500 with STD-NMR
First, the NMR signals of WTAs derived from WT strains and mutants were assigned (ESI Fig. S2a–c and Tables 1 and 2†), and the mean molecular size of WTA1042 and WTA1020 was estimated by diffusion ordered spectroscopy32 (DOSY) (14.7 and 17.7 kDa) respectively, (ESI Fig. S2d and e†) to facilitate the calculation of the molar concentration of repeating units taking into account the HPLC-MS estimates of relative monomer abundance. Next, their recognition by CBD500 was investigated by STD-NMR. This technique is based on selective irradiation of protein protons and subsequent detection of magnetization transfer to the ligand, allowing for uncovering of middle-range affinity binding, ligand screening, and epitope mapping.33 Measurements carried out in the presence of CBD500 gave rise to STD peaks for both WTA1042 and WTA1020 (Fig. 2a and ESI Table 3†), confirming specific binding of CBD500 to these structures. Resonances with chemical shifts (δ) in the range 2–2.13 ppm were unambiguously assigned to the methyl protons of GlcNAc units. For both WTA1042 and WTA1020, the strongest STD signals were observed for the O-Ac- and N-Ac-methyl protons of the 3′OAc-GlcNAc unit with up to 19 and 25% of spin saturation compared to the off-resonance spectra for O-Ac in WTA1042 and N-Ac in WTA1020 respectively, that were normalized to 100% for epitope mapping in each case (see ESI Table 3†), demonstrating that this unit is the primary docking point for the protein (Fig. 2a). Although several proton resonances of the 3′OAc-GlcNAc moiety are located in the crowded spectral region between 3.5–4.3 ppm, where partial resonance overlap complicates the assignment (ESI Table 3†), peaks belonging to H3′ of the 3′O-acetylated unit (∼5.2 ppm) were clearly distinguished in the STD difference spectrum, claiming for a strong engagement of the GlcNAc ring in binding. For WTA1042, and to a lesser extent for WTA1020, high magnetization transfer was observed for the 3′OAc-GlcNAc H4′ protons (Fig. 2a and ESI Table 3†) located on the opposite face of the pyranose ring. In striking contrast, the αGal and Rbo protons solely received medium to low saturation transfer, suggesting larger distances to the protein surface (Fig. 2b), again pointing to the GlcNAc moiety as the key interaction residue. Only negligible transfer was observed to the N-Ac-methyl protons of GlcNAc lacking 3′O-acetylation (less than 2% absolute values for WTA1042) discarding a significant involvement of these units in complex formation.
To establish the minimum WTA epitope required for CBD500–WTA interaction and investigate the relevant contributions of 3′O-acetylation or hexose (3′-OGlc or 6′-OGal) substitutions of the GlcNAc moiety, STD-NMR experiments were also performed using WTA isolated from defined WTA mutants (Fig. 1d). Lack of 3′O-acetylation completely abolished recognition by CBD500 (1042ΔoatT, Fig. 2c), in line with the previous observations (ESI Fig. 1c†). Indeed, the absolute STD value measured for the GlcNAc N-Ac-methyl protons was equivalent to the non-specific ligand saturation observed in absence of CBD500 (reference STD, Fig. 2c). For all three variant WTAs derived from the 1042ΔgttA, ΔgltB or ΔgalU mutants, magnetization transfer values were of similar intensity (ESI Table 4†), suggesting that 3′O-Glc and 6′O-Gal modifications are not essential for CBD500 recognition. Overall, findings obtained by NMR established 3′OAc-GlcNAc moiety as the key epitope for CBD500, and, in the case of WTA1042, indicate that Gal substitution at position 6′ is well tolerated.
Crystal structure of CBD500

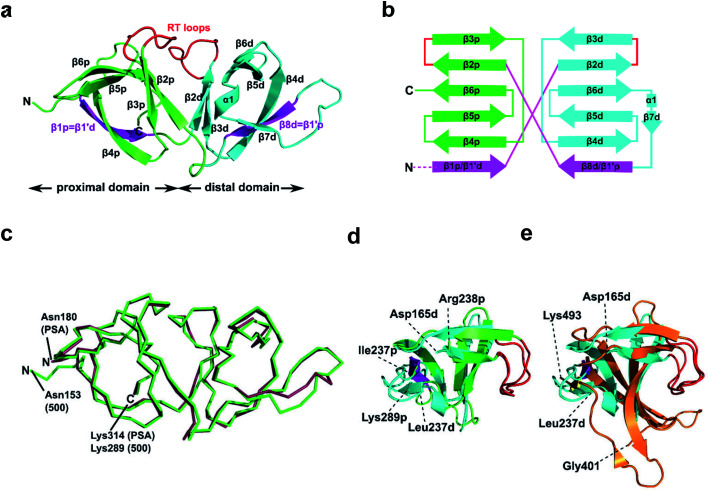

To further our understanding of the molecular interactions between CBD500 and WTA, we determined the crystal structure of His-CBD500 (aa 133–289) at 1.6 Å resolution by molecular replacement using the CBD of PlyPSA (PDB ID 1XOV) as a search model (structure solution statistics provided in ESI Table 5†). As described for Ply PSA,27 CBD500 consists of two adjoined SH3b-like (pfam PF08239) domains connected through structurally swapped β-sheets (Fig. 3a). The first β-strand (β1p/β1′d) forms a part of the proximal domain before connecting to the distal domain (β2d to β8d/β1′p) with the end of β8d connected to β2p of the proximal domain, which concludes with β6p. Only the distal domain features the α-helix turn (α1) and an additional β-strand (β7) as found in other SH3b domains.34,35 The two RT loops36 (connecting β2p-β3p and β2d-β3d) that are distinctive features of SH3 and SH3b repeats are positioned facing each other at the interface between the domains. For a simplified view, a topological diagram of the CBD500 secondary structure is shown in Fig. 3b.
A DALI search37 of the PDB with full-length CBD500 identified the CBD of PlyPSA27 as a structural homolog (RMSD 0.9 Å for 135 residues), which features the same structurally swapped β-strands connecting its SH3b repeats (Fig. 3c). Interestingly, as individual repeats, the proximal and distal subdomains of CBD500 feature high structural similarity (Fig. 3d), despite only 17% sequence identity. Both domains also present high structural similarity to staphylococcal bacteriocin CBDs consisting of single SH3b domains, such as ALE-1 (PDB ID 1R77; RMSD 2.0 Å for 54 Cα atoms)38 and lysostaphin (PDB ID 5LEO; RMSD 2.1 Å for 58 Cα atoms),35 including similar positioning of their individual RT loops (Fig. 3e).
Identification of the WTA-binding site in CBD500 by blind docking and site-directed mutagenesis

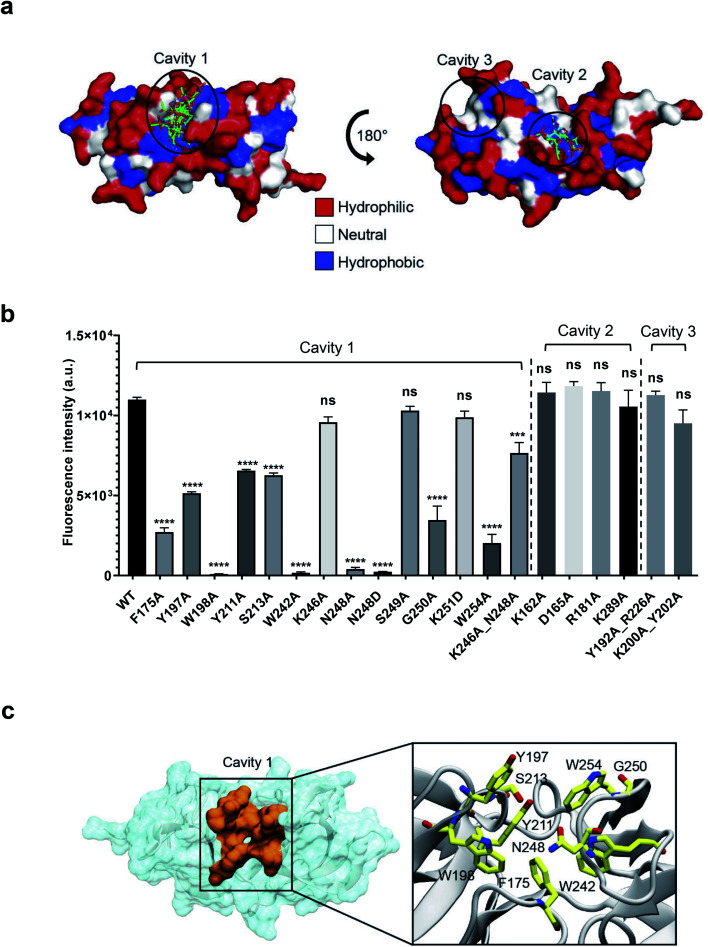

To precisely identify the WTA binding site, the 3-O-acetylated repeating unit of WTA1020 (GlcNAc-(β1 → 2)-Rbo-1-PO4) was docked onto the crystal structure of CBD500. Three putative cavities with hydrophobic patches were selected. Two of them were also identified by a blind docking carried out with AutoDock Vina39 using a grid box comprising the whole CBD500 surface (Fig. 4a), with cavity 1 preferentially occupied by ligand. A panel of alanine-scanning mutants within residues of these three cavities were produced and tagged with GFP, to enable quantitative determination of their relative binding capacity to the WSLC 1042 Listeria surface by fluorescence spectroscopy (see Methods†). Changing of W198, W242 and N248 to alanine almost completely abolished the binding, closely followed by W254A, F175A and G250A mutants (Fig. 4b). Other mutants showing a significant decrease in bacterial surface binding were Y197A, Y211A and S213A, thus inferring a contribution of the mutated residues to either conservation of the protein conformation or the complex formation. All affected residues are within the cavity 1, confirming the output prediction from the docking study.
The molecular weight, chain integrity, and conservation of the protein fold for all GFP-CBD500 mutants were confirmed by SDS-PAGE, analytic gel filtration, and circular dichroism spectroscopy, respectively (ESI Fig. 3a–c†). Only in the case of N248A a size reduction was observed, consistent with a 20 aa truncation at C-terminus identified by MS peptide mapping (data not shown). Another mutant (N248D) did not reveal any sign of truncation, yet still exhibited abolished binding (Fig. 3b). Interestingly, the double mutant (K246A_N248A) was able to restore the binding, albeit not to WT level. Furthermore, to reduce the influence of GFP tag, we examined the conformation of several non-tagged CBD500 mutants by analytical gel filtration. The elution profiles of all the mutants were similar to that of the WT (ESI Fig. 3d and e†).
We next tested if the lack of cell wall recognition by select mutants (W198A, W242A, N248A, and W254A) had an effect on the lytic ability of full-length Ply500 endolysin. Ply500 mutants were purified and tested against purified cell wall substrate (ESI Fig. S3f and g†). As expected, all Ply500 mutants bearing an inactivated CBD showed significantly reduced activity,18 confirming the importance of host recognition by the CBD and of the residues within cavity 1 for modulating the activity of Ply500.
Collectively, the site-directed mutagenesis experiments identified a tweezer-like site in the cavity 1 that possesses a distinctive patch of several hydrophobic and polar residues adjacent to the two RT-loops (Fig. 4c).
Modelling of 3′OAc-βGlcNAc-Rbo-PO4 in complex with CBD500

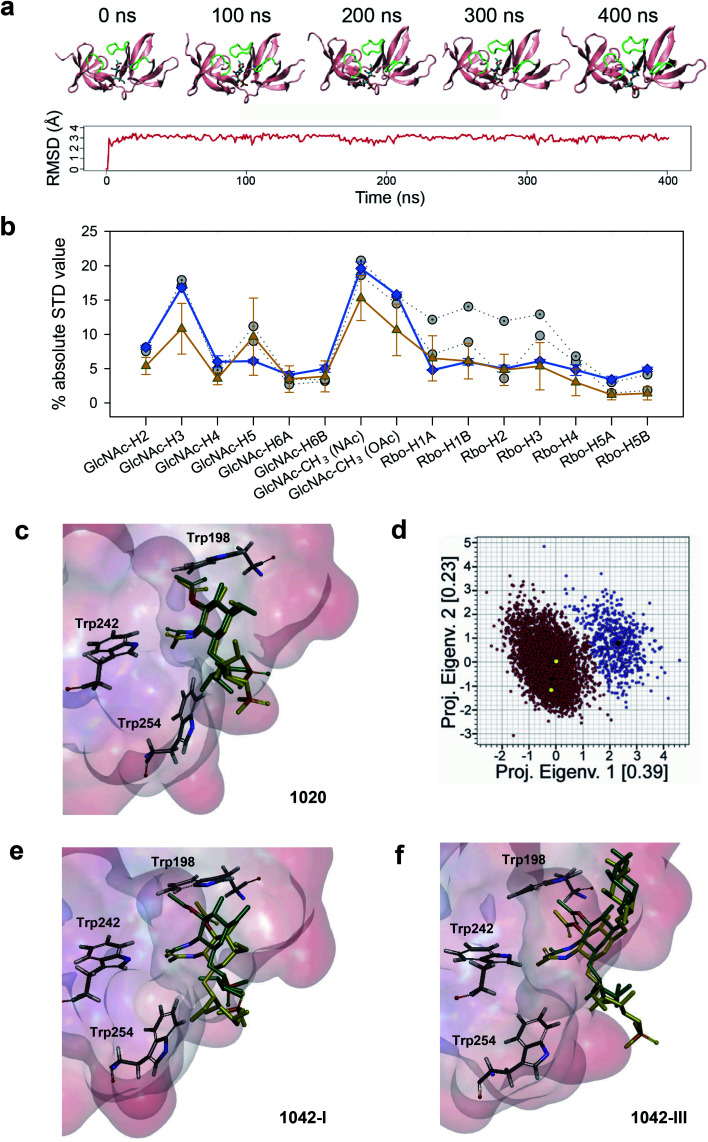

To identify the feasible interactions between CBD500 and WTA upon complex formation, STD-guided Molecular Dynamics (MD) simulations were run. First, the structure of each complex (CBD500 : WTA1020, CBD500 : WTA1042-I and CBD500 : WTA1042-III) was modelled by docking of the corresponding 3′OAc-bearing ligands onto the cavity 1 of CBD500. The MD starting structures were selected based on a combined criteria including favorable binding energy estimation, chain continuity, as well as best fitting between the experimental STD and the theoretically calculated values by applying CORCEMA-ST analysis (see Methods†).40
For the WTA1020 monomer, the CORCEMA-ST analysis pointed towards a single docking conformation for β-GlcNAc-(1 → 2)-Rbo in line with experimental STD values (Fig. 2a, ESI Table 3†). This docking output was used as input for MD simulations as described in the Methods section.† Throughout the simulation the monomeric ligand remained strongly bound at the interface of the RT loops, while the loops and the overall protein structure did not suffer notable distortions (Fig. 5a), therefore advocating for the establishment of a single WTA1020 repeating unit as the minimal epitope recognized by CBD500. The complete MD 5000-frame trajectory of WTA1020 was subjected to CORCEMA-ST analysis. The profile of the mean theoretical STD values was found to be analogous to the absolute STD experimental values (Fig. 5b), further supporting the use of a single repeating unit in the complex modelling. Protons that received the highest saturation transfer were the methyl protons of O- and N-acetyl groups of 3′OAc-GlcNAc moiety, followed by protons H3′ and H5′ of the sugar ring (Fig. 5b). The MD output was screened for experimentally conformist poses using CORCEMA-ST, yielding two representative monomeric structures for which the calculated absolute STD profile of the sugar ring protons reproduced experimental mean values (Fig. 5b). The position of the sugar ring remains unchanged at the binding cavity surrounded by several tryptophan residues (Fig. 5c). Both selected structures, belonging to the same and most populated group generated by geographical clustering (see Methods section†), were found to occupy a position close to the centroid of the cluster (Fig. 5d). Even considering with high confidence the GlcNAc ring anchored through the two acetyl groups, the Rbo protons exhibit significant motility throughout the MD (Fig. 5b and c), which could be attributed at least in part to the inherent flexibility of Rbo, as expected for a monomeric ligand with open edges.
Docking of WTA1042 I and III monomers onto CBD500 yielded two feasible solutions (modes A and B) per complex. Notably, they were up-down opposite orientations (ESI Fig. 4a and b†), where both acetyl groups of 2′-NAc and 3′-OAc of the GlcNAc exchange their relative positions, while still pointing inside the cavity, thus resulting in an inverted orientation of the polymer chain. MD simulations were run for mode A, with the equivalent orientation to the WTA1020 monomer pose. Although the ligand remained strongly bound throughout the MD trajectory, the mean theoretical STD profile for both WTA1042 monomers did not totally fit with the experimental values obtained with the WT polymer (ESI Fig. 4c and d†). While the calculation predicts the highest saturations for both, N- and O-acetyl proton groups, larger deviations originate from the calculated values for H4′ and H5′ protons in the opposite faces of GlcNAc pyranose ring, in contrast with MD results of WTA1020. As done for WTA1020, two representative structures for each monomer of WTA1042 I and III were selected after the clustering analysis. After superimposition into the binding site of CBD500, increased motility was observed for both WTA1042 monomers compared to that of WTA1020 (Fig. 5e and f). In fact, the two solutions of WTA1042-I showed a considerable shift of the GlcNAc ring, which was significantly reduced by the presence of Gal at position 6′ in WTA1042-III. In the context of a polymeric chain, the longer monomer chain and increased rotational freedom provided by ribitol in βGlcNAc-(1 → 4)-Rbo backboned WTAs could also account for a differential response in their recognition by CBD500, compared to β(1 → 2) in WTA1020.
Thermodynamics of the interaction of CBD500 and mutants with WTA polymers

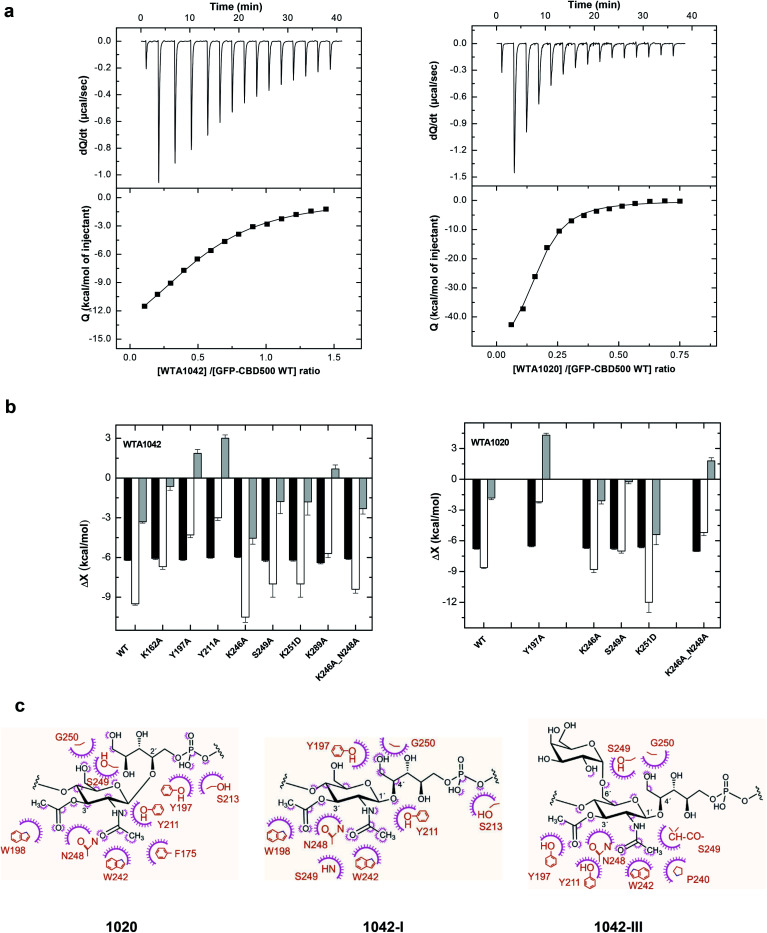

Next, the binding of CBD500 WT and selected mutants to WTA polymers was examined (Fig. 6a) by isothermal titration calorimetry (ITC) with emphasis on WTA1042 to investigate the binding energetics of complex formation. As often in carbohydrate–protein interactions,41 the complex formation takes place with a favorable enthalpy change, partially compensated by unfavorable entropic contributions (Table 1 and ESI Table 6†). The affinity of CBD500 for WTA1020 is about three times higher than for WTA1042, due to its less unfavorable entropy of binding. This fact could denote a higher loss of conformational freedom upon complex formation related to differences in the conformational behavior of their respective repeats. In agreement with fluorescence binding studies, those negative-binding mutants practically abolished the interaction with WTA, whereas the combination of K246A and N248A restored the WTA binding capacity lost by N248A. The binding energetics of CBD500 WT and mutants K246A, S249A, K251D and K246A_N248A to WTA1042 were similar. Equivalent results were obtained for WTA1020 titration into K246A, S249A and K251D mutants, although significant compensating differences in the enthalpy and entropy of binding of the two latter were perceived with respect to WT. Mutants Y197A, Y211A and K246A_N248A showed a different behavior, as both the enthalpy and the entropy change favored their binding to WTA1042 and/or WTA1020. This indicates a reduction of hydrogen bonds and/or van der Waals interactions, and is consistent with the binding modes inferred from STD and MD results (see below). Besides, positive entropy changes also support the participation of hydrophobic interactions in the complex formation. Replacement of K162 or K289 with alanine unexpectedly affected both the enthalpy and the entropy of binding, despite their distance to cavity 1. This behavior may denote some alteration in the pi coordination of aromatic rings mediated by Phe175 (see below), since K289 is connected to Phe175 via Tyr286, and to K162 by triple H-bonding. Remarkably, the stoichiometry of binding for CBD500 WT and the positive-binding mutants was comparable, with approximately 50–60% of all available 3′OAc-GlcNAc units in a WTA polymer chains interacting with a CBD monomer each, and making feasible an avidity increase due to the high local concentration of WTA chains at the bacterial wall surface.
| Constructs | Binding to Listeriaa | N b | K b (M−1) | −ΔH (kcal mol−1) | −ΔG (kcal mol−1) | TΔS (kcal mol−1) |
|---|---|---|---|---|---|---|
| WT | + | 1.88 ± 0.03 | (3.5 ± 0.2) × 104 | 9.5 ± 0.1 | 6.20 ± 0.03 | −3.3 ± 0.1 |
| K162A | + | 2.1 ± 0.2 | (2.8 ± 0.4) × 104 | 6.7 ± 0.2 | 6.07 ± 0.08 | −0.6 ± 0.3 |
| Y197A | (+) | 1.8 ± 0.1 | (3.3 ± 0.4) × 104 | 4.3 ± 0.2 | 6.16 ± 0.07 | 1.9 ± 0.3 |
| Y211A | (+) | 2.2 ± 0.2 | (2.5 ± 0.2) × 104 | 3.0 ± 0.2 | 6.00 ± 0.05 | 3.0 ± 0.25 |
| K246A | + | 2.0 ± 0.1 | (2.3 ± 0.2) × 104 | 10.5 ± 0.2 | 5.95 ± 0.05 | −4.55 ± 0.45 |
| S249A | (+) | 1.5 ± 0.1 | (3.6 ± 0.5) × 104 | 8.2 ± 0.2 | 6.30 ± 0.03 | −1.9 ± 0.2 |
| K251D | + | 1.0 ± 0.1 | (3.5 ± 0.5) × 104 | 8 ± 1 | 6.20 ± 0.08 | −1.8 ± 1 |
| K289A | + | 2.0 ± 0.2 | (4.8 ± 0.7) × 104 | 5.7 ± 0.2 | 6.39 ± 0.09 | 0.7 ± 0.3 |
| K246A_N248A | + | 2.3 ± 0.5 | (2.9 ± 0.3) × 104 | 8.4 ± 0.3 | 6.09 ± 0.06 | −2.3 ± 0.4 |
| I252A | (+) | Protein aggregation prevented quantification of ITC data | ||||
| W254A | — | Extremely weak affinity not quantifiable by ITC | ||||
| F175Ac | — | No binding detected by ITC | ||||
| W198A | — | Extremely weak affinity not quantifiable by ITC | ||||
| W242Ac | — | No binding detected by ITC | ||||
| N248Ad | — | Extremely weak affinity not quantifiable by ITC | ||||
| GFP | — | No binding detected by ITC | ||||
Atomic interaction of CBD500 with 3′OAc-βGlcNAc-Rbo-PO4
The models derived by the STD-driven MD studies for the three feasible complexes (CBD500 : WTA1020, CBD500 : WTA1042-I and CBD500 : WTA1042-III) displayed both N- and O-acetyl groups of the GlcNAc unit deeply docked into the binding site, whereas the Gal unit (WTA1042-III) sat at a shallower location, near the CBD500 surface. Notably, the amino acid residues inferred, from the functional and thermodynamic data, to be involved in GlcNAc recognition were well conserved in the final selected models based in STD data and in MD clustering analysis based on topographical criteria (ESI Fig. 5a–c and Table 7†). The GlcNAc ring was consistently involved in bidentate hydrogen bonding through atoms of the acetyl groups, mainly O2N and O1A, and van der Waals contacts mediated by their methyl groups, further supporting the essential role of 3′-OAc decoration in WTA for CBD500 recognition. Trp242 seemed to establish an undisrupted H-bond with GlcNAc atom O2N through its NE1 proton (RMSD between atoms kept at ∼3 Å). Additionally, two main patterns of GlcNAc gripping by Trp198 and Tyr211 were discerned out of the three 400 ns simulations and, remarkably, they appear to be mutually exclusive (ESI Fig. 5b,† right panels). Thus, when Trp198 is hydrogen-bonded to O1A of the 3′-OAc group, the N2 atom of 2′-NAc group is captured by neighboring Tyr211, as predominantly observed in WTA1020 recognition (ESI Fig. 5a†). Positioning of the Rbo-PO4 chain in these cases also favored the establishment of H-bonds between the side chain of Ser213 and phosphate oxygen atoms. Alternatively, GlcNAc:O1A can act as acceptor of the OH group of Tyr211 instead of Trp198:NE1, while the distance between Ser213 and the phosphate sharply increases. This pattern was primarily observed throughout the simulations run with WTA1042 (ESI Fig. 5b, c and Table 7†). Out of the two WTA1042-I poses selected on the basis of correlation to the experimental STD values for the ΔgttA polymer (lacking 6′ Gal, Fig. 5e), each showed a distinct recognition pattern – GlcNAc:N2 to Tyr211:OH or Tyr211:OH to GlcNAc:O1A (ESI Fig. 5b,† upper and lower structures respectively) and belonged to separate, comparably populated clusters (data not shown). In contrast, the two selected poses of WTA1042-III (Fig. 5f) belonged to the same and most populated cluster (data not shown), and presented the same H-bond pattern with Tyr211:OH acting as donor (ESI Fig. 5c†).
Apart from the aforementioned key residues, additional amino acids participated in an intricate H bond network (ESI Fig. 5b†, right panel), such as Ser249, whose main chain gripped either GlcNAc:O2N (WTA1042) or Rbo:HO-5 (WTA1020). The neighboring amino acid, Gly250, frequently captured Rbo:O5 in all repeating units, yet atom distance showed high deviation (ESI Table 7†), probably due to the Rbo inherent flexibility. Taken together, the prevalent establishment of a distinct H-bonding pattern in WTA1042 compared to WTA1020 advocates for a distinct, comprehensive CBD500 recognition mode in a global perspective.
In addition to H bonding, van der Waals interactions41 and carbohydrate–aromatic interactions42 were expected to be particularly relevant in the formation of CBD500-complex (Fig. 6c), thanks to methyl-protons sets of C–H moieties and the GlcNAc pyranose ring on the ground of a binding site with high density of aromatic residues. Interestingly, Tyr197 appeared as a good candidate to stack with GlcNAc pyranose ring in some docking poses. However, the interaction was not maintained throughout the 400 ns MD considering the distance and the angle between aromatic and pyranose rings. Alanine scanning indicated that Tyr197 switching to Ala did not induce significant affinity loss when the Y197A mutant was titrated with WTA1042 (Table 1), despite some alteration in thermodynamic behavior of the complex. Furthermore, the quantified fluorescent binding of Y197A mutant labelled with GFP to the Listeria cells was in the same range as for the WT (Fig. 4b). Altogether, these data suggest that pyranose-aromatic geometrical stacking does not play an essential role in the binding. On the other side, MD simulations with the WTA1020 monomer also indicated the establishment of van der Waals contacts between the 3′OAc-methyl group of the ligand and the side chain of Asn248, whose loss might also alter the interactions mediated by the Ser249 main chain in the N248A mutant. Phe175, buried in the bottom of the binding groove, was not found to interact directly with WTA1042 as with WTA1020, but it may play an important structural role through pi coordination of aromatic rings. Therefore, our data suggest that both H bonding and van der Waals interactions greatly contribute to the specificity of the carbohydrate-binding CBD500, allowing for ligand selection with structural heterogeneity.
Discussion
Bacteriophage-encoded endolysins represent a highly attractive class of potent antibacterials, due to their narrow target spectrum, rapid and strong lytic activity. Accordingly, the molecular basis of their cell wall recognition by the endolysin CBD domains is important for development and design of such novel therapeutics. Toward this end, we employed a multidisciplinary strategy, including genetics, biochemical characterization, mutational screening, X-ray crystallography, ligand-based NMR, thermodynamics of binding and computational modelling, to elucidate the structure–function relationship of a bacteriophage endolysin in complex with its WTA ligand.
However, structural studies of WTAs are extremely challenging due to their inherent microheterogeneity and flexibility. Yet, the here described multidisciplinary strategy allows to pinpoint the mechanism by which CBD500 specifically recognizes the 3′OAc-GlcNAc moiety in the context of a Rbo backbone via a surface-exposed cavity located at the interface of SH3b-like repeats. This cavity comprises multiple aromatic residues that are commonly involved in protein–carbohydrate recognition,43 despite no direct pyranose-aromatic stacking was identified. The residues located at the cavity make extensive interactions with the two acetyl groups via hydrogen bonds and van der Waals contacts, while permitting the docking of the WTA ligand regardless of the diastereomorphic connectivity (C2 vs. C4) on Rbo and hexose substitution.
We proposed a model for the CBD500–WTA complex (ESI Fig. S6a†), which is new and distinct from current knowledge of ligand interaction with other SH3b-like domains. For instance, the single SH3b of lysostaphin has been shown to recognize the stem peptide and pentaglycine bridge of PG using a two binding-site mechanism 9 (ESI Fig. S6b†). The CBD of Bacillus endolysin LysPBC15 30 was shown to bind the peptidoglycan through separate binding sites located on opposite sides of its SH3b domains (ESI Fig. S6c†). Similarly, the CBD of Clostridium endolysin PhiSM101 29 features putative peptide-binding sites facing in opposite directions of ‘pseudo dimer’-like SH3b repeats (ESI Fig. S6d†). This bivalent mode of binding is in strong contrast to the single binding site of CBD500 at the interface between the pseudo-symmetric SH3b repeats. Based on these observations, it appears that the SH3b domains are not homogenous, but have evolved to produce diverse binding sites for recognition of different peptide and carbohydrate ligands. In addition, we found that the SH3b repeats of CBD500 are joined together through β-strand swapping, while the SH3b repeats of both Psm and LysPBC5 fold separately and connect in a more conservative fashion via a short linker. The difference in topology may also contribute to the different mechanisms of ligand binding.
The RT loops appear to be fundamental for binding by SH3 and SH3b domains. In eukaryotic systems, SH3 domains feature a canonical binding site involving the region between the RT and Src loops, which typically binds through protein–protein interactions.44 In fact, this closely resembles the properties of CBD500 and the lysostaphin SH3b domain that interacts with PG through their RT loops.35 Despite most Listeria phage CBDs feature similar domain architectures, some of them, e.g., CBDP35 and CBD025, appear to recognize different types of WTA polymers.19,20 Further research is required to dissect this subtle structural disparity and understand how phage endolysins evolved diverse binding strategies to different ligands at the atomic level. Interestingly, three known Listeria virulence factors, InlB, autolysin-like IspC and P60 also feature multiple SH3b repeats at their C-terminus, which have been demonstrated to adhere to glycosyl-polyol teichoic acids.31,45,46 Our data may provide guidance on the target specificity and support future studies of the role of other SH3b-like repeats in virulence and immune defense.
In addition to SH3b, several cell wall-binding modules and their recognizing ligands have been described in structural detail. For instance, the multimodular LysM motifs bind to the PG disaccharide β-N-acetylmuramic acid (1 → 4)-β-N-acetylglucosamine in a ‘beads on a string’ fashion,47 or form a binding groove through the intrachain dimerization when interacting with N-acetylglucosamine-containing chitin.48 Intriguingly, the molecular diversity of LysM is reminiscent of what we found in diverse SH3b-like domains. The three tandem α-helical repeats of Cpl-7 that recognize the PG MurNAc-l-Ala-d-isoGln muropeptide;8 the CBDs of Bacillus phage endolysin PlyL and PlyG that binds to the secondary cell wall polysaccharides;49 and the choline binding repeats described in Streptococcus pneumoniae PG hydrolases that interact with the phosphorylcholine residues on teichoic acids through a left-handed β-solenoid domain.50 These variable cell-wall binding modules provide a pool of scaffolds that may be engineered as molecular tools or payloads to target specific bacteria for diagnostic and therapeutic applications.
O-Acetylation of the MurNAc residues in PG is known to modulate cell wall biosynthesis in S. pneumoniae.51 In a large number of Gram-positive pathogens, this peptidoglycan modification has been shown to confer resistance to lysozyme, a key effector of the innate immunity.52 However, the presence of O-acetylation on other cell wall components has only been uncovered recently, such as in Listeria WTA,20,53Mesorhizobium loti LPS,54 and the GlcNAc residue of Lactobacillus plantarum PG.55 These findings underline the important roles of O-acetylation in modulation of autolysin activity, interaction with protozoans, and even virulence.31 Interestingly, O-acetylation of other bacterial surface polysaccharides has also been identified as essential modifications for antibody recognition, and thus needs to be considered in vaccine development.56,57 Here, we identified another eminent function of O-acetylation of WTA in the recognition by phage endolysins, which are important for phage–bacteria interaction. Surprisingly, the binding affinity (ca. KD = 10−4 M measured in solution by ITC analysis) appears significantly lower than the previously reported nanomolar affinities determined by immobilizing whole cells on the SPR surfaces.10 It is conceivable that weaker local biomolecular interaction may allow the endolysins to better diffuse within the cell wall based on higher dissociation and re-association, and results in an increased avidity through WTA multivalent presentation at cell surface, thereby potentiating the hydrolysis of PG bonds. An intriguing hypothesis is that the mutual adaptability between the binding site and the ligand not only determines the binding specificity, but also boosts the activity of endolysin. The atomic insights and dynamic structures shown in this study will pave new ways towards research in this direction.
Data availability
The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.
Conflicts of interest
The authors declare no conflicts of interest.
Supplementary Material
Acknowledgements
We thank Prof. Raffaele Mezzenga and Michael Diener (ETH Zurich) for providing access to circular dichroism spectrophotometers, and are grateful to the staff at the beamline X06SA of the Swiss Light Source (Paul Scherrer Institute, Villigen, Switzerland). E. T. S. has been supported by the Swiss National Science Foundation (SNF) grant 310030_156947/1. F. J. C. and M. M. have been supported by the Spanish Ministry of Science Innovation and Universities and FEDER funding (grants RTI2018-094751-B-C22 and BFU2015-70072R) and CIBERES, an initiative from the Spanish Institute of Health Carlos III. We acknowledge the technical support by Noelia Hernandez at IQFR and the access to NMR facility at CIB. We thank Sylvain Träger (EPF Lausanne) for providing the clustering algorithm and for fruitful discussions.
