A conserved strategy of chalcone isomerase-like protein to rectify promiscuous chalcone synthase specificity
Graduate School of Engineering, Tohoku University, Aza Aoba, Aramaki, Aoba 6-6-11, Sendai, Miyagi 980-8579 Japan
Graduate School of Natural Science and Technology, Kanazawa University, Kakuma, Kanazawa 920-1192 Japan
Department of Integrative Genomics, Tohoku Medical Megabank Organization, Seiryo 2-1, Sendai, Miyagi 980-8573 Japan
Structural Bioinformatics Laboratory, Biochemistry, Faculty of Science and Engineering, Åbo Akademi University, Turku, Finland
Genome Medical Science Project, National Center for Global Health and Medicine, 1-21-1 Toyama Shinjuku-ku, Tokyo, 162-8655 Japan
The RIKEN Center for Sustainable Resource Science, Yokohama, Kanagawa 230-0045 Japan
Experimental Farm, Faculty of Agriculture, Meijo University, Kasugai, Aichi 486-0804 Japan
National Institute for Basic Biology, Okazaki, Aichi 444-8585 Japan
Abstract
Land plants produce diverse flavonoids for growth, survival, and reproduction. Chalcone synthase is the first committed enzyme of the flavonoid biosynthetic pathway and catalyzes the production of 2′,4,4′,6′-tetrahydroxychalcone (THC). However, it also produces other polyketides, including p-coumaroyltriacetic acid lactone (CTAL), because of the derailment of the chalcone-producing pathway. This promiscuity of CHS catalysis adversely affects the efficiency of flavonoid biosynthesis, although it is also believed to have led to the evolution of stilbene synthase and p-coumaroyltriacetic acid synthase. In this study, we establish that chalcone isomerase-like proteins (CHILs), which are encoded by genes that are ubiquitous in land plant genomes, bind to CHS to enhance THC production and decrease CTAL formation, thereby rectifying the promiscuous CHS catalysis. This CHIL function has been confirmed in diverse land plant species, and represents a conserved strategy facilitating the efficient influx of substrates from the phenylpropanoid pathway to the flavonoid pathway.
Untitled section
Subject terms: Biochemistry, Evolution, Plant sciences
Web Summary

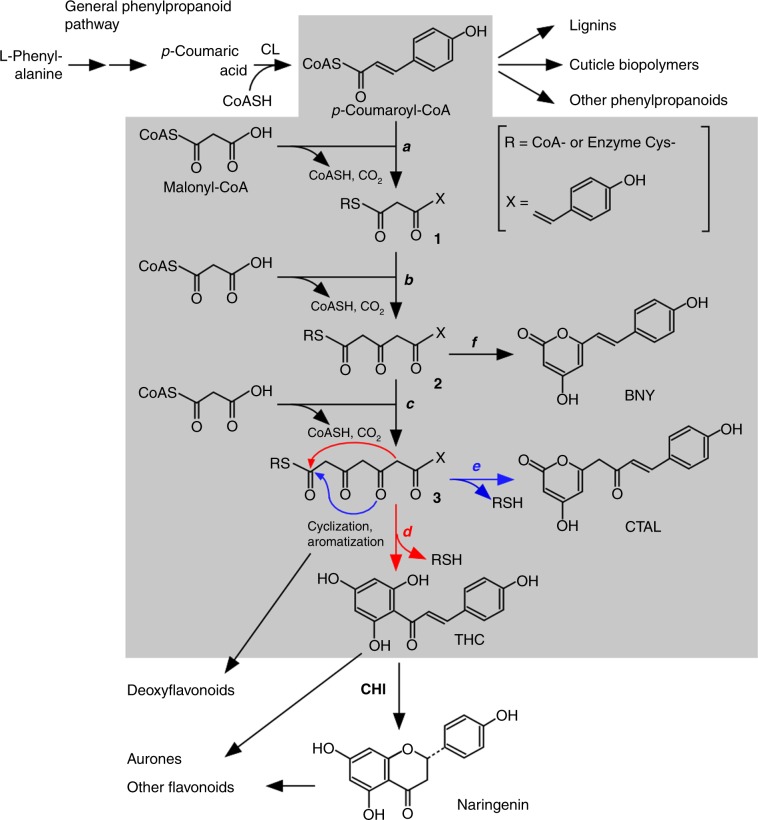

Chalcone synthase is the first committed enzyme in the plant flavonoid biosynthesis pathway, yet shows low product specificity in vitro. Here Waki et al. show that chalcone isomerase-like proteins bind to and reduce the catalytic promiscuity of chalcone synthase, ensuring efficient flavonoid production in planta.
Article notes
Untitled section
Received 2019 Aug 20; Accepted 2020 Jan 17; Collection date 2020.
Introduction
Flavonoids are an important class of specialized metabolites, consisting of more than 6900 different structures, that are produced by land plants (Embryophytes)1. After plants colonized the terrestrial environment 450 million years ago, flavonoids are believed to have played indispensable roles in plant survival, which include antioxidant and UV-screening functions as well as regulatory roles mediating the oxidative stress-induced activation of signaling cascades2. In extant plants, flavonoids are also involved in the mechanisms underlying plant reproduction and defense against biotic and abiotic stresses3. Flavonoids are derived from p-coumaroyl-CoA, which is a general precursor for a vast array of phenylpropanoids with diverse functions, such as cuticle biopolymers (in all land plants), lignins (in vascular plants), lignans, and hydroxycinnamoyl esters (Fig. 1)4. The flavonoid biosynthetic pathway branches off from the general phenylpropanoid pathway, and chalcone synthase (CHS) is the first committed enzyme of this pathway (Fig. 1). Chalcone synthase is a plant-specific type III polyketide synthase (PKS) that catalyzes the production of 2′,4,4′,6′-tetrahydroxychalcone (THC) from one p-coumaroyl-CoA and three malonyl-CoA molecules5. The resulting THC subsequently undergoes a stereo-specific isomerization catalyzed by chalcone isomerase (CHI) to produce (2S)-naringenin (a flavanone), which is metabolized to other classes of flavonoids in a plant lineage-specific manner (Fig. 1)6. Additionally, CHS, CHI, and other flavonoid enzymes further down the pathway are reportedly organized to form a metabolon (i.e., a fragile, highly organized super-molecular enzyme complex) using P450 protein(s) as a nucleus for the enzyme association7–11.
In many cases, enzymes involved in plant specialized metabolism coincidentally catalyze reactions other than those for which they evolved. This nature of specialized metabolic enzymes, referred to as “catalytic promiscuity”12,13, provides an important basis for the adaptive evolution of plant specialized metabolism. Like many other enzymes involved in plant specialized metabolism, CHS is a promiscuous enzyme, which, at least in vitro, coincidentally catalyzes the formation of other polyketides, including p-coumaroyltriacetic acid lactone (CTAL), due to the derailment of the chalcone-producing pathway (Fig. 1)5,12. This promiscuity of CHS catalysis likely decreases the efficiency of flavonoid biosynthesis, but it is also believed to have served as the basis for the evolution of other plant-specific PKSs, including stilbene synthase (STS)14 and p-coumaroyltriacetic acid synthase (CTAS)15.
In 2014, Morita et al. identified a gene in Japanese morning glory (Ipomoea nil) for which a loss-of-function mutation results in pale-colored flowers because of a decrease in the abundance of anthocyanins (a class of flavonoids responsible for cyan flower colors) and flavonols (a class of flavonoids involved in co-pigmentation)16. This gene, designated as ENHANCER OF FLAVONOID PRODUCTION (EFP), encodes a type IV CHI-like protein (CHIL) that lacks CHI activity17. Moreover, CHIL may have evolved from a fatty acid-binding protein (FABP) when plants colonized land17. Although the CHIL-mediated enhancement of flavonoid production appears to occur in many plant species16, the underlying mechanism remains to be clarified. Recent studies indicated that CHIL interacts with CHI18 and CHS19 and may serve as an activator of these enzymes in Arabidopsis thaliana18 and some other plant species19.
In this study, we prove that CHIL is a component of flavonoid metabolons and binds to CHS to serve as a rectifier—rather than an activator—of promiscuous CHS; it enhances CHS-catalyzed THC production and diminishes CTAL formation without enhancing total polyketide production, thereby facilitating the efficient influx of substrates from the general phenylpropanoid pathway to the flavonoid pathway. We reveal that this role of CHIL as a rectifier for CHS is widely conserved among land plants. On the basis of the present findings, we discuss the differentiation of CHS-related enzymes (STS and CTAS) from CHS in regard to their ability to interact with CHIL. We propose that the role of CHS in THC production has been maintained throughout the evolution of land plants by the continued ability of CHS to interact with CHIL. However, some CHS homologs have lost their ability to interact with CHIL, resulting in neofunctionalizations to produce enzymes with differential product specificities, such as CTAS and STS.
Results
CHIL is a component of flavonoid metabolons

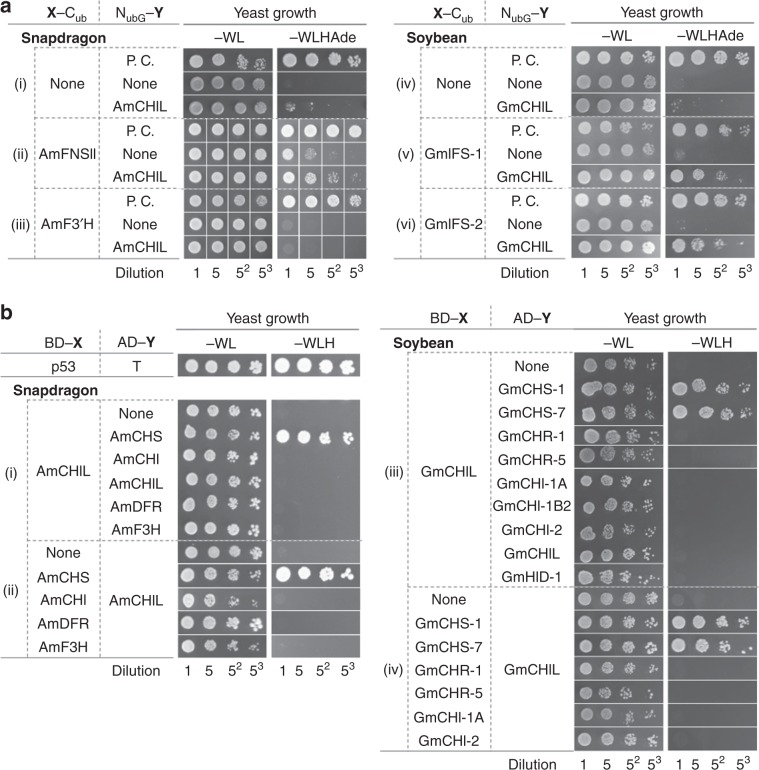

To clarify the role of CHIL in the enhancement of flavonoid production, we examined the possibility that CHIL is a flavonoid metabolon component. First, we used yeast two-hybrid systems to comprehensively analyze the binary protein–protein interactions between CHIL and flavonoid biosynthetic enzymes in plants confirmed to contain flavonoid metabolons, namely snapdragon (Antirrhinum majus L. (Lamiales)9) and soybean (Glycine max (Fabales)8,10) (Supplementary Fig. 1). We observed that in both plant species, CHIL interacts with CHS and cytochromes P450 [i.e., 2-hydroxyisoflavanone synthase (IFS) in soybean and flavone synthase II (FNSII) in snapdragon] (Fig. 2). These results were confirmed in planta by means of bimolecular fluorescence complementation (BiFC) experiments (Supplementary Fig. 2), suggesting that CHIL is a flavonoid metabolon component in these plants. To further confirm this, co-precipitation experiments involving the snapdragon flavonoid metabolon (Supplementary Fig. 1a)9 were conducted with the His6-tagged snapdragon CHIL and CHS (His6-AmCHIL and His6-AmCHS, respectively) as bait proteins (see Methods for details). The results revealed that 150 and 192 proteins were able to specifically bind to His6-AmCHIL and His6-AmCHS (Supplementary Fig. 3), and AmCHS (Am04g40840.P01) and AmCHIL (Am07g21400.P01), respectively, were identified in the bound proteins. Specific binding of AmCHS to AmCHIL in the extract of snapdragon petal cells was further corroborated by the results of immunoblot analysis that followed co-precipitation (Supplementary Fig. 4). These results provided additional evidence that CHIL is a flavonoid metabolon component.

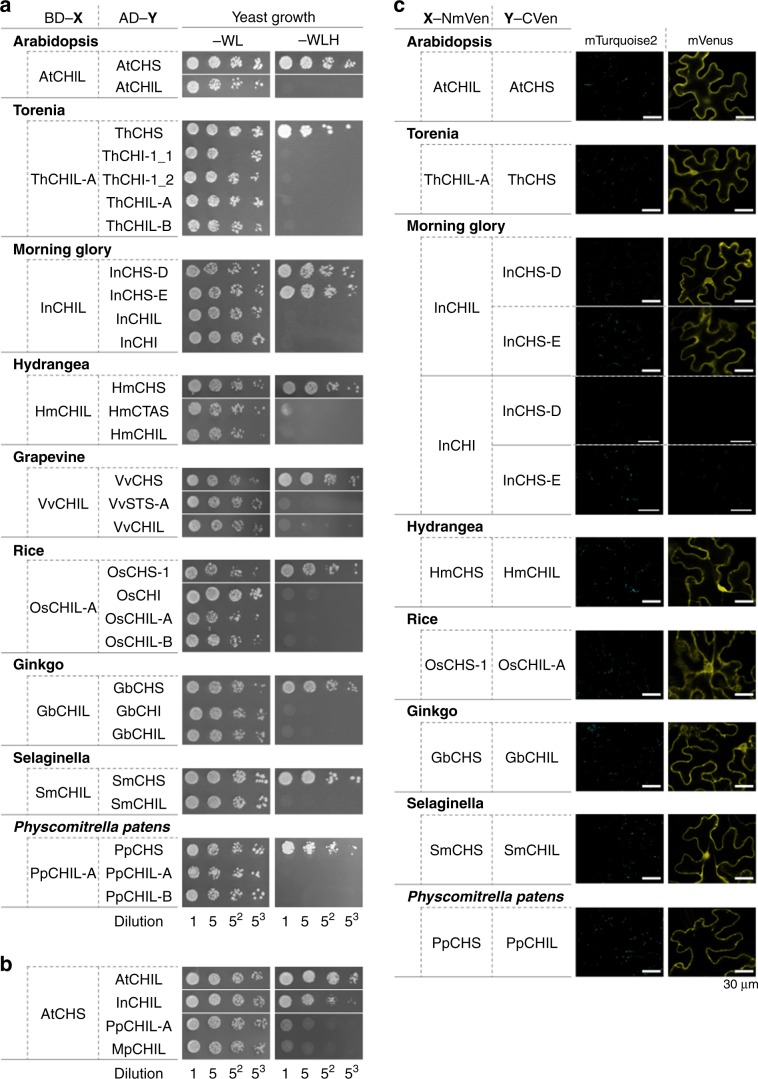

Conservation of CHIL–CHS interactions among land plants
Genes encoding CHIL and CHS (but not IFS and FNSII) are ubiquitous in the genomes of land plants. Thus, we analyzed the physical interactions between CHIL and CHS in phylogenetically distant land plants (bryophyte to angiosperms) (Table 1) with yeast two-hybrid systems and BiFC experiments. Consequently, CHIL and CHS were observed to interact with each other in all plant systems examined with both assay systems (Fig. 3a, c; see also Supplementary Fig. 5), strongly suggesting that this physical interaction is conserved throughout land plants. In contrast, CHI did not bind to CHS (Fig. 3a, Supplementary Fig. 5), with the exception of the enzymes from snapdragon9 and A. thaliana7. Moreover, CHIL did not interact with the STS of grapevine (Vitis vinifera) (VvSTS14) or the CTAS of hydrangea (Hydrangea macrophylla) (HmCTAS15) (Fig. 3a, c, Supplementary Fig. 5), both of which show close phylogenetic relationships with CHS. To examine the stoichiometric characteristics of CHIL binding to CHS, a mixture containing His6-tagged A. majus CHIL and CHS [i.e., His6-AmCHIL (25 kDa, 10 µM) and His6-AmCHS (monomer molecular mass20, 45 kDa; 5 µM) was combined with bis(sulfosuccinimidyl) suberate disodium salt (BS3, a bi-functional cross linker; 4 mM) at pH 7.5 for 5 min, followed by SDS-PAGE analysis. Protein band with a molecular mass of 70 kDa was detected only for the BS3-reacted protein mixture (Supplementary Fig. 6). This band was immuno-reactive to anti-AmCHS and anti-AmCHIL antibodies and most consistently designated as an AmCHIL monomer cross-linked to an AmCHS monomer. These results were consistent with the binding of one CHIL monomer per CHS monomer. Apparent KD values of the CHIL/CHS complexes of various plant species were calculated based on biolayer interferometry (Supplementary Table 1), and ranged from 1 nM (for morning glory) to 126 nM (for gingko (Ginkgo biloba)). Thus, the interactions between CHIL and CHS were slightly stronger than the interactions between the proteins of many other metabolons, with KD values of 0.03–4 μM21,22.
| Taxonomic group | Scientific name | Common name |
|---|---|---|
| Bryophyte | Physcomitrella patens | Spreading earth moss |
| Marchantia polymorpha | Common liverwort | |
| Lycophyte | Selaginella moellendorffii | Selaginella |
| Gymnosperm | Ginkgo biloba | Ginkgo |
| Angiosperm | ||
| Monocot | ||
| Poales | Oryza sativa | Rice |
| Dicot | ||
| Vitales | Vitis vinifera | Grapevine |
| Fabales | Glycine max | Soybean |
| Brassicales | Arabidopsis thaliana | Arabidopsis |
| Cornales | Hydrangea macrophylla | Hydrangea |
| Solanales | Ipomoea nil | Morning glory |
| Lamiales | Antirrhinum majus | Snapdragon |
| Torenia hybrida | Torenia |
We then examined whether the binding of CHIL to CHS takes place in a species-specific manner. The binding of heterologous CHILs cCHILs of morning glory (InCHIL) and bryophytes (PpCHIL and MpCHIL of Physcomitrella patens and Marchantia polymorpha, respectively)) to Arabidopsis CHS (AtCHS) was assayed using a yeast two-hybrid system (Fig. 3b). The results showed that InCHIL bound weakly to AtCHS compared with AtCHIL, whereas PpCHIL and MpCHIL were unable to bind to AtCHS. To further confirm the species specificity of CHIL–CHS interactions in planta, AtCHIL, PpCHIL, and MpCHIL were respectively expressed in the CHIL-knockout mutant of A. thaliana (chil-3) under the control of the AtCHIL promoter (Fig. 4a). The seed coat of the wild-type A. thaliana (Col-0) was brown, whereas that of the chil-3 mutant was paler in color primarily owing to decreased contents in the seed coat of proanthocyanidin (PA) in the mutant (Fig. 4b). The chil-3 line expressing AtCHIL (chil-3/AtCHIL) consistently produced brown-colored seeds, which were indistinguishable from those of the wild type (Col-0) (Fig. 4b), whereas the chil-3 line expressing InCHIL (chil-3/InCHIL) displayed a slightly paler seed-color phenotype. Seed-color phenotypes of the chil-3 lines expressing a bryophyte CHIL (chil-3/PpCHIL-A, chil-3/PpCHIL-B, and chil-3/MpCHIL) were indistinguishable from those of the chil-3 mutant and negative controls (chil-3/35SGUS, chil-3/AtCHI, and chil-3/MpCHI) (Fig. 4b). Furthermore, soluble and insoluble PAs in the seeds of the transgenic chil-3 lines were extracted and determined spectrophotometrically. Consistently, the contents of both types of PAs in the seeds of chil-3/AtCHIL were fully restored to those of the wild type (Fig. 4c, d). In this connection, the chil mutants expressing AtCHIL under the control of the Cauliflower mosaic virus 35S promoter showed insufficient recovery of PA contents18, suggesting that the use of the original promoter may be suitable. The content of insoluble PA in the seeds of chil-3/InCHIL was higher than those of the chil mutants (chil-1 and chil-3) and negative controls, although it was lower than that of the wild type (Fig. 4d). The content of soluble PA in the seeds of chil-3/InCHIL was only slightly higher than those of the chil mutants (Fig. 4c). No significant change in the contents of soluble and insoluble PAs was observed in chil-3/PpCHIL-A, chil-3/PpCHIL-B, and chil-3/MpCHIL. These results suggested that the binding of CHIL to CHS takes place in a species-specific manner and that heterologous CHIL could not fully implement its in planta function in phylogenetically distant species.
Promiscuous CHS specificity and effect of CHIL binding
When AmCHS was assayed with p-coumaroyl-CoA and malonyl-CoA as substrates under standard assay conditions (see Methods), two prominent product peaks (P1 and P2) and one very minor peak (P3) were observed during the LC-MS analysis (Supplementary Fig. 7a, upper panel). A subsequent tandem MS/MS analysis identified P1 and P2 as CTAL and naringenin (an isomer of THC that forms via a non-enzymatic isomerization), respectively (Supplementary Fig. 7b). The P3 peak most likely represented bis-noryangonin (BNY), according to its molecular mass and absorption spectra. Our assay results revealed that the product ratios of the CHS-catalyzed reactions varied with the enzyme source (Fig. 5a–e), with the formation of BNY being negligible in all cases (<1% (mol/mol) of all products). Thus, CHS is generally a promiscuous enzyme in terms of product specificity, irrespective of plant sources.

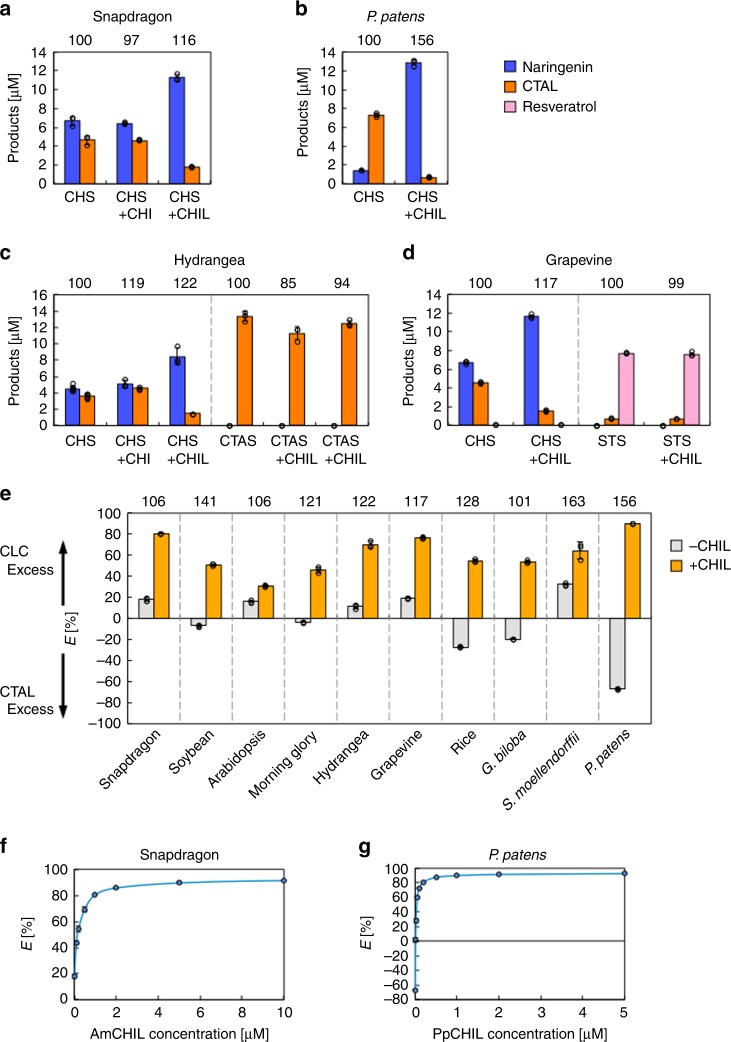

We then examined the effects of AmCHIL (1.0 μM) on the product specificity of AmCHS (0.1 μM) under standard assay conditions. In the presence of the added AmCHIL, the amount of THC and naringenin [collectively termed chalconoids (CLC)] formed in the reaction mixture increased 1.7-fold, with a substantial decrease in CTAL formation (Fig. 5a). The BNY-producing activity of AmCHS, which was negligible, was unaffected by the presence of CHIL. The total amount of CHS products (CLC, CTAL, and BNY) in the presence of CHIL was 116% of the amount in its absence, indicating that AmCHIL only slightly enhanced the total polyketide-producing activity of AmCHS. This was also the case for the CHS–CHIL systems of other plant species (see Fig. 5; panels b through e). To compare the product specificity of the CHS-catalyzed reaction in the presence and absence of CHIL, a CLC-excess value (i.e., E value) was defined as follows:
where [CLC] and [CTAL] correspond to the concentrations of CLC and CTAL produced in the reaction mixture, respectively. A positive E value indicates the rate of the CHS-catalyzed production of THC exceeds that of CTAL production, whereas a negative E value indicates the rate of CTAL production exceeds that of THC production. For example, in the absence of CHIL, the E values of the reactions catalyzed by 0.1 µM AmCHS and 0.1 µM P. patens CHS (PpCHS, a bryophyte CHS) were +18% (Fig. 5e) and −67% (Fig. 5e), respectively. In the presence of 1 µM CHIL, the E values of the reactions catalyzed by these enzymes were +80 and +90%, respectively (Fig. 5e). Similar results were obtained for the CHS–CHIL systems of all other examined plant species (Fig. 5e). Thus, in essence, the presence of CHIL increases the E value of the CHS-catalyzed reaction to enhance the product specificity for THC production. When a constant amount of CHS (0.1 μM) was assayed in the presence of varying amounts of CHIL, a 5- to 10-fold molar excess (on a monomer basis) of CHIL over CHS was observed to substantially alter the product specificity of CHS (Fig. 5f, g for snapdragon and P. patens systems). Moreover, the CHIs did not affect the E values of CHS-catalyzed reactions (Fig. 5a, c). Furthermore, CHIL did not influence the product specificities of STS and CTAS (Fig. 5c, d).
Effects of CHIL on kinetics and in vivo specificity of CHS
We analyzed the effects of CHIL on the kinetic parameters of the CHS-catalyzed formation of THC in the presence and absence of excess CHIL in representative plant systems. The kcat value of THC production was 2- to 15-times higher in the presence of CHIL than in its absence for all examined plant species (Tables 2 and 3). The Km and K′ values (see Methods) for p-coumaroyl-CoA and malonyl-CoA, respectively, were also higher in the presence of CHIL than in its absence (Tables 2 and 3).
| Enzyme | CHIL | Kineticsb | kcat (min−1) | Km (µM) | kcat/Km (min−1 μM−1) |
|---|---|---|---|---|---|
| PpCHS | + | c | [28.5 (±0.6)]c | not determinedc | 0.057c |
| – | H | 1.69 (±0.17) | 19.0 (±4.3) | 0.089 | |
| SmCHS | + | H | 7.54 (±0.14) | 2.58 (±0.16) | 2.92 |
| – | H | 3.94 (±0.03) | 3.15 (±0.77) | 1.25 | |
| GbCHS | + | H | 44.5 (±6.2) | 31.1 (±8.3) | 1.43 |
| – | H | 6.79 (±0.26) | 4.29 (±0.73) | 1.58 | |
| OsCHS-1 | + | H | 19.4 (±3.3) | 76.3 (±19.0) | 0.25 |
| – | H | 1.58 (±0.06) | 7.70 (±0.93) | 0.21 | |
| AmCHS | + | H | 76.3 (±6.0) | 49.7 (±6.4) | 1.54 |
| – | H | 5.23 (±0.17) | 4.73 (±0.58) | 1.11 |
| Enzyme | CHIL | Kineticsb | kcat (min−1) | K’ (µM) | kcat/K’ (min−1 μM−1) | Hill coeff. |
|---|---|---|---|---|---|---|
| PpCHS | + | S | 31.5 (±0.6) | 9.14 (±0.36) | 3.45 | 2.96 (±0.32) |
| – | S | 2.60 (±0.12) | 3.23 (±0.22) | 0.80 | 3.25 (±0.85) | |
| SmCHS | + | S | 23.5 (±0.4) | 3.86 (±0.14) | 6.09 | 2.11 (±0.14) |
| – | S | 5.62 (±0.21) | 1.15 (±0.09) | 4.90 | 2.71 (±0.52) | |
| GbCHS | + | S | 28.9 (±1.7) | 8.97 (±0.80) | 3.22 | 2.46 (±0.45) |
| – | S | 8.01 (±0.36) | 3.60 (±0.22) | 2.22 | 3.03 (±0.59) | |
| OsCHS-1 | + | S | 7.03 (±0.36) | 7.60 (±0.58) | 0.93 | 2.31 (±0.34) |
| – | S | 2.41 (±0.11) | 3.35 (±0.16) | 0.72 | 3.00 (±0.51) | |
| AmCHS | + | S | 35.4 (±1.4) | 12.2 (±1.6) | 2.90 | 1.73 (±0.31) |
| – | S | 8.47 (±0.14) | 2.57 (±0.10) | 3.30 | 3.77 (±0.73) |

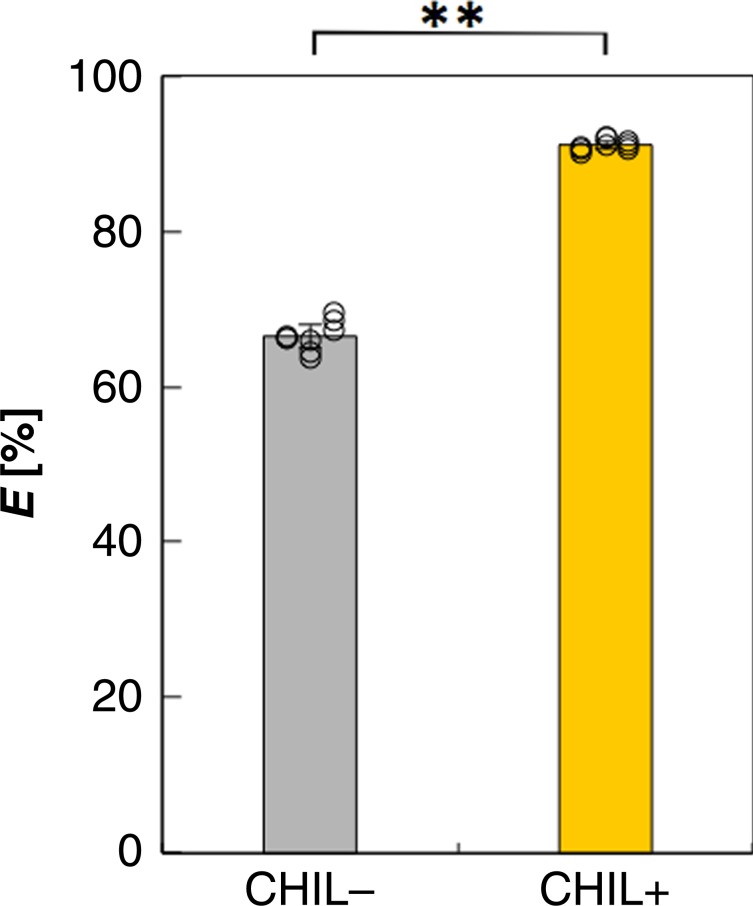

We subsequently examined the effects of CHIL on the product specificity of in vivo chalcone synthesis in Escherichia coli cells. First, E. coli cells were genetically engineered to produce soybean 4-coumaric acid:CoA ligase (Gm4CL-3; corresponding to CL in Fig. 1) and an isozyme of soybean CHS (GmCHS-1). When the recombinant cells (strain CHIL−) were incubated with 1 mM p-coumaric acid at 30 °C for 3 h, the cells produced 327 nM CLC, with an E value of +66.5% (Fig. 6), which was significantly higher than the E value (−7%) obtained via in vitro enzymatic production (Fig. 5e). To clarify the effects of GmCHIL on the product specificity of in vivo chalcone synthesis, GmCHIL was co-expressed with Gm4CL-3 and GmCHS-1 in strain CHIL− (see above). The results of immunoblot analyses revealed that the molar ratio (GmCHIL: GmCHS-1, on monomer basis) of the expressed proteins in the resulting cells (strain CHIL+) was 1.5:1.0 (Supplementary Fig. 8). The CHIL+ cells were incubated with 1 mM p-coumaric acid at 30 °C for 3 h. The HPLC results revealed that the E value obtained with this system was +91%, indicating that the product specificity of the in vivo CHS-catalyzed reaction increased significantly (Fig. 6). The total amount of polyketides (CLC + CTAL) produced in strain CHIL+ was essentially unchanged from that obtained in strain CHIL−.
Discussion
Enzymes involved in specialized metabolism may exhibit promiscuous catalytic properties, which are believed to serve as the basis for the functional evolution (neofunctionalization) of enzymes12,13. Despite the pivotal role of CHS as the first committed enzyme in the flavonoid pathway, CHS is a promiscuous enzyme irrespective of its plant origins. In vitro assay results indicated that CHS coincidentally produces a large amount of CTAL as a byproduct in addition to THC, with E values ranging from −67 to +33% depending on the plant species (Fig. 5e). The present study establishes that CHIL binds to CHS with a KD value between 10−9 and 10−7 M, thereby increasing the E value of CHS catalysis to facilitate efficient THC production (Figs. 5 and 6). A previous study demonstrated that CHIL activates the CHS-mediated production of THC19, but we showed that it only weakly induces the PKS-catalyzed production of polyketides (THC, CTAL, and BNY). Thus, in essence, CHIL is considered to be a rectifier—rather than an activator—of promiscuous CHS catalysis. Of note, during the review of this paper, a research group independently reported the ability of a fern CHIL to alter product specificity of CHS23, consistent with our results. The CHIL genes are ubiquitous in the genomes of land plants17 and expressed along with CHS genes in diverse plant species16,24, and the physical interactions between CHIL and CHS are strictly conserved among the examined land plants (Figs. 2–5, Supplementary Fig. 5, Supplementary Table 1). Moreover, the physical interactions between CHIL and CHS are highly specific. For example, the binding of CHIL to CHS takes place in a species-specific manner (Figs. 3b, 4). Moreover, although CHI is similar to CHIL regarding its primary and stereo structures17, CHI does not necessarily bind to CHS (except in snapdragon and A. thaliana; see refs. 7,9) (Fig. 3a, c, Supplementary Fig. 5) or affect the product specificity of CHS (Fig. 5a, c). Additionally, although HmCTAS and VvSTS are very similar to CHS in terms of primary and stereo structures, the CHILs of H. macrophylla and V. vinifera cannot interact with these CHS-related enzymes (Fig. 3a, Supplementary Fig. 5) or affect their product specificities (Fig. 5c, d). Thus, on the basis of the observed ubiquitous occurrence and the conserved effect of CHIL on CHS in land plants, CHIL likely represents an auxiliary subunit of CHS that is essential for CHS to efficiently fulfill its role (chalcone synthesis) as the first committed enzyme of the flavonoid pathway. This, in turn, provides the possibility that among the CHS-related homologs, CHSs may be defined as members that interact with CHIL (see below).
The results of kinetic studies provided an important insight into the mechanistic aspects of the CHIL-mediated increase in the E value of CHS-catalyzed reactions in flavonoid metabolons. The kcat values of THC production in the presence of CHIL were 2- to 15-fold greater than those in its absence in all examined plant species (Tables 2 and 3). The Km values for both substrates for THC production were also greater in the presence of CHIL than in its absence in all examined plant species (Tables 2 and 3). Thus, the kcat/Km values of CHS enzymes were similar irrespective of the presence of CHIL. However, even though two enzyme systems have similar kcat/Km values, the ratio of the rates of these two systems may vary with the ratio of substrate concentration to Km25. The kcat/Km value only represents an estimation of the catalytic effectiveness of enzymes when substrate concentrations are near zero, which is unrealistic when the proposed involvement of CHS and CHIL in flavonoid metabolons is considered. In metabolons, a group of enzymes and metabolites in the metabolic pathway are believed to be concentrated in a small cellular region (i.e., micro-compartmentalization of cellular metabolism)26. Under such circumstances, the “effective” concentrations of p-coumaroyl-CoA and malonyl-CoA for CHS catalysis may be high enough relative to the Km values, and kcat may reflect the catalytic competency of the enzymes in metabolons relatively accurately. Therefore, the observed increase in the E value of CHS-catalyzed reactions due to CHIL may be, at least partly, explained in terms of the CHIL-mediated enhancement of the kcat of THC synthesis because the kcat of THC synthesis may be related to the rate of step d (Fig. 1). CHIL increases the E value of CHS catalysis via the specific rate enhancement of step d, resulting in the increased channeling of 3 toward THC production at the expense of CTAL formation (step e) (Fig. 1).
We revealed that CHIL is a non-catalytic component of flavonoid metabolons (Supplementary Fig. 1), suggesting that the importance of metabolon formation in plant specialized metabolism includes its role to rectify promiscuity of metabolic enzymes via macromolecular interactions to decrease undesirable minor activities and/or specificities. This potential consequence of macromolecular interactions in metabolons is based on the finding that the promiscuous product specificity of Rhododendron dauricum orcinol synthase, which is a type III PKS involved in orsellinic acid biosynthesis, may be rectified by the presence of an olivetolic acid cyclase from another plant species (Cannabis sativa)27. Thus, the rectification of catalytic promiscuity via macromolecular interactions might not be limited to the CHIL–CHS system and may be generally important for metabolons involved in plant specialized metabolism. This strategy may enable the maintenance of the native promiscuity of enzyme catalysis for the evolution of functions, and facilitate the efficient synthesis of specialized metabolites based on the rectified specificity in extant plants.
The suppression of CHIL reportedly results in a 3- to 9-fold decrease in flavonoid contents in petunia and torenia petals16. The in vitro effects of CHIL on the product specificity of CHS clarified in this study may, at least partly, account for such an in vivo effect of CHIL. However, CHIL appears to have another important role in enhancing flavonoid production in a plant species-specific manner. Specifically, the results of the present protein–protein interaction analyses proved that in snapdragon and soybean, CHIL physically interacts with CHS as well as cytochromes P450 (i.e., FNSII in snapdragon and IFS in soybean; see Supplementary Fig. 1), which also bind to CHI in these plant species8–10. Additionally, in A. thaliana, which lacks FNSII and IFS in its genome, CHIL was observed to interact with CHI18. It is generally accepted that cytochromes P450 serve as the nuclei of metabolon formation in plant specialized metabolism28. Thus, these observations imply there is another important CHIL function related to metabolon formation. Specifically, it recruits enzymes involved in the early flavonoid biosynthesis stage (CHS and CHI) to a flavonoid biosynthesis site in plant cells to establish an efficient supply of naringenin, which is a common precursor for the biosynthesis of flavonoids further down the pathway (Fig. 1). Therefore, both of these roles (i.e., rectification of catalytic promiscuity and recruiting enzymes to a flavonoid biosynthesis site) might be important for CHIL to fully enhance production in planta, with the latter occurring in a species-specific manner.
An evolutionary connection between fatty acid metabolism and flavonoid biosynthesis has been proposed based on the structural and mechanistic similarities between the enzymes involved in the biosynthesis of these compounds17,29. Consistent with this, CHI and CHILs are phylogenetically related to FABP. More specifically, CHILs are members of the CHI-fold protein family, which includes the following four phylogenetically separate groups of proteins: CHI enzymes (types I and II), FABPs (type III), and CHILs (type IV). In planta, FABP localizes to plastids, where it is involved in de novo fatty acid biosynthesis. A phylogenetic analysis suggests that FABPs may be the oldest members of the CHI-fold protein family and CHIL and CHI may have evolved from FABP when plants colonized the terrestrial environment17,29. In this context, it would be noteworthy that the diffusible linear tetraketide-CoA intermediate [3 (R = CoA), see Fig. 1] formed during CHS catalysis is structurally and biosynthetically related to fatty acids, and computational docking studies predicted that CHIL potentially binds to the intermediate 3 in an energetically favorable manner (Supplementary Fig. 9). This is consistent with the known abilities of other types of proteins in the family to bind to fatty acids (for FABPs) and cyclic tetraketides (for CHIs)17,29. This prediction based on an evolutionary consideration should be addressed in conjunction with the mechanistic aspects of the role of CHIL to rectify CHS promiscuity in future studies.
Phylogenetic analysis suggested that CHS also evolved when plants colonized the terrestrial environment, similar to CHIL. Unlike the CHI-fold protein family, however, CHS constitutes a multigene family that consists of species-specific copies of CHS-related genes (Supplementary Fig. 10). Notably, four clades were resolved that each consist of multiple CHS genes from a single species (M. polymorpha, S. fallax, P. patens, and soybean) (Supplementary Fig. 10a, c). This finding suggests that recent gene duplications have occurred within these species or a recent ancestor. It is also likely that these CHS-related genes evolved via a birth-and-death process, in which new copies of CHS genes are produced by repeated gene duplication and some duplicate genes are maintained in the genome while others are deleted, neofunctionalized by mutations, or rendered nonfunctional by deleterious mutations. We included the STS and CTAS sequences in the phylogenetic analysis to infer their evolutionary origin. The analysis indicated that STS (PsSTS and VvSTS) and CTAS (HmCTAS) were differentiated from CHS genes of seed plants (gymnosperms and angiosperms) in a lineage-specific manner (Supplementary Fig. 10b, d), thus functional differentiation of STS and CTAS from CHS arose during seed plant evolution. Our functional analysis of CHIL predicted that ancestral CHS had the ability to interact with CHIL to facilitate its biochemical role of THC synthesis. STS and CTAS did not interact with CHIL. Thus, during the proposed evolutionary process of CHS-related genes, some CHS homologs may have lost their ability to interact with CHIL, allowing neofunctionalization to produce enzymes that are capable of exclusively producing p-coumaroyltriacetic acid (e.g., HmCTAS) and stilbenes (e.g., VvSTS). This is consistent with the notion that the ability of CHS to produce THC was maintained with continued ability to interact with CHIL throughout the course of land plant evolution.
In conclusion, CHIL is a rectifier of promiscuous CHS that allows CHS to precisely fulfill its physiological function—the synthesis of THC, which is the key precursor of a diverse array of flavonoids indispensable for the adaptation of land plants to the terrestrial environment. Given that this role of CHIL has been maintained during the evolution of land plants, it must have been of vital importance to survival of land plants in the terrestrial environment.
Methods
Plasmids, E. coli strains, and A. thaliana lines
The plasmids used in this study were obtained from the following sources: pGEM-T Easy vector (Promega, Madison, WI, USA); pGBKT7 and pGADT7 (each used for the GAL4-based yeast two-hybrid assays) and pET15b and pCold I (each used for the heterologous production of His6-tagged proteins in E. coli cells) (Takara Bio, Otsu, Japan); pCOLADuet-1 (used for the simultaneous heterologous production of His6-tagged proteins and S-tagged proteins in E. coli cells) (Merck, Darmstadt, Germany); pGEX4T-1 (used for the heterologous production of glutathione S-transferase-tagged proteins in E. coli cells) (GE Healthcare Japan, Tokyo, Japan); pDOE-0530, ER-rb31 (each used for BiFC experiments), and pGWB1 (The Arabidopsis Biological Resource Center, Columbus, OH, USA). Escherichia coli strains BL21 and BL21 (DE3) were obtained from Promega and strain Rosetta2 (DE3) was obtained from Merck KGaA. Arabidopsis thaliana accession Columbia-0 (Col-0; Lehle Seeds, http://www.arabidopsis.com) was used as the wild type in this study. The T-DNA insertion mutants of Arabidopsis, lines SALK_096551 (chil-1)18 and GABI_189B03 (CS745226, chil-3) for CHIL were obtained from the Arabidopsis Biological Resource Center. T-DNA insertion lines were screened by PCR using specific primers (CHIL-F and CHIL-R for CHIL and TF and TR for T-DNA; see Supplementary Table 2). PCR products were sequenced to determine the exact insertion points.
Chemicals
The THC and p-coumaroyl-CoA were purchased from TransMIT (Gießen, Germany). Malonyl-CoA, naringenin, trans-p-coumaric acid, resveratrol, ampicillin, imidazole, and isopropyl 1-β-D-thiogalactoside were purchased from Nacalai Tesque (Kyoto, Japan). Acetonitrile and trifluoroacetic acid were obtained from Sigma-Aldrich Japan (Tokyo, Japan). Bis(sulfosuccinimidyl) suberate disodium salt was obtained from Dojindo Laboratories (Kumamoto, Japan), whereas Ni2+-coated magnetic beads (His Mag Sepharose Ni) and Ni2+-coated Sepharose beads (His SpinTrap) were purchased from GE Healthcare Japan. All chemicals were of analytical grade except for acetonitrile and trifluoroacetic acid, which were of HPLC grade. [2-14C]Malonyl-CoA (1480 MBq/mmol) was purchased from PerkinElmer Life Sciences (Boston, MA, USA).
Synthesis of cDNAs encoding flavonoid enzymes and proteins
The cDNAs encoding flavonoid enzymes and CHILs analyzed in this study are summarized in Supplementary Table 4. The cDNAs encoding flavonoid enzymes of snapdragon, torenia, and soybean [i.e., CHS, chalcone reductase (CHR, soybean), CHI, 2-hydroxyisoflavanone dehydratase (HID, soybean), FNSII (snapdragon and torenia), IFS (soybean), flavanone 3-hydroxylase (F3H, snapdragon), and dihydroflavonol 4-reductase (DFR, snapdragon)] were obtained as previously described8–10. The CHIL cDNAs of snapdragon32, torenia16, soybean8,10, A. thaliana18, rice (Oryza sativa, OsCHIL-A and OsCHIL-B)19, and morning glory16 were obtained as described in the listed references.
The CHIL genes of grapevine (VvCHIL), Selaginella moellendorffii (SmCHIL), and P. patens (PpCHIL-A and PpCHIL-B) were identified via a BLAST search of the Phytosome (version 12.1) database (https://phytozome.jgi.doe.gov/pz/portal.html), with the AtCHIL sequence as a query (see Supplementary Table 4). The CHIL and CHI genes of hydrangea (HmCHIL and HmCHI) were identified via a BLAST search of the Hardwood Genomics Project database (https://www.hardwoodgenomics.org), with the AtCHIL and AtCHI sequences as queries, respectively. The S. moellendorffii CHS gene (SmCHS) was identified via a BLAST search of the Phytosome (version 12.1) database, with the AtCHS sequence as a query. The gingko CHIL gene (GbCHIL) was identified via a local blast search of a CDS fasta file from GigaDB (https://www.gigadb.org/dataset/100209). The CHIL and CHI genes of M. polymorpha (MpCHIL and MpCHI) were identified via a BLAST search of the MarpolBase database, with the AtCHIL and AtCHI sequences as queries, respectively.
The cDNAs encoding the CHS, CHI, and related enzymes of the following plant species were obtained essentially as previously described: rice (OsCHS-1, OsCHS-2, OsCHI)33, gingko (GbCHS and GbCHI)34, P. patens (PpCHS)35, and hydrangea (HmCHS and HmCTAS)15.
Yeast two-hybrid assays with the split-ubiquitin system
The interactions between CHILs and cytochromes P450 from snapdragon and soybean (AmFNSII, GmIFS-1, and GmIFS-2) were analyzed in the split-ubiquitin system with the DUALmembrane Kit 3 (Dualsystems Biotech, Zurich, Switzerland) essentially as previously described8–10. Briefly, Saccharomyces cerevisiae strain NMY51, which was included in the kit, was transformed with one of the following pairs of plasmids (i.e., derivatives of pBT3-SUC and pPR3-N; derivatives of pBT3-SUC and pPR3-C; or, as a positive control, pOst1-NubI and derivatives of pBT3-SUC). The transformant cells were grown on agar plates of SD/–WL (SD lacking tryptophan and leucine), SD/–WLH (SD lacking tryptophan, leucine, and histidine), and SD/–WLHAde (SD lacking tryptophan, leucine, histidine, and adenine) at 30 °C for 2–4 days.
GAL4-based yeast two-hybrid assays
The Matchmaker Gold Yeast Two-Hybrid System (Clontech, Mountain View, CA, USA) was used to complete GAL4-based yeast two-hybrid assays as previously described8–10. Briefly, the open reading frames encoding proteins to be tested for interaction were amplified by PCR to add SfiI restriction sites for ligation with the pGBKT7 and pGADT7 vectors (Clontech). Each amplified DNA was purified, digested with SfiI, and inserted into the SfiI site of the pGBKT7 or pGADT7 vectors. The S. cerevisiae strain Y2H Gold (Clontech) was transformed with each pair of the plasmids in accordance with the manufacturer’s guidelines.
BiFC
For BiFC assays, the binary vector pDOE-0530 was used to express the proteins of interest, which were fused with NmVen210 and CVen210 (see Results). For example, AmCHS cDNAs were digested with NcoI/SpeI and ligated into multiple cloning site (MCS) 1 of pDOE-05 to generate pDOE05-AmCHS. The PpuMI/AatII-digested AmCHIL cDNA was then inserted into the SanDI/AatII sites in MCS3 of these plasmids to produce pDOE05-AmCHS-AmCHIL. The binary plasmid ER-rb31 was used to express an ER marker protein (mCherry-HDEL). Agrobacterium tumefaciens GV3101(pMP90) cells harboring one of the pDOE derivatives were used to transform the leaves of wild-type Nicotiana benthamiana plants via a previously described agroinfiltration procedure8,9. The plants were then incubated at 25 °C under long-day conditions for 2 days. Fluorescence in tobacco leaf cells was observed with a TCS-SP8 confocal laser scanning microscope (Leica, Mannheim, Germany) comprising a white light laser and a HyD detector as previously described8,9.
Co-precipitation experiments
(Method I) The crude extract of the orange snapdragon petals (cv. Maryland Orange) were mixed with Ni2+-coated magnetic beads, after which one of the bait proteins (His6-AmCHIL and His6-AmCHS) was added and the mixture was incubated at room temperature for 1 h. The beads were recovered and washed with 0.01 M potassium phosphate buffer, pH 7.0, containing 0.15 M NaCl. The bead-bound proteins were then eluted by washing the beads with 0.1 M glycine-HCl buffer at pH 2.8. The eluted proteins were digested with trypsin and the resulting peptides were recovered by solid-phase extraction followed by sequencing by LC-MS/MS. The peptides were identified by mapping the derived peptide sequences against the snapdragon genome sequence36.
(Method II) His6-AmCHIL was added to the extract (300 μl) from the red petals (stages 1 through 6) of snapdragon cv. Montego Red (Dainichi Shokai; Koga, Ibaraki, Japan). One-hundred microliters of Ni2+-coated Sepharose beads (His SpinTrap) were added to the mixture, which was then incubated at 4 °C for 1 h, followed by centrifugation at 100 × g for 1 min. The supernatant (termed fraction F) was recovered. The beads were washed three times with 300 μl of 0.05 M HEPES-NaOH, pH 7.5, and the third-wash supernatant (termed fraction W) was recovered. The bead-bound proteins were then eluted by washing the beads with 0.05 M HEPES-NaOH, pH 7.5 containing 500 mM imidazole (termed fraction E). SDS-PAGE and western blotting analyses were carried out as described previously9 using anti-AmCHS immunoglobulin G (IgG) as a primary antibody. For the control, His6-AmCHIL was replaced by water.

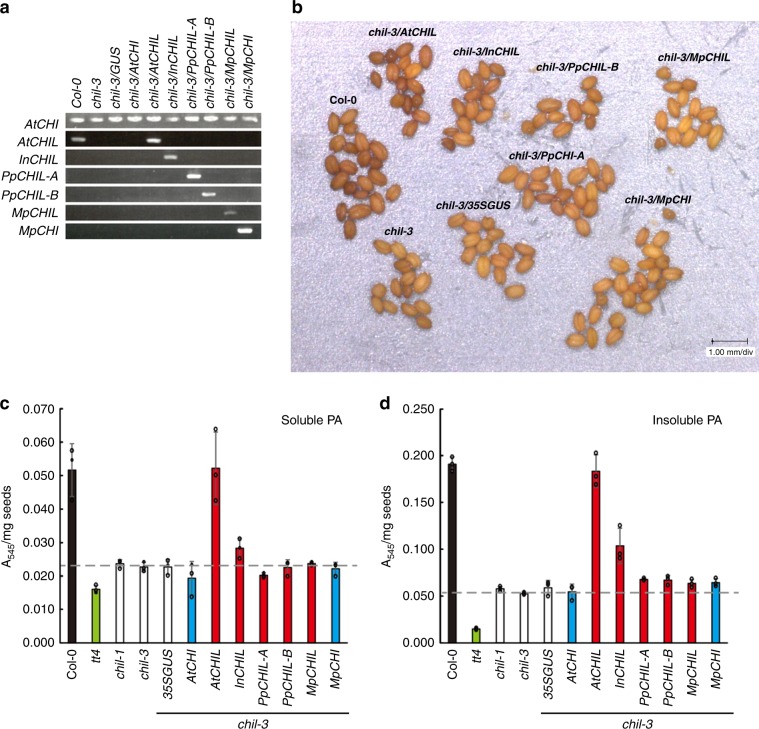

Complementation tests using an A. thaliana mutant
For complementation tests, 1.7-kb genomic fragments covering 1696 bp of the AtCHIL promoter region were amplified by PCR using the primers AF and AR (see Supplementary Table 2). The amplified fragment was cloned into the pENTR/D-TOPO vector (ThermoFisher Scientific, Waltham, MA, USA) to construct the plasmid pKYS453 and sequenced to confirm the absence of PCR errors. The full-length coding regions of AtCHI and AtCHIL were amplified by PCR using specific primers (BF and BR for AtCHI and CF and CR for AtCHIL) and fused to pKYS453 using the In-Fusion HD Cloning Kit (Takara Bio, Shiga, Japan) to yield the entry vectors pKYS454 and pKYS455, respectively (Supplementary Tables 2 and 3). The full-length coding regions of PpCHIL-A, PpCHIL-B, InCHIL, MpCHIL, and MpCHI were amplified by PCR using specific primers (DF and DR for PpCHIL-A, EF and ER for PpCHIL-B, FF and FR for InCHIL, GF and GR for MpCHIL, and HF and HR for MpCHI) and fused to pKYS453 using the In-Fusion HD Cloning Kit to yield the entry vectors pKYS459, pKYS458, pKYS462, pKYS463, and pKYS464, respectively (Supplementary Tables 2 and 3).
pGWB1 was used as a destination vector, and the LR reactions with the entry vectors prepared as above were catalyzed by the Gateway LR Clonase Enzyme mix (ThermoFisher Scientific) to obtain the binary vectors pKYS456 for AtCHI, pKYS457 for AtCHIL, pKYS461 for PpCHIL-A, pKYS460 for PpCHIL-B, pKYS465 for InCHIL, pKYS466 for MpCHIL, and pKYS467 for MpCHI. Transformation of Agrobacterium tumefaciens and Arabidopsis thaliana (chil-3) and the selection of transformants were carried out as described previously37.
RT-PCR
Total RNA was extracted using the RNAqueous Total RNA Isolation Kit (ThermoFisher Scientific) in accordance with the manufacturer’s instructions. After DNase I treatment using the TURBO DNA-free Kit (ThermoFisher Scientific), 500 ng total RNA was used for cDNA synthesis using the SuperScript™ III First-Strand Synthesis System (Invitrogen). RT-PCR was performed using TaKaRa Ex Taq™ (Takara Bio) with a denaturation step at 98 °C for 2 min, followed by 35 cycles of amplification (98 °C for 10 s, 55 °C for 30 s, and 72 °C for 2 min), and a final extension step (72 °C for 5 min). The primers AtCHI_RT_F and AtCHI_RT_R for AtCHI, At5g05270_359F and AtCHIL_RT_R for AtCHIL, Ipom_EFP_RT_F and Ipom_EFP_RT_R for InCHIL, EFPa105_RT_F and EFPa105_RT_R for PpCHIL-A, EFPb104_RT_F and EFPb104_RT_R for PpCHIL-B, poly_EFP_RT_F and poly_EFP_RT_R for MpCHIL, and poly_CHI_RT_F and poly_CHI_RT_R for MpCHI were used for analyses (Supplementary Table 2).
PA analysis
Extraction and acid hydrolysis of PA were performed in triplicate as described previously38,39. Mature seeds (10 mg) were homogenized in 0.75 ml of 70% (v/v) acetone containing 5.26 mM Na2S2O5 in a mixer mill (Qiagen Retsch MM300 TissueLyser; Qiagen, Tokyo, Japan) at 20 Hz for 1 min, followed by sonication for 20 min. After centrifugation at 15,000 × g for 5 min, the supernatant was evaporated and resuspended in 1 ml of a 2:10:3 (v/v/v) mixture of HCl:butanol:70% acetone. The absorbance of the solutions before and after hydrolysis at 95 °C for 60 min was measured at 545 nm and the difference was treated as the soluble PA fraction. The pellet after extraction with 70% acetone was also evaporated, suspended in the mixture of HCl:butanol:70% acetone, and hydrolyzed, and was treated as the insoluble PA fraction.
Tandem mass spectrometry analyses
The amino acid sequences of the peptides obtained during the co-precipitation experiments (Supplementary Fig. 3) were determined with an EASY-n LC1000 system equipped with the Q Exactive Plus apparatus (ThermoFisher Scientific). The products of the AmCHS-catalyzed reaction (Supplementary Fig. 7) were identified with the Q Exactive Plus apparatus.
Expression and purification of CHS, CHIL, and other enzymes
The complete coding sequences for CHS- and CHIL-related genes (i.e., CHS, CTAS, STS, CHI, and CHIL) were amplified by PCR, with the pGEM-T Easy-, pGKT7-, or pBluescript-based constructs as templates. Restriction enzyme sites were added during the PCR amplification for a subsequent subcloning into the pCold I vector. The resulting fragments were subcloned into the pCold I vector to express a fusion protein with an N-terminal His6 tag. Escherichia coli BL21 cells were transformed with the resulting plasmids. The heterologous expressions of these cDNAs and the purification of the recombinant proteins were completed as previously described8–10. The purified proteins were analyzed by SDS-PAGE and visualized with Coomassie Brilliant Blue R250. The concentrations of the recombinant proteins were determined based on the absorption coefficients at 280 nm, which were calculated based on the amino acid sequences40.
Enzyme assays
The standard assay mixture consisted of 100 mM HEPES-NaOH buffer, pH 7.5, 50 µM p-coumaroyl-CoA, 100 µM malonyl-CoA, CHS (typically 0.1 µM), and CHIL (typically 1.0 µM) in a final volume of 50 µl. The mixture without CHS was pre-incubated at 30 °C for 5 min, and the reaction was started by adding CHS. After a 60-min incubation at 30 °C, the reaction was stopped by adding a 50-µl aliquot of a mixture comprising acetonitrile and water (2:3, v/v) and 4% (v/v) trifluoroacetic acid. Flavonoids and related products formed in the reaction mixture were analyzed by reversed-phase HPLC with a J’Sphere ODS M80 column (4.6 × 150 mm; YMC, Kyoto, Japan) under previously described conditions10. Chromatograms were obtained by monitoring the absorbance at 290 nm. In some cases, flavonoids and related products were also analyzed by LC-MS with the following Shimadzu LCsolution system: column, CAPCELL CORE C18 (2.1 × 100 mm; Shiseido, Tokyo, Japan); flow rate, 0.2 ml/min; solvent A, 0.05% (by volume) formic acid in H2O; solvent B, 0.05% (by volume) formic acid in acetonitrile. After an injection (5 μl) onto the column that was equilibrated with 20%B (by volume), the column was initially developed isocratically with 20%B for 2 min, followed by a linear gradient from 20 to 35%B in 18 min. The column was then washed isocratically with 35%B for 5 min, followed by a linear gradient from 35 to 90%B in 1 min. The column was washed isocratically with 20%B for 10 min before the next injection to ensure the column was sufficiently re-equilibrated. Chromatograms were obtained via mass spectrometry (SIM, negative ion mode).
To quantify the CTAL formed, the standard assay mixture was supplemented with [2-14C]malonyl-CoA (148 MBq/mmol). The CTAL and naringenin were separated by HPLC as described above10 and collected, after which the radioactivities of the CTAL and naringenin fractions were determined with the LS6500 Multi-Purpose Scintillation Counter (Beckman Coulter, Brea, CA, USA). The radioactivity of the naringenin fraction was correlated with absorbance peak integrals of known amounts of naringenin, whose specific radioactivity was equal to that of CTAL.
Enzyme kinetics
Assays of the initial velocity (v) of the CHS-catalyzed reactions were completed with a standard assay system (see above) under steady-state conditions and with various substrate concentrations. The apparent Km and Vmax values and their standard errors for p-coumaroyl-CoA in the presence of a fixed concentration of malonyl-CoA were determined by fitting the initial velocity data to the Michaelis–Menten equation:
with a nonlinear regression method of the SigmaPlot 12 program (Hulinks, Tokyo, Japan), where Vmax, Km, and [S] denote maximum velocity, the Michaelis constant, and the substrate concentration, respectively.
When CHS assays were completed with malonyl-CoA as the varying substrate with a fixed concentration of p-coumaroyl-CoA, sigmoidal v vs [S] plots were obtained and fit to Hill’s equation:
with a nonlinear regression method of the SigmaPlot 12 program, where K′ is related to Km and represents the effect of the substrate occupancy at one site on the substrate affinity at other sites, and n corresponds to Hill’s coefficient.
Biolayer interferometry
Biolayer interferometry measurements were recorded with a BLItz instrument (ForteBio, Fremont, CA, USA). Biosensors were soaked in BLItz assay buffer (100 mM HEPES-NaOH, pH 7.5) for 10 min, and His6-tagged CHS was immobilized on anti-His6 sensors. Biolayer interferometry assays consisted of the following three steps, all performed in BLItz assay buffer: step 1, initial baseline (0–30 s); step 2, loading of glutathione S-transferase-tagged CHIL (30–150 s); and step 3, wash (150–270 s). Control values, which were obtained from empty sensors (i.e., no protein), were subtracted from experimental values before the data were processed. To calculate the equilibrium dissociation constant (KD) and the association (ka) and dissociation (kd) rate constants, sensorgrams were fit to a 1:1 binding model with BLItz Pro (version 1.2.1.2).
Production of chalcone in E. coli cells
The Gm4CL-3 cDNA (DDBJ/EMBL/GenBank accession number, AF002258) was amplified by PCR from a cDNA library prepared from the lateral roots of soybean seedlings (cv. Enrei) as described previously8 and cloned into NdeI/XhoI-digested pET-15b according to the SLiCE method41 to obtain pET-15b-Gm4CL-3. The GmCHS-1 cDNA was amplified by PCR and cloned into MCS1 of EcoR1-digested pCOLADuet-1 to obtain pCOLADuet-1-GmCHS-1. The DNA segment for the T7 promoter-driven expression of GmCHS-1 in the resulting plasmid was then introduced into EagI-digested pET15b-Gm4CL-3 to obtain pET15b-Gm4CL-3-GmCHS-1. The GmCHIL cDNA was amplified by PCR and cloned into MCS2 of NdeI-digested pCOLADuet-1-GmCHS-1 to obtain pCOLADuet-1-GmCHS-1-GmCHIL. The DNA segment for the T7 promoter-driven co-expression of GmCHS-1 and GmCHIL in the resulting plasmid was then introduced into EagI-digested pET15b-Gm4CL-3 to obtain pET15b-Gm4CL-3-GmCHS-1-GmCHIL. The pET15b-Gm4CL-3-GmCHS-1 and pET15b-Gm4CL-3-GmCHS-1-GmCHIL recombinant plasmids were respectively used to transform E. coli strain Rosetta2 (DE3) to obtain the strains CHIL– and CHIL+, respectively. The transformed cells were grown on Luria-Bertani (LB) medium containing 50 μg/ml kanamycin and 34 μg/ml chloramphenicol.
The transformed cells were grown in 20 ml LB medium containing 50 μg/ml ampicillin and 50 μg/ml chloramphenicol at 37 °C with shaking until the optical density at 600 nm (OD600) reached 0.4–0.5. Isopropyl 1-β-D-thiogalactoside was then added to the culture at a final concentration of 1.0 mM, after which the cells were incubated at 18 °C for 20 h. Cells were harvested by centrifugation, washed twice with M9 medium, and suspended in M9 medium for an OD600 of 0.5 (final volume, 200 μl). p-Coumaric acid was added to the cell suspension for a final concentration of 1 mM and the mixture was incubated at 30 °C for 3 h and then centrifuged. The target products (CLC, CTAL, and BNY) in the supernatant and precipitate fractions were extracted with a 2:1 (v/v) mixture of methanol:chloroform and analyzed by LC/MS as described above.
To quantify the expressed GmCHS-1 and GmCHIL proteins, in which GmCHS-1 was His6-tagged while GmCHIL was not, the crude extracts of the engineered E. coli cells, as well as known amounts of GmCHS-1 and GmCHIL proteins, were subjected to SDS-PAGE followed by western blotting analyses using anti-His6 IgG (to determine GmCHS-1) and anti-CHIL IgG (to determine GmCHIL). The immunoblots were quantified using ImageJ software (National Institutes of Health, Bethesda, MD, USA).
Preparation of antibodies
Anti-AmCHS antibodies were prepared as described previously9. To obtain anti-CHIL antibodies, the peptides corresponding to amino acid residues 111–125 of AmCHIL, which were predicted to serve as epitopes, were used to immunize female Japanese white rabbits. The initial injection was administered in complete Freund’s Adjuvant with all subsequent immunizations in incomplete Freund’s Adjuvant. Immunoglobulin G (IgG) was purified from the collected serum as described previously9. Monoclonal anti-His6 antibody was obtained from Wako, Osaka, Japan (Code: 011-23091, Lot. LKQ2757).
Phylogenetic analysis
The amino acid sequences of CHS and their homologs were used as queries to search a nucleotide sequence database of protein-coding genes from nine plant species (A. thaliana, G. max, V. vinifera, O. sativa, S. moellendorffii, S. fallax, M. polymorpha, P. patens, and C. reinhardtii) using the tblast program. Sequences were retrieved from the Phytoszome (version 12.1) database. Pinus sylvestris STS and CHS amino sequences were obtained from the original publications42,43. Matched sequences with e-value > 0.01 or match length <350 bp were eliminated. After merging the query sequences with the matched sequences, a multiple alignment of the amino acid sequences was generated using MUSCLE with the default settings. Phylogenetic analyses were performed using the neighbor-joining (NJ) method44 and maximum likelihood (ML) method45 as implemented in SEAVIEW version 4.7 and RAxML-NG version 0.946, respectively. Poisson corrected evolutionary distance was used for NJ tree reconstruction. An LG amino acid substitution matrix47 with gamma model rate heterogeneity and empirical amino acid frequencies was used for the ML analysis. Confidence of inferred phylogenetic trees were assessed by bootstrap method48 with 100 replicates.
Modeling studies
The AtCHIL crystal structure (PDB ID, 4DOK) was obtained from the Protein Data Bank (http://www.rcsb.org/pdb/) as the receptor molecule. The known structure of p-coumaroyl-diketide-CoA (PubChem CID: 70679033) was used to determine the structure of p-coumaroyl-tetraketide-CoA. Discovery Studio49 and Schrödinger (Schrödinger, LCC, New York, NY, USA) suites were used for modeling, structure creation, and validation. MAESTRO/SiteMap50 was used for identifying the binding sites on the surface of the AtCHIL structure, whereas GLIDE51 and GOLD52 were used to analyze docking. For all docked complexes, we calculated the Prime/Molecular Mechanics Generalized Born Surface Area function to estimate the Gibbs energy of binding (ΔG of binding) (Prime/MM-GBSA53) and the Piecewise Linear Potential (chemPLP) function to estimate the accuracy of the docking54, with the hydrogen bonding term and multiple linear potentials used to model van der Waals and repulsive terms.
Reporting summary
Further information on research design is available in the Nature Research Reporting Summary linked to this article.
Supplementary information
Untitled section
Acknowledgements
We are grateful to Prof. Richard L. Smith, Graduate School of Environmental Studies, Tohoku University, for his invaluable advice. We thank Edanz Group (www.edanzediting.com/ac) for editing a draft of this manuscript. This study was supported in part by a JSPS KAKENHI grant (18H03938) and the NIBB Collaborative Research Program (14-388, 15-352, 16-319, 17-332, and 18-337).
Untitled section
Source data
Data availability
All data needed to evaluate the conclusions in the manuscript are presented herein and/or as Supplementary Information. Additional data related to this study may be requested from the authors. The sequences for all genes described in this manuscript are available in the GenBank/EMBL/DDBJ databases and other databases shown in Supplementary Table 4. The source data underlying Figs. 4–6 as well as the source data of the gels and immunoblots in Supplementary Figs. 4, 6b, and 8 are provided in the Source Data file.
Competing interests
The authors declare no competing interests.
