Effects of waterborne nickel on the physiological and immunological parameters of the Pacific abalone Haliotis discus hannai during thermal stress
Institute of Fisheries Science, Pukyong National University, Busan, 619-911 Korea
Departments of Aquatic Life Medicine, Pukyong National University, Busan, 608-737 Korea
Abstract
In this study, the 96-h LC50 at 22 and 26 °C values was 28.591 and 11.761 mg/L, respectively, for NiCl2 exposure in the abalone. The alteration of physiological and immune–toxicological parameters such as the total hemocyte count (THC), lysozyme, phenoloxidase (PO), and phagocytosis activity was measured in the abalone exposed to nickel (200 and 400 μg/L) under thermal stress for 96 h. In this study, Mg and THC decreased, while Ca, lysozyme, PO, and phagocytosis activity increased in the hemolymph of Pacific abalone exposed to NiCl2 when compared to a control at both 22 and 26 °C. However, these parameters were not affected by a rise in temperature from 22 to 26 °C in non-exposed groups. Our results showed that NiCl2 below 400 μg/L was able to stimulate immune responses in abalone. However, complex stressors, thermal changes, or NiCl2 can modify the immunological response and lead to changes in the physiology of host–pollutant interactions in the abalone.
Untitled section
Keywords: Nickel, Thermal stress, LC50, Hemolymph, Immunology, Hematology, THC, Lysozyme, PO, Phagocytosis, Haliotis discus hannai
Article notes
Untitled section
Received 2014 Nov 27; Accepted 2015 Apr 23; Issue date 2015.
Introduction
The average sea surface temperature has increased in the last 100 years, and these changes are ongoing (Hoegh-Guldberg and Bruno 2010). Recently, climate change has been implicated in the increasing frequency and severity of disease outbreaks in marine environments (Harvell et al. 2008; Lejeusne et al. 2010). For example, from July to early September 2012, mass mortality occurred in several fish species, particularly the black rockfish Sebastes schlegeli raised in floating fish cages along the coast of Gyeongsangnam-do, Korea. A rapid rise in water temperature was confirmed to be the cause of damage to 1,802,000 fishes (Lee et al. 2013). However, the cause of this abnormal mortality being just the high temperature in summer, with no obvious indication of disease, is doubtful.
Temperature is one of the main environmental factors that can cause significant changes in the physiology of ectothermic organisms and thus affects their sensitivity to xenobiotic substances. Some metals are hazardous to aquatic organisms due to their long-term persistence, severe toxicity, and bioaccumulation properties (Atchison et al. 1987). Heavy metal contaminants influence the increased incidence of disease by adversely affecting immunity, thereby enhancing susceptibility to stress and infection (Auffret et al. 2002), because heavy metals are themselves immune–toxic substances (Gagne et al. 2008; Vijayavel et al. 2009). However, factors such as temperature and xenobiotic substances do not act as the sole stressor alone and may act in combination to alter normal immune function, resulting in adverse health outcomes in aquatic organisms (Wanger et al. 1997; Ortuno et al. 2002; Prophete et al. 2006). Accordingly, further research is needed to assess which factors in hot summers are responsible for the increased mortality in heavy-metal-polluted aquatic farms.
Nickel (Ni) is an important contaminant present at elevated concentrations in aquatic ecosystem that is currently impacted by the many industrial uses and natural ways (Eisler 1998; Muyssen et al. 2004). Ni concentrations, which are typically below 10 μg/L in unimpacted water, may reach as high as several hundreds to 1000 μg/L in highly contaminated water (Eisler 1998). Although Ni is considered to be an essential for a wide variety of animals species, its essentiality to aquatic animals is not fully established (Muyssen et al. 2004). Several studies reported a Ni-related depression of immune system both in vertebrates and invertebrates (Eisler 1998; Harkin et al. 2003; Vijayavel et al. 2009; Sun et al. 2011). For example, the exposure of the mud crab Scylla serrata to Ni has been reported to modulate the hemocytic defense system (Vijayavel et al. 2009). Also, the fish immune responses seem to be a sensitive target for the suppressive effects of Ni, decreasing the number of lymphocytes (Zelikoff 1994; Zelikoff et al. 1996). In addition, Ni has been well studied in mammals due to its toxic effects on the immune system (Zhang et al. 2008).
A marine gastropod, the Pacific abalone Haliotis discus hannai, is an important fishery and food resource farmed in the Americas, Africa, Asia, and Australia (Nguyen et al. 2013). Previous studies have shown that physical stresses such as alterations in temperature, salinity, and oxygen appear to exert a great impact upon immune defense responses in several abalone species (Martello et al. 2000; Malham et al. 2003; Cheng et al. 2004a, b, c, d, e; Zoysa et al. 2009). The immunological biomarkers, effects, or susceptibility of exposure are complementary, and understanding the overall health impact of toxicants is important. Furthermore, gastropods and bivalve mollusks can be used as indicators of marine metallic pollution because they accumulate metals in their tissues in proportion to the degree of environmental contamination (Elder and Mattraw 1984).
In the aquatic environment, organisms, especially in the case of abalones farmed in cages that cannot move away from a detected danger, simultaneously undergo various physical and chemical stimulations. Therefore, the aims of this study were to study the combined effects of water temperature and a metal (Ni) on acute toxicity and survival and to consider the sublethal effects of Ni on immune–toxicological biomarkers in H. discus hannai.
Materials and methods
Temperature acclimations
Pacific abalone (H. discus hannai; body mass 23.147 ± 0.83 g, shell length 6.041 ± 0.07 cm) were obtained from a commercial farm (Namhae, Korea). Abalone specimens were held for 2 weeks in seawater at 22 °C to ensure that all individuals were healthy and feeding and also to reset the thermal history of the animals prior to initiating temperature acclimations. The animals were fed on a marine macroalgae diet of Laminaria digitata twice daily. The water temperature was adjusted from ambient at a rate of ±1 °C/day until a final temperature of 26 °C was reached. The acclimation period commenced once the final temperature had been sustained for 24 h and animals were feeding, while showing no sign of stress. Animals were acclimated to 22 or 26 °C under laboratory conditions during 96 h before the experiment (Table 1).
| Water temperatures (°C) | Probit analysis | Estimated values (mg/L) | 95 % confidence limit | |
|---|---|---|---|---|
| Upper limit | Lower limit | |||
| 22 | LC20 | 9.929 | −21.196 | 22.637 |
| LC50 | 28.591 | 14.747 | 49.526 | |
| 26 | LC20 | 4.116 | −5.428 | 8.169 |
| LC50 | 11.761 | 7.588 | 16.764 | |
Acute toxicity study
This test was conducted in accordance with standardized methods (ASTM 1980). A 96-h LC50 (median lethal concentration) was measured for abalone at our test water temperatures: 22 and 26 °C using the static renewal method. On a daily basis, a 100 % of the water change was performed with test solutions that were made 24 h prior to use to allow for metal equilibration. At time 0, the exposure tanks were spiked with a concentrated stock prepared from Ni(II) chloride hexahydrate (NiCl2, purity 97 %; Sigma-Aldrich, St. Louis, MO, USA) dissolved in double-distilled water. Abalone (n = 10 per tank) were transferred to one of eight 30-L tanks (including one control and seven different NiCl2 concentrations, nominally 0.5, 1, 5, 10, 20, 40, and 80 mg/L), each containing 20 L of well-aerated seawater under laboratory conditions. The water quality parameters measured for the bioassay were as follows: pH, 8.10 ± 0.2; salinity, 33.50 ± 0.6‰; and dissolved oxygen (DO), 7.14 ± 0.3 mg/L. All experiments were conducted at a room temperature of 20 ± 0.5 °C under a 12-h light/12-h dark cycle. No feed was provided during the 96-h test period. Dead animals were removed immediately from the test tank. Three replicates were performed for each concentration. The percentage mortality of animals was noted after 96 h, and the 96-h LC50 value was recorded and tested using a probit analysis program as described by Finney (1971).
Sublethal toxicity study
To assess the changes in biomarkers, H. discus hannai were divided into nine groups of five specimens each. Group 1–2 animals were reared individually in normal seawater at 22 and 26 °C. Group 3–4 and 5–6 animals were exposed to seawater containing 100 and 400 μg/L NiCl2 at 22 and 26 °C, respectively. Experimental concentrations were sublethal at which 0 % mortality occurred by 96 h. Glass aquaria (28 cm × 50 cm × 30 cm) were used in the experiments. The test solution and seawater were renewed daily to provide a constant effect of Ni on the animals. The animals were fed on a marine macroalgae diet of L. digitata during the 96-h experimental period. After 96 h, the experiment was terminated and the animals were killed to assess the biochemical and immunotoxic parameters.
Analysis of hematological and immunological parameters
Hemolymph collection
Hemolymph was withdrawn from the cephalic arterial sinus located at the anterior part of the muscle using a 26-gauge needle attached to a sterile plastic syringe containing ice-cold Tris-buffered saline (TBS; 50 mM Tris, 370 mM NaCl; pH 8.4), which prevents the clumping of hemocytes. Hemolymph from each animal was transferred into a vial and kept on ice. Approximately 200 μL of hemolymph samples was collected separately in 500 μL TBS and centrifuged at 200×g for 10 min at 4 °C. The supernatant plasma was aliquoted separately and used for phenoloxidase (PO) and biochemical assays. The resulting hemocyte pellet was resuspended in an equal volume of TBS, and the hemocytes were used for the phagocytosis assay.
Hemolymph biochemical parameters
Plasma samples were analyzed for inorganic substances, organic substances, and enzyme activity using a clinical kit (Asan Pharmaceutical Co., Ltd., Seoul, Korea). In the inorganic substance assay, calcium (Ca) and magnesium (Mg) were analyzed using the o-cresolphthalein complexone and xylidyl blue methods. In the organic substance assay, glucose and total proteins were analyzed using the glucose oxidase/peroxidase (GOD–POD) and biuret methods. In the enzyme activity assay, alkaline phosphatase (ALP) was analyzed using the Kind and King technique.

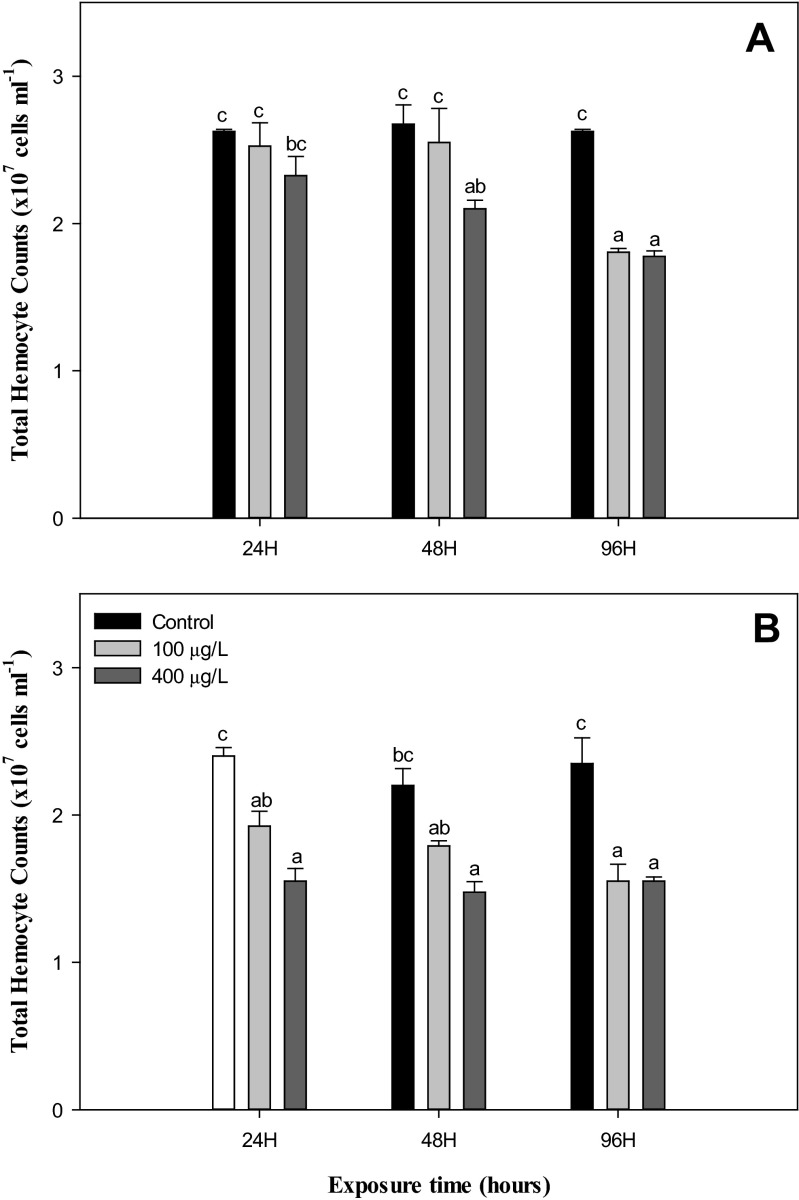

Total hemocyte count
An aliquot (200 μL) of hemolymph was collected in a prechilled vial containing 0.2 mL of sodium cacodylate-based anticoagulant (4.28 g of sodium cacodylate added to 90 mL of distilled water, pH 7.0; 400 μL of stock 25 % glutaraldehyde solution added and volume adjusted to 100 mL with distilled water) preloaded in a 1-mL syringe to count the total hemocytes using a hemocytometer (Neubauer, improved; Superior Ltd., Lauda-Königshofen, Germany) mounted in a microscope (CX40; Olympus, Shinjuku, Japan).

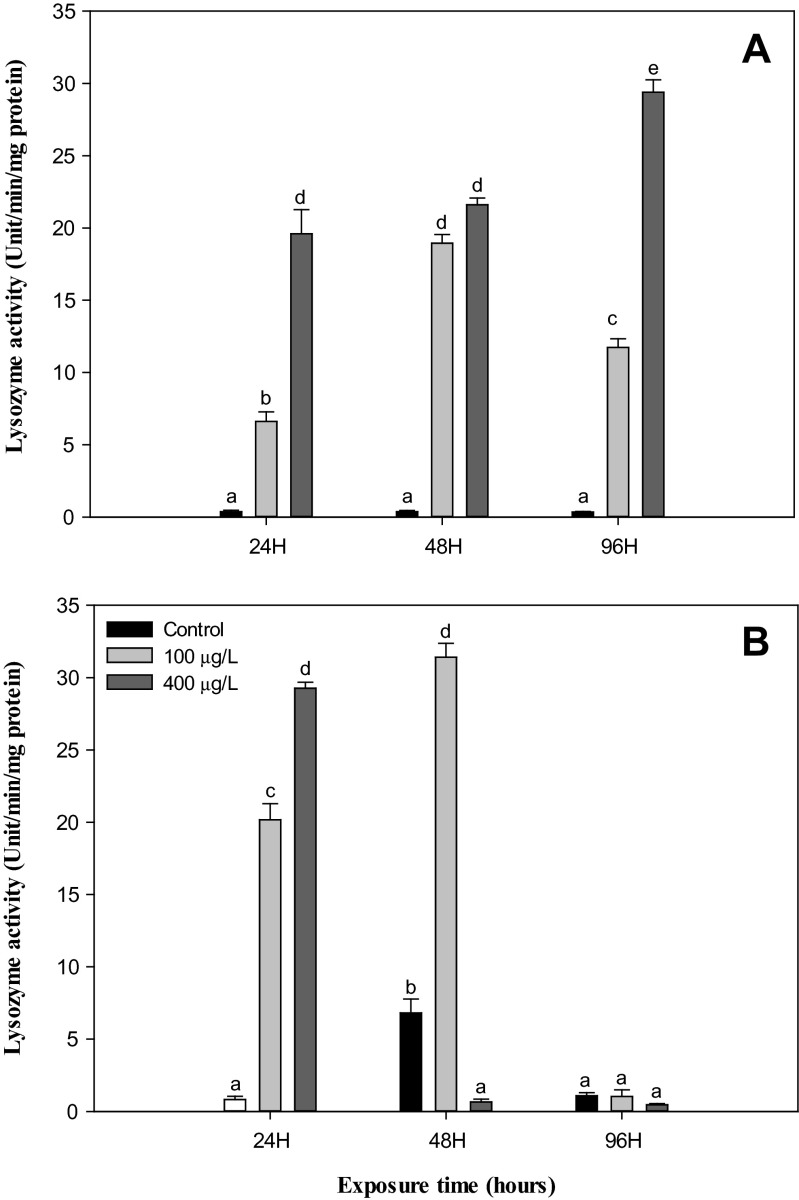

Lysozyme activity
The lysozyme concentration was calculated by measuring enzyme activity. Lysozyme activity was determined by a turbidimetric method (Ellis 1990) using Micrococcus lysodeikticus (Sigma-Aldrich) as a substrate (0.2 mg/mL 0.05 M phosphate buffer; pH 6.6 for kidney samples and pH 7.4 for plasma). A standard curve was made with a lyophilized hen egg white lysozyme (Sigma-Aldrich), and the rate of change in turbidity was measured at 0.5- and 4.5-min intervals at 530 nm. The result was expressed as microgram per milliliter and microgram per gram equivalent of hen egg white lysozyme activity.

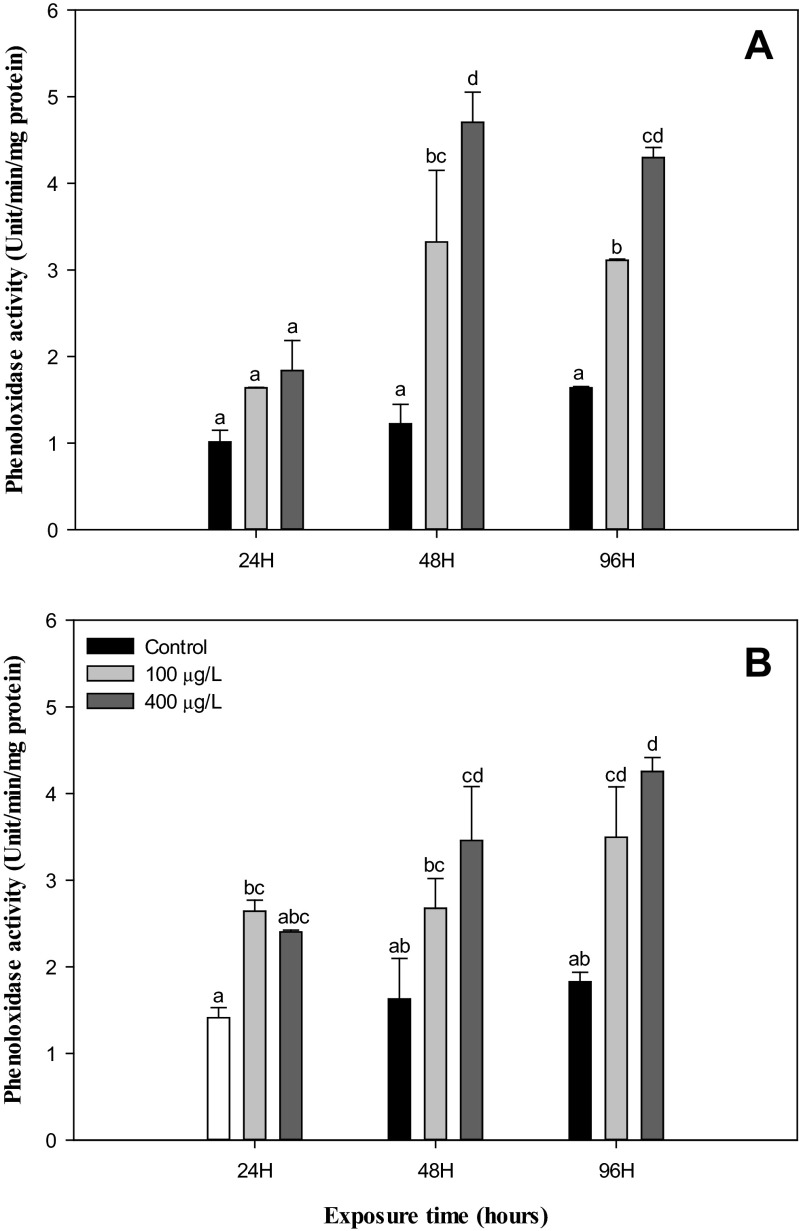

Phenoloxidase activity
PO activity was measured according to the method described by Asokan et al. (1997). Briefly, 100 μL of 2 mM l-DOPA was added to 200 μL of plasma in a 96-well flat-bottomed plate, and the optical density was measured at 490 nm for 10 min in a microplate reader (Zenyth 200rt; Anthos Labtec Instruments GmbH, Salzburg, Austria). One unit was defined as an absorbance change of 0.001 min/mg protein (U/mg protein/min).

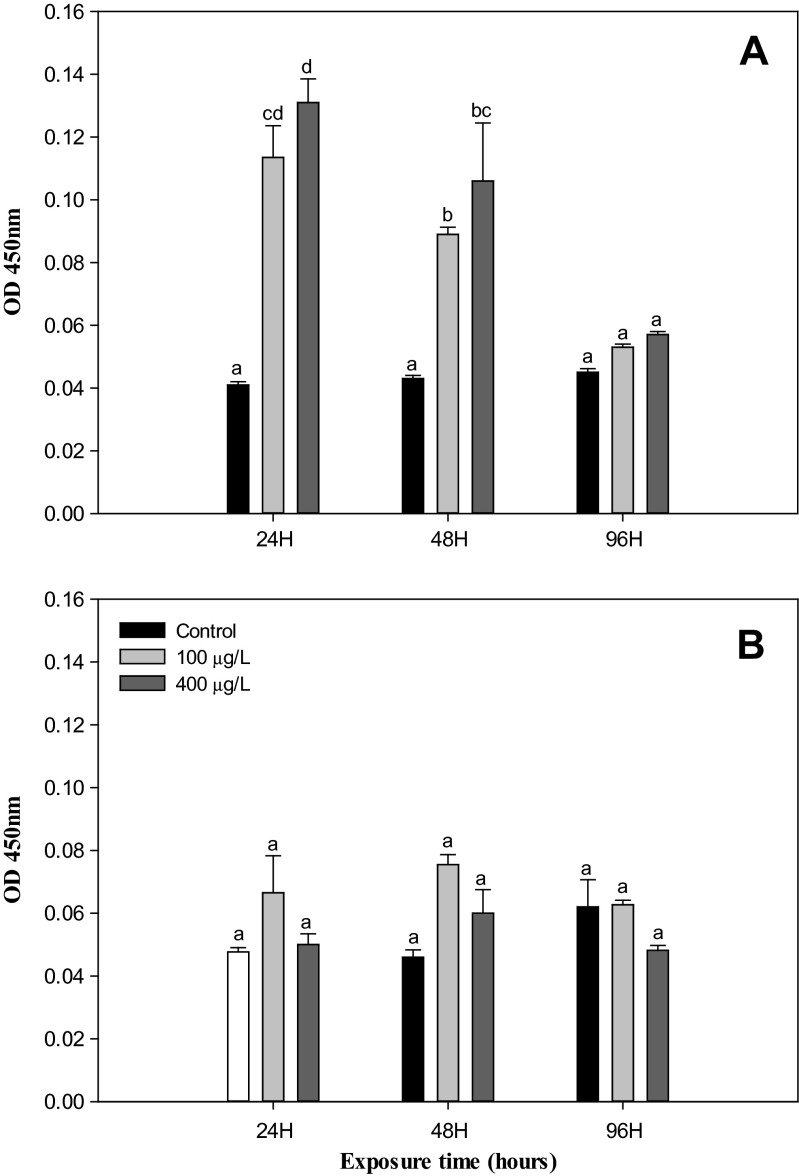

In vitro phagocytosis
Phagocytosis was measured using a cytoselect 96-well Phagocytosis Assay kit (Cell Biolabs, Inc, San Diego, CA, USA) according to the manufacturer’s instructions. One hundred microliters of plasma was placed in a 96-well plate, and each reagent was added sequentially. The optical density was measured at 450 nm in a Zenyth 200rt Microplate Reader.
Statistical analysis
Three experimental chambers were set up, each containing ten animals. Statistical analyses were performed using the SPSS/PC+ statistical package (SPSS Inc, Chicago, IL, USA). Significant differences between groups were identified using one-way analysis of variance (ANOVA) and Duncan’s test for multiple comparisons. The significance level was set at P < 0.05. Water temperature and physiological responses were examined with the two-way ANOVA followed by Tukey’s HSD post hoc tests after testing for normality and homogeneity of the data. The correlation between physiological responses was assessed with the Spearman correlation coefficient.
Results and discussion
Although various studies have established relationships between water temperature and outbreaks of infectious diseases in abalone (Lee et al. 2001; Braid et al. 2005; Dang et al. 2012), the effects of a combination of stressors in the marine environment remain elusive. The impact of the increased frequency of extreme thermal events on the physiological and immunological responses against the toxic effects of heavy metals remains unknown in abalone. Therefore, the aim of this study was to examine the effect of two commonly occurring aquatic stressors on the immune response of a commercially important Pacific abalone.
In this study, NiCl2 caused acute toxicity in a concentration-dependent manner in H. discus hannai. Using the data generated from the concentration–response experiments, the 96-h LC20 and LC50 values and their 95 % confidence limit levels were calculated (Table 1). The experimental conditions produced no mortality in the control at 22 and 26 °C. When administered at 40 and 80 mg/L at both 22 and 26 °C, NiCl2 induced 100 % cumulative mortality in the three replicate groups within 4 days of exposure. The 96-h LC50 at 22 and 26 °C for the abalone was 28.591 and 11.761 mg/L, respectively.
Previous studies have reported the LC50 of Ni in various fisheries (Saxena and Parashari 1983; Alam and Maughan 1982; Virk and Sharma 1995; Buhl and Hamilton 1991; Khangarot and Ray 1990), but little information exists in the literature regarding the toxic effects of Ni on invertebrates. Reported values of the 96-h LC50 for NiCl2 exposure are 2.26 mg/L in the mud crab S. serrata, 8.46 mg/L in the freshwater snail Melanoides tuberculata, and 112 mg/L in the pink shrimp Penaeus duorarum (Othman et al. 2012; Vijayavel et al. 2009). The variation in the LC50 values in aquatic organisms reported in these studies might be attributable to the species; size; age; and water quality parameters such as temperature, hardness, pH, and oxygen level (Rand and Petrocelli 1985). The results of this study, as shown in Table 1, indicate that temperature had a considerable effect on the survival of abalone exposed to NiCl2. Temperature is the most important natural factor affecting the toxicity of pollutants, partly because of its direct and immediate effects on metabolic processes (Sjursen and Holmstrup 2004; Khan et al. 2007). Unfavorable temperatures may affect uptake, elimination, and detoxification rates through an influence on the metabolic, locomotor, and feeding activities of organisms (Donker et al. 1998).
The mode of toxicity of most waterborne metals involves the disruption of the immune defense system (Pipe et al. 1999), but the mechanism of Ni toxicity is more unclear, particularly in marine environments. For example, a study of cadmium (Cd) showed no significant immunotoxic effects on the hemocytes of the Pacific oyster Crassostrea gigas, while mercury (Hg) inhibited PO activity and generated high mortality in these cells in vitro (Gagnaire et al. 2004). In the clam Mya arenaria, the hemocyte phagocytic activity significantly decreased due to the high levels of zinc (Zn), Cd, Hg, mercury chloride (HgCl), and nitrate (NO3−; Brousseau et al. 2000).
In mollusks, the immune defense system mainly depends on innate immunity and more specifically on hemocytes circulating in the hemolymph, which are also thought to be important antimicrobial effector cells. Following phagocytosis, one of the important roles of hemolymph in the invertebrate defense system is as an early internal defense mechanism against invaders by circulating hemocytes. Any decrease in the total hemocyte count (THC) and phagocytic activity due to xenobiotic chemicals could lead to a decrease in the defense response against pathogens (Yue et al. 2010). Hemocytes also have important roles in lysosomal enzyme activity, anti-inflammation, wound repair, and the production of reactive oxygen species (ROS).
In this study, two concentrations (100 and 400 μg/L) of NiCl2 were used to assess the biochemical and immunological parameters in H. discus hannai. The parameters were modulated by NiCl2 exposure or change of water temperature (Table 2). NiCl2 exposure, change of water temperature, and their interaction affected total protein levels and the lysozyme activities in H. discus hannai (Table 2). The effect of NiCl2 on Ca, Mg, total protein, glucose, and ALP-S in the hemolymph of abalone is shown in Table 2. The level of Ca increased significantly with a decrease in the level of Mg in the hemolymph of H. discus hannai, depending on the water temperature and NiCl2 concentration compared to the control at 22 and 26 °C (P < 0.05).
| Water temperatures (°C) | Exposure concentration (μg/L) | |||
|---|---|---|---|---|
| Control | 100 | 400 | ||
| Ca (mg/dL) | 22 | 4.270 ± 0.389a | 5.506 ± 0.065ab | 6.180 ± 0.324ab |
| 26 | 6.854 ± 0.065b | 9.438 ± 1.557c | 9.438 ± 0.778c | |
| Mg (mg/dL) | 22 | 13.102 ± 0.386c | 12.834 ± 0.618c | 13.235 ± 0.463c |
| 26 | 11.832 ± 0.039bc | 10.829 ± 0.618ab | 10.361 ± 0.039a | |
| Total protein (g/dL) | 22 | 2.416 ± 0.005a | 2.426 ± 0.001a | 2.417 ± 0.005a |
| 26 | 2.508 ± 0.037b | 2.453 ± 0.005ab | 2.407 ± 0.001a | |
| Glucose (mg/dL) | 22 | 26.238 ± 0.286a | 26.733 ± 0.001ab | 27.228 ± 0.286ab |
| 26 | 27.723 ± 0.286b | 27.475 ± 0.661b | 27.227 ± 0.285ab | |
| ALP-S (K-A) | 22 | 6.316 ± 0.058a | 6.391 ± 0.043ab | 6.541 ± 0.043b |
| 26 | 6.391 ± 0.043ab | 6.541 ± 0.043b | 6.466 ± 0.058ab | |
The mode of toxicity of most waterborne metals involves the disruption of ion regulation (Bielmyer et al. 2013). The physiological mechanisms of Ni toxicity in aquatic organisms are yet to be fully understood (Niyogi et al. 2014). In aquatic invertebrates, Ni appears to act more like an ion regulatory toxicant, particularly in acute exposures. In Daphnia magna, Ni acts as the Mg2+ antagonist, thereby disrupting Mg2+ homeostasis and causing a decrease in Mg2+ levels following both acute and chronic exposure (Pane et al. 2003). Alternatively, in fish, Ni has been found to act primarily as a respiratory, rather than an ion regulatory, toxicant in both acute and chronic exposures (Pane et al. 2003, 2004). In this study, NiCl2 appeared to disrupt plasma Ca2+ and Mg2+ homeostasis because increased concentrations of NiCl2 induced physiological stress under unfavorable temperature. In addition, Ca2+ is known to play a role in apoptosis. Previous study has suggested that Ca2+ accumulation in the cytoplasm disrupts Ca2+ ion homeostasis in crab (Scylla sp.), subsequently causing the dysfunction of mitochondria and endoplasmic reticulum and finally leading to the apoptosis of muscle cells under thermal stress (Kong et al. 2012).
In this study, the THC reduced significantly (P < 0.05) while the lysozyme, PO, and phagocytosis activity increased significantly (P < 0.05) in the hemolymph of H. discus hannai exposed to NiCl2 (100 and 400 μg/L) when compared to the control at both 22 and 26 °C. However, these immunological parameters were not impacted by the rise in temperature from 22 to 26 °C in nonexposed groups during experimental periods, except for lysozyme activity at 48 h (Figs. 1, 2, 3, and 4).
The invertebrate defense system has been established to depend solely on an innate immune system, in which the circulating hemocytes play key roles, and the THC can reflect the health status of the host (Gopalakrishnan et al. 2009). Previous studies suggested that hemocyte functions can be used as biomarkers to study the effects of pollution (Fisher et al. 2000; Gopalakrishnan et al. 2009). In this study, the THC significantly decreased depending on the NiCl2 concentration and water temperature (Fig. 1). Consistent with these results, abalones exposed to benozo(a)pyrene and tributyltin exhibit a decreased THC (Gopalakrishnan et al. 2009, 2011). Ano and Mori (1996) suggested that the decline in the THC is due to inhibition of the mobilization of hemocytes by xenobiotic substances and stressors. Also, as suggested by Vijayavel et al. (2009), Ni might be transported to other organs via the circulating hemolymph. The reduction in the THC might be due to the interference of Ni and thermal stress with hematopoietic tissues, which serve as the production and storage sites for the hemocytes. The hemolymph protein level also has an important role in the maintenance of the stability of hemocytes, oxygen transport, and cell integrity (Vijayavel et al. 2005). However, in this study, the level of hemolymph protein in the abalone exposed to NiCl2 during thermal stress did not change significantly compared to the control group (Table 2).
As noted above, the humoral immune parameters, the lysozyme, and PO activity are important humoral defense factors in mollusks. Lysozyme performs the primary role of eliminating pathogens and other invaders in invertebrates and may be involved in the segregation and metabolism of toxic compounds (Lowe and Pipe 1994). In previous studies, a significant inhibition of lysozyme was reported in the abalone Haliotis diversicolor supertexta and the clam Tapes philippinarum exposed to tributyltin (Zhou et al. 2010; Mattzzo et al. 2002). At 26 °C in this study, the lysozyme activity decreased significantly in the abalone exposed to NiCl2 after 96-h exposure. This decrease in the activity of lysozyme indicates an attenuated disease resistance in abalone (Fig. 2). However, at the higher temperature (26 °C), the activity of the lysozyme of abalone hemolymph increased in the control groups after 48-h exposure (Fig. 2). The reason why the lysozyme in group treated with NiCl2 was higher than in the controls during the 96 h at 22 °C and the first 48 h at 26 °C possibly results from hormesis (Stjean et al. 2002). As shown in Fig. 3, in the PO activity, a parallel change occurred in both the controls (22 °C) and heated abalone (26 °C) from 24 to 96 h, with a significant increase over time in the abalone exposed to NiCl2. Day et al. (2010) reported a similar change in both controls (16 °C) and heated abalone (26 °C) from days 1 to 2, but the PO activity in heat-stressed abalone significantly decreased compared to the controls on day 7. They suggested the long-term suppression of this aspect of the immune function by continued severe heat stress and a possible increase with temperature that was associated with shorter, less severe heat stress. Exposure to benzo(a)pyrene also significantly increased the activity of PO in H. diversicolor (Gopalakrishnan et al. 2009). In vertebrates, PO exists in hemolymph as an inactive proenzyme, prophenoloxidase, which can be transformed to the active form, PO, by several microbial polysaccharides, environmental factors, and metal ions (Coles and Pipe 1994; Cárdenas and Dankert 1997). PO can also be released from the circulating hemocytes into hemolymph when the animals are stressed by physical injury or infection (González et al. 2003; Gopalakrishnan et al. 2009). Exposure to xenobiotic substances has been well established to lead to an increase in PO in mollusks (Coles and Pipe 1994; Cheng et al. 2004e; Thiagarajan et al. 2006; Gopalakrishnan et al. 2009), and the results of this study also support earlier reports suggesting that sublethal levels of NiCl2 have an impact on the plasma PO of H. discus hannai. Nappi et al. (1995) reported that intermediates of PO may generate the superoxide anion. Increased PO due to NiCl2 exposure might indirectly produce free radicals that could lead to oxidative stress and cellular damage. Previous studies have shown that thermal stress in marine organisms can significantly alter ROS production and antioxidant enzyme expression (Power and Sheehan 1996; Abele and Puntarulo 2004; Heise et al. 2003; Zoysa et al. 2009).
As observed in the hemolymph PO activity, phagocytosis by hemocytes significantly increased compared to the controls in H. discus hannai exposed to Ni during the experimental periods (Figs. 3 and 4). Although an increase in PO activity lasted throughout the experimental period (96 h), the level of phagocytosis recovered to the control level after 96 h at 22 °C but was not significantly different from the start to finish of the experiment at 26 °C (Fig. 4).
Phagocytosis can be affected by environmental parameters in vertebrates (Bayne 1990). In particular, an elevated temperature has been reported to increase phagocytosis and hemocyte activity in Crassostrea virginica (Feng and Feng 1974; Foley and Cheng 1975). Day et al. (2010) reported that substantial temporal variation is found in the rate of phagocytosis of abalone hemocytes. On days 1 and 2, the heat-stressed (26 °C) abalone had significantly higher rates, but beyond the first day, no evidence was observed of an effect of heat on the rate of phagocytosis. The authors suggested that this may be an artifact (i.e., an effect of some unforeseen factor, possibly the cessation of feeding on day 1, or lights being turned on without the authors’ knowledge). Dang et al. (2012) reported that THC increased at day 1 and then dropped back to control levels by days 3 and 7 and that antiviral and antibacterial activity tended to be elevated in the higher-temperature (21 and 24 °C)-treated groups compared to the control group (18 °C).
In general, xenobiotic substances suppress the values of most immune parameters in abalone. For example, phagocytosis activity decreased significantly with increasing concentrations of Ni (400–800 μg/L) in the hemocytes of the mud crab S. serrata (Vijayavel et al. 2009). However, a significant discrepancy was observed in the immunological parameters of abalone exposed to NiCl2 during the thermal stress experienced in this study. This can be explained by the results of the following studies. Previous studies on Macrobrachium rosenbergii indicated that PO, phagocytic activity, and the clearance efficiency of bacteria were significantly higher for animals reared at 27 and 30 °C than those reared at 20 and 33 °C (Cheng and Chen 2000; Cheng et al. 2003). Sauve et al. (2002) reported that the effect of heavy metals on immune responses differed due to the period of exposure to the heavy metals. Similarly, copper and Hg inhibited the immune responses in Perna viridis, although they recovered from the toxic effect after prolonged exposure to these metals (Thiagarajan et al. 2006). The ability to eliminate bacteria from the circulating hemolymph and the number of hemocytes initially decreased after exposure to aluminum (Al) and a bacterial challenge but then also recovered after long-term exposure to Al (Ward et al. 2006). These studies suggest that “mild stressors” can cause an apparent immune stimulation, but a concurrent increased susceptibility to infectious disease occurs. An important aim of future research should be to identify the impacts on immune system function following exposure to complex stressors (e.g., temperature, heavy metals, and pathogen attacks) that are relevant in assessing on-farm immune functional capacity.
Our results showed that Ni concentrations below 400 μg/L NiCl2 were able to stimulate immune responses in abalone. However, complex stressors, such as the thermal variability of breeding water or Ni exposure, can modify an immunological response and can lead to changes in the physiology of host–pollutant interactions in H. discus hannai. Ni is often found in the coastal environment, with levels in natural waters ranging from 0.2 to 0.7 μg/L in marine water (Brix et al. 2004). The exact amount of Ni in the marine environment is likely to depend on local factors, and the cause of the mortality-induced suppression of the immune response of abalone may not be due to Ni, even under conditions of climate change.
