Substance P Depolarizes Lamprey Spinal Cord Neurons by Inhibiting Background Potassium Channels
Tachykinins, Locomotor Pattern Generation
Nobel Institute for Neurophysiology, Department of Neuroscience, Karolinska Institutet, Stockholm, Sweden
University of Houston, UNITED STATES
* E-mail: sten.grillner@ki.seAbstract
Substance P is endogenously released in the adult lamprey spinal cord and accelerates the burst frequency of fictive locomotion. This is achieved by multiple effects on interneurons and motoneurons, including an attenuation of calcium currents, potentiation of NMDA currents and reduction of the reciprocal inhibition. While substance P also depolarizes spinal cord neurons, the underlying mechanism has not been resolved. Here we show that effects of substance P on background K+ channels are the main source for this depolarization. Hyperpolarizing steps induced inward currents during whole-cell voltage clamp that were reduced by substance P. These background K+ channels are pH sensitive and are selectively blocked by anandamide and AVE1231. These blockers counteracted the effect of substance P on these channels and the resting membrane potential depolarization in spinal cord neurons. Thus, we have shown now that substance P inhibits background K+ channels that in turn induce depolarization, which is likely to contribute to the frequency increase observed with substance P during fictive locomotion.
Data Availability
All relevant data are within the paper.
Introduction
Background channels play a fundamental role in determining the neuronal resting membrane potential, input resistance and excitability [1]. Background K+ channels (previously called leak channels) can be regulated by voltage-independent factors as pH and temperature, second messengers [2] and are common targets for neuromodulation [3, 4]. Inhibition of background K+ channels induces membrane depolarization, increased membrane resistance and consequently increases the firing rate, which could have great impact at the cellular level as well as on the network activity.
The modulatory effect of substance P on the neuronal network underlying locomotion has been studied in the spinal cord [5, 6]. In mammals, bath application of substance P during fictive walking increases the locomotor frequency [6]. In the lamprey spinal cord, substance P is released endogenously during fictive swimming [7] and it increases the burst frequency [8]. The cellular mechanisms underlying the increase in burst frequency include a membrane depolarization and a potentiation of NMDA current [8, 9], as well as a reduction of the crossed inhibition, via endocannabinoids [10]. The membrane depolarization is accompanied by an increased input resistance at resting membrane potential suggesting that this effect may be mediated by a decrease in outward background K+ conductance. Our goal here is to examine the possible influence of substance P on background K+ channels, which contribute to setting the resting membrane potential and which may modulate the excitability of central pattern generator (CPG) neurons.
The two-pore potassium channels TREK-1, TREK-2 and TRAAK regulate cellular excitability by providing temperature-dependent leak of potassium [11]. TASK-1 and TASK-2 also belong to the two-pore K+ channel family and are characterized by their pH sensitivity [12]. When TASK-1 channels open they allow diffusion of K+ ions across the membrane and show a small rectification [13]. G-protein coupled receptors have been reported to inhibit TASK-1 currents [3]. Substance P binds to NK1 receptors which are G protein-coupled and known to induce the activation of phospholipase C and produce inositol triphosphate [14].
Modulation of K+ channels by activation of metabotropic receptors has been studied previously in lamprey neurons. mGluR1, but not mGluR5 mediates depolarization by blocking K+ currents [15]. In mammals, 5-HT and substance P have been shown to inhibit background K+ channels of the two-pore, TASK-1 subtype [3] [16] and substance P modulation of the TASK-1 subtype has also been implicated in regulating the respiratory rhythm generation [4].
Our results indicate that substance P inhibits a K+ conductance by interacting with background K+ channels. We further present evidence these channels likely belong to the two-pore, TASK-1 K+ channel subtype based on their unique pH sensitivity and the selective blockade by anandamide and AVE1231.
Materials and Methods
Experiments were performed on the isolated spinal cords of young adult sea lampreys (Petromyzon marinus) caught from the wild in Massachusetts (USA) in accordance and approval with field and health guidelines (Acme Lamprey Company of Harrison, State of Maine) and transported to Sweden by authorized agents for ACME Lamprey Company. The research project was carried out in strict accordance with the recommendations in the institutional guidelines of The Animal Research Ethical Committee, Stockholm. The protocol was approved by Stockholm Norra djurförsöksetiska nämnd (N113/12). All surgery was performed under MS-222 anesthesia, and all efforts were made to minimize suffering.
Spinal cord preparation
Animals were anesthetized with tricaine methanesulfonate (MS 222, 100 mg/l; Sigma–Aldrich, Sweden), decapitated, and the spinal cord was dissected and kept at 4–8°C in a saline solution of the following composition (in mM): 137.9 NaCl, 2.1 KCl, 2.6 CaCl2, 1.8 MgCl2, 4 glucose, 5 HEPES. The pH was adjusted to 7.4 with 1 M NaOH. The osmolarity was adjusted to 270 mOsm with distilled water. The spinal cord and musculature of approximately 8 segments were pinned down to a Sylgard chamber. The protective meninx primitiva was removed and the spinal cords were isolated and placed in a cooled microslicer with the ventral side up. A horizontal layer of about 40 μm above the gray matter was removed from the ventral surface to facilitate visibility and penetration of the patch electrode into the tissue (Fig 1A). The spinal cords were then pinned to a cooled sylgard-lined chamber. Solutions of pharmacological agents were bath-applied at a perfusion rate of 1 ml/min into a chamber volume of 1ml.
Pharmacology
For the characterization of potassium currents, the spinal cords were incubated in Kynurenic acid (2 mM) and TTX (1 μM) (Sigma/Aldrich) to block glutamate receptors and sodium channels. Substance P (Sigma-Aldrich) was dissolved in water with 0.05 M acetic acid to prevent oxidation and 1% bovine serum albumin to increase the solution stability. Frozen 1 mM aliquots were stored at –20°C. They were dissolved in physiological solution to reach 1 μM concentration of substance P and applied for 20 minutes. Acetic acid alone at this final concentration had no effect on the pH or background K+ channels. Modified concentrations of K+ in the extracellular solutions (high [K+] solution with threefold increase of the KCl concentration to 6 mM and low K+ solution of 1 mM) were used to determine the ionic nature of the conductance. Anandamide (R&B Systems) was supplied pre-dissolved in anhydrous ethanol, 5mg/ml and stored in aliquots at -20°C. Anandamide was dissolved in physiological solution to reach 3 μM concentration and applied for 20 minutes. The TASK-1 blocker AVE1231 (kindly provided by Sanofi, Germany) was stored in 10 mM aliquots and dissolved in physiological solution to reach 10 μM and applied for at least 20 min.
Electrophysiology
For the intracellular experiments, spinal neurons were recorded using patch electrodes pulled from borosilicate glass microcapillaries. Whole-cell recordings were performed in current- or voltage-clamp mode using a Multiclamp 700B amplifier (Molecular Devices). Bridge balance and pipette capacitance compensation were automatically adjusted. Patch electrodes had resistances of 5–10 M and contained the following (in mM): 105 K gluconate, 30 KCl, 10 Na phosphocreatine, 5 HEPES, 0.001 GTP and 0.003 ATP. The pH was adjusted to 7.4 with KOH and the osmolarity to 250 mOsm with H2O. These cells are all putative motoneurons. They were abundant in the gray matter and after the longitudinal transection their large soma become visible (Fig 1A2), due to their position and size and our previous experience, they were most certainly motoneurons [17]. They had an input resistance that varied from 40 to 160 M ohms at rest, which correlates to large size motoneurons. Hyperpolarizing steps where injected and the currents were monitored 10 and 20 minutes after pH change or drug application. Since the effects for substance P were not reversible within reasonable times for whole-cell recordings, only one neuron could be analyzed for each spinal cord preparation for all experiments with whole-cell recording. Input resistance measurements were done by measuring the currents induced by hyperpolarizing steps to -70 and -100 mV. The slope of the I-V relationship was calculated by the ratio of the current divided by the ratio of the voltage ((y2-y1)/(x2-x1)) between -70 and -100 mV. A higher slope value indicates a steeper incline and therefore a higher input resistance.
Data were acquired with Clampex software and analyzed using Clampfit (pCLAMP 10, Molecular Devices, CA, USA) and Spike2 4.16 software (Cambridge Electronic Design, Cambridge, UK). Summary statistics and the values shown in the figures are reported as standard error of the mean (± SEM) and “n” represents the number of experiments. The significance was determined using Student’s t-test with a 95% confidence interval.
Results
The resting potential and membrane currents are dependent on extracellular K+ concentrations

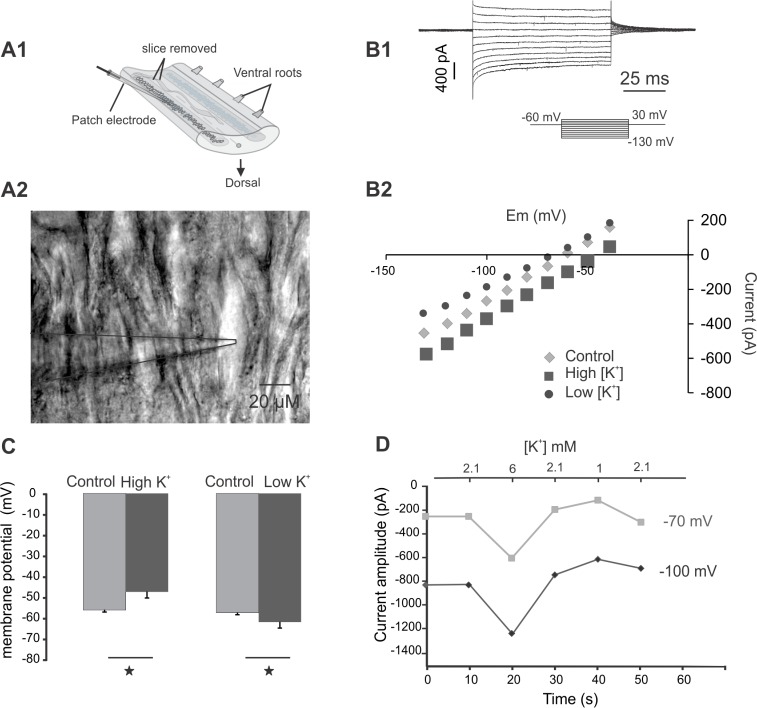

Background channels such as two-pore K+ channels allow ionic flux with an equilibrium potential that can be calculated by the Nernst equation. Since both the voltage and the concentration gradients influence the movement of ions, we characterized the channels by applying steps under whole-cell voltage clamp recordings in the presence of tetrodotoxin (TTX) and Kynurenic acid to block sodium channels and glutamate receptors. The result was a linear I-V relationship of membrane conductance over a wide range of command voltages with a reversal potential of mixed currents around -60 mV (Fig 1B1), suggesting that possibly low-voltage-activated calcium channels could also be involved [18, 19]. Furthermore, at different extracellular K+ concentrations the I-V relationship and the reversal potential shifted with a direction consistent, with a change in EK (Fig 1B2). A three-fold increase in potassium concentration from 2.1 mM in control, caused a membrane depolarization (average 9.1 mV, ± 2.3, p < 0.05, n = 4) and in contrast, at low K+ concentrations (1mM) a membrane hyperpolarization was observed (average 6 mV, ± 1.9, p < 0.05, n = 4) (Fig 1C). Fig 1D shows the current fluctuations of a cell a cell at -70 mV and -100 mV at the different K+ concentrations. During a high K+ concentration (6 mM) more current was needed to hold the cell at hyperpolarized levels and at low K+ concentration (1 mM) a reduction in current amplitude was noticeable. In both cases the current amplitude was reversible to control conditions (2.1 mM). These results indicate that at hyperpolarized levels background K+ channels are active and contribute to the change in conductance.
Substance P depolarizes the membrane and increases the input resistance

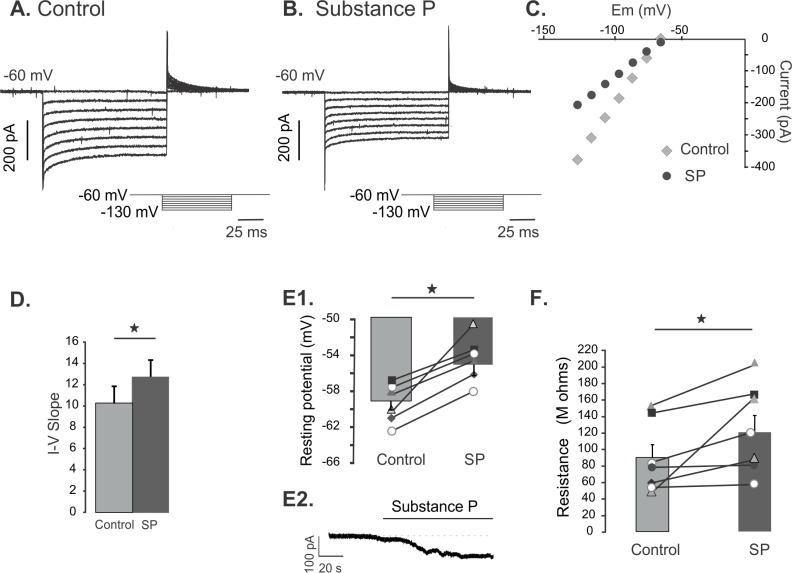

To study the effect of substance P on background K+ channels, we recorded the responses in voltage clamp and current clamp. Hyperpolarizing steps were measured under control conditions (Fig 2A) and during substance P bath application (Fig 2B). The I-V relationship during control conditions and during substance P application shows a reduction of inward current (Fig 2C and 2D). During current clamp, all cells responded with a depolarization during substance P application. Fig 2E shows resting membrane potential in control conditions and during substance P application (+4 mV, ± 1.4 mV, p = 0.05, n = 7). Consistently, substance P caused an increase in input resistance of all cells tested (42%, ± 24%, p = 0.05, n = 7). The magnitude of the response varied between cells, this variation is likely to be related to the cell size. Fig 2F shows the input resistance before and after substance P application.
Taken together, the results suggest that the depolarization and the increase in input resistance are both driven by inhibition of a K+ conductance.
Response to extracellular changes of pH

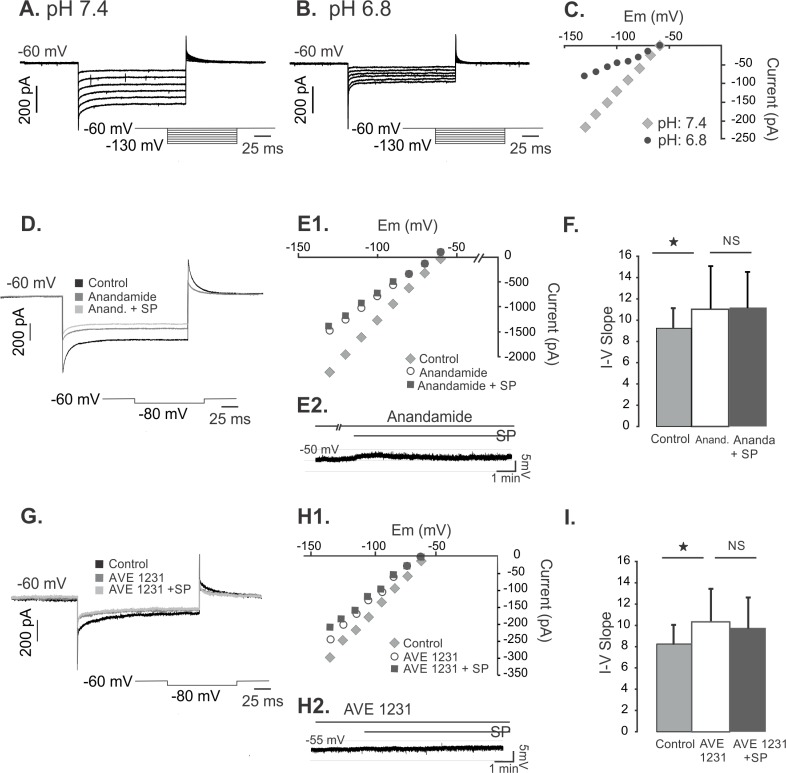

A subtype of background channels, TASK-1, are known to be sensitive to pH. To determine if changes in the K+ conductance, we tested the current response to hyperpolarizing steps under control conditions (pH: 7.4, Fig 3A) and in lower extracellular pH (pH: 6.8, Fig 3B). Acidification induced a significant reduction of the response to current steps and a shift in the voltage-current relationship (Fig 3C). (Measured at -70 mV: 40%, ± 8%, p = 0.05, n = 4). As only TASK-1 K+ channels are inhibited by acidification [12, 20], the linear I-V relationship together with the pH sensitivity support the presence of this type of channel in lamprey neurons, and suggests that they are partially responsible for the background K+ conductance.
Selective blockade of TASK-1 type K+ Channels
Two-pore domain K+ channels such as TASK-1 show a relative insensitivity to classical K+ channel blockers as TEA or Cs+ [21, 22]. However are blocked directly by anandamide, an cannabinoid receptor 1 agonist (CB1) [23]. It has been suggested that at low concentrations, anandamide has effects independent of the CB1 receptors [24]. To determine whether substance P inhibits TASK-1 K+ currents, we treated the cells with bath applied anandamide to block these channels. Anandamide indeed reduced the conductance during hyperpolarizing steps. Fig 3D shows an anandamide induced current reduction for a -80 mV step from -60mV followed by the response during anandamide plus substance P. Fig 3E1 shows the I-V curve during control conditions, anandamide alone and in the presence of substance P. Following the inhibition of the K+ conductance by anandamide, substance P induced practically no change in the holding current. In current clamp conditions, anandamide blocks the depolarization of substance P (Fig 3E2). However in 3 of 6 cases, a modest remaining depolarization was noticed, suggesting that substance P might also weakly activate a cation channel in some motoneurons [25]. Fig 3F shows a significant change of the slope between control conditions and anandamide application (p < 0.05, n = 7) however; no further reduction was seen during substance P application (n = 4).
To provide further evidence of the background conductance inhibited by substance P we applied the TASK-1 blocker AVE1231 [2]. AVE1231 inhibited background conductance and moreover, prevented the substance P effect. Fig 3G shows traces during control conditions and that AVE1231 induced a current reduction at -80 mV. No further reduction of the conductance was seen with substance P in the presence of the blocker, and neither a depolarization under current clamp conditions (n = 3 of 3). Fig 3H1 shows the I-V curve during control conditions, AVE1231 alone and in the presence of substance P. Fig 3H2 shows a representative trace of a block of depolarization in current clamp conditions. Fig 3I shows a significant change of the slope between control conditions and AVE1231 application (p < 0.05, 5 of 5) however, no further reduction was observed during the substance P application (n = 5). These data provide further support that substance P acts on K+ channels of the TASK-1 channel type.
Discussion
The resting potential and membrane depolarization
Background selective K+ channels are a primary source for the current occurring at resting membrane potential and therefore give rise to a negative membrane potential [25].
When the concentration of K+ outside the neuron is altered, the slope of the I-V relationship does not change; however, there is a shift in the membrane potential. This suggests that the background current is carried out by K+.
Substance P depolarizes the membrane and increases the input resistance
Substance P reduced the slope in the I-V relation at negative potentials, which means there was an increase in resistance. The physiological correlate of an increase in input resistance is a closure of ion channels. The fact that we also observed a depolarization with substance P under current clamp, means that the ion channels that are affected have a reversal potential negative to the resting potential and are therefore most likely background K+ channels.
G-protein coupled receptors have been reported to inhibit K+ currents in mammals and substance P has been shown to inhibit background K+ channels of the two-pore, TASK-1 subtype [3].
Sodium leak channels (NALCN) although not completely selective can be activated by substance P [26] [27], and an activation would results in a decrease of the input resistance. In our case, however, substance P instead causes an increase in input resistance. NALCN channel thus not contribute to the substance P effects observed here.
Background K+ channel characterization
pH changes in the central nervous system is implicated in a number of physiological processes. Under physiological conditions the pH is around 7.4. Lowering the pH causes TASK-1 Two-pore domain K+ channels to close, providing a tool for its characterization [12]. At a pH of 6.8 we had a significant response, very similar to the one with substance P, suggesting that substance P would act via TASK-1 channels.
The possible involvement of the two-pore domain K+ channel type was also tested by applying anandamide. Anandamide is a CB1 agonist that has been shown to have multiple effects and to directly block TASK-1 type two-pore K+ channel at low concentrations [23]. In the presence of the anandamide, the slope of the I-V curve was shifted, indicating an increase of the input resistance consistent with an inhibition of a K+ current. Furthermore, substance P did not have an effect in its presence presumably due to previous blockade of the TASK-1 by anandamide, providing further evidence that two-pore, TASK-1 is the type of background K+ channel modulated by substance P. Anandamide was also able to partially block the effect on the depolarization caused by substance P. The remaining effect observed only in some cases, might be associated with a cation channel activation and possibly differences between fast and slow motoneurons.
The blocker AVE1231 is a novel compound reported to be potent and specific TASK-1 blocker in humans and rodents [2, 28]. Motoneurons are known to express TASK-1 and TASK-3 in rodents [16]. AVE1231 caused a significant reduction of the background K+ current compared to control, however, to a lesser extent than anandamide and in current clamp conditions, it is also able to block the depolarization of substance P.
Two-pore domain channels have been found in most examined tissues [29]. In mammals TASK-1 channels have been found in the central nervous system [30]. Closure of these channels by neuromodulators would have profound effects on neuronal networks. A large scale effect from depolarization and a higher input resistance would occur that would increase excitability. This may, then, be a mechanism contributing to the increased burst frequency caused by substance P in the lamprey locomotor network (summarized in Fig 4). As the rhythm is affected by substance P it is likely that this effects are exerted at the interneuron level in the CPG.
