Fresh leaf material was obtained from five accessions from the IITA (International Institute of Tropical Agriculture) [4] accessions and 14 from the Eden Project. DNA was extracted from fresh leaf material and sequenced using a combination of Illumina HiSeq 2500, Illumina NovaSeq 6000 and BGIseq-500 platforms. This yielded at least 20 × coverage of each genome and was sufficient for calling single-nucleotide polymorphisms, detecting presence/absence polymorphisms and cataloguing patterns of heterozygosity.

From the 14 plant accessions from the Eden Project, cigar leaves were cut from the plant and lyophilised in a freeze dryer before sending to BGI Tech Solutions (Hong Kong) Co., Limited, where DNA extraction and sequencing was performed.

For the five accessions from the IITA (International Institute of Tropical Agriculture), genomic DNA was isolated using a modified CTAB (hexadecyltrimethylammonium bromide) extraction method [5]. The University of Exeter's Sequencing Service prepared Illumina sequencing libraries after fragmenting 500 ng of DNA to an average size of 500 bp, using the NEXTflex 8-barcode Rapid DNAseq kit sequencing (Perkin Elmer) with adapters containing indexes and 5–8 cycles polymerase chain reaction (PCR) [6]. Library quality was determined using D1000 screen-tapes (Agilent) and libraries were either sequenced individually or combined in equimolar pools. Sequencing was performed on a single lane of a high-output v4 flow-cell on the Illumina HiSeq 2500 at the University of Exeter, yielding pairs of 125-bp reads.

This yielded at least 20 × coverage of each genome, sufficient for calling single-nucleotide polymorphisms, detecting presence/absence polymorphisms and cataloguing patterns of heterozygosity. Reads were also generated with longer inserts using the Illumina HiSeq (2 × 150 bp reads, 800-bp insert size) for two of the samples, which potentially aids resolution of sequence repeats if data are used in de novo assembly of genomes.

The quality of the sequencing reads was evaluated using FASTQC [7]. Before further analyses, reads were trimmed and adapters removed using TrimGalore [8] with command-line options “-q 30 –paired”. Trimmed and filtered reads were aligned to the M. acuminata genome [9] using BWA [10] to generate binary alignment map (BAM) files [11].

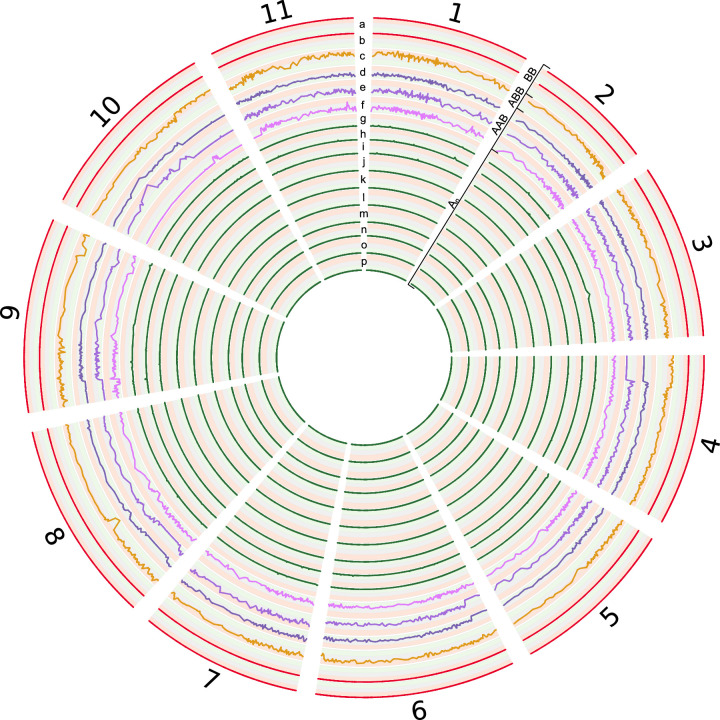

As a prerequisite for plotting the relative contributions of the A and B genomes in allopolyploids, we first identified a set of informative SNPs that distinguish A (M. acuminata) from B (M. balbisiana) as follows utilising SAMtools’ mpileup function, BCFtools [11,12] and custom scripts available at https://github.com/davidjstudholme/SNPsFromPileups. First, the relevant BAM alignment files were converted into uncompressed VCF format using SAMtools v1.6 (mpileup function), selecting for variant sites only (-v) using the alternative model for multiallelic and rare-variant calling (-m). Potential SNPs were filtered using the filter function of BCFtools (v1.6), excluding potential SNPs that were within 100 base pairs of an indel (–SnpGap 100) and had a quality score of less than 35 (QUAL>=35) with a depth of 5 or more reads (MIN(DP)>=5). The minimum number of reads supporting an indel was set to two (MIN(IDV)>=2). Variants that were flagged as indels were excluded (INDEL=0). The resulting filtered VCF files contained the positions of candidate SNPs that distinguished the B genome [13] versus the A reference genome [14]. At each of these informative SNPs, we quantified the relative abundance of the A- and B- alleles, only considering sites where the depth was between 10 and 50. When plotting, the resulting percentage of the B allele was smoothed in R using the LOESS package [15]. The percentages of the B alleles at each SNP were visualised using Circos [16] (Fig. 1).

We used nQuire [17] to estimate ploidy from the BAM files (of genomic reads aligned agains the M. acuminata reference genome). After de-noising to remove noise from mis-mapping due to highly repetitive regions, we assessed ploidy level using the lrdmodel command of nQuire to produce delta log-likelihoods of diploidy, triploidy or tetraploidy. The lowest delta log-likelihood was taken to indicate the most likely ploidy level (Table 5). To infer ploidy levels, we used nQuire [17] to predict ploidy using BAM alignment files generated with BWA. The ploidy model yielding lowest value of ΔlogL was chosen as the inferred ploidy. The command lines used were as follows:

nQuire create -b example.bam -o example

for i in *.bin; do echo $i; nQuire denoise $i -o $i\_denoised; done

for i in *_denoised.bin; do echo $i; nQuire lrdmodel -t 8 $i; done
