High Performance Thin-Layer Chromatography (HPTLC) data of Cannabinoids in ten mobile phase systems
Forensic Science Program, Department of Chemical and Physical Sciences, Cedar Crest College, Allentown, PA, 18104, USA
Ocean County Sheriff's Department, Toms River, NJ, 08753, USA
⁎Corresponding author. Tabrette@cedarcrest.eduAbstract
This article contains data from triplicate analyses of ten different TLC mobile phase systems from the analysis of 11 cannabinoid standards using HPTLC. The data includes 1) example plate images for 8 mobile phases during evaluation; 2) example table of calculated average, standard deviation, CV% of RF for hexane:acetone (87:13) system during evaluation; 3) images of all case sample plates. The validation of the two chosen mobile phases were done according to the SWGDRUG validation requirements [1]. This data can be used for choosing an alternative mobile phase TLC system for the analysis of cannabinoids. The data described in this article is related to a previous published research article “High Performance Thin-Layer Chromatography (HPTLC) analysis of cannabinoids in cannabis extracts” by Liu, et al. (2020) [2].
Data in brief
Specifications tableSubject Forensic Chemistry Specific subject area HPTLC, cannabinoids Type of data Tables
Images
FiguresHow data were acquired Plates were run on CAMAG HPTLC instruments and data were collected using VisionCATS software. Data format Raw: HPTLC original reports; Images of plates
Analyzed: Excel tables and figures.Parameters for data collection 11 certified reference cannabinoid standards were run on 10 different mobile phases in triplicates. Reports were automatically generated after each run using the instrument software. RF values in each report were used to calculate resolution. Description of data collection RF values were exported to an excel spreadsheet, where the calculations were performed. Data source location Cedar Crest College
Allentown, PennsylvaniaData accessibility All the data are provided with the article. Related research article Author's name: Y. Liu et al.
Title: High Performance Thin-Layer Chromatography (HPTLC) analysis of cannabinoids in cannabis extracts
Journal: Forensic Chemistry (2020)
DOI:https://doi.org/10.1016/j.forc.2020.100249
Value of the data
- •Example images of each mobile phase system with cannabinoid standards can visually help researchers understand which mobile phase results in better separation in the analysis of cannabinoids. Figures that compare each mobile phase can provide a visual of the relationship between the positions of cannabinoids to assist researchers in choosing the proper mobile phase.
- •The tables of RF values and resolution calculation for different cannabinoids in different mobile phase systems can provide numerical support when selecting a mobile phase to perform analyses. The data will serve as references for agencies and crime labs in the analysis of seized cannabis products.
- •Case sample images can provide a reference to determine the proper mobile phase for crime laboratories and researchers performing HPTLC analysis of cannabinoids.
1Data description
This data article includes 1) example plate images for 8 mobile phases during evaluation; 2) example of calculated average, standard deviation, CV% of RF values and resolution for 11 cannabinoid standards in one mobile phase after three replicates; 3) images of example case samples analyzed on two mobile systems.

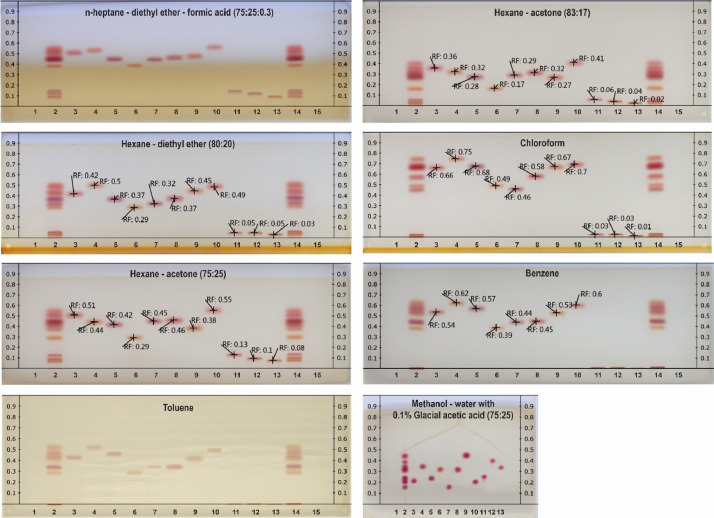

Fig. 1 shows example plates for the eight mobile phases evaluated. The RF values were determined for the 11 cannabinoid standards, delta-9-tetrahydrocannabinol (Δ9-THC), cannabidiol (CBD), cannabinol (CBN), cannabigerol (CBG), cannabichromene (CBC), tetrahydrocannabivarin (THCV), cannabidivarin (CBDV), delta-8-tetrahydrocannabinol (Δ8-THC), delta-9-tetrahydrocannabinolic acid (THCA-A), cannabinolic acid (CBDA) and cannabigerolic acid (CBGA) in lane 3–13. The original HPTLC reports of the triplicate analyses of the eight mobile phase systems can be found in the supplemental material (S1). S1 includes 24 pdf files of original HPTLC reports generated from VisionCATS software. Each file includes application format, instrument parameters, images of each plate and raw RF values.

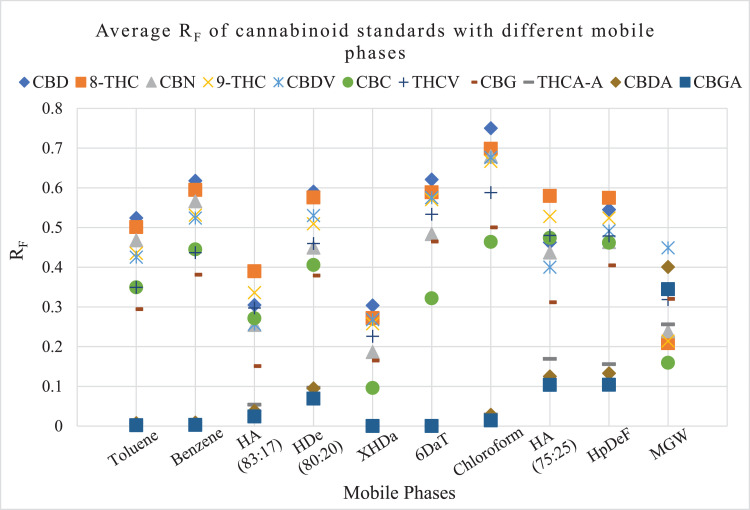

Fig. 2 shows a diagram of the average RF values of 11 cannabinoid standards in 10 mobile phase systems after triplicate analyses. Different colors and shapes in the figure denote different cannabinoid standards and allow the reader to see the relative position of each standard in relation to the others for each of the mobile phase systems.

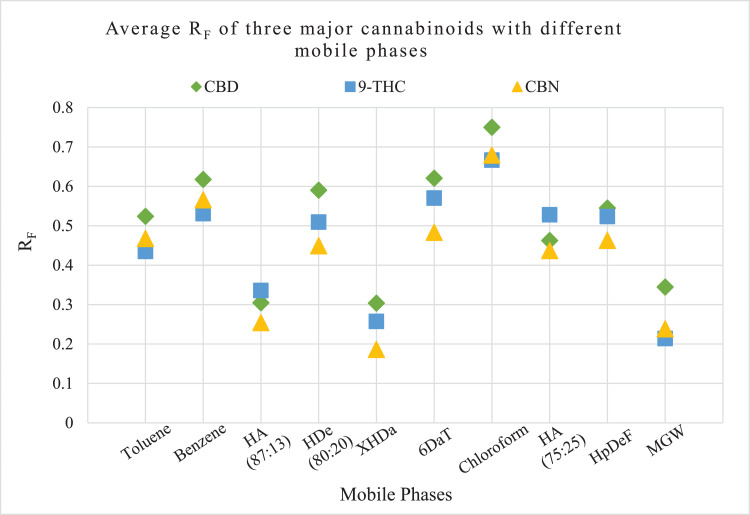

Similarly, Fig. 3 shows a diagram of the average RF values and relative elution order of the three major cannabinoid standards, Δ9-THC, CBD, and CBN, in 10 mobile phase systems.
Table 1 shows an example of the calculated average, standard deviation, CV% of RF values and resolution for 11 cannabinoid standards in one mobile phase, hexane:acetone (87:13) after triplicate analysis. The raw data from which these calculations were made can be found in the excel spreadsheets provided in the supplemental material (S2, S3).Cannabinoids Average RF(+/- St. Dev.) RF CV% Resolution(+/- St. Dev.) 8-THC 0.390 (+/- 0.014) 3.47 9-THC 0.336 (+/- 0.017) 5.09 0.394 (+/- 0.085) CBD 0.305 (+/- 0.012) 3.85 0.092 (+/- 0.041) THCV 0.297 (+/- 0.013) 4.39 0.330 (+/- 0.021) CBC 0.271 (+/- 0.015) 5.40 0.186 (+/- 0.082) CBDV 0.257 (+/- 0.008) 3.12 0.029 (+/- 0.073) CBN 0.254 (+/- 0.013) 5.06 1.432 (+/- 0.128) CBG 0.151 (+/- 0.008) 5.42 1.797 (+/- 0.146) THCA-A 0.054 (+/- 0.001) 2.13 0.383 (+/- 0.039) CBDA 0.038 (+/- 0.001) 3.01 0.347 (+/- 0.035) CBGA 0.024 (+/- 0.003) 11.86 1.250 (+/- 0.140)
S2, S3 shows RF values generated from original reports after each run, where raw and calculated RF values such as average, standard deviation, CV% and resolution of each mobile phase can be found.
A total of 89 samples of suspected cannabis products (77 vegetation, 4 edible gummies, 4 e-cigarettes) were obtained from two crime laboratories and prepared as described previously [2]. The first three case sample plates from both xylene:hexane:diethylamine (25:10:1) (XHDa) and 6% diethylamine:toluene (6DaT) mobile phase systems, as well as Pennsylvania State Police case samples were shown in the previous article [2]. Here we report the rest of the case sample plate images on both mobile phase systems (Fig. 4). Results of all of the case samples by HPTLC can be found in the supplemental material (S4).

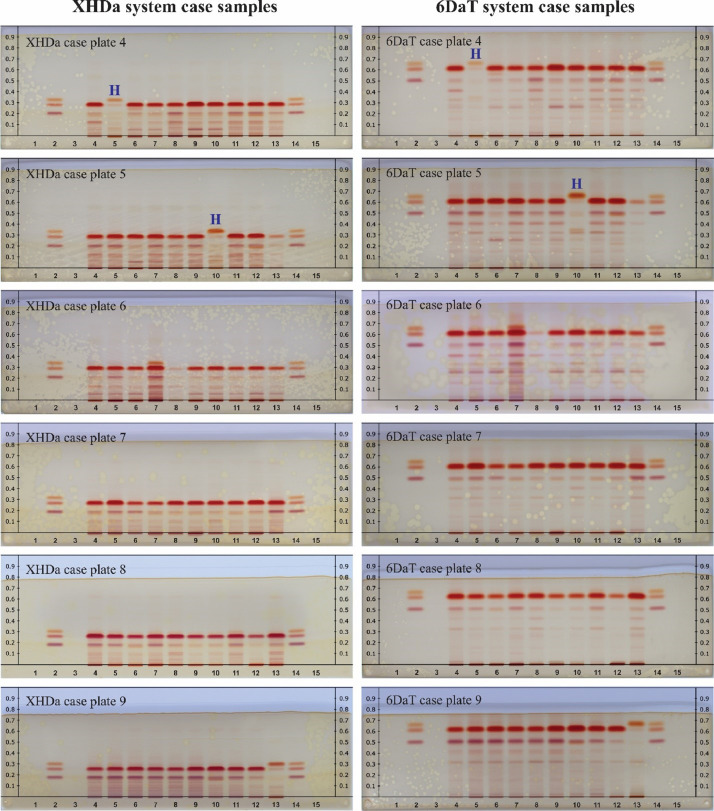

Fig. 4 shows case sample images on both XHDa (left) and 6DaT (right) mobile phase systems. Methanol blanks, reference standards, and internal standards were included on the plates. Lane 4–13 were all vegetation samples. Hemp samples that were confirmed by GC–MS were marked with purple letter H in the figure.
S4 includes all original HPTLC reports for all 89 case samples in both mobile phase systems. Each file includes application format, instrument parameters, images of each plate and RF values.
2Experimental design, materials, and methods
2.1Cannabinoid standards and sample preparation
Working solutions (100 µg/mL) of 11 cannabinoid standards were prepared from the 1-mg/mL certified standard solutions acquired from Cerilliant Corporation by diluting with LC-grade methanol (VWR, Radnor, PA, USA). A mixture of all 11 cannabinoids was prepared by combining a 136 µL aliquot of each standard for a final concentration of 91 µg/mL for each cannabinoid. The 11 cannabinoid standards were analyzed in triplicate by HPTLC with ten mobile phase systems. These same cannabinoid standards were then analyzed an additional seven times on two of the most optimal mobile phase systems, 6DaT and XHDa to validate these systems for case analysis of seized cannabis samples.
A total of 89 samples of suspected cannabis products (77 vegetation, 4 edible gummies, 4 e-cigarettes) were obtained from two crime laboratories and prepared as described in a previous publication [2]. These samples were prepared by personnel at the crime laboratories for analysis by GC–MS. Case samples in this article were all vegetation samples from Ocean County Sheriff's Department in Toms River, New Jersey. To prepare the sample 500 mg of cannabis sample was dried at 60 °C overnight before it was ground. Sample was ground and 100 mg of ground sample was then extracted with 50 mL of chloroform, evaporated to dryness, and reconstituted with 5 mL of 0.2% (w/v) tetracosane in methanol. The extracts were analyzed as received and applied to the HPTLC plates. Case sample application format can be found in (S10) in a previous publication [2].
2.2Methods
All HPTLC plate runs were carried out using the following experimental procedure. A clean plate was put into the TLC visualizer for background documentation purposes prior to each run. Methanol blanks, standard working solutions or case samples were then applied on the plate either in the form of bands (20 × 10 cm plate) or dots (10 × 10 cm plate) using CAMAG automatic TLC sampler 4. The plate was then transferred to the CAMAG automatic development chamber-2 to develop with a selected mobile phase. During development, the plate was first dried for 30 s. A glass chamber underwent a 20 min humidity control and tank saturation step before the plate was lowered into the chamber. Migration distance was set at 70 mm. Once the migration distance was reached, the plate was removed from the mobile phase and dried for five minutes. The plate was then transferred to the CAMAG TLC visualizer for documentation under white light at 254 nm and 366 nm wavelengths. A background image was taken at the beginning of the run which was automatically subtracted by the software. The plate was transferred to the TLC scanner 3 for an intensity scan of samples on the plate after development. The plate was then dipped into a 5% Fast Blue B solution for derivatizing purposes using the CAMAG Chromatogram Immersion Device III. The dipping speed was set to 3 with a dipping time of 5 s. After derivatization, the plate was transferred to the visualizer for the 3rd set of pictures, which were the final images reported in this article.
